1-41 — FUEL PIPING; CHASSIS (#35648) — 51 parça
çizim 12814
124 147 147 41 66 65 147 165
BalonParca AdiParca NoAdetTipApplied Date A B
41 CLIP; FUEL PIPE,FUEL TANK
ID=12 		8-94238-610-0 01 1 0701-0911 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
ID=12 		8-98150-358-0 01 1 0912- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(B) L=140 SERVICED BY L=3000 		0-01262-300-0 01 1 0701- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(A) L=550 SERVICED BY L=3000 		0-01262-300-0 01 1 0701- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(C) 		8-97365-797-2 01 1 0701- ● ●
66 HOSE; FUEL,RETURN PIPE
(A) L=140 SERVICED BY L=3000 		0-01755-300-0 01 1 0701- ● ●
66 HOSE; FUEL,RETURN PIPE
(B) L=550 SERVICED BY L=3000 		0-01755-300-0 01 1 0701- ● ●
66 HOSE; FUEL,RETURN PIPE
(C) 		8-97367-176-2 01 1 0701- ● ●
124 CLIP; HOSE 8-97254-204-1 01 1 0701- ● ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=19 		8-94238-569-0 04 1 0701-0911 ● ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=19 		8-98150-356-0 04 1 0912- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 01 1 0701-0911 ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-98150-358-0 01 1 0912- ● ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=17.8 THA 		8-97351-697-0 02 1 0701- ● ●
165 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 01 1 0701- ● ●
165 CLIP; FUEL HOSE
(B) ID=12 		8-94238-610-0 02 1 0701-0911 ● ●
165 CLIP; FUEL HOSE
(B) ID=12 		8-98150-358-0 02 1 0912- ● ●
165 CLIP; FUEL HOSE
(B) ID=17.8 THA 		8-97351-697-0 02 1 0701- ● ●

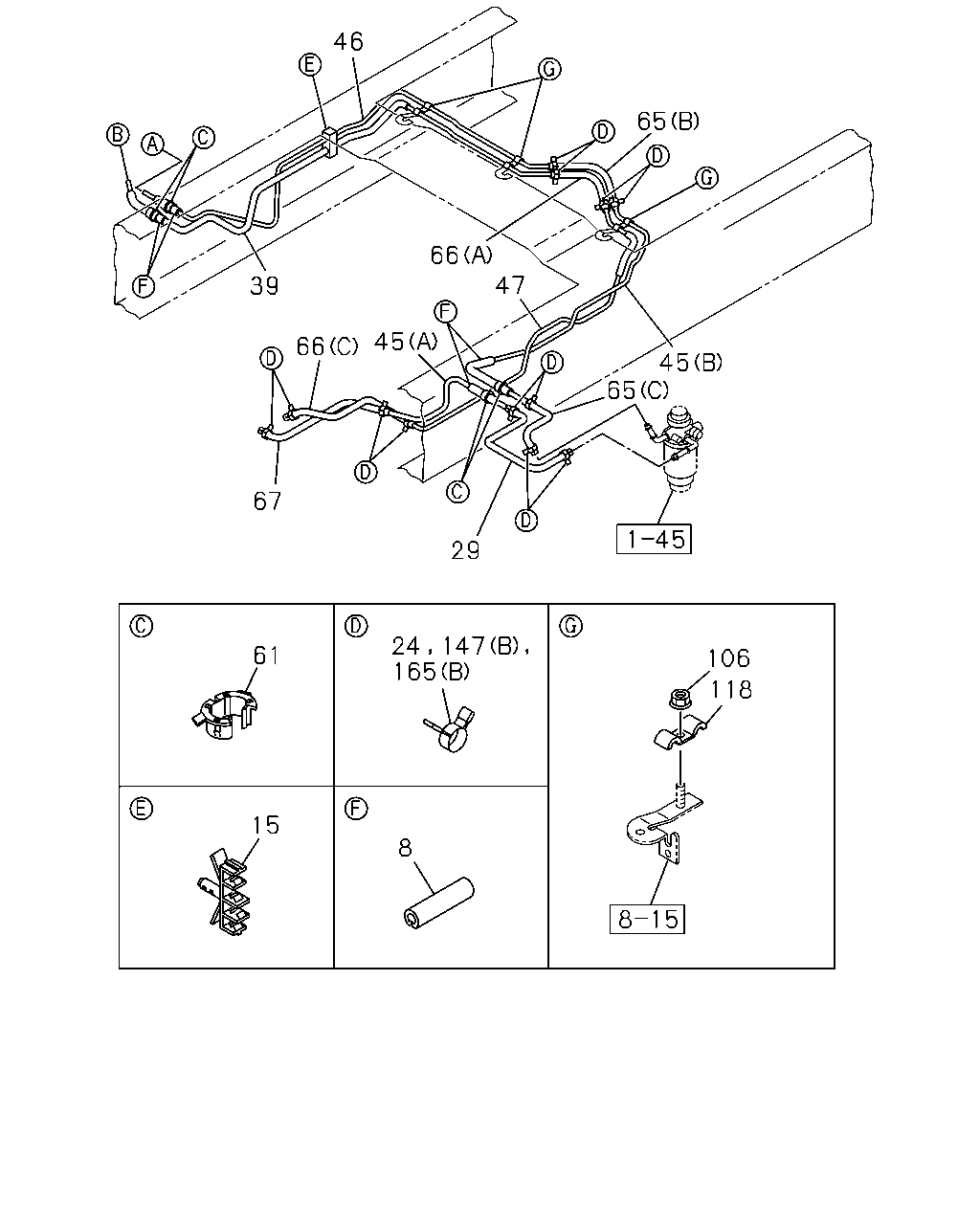

çizim 57369
46 65 66 47 39 45 66 45 65 67 29 165 61 106 118 15 8 24 147
BalonParca AdiParca NoAdetTipApplied Date A B
8 RUBBER; MTG
OD=17 L=50 		8-94157-054-1 01 1 0701- ● ●
8 RUBBER; MTG
OD=16.5 L=50 		8-97214-235-0 02 1 0701- ● ●
15 CLIP; FUEL PIPE
ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 0701- ● ●
15 CLIP; FUEL PIPE
ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 0701- ● ●
24 CLIP; FUEL HOSE
ID=19 		8-94238-569-0 02 1 0701-0911 ● ●
24 CLIP; FUEL HOSE
ID=19 		8-98150-356-0 02 1 0912- ● ●
24 CLIP; FUEL HOSE
ID=12 		8-94238-610-0 02 1 0701-0911 ● ●
24 CLIP; FUEL HOSE
ID=12 		8-98150-358-0 02 1 0912- ● ●
29 HOSE; FUEL 8-98029-920-0 01 1 0701- ● ●
39 PIPE; FUEL
THA 		8-97922-962-0 01 1 0701- ● ●
45 PIPE; FUEL,DELIVERY
(A) THA 		8-97922-922-0 01 1 0701- ● ●
45 PIPE; FUEL,DELIVERY
(B) THA 		8-97922-923-0 01 1 0701- ● ●
46 PIPE; FUEL,TANK SIDE
THA 		8-97922-921-0 01 1 0701- ● ●
47 PIPE; FUEL,RETURN
THA 		8-97922-925-0 01 1 0701- ● ●
61 GROMMET; PIPE TO FRAME
ID=17 		8-94128-319-2 04 1 0701- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(B) L=140 SERVICED BY L=3000 		0-01262-300-0 01 1 0701- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(A) L=550 SERVICED BY L=3000 		0-01262-300-0 01 1 0701- ● ●
65 HOSE; FUEL,DELIVERY PIPE
(C) 		8-97365-797-2 01 1 0701- ● ●
66 HOSE; FUEL,RETURN PIPE
(A) L=140 SERVICED BY L=3000 		0-01755-300-0 01 1 0701- ● ●
66 HOSE; FUEL,RETURN PIPE
(B) L=550 SERVICED BY L=3000 		0-01755-300-0 01 1 0701- ● ●
66 HOSE; FUEL,RETURN PIPE
(C) 		8-97367-176-2 01 1 0701- ● ●
67 HOSE; FUEL,DELIVERY 8-97358-767-3 01 1 0701- ● ●
106 NUT; FUEL PIPE
M6 FLANGE 		0-91180-106-0 03 1 0701- ● ●
118 CLIP; MTG,FUEL PIPE TO FRT SIDE MBR
ID=13 & 7 L=16 & 14 		1-09700-070-0 03 1 0701- ● ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=19 		8-94238-569-0 04 1 0701-0911 ● ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=19 		8-98150-356-0 04 1 0912- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 01 1 0701-0911 ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-98150-358-0 01 1 0912- ● ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=17.8 THA 		8-97351-697-0 02 1 0701- ● ●
165 CLIP; FUEL HOSE
(A) L=140 		5-09707-031-1 01 1 0701- ● ●
165 CLIP; FUEL HOSE
(B) ID=12 		8-94238-610-0 02 1 0701-0911 ● ●
165 CLIP; FUEL HOSE
(B) ID=12 		8-98150-358-0 02 1 0912- ● ●
165 CLIP; FUEL HOSE
(B) ID=17.8 THA 		8-97351-697-0 02 1 0701- ● ●
