Isuzu WW
▶
TRUCKS
▶
NQR
▶
51132 - NQR BUS CHAS(THAI)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#35643) — 13 parça
Tümü
A - NPC5SF
B - NPC5SN
◀
[111A] RADIATOR HOSE (3 parça)

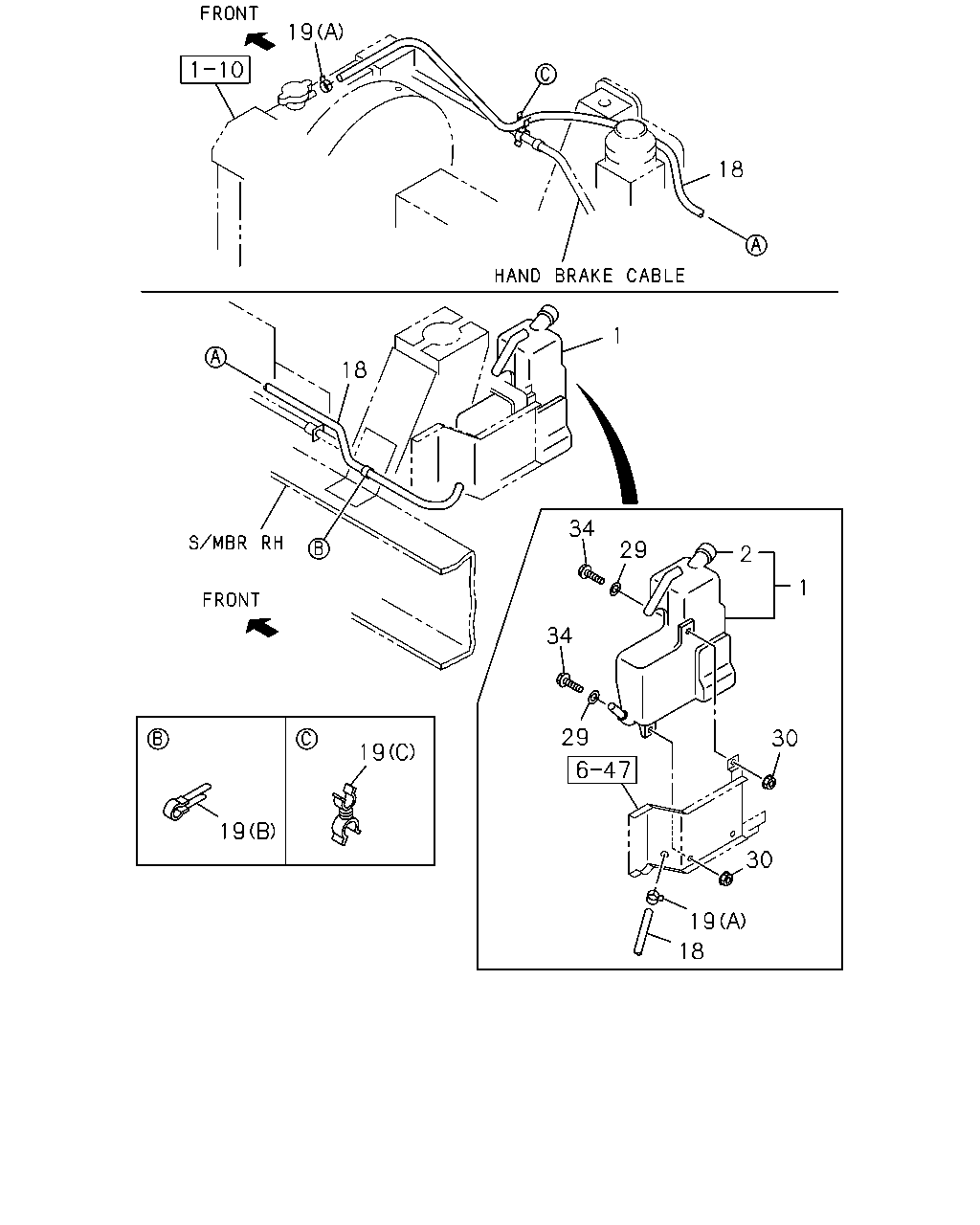

[111A] SURGE TANK AND HOSE (10 parça)
▶
128
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
55
HOSE; WATER,RAD OUTLET
THA
8-97922-913-1
01
1
0701-
●
●
56
CLIP; WATER HOSE,RAD
ID=40
8-97245-216-0
02
1
0701-
●
●
128
HOSE; WATER,RAD INL
THA
8-97922-912-0
01
1
0701-
●
●
19
18
1
18
34
29
2
1
34
29
30
19
19
30
19
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
8-97210-844-0
01
1
0701-
●
●
2
CAP; SURGE TANK
8-97217-796-0
01
1
0701-
●
●
18
HOSE; RAD TO SURGE TANK
L=1520
8-97376-968-1
01
1
0701-
●
●
19
CLIP; HOSE,SURGE TANK
(B) ID=14 L=47
5-09700-319-0
02
1
0701-
●
●
19
CLIP; HOSE,SURGE TANK
(A) ID=12
8-94238-610-0
02
1
0701-0911
●
●
19
CLIP; HOSE,SURGE TANK
(A) ID=12
8-98150-358-0
02
1
0912-
●
●
19
CLIP; HOSE,SURGE TANK
(C) ID=10 & 11 THA
8-94438-996-0
01
1
0701-
●
●
29
WASHER; PL,RESERVE TANK
ID=6.4 OD=18
0-91610-706-0
03
1
0701-
●
●
30
NUT
M6 FLANGE
0-91180-106-0
03
1
0701-
●
●
34
BOLT; RESERVE TANK
M6X20 FLANGE
0-28650-620-0
03
1
0701-
●
●
