◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#35641) — 19 parça

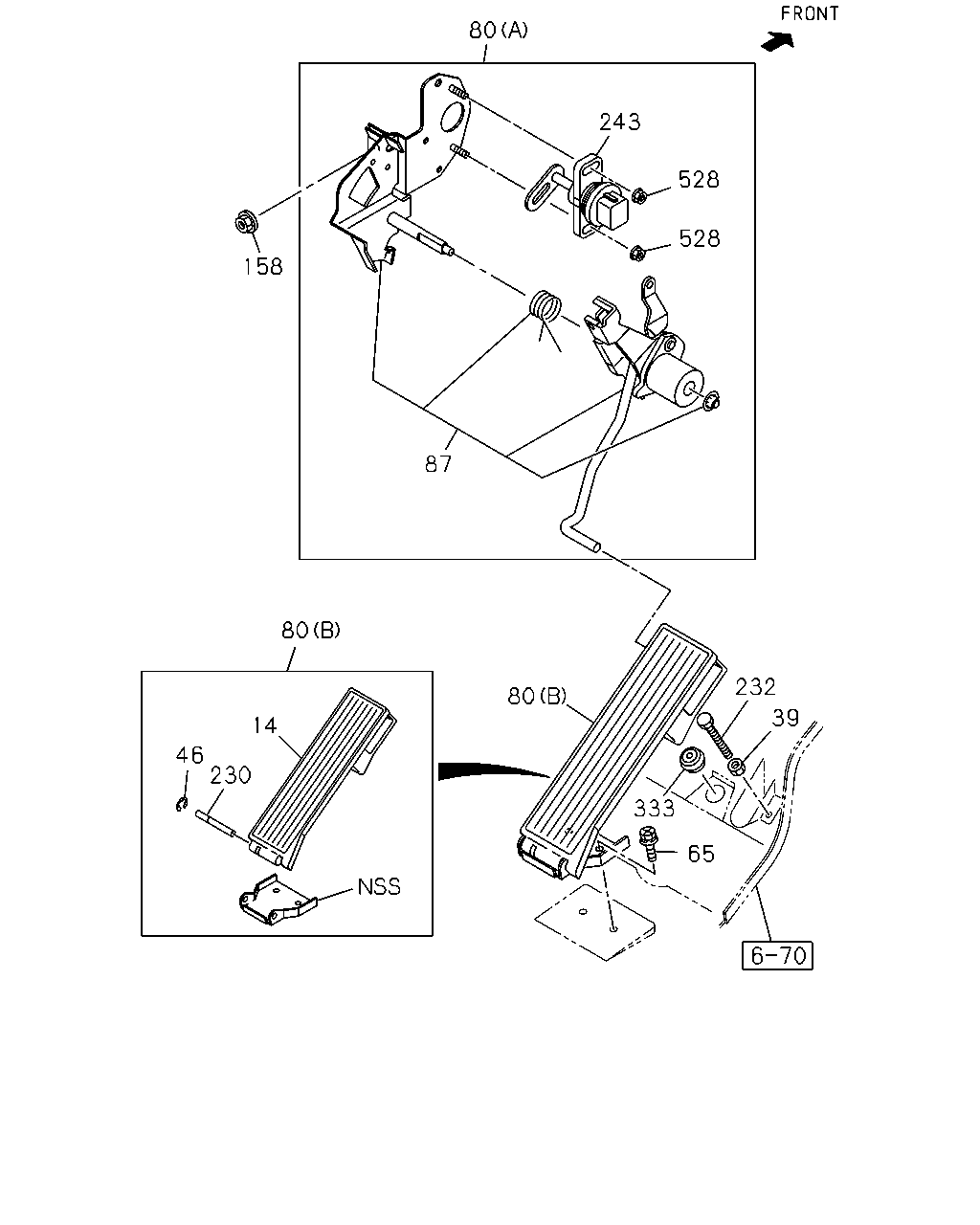

çizim 56596
80 243 528 528 158 87 80 232 80 39 14 46 230 333 65
BalonParca AdiParca NoAdetTipApplied Date A B
14 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 0701- ● ●
39 NUT; ACCEL PEDAL STOPPER
M8 		9-09110-408-0 01 1 0701-0702 ● ●
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0701- ● ●
65 BOLT
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0701- ● ●
80 LINK ASM; ENG CONT
(B) 		8-97853-061-2 01 1 0701- ● ●
80 LINK ASM; ENG CONT
(A) 		8-97997-556-6 01 1 0701- ● ●
87 LINK; ENG CONT 8-97581-415-5 01 1 0701- ● ●
158 NUT; BRKT
M8 FLANGE 		8-94279-060-0 02 1 0701- ● ●
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-97853-064-0 01 1 0701- ● ●
232 BOLT; STOPPER,ACCEL PEDAL
M8X45 		8-97378-461-0 01 1 0701- ● ●
242 NUT; ACCEL PEDAL
M8 FLANGE 		0-91180-108-0 02 1 0702- ●
243 SENSOR; ACCEL 8-97602-416-0 01 1 0701- ● ●
333 GROMMET; HOLE,CABLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0701- ● ●
528 NUT; ACCEL SENSOR
M5 		8-94169-022-0 02 1 0701- ● ●

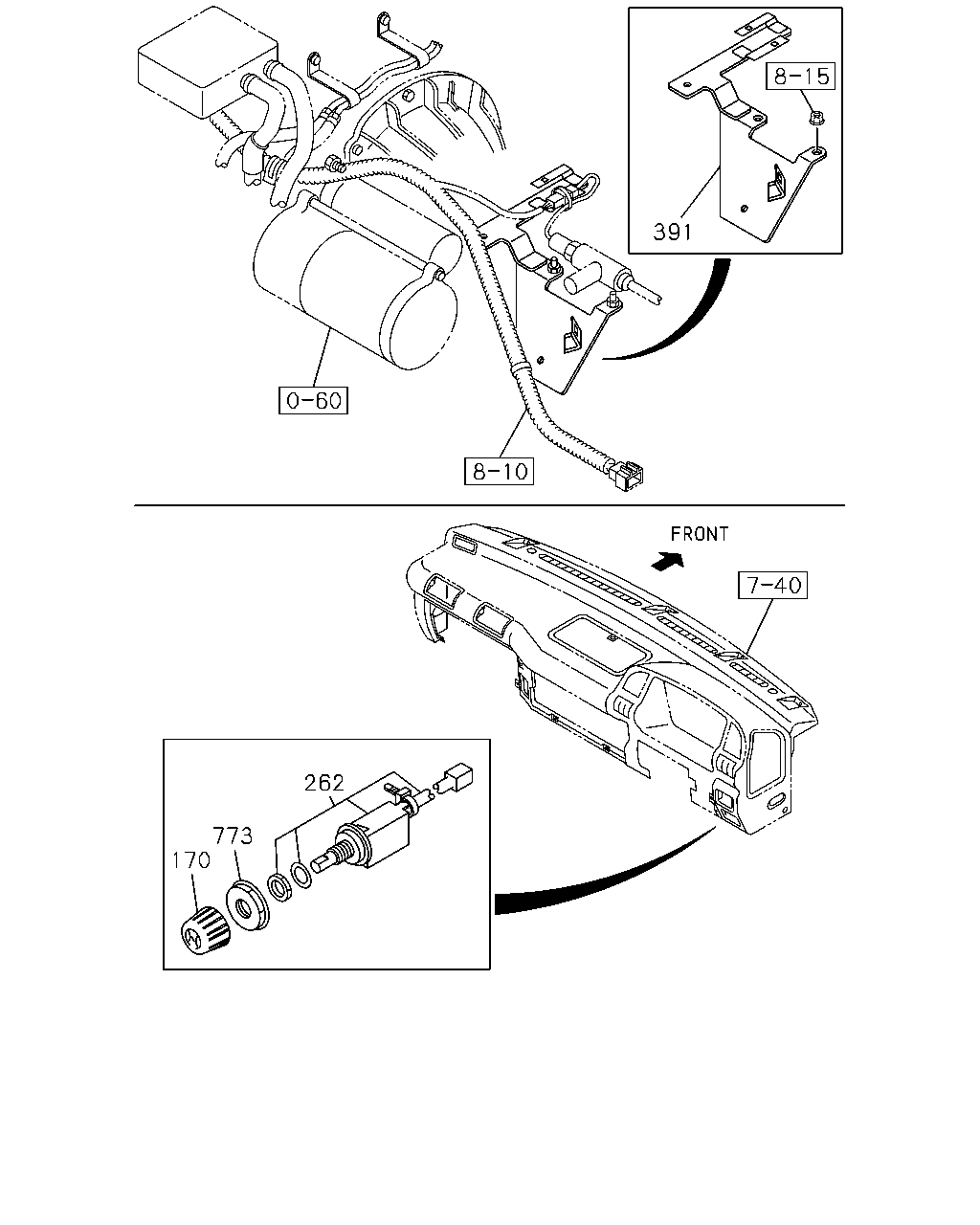

çizim 58281
391 262 773 170
BalonParca AdiParca NoAdetTipApplied Date A B
170 KNOB 8-97310-165-0 01 1 0701- ● ●
242 NUT; ACCEL PEDAL
M8 FLANGE 		0-91180-108-0 02 1 0702- ●
262 SWITCH; ACCEL,IDLE 8-97215-119-1 01 1 0701- ● ●
391 BRACKET; ENG CONT 8-97357-141-0 01 1 0701- ● ●
773 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 0701- ● ●
