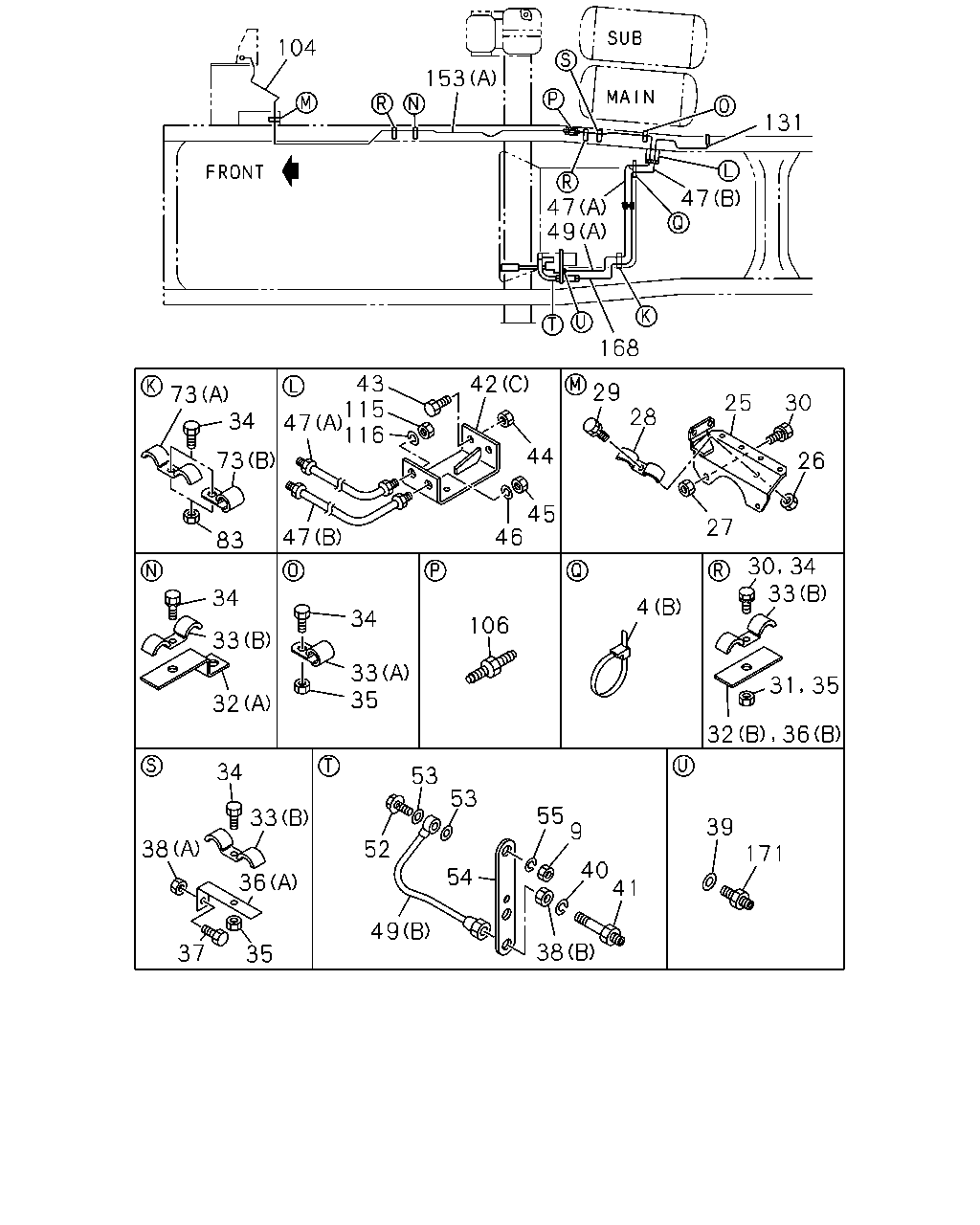

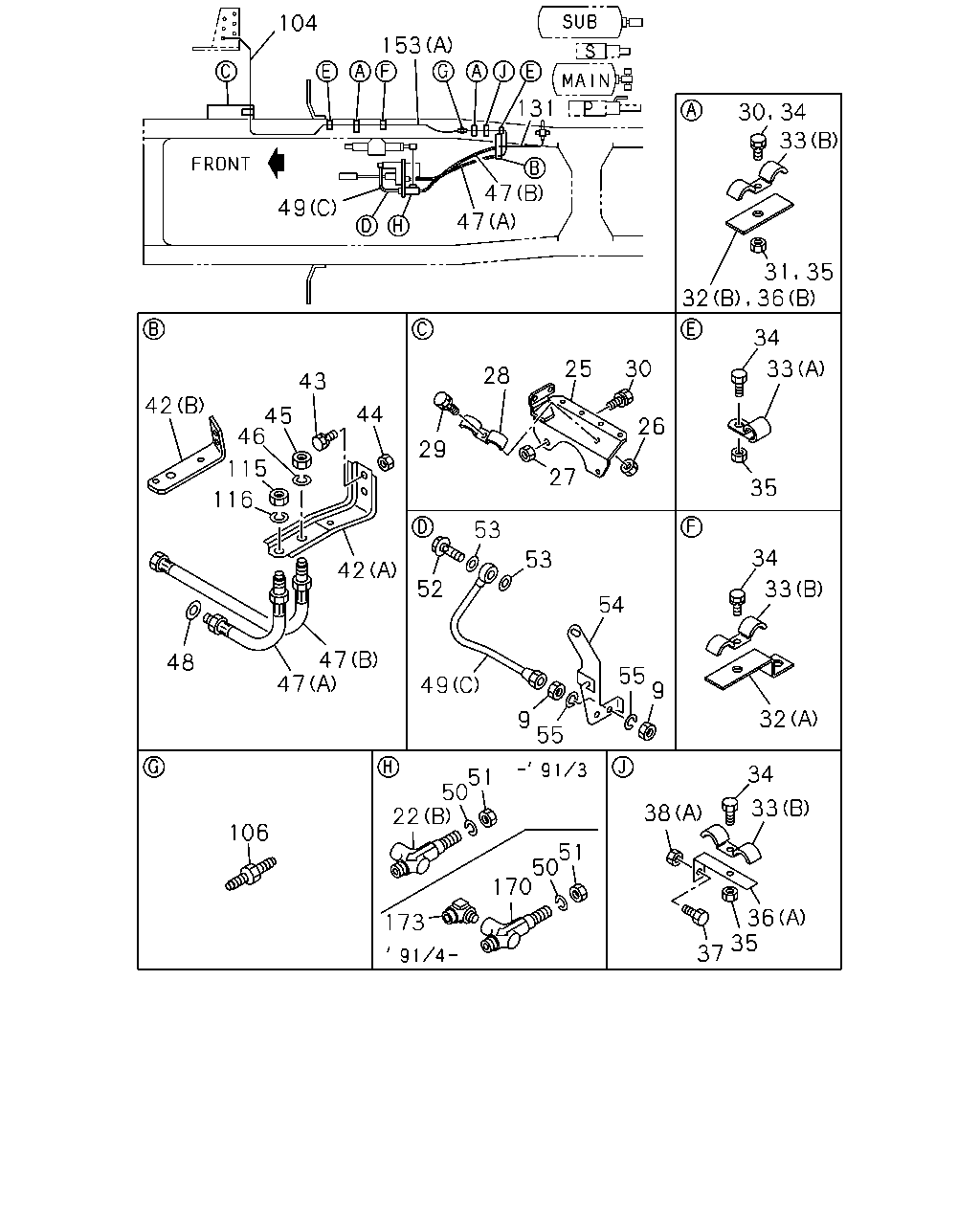

2-05 — CLUTCH PIPING (#3564) — 391 parça

104 153 131 33 47 49 47 34 25 30 33 28 43 42 44 45 46 26 115 29 27 35 116 53 34 53 42 52 33 54 47 47 48 55 9 49 32 9 55 34 51 50 22 33 38 106 51 50 170 36 35 37 173 30 34 32 36 31 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	NUT; BRKT,FLEX HOSE M10	9-09110-410-0	02	1	9002-9205	●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
9	NUT; BRKT,FLEX HOSE M8	9-09110-408-0	02	1	9002-				●	●	●	●
22	UNION; CLU PIPE ASSISTER SHIFT CONTROL<WX8> (B)	1-09656-459-0	01	1	9002-9103	●	●	●
22	UNION; CLU PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9002-	●	●	●	●	●	●	●
25	BRACKET; OIL PIPE	1-47475-894-0	01	1	9002-9306	●	●	●	●	●	●	●
25	BRACKET; OIL PIPE	1-47476-835-0	01	1	9307-	●	●	●	●			●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-	●	●	●	●	●	●	●
27	NUT; BRKT M8	9-09110-408-0	02	1	9002-9306	●	●	●	●	●	●	●
27	NUT; BRKT M8	9-09110-408-0	01	1	9307-	●	●	●	●			●
28	CLIP; OIL PIPE ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●			●
30	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
30	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●	●	●	●	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●	●	●	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●	●	●			●
30	BOLT; BRKT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●	●	●	●		●	●
30	BOLT; BRKT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302	●	●	●	●		●	●
30	BOLT; BRKT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8X16 FLANGE	0-28080-816-0	02	1	9303-	●	●	●	●		●	●
31	NUT; BRKT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8	9-09110-408-0	02	1	9002-	●	●	●	●		●	●
32	BRACKET; CLIP OIL PIPE (A)	1-47475-774-0	01	1	9002-	●	●	●	●	●	●	●
32	BRACKET; CLIP OIL PIPE 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B) L=50	1-47475-299-2	02	1	9002-	●	●	●	●		●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9306	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9002-9307	●	●	●	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9308-	●	●	●				●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=11 & 9 L=20 & 18	1-09700-713-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=16	9-09524-822-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9307-9307	●		●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9308-	●		●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9303-9306	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204				●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302				●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-				●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9307-9307	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9308-	●	●	●				●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-	●	●	●	●			●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●		●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302	●		●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X16 FLANGE	0-28080-816-0	02	1	9303-9306	●		●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9308-	●		●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-	●	●	●	●	●	●	●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9002-9306	●		●	●	●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8	9-09110-408-0	02	1	9307-	●	●	●				●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09110-408-0	03	1	9307-	●		●	●
36	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	9002-	●	●	●	●	●	●	●
36	BRACKET; CLIP 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B) L=50	1-47475-299-2	02	1	9307-	●	●	●				●
36	BRACKET; CLIP 10PD1 STD ENG(40L) (B) L=50	1-47475-299-2	02	1	9002-9306	●		●	●	●
36	BRACKET; CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) L=50	1-47475-299-2	03	1	9307-	●		●	●
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●	●	●	●	●	●
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●	●	●	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●	●	●	●	●	●
38	NUT; CLIP BRKT (A) M8	9-09110-408-0	01	1	9002-	●	●	●	●	●	●	●
38	NUT; CLIP BRKT (B) M12	9-09840-280-0	01	1	9002-				●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L),12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-47475-815-3	01	1	9002-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 10PD1 STD ENG(40L) (A)	1-47475-815-3	01	1	9002-	●		●
42	BRACKET; FLEX HOSE,CLU CONT 6RB1TC-N ENG(29L),12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (B)	1-47476-453-0	01	1	9002-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47475-592-2	01	1	9002-				●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9002-	●	●	●	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT M16	9-99111-416-0	02	1	9002-	●	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	9002-				●	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=16.2	9-09150-516-0	02	1	9002-	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=16.2	9-09150-516-0	02	1	9307-9312	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	02	1	9002-				●	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	02	1	9307-9312				●	●	●	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (B) OIL L=500	1-09364-329-0	01	1	9002-	●		●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> (A) AIR L=460	0-07472-460-1	01	1	9002-	●		●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) AIR L=590	0-07424-590-0	01	1	9002-	●		●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) AIR L=460	0-07424-460-0	01	1	9002-	●	●	●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (B) OIL L=390	1-09364-475-0	01	1	9002-	●	●	●
47	HOSE; FLEX,CLU CONT 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (A) AIR L=410	0-07472-410-1	01	1	9307-	●
47	HOSE; FLEX,CLU CONT 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (B) OIL L=470	1-09364-692-0	01	1	9307-	●
47	HOSE; FLEX,CLU CONT 12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) AIR L=490	0-07422-490-0	01	1	9307-	●
47	HOSE; FLEX,CLU CONT 12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> (B) OIL L=450	1-09364-369-0	01	1	9307-	●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (A) AIR L=500	0-07472-500-1	01	1	9002-		●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (B) OIL L=450	1-09364-369-0	01	1	9002-9110		●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (B) OIL L=600	1-09364-705-0	01	1	9111-		●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L) (A) AIR L=320	0-07030-320-0	01	1	9002-				●		●	●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L) (B) OIL L=320	1-09364-477-0	01	1	9002-				●		●	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (A) AIR L=450	0-07030-450-0	01	1	9002-				●	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (B) OIL L=445	1-09364-478-0	01	1	9002-				●	●
48	GASKET; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-9412	●	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-9412	●		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9501-	●	●	●
48	GASKET; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	9501-	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) L=254	1-47487-082-0	01	1	9002-9212	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) L=254	1-47498-136-0	01	1	9301-9306	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) L=254	1-47496-282-0	01	1	9307-	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1TC-N ENG(29L),12PD1 C ENG(43L) (C) L=275	1-47496-283-0	01	1	9307-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1TC-N ENG(29L) (C) L=275	1-47487-119-0	01	1	9012-9212		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1TC-N ENG(29L) (C) L=275	1-47498-236-0	01	1	9301-9306		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=615 SERVICED BY L=660	1-47437-954-0	01	1	9002-9306				●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=632 SERVICED BY L=660	1-47426-381-0	01	1	9307-				●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=206	1-47439-426-1	01	1	9002-				●	●	●	●
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> M16	9-99111-416-0	01	1	9002-	●	●	●
51	WASHER; LK ASSISTER SHIFT CONTROL<WX8> ID=16.2	9-09150-516-0	01	1	9002-	●	●	●
51	WASHER; LK ASSISTER SHIFT CONTROL<WX8> ID=16.2	9-09150-516-0	01	1	9307-9312	●	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●	●	●	●	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●	●	●	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-304-0	01	1	9002-9306	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-801-0	01	1	9307-	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47465-890-0	01	1	9002-				●	●	●	●
55	WASHER; LK,BRKT,FLEX HOSE ID=10.2	9-09150-510-0	02	1	9002-9205	●	●	●
55	WASHER; LK,BRKT,FLEX HOSE ID=8.2	9-09150-508-0	02	1	9002-				●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) L=1978 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306	●	●	●	●		●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) L=1986 SERVICED BY L=2150	1-47426-394-0	01	1	9307-	●	●	●				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L) L=2489 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306	●		●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L),12PD1 C ENG(43L) L=2537 SERVICED BY L=2700	1-47426-396-0	01	1	9307-	●		●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9002-	●	●	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9002-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-				●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9002-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9307-9312	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9002-				●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9307-9312				●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=632 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306	●		●
131	PIPE; AIR,UNION TO FLEX HOSE 12PD1 C ENG(43L) L=618 SERVICED BY L=660	1-47426-409-0	01	1	9307-	●
131	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=660 SERVICED BY L=700	1-47426-410-0	01	1	9307-	●		●
131	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> L=561 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=561 SERVICED BY L=600	1-47426-408-0	01	1	9307-	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ASSISTER SHIFT CONTROL<WX8> L=538	1-47491-710-0	01	1	9012-9306		●
131	PIPE; AIR,UNION TO FLEX HOSE ASSISTER SHIFT CONTROL<WX8> L=538 SERVICED BY L=600	1-47426-408-0	01	1	9307-		●
131	PIPE; AIR,UNION TO FLEX HOSE L=306 SERVICED BY L=350	9-47415-348-0	01	1	9002-				●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=698 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306	●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=707 SERVICED BY L=730	1-47426-382-0	01	1	9307-9405	●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=717 SERVICED BY L=730	1-47426-382-0	01	1	9406-	●		●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX ASSISTER SHIFT CONTROL<WX8> (A) L=1301 SERVICED BY L=1400	1-47426-389-0	01	1	9307-		●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306	●	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47426-388-0	01	1	9307-	●	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) (A) L=764 SERVICED BY L=800	1-47426-383-0	01	1	9307-9405	●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) (A) L=774 SERVICED BY L=800	1-47426-383-0	01	1	9406-	●
153	PIPE ASM; CLU,UNION TO FLEX ASSISTER SHIFT CONTROL<WX8> (A) L=1300 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306		●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) (A) L=1255 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) (A) L=1023 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306				●		●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1023 SERVICED BY L=1100	1-47426-387-0	01	1	9307-							●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=528 SERVICED BY L=550	1-47437-953-0	01	1	9002-9306				●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=533 SERVICED BY L=550	1-47426-377-0	01	1	9307-9405				●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=538 SERVICED BY L=550	1-47426-377-0	01	1	9406-				●
170	UNION; AIR PIPE ASSISTER SHIFT CONTROL<WX8>	1-09656-173-1	01	1	9104-	●	●	●
173	CONNECTOR ASSISTER SHIFT CONTROL<WX8>	1-09660-137-0	01	1	9104-9302	●	●	●
173	CONNECTOR ASSISTER SHIFT CONTROL<WX8>	1-09660-681-0	01	1	9303-	●	●	●

104 153 131 47 49 47 168 43 115 116 42 29 28 73 34 25 30 47 44 73 26 45 46 27 47 83 33 34 4 34 106 33 33 35 32 34 53 53 55 9 33 39 38 52 171 40 41 54 36 49 38 37 35 30 34 31 35 36 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-1	01	1	9002-	●	●	●	●	●	●	●
4	CLIP; FLEX HOSE,CLU CONT (B) L=140	5-09707-031-1	01	1	9002-				●	●	●	●
9	NUT; BRKT,FLEX HOSE M10	9-09110-410-0	02	1	9002-9205	●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
9	NUT; BRKT,FLEX HOSE M8	9-09110-408-0	02	1	9002-				●	●	●	●
25	BRACKET; OIL PIPE	1-47475-894-0	01	1	9002-9306	●	●	●	●	●	●	●
25	BRACKET; OIL PIPE	1-47476-835-0	01	1	9307-	●	●	●	●			●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-	●	●	●	●	●	●	●
27	NUT; BRKT M8	9-09110-408-0	02	1	9002-9306	●	●	●	●	●	●	●
27	NUT; BRKT M8	9-09110-408-0	01	1	9307-	●	●	●	●			●
28	CLIP; OIL PIPE ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●			●
30	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
30	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●	●	●	●	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●	●	●	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●	●	●			●
30	BOLT; BRKT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●	●	●	●		●	●
30	BOLT; BRKT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302	●	●	●	●		●	●
30	BOLT; BRKT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8X16 FLANGE	0-28080-816-0	02	1	9303-	●	●	●	●		●	●
31	NUT; BRKT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8	9-09110-408-0	02	1	9002-	●	●	●	●		●	●
32	BRACKET; CLIP OIL PIPE (A)	1-47475-774-0	01	1	9002-	●	●	●	●	●	●	●
32	BRACKET; CLIP OIL PIPE 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B) L=50	1-47475-299-2	02	1	9002-	●	●	●	●		●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9306	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9002-9307	●	●	●	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9308-	●	●	●				●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=11 & 9 L=20 & 18	1-09700-713-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=16	9-09524-822-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9307-9307	●		●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9308-	●		●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9303-9306	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204				●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302				●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-				●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9307-9307	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9308-	●	●	●				●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-	●	●	●	●			●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●		●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302	●		●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X16 FLANGE	0-28080-816-0	02	1	9303-9306	●		●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9308-	●		●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-	●	●	●	●	●	●	●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9002-9306	●		●	●	●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8	9-09110-408-0	02	1	9307-	●	●	●				●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09110-408-0	03	1	9307-	●		●	●
36	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	9002-	●	●	●	●	●	●	●
36	BRACKET; CLIP 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B) L=50	1-47475-299-2	02	1	9307-	●	●	●				●
36	BRACKET; CLIP 10PD1 STD ENG(40L) (B) L=50	1-47475-299-2	02	1	9002-9306	●		●	●	●
36	BRACKET; CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) L=50	1-47475-299-2	03	1	9307-	●		●	●
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●	●	●	●	●	●
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●	●	●	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●	●	●	●	●	●
38	NUT; CLIP BRKT (A) M8	9-09110-408-0	01	1	9002-	●	●	●	●	●	●	●
38	NUT; CLIP BRKT (B) M12	9-09840-280-0	01	1	9002-				●	●	●	●
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-				●	●	●	●
40	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9002-				●	●	●	●
41	UNION; AIR PIPE M12 L=62.5	9-09223-206-1	01	1	9002-				●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L),12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-47475-815-3	01	1	9002-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 10PD1 STD ENG(40L) (A)	1-47475-815-3	01	1	9002-	●		●
42	BRACKET; FLEX HOSE,CLU CONT 6RB1TC-N ENG(29L),12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (B)	1-47476-453-0	01	1	9002-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47475-592-2	01	1	9002-				●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9002-	●	●	●	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT M16	9-99111-416-0	02	1	9002-	●	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	9002-				●	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=16.2	9-09150-516-0	02	1	9002-	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=16.2	9-09150-516-0	02	1	9307-9312	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	02	1	9002-				●	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	02	1	9307-9312				●	●	●	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (B) OIL L=500	1-09364-329-0	01	1	9002-	●		●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> (A) AIR L=460	0-07472-460-1	01	1	9002-	●		●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) AIR L=590	0-07424-590-0	01	1	9002-	●		●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) AIR L=460	0-07424-460-0	01	1	9002-	●	●	●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (B) OIL L=390	1-09364-475-0	01	1	9002-	●	●	●
47	HOSE; FLEX,CLU CONT 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (A) AIR L=410	0-07472-410-1	01	1	9307-	●
47	HOSE; FLEX,CLU CONT 12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (B) OIL L=470	1-09364-692-0	01	1	9307-	●
47	HOSE; FLEX,CLU CONT 12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) AIR L=490	0-07422-490-0	01	1	9307-	●
47	HOSE; FLEX,CLU CONT 12PD1 C ENG(43L) EXC. ASSISTER SHIFT CONTROL<WX8> (B) OIL L=450	1-09364-369-0	01	1	9307-	●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (A) AIR L=500	0-07472-500-1	01	1	9002-		●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (B) OIL L=450	1-09364-369-0	01	1	9002-9110		●
47	HOSE; FLEX,CLU CONT ASSISTER SHIFT CONTROL<WX8> (B) OIL L=600	1-09364-705-0	01	1	9111-		●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L) (A) AIR L=320	0-07030-320-0	01	1	9002-				●		●	●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L) (B) OIL L=320	1-09364-477-0	01	1	9002-				●		●	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (A) AIR L=450	0-07030-450-0	01	1	9002-				●	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (B) OIL L=445	1-09364-478-0	01	1	9002-				●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) L=254	1-47487-082-0	01	1	9002-9212	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) L=254	1-47498-136-0	01	1	9301-9306	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) L=254	1-47496-282-0	01	1	9307-	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1TC-N ENG(29L),12PD1 C ENG(43L) (C) L=275	1-47496-283-0	01	1	9307-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1TC-N ENG(29L) (C) L=275	1-47487-119-0	01	1	9012-9212		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1TC-N ENG(29L) (C) L=275	1-47498-236-0	01	1	9301-9306		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=615 SERVICED BY L=660	1-47437-954-0	01	1	9002-9306				●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=632 SERVICED BY L=660	1-47426-381-0	01	1	9307-				●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=206	1-47439-426-1	01	1	9002-				●	●	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●	●	●	●	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●	●	●	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-304-0	01	1	9002-9306	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-801-0	01	1	9307-	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47465-890-0	01	1	9002-				●	●	●	●
55	WASHER; LK,BRKT,FLEX HOSE ID=10.2	9-09150-510-0	02	1	9002-9205	●	●	●
55	WASHER; LK,BRKT,FLEX HOSE ID=8.2	9-09150-508-0	02	1	9002-				●	●	●	●
73	CLIP; OIL PIPE (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-				●	●	●	●
73	CLIP; OIL PIPE (B) ID=35 L=35 W/NUT	1-09700-684-0	01	1	9002-9208				●	●	●	●
73	CLIP; OIL PIPE (B) ID=35 H=45 L=33	1-09700-947-0	01	1	9209-				●	●	●	●
83	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-				●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) L=1978 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306	●	●	●	●		●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) L=1986 SERVICED BY L=2150	1-47426-394-0	01	1	9307-	●	●	●				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L) L=2489 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306	●		●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L),12PD1 C ENG(43L) L=2537 SERVICED BY L=2700	1-47426-396-0	01	1	9307-	●		●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9002-	●	●	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9002-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-				●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9002-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9307-9312	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9002-				●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9307-9312				●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=632 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306	●		●
131	PIPE; AIR,UNION TO FLEX HOSE 12PD1 C ENG(43L) L=618 SERVICED BY L=660	1-47426-409-0	01	1	9307-	●
131	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=660 SERVICED BY L=700	1-47426-410-0	01	1	9307-	●		●
131	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> L=561 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=561 SERVICED BY L=600	1-47426-408-0	01	1	9307-	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ASSISTER SHIFT CONTROL<WX8> L=538	1-47491-710-0	01	1	9012-9306		●
131	PIPE; AIR,UNION TO FLEX HOSE ASSISTER SHIFT CONTROL<WX8> L=538 SERVICED BY L=600	1-47426-408-0	01	1	9307-		●
131	PIPE; AIR,UNION TO FLEX HOSE L=306 SERVICED BY L=350	9-47415-348-0	01	1	9002-				●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=698 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306	●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=707 SERVICED BY L=730	1-47426-382-0	01	1	9307-9405	●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=717 SERVICED BY L=730	1-47426-382-0	01	1	9406-	●		●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX ASSISTER SHIFT CONTROL<WX8> (A) L=1301 SERVICED BY L=1400	1-47426-389-0	01	1	9307-		●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306	●	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47426-388-0	01	1	9307-	●	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) (A) L=764 SERVICED BY L=800	1-47426-383-0	01	1	9307-9405	●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) (A) L=774 SERVICED BY L=800	1-47426-383-0	01	1	9406-	●
153	PIPE ASM; CLU,UNION TO FLEX ASSISTER SHIFT CONTROL<WX8> (A) L=1300 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306		●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) (A) L=1255 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) (A) L=1023 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306				●		●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1023 SERVICED BY L=1100	1-47426-387-0	01	1	9307-							●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=528 SERVICED BY L=550	1-47437-953-0	01	1	9002-9306				●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=533 SERVICED BY L=550	1-47426-377-0	01	1	9307-9405				●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=538 SERVICED BY L=550	1-47426-377-0	01	1	9406-				●
168	PIPE; AIR,FLEX HOSE TO UNION L=693 SERVICED BY L=700	1-47434-466-0	01	1	9002-				●	●	●	●
171	CONNECTOR; CLU BOOSTER	1-09650-256-1	01	1	9002-				●	●	●	●

58 58 57 63 58 62 24 67 66 67 176 153 65 64 34 33 35 10 175 22 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	HOSE; FLEX,CLU CONT L=840	1-09364-466-0	01	1	9002-	●	●	●	●	●	●	●
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-1	01	1	9002-	●	●	●	●	●	●	●
4	CLIP; FLEX HOSE,CLU CONT (B) L=140	5-09707-031-1	01	1	9002-				●	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-	●	●	●	●	●	●	●
22	UNION; CLU PIPE ASSISTER SHIFT CONTROL<WX8> (B)	1-09656-459-0	01	1	9002-9103	●	●	●
22	UNION; CLU PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9002-	●	●	●	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=933	1-47416-511-2	01	1	9002-9306	●	●	●	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=933	1-47425-256-0	01	1	9307-	●	●	●	●			●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9306	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9002-9307	●	●	●	●	●	●	●
33	CLIP; OIL PIPE 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9308-	●	●	●				●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=11 & 9 L=20 & 18	1-09700-713-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=16	9-09524-822-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9307-9307	●		●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9308-	●		●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9303-9306	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204				●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302				●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-				●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9307-9307	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9308-	●	●	●				●
34	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-	●	●	●	●			●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●		●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302	●		●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) M8X16 FLANGE	0-28080-816-0	02	1	9303-9306	●		●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9308-	●		●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-	●	●	●	●	●	●	●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9002-9306	●		●	●	●
35	NUT; PIPE CLIP 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M8	9-09110-408-0	02	1	9307-	●	●	●				●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09110-408-0	03	1	9307-	●		●	●
57	HOSE; CLU M/CYL TO OIL TANK L=1800	1-09360-320-0	01	1	9002-	●	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=15	1-09704-018-1	02	1	9002-9006	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=16	1-09707-171-0	02	1	9007-	●	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (B) ID=15	1-09987-115-0	01	1	9002-	●	●	●	●	●	●	●
62	CLIP; CLU PIPE ID=9 H=20 L=20	9-09527-008-0	01	1	9002-	●	●	●	●	●	●	●
63	BOLT; CLIP,PIPE M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9002-	●	●	●	●	●	●	●
64	SEAL; EYE JOINT,CLU M/CYL	1-73998-453-0	01	1	9002-	●	●	●	●	●	●	●
65	WASHER; PL,SEAL,CLU M/CYL ID=15 OD=30	9-09160-614-0	01	1	9002-	●	●	●	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9002-	●	●	●	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9002-	●	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=698 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306	●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=707 SERVICED BY L=730	1-47426-382-0	01	1	9307-9405	●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=717 SERVICED BY L=730	1-47426-382-0	01	1	9406-	●		●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX ASSISTER SHIFT CONTROL<WX8> (A) L=1301 SERVICED BY L=1400	1-47426-389-0	01	1	9307-		●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306	●	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1206 SERVICED BY L=1250	1-47426-388-0	01	1	9307-	●	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) (A) L=764 SERVICED BY L=800	1-47426-383-0	01	1	9307-9405	●
153	PIPE ASM; CLU,UNION TO FLEX 12PD1 C ENG(43L) (A) L=774 SERVICED BY L=800	1-47426-383-0	01	1	9406-	●
153	PIPE ASM; CLU,UNION TO FLEX ASSISTER SHIFT CONTROL<WX8> (A) L=1300 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306		●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) (A) L=1255 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) (A) L=1023 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306				●		●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1023 SERVICED BY L=1100	1-47426-387-0	01	1	9307-							●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) (A) L=528 SERVICED BY L=550	1-47437-953-0	01	1	9002-9306				●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=533 SERVICED BY L=550	1-47426-377-0	01	1	9307-9405				●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=538 SERVICED BY L=550	1-47426-377-0	01	1	9406-				●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●	●	●	●
176	JOINT; EYE,CLU M/CYL FLUID	1-09674-088-0	01	1	9002-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
