0-66 — GENERATOR (#35639) — 21 parça

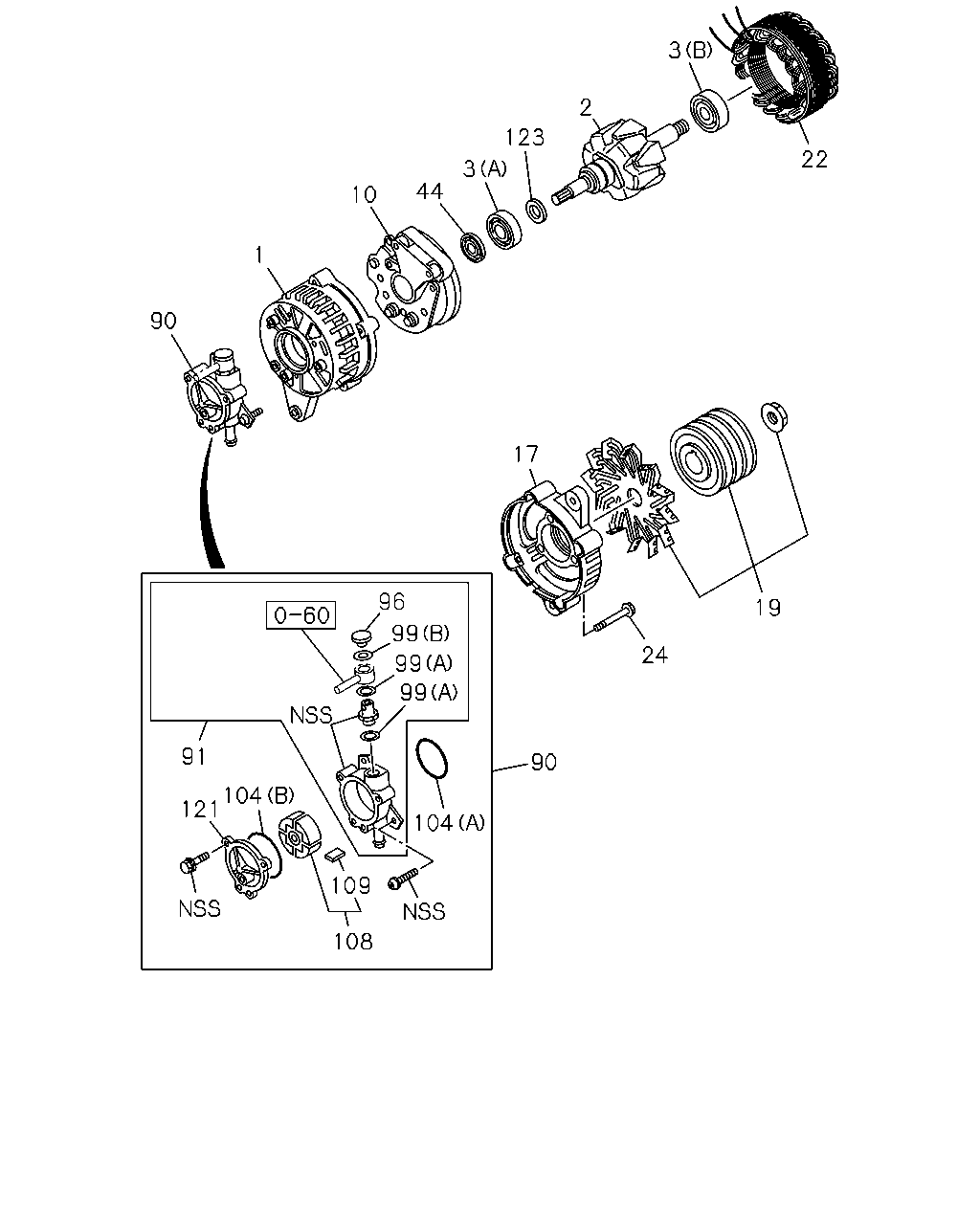

çizim 56658
3 2 123 22 3 44 10 1 90 17 96 19 99 24 99 99 91 90 104 121 104 109 108
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-97351-574-1 		8-97249-332-0 01 1 -
2 ROTOR; GEN
ASM PART: A = 8-97351-574-1 		8-97249-330-1 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-97351-574-1 		8-97062-744-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-97351-574-1 		8-97161-473-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 8-97351-574-1 		8-97249-333-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-97351-574-1 		8-97249-334-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-97351-574-1 		8-97249-335-0 01 1 -
22 STATOR; GEN
ASM PART: A = 8-97351-574-1 		8-97249-331-1 01 1 -
24 SCREW; RECTIFIER,GEN
ASM PART: A = 8-97351-574-1 		8-97249-336-0 01 1 -
44 SEAL; RR COVER,GEN
THA ASM PART: A = 8-97351-574-1 		8-94156-589-0 01 1 -
90 PUMP ASM; VAC,GEN
ASM PART: A = 8-97351-574-1 		8-97351-707-0 01 1 -
91 BODY; VAC PUMP
ASM PART: A = 8-97351-574-1 		8-97148-117-0 01 1 -
96 VALVE ASM; VAC PUMP
ASM PART: A = 8-97351-574-1 		8-97148-118-0 01 1 -
99 GASKET; VAC PUMP
(A), ID=18 OD=24 ASM PART: A = 8-97351-574-1 		5-19679-002-0 02 1 -
99 GASKET; VAC PUMP
(B), ID=12 OD=24 ASM PART: A = 8-97351-574-1 		5-19679-003-0 01 1 -
104 GASKET; FRT COVER,VAC PUMP
(A), THA ASM PART: A = 8-97351-574-1 		8-94156-608-0 01 1 -
104 GASKET; FRT COVER,VAC PUMP
(B) ASM PART: A = 8-97351-574-1 		8-97083-304-0 01 1 -
108 ROTOR; VAC PUMP
ASM PART: A = 8-97351-574-1 		8-97148-115-1 01 1 -
109 VANE; VAC PUMP
ASM PART: A = 8-97351-574-1 		8-97083-298-0 03 1 -
121 COVER; RR,VAC PUMP
ASM PART: A = 8-97351-574-1 		8-97148-116-0 01 1 -
123 GUIDE; BRUSH
ASM PART: A = 8-97351-574-1 		8-97062-644-0 01 1 -
