◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#35628) — 77 parça

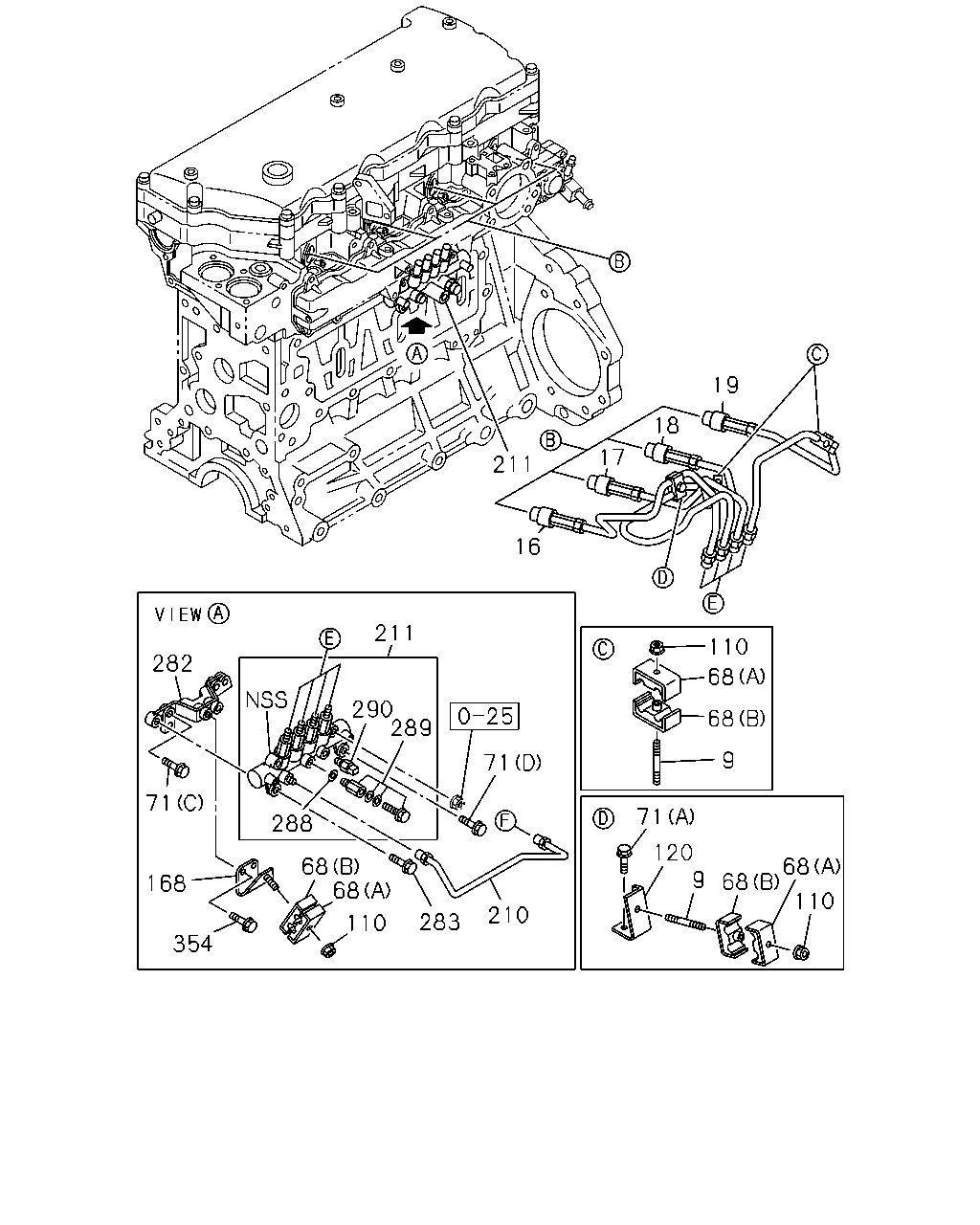

çizim 57094
19 18 17 211 16 211 110 282 68 290 289 68 9 71 71 71 288 120 9 68 68 68 68 168 110 210 283 110 354
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
KD PREPARATORY PACK<6HF> M6X30 L=38 		0-41010-630-0 03 1 0701-
16 PIPE; INJ NO.1
KD PREPARATORY PACK<6HF> 		8-97371-831-1 01 1 0701-
17 PIPE; INJ NO.2
KD PREPARATORY PACK<6HF> 		8-97373-417-1 01 1 0701-
18 PIPE; INJ NO.3
KD PREPARATORY PACK<6HF> 		8-97371-833-1 01 1 0701-
19 PIPE; INJ NO.4
KD PREPARATORY PACK<6HF> 		8-97371-834-1 01 1 0701-
68 CLIP; INJ PIPE
KD PREPARATORY PACK<6HF> (A) 		8-97330-118-1 04 1 0701-
68 CLIP; INJ PIPE
KD PREPARATORY PACK<6HF> (B) 		8-97330-119-1 04 1 0701-
71 BOLT; BRKT
KD PREPARATORY PACK<6HF> (B) M6X10 FLANGE 		0-28050-610-0 02 1 0701-
71 BOLT; BRKT
KD PREPARATORY PACK<6HF> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0701-
71 BOLT; BRKT
KD PREPARATORY PACK<6HF> (C) M8X40 FLANGE 		0-28050-840-0 01 1 0701-
71 BOLT; BRKT
KD PREPARATORY PACK<6HF> (D) M8X50 FLANGE 		0-28050-850-0 01 1 0701-
110 NUT; CLIP
KD PREPARATORY PACK<6HF> M6 FLANGE 		0-91180-106-0 04 1 0701-
120 BRACKET; INJ PIPE
KD PREPARATORY PACK<6HF> 		8-97306-084-2 01 1 0701-
168 BRACKET; FUEL PIPE
KD PREPARATORY PACK<6HF> 		8-97324-195-0 01 1 0701-
210 PIPE; INJ,C/R
KD PREPARATORY PACK<6HF> 		8-97312-509-3 01 1 0701-
211 RAIL ASM; COMMON
KD PREPARATORY PACK<6HF> 		8-97306-063-2 01 1 0701-
282 BRACKET; COMMON RAIL
KD PREPARATORY PACK<6HF> 		8-97324-194-0 01 1 0701-1005
282 BRACKET; COMMON RAIL
KD PREPARATORY PACK<6HF> 		8-98157-115-0 01 1 1006-
283 BOLT; COMMON RAIL
KD PREPARATORY PACK<6HF> M8X25 FLANGE 		0-28050-825-0 01 1 0701-
288 GASKET
KD PREPARATORY PACK<6HF> ID=11 OD=16.3 THA 		1-15641-046-0 01 1 0701-
289 LIMITER; FUEL PRESS
KD PREPARATORY PACK<6HF> 		8-97318-691-0 01 1 0701-
290 SENSOR; PRESS
KD PREPARATORY PACK<6HF> 		8-97318-684-0 01 1 0701-
329 GASKET; SENSOR,FUEL TEMP
KD PREPARATORY PACK<6HF> 		9-09566-110-0 01 1 0701-
354 BOLT; FUEL PIPE
KD PREPARATORY PACK<6HF> M8X16 FLANGE 		0-28050-816-0 02 1 0701-

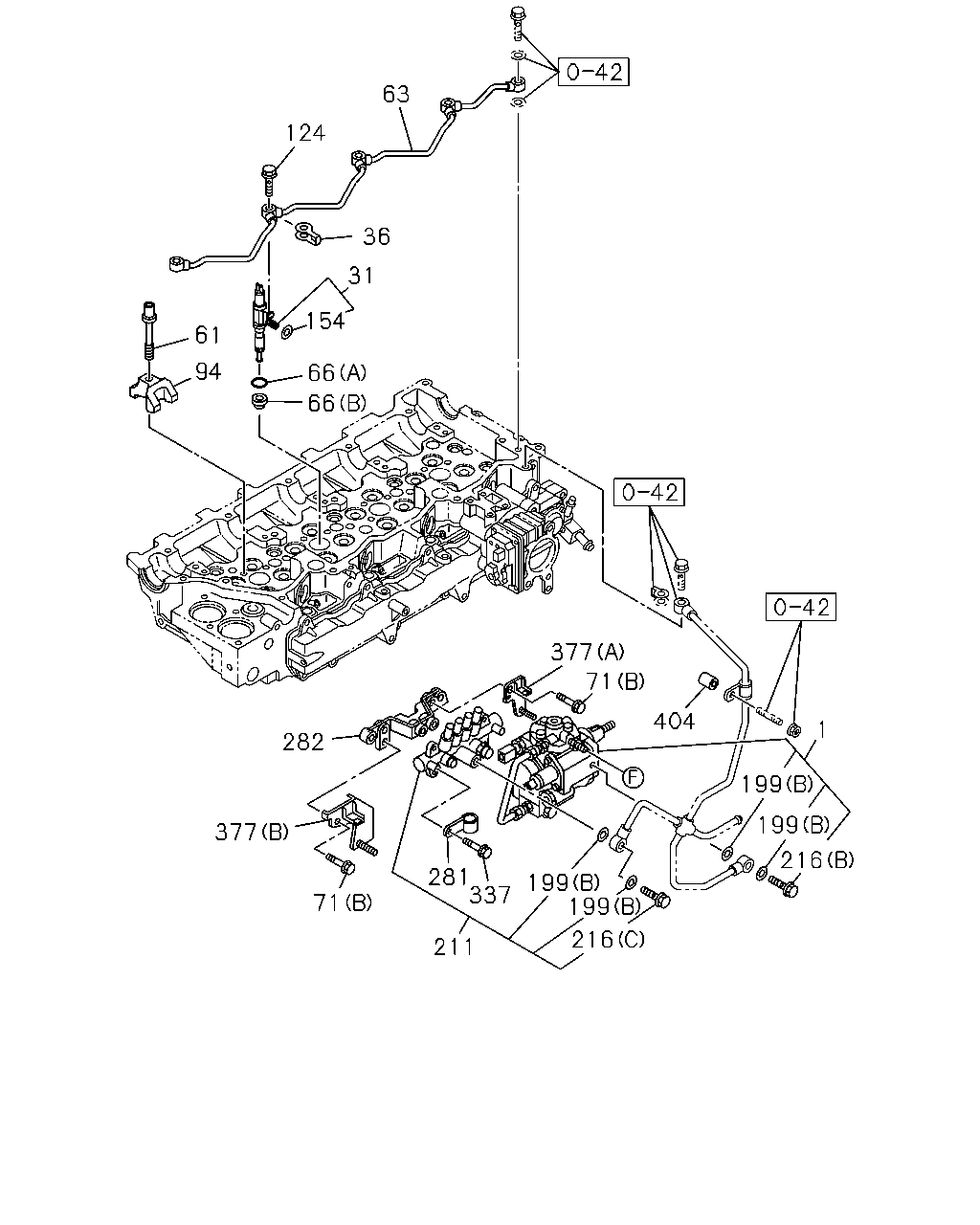

çizim 58374
63 124 36 31 154 61 94 66 66 377 71 404 1 282 199 199 377 216 281 337 199 199 71 216 211
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ
KD PREPARATORY PACK<6HF> 		8-97306-044-9 01 1 0701-
31 NOZZLE ASM; INJ
KD PREPARATORY PACK<6HF> 		8-97602-485-5 04 1 0701-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) KD PREPARATORY PACK<6HF> ID=8.3 		8-97600-925-0 04 1 0701-0908
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) KD PREPARATORY PACK<6HF> ID=8.3 		8-98065-992-0 04 1 0909-
61 BOLT; CLAMP NOZZLE HOLDER
KD PREPARATORY PACK<6HF> M8X54 		8-98008-895-0 04 1 0701-
63 PIPE; FUEL,NOZZLE LEAK OFF
KD PREPARATORY PACK<6HF> 		8-97306-081-0 01 1 0701-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) KD PREPARATORY PACK<6HF> (A) ID=23.3 		8-94173-412-0 04 1 0701-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) KD PREPARATORY PACK<6HF> (B) ID=9.2 T=8.1 		8-97601-447-2 04 1 0701-0909
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) KD PREPARATORY PACK<6HF> (B) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910-
71 BOLT; BRKT
KD PREPARATORY PACK<6HF> (B) M6X10 FLANGE 		0-28050-610-0 02 1 0701-
71 BOLT; BRKT
KD PREPARATORY PACK<6HF> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0701-
71 BOLT; BRKT
KD PREPARATORY PACK<6HF> (C) M8X40 FLANGE 		0-28050-840-0 01 1 0701-
71 BOLT; BRKT
KD PREPARATORY PACK<6HF> (D) M8X50 FLANGE 		0-28050-850-0 01 1 0701-
94 BRACKET; INJ NOZZLE
KD PREPARATORY PACK<6HF> 		8-98028-999-1 04 1 0701-
124 BOLT; EYE LEAK OFF PIPE
KD PREPARATORY PACK<6HF> M8X18 EYE BOLT 		1-09675-037-1 04 1 0701-
154 GASKET; CONNECTOR
KD PREPARATORY PACK<6HF> ID=11.0 		9-09561-111-0 04 1 0701-
199 GASKET; EYE BOLT
KD PREPARATORY PACK<6HF> (A) 		1-15619-507-0 02 1 0701-
199 GASKET; EYE BOLT
KD PREPARATORY PACK<6HF> (B) 		8-97602-218-0 04 1 0701-
211 RAIL ASM; COMMON
KD PREPARATORY PACK<6HF> 		8-97306-063-2 01 1 0701-
216 BOLT; EYE
KD PREPARATORY PACK<6HF> (A) 		5-15759-003-0 01 1 0701-
216 BOLT; EYE
KD PREPARATORY PACK<6HF> (B) 		8-97351-388-0 01 1 0701-
216 BOLT; EYE
KD PREPARATORY PACK<6HF> (C) 		8-97602-173-0 01 1 0701-
281 CLIP
KD PREPARATORY PACK<6HF> ID=16 H=24 L=20 		0-95207-315-0 01 1 0701-
282 BRACKET; COMMON RAIL
KD PREPARATORY PACK<6HF> 		8-97324-194-0 01 1 0701-1005
282 BRACKET; COMMON RAIL
KD PREPARATORY PACK<6HF> 		8-98157-115-0 01 1 1006-
329 GASKET; SENSOR,FUEL TEMP
KD PREPARATORY PACK<6HF> 		9-09566-110-0 01 1 0701-
337 BOLT; CLIP
KD PREPARATORY PACK<6HF> M6X10 FLANGE 		0-28050-610-0 01 1 0701-
377 BRACKET; HARNESS
KD PREPARATORY PACK<6HF> (A) 		8-97374-283-1 01 1 0701-
377 BRACKET; HARNESS
KD PREPARATORY PACK<6HF> (B) 		8-98001-141-0 01 1 0701-
404 SPACER; FUEL LEAK OFF
KD PREPARATORY PACK<6HF> 		1-33659-186-1 01 1 0701-

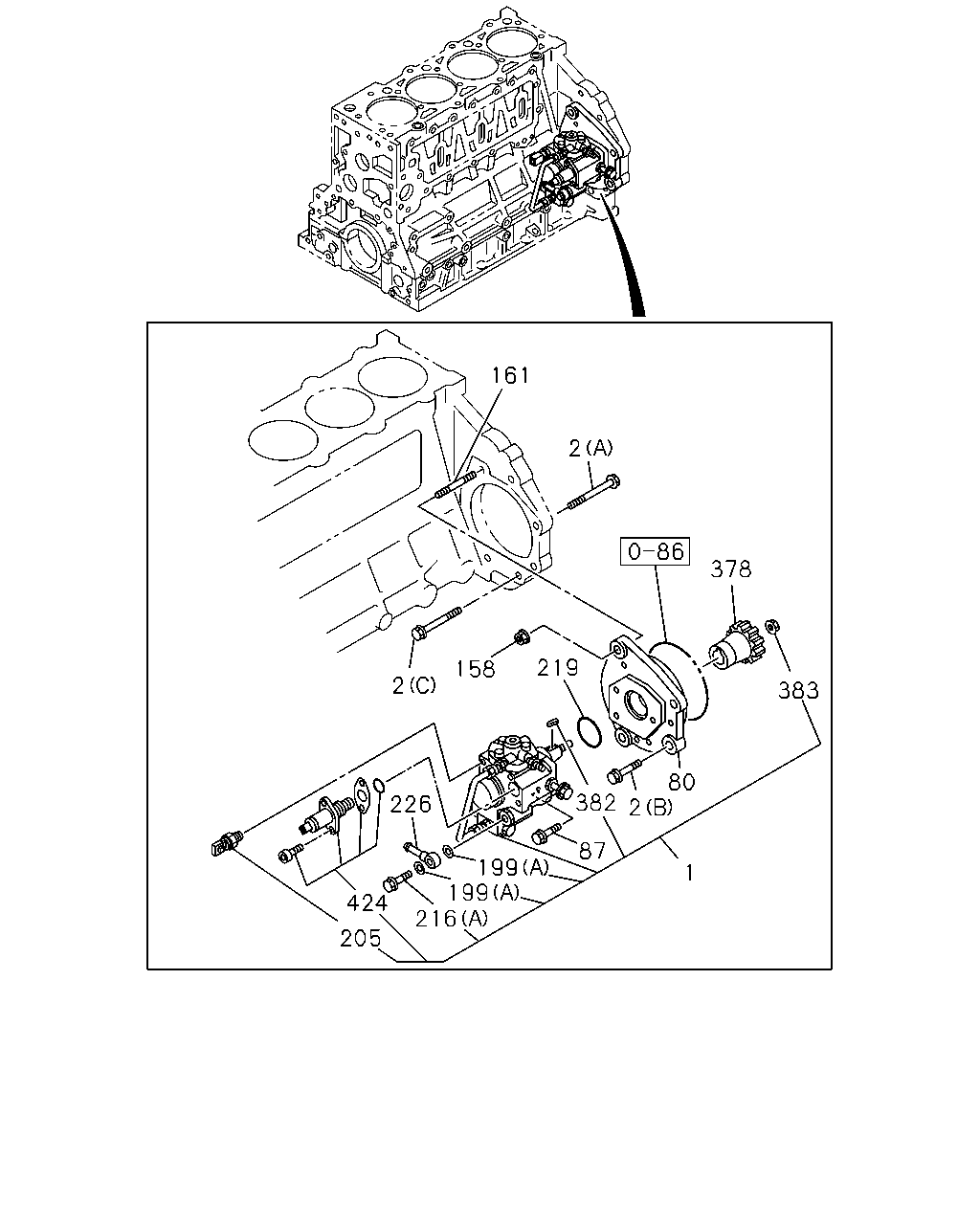

çizim 58435
161 2 378 219 158 2 383 80 2 382 226 87 199 199 216 1 424 205
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ
KD PREPARATORY PACK<6HF> 		8-97306-044-9 01 1 0701-
2 BOLT; INJ PUMP
KD PREPARATORY PACK<6HF> (C) M10X50 FLANGE 		0-28151-050-0 01 1 0701-
2 BOLT; INJ PUMP
KD PREPARATORY PACK<6HF> (B) M12X70 FLANGE 		0-28151-270-0 01 1 0701-
2 BOLT; INJ PUMP
KD PREPARATORY PACK<6HF> (A) M12X90 FLANGE 		0-28151-290-0 01 1 0701-
80 BRACKET; PUMP
KD PREPARATORY PACK<6HF> 		8-97601-699-0 01 1 0701-
87 BOLT; PUMP
KD PREPARATORY PACK<6HF> M8X30 FLANGE 		0-28650-830-0 03 1 0701-
158 NUT; INJ PUMP
KD PREPARATORY PACK<6HF> M10 FLANGE 		0-91180-110-0 02 1 0701-
161 STUD; INJ PUMP
KD PREPARATORY PACK<6HF> M10X46.5 L=58.5 		8-97363-237-0 02 1 0701-0910
161 STUD; INJ PUMP
KD PREPARATORY PACK<6HF> M10X46.5 L=58.5 		8-97066-386-1 02 1 0911-
199 GASKET; EYE BOLT
KD PREPARATORY PACK<6HF> (A) 		1-15619-507-0 02 1 0701-
199 GASKET; EYE BOLT
KD PREPARATORY PACK<6HF> (B) 		8-97602-218-0 04 1 0701-
205 SENSOR; FUEL TEMP
KD PREPARATORY PACK<6HF> 		8-98023-581-0 01 1 0701-
216 BOLT; EYE
KD PREPARATORY PACK<6HF> (A) 		5-15759-003-0 01 1 0701-
216 BOLT; EYE
KD PREPARATORY PACK<6HF> (B) 		8-97351-388-0 01 1 0701-
216 BOLT; EYE
KD PREPARATORY PACK<6HF> (C) 		8-97602-173-0 01 1 0701-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> ID=52 		8-98031-844-0 01 1 0701-
226 PIPE; FUEL
KD PREPARATORY PACK<6HF> 		8-97320-019-0 01 1 0701-0808
226 PIPE; FUEL
KD PREPARATORY PACK<6HF> 		8-98126-433-0 01 1 0809-
329 GASKET; SENSOR,FUEL TEMP
KD PREPARATORY PACK<6HF> 		9-09566-110-0 01 1 0701-
378 GEAR; PUMP
KD PREPARATORY PACK<6HF> Z=35 		8-97601-698-1 01 1 0701-
382 KEY; DRIVE SHAFT
KD PREPARATORY PACK<6HF> 		8-97375-384-0 01 1 0701-
383 NUT; DRIVE SHAFT
KD PREPARATORY PACK<6HF> 		8-97141-469-0 01 1 0701-
424 OVERHAUL KIT; SUPPLY PUMP
KD PREPARATORY PACK<6HF> 		8-98043-687-0 01 1 0701-
