Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#35626) — 61 parça

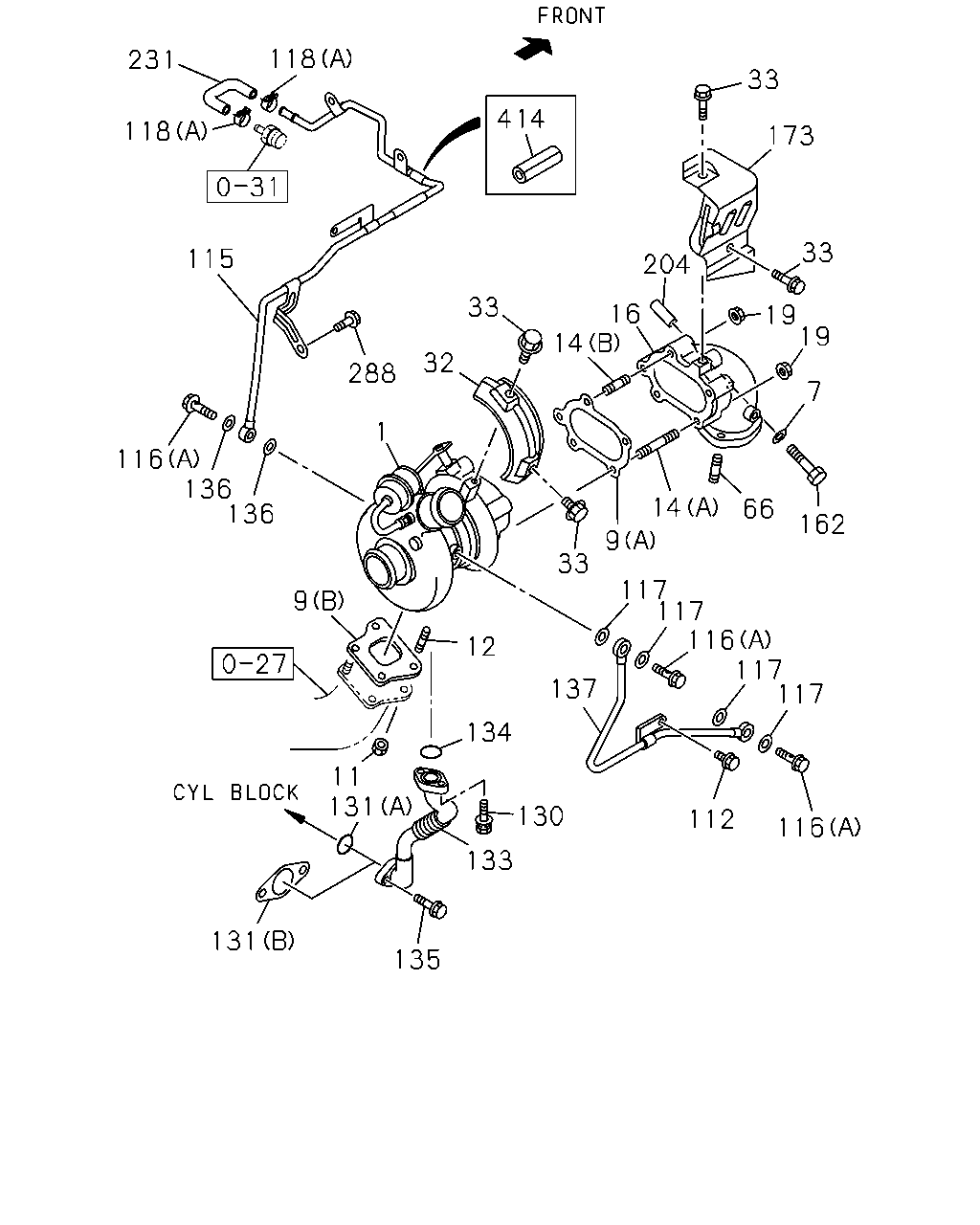

118 231 33 414 118 173 33 115 204 33 16 14 19 19 32 288 7 1 116 136 136 14 66 162 9 33 117 117 116 117 117 9 12 137 134 11 131 130 112 116 133 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. KD PREPARATORY PACK<6HF>	8-98000-031-2	01	1	0701-
7	WASHER; PL,BRKT KD PREPARATORY PACK<6HF> ID=8 OD=18 T=3	8-94174-537-0	01	1	0701-
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) KD PREPARATORY PACK<6HF> (A)	8-97039-777-1	01	1	0701-
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) KD PREPARATORY PACK<6HF> (B)	8-97374-412-0	01	1	0701-
11	NUT; TURBOCHARGER KD PREPARATORY PACK<6HF> M10 P=1.5 H=8	9-09842-007-0	04	1	0701-
12	STUD; TURBOCHARGER KD PREPARATORY PACK<6HF> M10X28	9-04731-028-0	02	1	0701-
14	STUD; TURBOCHARGER TO EXH PIPE KD PREPARATORY PACK<6HF> (A) M8X94 L=108	8-97019-477-0	02	1	0701-
14	STUD; TURBOCHARGER TO EXH PIPE KD PREPARATORY PACK<6HF> (B) M8X49 L=63	8-97019-478-0	03	1	0701-
16	ADAPTER; EXH PIPE KD PREPARATORY PACK<6HF>	8-97039-749-1	01	1	0701-0709
16	ADAPTER; EXH PIPE KD PREPARATORY PACK<6HF>	8-97039-749-2	01	1	0710-
19	NUT; EXH PIPE,TURBOCHARGER KD PREPARATORY PACK<6HF> M8 FLANGE	8-94170-486-0	05	1	0701-
32	PROTECTOR; HEAT,TURBOCHARGER KD PREPARATORY PACK<6HF>	8-97351-168-0	01	1	0701-
33	BOLT; HEAT PROTECTOR KD PREPARATORY PACK<6HF> M6X12 FLANGE	8-97108-669-0	06	1	0701-
66	STUD; EXH PIPE KD PREPARATORY PACK<6HF> M10X25 L=40	0-44011-025-0	03	1	0701-0709
66	STUD; EXH PIPE KD PREPARATORY PACK<6HF> M10X25 L=40	0-44011-025-0	03	1	0710-
112	BOLT; CLIP KD PREPARATORY PACK<6HF> M8X12 FLANGE	0-28050-812-0	01	1	0701-
115	PIPE; WATER,TURBOCHARGER OUT KD PREPARATORY PACK<6HF>	8-97372-533-0	01	1	0701-0902
115	PIPE; WATER,TURBOCHARGER OUT KD PREPARATORY PACK<6HF>	8-98137-574-0	01	1	0903-
116	BOLT; WATER PIPE KD PREPARATORY PACK<6HF> (B) M8X16 FLANGE	0-28050-816-0	02	1	0701-
116	BOLT; WATER PIPE KD PREPARATORY PACK<6HF> (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0701-
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> ID=14.2 OD=19.2	1-09630-085-0	04	1	0701-0902
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-
118	CLIP; WATER HOSE KD PREPARATORY PACK<6HF> (B) ID=20	1-09707-084-1	04	1	0701-
118	CLIP; WATER HOSE KD PREPARATORY PACK<6HF> (A) ID=15.5 THA	8-94221-519-0	02	1	0701-
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN KD PREPARATORY PACK<6HF> M6X20 W/LK WASHER	0-50540-620-0	02	1	0701-
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> (A) ID=27.7	9-09566-228-0	01	1	0701-1006
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> (B) ID=30	8-94394-671-0	01	1	1007-
133	PIPE; OIL DRAIN,TURBOCHARGER KD PREPARATORY PACK<6HF>	8-97148-925-2	01	1	0701-1006
133	PIPE; OIL DRAIN,TURBOCHARGER KD PREPARATORY PACK<6HF>	8-98172-658-0	01	1	1007-
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> ID=22.8	1-09623-462-0	01	1	0701-
135	BOLT; OIL PIPE TO C/BL KD PREPARATORY PACK<6HF> M8X20 FLANGE	0-28050-820-0	02	1	0701-
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> ID=14.2 OD=19.2	1-09630-085-0	02	1	0701-
137	PIPE; WATER,TURBOCHARGER IN KD PREPARATORY PACK<6HF>	8-97357-769-0	01	1	0701-
162	BOLT; ADAPTER KD PREPARATORY PACK<6HF> M8X57	5-09000-275-0	01	1	0701-
173	PROTECTOR; HEAT,FUEL PIPE KD PREPARATORY PACK<6HF>	8-97351-167-0	01	1	0701-
204	COLLAR; PIPE ADAPTER KD PREPARATORY PACK<6HF>	8-97214-384-1	01	1	0701-0709
204	COLLAR; PIPE ADAPTER KD PREPARATORY PACK<6HF>	8-97214-384-1	01	1	0710-
231	HOSE; RUBBER,TURBOCHARGER OUT KD PREPARATORY PACK<6HF>	8-97209-950-0	01	1	0701-
288	BOLT; WATER PIPE CLIP KD PREPARATORY PACK<6HF> M8X12 FLANGE	0-28050-812-0	04	1	0701-
414	SPACER ID=17 OD=21 L=40	1-09337-012-0	01	1	0701-

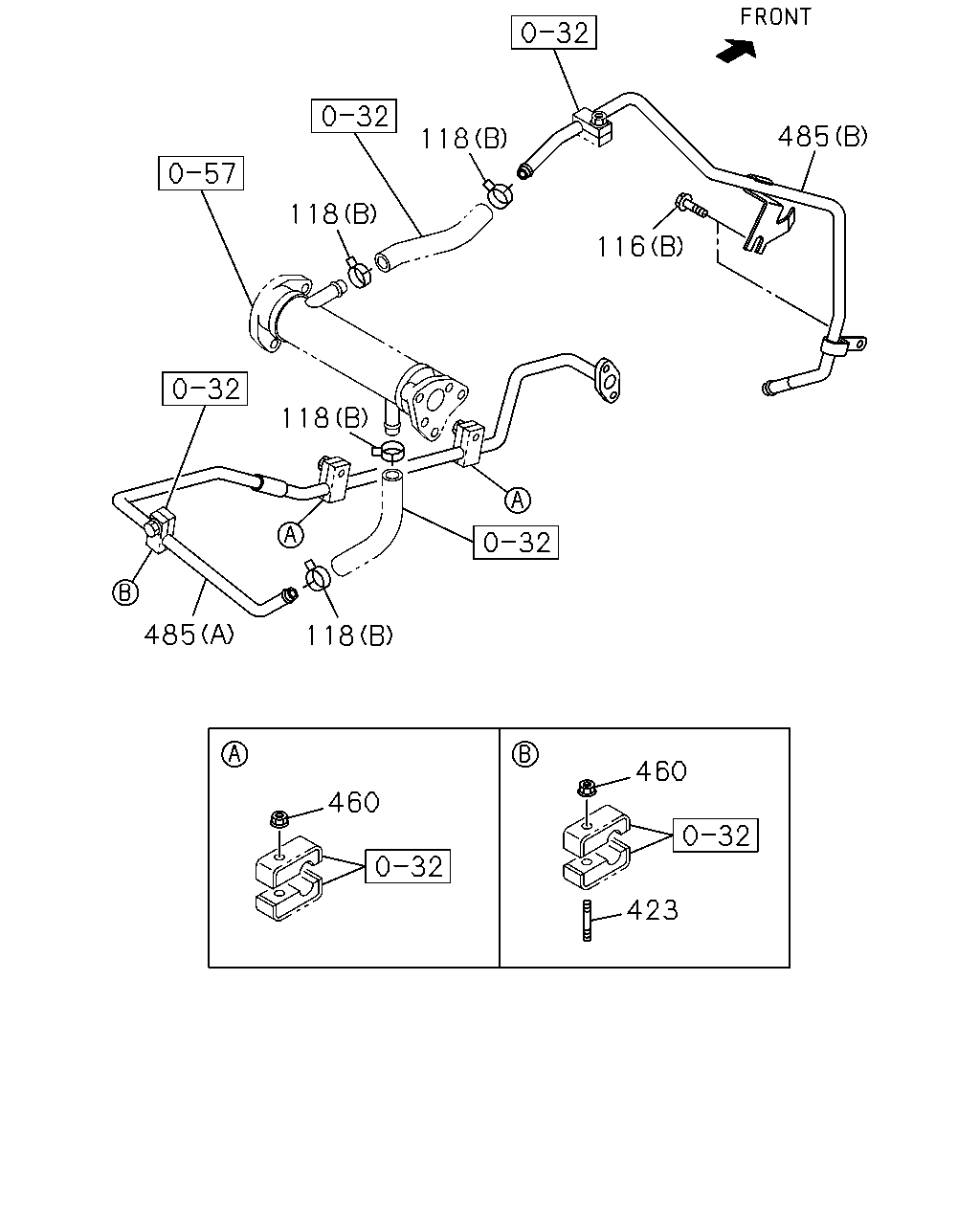

485 118 118 116 118 485 118 460 460 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	BOLT; WATER PIPE KD PREPARATORY PACK<6HF> (B) M8X16 FLANGE	0-28050-816-0	02	1	0701-
116	BOLT; WATER PIPE KD PREPARATORY PACK<6HF> (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0701-
118	CLIP; WATER HOSE KD PREPARATORY PACK<6HF> (B) ID=20	1-09707-084-1	04	1	0701-
118	CLIP; WATER HOSE KD PREPARATORY PACK<6HF> (A) ID=15.5 THA	8-94221-519-0	02	1	0701-
423	STUD; WATER PIPE KD PREPARATORY PACK<6HF> M8X20 L=32	0-41010-820-0	01	1	0701-
460	NUT; PIPE KD PREPARATORY PACK<6HF> M8 FLANGE	0-91180-108-0	02	1	0701-
485	PIPE; WATER EGR KD PREPARATORY PACK<6HF> (A)	8-97375-669-0	01	1	0701-
485	PIPE; WATER EGR KD PREPARATORY PACK<6HF> (B)	8-98025-624-0	01	1	0701-

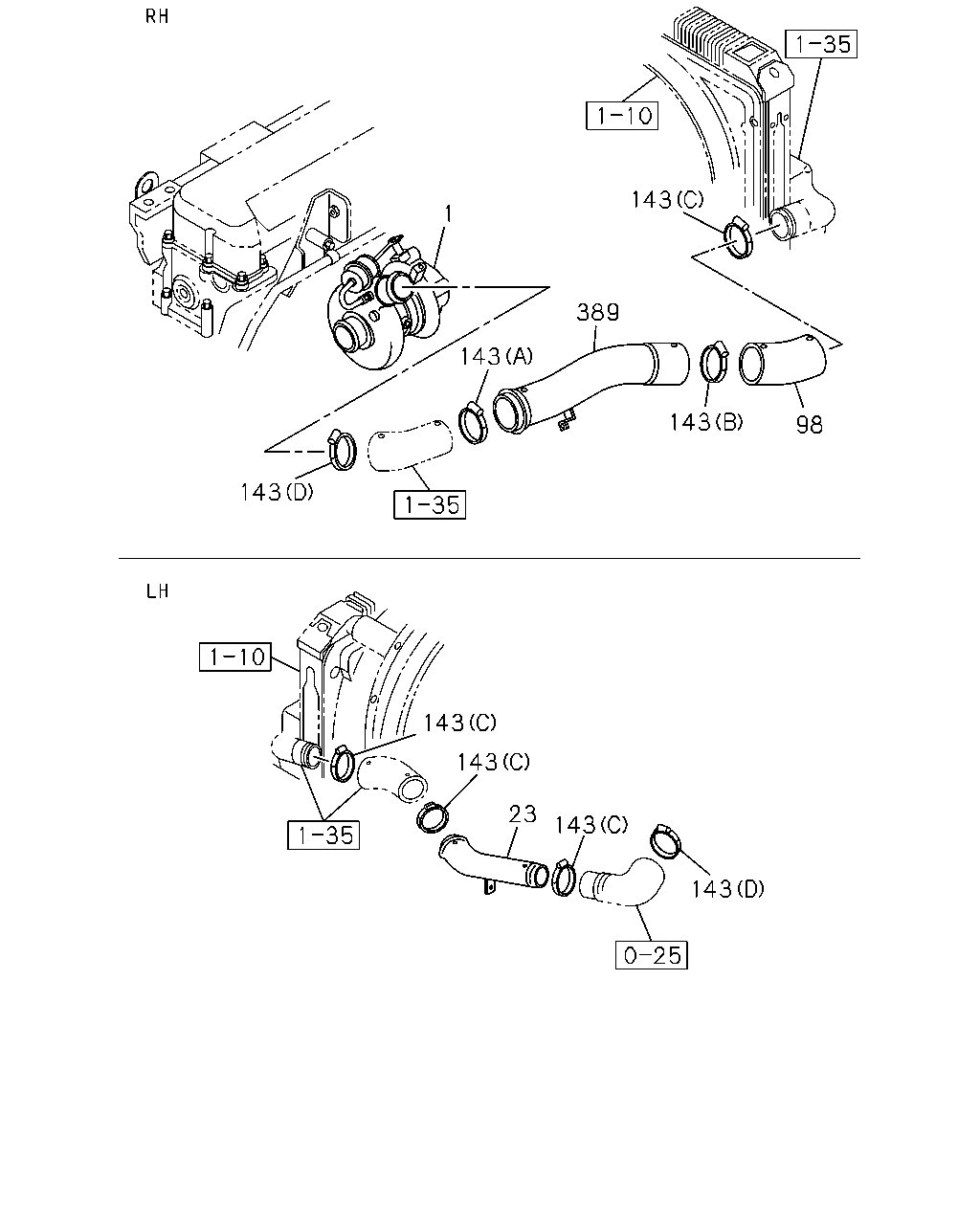

143 1 389 143 143 98 143 143 143 23 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. KD PREPARATORY PACK<6HF>	8-98000-031-2	01	1	0701-
23	PIPE; INTAKE,TURBOCHARGER	8-98000-539-1	01	1	0701-
98	HOSE; RUBBER,TURBOCHARGER OUTLET	8-98053-759-0	01	1	0701-
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0701-0810
143	CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-
143	CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0701-0810
143	CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-
143	CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=58-76 THA	1-09707-203-0	01	1	0701-0811
143	CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-
143	CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65 THA	1-09707-204-0	02	1	0701-0810
143	CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-
389	PIPE; INL,TURBOCHARGER TO CAC	8-97371-959-0	01	1	0701-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
