Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#35624) — 45 parça
◀

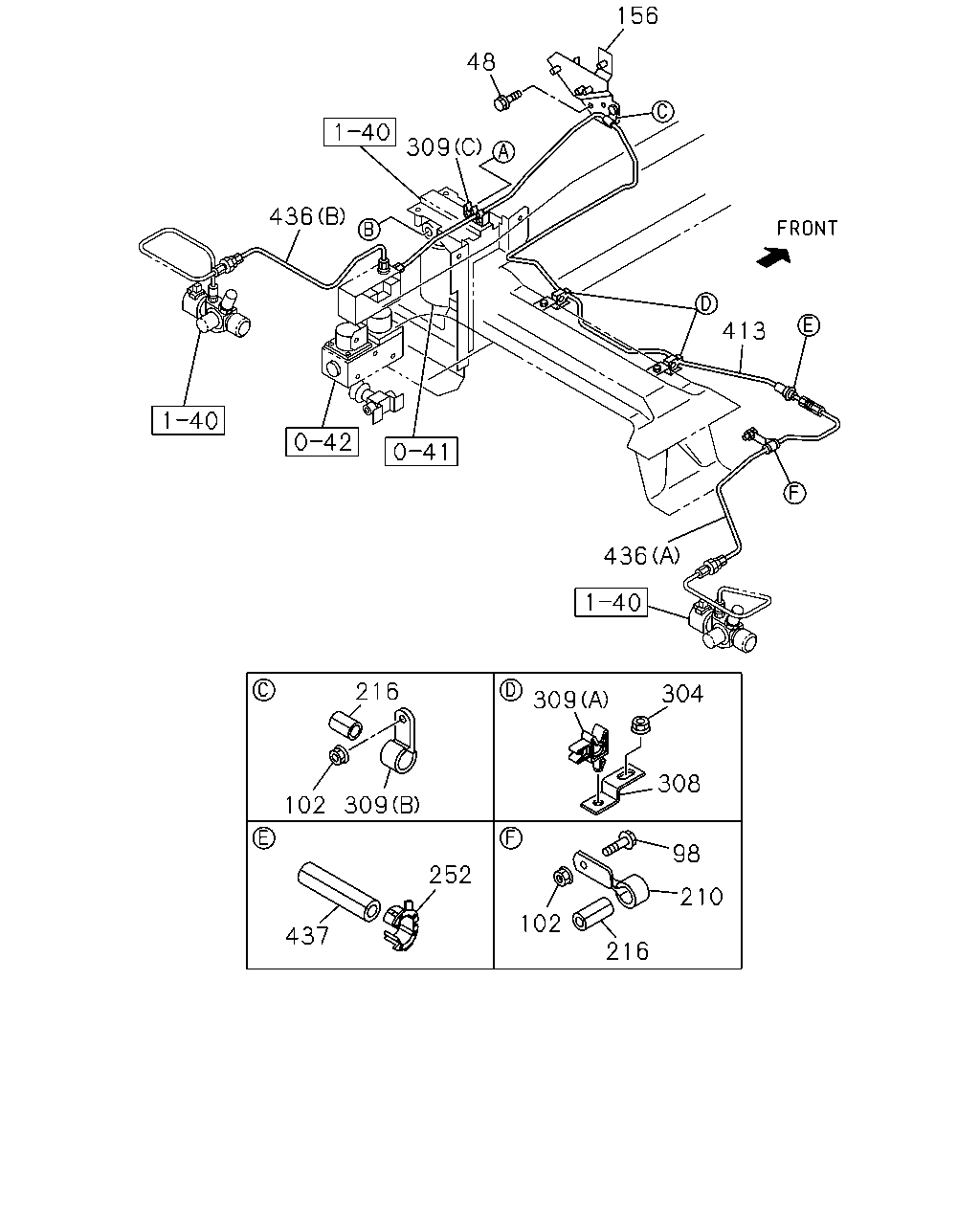

[141A] FUEL PIPE (20 parça)
[141A] FUEL HOSE (25 parça)
▶
156
48
309
436
413
216
304
309
308
102
309
98
252
210
102
437
216
436
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; BRKT
M8X20 FLANGE THA
0-28650-820-0
02
1
0901-
98
BOLT; BRKT,FUEL PIPE
M8X25 FLANGE THA
0-28650-825-0
01
1
0901-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE THA
0-91180-108-0
01
1
0901-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE THA
0-91180-108-0
01
1
0901-
156
BRACKET; FUEL HOSE
8-98054-311-2
01
1
0901-
210
CLIP; FEED PIPE
ID=13 L=50
1-09700-027-1
01
1
0901-
216
INSULATION; FUEL PIPE
OD=15 L=50
8-97066-274-0
01
1
0901-
216
INSULATION; FUEL PIPE
OD=16 L=20
8-97254-836-0
01
1
0901-
252
GROMMET
ID=17
8-94128-319-2
01
1
0901-
304
NUT; BRKT
M10 THA
0-91111-510-0
02
1
0901-
308
BRACKET; FUEL PIPE
8-98034-748-1
02
1
0901-
309
CLIP; PIPE
(B) ID=13 L=28
0-95235-255-0
01
1
0901-
309
CLIP; PIPE
(A) ID=12 & 6.35
8-97215-437-0
02
1
0901-
309
CLIP; PIPE
(C) ID=10 & 6.8X2 OR 8.4X3 THA
8-97249-906-1
01
1
0901-
413
PIPE; FUEL,CENTER
8-98114-244-1
01
1
0901-
436
PIPE; FUEL,REGULATOR
(A) L=609
8-98114-246-0
01
1
0901-0908
436
PIPE; FUEL,REGULATOR
(A)
8-98151-501-0
01
1
0909-
436
PIPE; FUEL,REGULATOR
(B)
8-98122-598-0
01
1
0901-0901
436
PIPE; FUEL,REGULATOR
(B) L=615
8-98142-153-0
01
1
0902-
437
RUBBER; INSULATOR
OD=16 L=20
8-97254-836-0
01
1
0901-
132
429
24
24
24
633
24
340
24
29
24
132
132
132
633
24
429
29
24
340
343
24
343
132
29
24
429
29
132
429
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CLIP; FUEL HOSE
(C)
8-98137-744-0
06
1
0901-0902
24
CLIP; FUEL HOSE
(B) ID=18 & 20.2
8-94363-537-1
01
1
0901-0902
24
CLIP; FUEL HOSE
(B) ID=15.5 & 19.5 THA
8-98137-046-0
01
1
0903-
24
CLIP; FUEL HOSE
(A) ID=17 L=21
8-98082-035-0
01
1
0901-0902
24
CLIP; FUEL HOSE
(D) ID=14 L=20
8-98144-944-0
01
1
0903-
29
HOSE; FUEL
(A)
8-98114-275-2
01
1
0901-0902
29
HOSE; FUEL
(D)
8-98144-592-0
01
1
0903-
29
HOSE; FUEL
(B)
8-98114-277-1
01
1
0901-0902
29
HOSE; FUEL
(C)
8-98144-593-0
01
1
0903-1004
29
HOSE; FUEL
(C)
8-98165-276-0
01
1
1005-
132
BOLT; FUEL HOSE
(C) M8X20 FLANGE THA
0-28650-820-0
01
1
0902-
132
BOLT; FUEL HOSE
(B) M6X25 FLANGE THA
0-28050-625-0
01
1
0901-0901
132
BOLT; FUEL HOSE
(B) M6X60 FLANGE
0-28050-660-0
01
1
0901-
132
BOLT; FUEL HOSE
(A) M8X25 FLANGE THA
0-28650-825-0
01
1
0901-
340
CONNECTOR; CNG
8-98122-746-0
01
1
0901-0902
340
CONNECTOR; CNG
8-98144-429-0
01
1
0903-1304
340
CONNECTOR; CNG
8-98144-429-0
01
1
1305-
343
UNION; ELBOW
8-98117-482-0
01
1
0901-0902
343
UNION; ELBOW
8-98144-428-0
01
1
0903-1304
343
UNION; ELBOW
8-98144-428-0
01
1
1305-
429
GASKET; JOINT
(A)
8-98005-350-0
01
1
0901-0902
429
GASKET; JOINT
(B)
8-98140-336-0
01
1
0901-0902
429
GASKET; JOINT
(B)
8-98140-336-0
02
1
0903-
633
NUT; FUEL HOSE
M8 FLANGE THA
0-91180-108-0
02
1
0901-0901
633
NUT; FUEL HOSE
M8 FLANGE THA
0-91180-108-0
01
1
0902-
