Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#35622) — 41 parça
◀

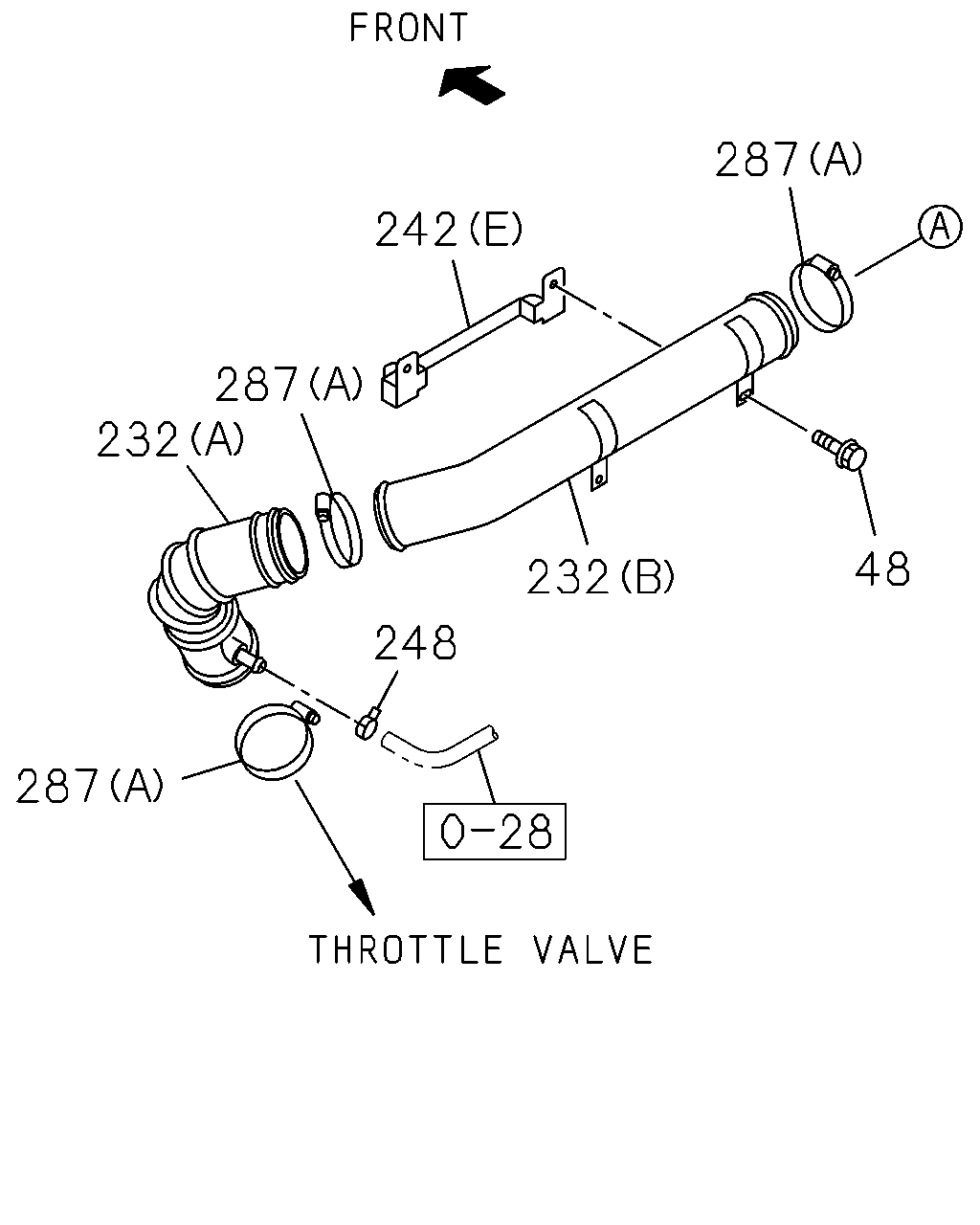

[131A] CONN HOSE (13 parça)

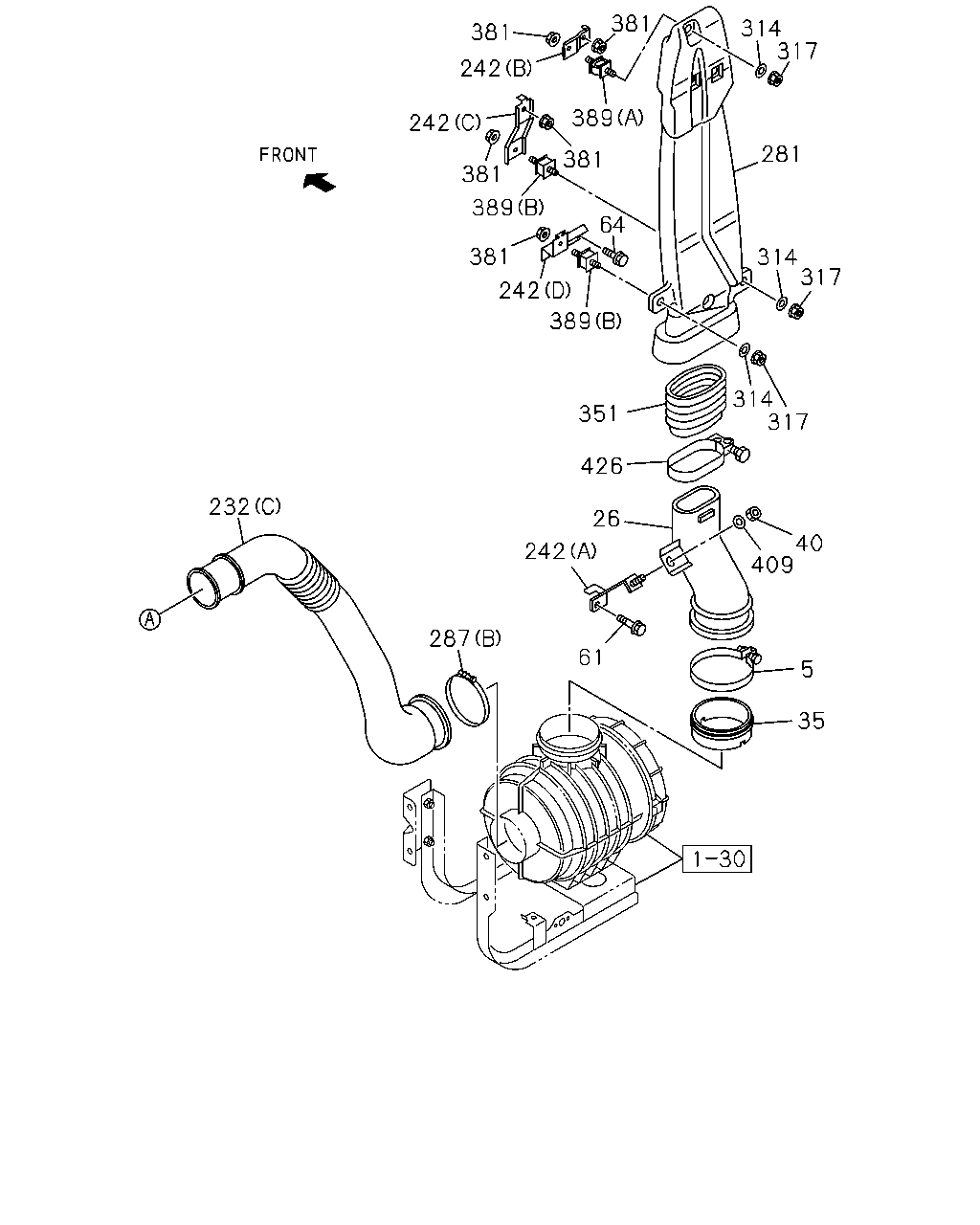

[131A] VERTICAL INTAKE AIR DUCT (28 parça)
▶
287
242
287
232
48
232
248
287
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; AIR DUCT
M8X25 FLANGE THA
0-28650-825-0
02
1
0901-
232
HOSE; CONN
(C)
8-98105-056-1
01
1
0901-
232
HOSE; CONN
(A)
8-98109-960-0
01
1
0901-
232
HOSE; CONN
(B)
8-98122-850-0
01
1
0901-
242
BRACKET; AIR DUCT
(B)
8-98067-764-1
01
1
0901-
242
BRACKET; AIR DUCT
(C)
8-98067-765-1
01
1
0901-
242
BRACKET; AIR DUCT
(D)
8-98067-766-1
01
1
0901-
242
BRACKET; AIR DUCT
(A)
8-98067-767-4
01
1
0901-
242
BRACKET; AIR DUCT
(E)
8-98081-980-1
01
1
0901-
248
CLIP; RUBBER HOSE
ID=22.7
8-94466-382-0
01
1
0901-
287
CLIP; AIR DUCT
(A) ID=65-85
8-98133-350-0
03
1
0901-1507
287
CLIP; AIR DUCT
(A) ID=65-85
8-98308-273-0
03
1
1508-
287
CLIP; AIR DUCT
(B) ID=112
9-09915-074-1
01
1
0901-
381
314
317
381
242
389
242
281
381
381
389
64
381
314
317
242
389
314
317
351
426
232
26
40
409
242
287
61
5
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
ID=127
1-14239-263-0
01
1
0901-
26
DUCT; AIR INT
8-98023-339-0
01
1
0901-
35
SEAL; DUCT,INT
8-98029-332-0
01
1
0901-
40
NUT; AIR INT DUCT
M10 FLANGE THA
0-91180-110-0
01
1
0901-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE THA
0-28650-825-0
01
1
0901-1206
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE THA
0-28650-825-0
01
1
1207-1210
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE THA
0-28650-825-0
02
1
1211-
64
BOLT; BRKT,AIR DUCT
M8X16
0-52000-816-0
01
1
0901-
232
HOSE; CONN
(C)
8-98105-056-1
01
1
0901-
232
HOSE; CONN
(A)
8-98109-960-0
01
1
0901-
232
HOSE; CONN
(B)
8-98122-850-0
01
1
0901-
242
BRACKET; AIR DUCT
(B)
8-98067-764-1
01
1
0901-
242
BRACKET; AIR DUCT
(C)
8-98067-765-1
01
1
0901-
242
BRACKET; AIR DUCT
(D)
8-98067-766-1
01
1
0901-
242
BRACKET; AIR DUCT
(A)
8-98067-767-4
01
1
0901-
242
BRACKET; AIR DUCT
(E)
8-98081-980-1
01
1
0901-
281
DUCT; AIR,VERTICAL INT
8-97369-706-0
01
1
0901-
287
CLIP; AIR DUCT
(A) ID=65-85
8-98133-350-0
03
1
0901-1507
287
CLIP; AIR DUCT
(A) ID=65-85
8-98308-273-0
03
1
1508-
287
CLIP; AIR DUCT
(B) ID=112
9-09915-074-1
01
1
0901-
314
WASHER; PL,AIR INT DUCT
ID=10.5 OD=32
0-91614-810-0
03
1
0901-
317
NUT; CUSHION RUBBER
M8 W/LK WASHER THA
8-97581-234-0
03
1
0901-
351
DUCT; AIR
8-98115-594-0
01
1
0901-
381
NUT; BRKT,AIR DUCT
M8 W/LK WASHER THA
8-97581-234-0
05
1
0901-
389
RUBBER; SUPPORT,AIR INT UPR
(A)
8-98036-825-0
01
1
0901-
389
RUBBER; SUPPORT,AIR INT UPR
(B)
8-98036-826-0
02
1
0901-
409
WASHER; PL,BRKT
ID=10.5 OD=32
0-91614-810-0
01
1
0901-
426
CLIP; DUCT
D=101.6
9-09915-502-1
01
1
0901-
