Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#3562) — 228 parça

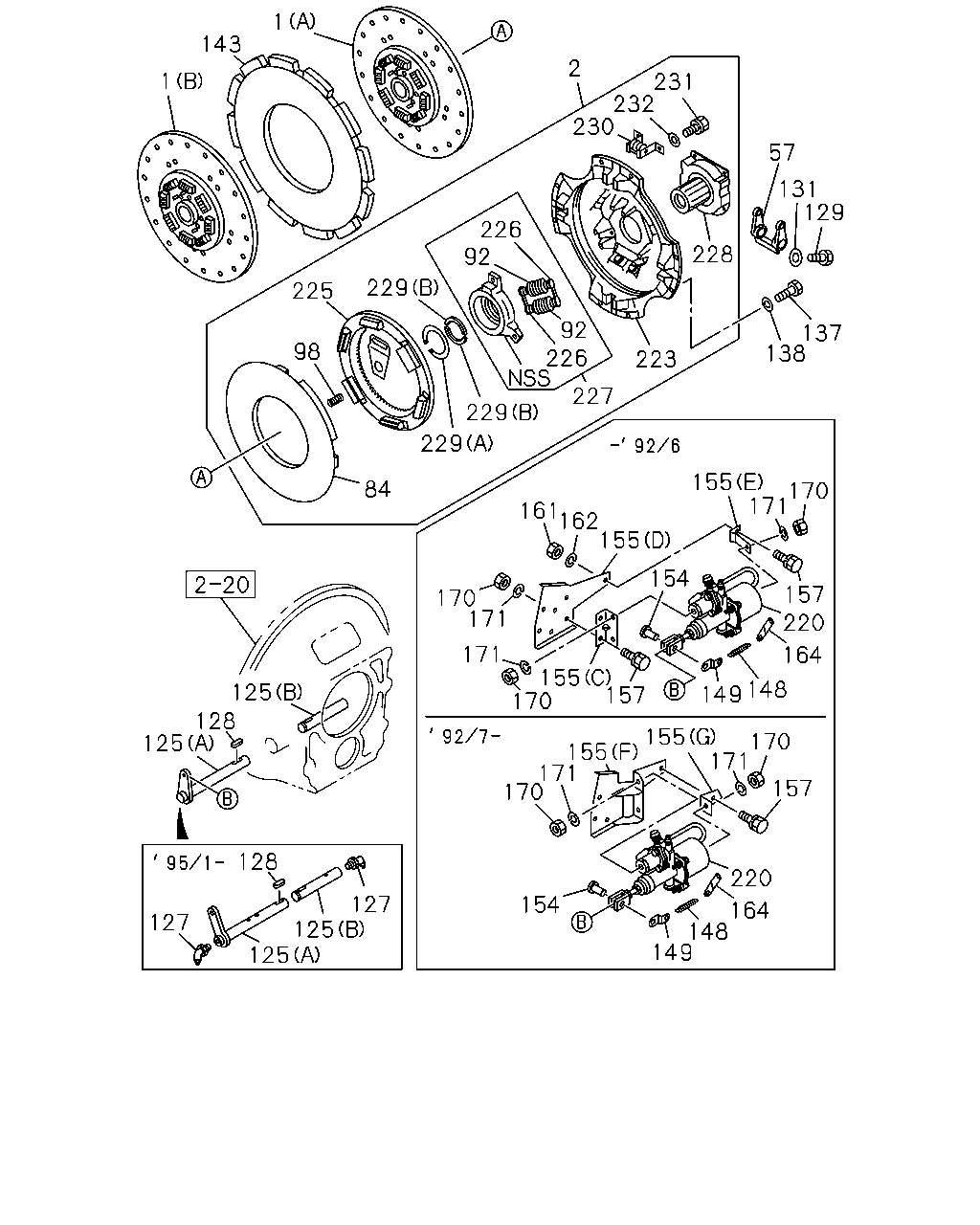

1 143 2 1 231 232 230 57 131 129 226 92 228 229 225 92 226 137 138 98 223 227 229 229 155 170 171 84 161 162 155 154 157 220 170 171 171 155 157 170 164 148 149 125 128 125 155 155 171 170 170 171 157 128 220 164 148 149 127 125 125 154 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DISC; CLUTCH 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) 17"	1-31240-542-0	01	1	9002-9011	●	●	●
1	DISC; CLUTCH 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) 17"	1-31240-395-0	01	1	9012-	●	●	●
1	DISC; CLUTCH 6RB1TC-N ENG(29L),12PD1 C ENG(43L) (C) 17"	1-31240-627-1	01	1	9203-9507	●	●
1	DISC; CLUTCH 6RB1TC-N ENG(29L),12PD1 C ENG(43L) (C) 17"	1-31240-624-0	01	1	9508-9602	●	●
1	DISC; CLUTCH 6RB1TC-N ENG(29L),12PD1 C ENG(43L) (C) 17"	1-31240-753-1	01	1	9603-	●	●
1	DISC; CLUTCH 6RB1TC-N ENG(29L) (C) 17"	1-31240-397-0	01	1	9012-9202		●
1	DISC; CLUTCH 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (A) FRONT 14"	1-31240-327-0	01	1	9002-				●	●	●	●
1	DISC; CLUTCH 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (B) REAR 14"	1-31240-328-0	01	1	9002-				●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6RB1 STD ENG(07L)	1-31220-234-1	01	1	9002-	●	●	●
2	PLATE ASM; PRESSURE,CLU 10PD1 STD ENG(40L)	1-31220-227-0	01	1	9002-9005	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 10PD1 STD ENG(40L)	1-31220-227-1	01	1	9006-	●		●
2	PLATE ASM; PRESSURE,CLU 6RB1TC-N ENG(29L)	1-31220-200-1	01	1	9012-9306		●
2	PLATE ASM; PRESSURE,CLU 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31220-265-2	01	1	9307-	●	●
2	PLATE ASM; PRESSURE,CLU 6RB1 STD ENG(07L)	1-31220-141-2	01	1	9002-				●		●	●
2	PLATE ASM; PRESSURE,CLU 10PD1 STD ENG(40L)	1-31220-142-1	01	1	9006-				●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9002-	●	●	●
57	FORK; SHIFT,CLU	1-31341-020-0	01	1	9002-				●	●	●	●
84	PLATE; PRESSURE 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31221-041-0	01	1	9002-	●	●	●
84	PLATE; PRESSURE 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31221-083-1	01	1	9012-	●	●
84	PLATE; PRESSURE	1-31221-088-0	01	1	9002-				●	●	●	●
92	SPRING; CLU 10PD1 STD ENG(40L)	1-31214-026-0	12	1	9002-	●		●
92	SPRING; CLU 6RB1 STD ENG(07L)	1-09580-273-0	12	1	9002-	●	●	●
92	SPRING; CLU 6RB1TC-N ENG(29L)	1-31214-025-0	12	1	9012-9306		●
92	SPRING; CLU 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31214-040-0	12	1	9307-	●	●
92	SPRING; CLU 6RB1 STD ENG(07L)	1-31214-044-0	06	1	9002-				●		●	●
92	SPRING; CLU 10PD1 STD ENG(40L)	1-31214-043-0	06	1	9002-				●	●
98	SPRING; RETURN 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31233-001-0	04	1	9002-	●	●	●
98	SPRING; RETURN 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31233-007-0	04	1	9012-	●	●
98	SPRING; RETURN	1-31233-008-0	04	1	9002-				●	●	●	●
125	SHAFT; CLU (C) L=477	1-31342-240-1	01	1	9002-	●	●	●
125	SHAFT; CLU (A) L=225 W/LEVER	1-31342-246-0	01	1	9002-9006				●	●	●
125	SHAFT; CLU COUNTER SHAFT BRAKE<BAP> (A) L=225 W/LEVER	1-31342-246-0	01	1	9007-9306				●	●	●	●
125	SHAFT; CLU (B) L=146	1-31342-085-0	01	1	9002-9412				●	●	●	●
125	SHAFT; CLU CLUTCH BRAKE<BBG> (A)	1-31342-134-0	01	1	9007-9306				●	●	●	●
125	SHAFT; CLU (A) L=225 W/LEVER	1-31342-246-0	01	1	9307-9412				●			●
125	SHAFT; CLU (A) L=225	1-31342-285-0	01	1	9501-				●			●
125	SHAFT; CLU (B) L=146	1-31342-283-0	01	1	9501-				●			●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9002-9412	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9501-	●	●	●	●			●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9002-	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-31349-007-0	01	1	9002-				●	●	●	●
129	BOLT; SHIFT FORK	1-09087-021-0	02	1	9002-				●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.0	9-09150-508-0	01	1	9002-	●	●	●
131	WASHER; LK,SHIFT FORK ID=11.4	9-09850-072-0	02	1	9002-				●	●	●	●
137	BOLT; CLU COVER M10X28	9-02361-028-0	12	1	9002-9002	●	●	●
137	BOLT; CLU COVER M10X28	0-23801-028-0	12	1	9003-9106	●	●	●
137	BOLT; CLU COVER M10X25	0-23801-025-0	12	1	9107-9504	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●
137	BOLT; CLU COVER M16X28	1-09087-026-0	08	1	9002-				●	●	●	●
138	WASHER; LK,CLU COVER	9-09150-510-0	12	1	9002-9504	●	●	●
138	WASHER; LK,CLU COVER ID=9.8	1-09500-020-0	08	1	9002-				●	●	●	●
143	PLATE; INTERMEDIATE	1-31221-025-0	01	1	9002-				●	●	●	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9002-9102	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9103-	●	●	●
148	SPRING; CLU RETURN	9-09744-034-0	01	1	9002-				●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9002-	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	9002-				●	●	●	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	9002-9312				●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9401-				●			●
155	BRACKET; MINIPACK (A)	1-31429-289-1	01	1	9002-	●	●	●
155	BRACKET; MINIPACK 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (B)	1-31429-288-0	01	1	9002-	●	●	●
155	BRACKET; MINIPACK 6RB1TC-N ENG(29L),12PD1 C ENG(43L) (B)	1-31429-301-0	01	1	9012-	●	●
155	BRACKET; MINIPACK (D)	1-31429-300-0	01	1	9002-9006				●	●	●
155	BRACKET; MINIPACK COUNTER SHAFT BRAKE<BAP> (D)	1-31429-300-0	01	1	9007-9206				●	●	●	●
155	BRACKET; MINIPACK COUNTER SHAFT BRAKE<BAP> (F)	1-31429-343-0	01	1	9207-9306				●	●	●	●
155	BRACKET; MINIPACK (C)	1-31429-066-0	01	1	9002-9206				●	●	●	●
155	BRACKET; MINIPACK (G)	1-31429-344-0	01	1	9207-				●	●	●	●
155	BRACKET; MINIPACK (E)	1-31429-116-0	01	1	9002-9206				●	●	●	●
155	BRACKET; MINIPACK CLUTCH BRAKE<BBG> (D)	1-31429-215-0	01	1	9007-9206				●	●	●	●
155	BRACKET; MINIPACK CLUTCH BRAKE<BBG> (F)	1-31429-342-0	01	1	9207-9306				●	●	●	●
155	BRACKET; MINIPACK (F)	1-31429-343-0	01	1	9307-				●			●
157	BOLT; BRKT M10X20 W/LK WASHER	9-01931-020-0	03	1	9002-9002	●	●	●
157	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	03	1	9003-9205	●	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9206-	●	●	●
157	BOLT; BRKT M10X25 W/LK WASHER	9-01931-025-0	04	1	9002-9002				●	●	●
157	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	9003-9206				●	●	●	●
157	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	05	1	9207-				●	●	●	●
157	BOLT; BRKT M10X18	9-02051-018-0	03	1	9002-9002				●	●	●
157	BOLT; BRKT M10X18	0-20801-018-0	03	1	9003-9006				●	●	●
157	BOLT; BRKT COUNTER SHAFT BRAKE<BAP> M10X18	0-20801-018-0	03	1	9007-9206				●	●	●	●
157	BOLT; BRKT CLUTCH BRAKE<BBG> M10X18	0-20801-018-0	01	1	9007-9206				●	●	●	●
157	BOLT; BRKT CLUTCH BRAKE<BBG> M10X25	0-20801-025-0	02	1	9007-9206				●	●	●	●
161	NUT; BRKT M10	9-09110-410-0	03	1	9002-9205	●	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9206-	●	●	●
161	NUT; BRKT CLUTCH BRAKE<BBG> M10	9-09110-510-0	02	1	9007-9206				●	●	●	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	03	1	9002-9205	●	●	●	●	●	●	●
164	EYE; SPRING	1-31426-016-1	01	1	9002-				●	●	●	●
170	NUT; BOOSTER FIX M8	9-09110-408-0	03	1	9002-				●	●	●	●
171	WASHER; LK,BOOSTER FIX ID=8.2	9-09150-508-0	03	1	9002-				●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31800-344-1	01	1	9002-	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31800-327-1	01	1	9012-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-224-0	01	1	9002-9007				●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-351-0	01	1	9008-				●	●	●	●
223	COVER; CLU	1-31211-030-0	01	1	9002-				●	●	●	●
225	RING; ADJUSTING	1-31239-022-0	01	1	9002-				●	●	●	●
226	PIVOT	1-31239-023-0	06	1	9002-				●	●	●	●
227	RETAINER	1-31239-024-0	01	1	9002-				●	●	●	●
228	BEARING; RELEASE	1-31320-038-0	01	1	9002-				●	●	●	●
229	RING (B)	1-31239-026-0	02	1	9002-				●	●	●	●
229	RING (A)	1-31239-028-0	01	1	9002-				●	●	●	●
230	ADJUSTER	1-31239-029-0	01	1	9002-				●	●	●	●
231	BOLT; ADJUSTER	1-31239-030-0	02	1	9002-				●	●	●	●
232	WASHER; ADJUSTER	1-31239-031-0	02	1	9002-				●	●	●	●

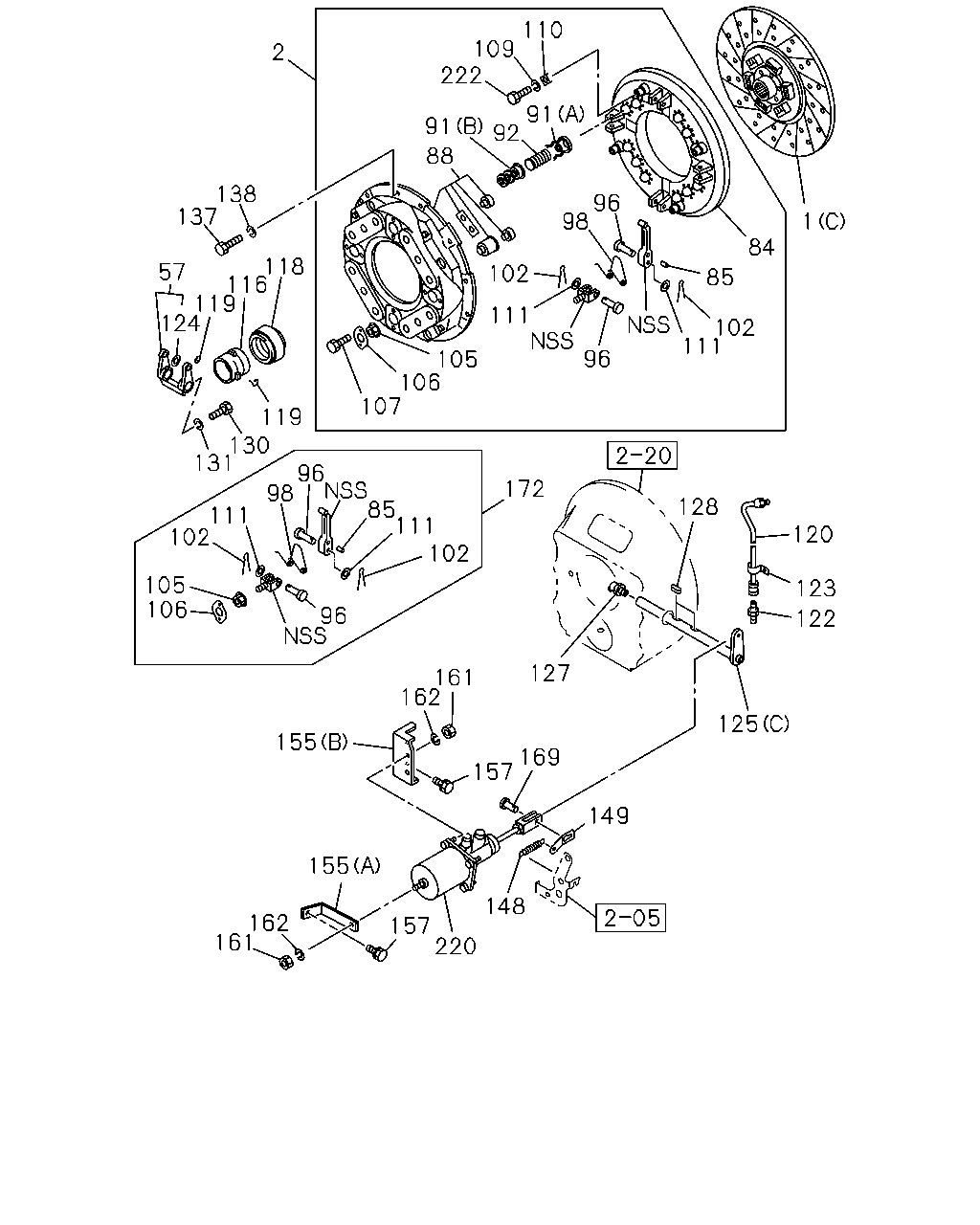

110 109 222 2 91 92 91 88 138 137 96 98 1 84 118 116 119 124 57 102 85 111 102 111 96 105 106 107 119 130 131 96 98 85 111 102 172 128 111 102 120 105 106 123 96 122 127 161 162 125 155 169 157 149 155 148 157 220 162 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DISC; CLUTCH 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) 17"	1-31240-542-0	01	1	9002-9011	●	●	●
1	DISC; CLUTCH 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) 17"	1-31240-395-0	01	1	9012-	●	●	●
1	DISC; CLUTCH 6RB1TC-N ENG(29L),12PD1 C ENG(43L) (C) 17"	1-31240-627-1	01	1	9203-9507	●	●
1	DISC; CLUTCH 6RB1TC-N ENG(29L),12PD1 C ENG(43L) (C) 17"	1-31240-624-0	01	1	9508-9602	●	●
1	DISC; CLUTCH 6RB1TC-N ENG(29L),12PD1 C ENG(43L) (C) 17"	1-31240-753-1	01	1	9603-	●	●
1	DISC; CLUTCH 6RB1TC-N ENG(29L) (C) 17"	1-31240-397-0	01	1	9012-9202		●
1	DISC; CLUTCH 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (A) FRONT 14"	1-31240-327-0	01	1	9002-				●	●	●	●
1	DISC; CLUTCH 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (B) REAR 14"	1-31240-328-0	01	1	9002-				●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6RB1 STD ENG(07L)	1-31220-234-1	01	1	9002-	●	●	●
2	PLATE ASM; PRESSURE,CLU 10PD1 STD ENG(40L)	1-31220-227-0	01	1	9002-9005	●		●	●	●
2	PLATE ASM; PRESSURE,CLU 10PD1 STD ENG(40L)	1-31220-227-1	01	1	9006-	●		●
2	PLATE ASM; PRESSURE,CLU 6RB1TC-N ENG(29L)	1-31220-200-1	01	1	9012-9306		●
2	PLATE ASM; PRESSURE,CLU 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31220-265-2	01	1	9307-	●	●
2	PLATE ASM; PRESSURE,CLU 6RB1 STD ENG(07L)	1-31220-141-2	01	1	9002-				●		●	●
2	PLATE ASM; PRESSURE,CLU 10PD1 STD ENG(40L)	1-31220-142-1	01	1	9006-				●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9002-	●	●	●
57	FORK; SHIFT,CLU	1-31341-020-0	01	1	9002-				●	●	●	●
84	PLATE; PRESSURE 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31221-041-0	01	1	9002-	●	●	●
84	PLATE; PRESSURE 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31221-083-1	01	1	9012-	●	●
84	PLATE; PRESSURE	1-31221-088-0	01	1	9002-				●	●	●	●
85	BUSHING; RELEASE LEVER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31239-003-0	08	1	9002-	●	●	●
85	BUSHING; RELEASE LEVER 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31239-021-0	08	1	9012-	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	9002-	●	●	●
91	SEAT; SPR (A)	1-31219-032-0	04	1	9002-	●	●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	9002-	●	●	●
92	SPRING; CLU 10PD1 STD ENG(40L)	1-31214-026-0	12	1	9002-	●		●
92	SPRING; CLU 6RB1 STD ENG(07L)	1-09580-273-0	12	1	9002-	●	●	●
92	SPRING; CLU 6RB1TC-N ENG(29L)	1-31214-025-0	12	1	9012-9306		●
92	SPRING; CLU 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31214-040-0	12	1	9307-	●	●
92	SPRING; CLU 6RB1 STD ENG(07L)	1-31214-044-0	06	1	9002-				●		●	●
92	SPRING; CLU 10PD1 STD ENG(40L)	1-31214-043-0	06	1	9002-				●	●
96	PIN; RELEASE LEVER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31232-010-0	08	1	9002-	●	●	●
96	PIN; RELEASE LEVER 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31232-013-0	08	1	9012-9503	●	●
96	PIN; RELEASE LEVER 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31232-017-0	08	1	9504-	●	●
98	SPRING; RETURN 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31233-001-0	04	1	9002-	●	●	●
98	SPRING; RETURN 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31233-007-0	04	1	9012-	●	●
98	SPRING; RETURN	1-31233-008-0	04	1	9002-				●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9002-	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9002-9503	●	●	●
105	NUT; SUPPORT 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	9-31235-061-0	04	1	9504-	●	●	●
105	NUT; SUPPORT 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31235-009-0	04	1	9504-	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-002-0	04	1	9002-9007	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9008-	●	●	●
107	BOLT; LK PLATE	1-31239-010-0	08	1	9002-9007	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9008-	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9002-	●	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9002-	●	●	●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	9002-	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-067-0	01	1	9002-9004	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9005-	●	●	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	9002-9004	●	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9005-	●	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9002-	●	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9002-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=500	1-09364-651-0	01	1	9002-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK	9-09917-576-0	01	1	9002-	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9002-	●	●	●
125	SHAFT; CLU (C) L=477	1-31342-240-1	01	1	9002-	●	●	●
125	SHAFT; CLU (A) L=225 W/LEVER	1-31342-246-0	01	1	9002-9006				●	●	●
125	SHAFT; CLU COUNTER SHAFT BRAKE<BAP> (A) L=225 W/LEVER	1-31342-246-0	01	1	9007-9306				●	●	●	●
125	SHAFT; CLU (B) L=146	1-31342-085-0	01	1	9002-9412				●	●	●	●
125	SHAFT; CLU CLUTCH BRAKE<BBG> (A)	1-31342-134-0	01	1	9007-9306				●	●	●	●
125	SHAFT; CLU (A) L=225 W/LEVER	1-31342-246-0	01	1	9307-9412				●			●
125	SHAFT; CLU (A) L=225	1-31342-285-0	01	1	9501-				●			●
125	SHAFT; CLU (B) L=146	1-31342-283-0	01	1	9501-				●			●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9002-9412	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9501-	●	●	●	●			●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9002-	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-31349-007-0	01	1	9002-				●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9002-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.0	9-09150-508-0	01	1	9002-	●	●	●
131	WASHER; LK,SHIFT FORK ID=11.4	9-09850-072-0	02	1	9002-				●	●	●	●
137	BOLT; CLU COVER M10X28	9-02361-028-0	12	1	9002-9002	●	●	●
137	BOLT; CLU COVER M10X28	0-23801-028-0	12	1	9003-9106	●	●	●
137	BOLT; CLU COVER M10X25	0-23801-025-0	12	1	9107-9504	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●
137	BOLT; CLU COVER M16X28	1-09087-026-0	08	1	9002-				●	●	●	●
138	WASHER; LK,CLU COVER	9-09150-510-0	12	1	9002-9504	●	●	●
138	WASHER; LK,CLU COVER ID=9.8	1-09500-020-0	08	1	9002-				●	●	●	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9002-9102	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9103-	●	●	●
148	SPRING; CLU RETURN	9-09744-034-0	01	1	9002-				●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9002-	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	9002-				●	●	●	●
155	BRACKET; MINIPACK (A)	1-31429-289-1	01	1	9002-	●	●	●
155	BRACKET; MINIPACK 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (B)	1-31429-288-0	01	1	9002-	●	●	●
155	BRACKET; MINIPACK 6RB1TC-N ENG(29L),12PD1 C ENG(43L) (B)	1-31429-301-0	01	1	9012-	●	●
155	BRACKET; MINIPACK (D)	1-31429-300-0	01	1	9002-9006				●	●	●
155	BRACKET; MINIPACK COUNTER SHAFT BRAKE<BAP> (D)	1-31429-300-0	01	1	9007-9206				●	●	●	●
155	BRACKET; MINIPACK COUNTER SHAFT BRAKE<BAP> (F)	1-31429-343-0	01	1	9207-9306				●	●	●	●
155	BRACKET; MINIPACK (C)	1-31429-066-0	01	1	9002-9206				●	●	●	●
155	BRACKET; MINIPACK (G)	1-31429-344-0	01	1	9207-				●	●	●	●
155	BRACKET; MINIPACK (E)	1-31429-116-0	01	1	9002-9206				●	●	●	●
155	BRACKET; MINIPACK CLUTCH BRAKE<BBG> (D)	1-31429-215-0	01	1	9007-9206				●	●	●	●
155	BRACKET; MINIPACK CLUTCH BRAKE<BBG> (F)	1-31429-342-0	01	1	9207-9306				●	●	●	●
155	BRACKET; MINIPACK (F)	1-31429-343-0	01	1	9307-				●			●
157	BOLT; BRKT M10X20 W/LK WASHER	9-01931-020-0	03	1	9002-9002	●	●	●
157	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	03	1	9003-9205	●	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9206-	●	●	●
157	BOLT; BRKT M10X25 W/LK WASHER	9-01931-025-0	04	1	9002-9002				●	●	●
157	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	9003-9206				●	●	●	●
157	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	05	1	9207-				●	●	●	●
157	BOLT; BRKT M10X18	9-02051-018-0	03	1	9002-9002				●	●	●
157	BOLT; BRKT M10X18	0-20801-018-0	03	1	9003-9006				●	●	●
157	BOLT; BRKT COUNTER SHAFT BRAKE<BAP> M10X18	0-20801-018-0	03	1	9007-9206				●	●	●	●
157	BOLT; BRKT CLUTCH BRAKE<BBG> M10X18	0-20801-018-0	01	1	9007-9206				●	●	●	●
157	BOLT; BRKT CLUTCH BRAKE<BBG> M10X25	0-20801-025-0	02	1	9007-9206				●	●	●	●
161	NUT; BRKT M10	9-09110-410-0	03	1	9002-9205	●	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9206-	●	●	●
161	NUT; BRKT CLUTCH BRAKE<BBG> M10	9-09110-510-0	02	1	9007-9206				●	●	●	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	03	1	9002-9205	●	●	●	●	●	●	●
169	PIN; JOINT,MINIPACK	1-31424-001-1	01	1	9002-9312	●	●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9401-	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-526-1	01	1	9002-9306	●	●	●
172	LEVER KIT; RELEASE,CLU 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-87830-526-1	01	1	9307-	●	●	●
172	LEVER KIT; RELEASE,CLU 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-87830-650-1	01	1	9307-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31800-344-1	01	1	9002-	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-31800-327-1	01	1	9012-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-224-0	01	1	9002-9007				●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-351-0	01	1	9008-				●	●	●	●
222	BOLT; STRAP M12X30	1-09040-016-0	04	1	9002-9503	●	●	●
222	BOLT; STRAP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M12X30	1-09040-016-0	04	1	9504-	●	●	●
222	BOLT; STRAP 6RB1TC-N ENG(29L),12PD1 C ENG(43L)	1-09040-102-0	04	1	9504-	●	●

139

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
	139	BRAKE; CLU CLUTCH BRAKE<BBG>	1-31259-036-0	01	1	9007-9306				●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
