0-65 — STARTER (#35614) — 99 parça

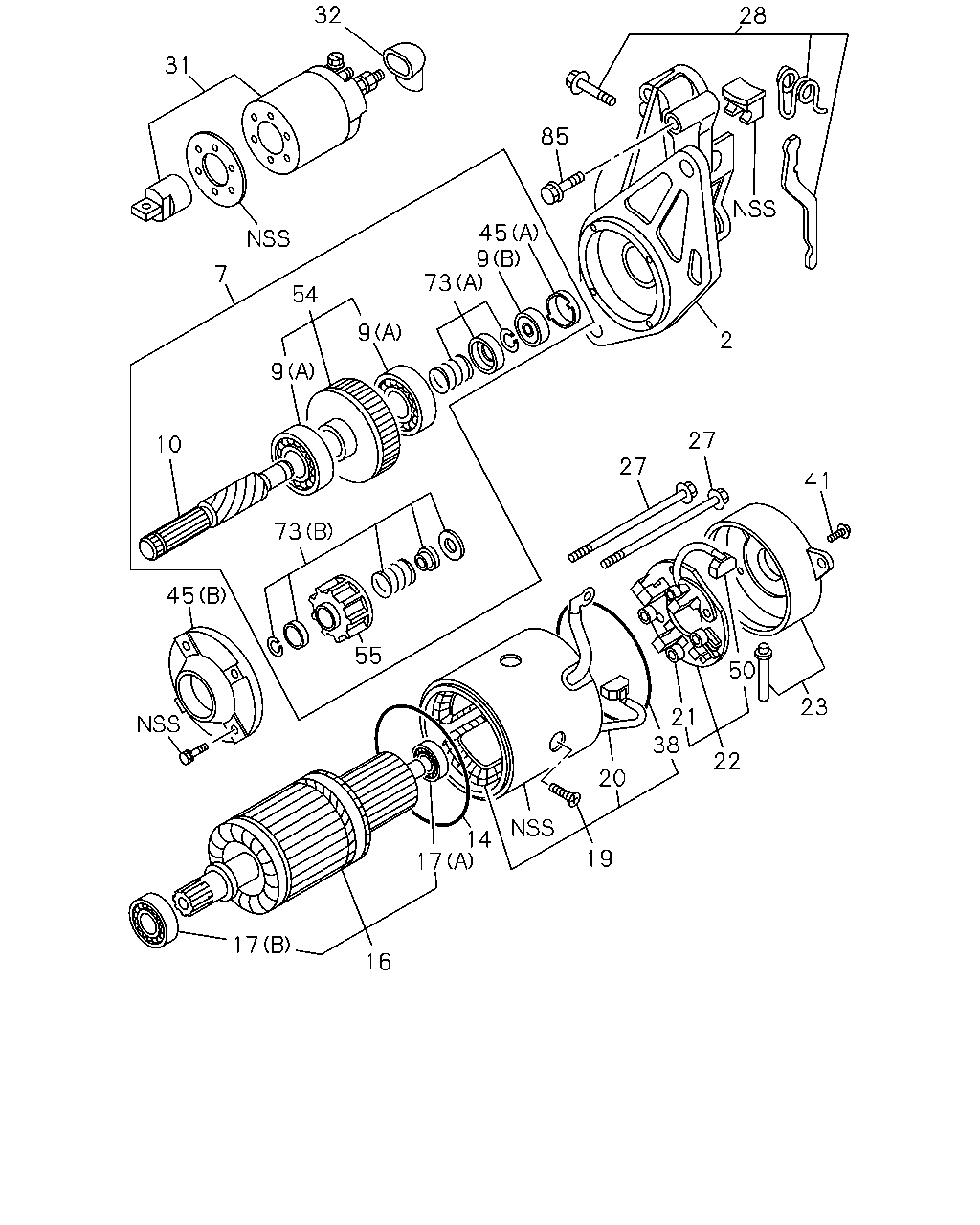

32 28 31 85 45 9 7 73 54 9 2 9 27 10 27 41 73 45 55 50 23 21 38 22 20 14 19 17 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-97323-935-4	8-97329-348-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-98179-204-1, C = 8-98222-021-0	8-98022-776-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-98245-258-0	8-98246-368-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98179-204-1	8-97230-564-0	01	1	-1101
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97323-935-4	8-97230-564-0	01	1	-1008
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97323-935-4	8-98159-731-0	01	1	1009-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98179-204-1	8-98159-731-0	01	1	1102-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-98222-021-0, D = 8-98245-258-0	8-98222-104-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), THA ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (B), THA ASM PART: A = 8-97323-935-4	8-97025-676-0	01	1	-1008
10	SHAFT; GEAR STARTER ASM PART: A = 8-97323-935-4	8-97030-395-0	01	1	-1008
10	SHAFT; GEAR STARTER ASM PART: B = 8-98179-204-1	8-97030-395-0	01	1	-1101
10	SHAFT; GEAR STARTER ASM PART: B = 8-98179-204-1	8-98159-734-0	01	1	1102-
10	SHAFT; GEAR STARTER ASM PART: C = 8-98222-021-0, D = 8-98245-258-0	8-98159-734-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 8-97323-935-4	8-98159-734-0	01	1	1009-
14	GASKET; YOKE,STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97377-691-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: A = 8-97323-935-4	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97025-676-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), THA ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97030-387-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0	8-97377-688-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: D = 8-98245-258-0	8-98253-306-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97230-560-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER THA ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-94152-972-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97230-562-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97323-935-4	8-97377-689-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-98179-204-1, C = 8-98222-021-0	8-98022-772-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: D = 8-98245-258-0	8-98246-366-0	01	1	-
27	BOLT; THROUGH,STARTER THA ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97323-935-4	8-97030-402-0	01	1	-0912
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97323-935-4	8-98159-690-0	01	1	1001-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-98179-218-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0	8-97217-569-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-98245-258-0	8-98246-367-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0	8-97217-570-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: D = 8-98245-258-0	8-98253-307-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97230-559-0	01	1	-
41	SCREW; RR COVER,STARTER THA ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97117-107-0	02	1	-
45	RETAINER; BEARING,STARTER (A), THA ASM PART: A = 8-97323-935-4	8-94435-567-0	01	1	-1008
45	RETAINER; BEARING,STARTER (B) ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0	8-97030-401-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: D = 8-98245-258-0	8-98246-369-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97230-560-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: A = 8-97323-935-4	8-97230-563-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1	8-97115-816-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-98222-021-0, D = 8-98245-258-0	8-98222-106-0	01	1	-
55	PINION; CLU,STARTER ASM PART: A = 8-97323-935-4	8-97230-569-0	01	1	-1008
73	STOPPER SET; PINION (A), THA ASM PART: A = 8-97323-935-4	8-97030-396-0	01	1	-1008
73	STOPPER SET; PINION (B) ASM PART: A = 8-97323-935-4	8-97030-398-0	01	1	-1008
85	BOLT; ENGAGE SW FIX,STARTER THA ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-94408-500-0	02	1	-

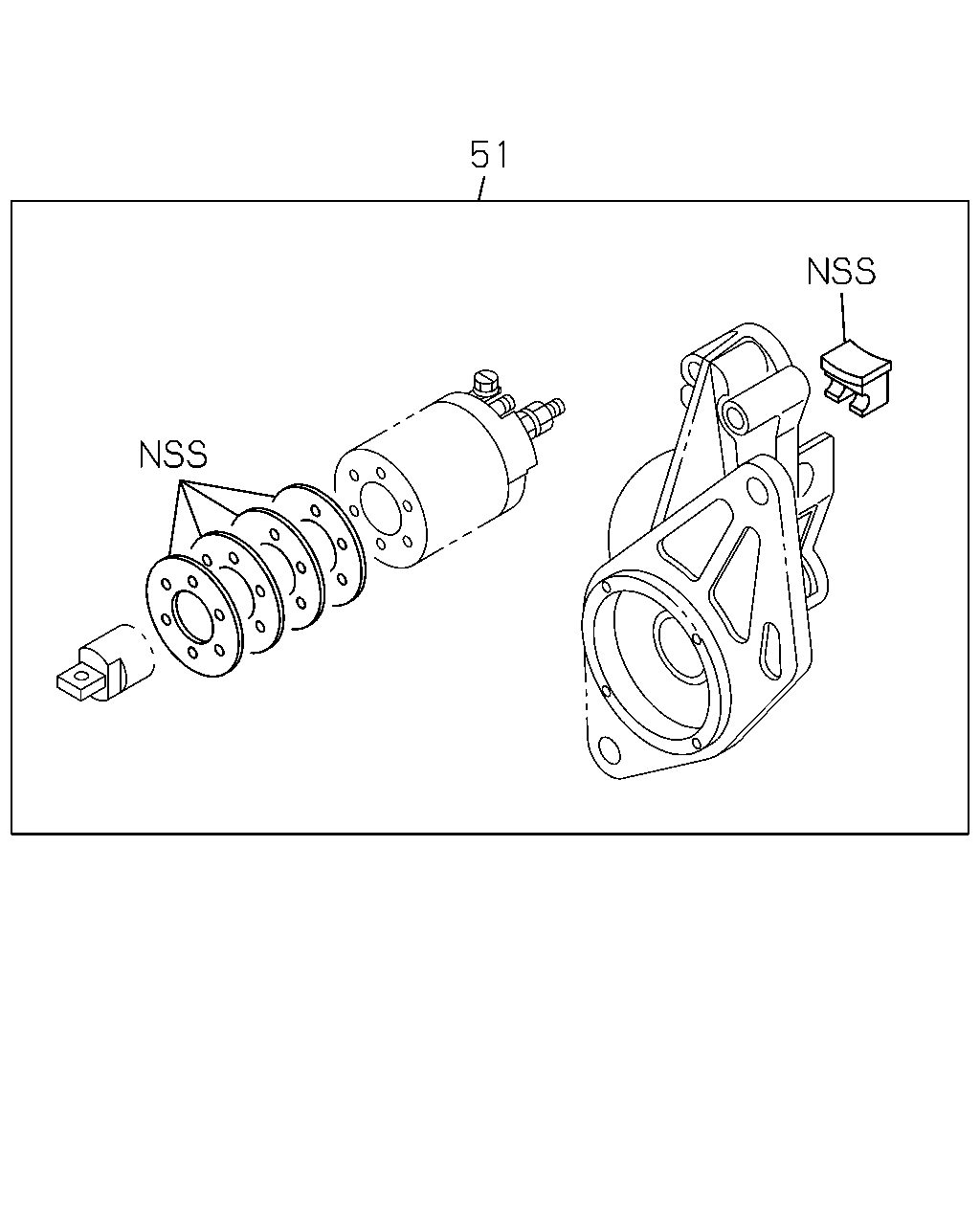

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-97323-935-4	8-97377-690-0	01	1	-
	51	COVER SET; DUST ENGAGE SW STARTER ASM PART: B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-98022-789-0	01	1	-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-97323-935-4	8-97377-690-0	01	1	-
	51	COVER SET; DUST ENGAGE SW STARTER ASM PART: B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-98022-789-0	01	1	-

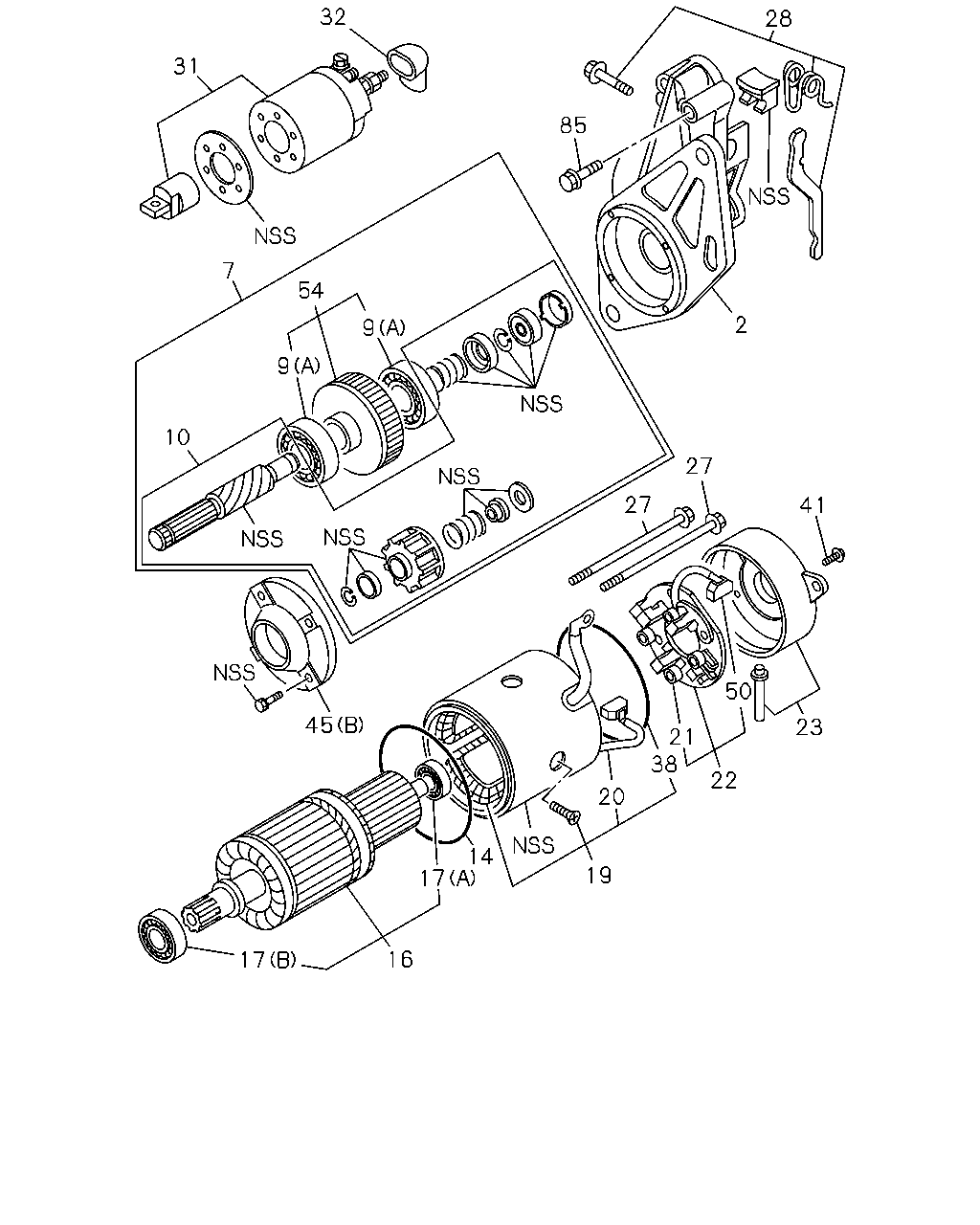

32 28 31 85 7 54 2 9 9 10 27 27 41 50 45 23 21 38 22 20 14 19 17 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-97323-935-4	8-97329-348-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-98179-204-1, C = 8-98222-021-0	8-98022-776-0	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-98245-258-0	8-98246-368-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98179-204-1	8-97230-564-0	01	1	-1101
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97323-935-4	8-97230-564-0	01	1	-1008
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97323-935-4	8-98159-731-0	01	1	1009-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98179-204-1	8-98159-731-0	01	1	1102-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 8-98222-021-0, D = 8-98245-258-0	8-98222-104-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), THA ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (B), THA ASM PART: A = 8-97323-935-4	8-97025-676-0	01	1	-1008
10	SHAFT; GEAR STARTER ASM PART: A = 8-97323-935-4	8-97030-395-0	01	1	-1008
10	SHAFT; GEAR STARTER ASM PART: B = 8-98179-204-1	8-97030-395-0	01	1	-1101
10	SHAFT; GEAR STARTER ASM PART: B = 8-98179-204-1	8-98159-734-0	01	1	1102-
10	SHAFT; GEAR STARTER ASM PART: C = 8-98222-021-0, D = 8-98245-258-0	8-98159-734-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 8-97323-935-4	8-98159-734-0	01	1	1009-
14	GASKET; YOKE,STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97377-691-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: A = 8-97323-935-4	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97025-676-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), THA ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97030-387-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0	8-97377-688-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: D = 8-98245-258-0	8-98253-306-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97230-560-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER THA ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-94152-972-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97230-562-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97323-935-4	8-97377-689-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-98179-204-1, C = 8-98222-021-0	8-98022-772-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: D = 8-98245-258-0	8-98246-366-0	01	1	-
27	BOLT; THROUGH,STARTER THA ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97323-935-4	8-97030-402-0	01	1	-0912
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97323-935-4	8-98159-690-0	01	1	1001-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-98179-218-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0	8-97217-569-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-98245-258-0	8-98246-367-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0	8-97217-570-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: D = 8-98245-258-0	8-98253-307-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97230-559-0	01	1	-
41	SCREW; RR COVER,STARTER THA ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97117-107-0	02	1	-
45	RETAINER; BEARING,STARTER (A), THA ASM PART: A = 8-97323-935-4	8-94435-567-0	01	1	-1008
45	RETAINER; BEARING,STARTER (B) ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0	8-97030-401-0	01	1	-
45	RETAINER; BEARING,STARTER (B) ASM PART: D = 8-98245-258-0	8-98246-369-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-97230-560-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: A = 8-97323-935-4	8-97230-563-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97323-935-4, B = 8-98179-204-1	8-97115-816-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-98222-021-0, D = 8-98245-258-0	8-98222-106-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER THA ASM PART: A = 8-97323-935-4, B = 8-98179-204-1, C = 8-98222-021-0, D = 8-98245-258-0	8-94408-500-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
