Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶
0-52 — OIL AND VACUUM PIPING; ENGINE
(#35610) — 14 parça
◀
[052A] NO.1 (13 parça)
[052A] NO.2 (1 parça)
▶
202
341
46
86
202
202
83
89
202
46
27
340
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
BOLT; OIL PIPE FIX
M8X16 FLANGE THA
0-28050-816-0
01
1
0901-
46
BOLT; JOINT,OIL FEED PIPE,VAC PUMP
(B) M14X27 FLANGE THA
1-09675-086-0
01
1
0901-
46
BOLT; JOINT,OIL FEED PIPE,VAC PUMP
(A) M10X21 FLANGE
8-97372-239-0
01
1
0901-
83
PIPE; OIL,C/BL TO VAC PUMP
8-97228-671-0
01
1
0901-0902
83
PIPE; OIL,C/BL TO VAC PUMP
THA
8-98142-473-0
01
1
0903-0908
83
PIPE; OIL,C/BL TO VAC PUMP
8-97228-671-0
01
1
0909-
86
PIPE; OIL,VAC PUMP RETURN
THA
8-94455-311-1
01
1
0901-
89
CLIP; VAC HOSE
ID=17.1
8-94122-679-0
01
1
0901-
202
GASKET; OIL PIPE
(A) ID=10.2 OD=15.2
1-09630-083-0
02
1
0901-
202
GASKET; OIL PIPE
(B) ID=14.2 OD=19.2
1-09630-085-0
02
1
0901-1312
202
GASKET; OIL PIPE
(B) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
340
HOSE; VAC PUMP,RETURN
8-94339-073-3
01
1
0901-
341
CLIP; HOSE,VAC PUMP
ID=17.1
8-94122-679-0
01
1
0901-

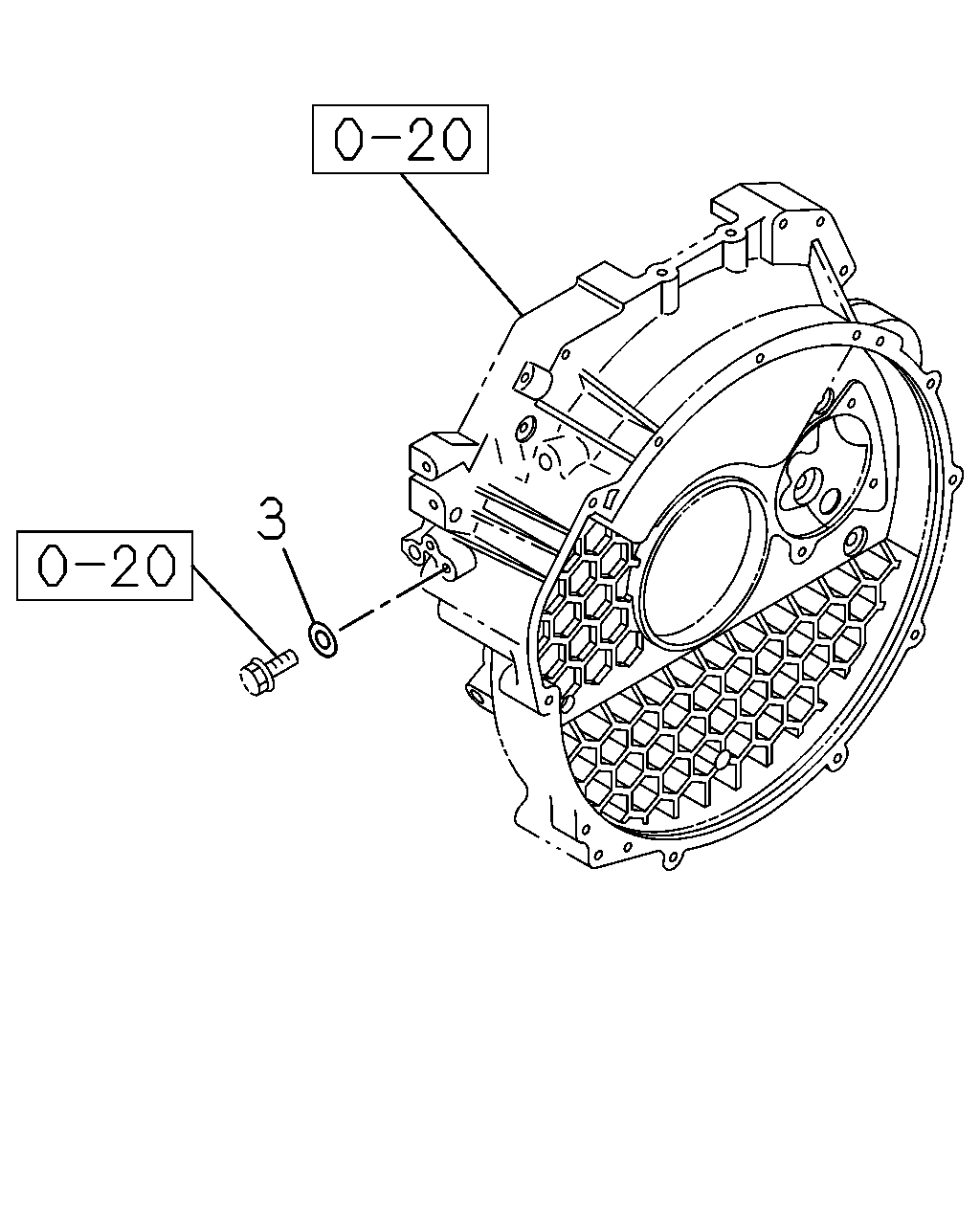

3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
01
1
0901-
