1-56B — EXHAUST BRAKE SYSTEM (#3561) — 23 parça

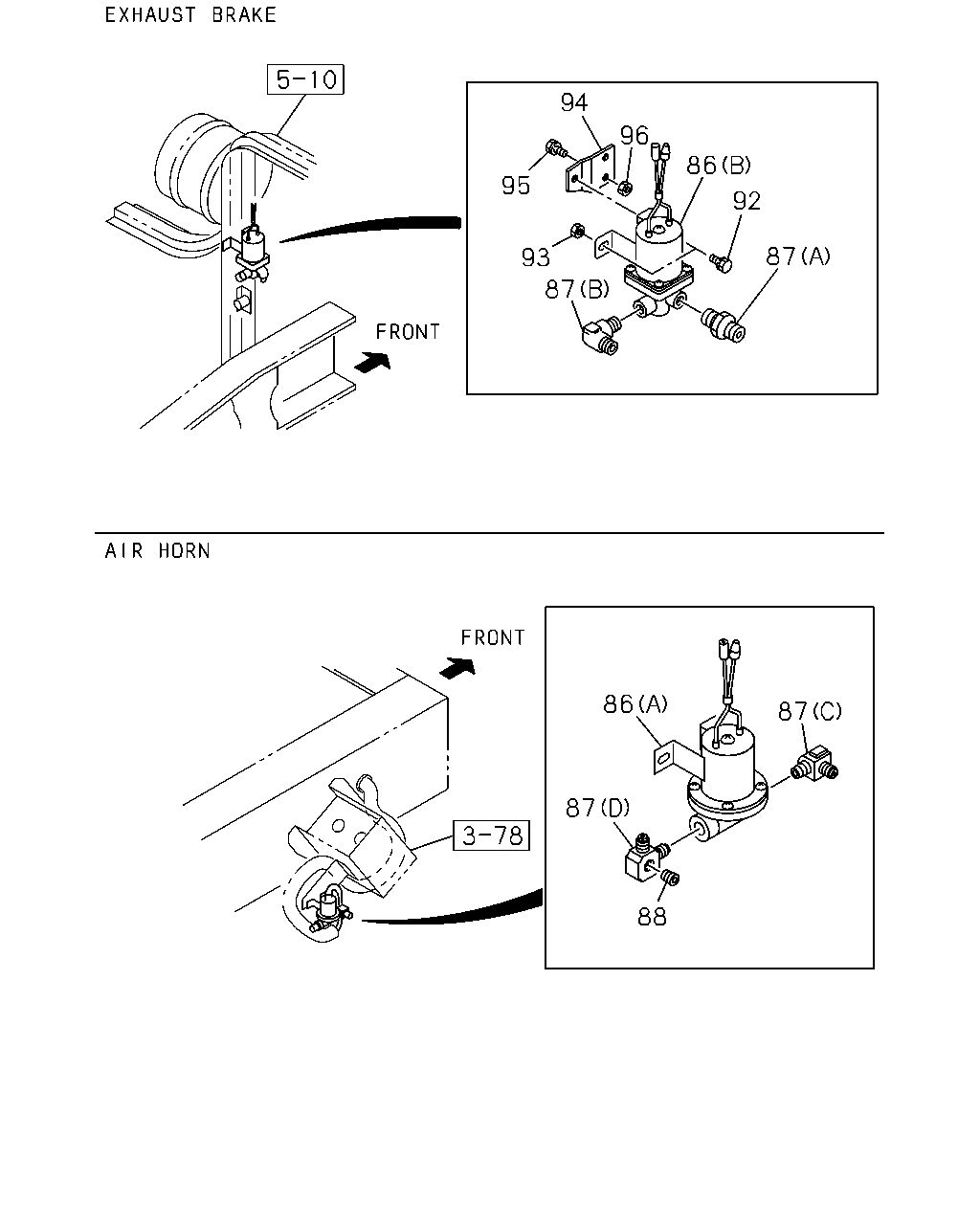

çizim 36963
94 96 86 95 92 87 93 87 86 87 87 88
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
(B) EXH BRAKE 		1-82563-094-0 01 1 9002-9006 ●
86 VALVE; MAG,EXH BRK
(B) EXH BRAKE 		1-82563-172-0 01 1 9007-9012 ●
86 VALVE; MAG,EXH BRK
(B) EXH BRAKE 		1-82563-158-0 01 1 9101-9306 ●
86 VALVE; MAG,EXH BRK
(A) AIR HORN 		1-82563-299-1 01 1 9002- ● ●
86 VALVE; MAG,EXH BRK
(B) EXH BRAKE 		1-82563-402-0 01 1 9307- ● ●
87 CONNECTOR
(C) M14 & PT1/4 ELBOW 		1-09650-034-1 01 1 9002-9302 ●
87 CONNECTOR
(C) M14 & PT1/4 ELBOW 		1-09650-432-0 01 1 9303- ● ●
87 CONNECTOR
(D) 		1-09656-316-1 01 1 9002- ● ●
87 CONNECTOR
(B) M20 & PT1/4 ELBOW 		1-09660-137-0 01 1 9002-9302 ●
87 CONNECTOR
(B) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9303- ● ●
87 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9002- ● ●
88 PLUG
PT3/8 		9-09204-517-0 01 1 9002- ● ●
92 BOLT; MAG VLV
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ●
92 BOLT; MAG VLV
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ●
92 BOLT; MAG VLV
M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9307- ● ●
93 NUT; MAG VLV
M8 		9-09110-408-0 01 1 9002- ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-022-1 01 1 9002- ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X22 		9-01900-822-0 02 1 9002-9204 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X22 W/LK WASHER 		0-50040-822-0 02 1 9205-9302 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9307- ● ●
96 NUT; BRKT,MAG VLV,EXH BRAKE
M8 		9-09110-408-0 02 1 9002- ● ●
