Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

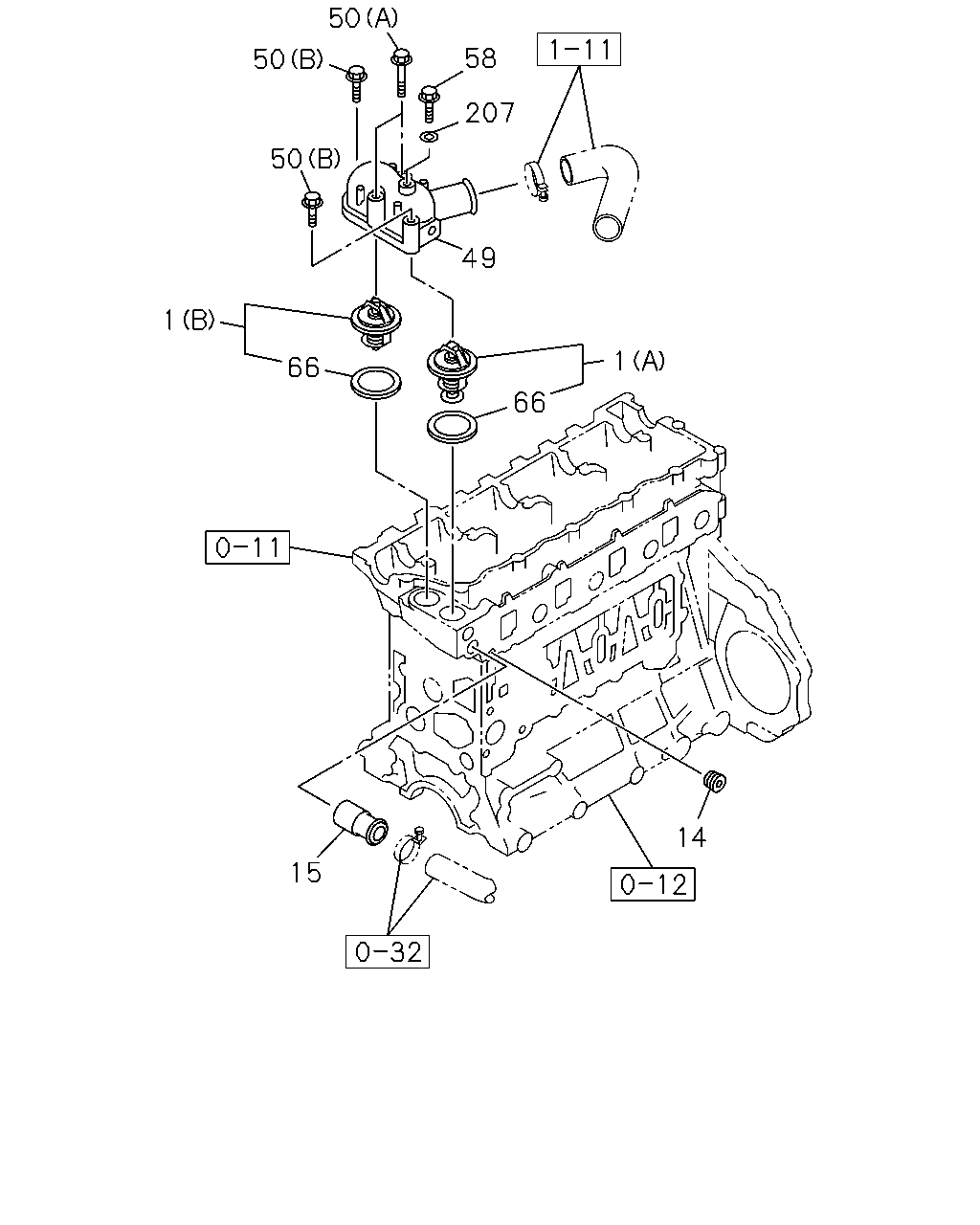

0-31 — THERMOSTAT AND HOUSING
(#35601) — 11 parça
1
66
66
1
50
50
50
58
207
49
15
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
(B) 85 CELSIUS
8-97300-787-3
01
1
0901-
1
THERMOSTAT
(A) 82 CELSIUS
8-97300-789-3
01
1
0901-
14
PLUG; SW
PT3/8 THA
5-09605-005-0
01
1
0901-
15
PIPE; BYPASS
8-94342-574-0
01
1
0901-
49
PIPE; WATER OUTLET
8-97372-769-1
01
1
0901-
50
BOLT; OUTLET PIPE
(B) M8X25 FLANGE THA
0-28650-825-0
02
1
0901-
50
BOLT; OUTLET PIPE
(A) M8X65 FLANGE
1-09044-072-1
02
1
0901-
58
PLUG; WATER OUTLET PIPE
M8X16
8-97021-211-1
01
1
0901-
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-97300-793-0
02
1
0901-1501
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-98280-281-0
02
1
1502-
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2
1-09630-082-0
01
1
0901-
