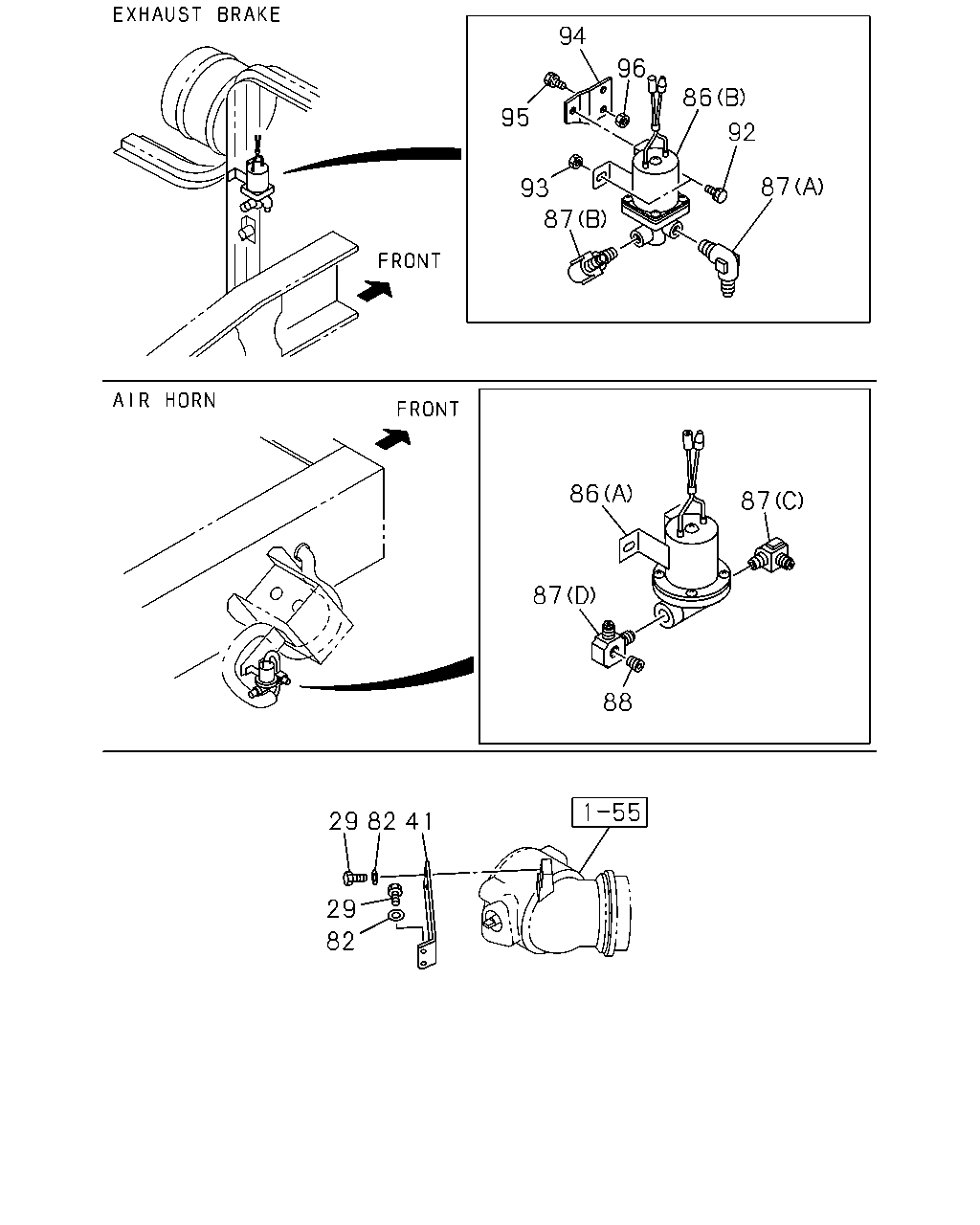

1-56A — EXHAUST BRAKE SYSTEM
(#3560) — 28 parça
Tümü
A - 6RB1TC-N ENG
B - 6RB1 STD ENG
94
96
86
95
92
87
93
87
86
87
87
88
29
82
29
82
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
BOLT; CONT CYL
M10X20
1-09020-073-2
04
1
9012-
●
41
BRACKET
1-14149-114-0
01
1
9012-9306
●
41
BRACKET
1-14149-126-0
01
1
9307-
●
82
WASHER; DISH
1-09500-007-0
04
1
9012-
●
86
VALVE; MAG,EXH BRK
(B) EXH BRAKE
1-82563-094-0
01
1
9002-9006
●
86
VALVE; MAG,EXH BRK
(B) EXH BRAKE
1-82563-172-0
01
1
9007-9012
●
●
86
VALVE; MAG,EXH BRK
(B) EXH BRAKE
1-82563-158-0
01
1
9101-9306
●
●
86
VALVE; MAG,EXH BRK
(A) AIR HORN
1-82563-299-1
01
1
9002-
●
●
86
VALVE; MAG,EXH BRK
(B) EXH BRAKE
1-82563-402-0
01
1
9307-
●
●
87
CONNECTOR
(C) M14 & PT1/4 ELBOW
1-09650-034-1
01
1
9002-9302
●
●
87
CONNECTOR
(C) M14 & PT1/4 ELBOW
1-09650-432-0
01
1
9303-
●
●
87
CONNECTOR
(A) PT1/4 & M12 ELBOW
1-09650-117-1
01
1
9002-9302
●
●
87
CONNECTOR
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
9303-
●
●
87
CONNECTOR
(D)
1-09656-316-1
01
1
9002-
●
●
87
CONNECTOR
(B) M20 & PT1/4 ELBOW
1-09660-137-0
01
1
9002-9302
●
●
87
CONNECTOR
(B) M20 & PT1/4 ELBOW
1-09660-681-0
01
1
9303-
●
●
88
PLUG
PT3/8
9-09204-517-0
01
1
9002-
●
●
92
BOLT; MAG VLV
M8X25 W/LK WASHER
9-01900-825-0
02
1
9002-9204
●
●
92
BOLT; MAG VLV
M8X25 W/LK WASHER
0-50040-825-0
02
1
9205-9302
●
●
92
BOLT; MAG VLV
M8X25 FLANGE
0-28080-825-0
02
1
9303-9306
●
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28080-820-0
02
1
9307-
●
●
93
NUT; MAG VLV
M8
9-09110-408-0
01
1
9002-
●
●
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-022-1
01
1
9002-
●
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X22
9-01900-822-0
02
1
9002-9204
●
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X22 W/LK WASHER
0-50040-822-0
02
1
9205-9302
●
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X25 FLANGE
0-28080-825-0
02
1
9303-9306
●
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
0-28080-820-0
02
1
9307-
●
●
96
NUT; BRKT,MAG VLV,EXH BRAKE
M8
9-09110-408-0
02
1
9002-
●
●
