◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#356) — 93 parça
çizim 26735
47 48 47
BalonParca AdiParca NoAdetTipApplied Date A B C
47 GASKET; FLEX HOSE
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> ID=11 OD=18 		9-09572-510-0 02 1 9202- ● ● ●
48 HOSE; FLEX,PTO
PTO CONTROL AIR LINK TYPE<SEC> L=330 		0-07150-330-0 01 1 9202- ●
48 HOSE; FLEX,PTO
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> L=550 		0-07150-550-0 01 1 9202-9205 ●
48 HOSE; FLEX,PTO
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> L=650 		0-07150-650-0 01 1 9206- ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=450 		0-07150-450-0 01 1 9202- ● ● ●

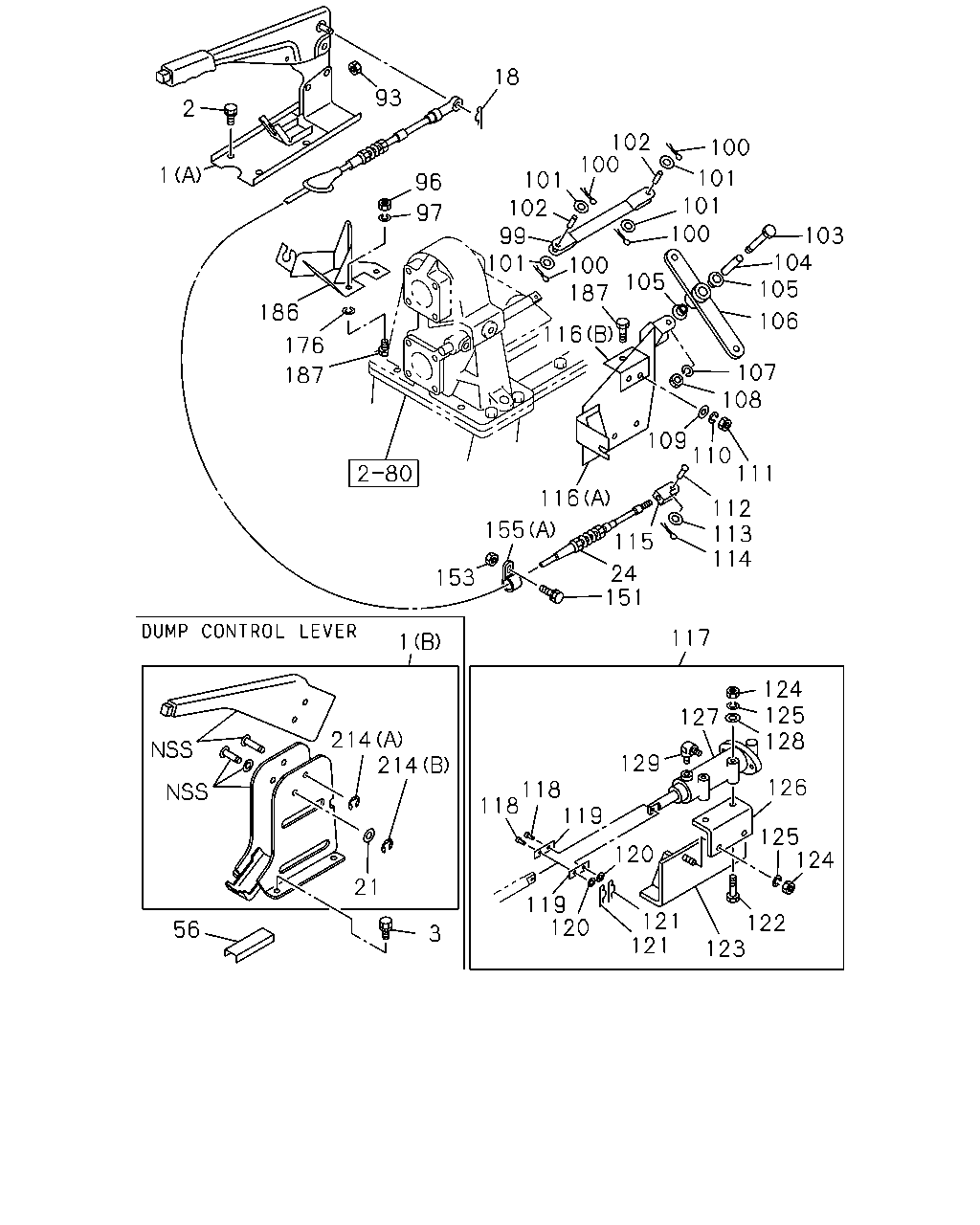

çizim 27798
18 93 2 102 100 100 1 101 101 100 101 102 99 101 96 97 103 104 105 100 187 105 186 106 116 176 107 108 187 109 110 111 116 112 113 114 155 115 24 151 153 117 1 124 125 128 127 214 214 129 126 118 118 119 120 125 124 21 119 120 121 121 122 123 56 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL AIR LINK TYPE<SEC> (A) 		1-79998-260-7 01 1 9202- ●
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (B) 		1-38300-100-6 01 1 9202- ●
2 BOLT; PTO CONT
PTO CONTROL AIR LINK TYPE<SEC> M6X22 		9-01960-622-0 04 1 9202-9204 ●
2 BOLT; PTO CONT
PTO CONTROL AIR LINK TYPE<SEC> M6X22 		0-50140-622-0 04 1 9205- ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9202-9204 ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205- ●
18 PIN; SNAP,PTO CABLE
PTO CONTROL AIR LINK TYPE<SEC> L=27.7 		1-09987-141-0 01 1 9202- ●
24 CABLE; PTO CONT
PTO CONTROL AIR LINK TYPE<SEC> L=4550 		1-38319-019-1 01 1 9202- ●
56 PATCH; DUMP CONT BRKT
DUMP CONTROL LEVER<RC4> 		1-79998-219-0 01 1 9202- ●
93 NUT; BRKT FIX
TRANSMISSION FRONT PTO(RC2) M10 		9-09110-410-0 03 1 9202- ●
96 NUT
TRANSMISSION FRONT PTO(RC2) M12 		9-99110-512-0 02 1 9202-9205 ●
96 NUT
TRANSMISSION FRONT PTO(RC2) M12 FLANGE 		0-91150-212-0 02 1 9206- ●
97 WASHER; LK
TRANSMISSION FRONT PTO(RC2) ID=12.2 		9-09150-512-0 02 1 9202-9205 ●
99 LINK; CONT,FRT PTO
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> 		1-38323-005-0 01 1 9202- ●
100 PIN; SPLIT
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> OD=1.8 L=15 		9-08112-015-0 04 1 9202- ●
101 WASHER; PL,LINK
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> ID=8.4 		9-09160-508-0 04 1 9202- ●
102 PIN; STRAIGHT,LINK FIX
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> 		9-08280-830-0 02 1 9202- ●
103 BOLT; LEVER FIX
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> M10X55 		0-10811-055-0 01 1 9202- ●
104 SHAFT; CONT LEVER
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> 		1-38321-003-1 01 1 9202- ●
105 BUSHING; CONT LEVER
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> 		1-09330-023-0 02 1 9202- ●
106 LEVER; CONT,FRT PTO
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> 		1-38322-019-0 01 1 9202- ●
107 WASHER; LK,LEVER
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> ID=10.2 		9-09150-510-0 01 1 9202- ●
108 NUT; LEVER FIX
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> M10 		9-09110-510-0 01 1 9202- ●
109 WASHER; LK,BRKT
TRANSMISSION FRONT PTO(RC2) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.5 OD=18 		9-09160-510-0 02 1 9202-9205 ●
110 WASHER; LK,BRKT
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> ID=10.2 		9-09150-510-0 02 1 9202- ●
111 NUT; BRKT
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> M10 		9-09110-410-0 02 1 9202- ●
112 PIN; JAW JOINT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> OD=10 L=28 		9-08224-028-0 01 1 9202- ●
113 WASHER; PL,JAW JOINT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> ID=10.5 OD=18 		9-09160-510-0 01 1 9202- ●
114 PIN; SPLIT,JAW JOINT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> OD=2.8 L=18 		9-08113-018-0 01 1 9202- ●
115 JOINT; JAW,CONT CABLE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		1-09768-015-0 01 1 9202- ●
116 BRACKET; CONT,TRANS,FRT PTO
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> (B) 		1-38325-077-0 01 1 9202- ●
116 BRACKET; CONT,TRANS,FRT PTO
TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> (A) 		1-38325-081-0 01 1 9202- ●
117 CYLINDER ASM; AIR
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-38370-004-0 01 1 9202- ●
118 PIN; PLATE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		9-08213-620-0 02 1 9202- ●
119 PLATE; FRT PTO,CONT LEVER
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-38379-011-0 02 1 9202- ●
120 WASHER; PL,PLATE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> ID=6.4 		9-09160-506-0 02 1 9202- ●
121 RING; SNAP
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> ID=4 		9-09185-404-0 02 1 9202- ●
121 RING; SNAP
DUMP CONTROL LEVER<RC4> ID=5 		9-09185-405-0 01 1 9202- ●
122 BOLT; PLATE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		9-01051-060-0 02 1 9202- ●
123 BRACKET; WITH BOLT
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-38379-020-0 01 1 9202- ●
124 NUT; PLATE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> M10 		9-09110-410-0 04 1 9202- ●
125 WASHER; LK,PLATE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> ID=10.2 		9-09150-510-0 04 1 9202- ●
126 PLATE; AIR CYL
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-38379-021-0 01 1 9202- ●
127 CYLINDER; AIR
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-38377-004-0 01 1 9202- ●
128 WASHER; LK,PLATE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> ID=10.5 OD=18 		9-09160-510-0 02 1 9202- ●
129 NIPPLE; AIR CYL
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-38379-012-0 01 1 9202- ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M8X18 		0-28010-818-0 01 1 9202-9204 ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M8X18 FLANGE 		0-28080-818-0 01 1 9205-9207 ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M8X20 FLANGE 		0-28080-820-0 01 1 9208- ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M8X22 FLANGE 		0-28010-822-0 01 1 9202-9204 ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M8X22 FLANGE 		0-28080-822-0 01 1 9205-9207 ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M8X25 FLANGE 		0-28080-825-0 01 1 9208- ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9202- ●
153 NUT; CLIP
PTO CONTROL AIR LINK TYPE<SEC> M6 FLANGE 		1-09984-123-0 01 1 9202- ●
153 NUT; CLIP
PTO CONTROL AIR LINK TYPE<SEC> M8 		9-09110-408-0 01 1 9202- ●
155 CLIP; CABLE
PTO CONTROL AIR LINK TYPE<SEC> (B) L=250 		5-09707-030-0 01 1 9202- ●
155 CLIP; CABLE
PTO CONTROL AIR LINK TYPE<SEC> (B) L=140 		5-09707-031-0 02 1 9202- ●
155 CLIP; CABLE
PTO CONTROL AIR LINK TYPE<SEC> (A) ID=11 L=16 		9-09525-025-0 01 1 9202- ●
155 CLIP; CABLE
PTO CONTROL AIR LINK TYPE<SEC> (A) ID=11 L=28 		9-09525-055-0 01 1 9202- ●
155 CLIP; CABLE
PTO CONTROL AIR LINK TYPE<SEC> (A) ID=16 		9-09525-552-0 02 1 9202- ●
176 WASHER; LK,BRKT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> ID=10.2 		9-09150-510-0 02 1 9202- ●
186 BRACKET; SHIFT,SELECT BASE
TRANSMISSION FRONT PTO(RC2) 		1-33657-473-1 01 1 9202- ●
187 BOLT; BRKT,SIDE PTO,UPR
TRANSMISSION FRONT PTO(RC2) TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		0-50051-025-0 02 1 9202-9205 ●
187 BOLT; BRKT,SIDE PTO,UPR
TRANSMISSION FRONT PTO(RC2) TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE 		0-28181-022-0 02 1 9206- ●
çizim 94173
32 155 155 36 37 46 44 35 151 155 151 156 153 152
BalonParca AdiParca NoAdetTipApplied Date A B C
32 BOLT; CLIP,CABLE
PTO CONTROL AIR LINK TYPE<SEC> M8X18 		0-28010-818-0 01 1 9202-9204 ●
32 BOLT; CLIP,CABLE
PTO CONTROL AIR LINK TYPE<SEC> M8X18 FLANGE 		0-28080-818-0 01 1 9205-9207 ●
32 BOLT; CLIP,CABLE
PTO CONTROL AIR LINK TYPE<SEC> M8X20 FLANGE 		0-28080-820-0 01 1 9208- ●
35 NUT; CLIP,CABLE
PTO CONTROL AIR LINK TYPE<SEC> M8 		9-09110-408-0 01 1 9202- ●
36 BOLT; PTO BRKT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M10X32 W/LK WASHER 		1-09029-001-1 01 1 9202- ●
37 WASHER; PL,PTO BRKT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> ID=10.5 		9-09164-510-0 01 1 9202- ●
44 NUT; BRKT
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M10 		9-09110-510-0 01 1 9202- ●
46 BRACKET; PTO,TRANS SIDE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> 		1-38329-049-0 01 1 9202- ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M8X18 		0-28010-818-0 01 1 9202-9204 ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M8X18 FLANGE 		0-28080-818-0 01 1 9205-9207 ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M8X20 FLANGE 		0-28080-820-0 01 1 9208- ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M8X22 FLANGE 		0-28010-822-0 01 1 9202-9204 ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M8X22 FLANGE 		0-28080-822-0 01 1 9205-9207 ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M8X25 FLANGE 		0-28080-825-0 01 1 9208- ●
151 BOLT; BRKT C
PTO CONTROL AIR LINK TYPE<SEC> M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9202- ●
152 NUT; BRKT
PTO CONTROL AIR LINK TYPE<SEC> M8 		9-09110-408-0 01 1 9202- ●
153 NUT; CLIP
PTO CONTROL AIR LINK TYPE<SEC> M6 FLANGE 		1-09984-123-0 01 1 9202- ●
153 NUT; CLIP
PTO CONTROL AIR LINK TYPE<SEC> M8 		9-09110-408-0 01 1 9202- ●
155 CLIP; CABLE
PTO CONTROL AIR LINK TYPE<SEC> (B) L=250 		5-09707-030-0 01 1 9202- ●
155 CLIP; CABLE
PTO CONTROL AIR LINK TYPE<SEC> (B) L=140 		5-09707-031-0 02 1 9202- ●
155 CLIP; CABLE
PTO CONTROL AIR LINK TYPE<SEC> (A) ID=11 L=16 		9-09525-025-0 01 1 9202- ●
155 CLIP; CABLE
PTO CONTROL AIR LINK TYPE<SEC> (A) ID=11 L=28 		9-09525-055-0 01 1 9202- ●
155 CLIP; CABLE
PTO CONTROL AIR LINK TYPE<SEC> (A) ID=16 		9-09525-552-0 02 1 9202- ●
156 BRACKET; C,CLIP CABLE
PTO CONTROL AIR LINK TYPE<SEC> 		1-38329-061-0 01 1 9202- ●
