Isuzu WW
▶
BUSES
▶
LT
▶
11031 - LT134-RHD EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

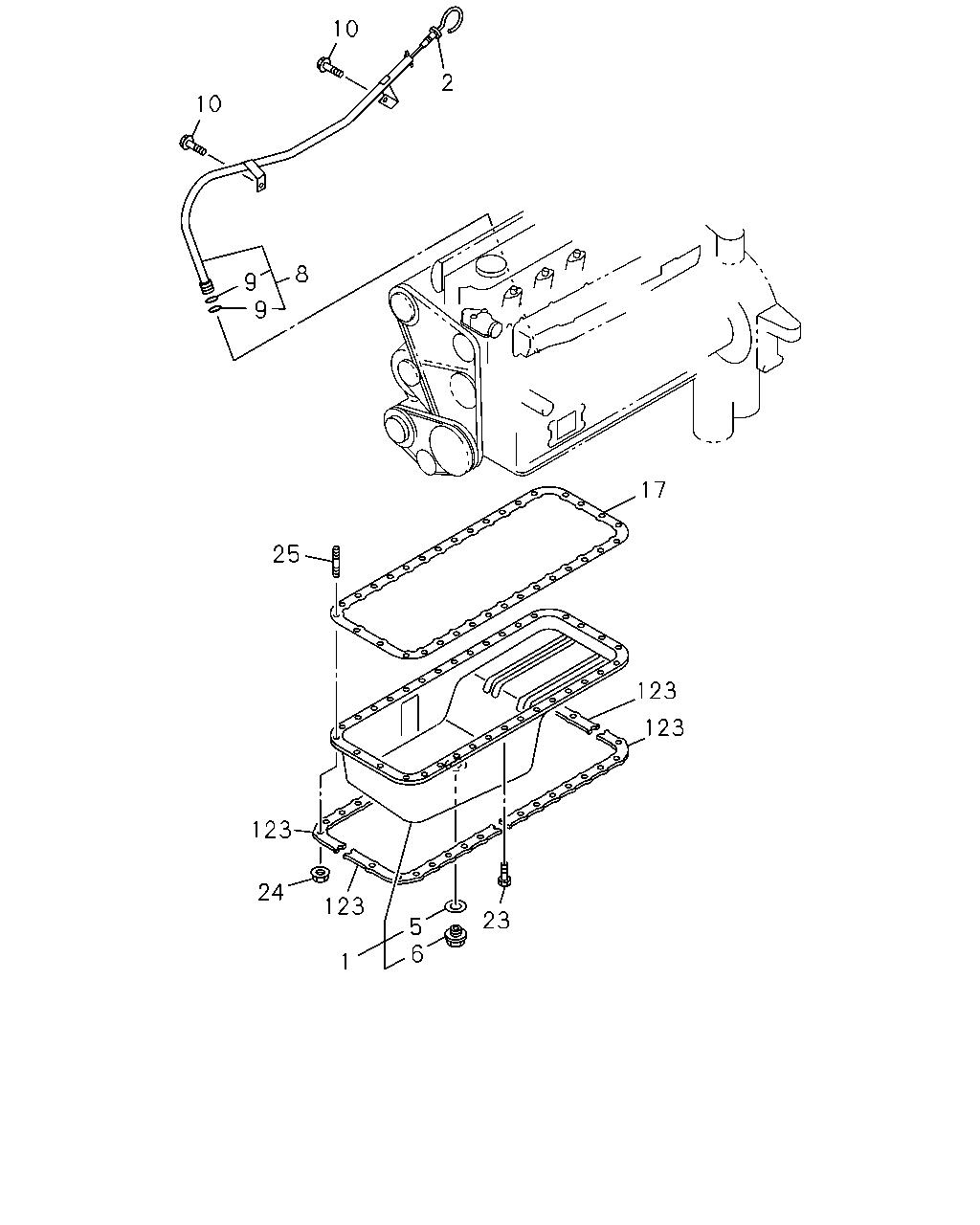

0-13 — OIL PAN AND LEVEL GAUGE
(#35594) — 18 parça
10
2
10
8
9
9
17
25
123
123
123
24
123
23
5
6
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-97603-410-2
01
1
0610-
2
GAUGE; OIL LEVEL
8-98064-374-0
01
1
0610-1005
2
GAUGE; OIL LEVEL
8-98170-480-0
01
1
1006-1212
2
GAUGE; OIL LEVEL
8-98231-275-0
01
1
1301-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0610-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
0610-
8
TUBE; GUIDE,OIL LEVEL GAUGE
8-98054-468-0
01
1
0610-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
0610-
10
BOLT; GUIDE TUBE
M8X16 FLANGE
0-28050-816-0
01
1
0610-
10
BOLT; GUIDE TUBE
M6X12 FLANGE
0-28060-612-0
01
1
0610-
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94390-617-1
01
1
0610-
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97087-634-0
27
1
0610-
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
07
1
0610-
25
STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER
8-97087-632-2
04
1
0610-
123
RUBBER; SEAL OIL
FRONT
8-94391-755-0
01
1
0610-
123
RUBBER; SEAL OIL
REAR
8-94391-757-0
01
1
0610-
123
RUBBER; SEAL OIL
REAR
8-94391-758-0
01
1
0610-
123
RUBBER; SEAL OIL
FRONT
8-94392-548-0
01
1
0610-
