1-55B — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#3559) — 222 parça
Tümü
A - 10PD1 STD ENG
B - 12PD1 C ENG
◀

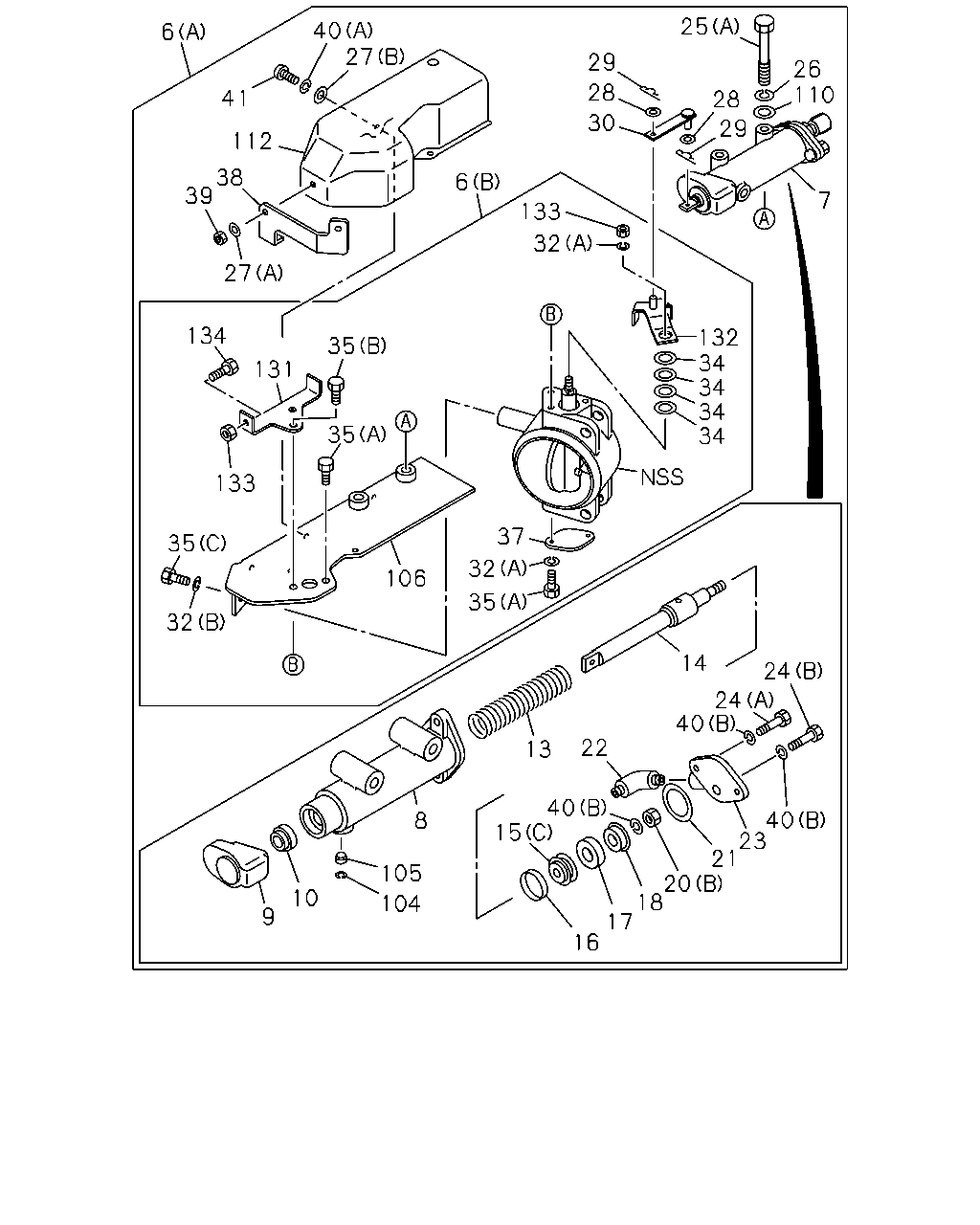

[155B] -'91/1;COMPONENT (97 parça)

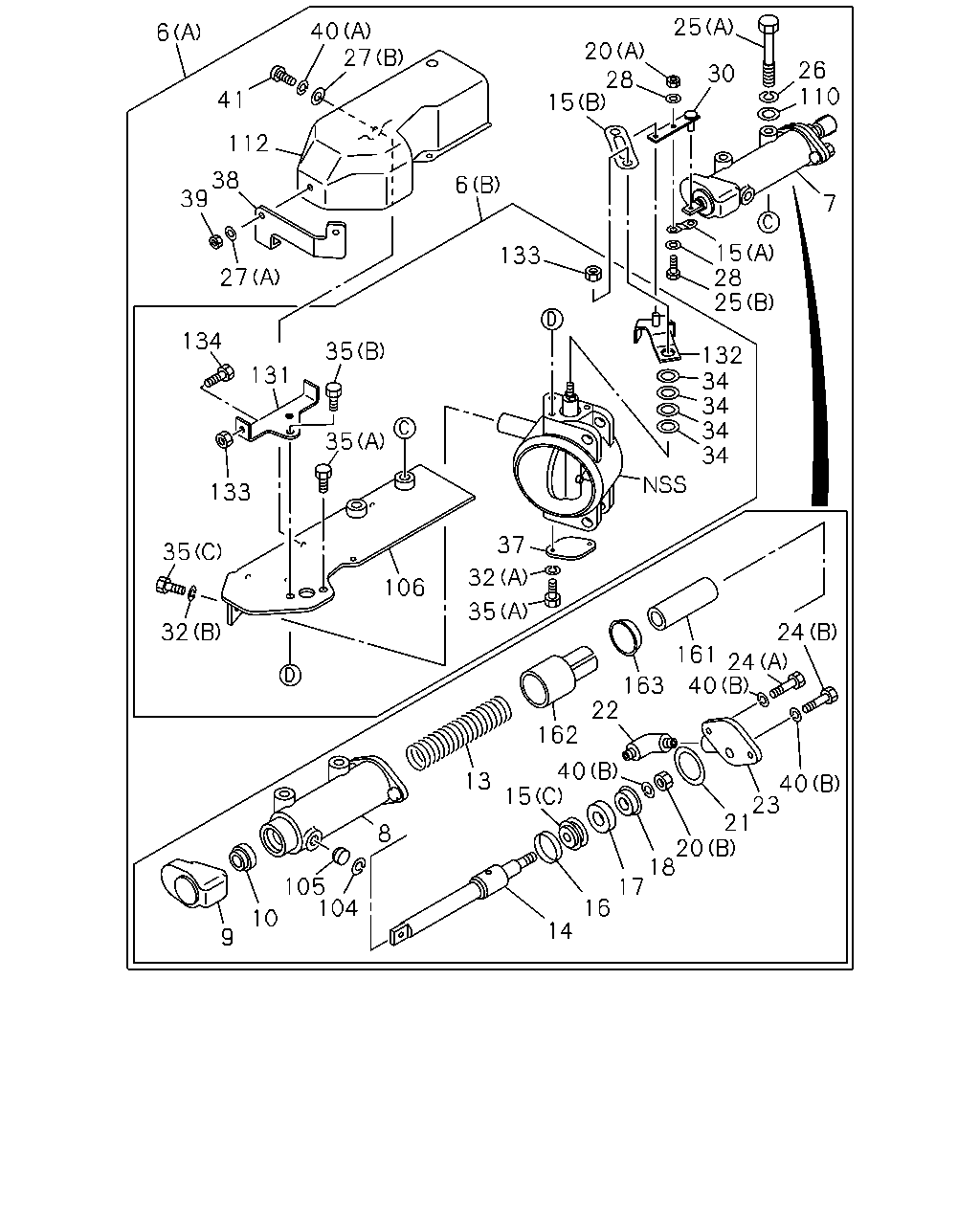

[155B] '91/2-;COMPONENT (99 parça)

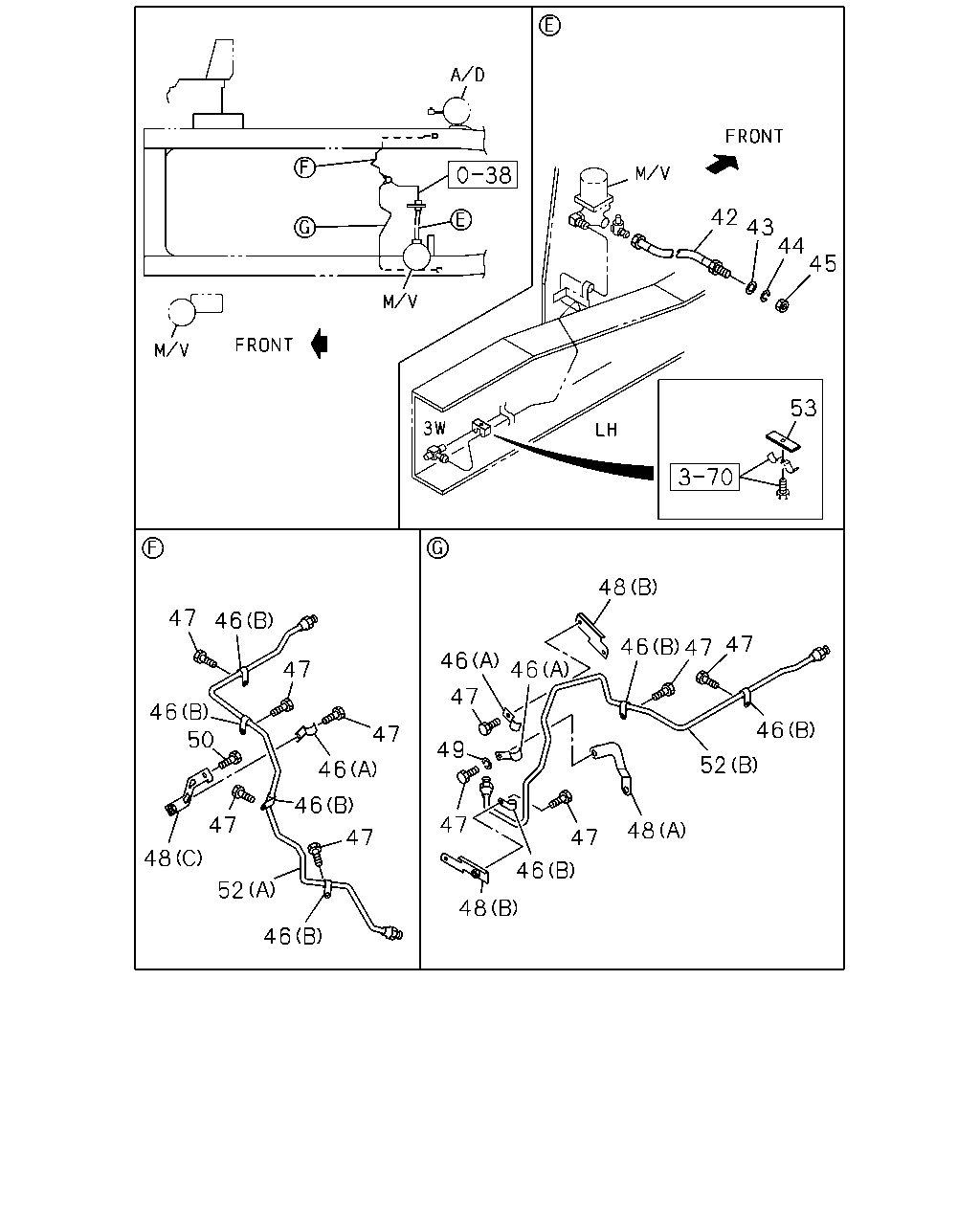

[155B] FIXING;PIPE AND CLIP (26 parça)
▶
25
40
27
6
29
26
110
28
41
28
30
29
112
38
39
6
7
133
32
27
134
132
34
34
34
34
35
131
35
133
37
35
32
106
35
32
14
24
24
40
22
13
40
15
40
23
21
20
18
17
16
8
105
10
104
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
VALVE; EXH BRAKE
(A)
1-22180-258-6
01
1
9002-9101
●
6
VALVE; EXH BRAKE
(A)
1-22180-316-5
01
1
9102-
●
●
6
VALVE; EXH BRAKE
(B)
1-22181-106-0
01
1
9002-9101
●
6
VALVE; EXH BRAKE
(B)
1-22181-121-0
01
1
9102-9108
●
6
VALVE; EXH BRAKE
(B)
1-22181-131-0
01
1
9109-
●
●
6
VALVE; EXH BRAKE
(A)
1-22180-257-6
01
1
9002-9101
●
6
VALVE; EXH BRAKE
(A)
1-22180-315-3
01
1
9102-
●
●
6
VALVE; EXH BRAKE
(B)
1-22181-105-0
01
1
9002-9101
●
6
VALVE; EXH BRAKE
(B)
1-22181-120-0
01
1
9102-9108
●
6
VALVE; EXH BRAKE
(B)
1-22181-130-0
01
1
9109-
●
●
7
CYLINDER ASM; CONT
1-22190-575-0
01
1
9002-9101
●
7
CYLINDER ASM; CONT
1-22190-562-0
01
1
9102-9112
●
7
CYLINDER ASM; CONT
1-22190-607-2
01
1
9201-
●
●
7
CYLINDER ASM; CONT
1-22190-574-0
01
1
9002-9101
●
7
CYLINDER ASM; CONT
1-22190-561-0
01
1
9102-9112
●
7
CYLINDER ASM; CONT
1-22190-606-2
01
1
9201-
●
●
8
CYLINDER; CONT
1-22199-107-0
02
1
9002-9108
●
8
CYLINDER; CONT
1-22199-581-0
02
1
9109-9112
●
8
CYLINDER; CONT
1-22199-143-0
02
1
9201-9306
●
●
9
COVER; CYL
1-22199-070-0
02
1
9002-
●
●
9
COVER; CYL
1-22199-069-0
02
1
9002-
●
●
10
SEAL; DUST,CONT
1-22199-071-0
02
1
9002-
●
●
13
SPRING; CONT CYL
1-22199-105-0
02
1
9002-9112
●
13
SPRING; CONT CYL
1-22199-144-0
02
1
9201-
●
●
14
SHAFT; CONT CYL
1-22199-256-0
02
1
9002-9108
●
14
SHAFT; CONT CYL
1-22199-051-0
02
1
9109-9112
●
14
SHAFT; CONT CYL
1-22199-145-0
02
1
9201-
●
●
15
PLATE; CONT CYL
(C)
1-22199-020-0
02
1
9002-9101
●
15
PLATE; CONT CYL
(C)
1-22199-108-0
02
1
9102-9112
●
15
PLATE; CONT CYL
(C)
1-22199-149-0
02
1
9201-
●
●
15
PLATE; CONT CYL
(A)
1-22189-176-0
02
1
9102-9108
●
15
PLATE; CONT CYL
(A)
1-22196-323-0
02
1
9109-
●
●
15
PLATE; CONT CYL
(B)
1-22189-178-0
02
1
9102-9108
●
15
PLATE; CONT CYL
(B)
1-22196-325-0
02
1
9109-
●
●
16
RING; WEAR,CONT CYL
1-22189-161-0
02
1
9002-
●
●
17
GASKET; CONT CYL
1-22199-103-0
02
1
9002-
●
●
18
RETAINER; CONT CYL
9-88510-324-0
02
1
9002-
●
●
20
NUT; CONT CYL
(A)
8-94311-424-0
02
1
9102-9108
●
20
NUT; CONT CYL
(A)
8-94311-441-0
02
1
9109-
●
●
20
NUT; CONT CYL
(B)
9-83315-085-0
02
1
9002-
●
●
21
GASKET; COVER
1-22199-072-0
02
1
9002-
●
●
22
CONNECTOR; CONT CYL
1-22199-109-0
02
1
9002-9101
●
22
CONNECTOR; CONT CYL
1-09650-358-1
02
1
9102-
●
●
23
COVER; CONT CYL
1-22199-076-0
02
1
9002-
●
●
23
COVER; CONT CYL
1-22199-075-0
02
1
9002-
●
●
24
BOLT; COVER
(A) M8X30
1-22199-074-0
02
1
9002-
●
●
24
BOLT; COVER
(B) M8X20
9-01000-820-0
02
1
9002-
●
●
25
BOLT; CONT CYL
(A)
1-09000-445-0
04
1
9002-9101
●
25
BOLT; CONT CYL
(A)
1-19519-244-0
04
1
9102-
●
●
25
BOLT; CONT CYL
(B)
1-22189-177-0
02
1
9102-
●
●
26
WASHER; LK,CONT CYL
ID=10.2
9-09150-510-0
04
1
9002-
●
●
27
WASHER; PL,COVER
(B) ID=6.4
9-09160-506-0
04
1
9002-9101
●
27
WASHER; PL,COVER
(A) ID=8.4 OD=18
9-09164-608-0
02
1
9002-9101
●
27
WASHER; PL,COVER
(A) ID=8.4 OD=18
9-09164-608-0
03
1
9102-9108
●
27
WASHER; PL,COVER
(A)
8-94311-430-0
03
1
9109-
●
●
27
WASHER; PL,COVER
(B) ID=6.4
9-09160-506-0
02
1
9109-
●
●
28
WASHER; PL,LINK
ID=6.4
9-09160-506-0
04
1
9002-
●
●
29
PIN; SPLIT,LINK
L=21.2
8-94157-840-0
04
1
9002-9101
●
30
ROD; LINK,CONT CYL
1-22196-253-0
02
1
9002-9101
●
30
ROD; LINK,CONT CYL
1-22189-179-0
02
1
9102-9108
●
30
ROD; LINK,CONT CYL
1-22196-324-0
02
1
9109-
●
●
32
WASHER; LK
(A) ID=8.2
9-09150-508-0
12
1
9002-9108
●
32
WASHER; LK
(A) ID=8.2
9-09150-508-0
10
1
9109-
●
●
32
WASHER; LK
(B) ID=10.2
9-09150-510-0
02
1
9002-9306
●
●
32
WASHER; LK
(B) ID=10.2
9-09150-510-0
02
1
9307-
●
●
34
RING; SEAL
ID=14.0
9-22189-104-0
04
1
9002-9108
●
34
RING; SEAL
ID=13.7
9-22189-124-0
04
1
9109-
●
●
34
RING; SEAL
ID=15.0
1-22189-025-0
04
1
9002-
●
●
35
BOLT; PLATE FIX
(A) M8X16
9-02050-816-0
06
1
9002-
●
●
35
BOLT; PLATE FIX
(B) M8X22
9-02050-822-0
04
1
9002-
●
●
35
BOLT; PLATE FIX
(C) M10X20
9-02051-020-0
02
1
9002-
●
●
37
COVER; BODY
1-22189-153-0
02
1
9002-
●
●
38
HOLDER; BRK VLV
1-22196-234-2
02
1
9002-
●
●
38
HOLDER; BRK VLV
1-22196-233-1
02
1
9002-
●
●
39
NUT; COVER
M8
9-09111-408-0
02
1
9002-
●
●
40
WASHER; LK,COVER
(A) ID=6.1
9-09150-506-0
02
1
9002-
●
●
40
WASHER; LK,COVER
(B) ID=8.2
9-09150-508-0
06
1
9002-
●
●
41
SCREW; COVER
1-09000-438-0
02
1
9002-
●
●
104
RING; RET
9-88510-331-0
02
1
9002-
●
●
105
FILTER; CONT CYL
9-88510-330-0
02
1
9002-
●
●
106
BRACKET; CONT CYL
1-22186-109-1
01
1
9002-
●
●
106
BRACKET; CONT CYL
1-22186-108-0
01
1
9002-
●
●
110
WASHER; PL,CONT CYL
ID=10.5 OD=26
9-09160-710-0
02
1
9002-9101
●
110
WASHER; PL,CONT CYL
ID=10.5 OD=22
9-09160-610-0
04
1
9102-
●
●
112
COVER; CONT CYL
1-22189-155-0
01
1
9002-9101
●
112
COVER; CONT CYL
1-22189-151-1
01
1
9102-
●
●
112
COVER; CONT CYL
1-22189-154-0
01
1
9002-9101
●
112
COVER; CONT CYL
1-22189-150-1
01
1
9102-
●
●
131
PLATE; BODY
1-22186-078-0
01
1
9002-
●
●
131
PLATE; BODY
1-22186-077-0
01
1
9002-
●
●
132
LEVER; BRK VLV
1-22196-252-0
01
1
9002-9101
●
132
LEVER; BRK VLV
1-22196-313-0
01
1
9102-
●
●
132
LEVER; BRK VLV
1-22196-251-0
01
1
9002-
●
●
133
NUT; LK
M8
9-09111-408-0
04
1
9002-9101
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
02
1
9102-
●
●
133
NUT; LK
M8
9-09111-408-0
02
1
9102-
●
●
134
BOLT; STOPPER
1-09000-436-0
02
1
9002-
●
●
25
40
27
6
20
28
15
26
110
30
41
112
38
39
6
7
15
28
25
133
27
134
35
132
34
34
34
34
131
35
133
37
35
32
106
35
32
24
161
24
40
163
22
162
40
15
13
40
23
21
20
18
17
16
8
105
104
10
14
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
VALVE; EXH BRAKE
(A)
1-22180-258-6
01
1
9002-9101
●
6
VALVE; EXH BRAKE
(A)
1-22180-316-5
01
1
9102-
●
●
6
VALVE; EXH BRAKE
(B)
1-22181-106-0
01
1
9002-9101
●
6
VALVE; EXH BRAKE
(B)
1-22181-121-0
01
1
9102-9108
●
6
VALVE; EXH BRAKE
(B)
1-22181-131-0
01
1
9109-
●
●
6
VALVE; EXH BRAKE
(A)
1-22180-257-6
01
1
9002-9101
●
6
VALVE; EXH BRAKE
(A)
1-22180-315-3
01
1
9102-
●
●
6
VALVE; EXH BRAKE
(B)
1-22181-105-0
01
1
9002-9101
●
6
VALVE; EXH BRAKE
(B)
1-22181-120-0
01
1
9102-9108
●
6
VALVE; EXH BRAKE
(B)
1-22181-130-0
01
1
9109-
●
●
7
CYLINDER ASM; CONT
1-22190-575-0
01
1
9002-9101
●
7
CYLINDER ASM; CONT
1-22190-562-0
01
1
9102-9112
●
7
CYLINDER ASM; CONT
1-22190-607-2
01
1
9201-
●
●
7
CYLINDER ASM; CONT
1-22190-574-0
01
1
9002-9101
●
7
CYLINDER ASM; CONT
1-22190-561-0
01
1
9102-9112
●
7
CYLINDER ASM; CONT
1-22190-606-2
01
1
9201-
●
●
8
CYLINDER; CONT
1-22199-107-0
02
1
9002-9108
●
8
CYLINDER; CONT
1-22199-581-0
02
1
9109-9112
●
8
CYLINDER; CONT
1-22199-143-0
02
1
9201-9306
●
●
9
COVER; CYL
1-22199-070-0
02
1
9002-
●
●
9
COVER; CYL
1-22199-069-0
02
1
9002-
●
●
10
SEAL; DUST,CONT
1-22199-071-0
02
1
9002-
●
●
13
SPRING; CONT CYL
1-22199-105-0
02
1
9002-9112
●
13
SPRING; CONT CYL
1-22199-144-0
02
1
9201-
●
●
14
SHAFT; CONT CYL
1-22199-256-0
02
1
9002-9108
●
14
SHAFT; CONT CYL
1-22199-051-0
02
1
9109-9112
●
14
SHAFT; CONT CYL
1-22199-145-0
02
1
9201-
●
●
15
PLATE; CONT CYL
(C)
1-22199-020-0
02
1
9002-9101
●
15
PLATE; CONT CYL
(C)
1-22199-108-0
02
1
9102-9112
●
15
PLATE; CONT CYL
(C)
1-22199-149-0
02
1
9201-
●
●
15
PLATE; CONT CYL
(A)
1-22189-176-0
02
1
9102-9108
●
15
PLATE; CONT CYL
(A)
1-22196-323-0
02
1
9109-
●
●
15
PLATE; CONT CYL
(B)
1-22189-178-0
02
1
9102-9108
●
15
PLATE; CONT CYL
(B)
1-22196-325-0
02
1
9109-
●
●
16
RING; WEAR,CONT CYL
1-22189-161-0
02
1
9002-
●
●
17
GASKET; CONT CYL
1-22199-103-0
02
1
9002-
●
●
18
RETAINER; CONT CYL
9-88510-324-0
02
1
9002-
●
●
20
NUT; CONT CYL
(A)
8-94311-424-0
02
1
9102-9108
●
20
NUT; CONT CYL
(A)
8-94311-441-0
02
1
9109-
●
●
20
NUT; CONT CYL
(B)
9-83315-085-0
02
1
9002-
●
●
21
GASKET; COVER
1-22199-072-0
02
1
9002-
●
●
22
CONNECTOR; CONT CYL
1-22199-109-0
02
1
9002-9101
●
22
CONNECTOR; CONT CYL
1-09650-358-1
02
1
9102-
●
●
23
COVER; CONT CYL
1-22199-076-0
02
1
9002-
●
●
23
COVER; CONT CYL
1-22199-075-0
02
1
9002-
●
●
24
BOLT; COVER
(A) M8X30
1-22199-074-0
02
1
9002-
●
●
24
BOLT; COVER
(B) M8X20
9-01000-820-0
02
1
9002-
●
●
25
BOLT; CONT CYL
(A)
1-09000-445-0
04
1
9002-9101
●
25
BOLT; CONT CYL
(A)
1-19519-244-0
04
1
9102-
●
●
25
BOLT; CONT CYL
(B)
1-22189-177-0
02
1
9102-
●
●
26
WASHER; LK,CONT CYL
ID=10.2
9-09150-510-0
04
1
9002-
●
●
27
WASHER; PL,COVER
(B) ID=6.4
9-09160-506-0
04
1
9002-9101
●
27
WASHER; PL,COVER
(A) ID=8.4 OD=18
9-09164-608-0
02
1
9002-9101
●
27
WASHER; PL,COVER
(A) ID=8.4 OD=18
9-09164-608-0
03
1
9102-9108
●
27
WASHER; PL,COVER
(A)
8-94311-430-0
03
1
9109-
●
●
27
WASHER; PL,COVER
(B) ID=6.4
9-09160-506-0
02
1
9109-
●
●
28
WASHER; PL,LINK
ID=6.4
9-09160-506-0
04
1
9002-
●
●
30
ROD; LINK,CONT CYL
1-22196-253-0
02
1
9002-9101
●
30
ROD; LINK,CONT CYL
1-22189-179-0
02
1
9102-9108
●
30
ROD; LINK,CONT CYL
1-22196-324-0
02
1
9109-
●
●
32
WASHER; LK
(A) ID=8.2
9-09150-508-0
12
1
9002-9108
●
32
WASHER; LK
(A) ID=8.2
9-09150-508-0
10
1
9109-
●
●
32
WASHER; LK
(B) ID=10.2
9-09150-510-0
02
1
9002-9306
●
●
32
WASHER; LK
(B) ID=10.2
9-09150-510-0
02
1
9307-
●
●
34
RING; SEAL
ID=14.0
9-22189-104-0
04
1
9002-9108
●
34
RING; SEAL
ID=13.7
9-22189-124-0
04
1
9109-
●
●
34
RING; SEAL
ID=15.0
1-22189-025-0
04
1
9002-
●
●
35
BOLT; PLATE FIX
(A) M8X16
9-02050-816-0
06
1
9002-
●
●
35
BOLT; PLATE FIX
(B) M8X22
9-02050-822-0
04
1
9002-
●
●
35
BOLT; PLATE FIX
(C) M10X20
9-02051-020-0
02
1
9002-
●
●
37
COVER; BODY
1-22189-153-0
02
1
9002-
●
●
38
HOLDER; BRK VLV
1-22196-234-2
02
1
9002-
●
●
38
HOLDER; BRK VLV
1-22196-233-1
02
1
9002-
●
●
39
NUT; COVER
M8
9-09111-408-0
02
1
9002-
●
●
40
WASHER; LK,COVER
(A) ID=6.1
9-09150-506-0
02
1
9002-
●
●
40
WASHER; LK,COVER
(B) ID=8.2
9-09150-508-0
06
1
9002-
●
●
41
SCREW; COVER
1-09000-438-0
02
1
9002-
●
●
104
RING; RET
9-88510-331-0
02
1
9002-
●
●
105
FILTER; CONT CYL
9-88510-330-0
02
1
9002-
●
●
106
BRACKET; CONT CYL
1-22186-109-1
01
1
9002-
●
●
106
BRACKET; CONT CYL
1-22186-108-0
01
1
9002-
●
●
110
WASHER; PL,CONT CYL
ID=10.5 OD=26
9-09160-710-0
02
1
9002-9101
●
110
WASHER; PL,CONT CYL
ID=10.5 OD=22
9-09160-610-0
04
1
9102-
●
●
112
COVER; CONT CYL
1-22189-155-0
01
1
9002-9101
●
112
COVER; CONT CYL
1-22189-151-1
01
1
9102-
●
●
112
COVER; CONT CYL
1-22189-154-0
01
1
9002-9101
●
112
COVER; CONT CYL
1-22189-150-1
01
1
9102-
●
●
131
PLATE; BODY
1-22186-078-0
01
1
9002-
●
●
131
PLATE; BODY
1-22186-077-0
01
1
9002-
●
●
132
LEVER; BRK VLV
1-22196-252-0
01
1
9002-9101
●
132
LEVER; BRK VLV
1-22196-313-0
01
1
9102-
●
●
132
LEVER; BRK VLV
1-22196-251-0
01
1
9002-
●
●
133
NUT; LK
M8
9-09111-408-0
04
1
9002-9101
●
133
NUT; LK
M8 FLANGE
0-91150-108-0
02
1
9102-
●
●
133
NUT; LK
M8
9-09111-408-0
02
1
9102-
●
●
134
BOLT; STOPPER
1-09000-436-0
02
1
9002-
●
●
161
PROTECTOR; CONT CYL
1-22199-146-0
02
1
9201-
●
●
162
GUIDE; CONT CYL
1-22199-147-0
02
1
9201-
●
●
163
WASHER; CONT CYL
1-22199-148-0
02
1
9201-
●
●
42
43
44
45
53
48
47
46
47
46
46
47
47
46
50
46
47
49
52
46
46
47
47
48
47
47
48
46
52
48
46
46
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
42
HOSE; FLEX,EXH BRK
L=350
0-07120-350-0
01
1
9002-
●
42
HOSE; FLEX,EXH BRK
L=320
0-07120-320-0
01
1
9307-
●
43
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
01
1
9002-
●
●
44
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
9002-
●
●
45
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
9002-
●
●
46
CLIP; AIR PIPE
(A) B=18 L=20
1-09700-372-0
02
1
9002-
●
●
46
CLIP; AIR PIPE
(B)
9-09522-632-0
07
1
9002-
●
●
47
BOLT; CLIP
M6X14 W/LK WASHER
9-01900-614-0
07
1
9002-9204
●
47
BOLT; CLIP
M6X14 W/LK WASHER
0-50040-614-0
07
1
9205-9302
●
47
BOLT; CLIP
M8X14 W/LK WASHER
9-01900-814-0
02
1
9002-9204
●
47
BOLT; CLIP
M8X14 W/LK WASHER
0-50040-814-0
02
1
9205-9306
●
47
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
02
1
9307-
●
●
47
BOLT; CLIP
M6X16 FLANGE
0-28080-616-0
08
1
9303-
●
●
48
BRACKET; AIR PIPE
(B)
1-22196-263-0
01
1
9002-9002
●
48
BRACKET; AIR PIPE
(B)
1-22196-291-0
01
1
9003-9003
●
48
BRACKET; AIR PIPE
(A)
1-47475-285-1
01
1
9002-9002
●
48
BRACKET; AIR PIPE
(C)
1-19199-184-0
01
1
9002-
●
●
49
WASHER; LK,BRKT
ID=10.2
9-09150-510-0
01
1
9002-9306
●
50
BOLT; BRKT
M10X16
9-02341-016-0
01
1
9002-9204
●
50
BOLT; BRKT
M10X16
0-23801-016-0
01
1
9205-9306
●
50
BOLT; BRKT
M10X20 W/LK&PL WASHER
0-50151-020-0
01
1
9307-
●
●
52
PIPE ASM; AIR FLEX HOSE
(A)
1-19192-363-1
01
1
9002-
●
52
PIPE ASM; AIR FLEX HOSE
(B)
1-19192-362-2
01
1
9002-
●
52
PIPE ASM; AIR FLEX HOSE
(A)
1-19192-367-1
01
1
9307-
●
52
PIPE ASM; AIR FLEX HOSE
(B)
1-19192-366-2
01
1
9307-
●
53
BRACKET; CLIP
L=50
1-47475-299-2
01
1
9002-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
