9-01 — TOOLS (#35588) — 115 parça

165 163 163 163 161 153 154 156 158 160 151 146 145 144 12 141 130 135 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0603-1501	●	●
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1502-	●	●
130	WRENCH; BOX B=63	9-85111-368-0	01	1	0603-	●	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0603-	●	●
141	HANDLE; WRENCH OD=25 L=480	1-85116-011-0	01	1	0603-1501	●	●
141	HANDLE; WRENCH OD=25 L=480	8-98257-407-0	01	1	1502-	●	●
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	0603-	●	●
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0603-	●	●
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0603-	●	●
145	REPLACER ASM; BUSHING	1-85230-008-0	01	1	0603-	●	●
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	0603-	●	●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0603-	●	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0603-	●	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0603-	●	●
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	0603-	●	●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0603-	●	●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0603-	●	●
161	REMOVER; TIE ROD ARM	1-85176-001-0	01	1	0603-	●	●
163	TOOL; SETTING (B) L=195	1-85221-162-1	01	1	0603-	●	●
163	TOOL; SETTING (C) L=150	1-85221-163-0	01	1	0603-	●	●
163	TOOL; SETTING MJT7 M/T<Y9E> (A) OD=150	1-85221-167-0	01	1	0812-	●
165	SETTING TOOL; PTO MJT7 M/T<Y9E> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-85221-177-0	01	1	0812-	●

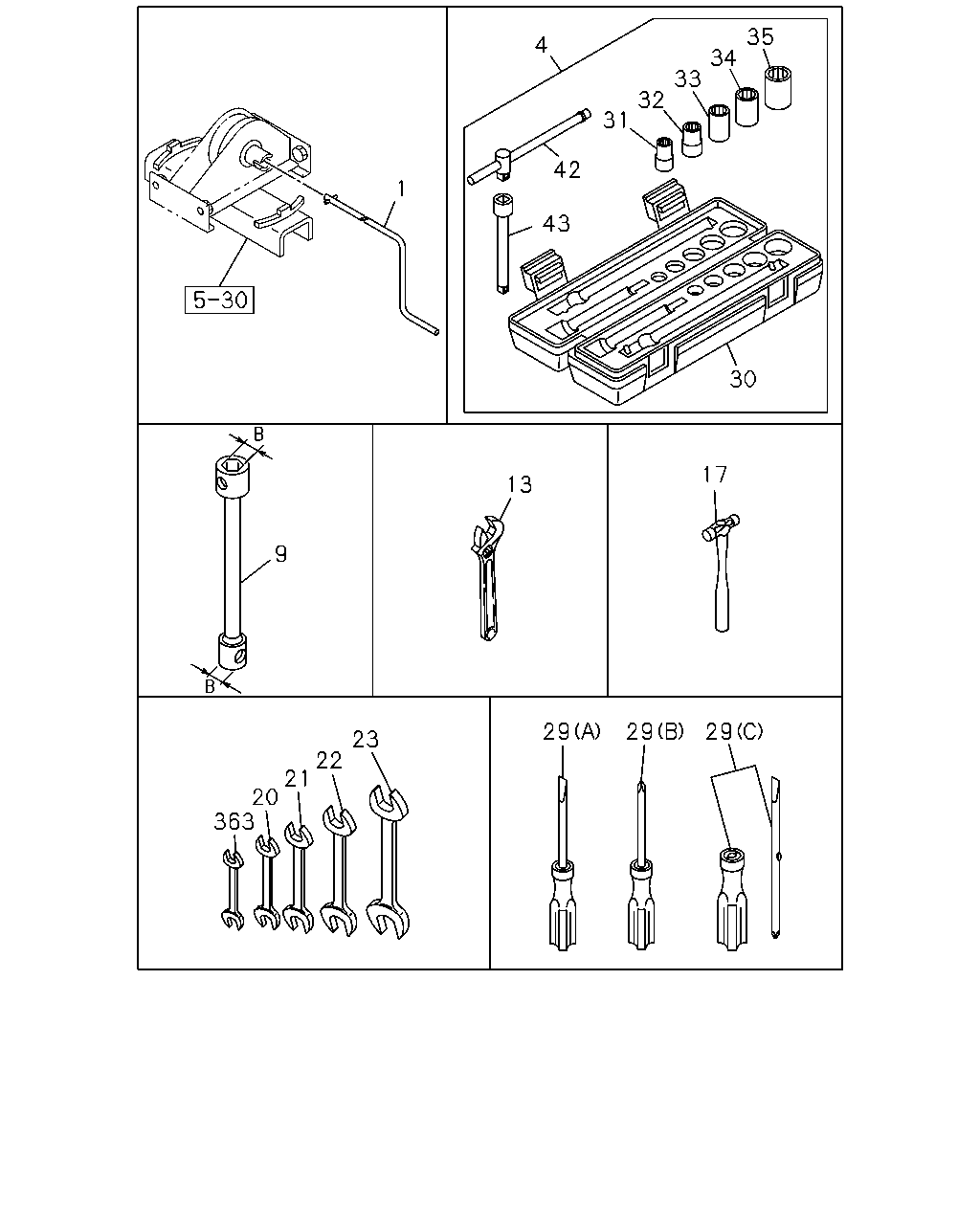

35 34 33 32 4 31 42 1 43 30 17 13 9 29 29 29 23 22 21 20 363

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	9-23110-018-0	01	1	0603-0603	●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>	9-23110-018-0	01	1	0603-0603		●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	9-23110-018-0	01	1	0604-	●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>	9-23110-018-0	01	1	0604-		●
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	0603-	●	●
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	0603-	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0603-0907	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0908-1407	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-	●	●
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0603-	●	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0603-0607	●	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-	●	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0603-0607	●	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-	●	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0603-0607	●	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-	●	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0603-0607	●	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	0603-	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0603-	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	0603-	●	●
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	0603-	●	●
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	0603-	●	●
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	0603-	●	●
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	0603-	●	●
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	0603-	●	●
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	0603-	●	●
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	0603-	●	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	1-85000-501-0	01	1	0603-	●	●
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	9-99592-108-0	01	1	0603-0607	●	●
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	0608-	●	●

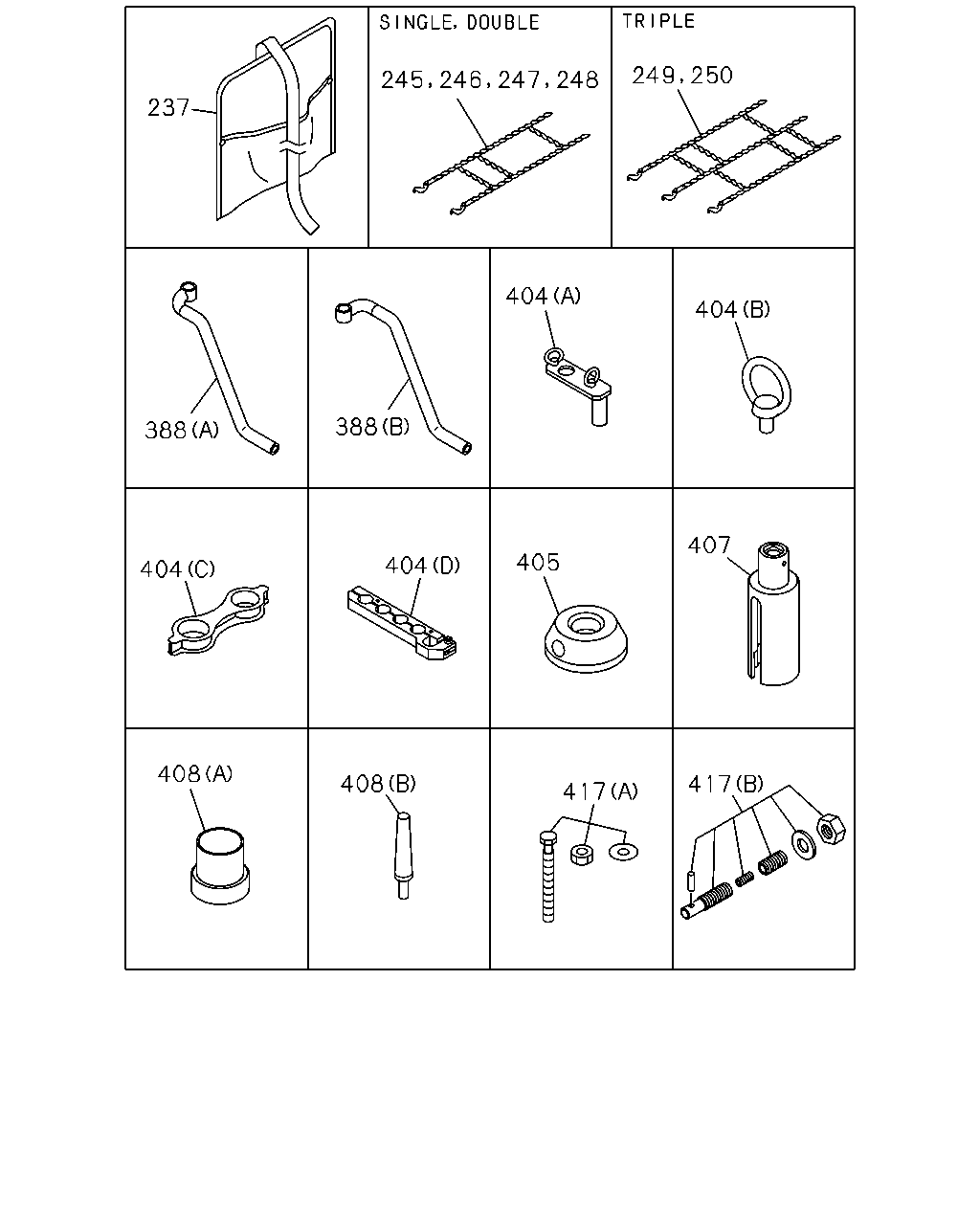

237 404 404 388 388 407 405 404 404 408 408 417 417 245 246 247 248 249 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-1	01	1	0603-	●	●
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0603-	●	●
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0603-	●	●
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0603-	●	●
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	0603-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	0603-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	0603-	●	●
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0603-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0603-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0603-	●	●
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	0603-	●	●
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	0603-	●	●
404	TOOL; SETTING,MAIN COUNTER MJT7 M/T<Y9E> (A)	1-85221-257-0	01	1	0812-	●
404	TOOL; SETTING,MAIN COUNTER MJT7 M/T<Y9E> (C)	1-85221-259-0	01	1	0812-	●
404	TOOL; SETTING,MAIN COUNTER MJT7 M/T<Y9E> (D)	1-85221-260-0	01	1	0812-	●
404	TOOL; SETTING,MAIN COUNTER MJT7 M/T<Y9E> (B)	1-85221-262-0	02	1	0812-	●
405	GUIDE; COUNTER MJT7 M/T<Y9E>	1-85221-264-0	01	1	0812-	●
407	SOCKET; SW MJT7 M/T<Y9E>	1-85221-267-1	01	1	0812-	●
408	TOOL; SETTING,SHIFT ASSISTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-85221-268-0	01	1	0812-	●	●
408	TOOL; SETTING,SHIFT ASSISTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-85221-269-0	01	1	0812-	●	●
417	BOLT; CHAMBER RELEASE POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B)	1-85576-378-1	02	1	0902-		●
417	BOLT; CHAMBER RELEASE (A) 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	0603-	●	●

171 162 162 169 180 186 172 182 193 191 189 192 208 230 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
162	SETTING TOOL; NEEDLE BRG (A) L=181	1-85238-008-0	01	1	0603-	●	●
162	SETTING TOOL; NEEDLE BRG (B) L=213	1-85238-009-0	01	1	0603-	●	●
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	0603-	●	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0603-	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0603-	●	●
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	0603-	●	●
182	REMOVER ASM	1-85239-008-0	01	1	0603-	●	●
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	0603-	●	●
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	0603-	●	●
191	ADAPTER	1-85216-009-0	01	1	0603-	●	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0603-	●	●
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	0603-	●	●
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0603-1107	●	●
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1108-	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0603-	●	●
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0603-	●	●

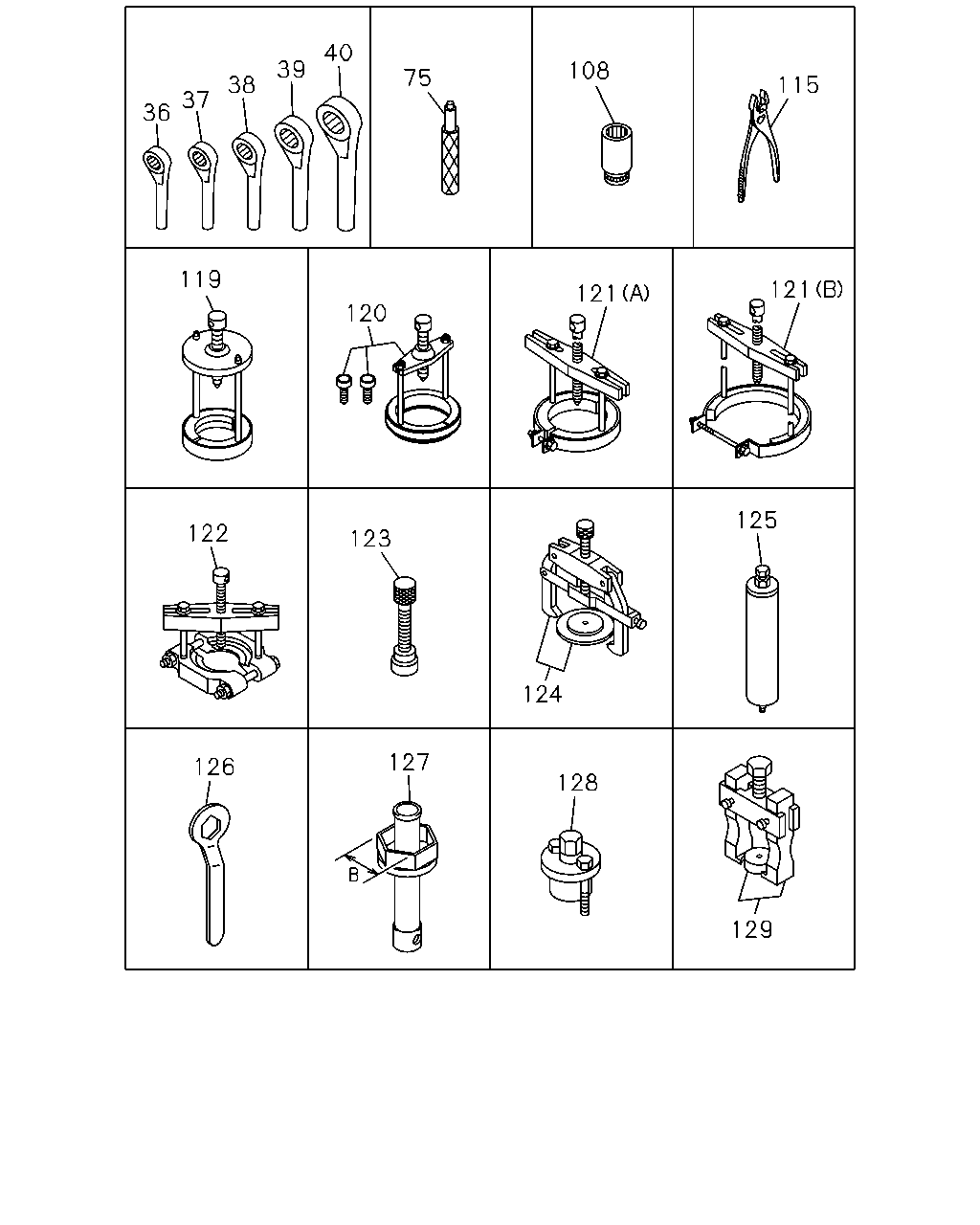

40 39 108 75 38 115 37 36 119 121 121 120 125 122 123 124 127 126 128 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	WRENCH; 24	9-85111-377-0	01	1	0603-	●	●
37	WRENCH; 27	9-85111-375-0	01	1	0603-	●	●
38	WRENCH; 32	9-85111-358-0	01	1	0603-	●	●
39	WRENCH; 36	9-85111-374-0	01	1	0603-	●	●
40	WRENCH; 41	9-85111-356-0	01	1	0603-	●	●
75	TOOL; SETTING,OIL SEAL	1-85221-096-0	01	1	0603-	●	●
108	WRENCH; SOCKET	9-85113-132-0	01	1	0603-	●	●
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0603-1410	●	●
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-	●	●
119	PULLER ASM; TOP GEAR BRG L=235	9-85210-190-0	01	1	0603-0811	●	●
119	PULLER ASM; TOP GEAR BRG MAL6 M/T<X9G> L=235	9-85210-190-0	01	1	0812-	●
119	PULLER ASM; TOP GEAR BRG L=235	9-85210-190-0	01	1	0812-		●
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	0603-	●	●
121	PULLER ASM; COUNTER REAR MJT7 M/T<Y9E> (B)	1-85210-069-0	01	1	0812-	●
121	PULLER ASM; COUNTER REAR MJT7 M/T<Y9E> (A) OD=146	1-85210-074-0	01	1	0812-	●
122	PULLER ASM; COUNTER FRT	9-85210-195-0	01	1	0603-	●	●
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	0603-	●	●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0603-	●	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0603-	●	●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	0603-	●	●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	0603-0808	●	●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	0809-	●	●
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0603-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0603-	●	●
