◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#35576) — 195 parça

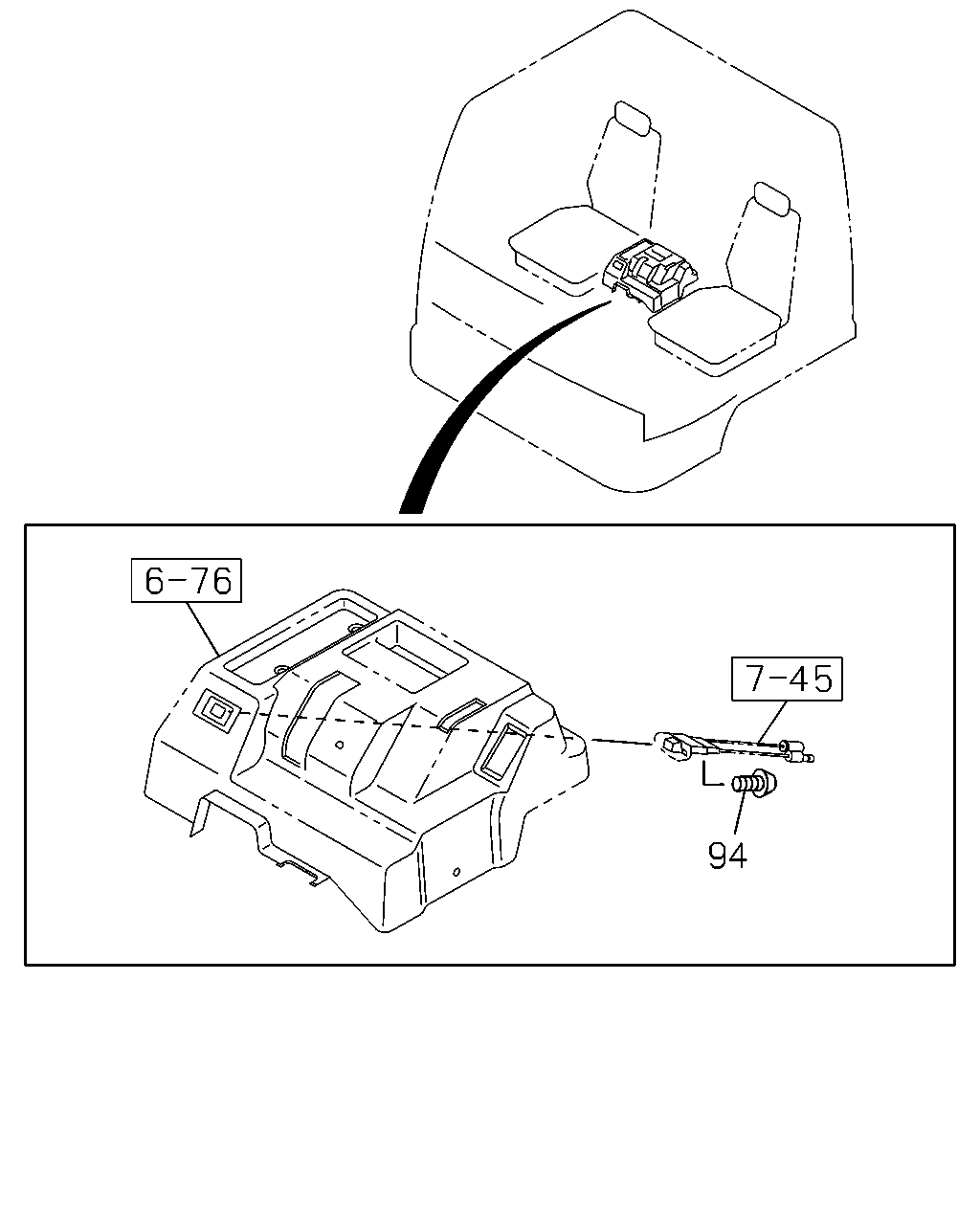

çizim 177288
94
BalonParca AdiParca NoAdetTipApplied Date A B
94 SCREW; CONSENT TO BLIND PNL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 0603-0604 ● ●
94 SCREW; CONSENT TO BLIND PNL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0605-0708 ● ●
94 SCREW; CONSENT TO BLIND PNL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0709- ● ●
çizim 177289
78 505 77 52
BalonParca AdiParca NoAdetTipApplied Date A B
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) METRO DENSO 		1-83460-083-0 01 1 0603-0612 ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) METRO DENSO 		8-98069-861-0 01 1 0701-0708 ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) METRO DENSO 		8-98069-861-0 01 1 0709- ● ●
77 HORN ASM
CHINA EQUIPMENT(YT2) 		1-83430-043-0 01 1 0610-0809 ● ●
77 HORN ASM
RUSSIA COUNTRY<CZ3> 		1-83430-043-0 01 1 0810- ● ●
77 HORN ASM
CHINA EQUIPMENT(YT2) 		1-83430-043-0 01 1 0810- ● ●
77 HORN ASM 1-83430-041-2 01 1 0603-0609 ● ●
77 HORN ASM
EXC. CHINA EQUIPMENT(YT2) 		1-83430-041-2 01 1 0610-0809 ● ●
77 HORN ASM
EXC. RUSSIA COUNTRY<CZ3>,CHINA EQUIPMENT(YT2) 		1-83430-041-2 01 1 0810- ● ●
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 0603- ● ●
505 JOINT; AIR HORN 1-83439-006-0 01 1 0603-0809 ● ●
505 JOINT; AIR HORN
EXC. RUSSIA COUNTRY<CZ3>,CHINA EQUIPMENT(YT2) 		1-83439-006-0 01 1 0810- ● ●
505 JOINT; AIR HORN
RUSSIA COUNTRY<CZ3> 		1-83439-006-0 01 1 0810- ● ●
505 JOINT; AIR HORN
CHINA EQUIPMENT(YT2) 		1-83439-006-0 01 1 0810- ● ●
çizim 177312
91 284 90 34 282 603 34 261 89
BalonParca AdiParca NoAdetTipApplied Date A B
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0603- ● ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0603- ● ●
89 VALVE; MAG,DIFF LOCK 1-82563-871-2 01 1 0603-1205 ● ●
89 VALVE; MAG,DIFF LOCK 8-97641-594-0 01 1 1206- ● ●
90 BOLT; MAG VLV
M8X40 FLANGE 		0-28650-840-0 02 1 0603- ● ●
91 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ● ●
91 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0603-0706 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0603-0706 ● ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0603-0706 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0707- ● ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0707- ● ●
261 PLUG; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 0707- ● ●
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> (E) 		1-82569-367-1 01 1 0603-0706 ●
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (E) 		1-82569-367-1 01 1 0707- ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (F) 		1-47471-175-0 01 1 0603- ●
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0603-0706 ● ●
282 BRACKET; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B) 		1-82569-277-2 01 1 0707- ● ●
282 BRACKET; MAG VLV
(D) 		1-82569-421-0 01 1 0603- ● ●
282 BRACKET; MAG VLV
EXC. MIXER TRUCK<RA2> (A) 		1-82569-290-0 01 1 0603-0706 ●
282 BRACKET; MAG VLV
(A) 		1-82569-290-0 01 1 0603-0706 ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (A) 		1-82569-290-0 01 1 0707- ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-82569-290-0 01 1 0707- ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47479-364-1 01 1 0603- ●
284 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0603- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 0603- ● ●
284 BOLT; MAG VLV
M6X50 FLANGE 		0-28050-650-0 01 1 0603-0706 ● ●
284 BOLT; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) M6X50 FLANGE 		0-28050-650-0 01 1 0707- ● ●
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-47471-046-0 01 1 0603-0706 ● ●
603 PROTECTOR; MAG VLV
(A) 		1-47471-046-0 01 1 0707- ● ●
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-47471-046-0 01 1 0707- ● ●
603 PROTECTOR; MAG VLV
(B) 		1-47471-044-0 01 1 0603-0706 ● ●

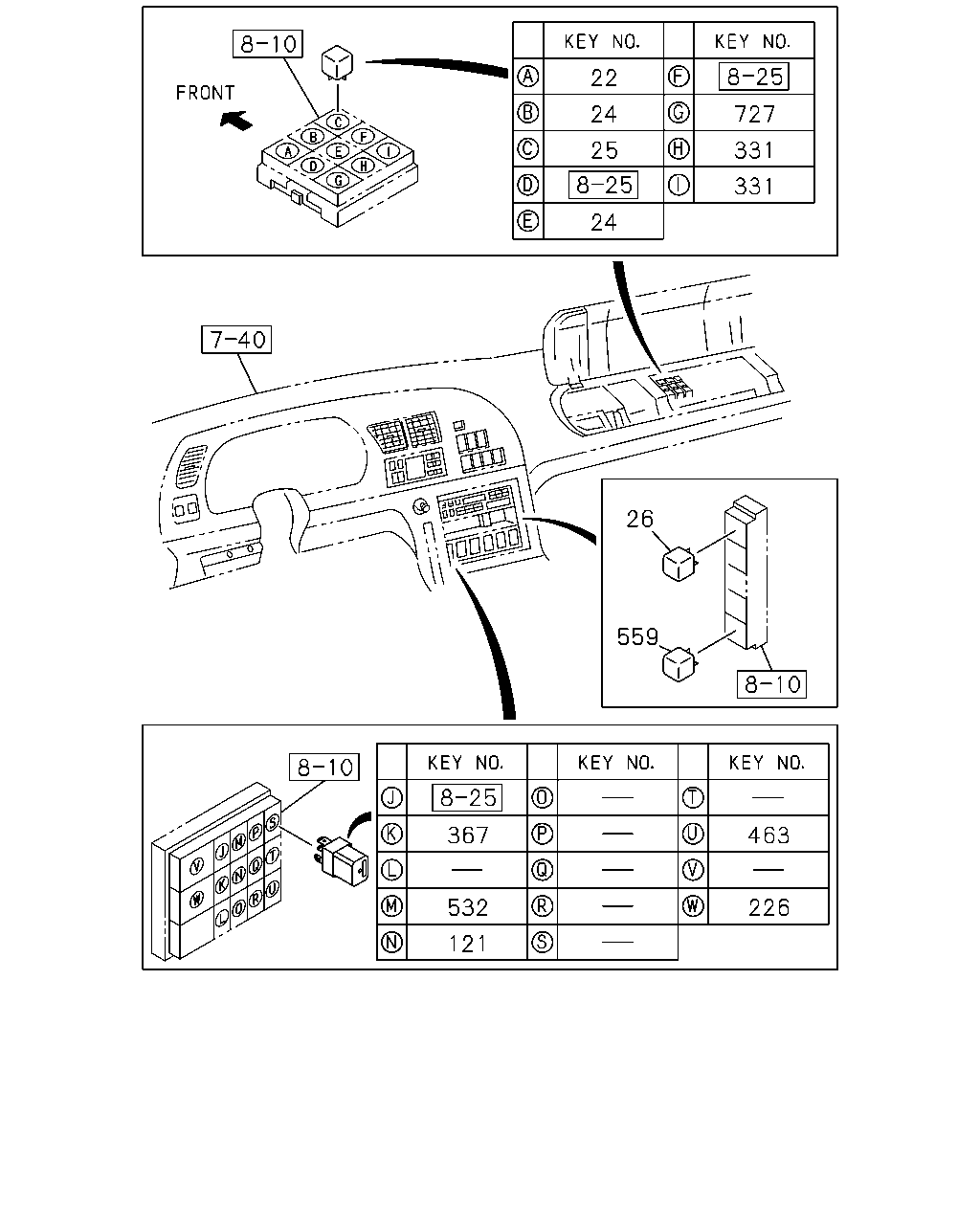

çizim 177356
22 24 727 25 331 331 24 26 559 463 367 532 226 121
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0603- ● ●
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0603- ● ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0603- ● ●
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0603- ● ●
121 RELAY; PARKING BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 0603- ● ●
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0603- ● ●
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0603- ● ●
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0603- ● ●
463 RELAY; ABS SIGNAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0603- ● ●
532 RELAY; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 24V 10A PANASONIC 		8-97173-035-1 01 1 0709- ● ●
559 RELAY; MAG VLV
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0603-0706 ● ●
559 RELAY; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0707- ● ●
727 RELAY; START CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0603-0706 ● ●
727 RELAY; START CUT
ENGINE CONTROL COMMON RAIL(Q4R) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0707- ● ●
çizim 177358
34 33 261 282 39 41 34 603 39 282 284 41 284
BalonParca AdiParca NoAdetTipApplied Date A B
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 0603- ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0603- ● ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0603- ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 0603- ● ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603-0706 ● ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603-0706 ● ●
39 BOLT; BRKT,MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0707- ● ●
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0707- ● ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ● ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0603-0706 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0603-0706 ● ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0603-0706 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0707- ● ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0707- ● ●
261 PLUG; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 0707- ● ●
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> (E) 		1-82569-367-1 01 1 0603-0706 ●
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (E) 		1-82569-367-1 01 1 0707- ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (F) 		1-47471-175-0 01 1 0603- ●
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0603-0706 ● ●
282 BRACKET; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B) 		1-82569-277-2 01 1 0707- ● ●
282 BRACKET; MAG VLV
(D) 		1-82569-421-0 01 1 0603- ● ●
282 BRACKET; MAG VLV
EXC. MIXER TRUCK<RA2> (A) 		1-82569-290-0 01 1 0603-0706 ●
282 BRACKET; MAG VLV
(A) 		1-82569-290-0 01 1 0603-0706 ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (A) 		1-82569-290-0 01 1 0707- ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-82569-290-0 01 1 0707- ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47479-364-1 01 1 0603- ●
284 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0603- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 0603- ● ●
284 BOLT; MAG VLV
M6X50 FLANGE 		0-28050-650-0 01 1 0603-0706 ● ●
284 BOLT; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) M6X50 FLANGE 		0-28050-650-0 01 1 0707- ● ●
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-47471-046-0 01 1 0603-0706 ● ●
603 PROTECTOR; MAG VLV
(A) 		1-47471-046-0 01 1 0707- ● ●
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-47471-046-0 01 1 0707- ● ●
603 PROTECTOR; MAG VLV
(B) 		1-47471-044-0 01 1 0603-0706 ● ●

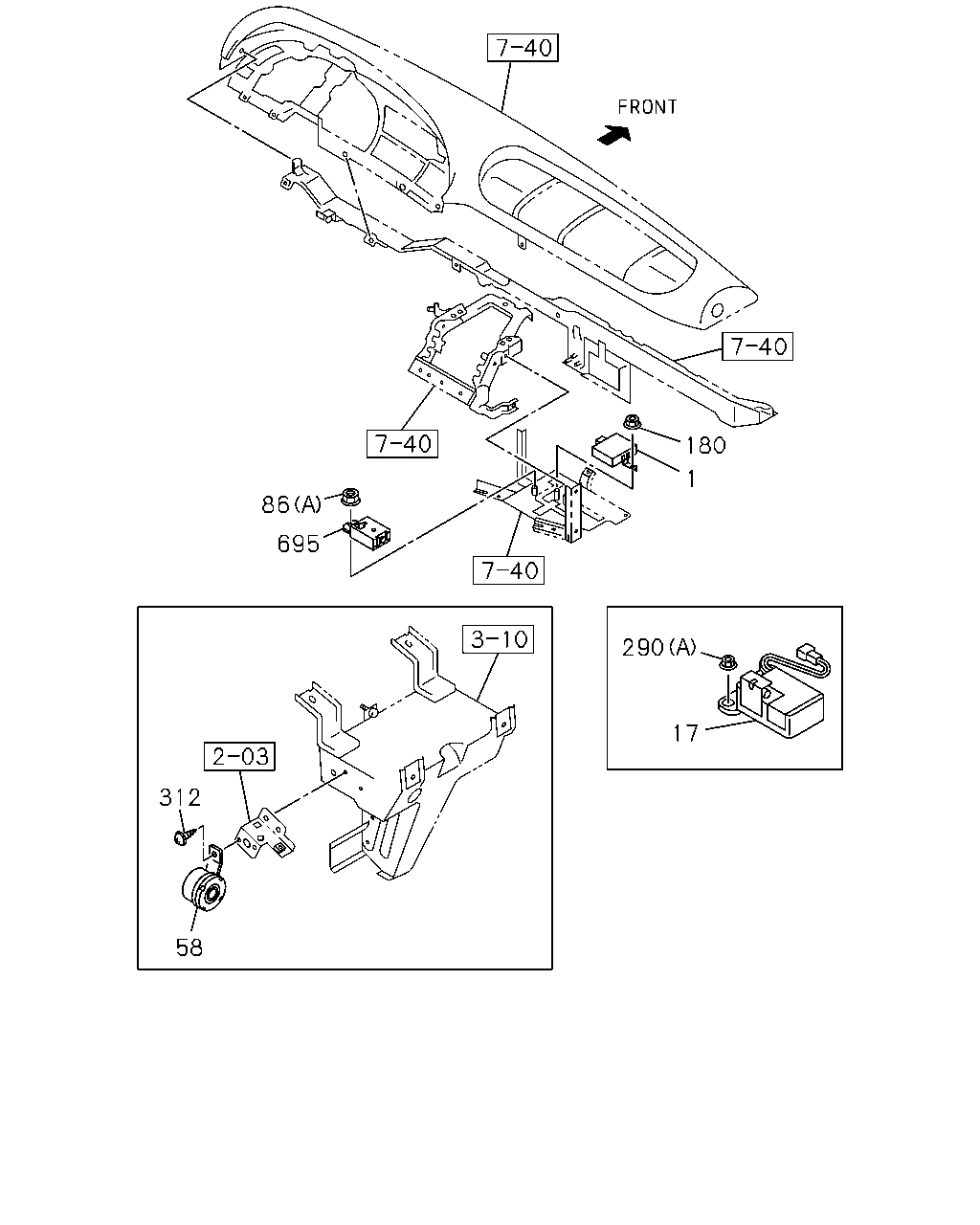

çizim 177369
180 1 86 695 290 17 312 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 1-83470-060-1 01 1 0603- ● ●
17 TIMER; SEAT BELT
SAUDI ARABIA EQUIPMENT(WH1) 		1-82550-183-1 01 1 0709- ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-075-0 01 1 0603-0612 ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-859-0 01 1 0701- ● ●
86 NUT; BUZZER
(A) M6 FLANGE 		0-91150-106-0 01 1 0603-0603 ● ●
86 NUT; BUZZER
(A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ● ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0603-0603 ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
290 NUT
SAUDI ARABIA EQUIPMENT(WH1) (A) M6 FLANGE 		0-91180-106-0 02 1 0709- ● ●
290 NUT
MIXER TRUCK<RA2> (B) M12 		0-91111-512-0 01 1 0603-0706 ●
290 NUT
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 		0-91111-512-0 01 1 0707- ●
312 BOLT; BUZZER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0603- ● ●
695 ALARM; OVER HEAT 1-83460-051-1 01 1 0603- ● ●

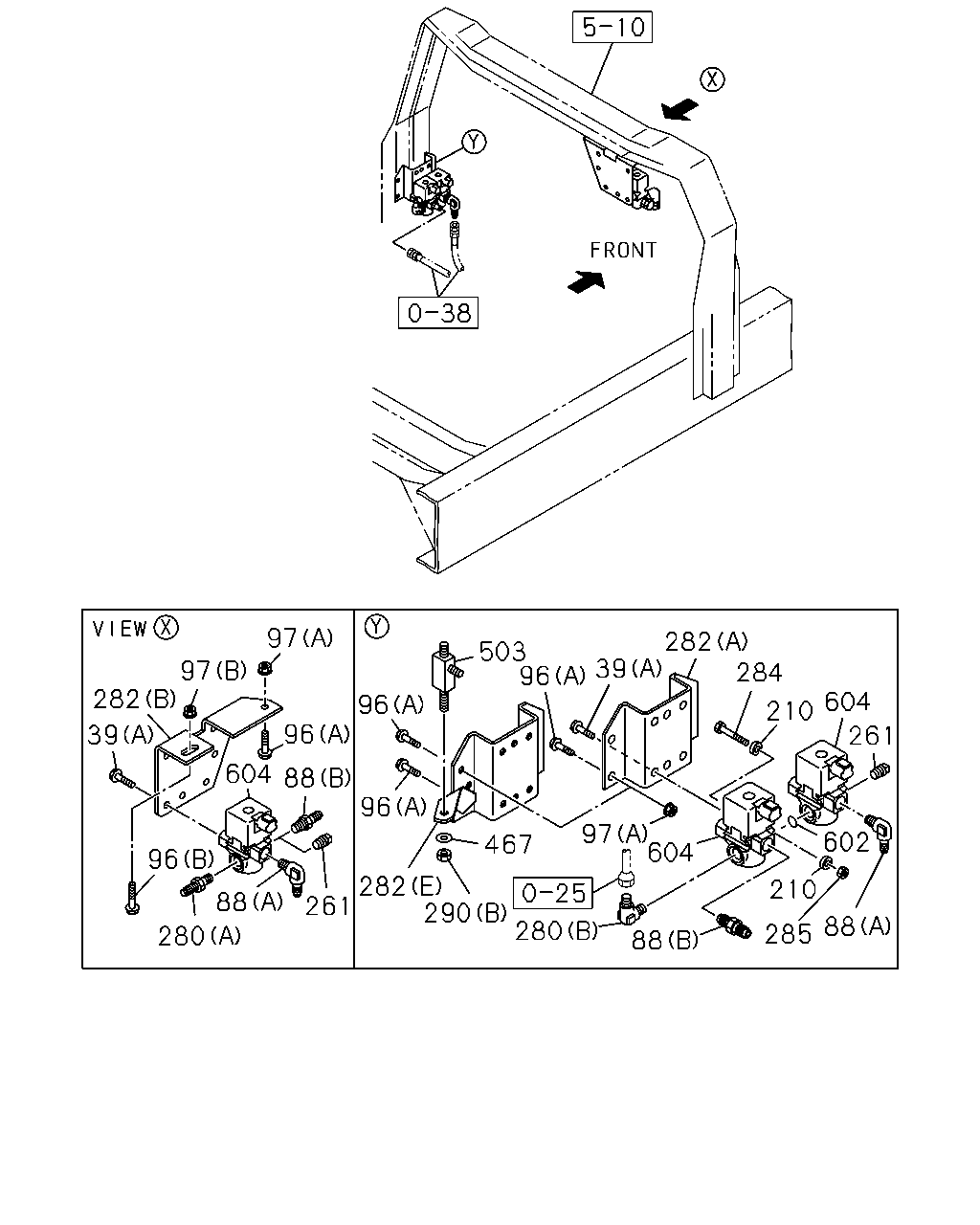

çizim 177372
97 282 284 503 96 39 97 282 604 96 210 96 39 261 604 88 96 602 210 97 604 467 96 282 290 280 88 261 88 285 280 88
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 0603- ● ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603-0706 ● ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603-0706 ● ●
39 BOLT; BRKT,MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0707- ● ●
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0707- ● ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0603-0706 ● ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0603-0706 ● ●
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0707- ● ●
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0707- ● ●
88 CONNECTOR; MAG VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0603-0706 ● ●
88 CONNECTOR; MAG VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0603-0706 ● ●
88 CONNECTOR; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0707- ● ●
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0707- ● ●
96 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 05 1 0603- ● ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0603- ● ●
97 NUT; BRKT FIX
(A) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ● ●
97 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
97 NUT; BRKT FIX
(B) M10 FLANGE 		0-91150-110-0 01 1 0603-0603 ● ●
97 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
97 NUT; BRKT FIX
(C) M10 FLANGE 		0-91150-210-0 01 1 0603-0603 ● ●
97 NUT; BRKT FIX
(C) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0603-0706 ● ●
210 WASHER; PL,BRKT
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) 		1-82569-266-0 02 1 0707- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0603-0706 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0603-0706 ● ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0603-0706 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0707- ● ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0707- ● ●
261 PLUG; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 0707- ● ●
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0603-0706 ● ●
280 CONNECTOR; IN,MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0707- ● ●
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0603-0706 ● ●
280 CONNECTOR; IN,MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0707- ● ●
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> (E) 		1-82569-367-1 01 1 0603-0706 ●
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (E) 		1-82569-367-1 01 1 0707- ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (F) 		1-47471-175-0 01 1 0603- ●
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0603-0706 ● ●
282 BRACKET; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B) 		1-82569-277-2 01 1 0707- ● ●
282 BRACKET; MAG VLV
(D) 		1-82569-421-0 01 1 0603- ● ●
282 BRACKET; MAG VLV
EXC. MIXER TRUCK<RA2> (A) 		1-82569-290-0 01 1 0603-0706 ●
282 BRACKET; MAG VLV
(A) 		1-82569-290-0 01 1 0603-0706 ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (A) 		1-82569-290-0 01 1 0707- ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-82569-290-0 01 1 0707- ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47479-364-1 01 1 0603- ●
284 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0603- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 0603- ● ●
284 BOLT; MAG VLV
M6X50 FLANGE 		0-28050-650-0 01 1 0603-0706 ● ●
284 BOLT; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) M6X50 FLANGE 		0-28050-650-0 01 1 0707- ● ●
285 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 01 1 0603-0603 ● ●
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 0603-0706 ● ●
285 NUT; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) M6 FLANGE 		0-91180-106-0 01 1 0707- ● ●
290 NUT
SAUDI ARABIA EQUIPMENT(WH1) (A) M6 FLANGE 		0-91180-106-0 02 1 0709- ● ●
290 NUT
MIXER TRUCK<RA2> (B) M12 		0-91111-512-0 01 1 0603-0706 ●
290 NUT
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 		0-91111-512-0 01 1 0707- ●
467 WASHER; LK,MAG VLV
MIXER TRUCK<RA2> ID=12.2 		9-09150-512-0 01 1 0603-0603 ●
467 WASHER; LK,MAG VLV
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 0604-0706 ●
467 WASHER; LK,MAG VLV
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) ID=12.2 		0-91510-512-0 01 1 0707- ●
503 UNION
MIXER TRUCK<RA2> M12 2WAY 		1-09654-059-2 01 1 0603-0706 ●
503 UNION
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) M12 2WAY 		1-09654-059-2 01 1 0707- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0603-0706 ● ●
602 GASKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) ID=16.8 		9-09565-117-0 01 1 0707- ● ●
604 VALVE; MAG,ENG CONT 1-82563-871-2 01 1 0603-0706 ● ●
604 VALVE; MAG,ENG CONT
ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> 		1-82563-871-2 01 1 0707- ● ●
604 VALVE; MAG,ENG CONT 1-82563-871-2 02 1 0603-0706 ● ●
604 VALVE; MAG,ENG CONT
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) 		1-82563-871-2 02 1 0707- ● ●

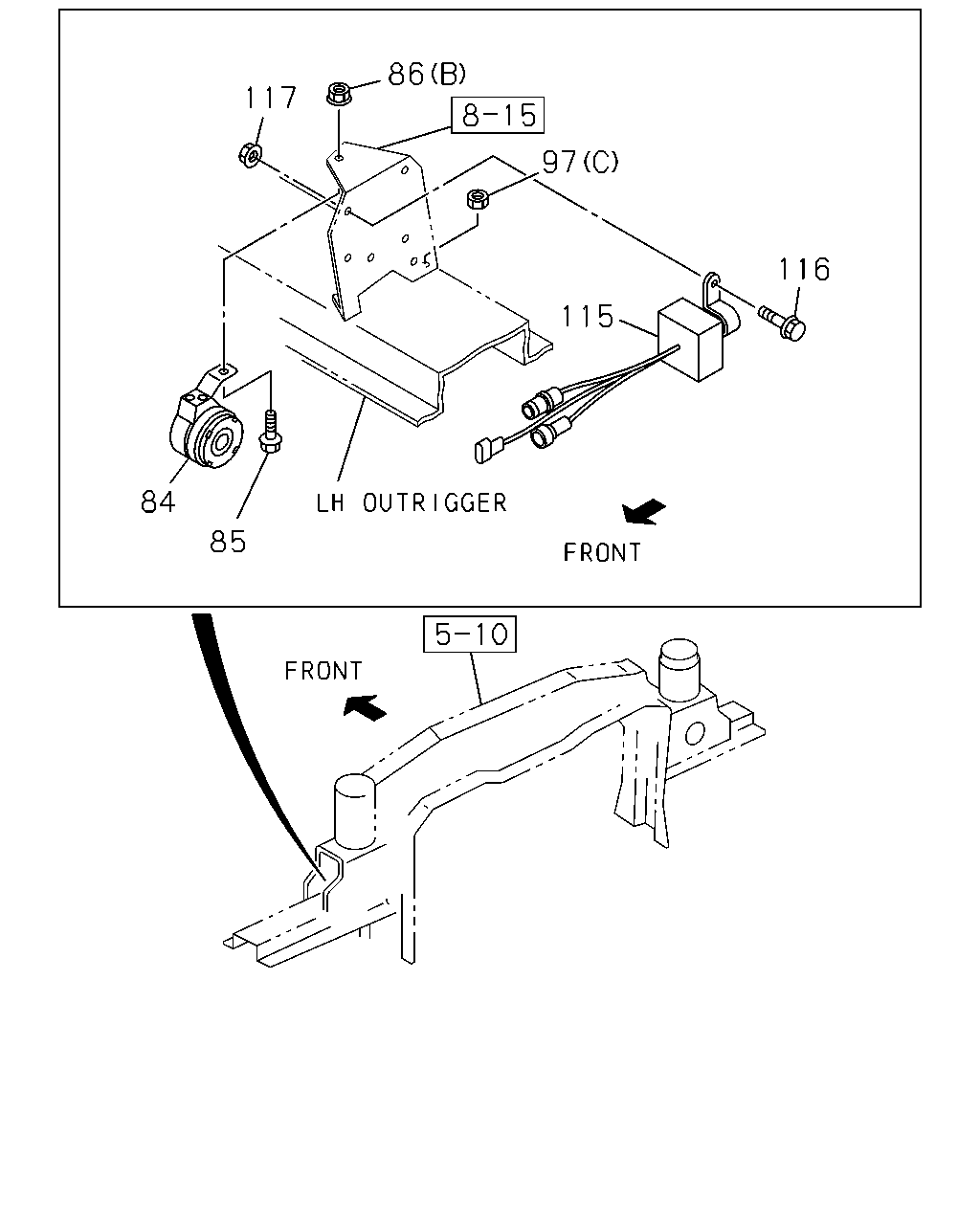

çizim 177395
86 117 97 116 115 84 85
BalonParca AdiParca NoAdetTipApplied Date A B
84 BUZZER; POWER CAB TILT
METRO DENSO 		1-83460-097-0 01 1 0603-0612 ● ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0701- ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0603- ● ●
86 NUT; BUZZER
(A) M6 FLANGE 		0-91150-106-0 01 1 0603-0603 ● ●
86 NUT; BUZZER
(A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ● ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
97 NUT; BRKT FIX
(A) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ● ●
97 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
97 NUT; BRKT FIX
(B) M10 FLANGE 		0-91150-110-0 01 1 0603-0603 ● ●
97 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
97 NUT; BRKT FIX
(C) M10 FLANGE 		0-91150-210-0 01 1 0603-0603 ● ●
97 NUT; BRKT FIX
(C) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0603- ● ●
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0603- ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
