◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#35575) — 56 parça

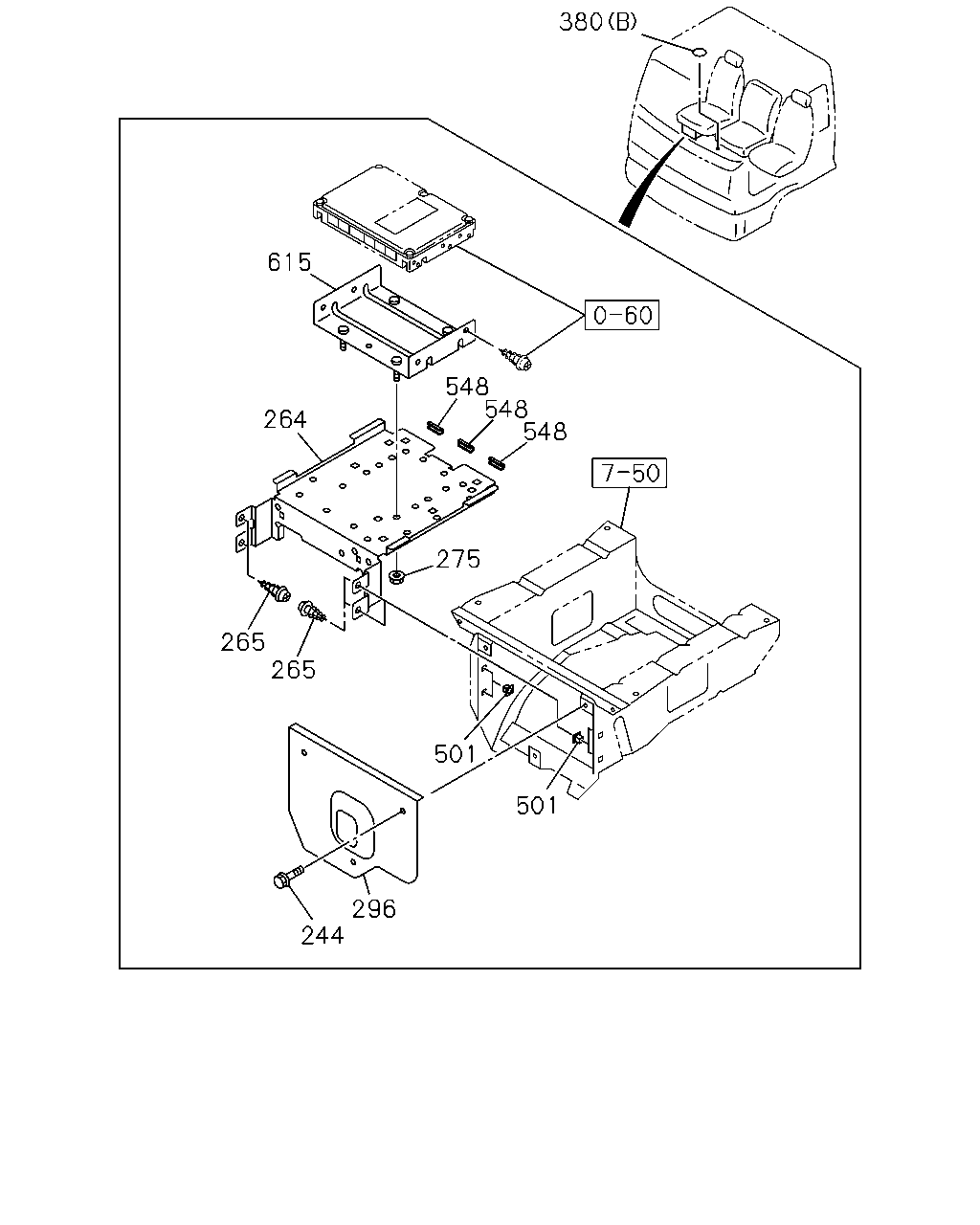

çizim 177311
380 615 548 548 548 264 275 265 265 501 501 296 244
BalonParca AdiParca NoAdetTipApplied Date A B
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0603-0703 ● ●
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0704- ● ●
264 BRACKET; CONT UNIT 8-97589-038-5 01 1 0603- ● ●
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0603- ● ●
275 NUT; BRKT
M6 FLANGE 		0-91150-106-0 04 1 0603-0603 ● ●
275 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0603-0706 ● ●
275 NUT; BRKT
ENGINE CONTROL COMMON RAIL(Q4R) M6 FLANGE 		0-91180-106-0 04 1 0707- ● ●
296 COVER; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION,WO/ECU<EAG>, MEMORYSYSTEM RUNNING CONDITION<NCR> 		8-97589-674-1 01 1 0603-1112 ● ●
296 COVER; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION,WO/ECU<EAG>, MEMORYSYSTEM RUNNING CONDITION<NCR> 		8-98151-570-0 01 1 1201- ● ●
296 COVER; CONT UNIT
EXC. MEMORY SYSTEM RUNNING CONDITION,WO/ECU<EAG>, MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-75558-535-3 01 1 0603- ● ●
380 SEAL
(A) 450X350 		1-76770-008-0 01 1 0603- ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0603-1210 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 1211- ● ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0603- ● ●
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0603-0908 ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305 ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306- ● ●
615 BRACKET; ECU,SEAT STAND 8-97375-194-2 01 1 0603-0706 ● ●
615 BRACKET; ECU,SEAT STAND
ENGINE CONTROL COMMON RAIL(Q4R) 		8-97375-194-2 01 1 0707- ● ●
çizim 177321
234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0603- ● ●
çizim 177324
25 24 328 328 497 497
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 0603- ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28050-616-0 02 1 0603- ● ●
328 NUT
M16 		0-91111-516-0 02 1 0603- ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0603- ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0603- ● ●

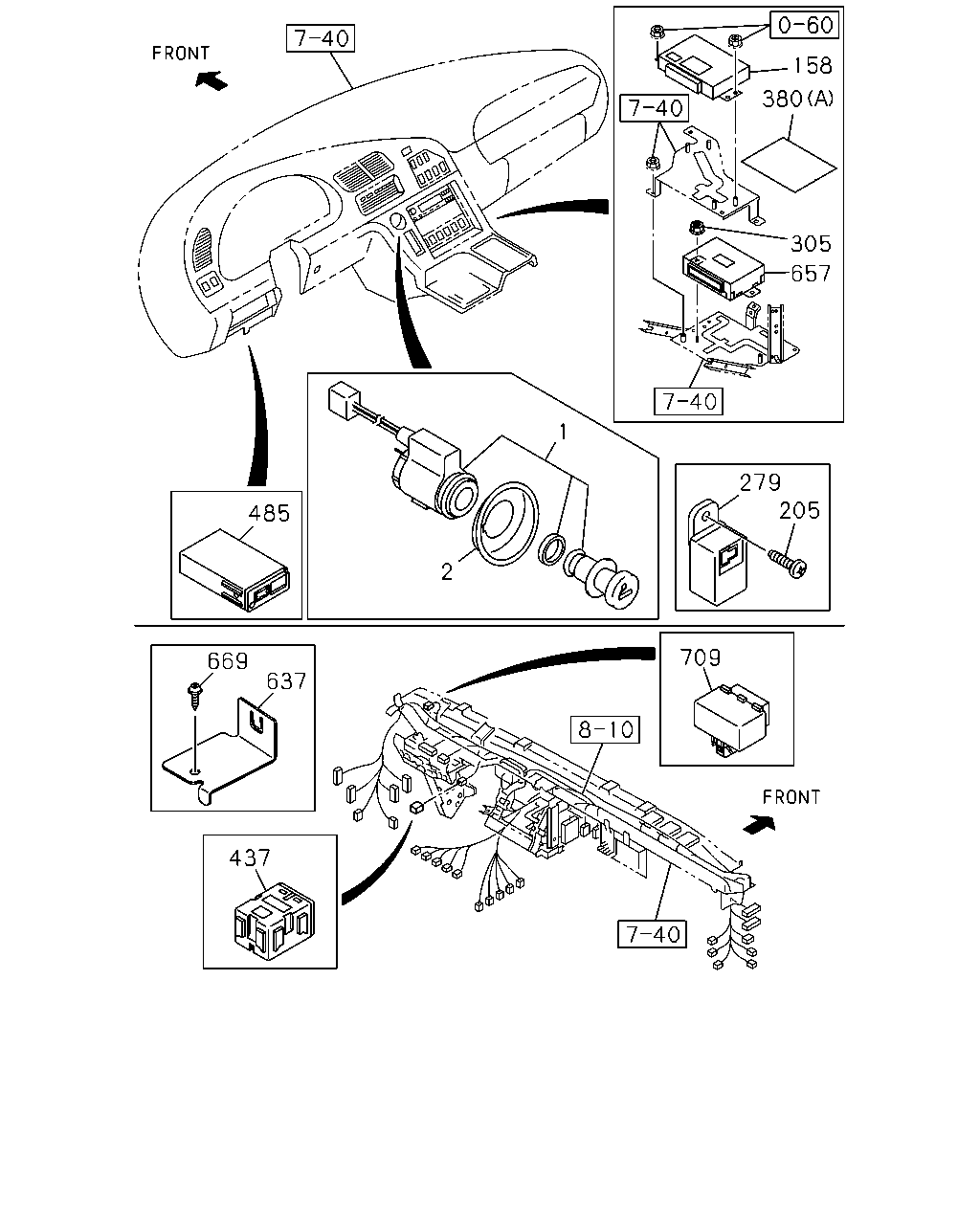

çizim 177337
158 380 305 657 279 205 1 2 485 669 637 437 709
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0603- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0603- ● ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00-20-16 LUG(81R) GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) 		1-80119-245-1 01 1 0603-0803 ● ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) 		1-80119-245-1 01 1 0804-0903 ● ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R20-16 RIBLUG OFF ROAD(5N4),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) 		1-80119-245-1 01 1 0904-1109 ● ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R20-16 RIBLUG OFF ROAD(5N4),TIRE 295/80R22.5-152/148KRIB LUG CCC(5P9),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) 		1-80119-245-1 01 1 1110-1201 ● ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R20-16 RIBLUG OFF ROAD(5N4),TIRE 295/80R22.5-152/148KRIB LUG CCC(5P9),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) 		8-98196-721-0 01 1 1202- ● ●
158 CONTROLLER; ABS
CHINA EQUIPMENT(YT2) 		1-80119-244-1 01 1 0603-0711 ● ●
158 CONTROLLER; ABS
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-80119-244-1 01 1 0712-1109 ● ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 295/80R22.5-152/148K RIB LUG CCC(5P9) SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-80119-244-1 01 1 1110-1201 ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-153/150J RIB(5D7),TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 295/80R22.5-152/148K RIBLUG CCC(5P9),TIRE 295/80R22.5-153/150J RIB LUG CCC(5Q0) SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-80119-244-1 01 1 1110-1201 ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 295/80R22.5-152/148K RIB LUG CCC(5P9) SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-98196-720-0 01 1 1202- ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-153/150J RIB(5D7),TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 295/80R22.5-152/148K RIBLUG CCC(5P9),TIRE 295/80R22.5-153/150J RIB LUG CCC(5Q0) SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-98196-720-0 01 1 1202- ●
205 SCREW; BUZZER
SAUDI ARABIA EQUIPMENT(WH1) M5X14 		8-94279-325-0 01 1 0709- ● ●
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 0709- ● ●
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91150-106-0 02 1 0603-0603 ● ●
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 04 1 0603-0603 ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
380 SEAL
(A) 450X350 		1-76770-008-0 01 1 0603- ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0603-1210 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 1211- ● ●
437 CONVERTER; DC
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> KOITO 		8-97359-129-0 01 1 0603- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0603- ● ●
637 BRACKET; DC-DC CONVERTER
ECE R29<EFE> 		8-98227-518-1 01 1 1307-1312 ●
637 BRACKET; DC-DC CONVERTER
ECE R29<EFE> 		8-98227-518-1 01 1 1401- ● ●
657 CONTROL UNIT; MIMAMORI
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-179-0 01 1 0603-1112 ● ●
657 CONTROL UNIT; MIMAMORI
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-175-0 01 1 1201- ● ●
669 SCREW; DC-DC CONVERTER
ECE R29<EFE> M5X14 		8-94279-325-0 01 1 1307-1312 ●
669 SCREW; DC-DC CONVERTER
ECE R29<EFE> M5X14 		8-94279-325-0 01 1 1401- ● ●
709 RESISTOR; HD LAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-97359-130-1 01 1 0603- ● ●
