◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#35574) — 62 parça

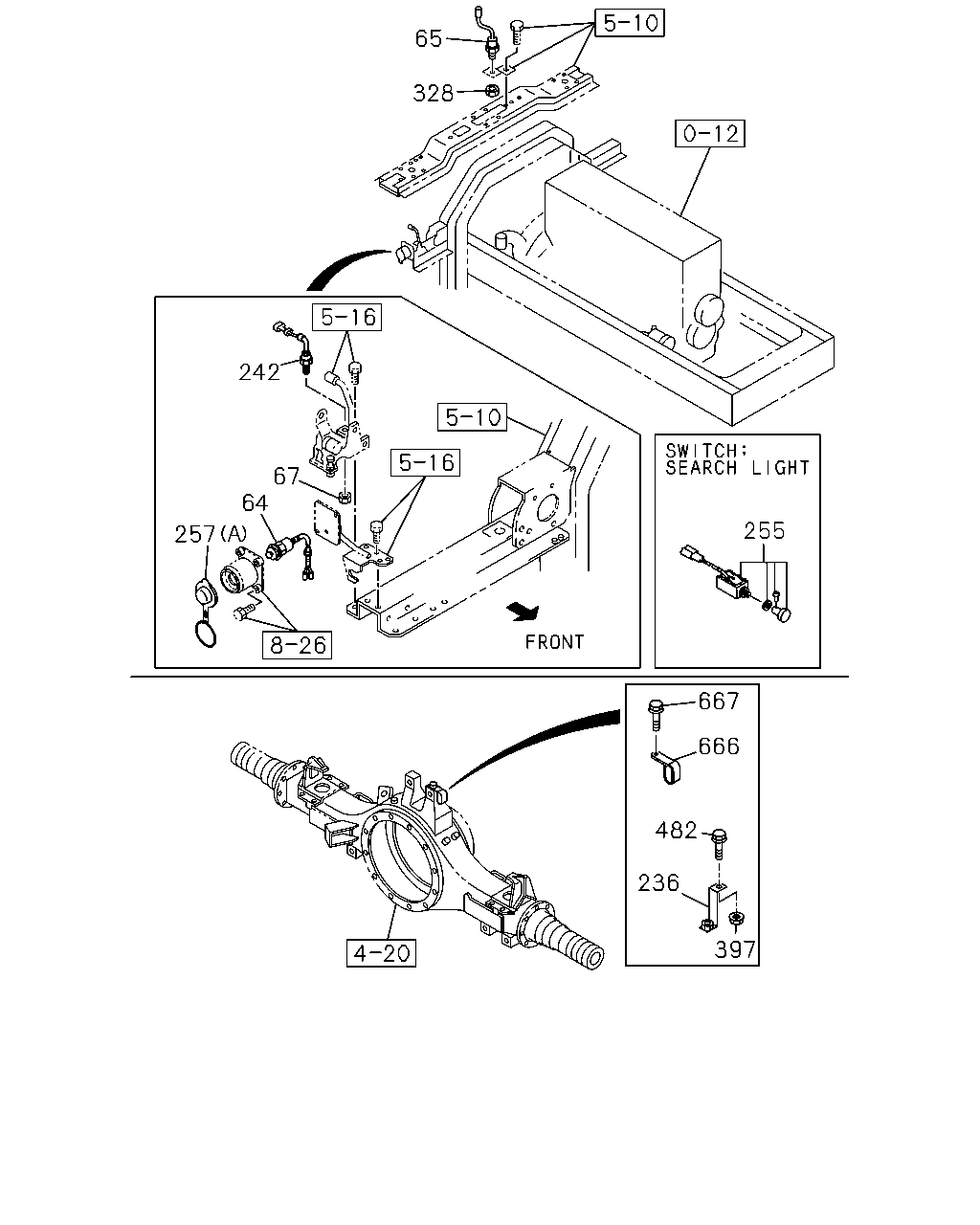

çizim 177315
65 328 242 67 64 255 257 667 666 482 236 397
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 0603- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0603- ● ●
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 0603- ● ●
236 BRACKET; AXLE HARNESS,RR 1-47476-200-0 01 1 0603- ●
236 BRACKET; AXLE HARNESS,RR
WHEEL BASE 6600MM(66W) 		1-47476-200-0 01 1 0603- ●
236 BRACKET; AXLE HARNESS,RR
WHEEL BASE 5900MM(59W) 		1-46147-101-0 02 1 0603- ●
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 0603- ● ●
255 SWITCH; SEARCH LIGHT
CHINA EQUIPMENT(YT2) 		8-98106-483-0 01 1 0806- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0603- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0603- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0603- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0603- ● ●
328 NUT; SW
M16 		0-91110-516-0 01 1 0603- ● ●
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
397 NUT; BRKT FIX
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
397 NUT; BRKT FIX
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ●
397 NUT; BRKT FIX
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
482 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0603- ●
482 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 0603- ●
482 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X35 FLANGE 		0-28650-835-0 02 1 0603-1109 ●
482 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X40 FLANGE 		0-28650-840-0 02 1 1110- ●
666 CLIP; AXLE HARNESS
ID=11X2 L=20 		1-09700-871-0 04 1 0603- ● ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0603- ● ●

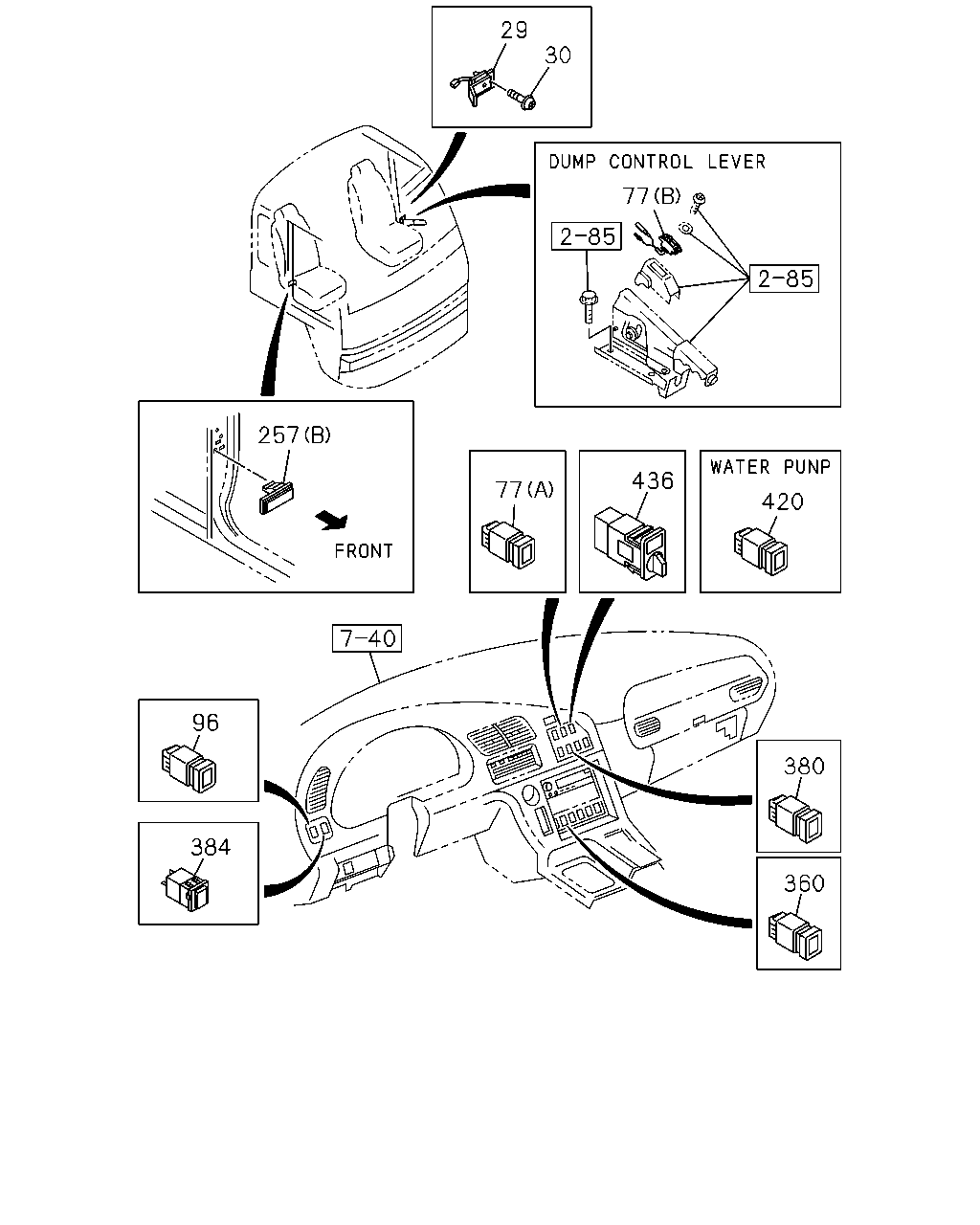

çizim 177322
29 30 77 257 436 77 420 96 380 384 360
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 01 1 0603- ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0603- ● ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82340-413-0 01 1 0603- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0603- ●
77 SWITCH; PTO
CONCRETE PUMP<RA5> (A) 		1-82340-413-0 01 1 0603- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82340-413-0 01 1 0603- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B) 		1-82380-112-0 01 1 0603- ● ●
96 SWITCH; FOG LAMP
FOG LAMP REAR<NHD> 		1-82340-628-0 01 1 0603- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0603- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0603- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0603- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0603- ● ●
360 SWITCH ASM; DIFF LK 1-82340-677-0 01 1 0603- ● ●
380 SWITCH; MARKER LAMP
ROOF MARKER LAMP<U01> 		1-82340-405-0 01 1 0810- ● ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0603-0706 ● ●
384 SWITCH; IDLING CONT,ELEC
ENGINE CONTROL COMMON RAIL(Q4R) 		1-82350-213-1 01 1 0707- ● ●
420 SWITCH; WATER PUMP
MIXER TRUCK<RA2> CHINA EQUIPMENT(YT2) 		1-82340-433-0 01 1 0806- ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82330-043-0 01 1 0603- ● ●

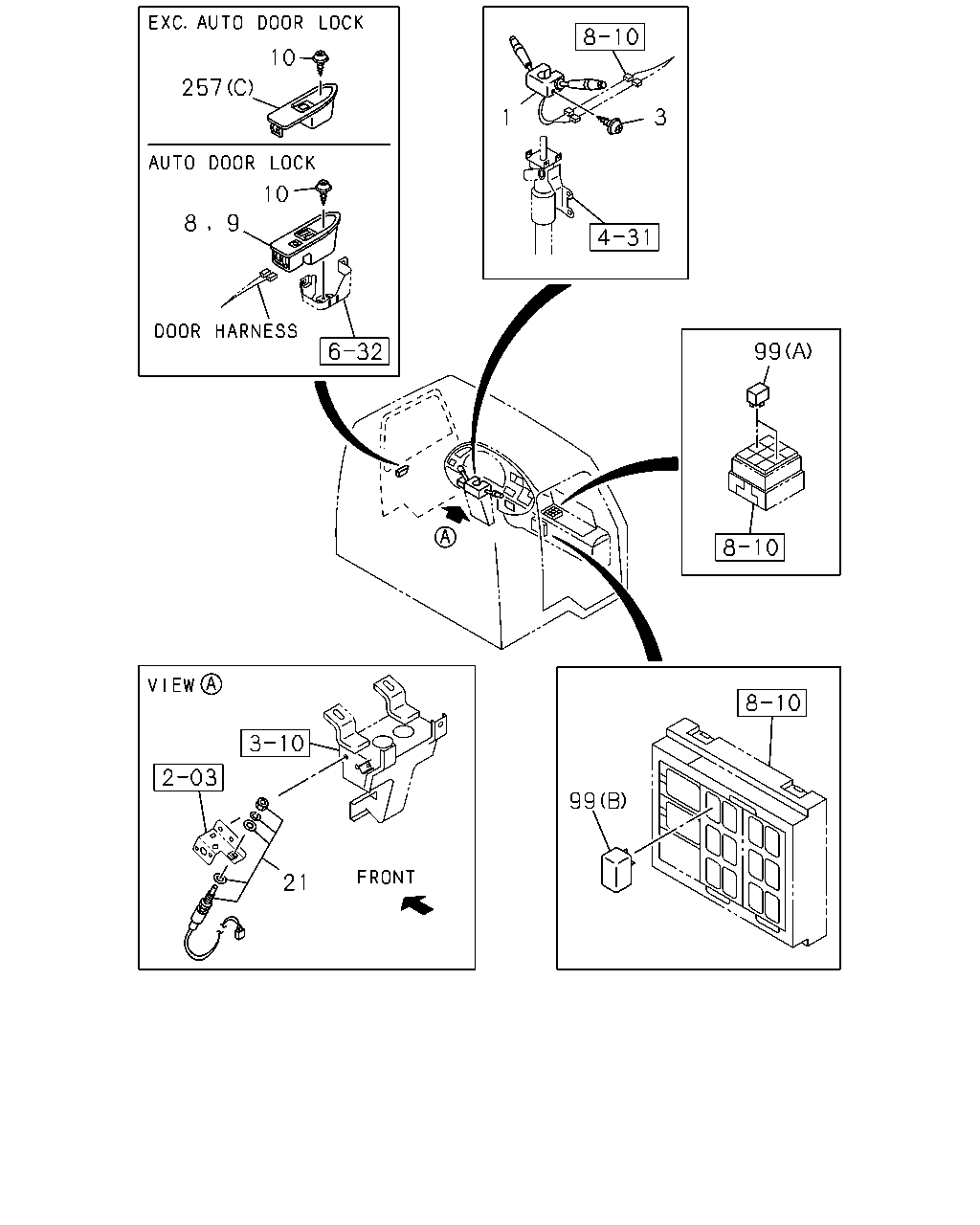

çizim 177360
10 257 3 1 10 8 9 99 99 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
FOG LAMP REAR<NHD> 		1-82360-704-1 01 1 0603- ● ●
1 SWITCH; COMB
EXC. FOG LAMP REAR<NHD> 		1-82360-734-0 01 1 0603- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0603-0604 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ● ●
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> CHINA EQUIPMENT(YT2) DRIVER 		1-82380-174-0 01 1 0603-0708 ● ●
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) DRIVER 		1-82380-174-1 01 1 0709- ● ●
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> EXC. CHINA EQUIPMENT(YT2) DRIVER 		1-82380-157-3 01 1 0603-0708 ● ●
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) DRIVER 		1-82380-157-4 01 1 0709- ● ●
9 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> PASSENGER 		1-82380-158-3 01 1 0603- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0603-0604 ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ●
21 SWITCH; CLU 1-82380-114-3 01 1 0603- ● ●
99 RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0603- ● ●
99 RELAY; FOG LAMP
FOG LAMP REAR<NHD> (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0603- ● ●
99 RELAY; FOG LAMP
FOG LAMP REAR<NHD> (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0603-0809 ● ●
99 RELAY; FOG LAMP
FOG LAMP REAR<NHD> (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0810- ● ●
99 RELAY; FOG LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0810- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0603- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0603- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0603- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0603- ● ●
