◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#35572) — 19 parça

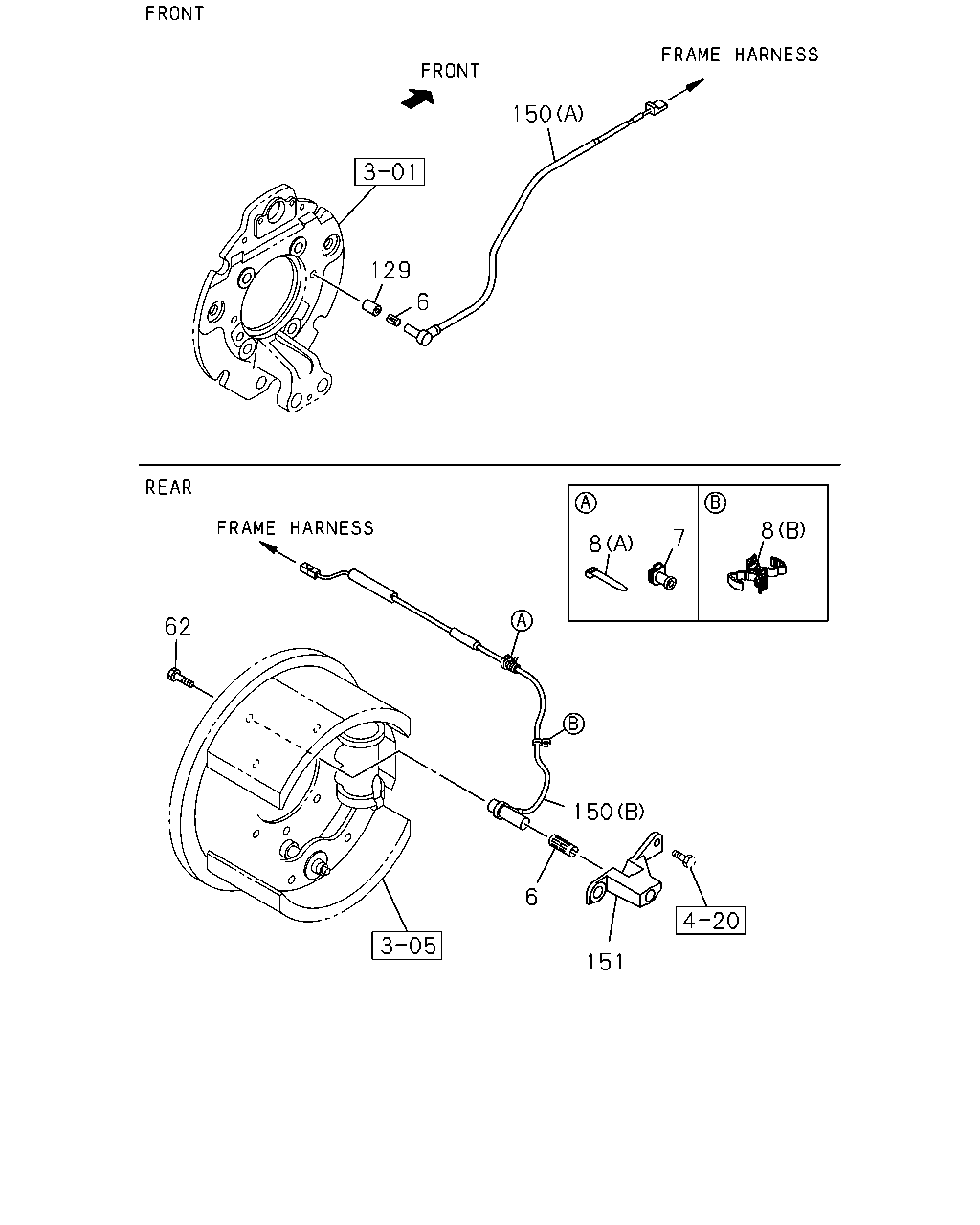

çizim 177295
150 129 6 8 7 8 62 150 6 151
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0603- ● ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0603- ● ●
7 GROMMET; SPD SENSOR
ID=8 		1-82699-740-1 01 1 0603- ● ●
8 CLIP; HARNESS
(B) ID=6-10 & 6-10 		1-09709-192-1 01 1 0603- ● ●
8 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0603- ● ●
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 0603-1506 ● ●
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507- ● ●
129 COLLAR 1-83129-471-0 02 1 0603- ● ●
150 SENSOR; SPEED,ABS
FRT BRK AIR D410 WEDGE-160-24/24<B7R> (A) 		1-83127-961-1 02 1 0902- ●
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 02 1 0603-0811 ● ●
150 SENSOR; SPEED,ABS
FRT BRK AIR D410 WEDGE-160-24<B7Q> (A) 		1-83127-853-3 02 1 0812- ● ●
150 SENSOR; SPEED,ABS
(B) 		1-83227-026-0 01 1 0603- ● ●
150 SENSOR; SPEED,ABS
(B) 		1-83227-027-0 01 1 0603- ● ●
151 BRACKET; SPD SENSOR 1-83129-405-0 01 1 0603-1504 ● ●
151 BRACKET; SPD SENSOR 8-98299-398-0 01 1 1505- ● ●
151 BRACKET; SPD SENSOR 1-83129-406-0 01 1 0603-1504 ● ●
151 BRACKET; SPD SENSOR 8-98299-399-0 01 1 1505- ● ●

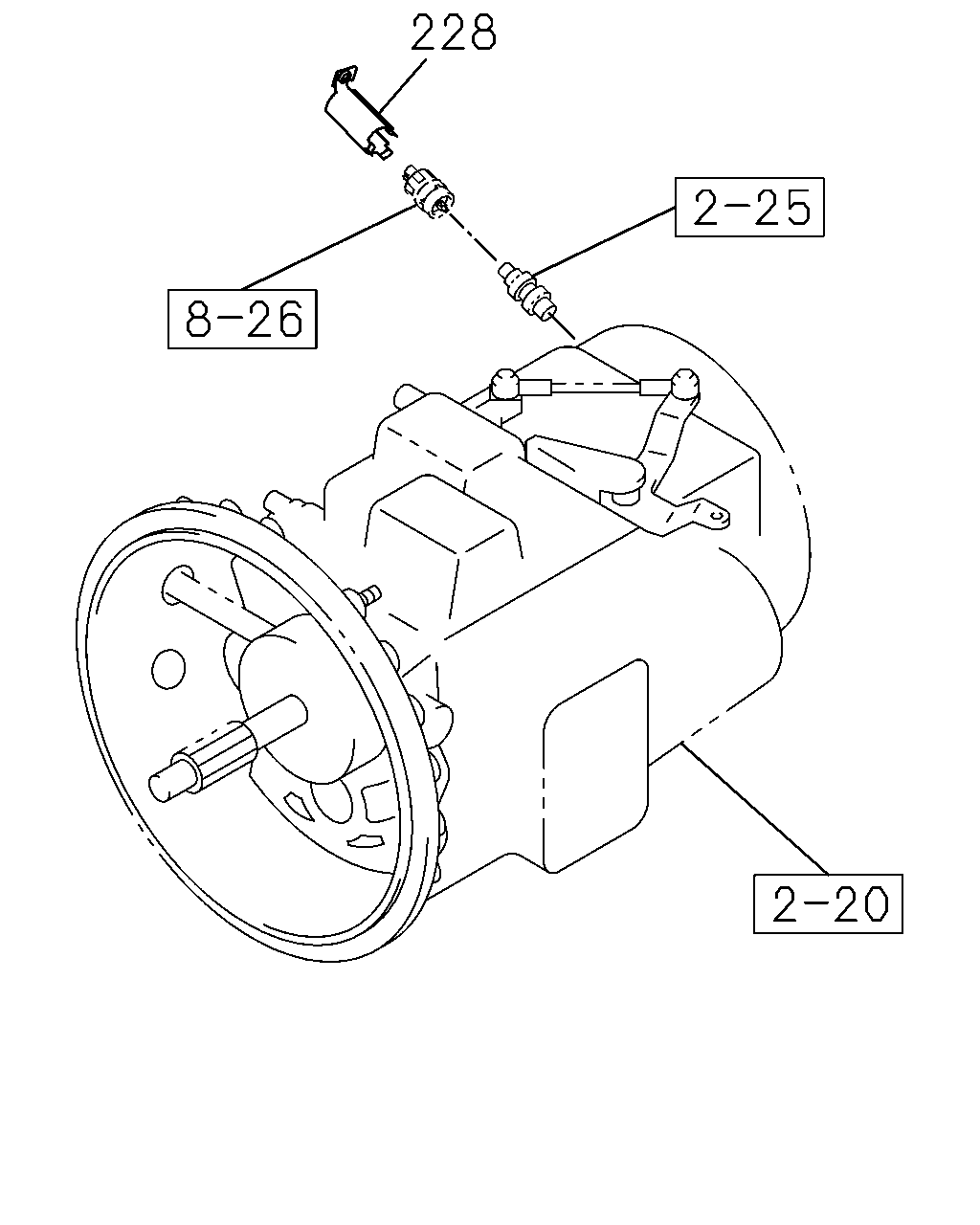

çizim 177302
228
BalonParca AdiParca NoAdetTipApplied Date A B
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 0603-0808 ● ●
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 0809- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
