◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#35571) — 549 parça
çizim 177275
5 224 1 224 1 1 178 510 178 178 178 178 178 178 530 292
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=50 		5-09360-835-0 01 1 0603-0704 ● ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=38.1 L=25 		1-09337-052-0 01 1 0705- ● ●
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0603- ● ●
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0603-1103 ● ●
5 GUIDE; HARNESS
EXC. CHINA EQUIPMENT(YT2) L=360 		1-82699-476-1 01 1 1104- ● ●
178 GROMMET; HARNESS
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B) WO/SLIT ID=24 OD=30 T=22 		1-09332-126-0 01 1 0904- ●
178 GROMMET; HARNESS
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (F) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0904- ●
178 GROMMET; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0603-0806 ● ●
178 GROMMET; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0807- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0603- ● ●
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0603- ● ●
178 GROMMET; HARNESS
(B) WO/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0603-0903 ● ●
178 GROMMET; HARNESS
POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (B) WO/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0904- ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0603-0801 ● ●
178 GROMMET; HARNESS
(G) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0802- ● ●
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0603- ● ●
178 GROMMET; HARNESS
(F) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0603- ● ●
224 SLEEVE; RUBBER,HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) (A) ID=23 OD=27 L=40 		1-09337-015-0 01 1 1104- ● ●
224 SLEEVE; RUBBER,HARNESS
(B) ID=6 L=30 		5-09360-352-0 01 1 0603- ● ●
292 CAP; RUBBER
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> 		1-82691-239-0 02 1 0707- ● ●
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0603-0706 ● ●
510 GROMMET; SCREW
ENGINE CONTROL COMMON RAIL(Q4R) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0707-1202 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 04 1 0603-0706 ● ●
530 SEAL; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) 180X40 		1-72498-019-1 04 1 0707- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 0603- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 0603- ● ●

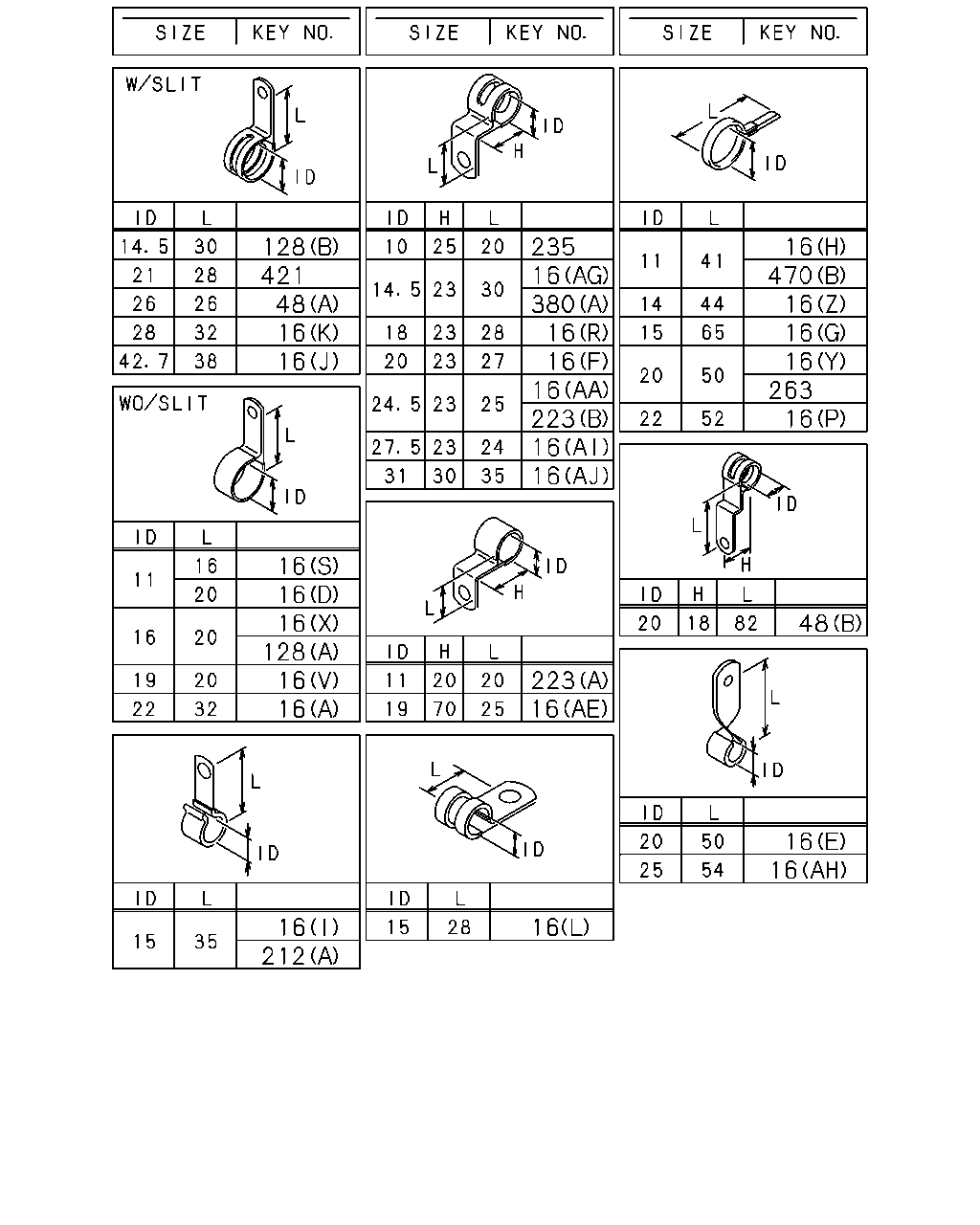

çizim 177284
128 421 48 16 16 235 16 380 16 16 16 223 16 16 16 470 16 16 16 263 16 16 16 16 128 16 16 48 223 16 16 16 16 212 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (AI) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1104-1201 ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1202- ● ●
16 CLIP; HARNESS
(AJ) ID=31 H=30 L=35 		1-09700-994-0 01 1 1104- ● ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AH) ID=25 L=54 		1-09700-392-1 01 1 0906- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (K) ID=28 L=32 		1-09701-107-1 01 1 0906- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0812- ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=26 		1-09709-289-0 03 1 0807- ● ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 0707-1208 ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209- ● ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0603- ● ●
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0603- ● ●
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 0603- ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		9-09525-032-0 01 1 0603-0606 ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0607- ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		9-09525-035-0 02 1 0603-0606 ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0607-1208 ● ●
16 CLIP; HARNESS
(V) ID=19 L=20 		9-09525-832-0 01 1 0603-0606 ● ●
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0607- ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=26 		1-09709-289-0 01 1 0603-0703 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0603-0703 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0603-0703 ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=26 		1-09709-289-0 01 1 0704-0806 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0704-0806 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0704-0806 ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=26 		1-09709-289-0 01 1 0807- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0807- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0807- ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (AD) ID=5-12 L=14.5 		1-09987-221-0 01 1 0603-0806 ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (AD) ID=5-12 L=14.5 		1-09987-221-0 01 1 0807- ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6 		8-97368-793-0 01 1 0603-0806 ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (C) OD=9 H=6 		8-97368-793-0 01 1 0807- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0603- ●
16 CLIP; HARNESS
POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0603- ●
16 CLIP; HARNESS
(AB) ID=13-18 L=26 		1-09709-293-0 02 1 0603- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 05 1 0603- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0603-0606 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0603-0606 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0607-0811 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0812- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0603-0905 ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0603-0905 ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0906- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0906- ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0906- ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0603-0905 ● ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0906- ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) ID=22 L=32 		1-09700-126-1 01 1 0906- ●
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0603- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0603-0905 ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0906- ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (E) ID=20 L=50 		1-09700-679-1 01 1 0906- ●
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0603-0706 ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0707-0905 ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0906- ● ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0906- ●
16 CLIP; HARNESS
(R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0603-0811 ● ●
16 CLIP; HARNESS
MAL6 M/T<X9G> (R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0812- ●
16 CLIP; HARNESS
(R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0812- ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0603-1002 ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0603- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0603- ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0603-1103 ● ●
16 CLIP; HARNESS
EXC. CHINA EQUIPMENT(YT2) (J) ID=42.7 L=38 		1-09701-313-0 01 1 1104- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0603- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0603- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0603-0811 ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0812- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0603-0811 ● ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (AG) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0812- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0603- ● ●
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 0603- ● ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 02 1 0603-0811 ● ●
16 CLIP; HARNESS
MAL6 M/T<X9G> (AC) L=36 		8-94224-891-1 02 1 0812- ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 02 1 0812- ●
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0603- ● ●
16 CLIP; HARNESS
(S) ID=11 L=16 		9-09525-025-0 02 1 0603-0606 ● ●
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0607- ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0603-0606 ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 05 1 0603-0603 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0603-0606 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0607-0811 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0812- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 12 1 0603- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0603-0706 ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=22 L=52 		9-09917-431-0 02 1 0707- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0603- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (G) ID=15 L=65 		1-09700-466-0 01 1 0603- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=5-12 L=26 		1-09709-289-0 02 1 0603- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (AB) ID=13-18 L=26 		1-09709-293-0 04 1 0603-0603 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (AB) ID=13-18 L=26 		1-09709-293-0 03 1 0603- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (AB) ID=13-18 L=26 		1-09709-293-0 08 1 0603- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0603- ●
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0603- ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 0603-0603 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 0603-0603 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0603- ● ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0603- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0603- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0603-0606 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0603- ● ●
212 CLIP; HORN HARNESS
(A) ID=15 L=35 		1-09700-507-0 01 1 0603-0806 ● ●
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 01 1 0603- ● ●
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0603- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0603- ●
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0603- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		5-09700-351-0 04 1 0603-0707 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0603- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 0603- ● ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0603- ● ●
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0603-0706 ● ●
380 CLIP; EARTH HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0707- ● ●
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 03 1 0603-0706 ● ●
380 CLIP; EARTH HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) L=250 		5-09707-030-1 03 1 0707- ● ●
421 CLIP; FLOOR HARNESS
ID=21 L=28 		1-09700-673-1 02 1 0603-0706 ● ●
421 CLIP; FLOOR HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) ID=21 L=28 		1-09700-673-1 02 1 0707-1202 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0603- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0603- ● ●

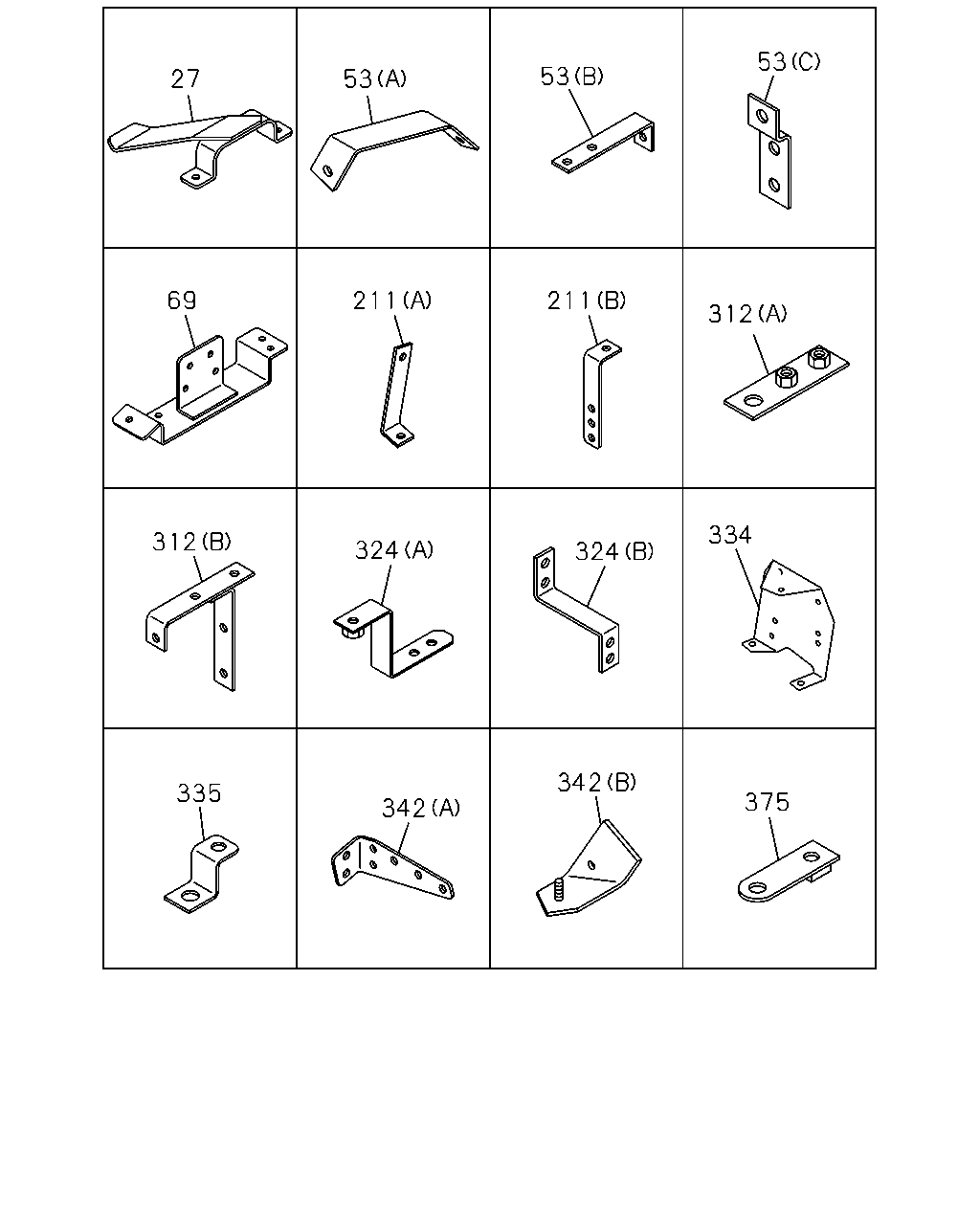

çizim 177298
53 53 27 53 69 211 211 312 334 312 324 324 342 335 375 342
BalonParca AdiParca NoAdetTipApplied Date A B
27 PROTECTOR; EDGE 8-97618-028-0 01 1 0701- ● ●
53 BRACKET; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (B) 		1-82698-382-0 01 1 0603-0806 ● ●
53 BRACKET; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (C) 		8-98124-778-0 01 1 0807-0807 ● ●
53 BRACKET; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (C) 		8-98124-778-0 01 1 0807- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 04 1 0603-0603 ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 04 1 0603-0603 ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 08 1 0603- ● ●
69 BRACKET; CLIP
ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) 		8-98171-829-0 01 1 1104- ● ●
211 BRACKET; AXLE HARNESS
(A) 		1-82698-588-0 02 1 0603-0605 ● ●
211 BRACKET; AXLE HARNESS
(B) L=95 		1-82699-085-0 02 1 0603- ● ●
312 BRACKET; CLIP HARNESS
(A) 		1-47476-932-0 01 1 0607-0811 ● ●
312 BRACKET; CLIP HARNESS
MAL6 M/T<X9G> (A) 		1-47476-932-0 01 1 0812- ●
312 BRACKET; CLIP HARNESS
(A) 		1-47476-932-0 01 1 0812- ●
312 BRACKET; CLIP HARNESS
(B) 		1-82698-479-0 01 1 0603- ● ●
324 BRACKET; CLIP
(A) 		1-47477-077-1 01 1 0603- ●
324 BRACKET; CLIP
(B) 		1-47478-659-0 01 1 0603- ●
334 BRACKET 1-53458-709-1 01 1 0603- ● ●
335 BRACKET; CONNECTOR 1-82699-425-0 01 1 0603-0811 ● ●
335 BRACKET; CONNECTOR
MAL6 M/T<X9G> 		1-82699-425-0 01 1 0812- ●
335 BRACKET; CONNECTOR 1-82699-425-0 01 1 0812- ●
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0603- ● ●
342 BRACKET; HARNESS CAB MTG
EXC. MIXER TRUCK<RA2> (B) 		1-47479-974-0 01 1 0603-0606 ●
342 BRACKET; HARNESS CAB MTG
(B) 		1-47479-974-0 01 1 0603-0606 ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0603- ● ●

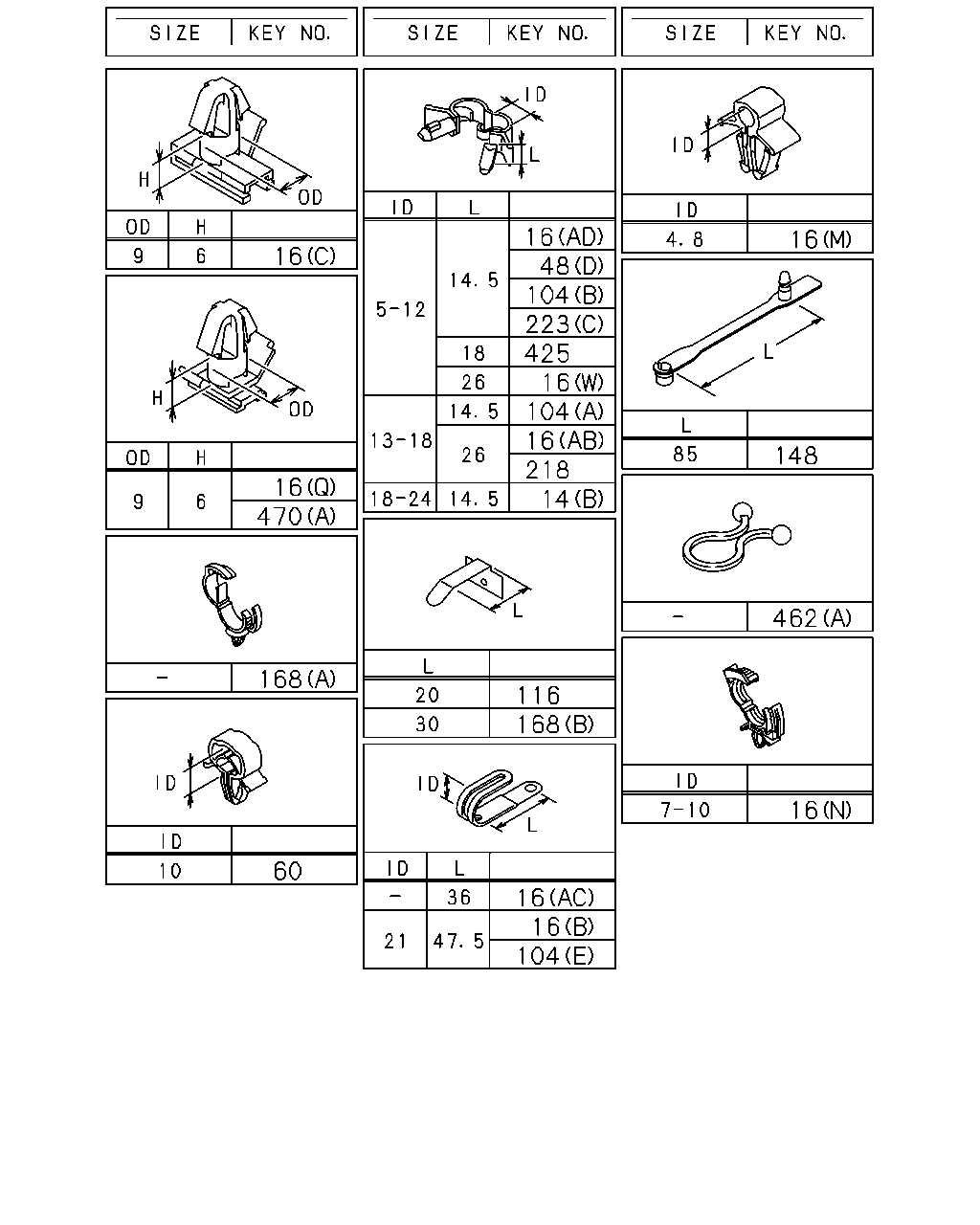

çizim 177300
16 48 104 223 425 16 104 16 218 14 16 16 148 16 470 462 168 116 168 16 60 16 16 104
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0603-0605 ● ●
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 0606- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0603- ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (AI) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1104-1201 ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1202- ● ●
16 CLIP; HARNESS
(AJ) ID=31 H=30 L=35 		1-09700-994-0 01 1 1104- ● ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AH) ID=25 L=54 		1-09700-392-1 01 1 0906- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (K) ID=28 L=32 		1-09701-107-1 01 1 0906- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0812- ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=26 		1-09709-289-0 03 1 0807- ● ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 0707-1208 ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209- ● ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0603- ● ●
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0603- ● ●
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 0603- ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		9-09525-032-0 01 1 0603-0606 ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0607- ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		9-09525-035-0 02 1 0603-0606 ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0607-1208 ● ●
16 CLIP; HARNESS
(V) ID=19 L=20 		9-09525-832-0 01 1 0603-0606 ● ●
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0607- ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=26 		1-09709-289-0 01 1 0603-0703 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0603-0703 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0603-0703 ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=26 		1-09709-289-0 01 1 0704-0806 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0704-0806 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0704-0806 ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=26 		1-09709-289-0 01 1 0807- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0807- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0807- ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (AD) ID=5-12 L=14.5 		1-09987-221-0 01 1 0603-0806 ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (AD) ID=5-12 L=14.5 		1-09987-221-0 01 1 0807- ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6 		8-97368-793-0 01 1 0603-0806 ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (C) OD=9 H=6 		8-97368-793-0 01 1 0807- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0603- ●
16 CLIP; HARNESS
POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0603- ●
16 CLIP; HARNESS
(AB) ID=13-18 L=26 		1-09709-293-0 02 1 0603- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 05 1 0603- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0603-0606 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0603-0606 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0607-0811 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0812- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0603-0905 ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0603-0905 ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0906- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0906- ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0906- ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0603-0905 ● ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0906- ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) ID=22 L=32 		1-09700-126-1 01 1 0906- ●
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0603- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0603-0905 ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0906- ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (E) ID=20 L=50 		1-09700-679-1 01 1 0906- ●
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0603-0706 ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0707-0905 ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0906- ● ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0906- ●
16 CLIP; HARNESS
(R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0603-0811 ● ●
16 CLIP; HARNESS
MAL6 M/T<X9G> (R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0812- ●
16 CLIP; HARNESS
(R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0812- ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0603-1002 ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0603- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0603- ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0603-1103 ● ●
16 CLIP; HARNESS
EXC. CHINA EQUIPMENT(YT2) (J) ID=42.7 L=38 		1-09701-313-0 01 1 1104- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0603- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0603- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0603-0811 ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0812- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0603-0811 ● ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (AG) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0812- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0603- ● ●
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 0603- ● ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 02 1 0603-0811 ● ●
16 CLIP; HARNESS
MAL6 M/T<X9G> (AC) L=36 		8-94224-891-1 02 1 0812- ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 02 1 0812- ●
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0603- ● ●
16 CLIP; HARNESS
(S) ID=11 L=16 		9-09525-025-0 02 1 0603-0606 ● ●
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0607- ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0603-0606 ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 05 1 0603-0603 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0603-0606 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0607-0811 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0812- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 12 1 0603- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0603-0706 ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=22 L=52 		9-09917-431-0 02 1 0707- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0603- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (G) ID=15 L=65 		1-09700-466-0 01 1 0603- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=5-12 L=26 		1-09709-289-0 02 1 0603- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (AB) ID=13-18 L=26 		1-09709-293-0 04 1 0603-0603 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (AB) ID=13-18 L=26 		1-09709-293-0 03 1 0603- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (AB) ID=13-18 L=26 		1-09709-293-0 08 1 0603- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0603- ●
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0603- ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 0603-0603 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 0603-0603 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0603- ● ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0603- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0603- ● ●
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0603- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0603- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0603- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (C) L=250 		5-09707-030-1 02 1 0603- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (D) L=140 		5-09707-031-1 06 1 0603- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (E) ID=21 L=47.5 		8-94178-108-0 02 1 0603-0710 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0603-1409 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 0603- ● ●
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0603- ● ●
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0603- ● ●
218 CLIP; BAND,RR COMB
DUMP TRUCK<RA1> ID=13-18 L=26 		1-09709-293-0 07 1 0603-0603 ●
218 CLIP; BAND,RR COMB
DUMP TRUCK<RA1> ID=13-18 L=26 		1-09709-293-0 08 1 0603- ●
218 CLIP; BAND,RR COMB
MIXER TRUCK<RA2> ID=13-18 L=26 		1-09709-293-0 06 1 0603- ●
218 CLIP; BAND,RR COMB
ID=13-18 L=26 		1-09709-293-0 06 1 0603- ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0603- ●
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0603- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		5-09700-351-0 04 1 0603-0707 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0603- ●
425 CLIP; MODULATOR
ID=5-12 L=18 		1-09709-287-0 01 1 0603- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0603- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0603- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0603- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0603- ● ●
çizim 177309
119 64 524 24 219 294 340 515 294 515 423
BalonParca AdiParca NoAdetTipApplied Date A B
24 NUT; HARNESS
M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ● ●
24 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0603-0706 ● ●
24 NUT; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) M8 FLANGE 		0-91180-108-0 01 1 0707- ● ●
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0603-0706 ● ●
64 SCREW; CLIP
ENGINE CONTROL COMMON RAIL(Q4R) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0707-1202 ● ●
119 SCREW; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0603- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ● ●
219 NUT
FUEL SEDIMENTER WITH WARNING<EBJ> M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ● ●
219 NUT
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
219 NUT
FUEL SEDIMENTER WITH WARNING<EBJ> M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
219 NUT
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0607-0806 ● ●
219 NUT
FUEL SEDIMENTER WITH WARNING<EBJ> M8 FLANGE 		0-91180-108-0 01 1 0607-0806 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0607-0806 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0807- ● ●
219 NUT
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> M8 FLANGE 		0-91180-108-0 01 1 0807- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0807- ●
219 NUT
M8 FLANGE 		0-91150-108-0 15 1 0603-0603 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 15 1 0603-0806 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 14 1 0807- ● ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0603-0603 ● ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0603-0603 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-0603 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-0603 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0603-0605 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0606- ● ●
294 NUT
(B) M10 FLANGE 		0-91150-210-0 02 1 0603-0603 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-0811 ● ●
294 NUT
MAL6 M/T<X9G> (B) M10 FLANGE 		0-91180-210-0 02 1 0812- ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0812- ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ● ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0603- ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 03 1 0603-0603 ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
515 NUT; BRKT
(B) M10 FLANGE 		0-91150-110-0 02 1 0603-0603 ● ●
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 0603-0603 ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
çizim 177318
16 51 81 104 171 206 212 305 462 16 104 171 194 228 305 369 380 14 14 16 48 194 212 16 51 142 162 194 208 373 305
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0603-0605 ● ●
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 0606- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0603- ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (AI) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1104-1201 ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1202- ● ●
16 CLIP; HARNESS
(AJ) ID=31 H=30 L=35 		1-09700-994-0 01 1 1104- ● ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AH) ID=25 L=54 		1-09700-392-1 01 1 0906- ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (K) ID=28 L=32 		1-09701-107-1 01 1 0906- ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0812- ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=26 		1-09709-289-0 03 1 0807- ● ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 0707-1208 ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209- ● ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0603- ● ●
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0603- ● ●
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 0603- ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		9-09525-032-0 01 1 0603-0606 ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0607- ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		9-09525-035-0 02 1 0603-0606 ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0607-1208 ● ●
16 CLIP; HARNESS
(V) ID=19 L=20 		9-09525-832-0 01 1 0603-0606 ● ●
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0607- ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=26 		1-09709-289-0 01 1 0603-0703 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0603-0703 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0603-0703 ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=26 		1-09709-289-0 01 1 0704-0806 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0704-0806 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0704-0806 ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=26 		1-09709-289-0 01 1 0807- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0807- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (W) ID=5-12 L=26 		1-09709-289-0 01 1 0807- ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (AD) ID=5-12 L=14.5 		1-09987-221-0 01 1 0603-0806 ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (AD) ID=5-12 L=14.5 		1-09987-221-0 01 1 0807- ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6 		8-97368-793-0 01 1 0603-0806 ● ●
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (C) OD=9 H=6 		8-97368-793-0 01 1 0807- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0603- ●
16 CLIP; HARNESS
POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0603- ●
16 CLIP; HARNESS
(AB) ID=13-18 L=26 		1-09709-293-0 02 1 0603- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 05 1 0603- ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0603-0606 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0603-0606 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0607-0811 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0812- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0603-0905 ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0603-0905 ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0906- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0906- ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0906- ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0603-0905 ● ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0906- ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) ID=22 L=32 		1-09700-126-1 01 1 0906- ●
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0603- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0603-0905 ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0906- ●
16 CLIP; HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (E) ID=20 L=50 		1-09700-679-1 01 1 0906- ●
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0603-0706 ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0707-0905 ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0906- ● ●
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0906- ●
16 CLIP; HARNESS
(R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0603-0811 ● ●
16 CLIP; HARNESS
MAL6 M/T<X9G> (R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0812- ●
16 CLIP; HARNESS
(R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0812- ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0603-1002 ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0603- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0603- ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0603-1103 ● ●
16 CLIP; HARNESS
EXC. CHINA EQUIPMENT(YT2) (J) ID=42.7 L=38 		1-09701-313-0 01 1 1104- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0603- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0603- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0603-0811 ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0812- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0603-0811 ● ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (AG) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0812- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0603- ● ●
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 0603- ● ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 02 1 0603-0811 ● ●
16 CLIP; HARNESS
MAL6 M/T<X9G> (AC) L=36 		8-94224-891-1 02 1 0812- ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 02 1 0812- ●
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0603- ● ●
16 CLIP; HARNESS
(S) ID=11 L=16 		9-09525-025-0 02 1 0603-0606 ● ●
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0607- ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0603-0606 ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 05 1 0603-0603 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0603-0606 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0607-0811 ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0812- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 12 1 0603- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0603-0706 ● ●
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=22 L=52 		9-09917-431-0 02 1 0707- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0603- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (G) ID=15 L=65 		1-09700-466-0 01 1 0603- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=5-12 L=26 		1-09709-289-0 02 1 0603- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (AB) ID=13-18 L=26 		1-09709-293-0 04 1 0603-0603 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (AB) ID=13-18 L=26 		1-09709-293-0 03 1 0603- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (AB) ID=13-18 L=26 		1-09709-293-0 08 1 0603- ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0603- ●
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0603- ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 0603-0603 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 0603-0603 ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0603- ● ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0603- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0603- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0603- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0603- ● ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0603- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0603- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0603- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (C) L=250 		5-09707-030-1 02 1 0603- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (D) L=140 		5-09707-031-1 06 1 0603- ● ●
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (E) ID=21 L=47.5 		8-94178-108-0 02 1 0603-0710 ● ●
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 02 1 0603-1207 ● ●
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 02 1 1208- ● ●
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0603- ● ●
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 03 1 0603- ● ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 06 1 0603- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 07 1 0603-0804 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 09 1 0805-1202 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 10 1 1203- ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0603-1001 ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 02 1 0603- ● ●
194 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 0603- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 09 1 0603-0804 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 10 1 0805-1202 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 11 1 1203- ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0603- ● ●
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0603- ● ●
212 CLIP; HORN HARNESS
(A) ID=15 L=35 		1-09700-507-0 01 1 0603-0806 ● ●
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 01 1 0603- ● ●
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0603- ● ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 02 1 0603-1112 ● ●
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 1201- ● ●
305 CLIP; ENG HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) (A) L=382 		1-09707-196-0 01 1 1104- ● ●
305 CLIP; ENG HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) (B) L=250 		5-09707-030-1 01 1 1104- ● ●
305 CLIP; ENG HARNESS
(C) L=140 		5-09707-031-1 01 1 0603- ● ●
369 CLIP; BAND EDS HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 01 1 0707- ● ●
373 CLIP; BAND,GEN HARNESS
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=175 		1-09707-176-1 01 1 0906- ●
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0603-0706 ● ●
380 CLIP; EARTH HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0707- ● ●
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 03 1 0603-0706 ● ●
380 CLIP; EARTH HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) L=250 		5-09707-030-1 03 1 0707- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0603- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0603- ● ●
çizim 177353
38 38 242 38 150 150 133 38 38 38 38 38 150 386 242 313 242 139 86 242 313 239 88 19 516 358 239 516 88 313
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0701-0904 ● ●
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
38 BOLT; CLIP,HARNESS
MAL6 M/T<X9G> (A) M8X20 FLANGE 		0-28650-820-0 03 1 0812- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0812- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0603-0606 ● ●
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0603-0606 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 06 1 0607-0806 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0807-0811 ● ●
38 BOLT; CLIP,HARNESS
MJT7 M/T<Y9E> (A) M8X20 FLANGE 		0-28650-820-0 04 1 0812- ●
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0603-0905 ● ●
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0906- ●
38 BOLT; CLIP,HARNESS
EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0906- ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0603- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0603-0811 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0812-1103 ● ●
38 BOLT; CLIP,HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1104- ● ●
38 BOLT; CLIP,HARNESS
EXC. CHINA EQUIPMENT(YT2) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1104- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0603-0606 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0607-0811 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0812- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0603- ● ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 0603- ● ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0603-1105 ● ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1106- ● ●
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0603-1201 ● ●
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ● ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0603- ● ●
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0603-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008- ● ●
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0603-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0603- ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 0603-0605 ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0606- ● ●
150 BOLT; CLIP
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1104- ● ●
150 BOLT; CLIP
EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0707- ● ●
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0603- ● ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 0603-1208 ● ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1209- ● ●
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0603-1007 ● ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0603- ● ●
242 BOLT; BRKT,HARNESS
(D) M10X25 FLANGE 		0-28651-025-0 02 1 0603- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603- ●
242 BOLT; BRKT,HARNESS
EXC. MIXER TRUCK<RA2> (C) M8X30 FLANGE 		0-28650-830-0 01 1 0603-0606 ●
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0603-0606 ●
313 BOLT; BRKT
ENGINE CONTROL COMMON RAIL(Q4R) CHINA EQUIPMENT(YT2) (C) M8X25 W/LK&PL WASHER 		1-09030-027-0 01 1 1104- ● ●
313 BOLT; BRKT
FUEL SEDIMENTER WITH WARNING<EBJ> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0603-0806 ● ●
313 BOLT; BRKT
FUEL SEDIMENTER WITH WARNING<EBJ> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0603-0806 ●
313 BOLT; BRKT
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0807- ● ●
313 BOLT; BRKT
FUEL SEDIMENTER WITH WARNING<EBJ> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0807- ●
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0603-0811 ● ●
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0812- ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0603- ● ●
386 BOLT; GRAND HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0603-0706 ● ●
386 BOLT; GRAND HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) M8X20 FLANGE 		0-28650-820-0 01 1 0707- ● ●
516 BOLT; HARNESS
VIN MODEL YEAR 2013(VZD) (B) M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 1307-1312 ●
516 BOLT; HARNESS
VIN MODEL YEAR 2013(VZD) (B) M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 1401- ● ●
516 BOLT; HARNESS
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0603-1306 ● ●
516 BOLT; HARNESS
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307-1312 ●
516 BOLT; HARNESS
EXC. VIN MODEL YEAR 2013(VZD) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307-1312 ●
516 BOLT; HARNESS
EXC. VIN MODEL YEAR 2013(VZD) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
