Sayfa 1-50B - Isuzu EPC

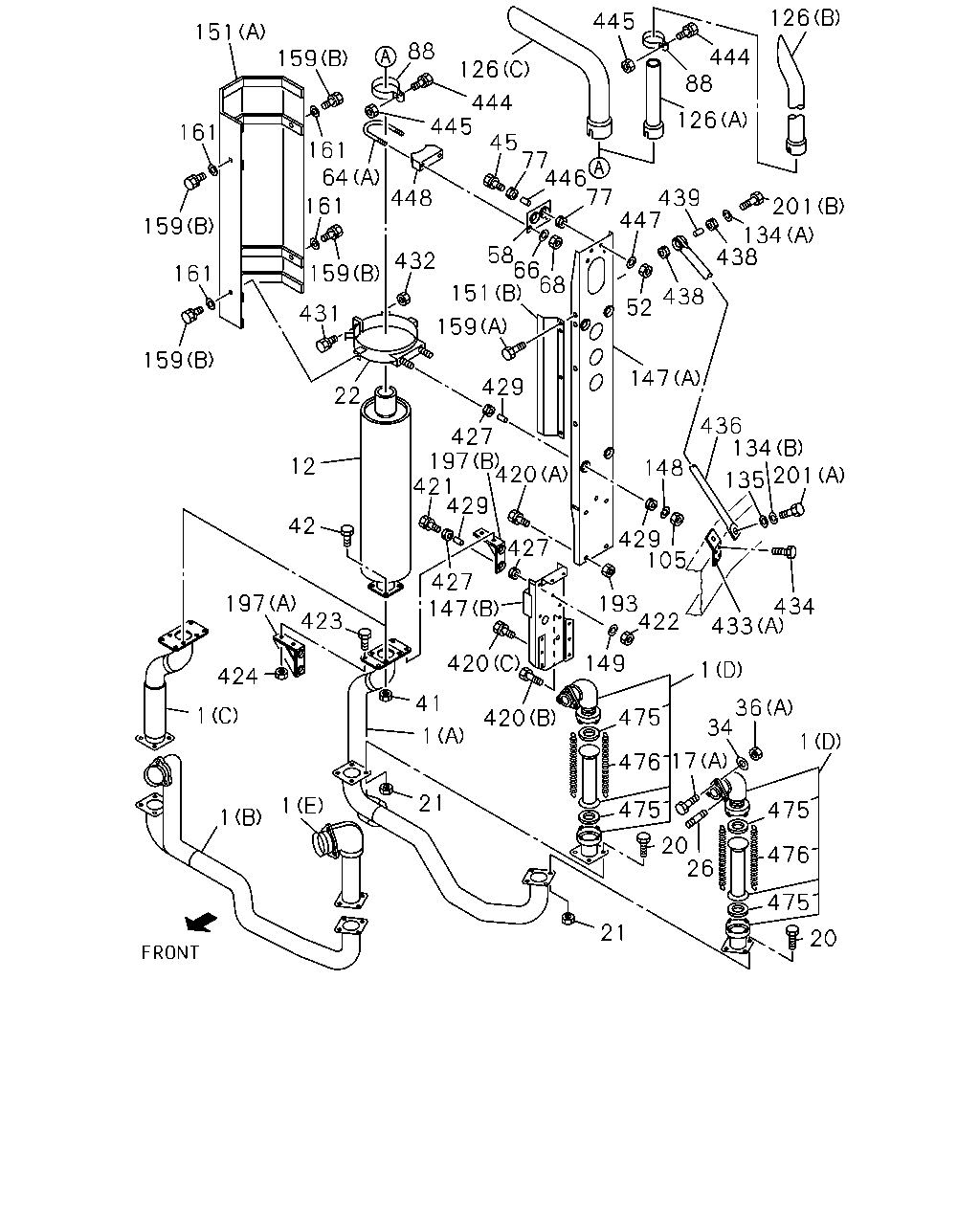

1-50B — EXHAUST PIPE AND SILENCER (#3557) — 377 parça

130 64 116 72 59 68 416 81 127 24 94 1 108 475 81 72 59 126 476 105 476 475 89 24 75 81 108 17 75 116 107 1 21 81 120 70 34 17 36 12 107 42 475 1 26 476 476 475 20 147 41 1 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH AIR DRYER<PS7> ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-943-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-542-2	01	1	9307-9503	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. TAIWAN EQUIPMENT(WW5) (F)	1-22121-542-2	01	1	9504-	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE REGULATION HONG KONG<TCZ> (F)	1-22121-542-2	01	1	9504-	●	●
1	PIPE; EXH AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-916-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-972-0	01	1	9307-9503	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE REGULATION HONG KONG<TCZ> (G)	1-22121-972-0	01	1	9504-	●	●
1	PIPE; EXH AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-917-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-979-0	01	1	9307-9503	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE REGULATION HONG KONG<TCZ> (G)	1-22121-979-0	01	1	9504-	●	●
1	PIPE; EXH EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-701-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-771-0	01	1	9307-	●
1	PIPE; EXH EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-702-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (I)	1-22121-880-0	01	1	9307-	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-945-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-944-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. AIR DRYER<PS7> (A)	1-22122-027-0	01	1	9002-9306	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-596-1	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9307-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (I)	1-22121-881-0	01	1	9307-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-541-2	01	1	9307-	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. TAIWAN EQUIPMENT(WW5) (G)	1-22122-659-0	01	1	9504-	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. TAIWAN EQUIPMENT(WW5) (G)	1-22122-653-0	01	1	9504-	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-659-2	01	1	9104-9306	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-706-0	01	1	9002-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9307-	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-22140-681-0	01	1	9307-	●	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-	●	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9002-	●	●
20	BOLT; FLANGE,EXH PIPE M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9005	●
20	BOLT; FLANGE,EXH PIPE M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-9306	●
20	BOLT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-9503	●	●
20	BOLT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	04	1	9504-	●	●
21	NUT; FLANGE,EXH PIPE M12	9-99110-412-0	08	1	9002-9306	●
21	NUT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	08	1	9307-9503	●	●
21	NUT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	04	1	9504-	●	●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	04	1	9307-	●	●
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	08	1	9307-	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	04	1	9408-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9002-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-379-0	01	1	9307-	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-504-0	01	1	9307-9503	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-504-0	01	1	9504-	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22151-353-2	01	1	9307-	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (D)	1-22151-623-0	01	1	9307-	●	●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-063-1	01	1	9002-9306	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5	1-22139-077-1	01	1	9307-9502	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150	1-22113-008-1	01	1	9503-	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22113-061-0	01	1	9307-	●
68	NUT; U BOLT M8	9-09110-408-0	02	1	9002-9306	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9307-	●	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9307-	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9307-	●	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	04	1	9307-	●	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	08	1	9307-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	04	1	9307-9503	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	04	1	9504-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>,FUEL TANK 200L+300L<W64> M12	9-99110-512-0	02	1	9402-	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9307-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	06	1	9307-9503	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	06	1	9504-	●	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9307-	●	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> D=79	1-22133-218-0	01	1	9307-	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28080-835-0	02	1	9307-	●	●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9002-9306	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	01	1	9307-	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-	●	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10X30 W/LK WASHER	0-50041-030-0	04	1	9307-	●	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10X30 W/LK WASHER	0-50041-030-0	02	1	9307-9503	●	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10X30 W/LK WASHER	0-50041-030-0	02	1	9504-	●	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> M12X35 W/LK WASHER	0-50041-235-0	05	1	9307-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (A)	1-22131-593-0	01	1	9307-9503	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (A)	1-22131-593-0	01	1	9504-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-660-0	01	1	9307-9503	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-660-0	01	1	9504-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22151-576-2	01	1	9307-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (D)	1-22151-577-2	01	1	9307-	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9307-	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X75	0-10806-075-0	02	1	9307-	●	●
120	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	02	1	9307-	●	●
126	PIPE; EXH,RR EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22112-639-1	01	1	9002-9306	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (D)	1-22126-096-0	01	1	9307-9503	●	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (D)	1-22126-096-0	01	1	9504-	●	●
126	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9> (A)	1-22112-265-1	01	1	9002-9306	●
126	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9> (B)	1-22112-640-1	01	1	9002-9306	●
127	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-	●	●
130	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28080-830-0	02	1	9307-	●	●
147	BRACKET; VERTICAL PIPE (A)	1-22151-408-4	01	1	9002-9306	●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> (B)	1-22151-582-2	01	1	9002-9306	●
147	BRACKET; VERTICAL PIPE EXC. AIR DRYER<PS7> (B)	1-22151-518-4	01	1	9002-9306	●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> AIR DRYER<PS7> (C)	1-53497-365-2	01	1	9307-9312	●	●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9401-	●	●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9307-9312	●	●
416	BRACKET; RR EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-22131-592-0	01	1	9307-9503	●	●
416	BRACKET; RR EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-22131-592-0	01	1	9504-	●	●
416	BRACKET; RR EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22131-582-0	01	1	9307-	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-22119-223-0	04	1	9212-9306	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-223-0	04	1	9307-9408	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> OD=112	1-22119-294-0	04	1	9409-9410	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	04	1	9411-9503	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9504-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	04	1	9411-	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9212-9306	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-09583-248-0	08	1	9307-9410	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9411-9503	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	04	1	9504-	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9411-	●

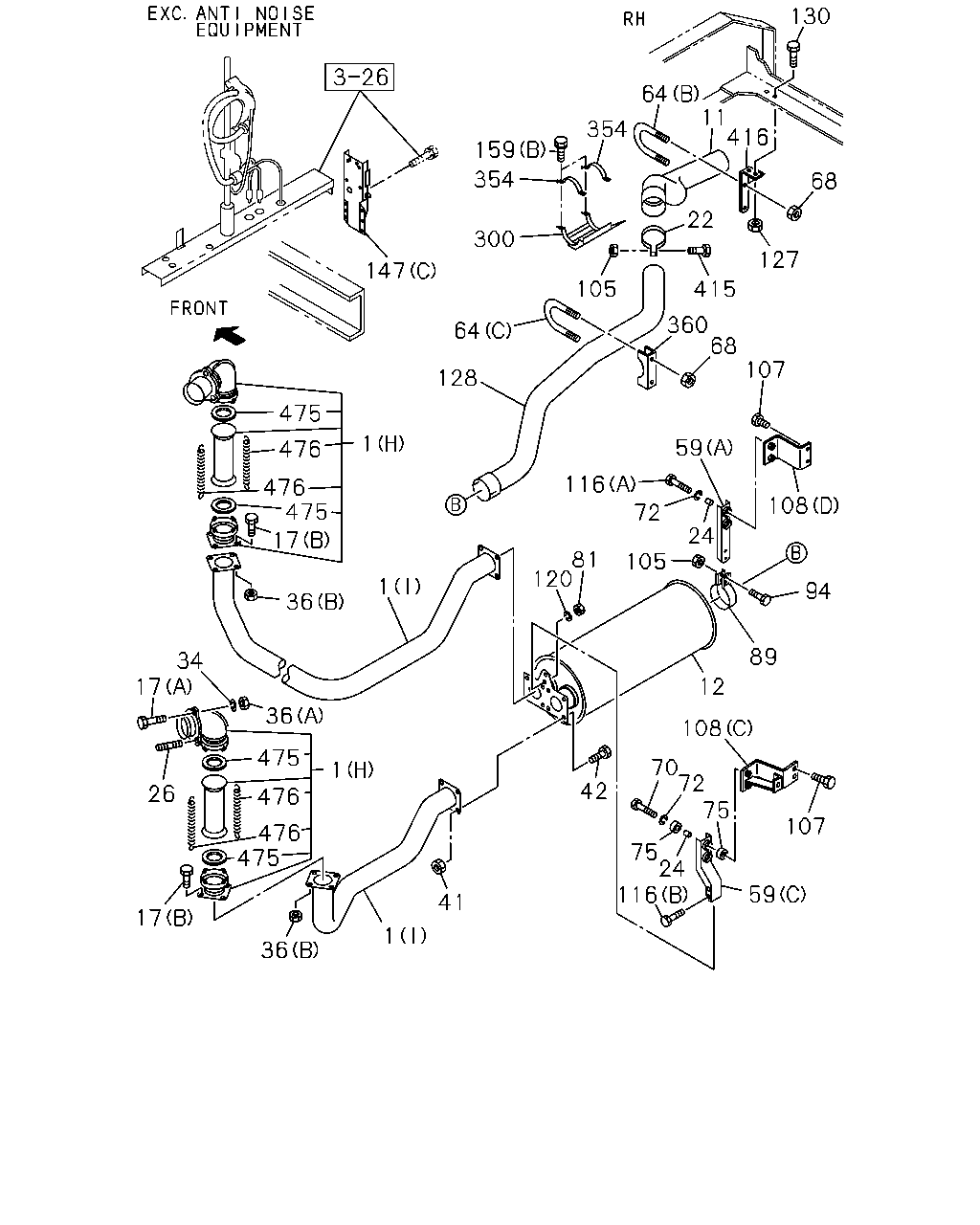

130 64 11 416 354 159 354 68 22 300 127 147 105 415 360 68 64 107 128 475 1 59 476 116 476 475 108 72 24 17 81 120 105 1 94 36 89 34 17 12 36 108 475 70 72 75 1 42 476 475 26 476 107 75 24 116 59 41 17 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH AIR DRYER<PS7> ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-943-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-542-2	01	1	9307-9503	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. TAIWAN EQUIPMENT(WW5) (F)	1-22121-542-2	01	1	9504-	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE REGULATION HONG KONG<TCZ> (F)	1-22121-542-2	01	1	9504-	●	●
1	PIPE; EXH AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-916-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-972-0	01	1	9307-9503	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE REGULATION HONG KONG<TCZ> (G)	1-22121-972-0	01	1	9504-	●	●
1	PIPE; EXH AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-917-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-979-0	01	1	9307-9503	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE REGULATION HONG KONG<TCZ> (G)	1-22121-979-0	01	1	9504-	●	●
1	PIPE; EXH EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-701-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-771-0	01	1	9307-	●
1	PIPE; EXH EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-702-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (I)	1-22121-880-0	01	1	9307-	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-945-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-944-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. AIR DRYER<PS7> (A)	1-22122-027-0	01	1	9002-9306	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-596-1	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9307-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (I)	1-22121-881-0	01	1	9307-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-541-2	01	1	9307-	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. TAIWAN EQUIPMENT(WW5) (G)	1-22122-659-0	01	1	9504-	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. TAIWAN EQUIPMENT(WW5) (G)	1-22122-653-0	01	1	9504-	●	●
11	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22122-136-0	01	1	9307-	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-659-2	01	1	9104-9306	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-706-0	01	1	9002-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9307-	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-22140-681-0	01	1	9307-	●	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-	●	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9002-	●	●
22	CLAMP; EXH PIPE	1-22133-163-0	02	1	9002-9306	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> ID=97	1-22133-043-1	01	1	9307-	●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	04	1	9307-	●	●
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	08	1	9307-	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	04	1	9408-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9002-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-379-0	01	1	9307-	●

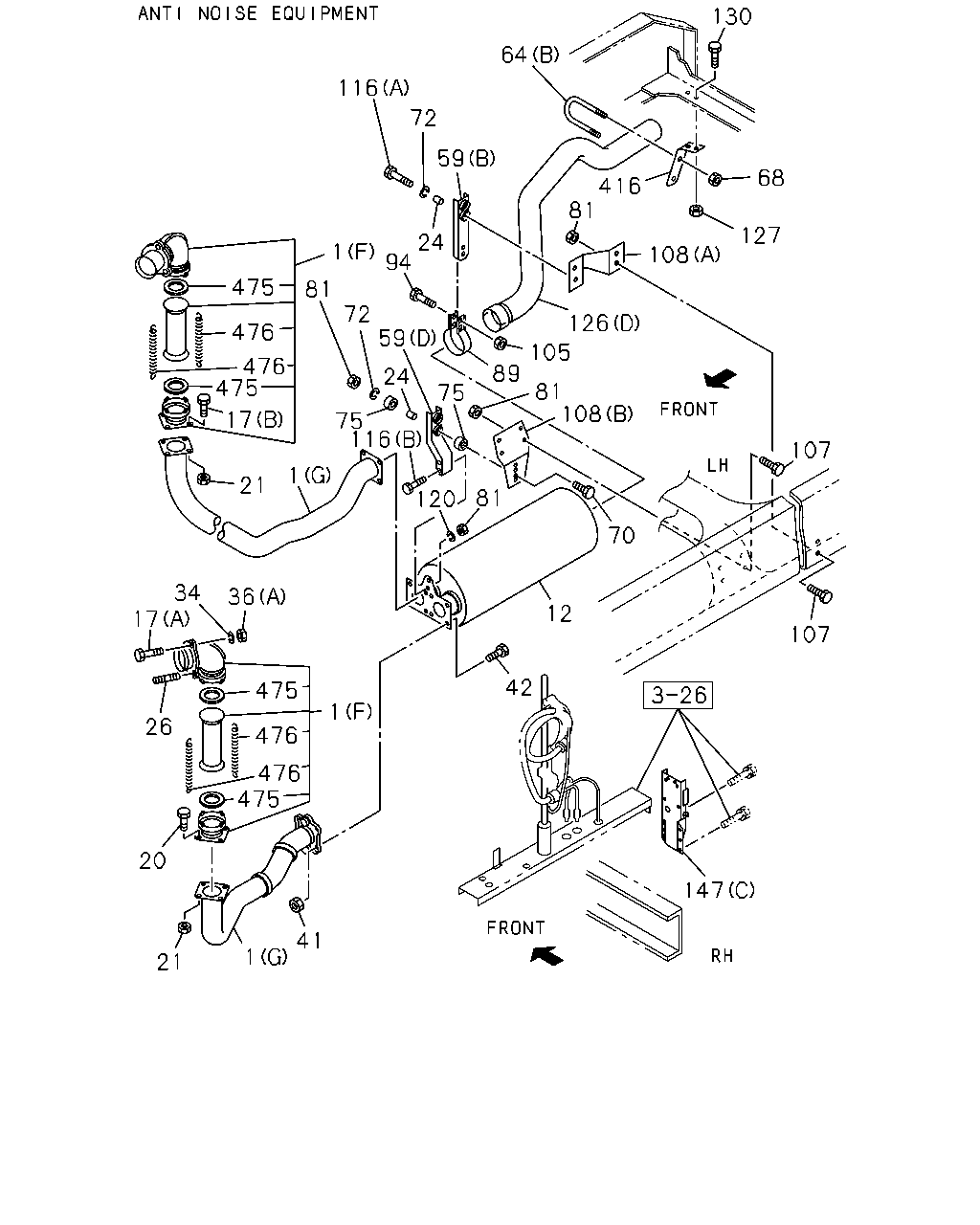

59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-504-0	01	1	9307-9503	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-504-0	01	1	9504-	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22151-353-2	01	1	9307-	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (D)	1-22151-623-0	01	1	9307-	●	●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-063-1	01	1	9002-9306	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5	1-22139-077-1	01	1	9307-9502	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150	1-22113-008-1	01	1	9503-	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22113-061-0	01	1	9307-	●
68	NUT; U BOLT M8	9-09110-408-0	02	1	9002-9306	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9307-	●	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9307-	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9307-	●	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	04	1	9307-	●	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	08	1	9307-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	04	1	9307-9503	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	04	1	9504-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>,FUEL TANK 200L+300L<W64> M12	9-99110-512-0	02	1	9402-	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9307-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	06	1	9307-9503	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	06	1	9504-	●	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9307-	●	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> D=79	1-22133-218-0	01	1	9307-	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28080-835-0	02	1	9307-	●	●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9002-9306	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	01	1	9307-	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-	●	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10X30 W/LK WASHER	0-50041-030-0	04	1	9307-	●	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10X30 W/LK WASHER	0-50041-030-0	02	1	9307-9503	●	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10X30 W/LK WASHER	0-50041-030-0	02	1	9504-	●	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> M12X35 W/LK WASHER	0-50041-235-0	05	1	9307-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (A)	1-22131-593-0	01	1	9307-9503	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (A)	1-22131-593-0	01	1	9504-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-660-0	01	1	9307-9503	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-660-0	01	1	9504-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22151-576-2	01	1	9307-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (D)	1-22151-577-2	01	1	9307-	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9307-	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X75	0-10806-075-0	02	1	9307-	●	●
120	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	02	1	9307-	●	●
127	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-	●	●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22122-135-1	01	1	9307-	●
130	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28080-830-0	02	1	9307-	●	●
147	BRACKET; VERTICAL PIPE (A)	1-22151-408-4	01	1	9002-9306	●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> (B)	1-22151-582-2	01	1	9002-9306	●
147	BRACKET; VERTICAL PIPE EXC. AIR DRYER<PS7> (B)	1-22151-518-4	01	1	9002-9306	●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> AIR DRYER<PS7> (C)	1-53497-365-2	01	1	9307-9312	●	●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9401-	●	●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9307-9312	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005	●
159	BOLT; HEAT PROTECTOR (B) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9302	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	08	1	9303-9306	●
159	BOLT; HEAT PROTECTOR (A) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204	●
159	BOLT; HEAT PROTECTOR (A) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-9306	●
159	BOLT; HEAT PROTECTOR REAR SHOCK ABSORBER(GL6) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 FLANGE	0-28080-820-0	04	1	9307-	●	●
300	PROTECTOR; HEAT,EXH PIPE REAR SHOCK ABSORBER(GL6) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-248-0	01	1	9307-	●	●
354	CLAMP; HEAT PROTECTOR REAR SHOCK ABSORBER(GL6) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-246-0	02	1	9307-	●	●
360	PIECE; DIST,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22113-060-1	01	1	9307-	●
415	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> M10X40 W/LK WASHER	0-50041-040-0	01	1	9307-	●
416	BRACKET; RR EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-22131-592-0	01	1	9307-9503	●	●
416	BRACKET; RR EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-22131-592-0	01	1	9504-	●	●
416	BRACKET; RR EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22131-582-0	01	1	9307-	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-22119-223-0	04	1	9212-9306	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-223-0	04	1	9307-9408	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> OD=112	1-22119-294-0	04	1	9409-9410	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	04	1	9411-9503	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9504-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	04	1	9411-	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9212-9306	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-09583-248-0	08	1	9307-9410	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9411-9503	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	04	1	9504-	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9411-	●

126 445 151 88 444 88 159 126 444 445 126 161 45 77 446 77 439 447 161 64 448 161 201 159 134 438 58 66 68 151 432 159 161 438 52 431 159 159 147 429 22 436 134 201 135 427 197 420 421 429 12 148 42 429 105 427 427 147 197 423 193 422 149 434 433 420 1 424 41 420 36 34 1 475 476 475 1 1 17 21 1 475 476 475 1 20 26 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH AIR DRYER<PS7> ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-943-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-542-2	01	1	9307-9503	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. TAIWAN EQUIPMENT(WW5) (F)	1-22121-542-2	01	1	9504-	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE REGULATION HONG KONG<TCZ> (F)	1-22121-542-2	01	1	9504-	●	●
1	PIPE; EXH AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-916-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-972-0	01	1	9307-9503	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE REGULATION HONG KONG<TCZ> (G)	1-22121-972-0	01	1	9504-	●	●
1	PIPE; EXH AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-917-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-979-0	01	1	9307-9503	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE REGULATION HONG KONG<TCZ> (G)	1-22121-979-0	01	1	9504-	●	●
1	PIPE; EXH EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-701-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-771-0	01	1	9307-	●
1	PIPE; EXH EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-702-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (I)	1-22121-880-0	01	1	9307-	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-945-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-944-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. AIR DRYER<PS7> (A)	1-22122-027-0	01	1	9002-9306	●
1	PIPE; EXH EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-596-1	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9307-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (I)	1-22121-881-0	01	1	9307-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-541-2	01	1	9307-	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. TAIWAN EQUIPMENT(WW5) (G)	1-22122-659-0	01	1	9504-	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> EXC. TAIWAN EQUIPMENT(WW5) (G)	1-22122-653-0	01	1	9504-	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-659-2	01	1	9104-9306	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-706-0	01	1	9002-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-596-1	01	1	9307-	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-22140-681-0	01	1	9307-	●	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-	●	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9002-	●	●
20	BOLT; FLANGE,EXH PIPE M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9005	●
20	BOLT; FLANGE,EXH PIPE M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-9306	●
20	BOLT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-9503	●	●
20	BOLT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	04	1	9504-	●	●
21	NUT; FLANGE,EXH PIPE M12	9-99110-412-0	08	1	9002-9306	●
21	NUT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	08	1	9307-9503	●	●
21	NUT; FLANGE,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	04	1	9504-	●	●
22	CLAMP; EXH PIPE	1-22133-163-0	02	1	9002-9306	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> ID=97	1-22133-043-1	01	1	9307-	●
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	08	1	9307-	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	04	1	9408-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9002-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-	●	●
45	BOLT; BRKT M10X50	9-01056-050-0	02	1	9002-9004	●
45	BOLT; BRKT M10X50	0-10806-050-0	02	1	9005-9306	●
52	NUT; BRKT M10	9-09110-510-0	02	1	9002-9306	●
58	BRACKET; EXH PIPE,RR	1-22131-169-0	01	1	9002-9306	●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-063-1	01	1	9002-9306	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5	1-22139-077-1	01	1	9307-9502	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150	1-22113-008-1	01	1	9503-	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22113-061-0	01	1	9307-	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9002-9306	●
68	NUT; U BOLT M8	9-09110-408-0	02	1	9002-9306	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	02	1	9307-	●	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9307-	●	●
77	RUBBER; CUSHION,BRKT	1-22159-065-0	04	1	9002-9306	●
88	CLAMP; EXH PIPE ID=97	1-22133-043-1	01	1	9002-9306	●
88	CLAMP; EXH PIPE ANTI NOISE EQUIPMENT<SV9> ID=97	1-22133-043-1	01	1	9002-9306	●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9002-9306	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	01	1	9307-	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-	●	●
126	PIPE; EXH,RR EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22112-639-1	01	1	9002-9306	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (D)	1-22126-096-0	01	1	9307-9503	●	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (D)	1-22126-096-0	01	1	9504-	●	●
126	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9> (A)	1-22112-265-1	01	1	9002-9306	●
126	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9> (B)	1-22112-640-1	01	1	9002-9306	●
134	WASHER; LK,STAY (A) ID=10.2	9-09150-510-0	01	1	9002-9306	●
134	WASHER; LK,STAY (B) ID=14.2	9-09150-614-0	01	1	9002-9306	●
135	WASHER; PL,STAY ID=15	9-09160-514-0	01	1	9002-9306	●
147	BRACKET; VERTICAL PIPE (A)	1-22151-408-4	01	1	9002-9306	●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> (B)	1-22151-582-2	01	1	9002-9306	●
147	BRACKET; VERTICAL PIPE EXC. AIR DRYER<PS7> (B)	1-22151-518-4	01	1	9002-9306	●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> AIR DRYER<PS7> (C)	1-53497-365-2	01	1	9307-9312	●	●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9401-	●	●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C)	1-53497-330-2	01	1	9307-9312	●	●
148	WASHER; LK,CLAMP ID=10.2	9-09150-510-0	04	1	9002-9306	●
149	WASHER; LK,PIPE BRKT ID=10.2	9-09150-510-0	04	1	9002-9306	●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-099-1	01	1	9002-9306	●
151	PROTECTOR; HEAT,EXH PIPE (B)	1-22159-104-2	01	1	9002-9306	●
159	BOLT; HEAT PROTECTOR (B) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005	●
159	BOLT; HEAT PROTECTOR (B) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9302	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	08	1	9303-9306	●
159	BOLT; HEAT PROTECTOR (A) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204	●
159	BOLT; HEAT PROTECTOR (A) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-9306	●
159	BOLT; HEAT PROTECTOR REAR SHOCK ABSORBER(GL6) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 FLANGE	0-28080-820-0	04	1	9307-	●	●
161	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=22	9-09160-708-0	08	1	9002-9306	●
193	NUT; BRKT,VERTICAL PIPE M12	9-99110-512-0	04	1	9002-9306	●
197	BRACKET; EXH PIPE,VERTICAL EXC. ANTI NOISE EQUIPMENT<SV9> (B) REAR	1-22151-405-2	01	1	9002-9306	●
197	BRACKET; EXH PIPE,VERTICAL EXC. ANTI NOISE EQUIPMENT<SV9> (A) FRONT	1-22151-409-2	01	1	9002-9306	●
197	BRACKET; EXH PIPE,VERTICAL ANTI NOISE EQUIPMENT<SV9> (B) REAR	1-22151-593-0	01	1	9002-9306	●
197	BRACKET; EXH PIPE,VERTICAL ANTI NOISE EQUIPMENT<SV9> (A) FRONT	1-22151-594-0	01	1	9002-9306	●
201	BOLT; STAY (B) M10X50	9-01056-050-0	01	1	9002-9004	●
201	BOLT; STAY (B) M10X50	0-10806-050-0	01	1	9005-9306	●
201	BOLT; STAY (A) M14X40	9-92061-440-0	01	1	9002-9306	●
420	BOLT; BRKT,VERTICAL PIPE (A) M12X25	9-01911-225-0	04	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE (A) M12X25 W/LK WASHER	0-50041-225-0	04	1	9006-9306	●
420	BOLT; BRKT,VERTICAL PIPE (B) M12X32 W/LK WASHER	9-01911-232-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE (B) M12X32 W/LK WASHER	0-50041-232-0	03	1	9006-9306	●
420	BOLT; BRKT,VERTICAL PIPE (C) M12X45	9-01911-245-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE (C) M12X45 W/LK WASHER	0-50041-245-0	03	1	9006-9306	●
421	BOLT; PIPE BRKT M10X50	9-01056-050-0	04	1	9002-9004	●
421	BOLT; PIPE BRKT M10X50	0-10806-050-0	04	1	9005-9306	●
422	NUT; PIPE M10	9-09110-510-0	04	1	9002-9306	●
423	BOLT; PIPE M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
423	BOLT; PIPE M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
424	NUT; BRKT TO PIPE M12	9-99110-412-0	04	1	9002-9304	●
424	NUT; BRKT TO PIPE M12	9-99110-512-0	04	1	9305-9306	●
427	SUPPORT; CLAMP	1-22159-065-0	16	1	9002-9306	●
429	COLLAR; DIST,SUPPORT L=22	9-22159-024-0	08	1	9002-9306	●
431	BOLT; CLAMP M10X40	9-01901-040-0	02	1	9002-9204	●
431	BOLT; CLAMP M10X40 W/LK WASHER	0-50041-040-0	02	1	9205-9306	●
432	NUT; CLAMP M10	9-09110-510-0	02	1	9002-9306	●
433	BRACKET; STAY,EXH PIPE (A)	1-22151-609-0	01	1	9002-9306	●
434	BOLT; BRKT M10X35 W/LK WASHER	9-01911-035-0	04	1	9002-9002	●
434	BOLT; BRKT M10X35 W/LK WASHER	0-50041-035-0	04	1	9003-9306	●
436	STAY; SUPPORT,EXH	1-22151-608-0	01	1	9002-9306	●
438	RUBBER; SUPPORT,STAY	1-22159-065-0	02	1	9002-9306	●
439	TUBE; DIST,SUPPORT RUBBER L=23.2	9-22159-009-1	01	1	9002-9109	●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9110-9306	●
444	BOLT; PIPE CLAMP M10X40	9-01901-040-0	01	1	9002-9204	●
444	BOLT; PIPE CLAMP ANTI NOISE EQUIPMENT<SV9> M10X40	9-01901-040-0	01	1	9002-9204	●
444	BOLT; PIPE CLAMP M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-9306	●
444	BOLT; PIPE CLAMP ANTI NOISE EQUIPMENT<SV9> M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-9306	●
445	NUT; PIPE CLAMP M10	9-09110-510-0	01	1	9002-9306	●
445	NUT; PIPE CLAMP ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	01	1	9002-9306	●
446	PIECE; DIST,EXH PIPE,RR L=22	9-22159-024-0	02	1	9002-9306	●
447	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9002-9306	●
448	PIECE; DIST,U-BOLT	1-22113-064-0	01	1	9002-9306	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-22119-223-0	04	1	9212-9306	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-223-0	04	1	9307-9408	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> OD=112	1-22119-294-0	04	1	9409-9410	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	04	1	9411-9503	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9504-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	04	1	9411-	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9212-9306	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-09583-248-0	08	1	9307-9410	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9411-9503	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	04	1	9504-	●	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9411-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
