8-03 — LAMP; REAR AND REAR SIDE (#35568) — 185 parça

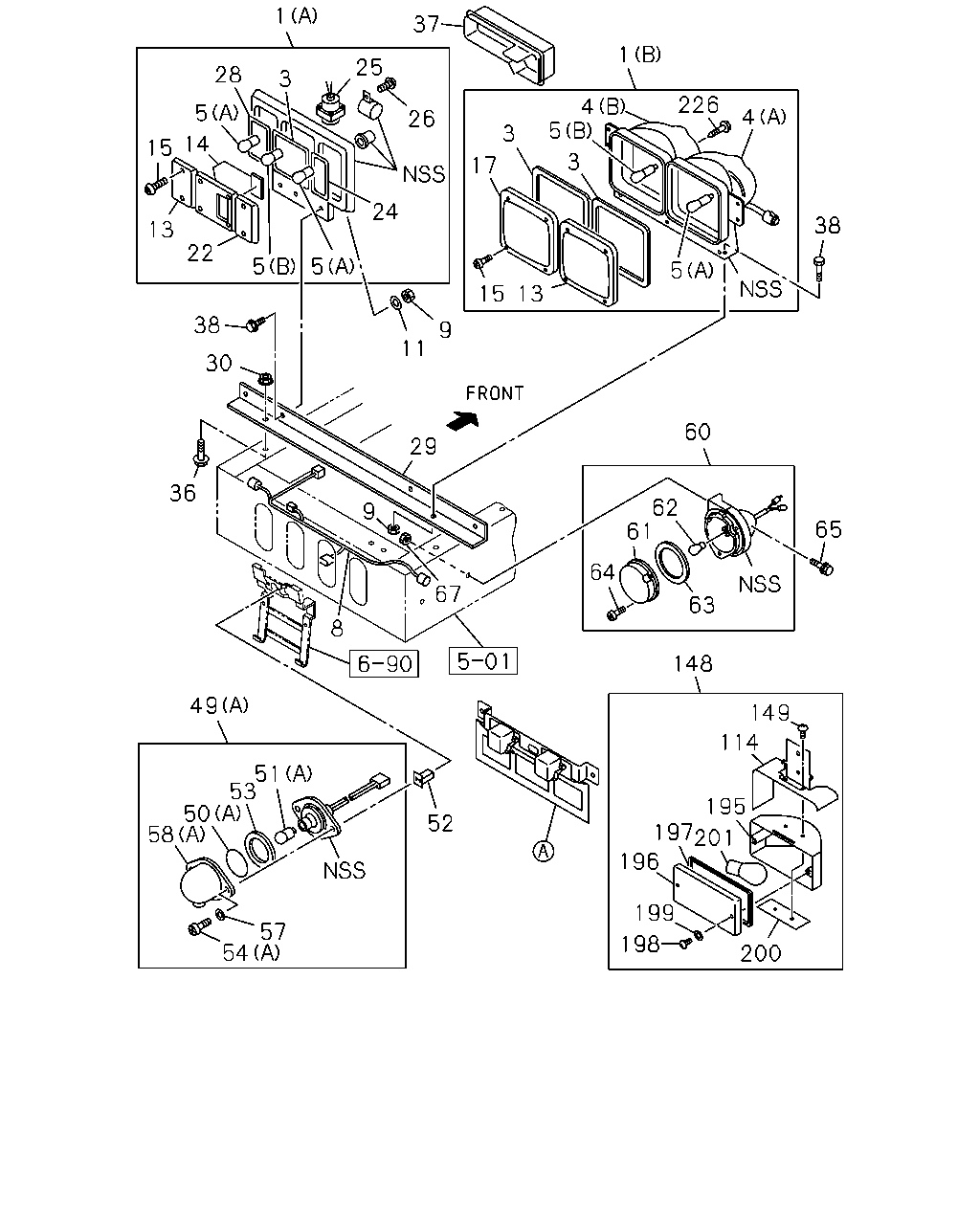

çizim 177367
1 37 1 25 28 3 226 4 5 5 4 26 3 14 15 3 17 24 38 13 22 5 5 5 15 13 38 9 11 30 60 29 36 62 61 9 65 67 64 63 8 148 49 149 114 51 53 50 58 195 52 197 201 196 199 57 54 198 200
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> CHINA EQUIPMENT(YT2) (A) 		1-82230-209-0 01 1 0612-0712 ● ●
1 LAMP ASM; RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> (A) 		1-82230-209-0 01 1 0801- ● ●
1 LAMP ASM; RR COMB
CHINA EQUIPMENT(YT2) (A) 		1-82230-208-0 01 1 0612-0712 ● ●
1 LAMP ASM; RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (A) 		1-82230-208-0 01 1 0801- ● ●
1 LAMP ASM; RR COMB
CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> (A) 		1-82230-207-0 01 1 0612-0712 ● ●
1 LAMP ASM; RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> (A) 		1-82230-207-0 01 1 0801- ● ●
1 LAMP ASM; RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) (A) 		8-97213-369-0 01 1 0603-0611 ● ●
1 LAMP ASM; RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) (A) 		8-97213-369-0 01 1 0612-0708 ● ●
1 LAMP ASM; RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1) (A) 		8-97213-369-0 01 1 0709-0712 ● ●
1 LAMP ASM; RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> (A) 		8-97213-370-0 01 1 0603-0611 ● ●
1 LAMP ASM; RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) REVERSING WARNING BUZZER<YM9> (A) 		8-97213-370-0 01 1 0612-0708 ● ●
1 LAMP ASM; RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1) REVERSING WARNING BUZZER<YM9> (A) 		8-97213-370-0 01 1 0709-0712 ● ●
1 LAMP ASM; RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> (A) 		8-97213-368-0 01 1 0603-0611 ● ●
1 LAMP ASM; RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) EXC. REVERSING WARNING BUZZER<YM9> (A) 		8-97213-368-0 01 1 0612-0708 ● ●
1 LAMP ASM; RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1) EXC. REVERSING WARNING BUZZER<YM9> (A) 		8-97213-368-0 01 1 0709-0712 ● ●
1 LAMP ASM; RR COMB
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) (B) 		1-82230-159-2 01 1 0603-0708 ● ●
1 LAMP ASM; RR COMB
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) 		1-82230-159-2 01 1 0709- ● ●
1 LAMP ASM; RR COMB
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) (B) 		1-82230-160-2 01 1 0603-0708 ● ●
1 LAMP ASM; RR COMB
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) 		1-82230-160-2 01 1 0709- ● ●
3 GASKET; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-94257-505-0 01 1 0603-0708 ● ●
3 GASKET; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-94257-505-0 01 1 0603-0708 ● ●
3 GASKET; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-94257-505-0 01 1 0709- ● ●
3 GASKET; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-94257-505-0 01 1 0709- ● ●
3 GASKET; RR COMB LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82236-003-0 04 1 0603-0708 ● ●
3 GASKET; RR COMB LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82236-003-0 04 1 0709- ● ●
4 COVER; RR,RR COMB LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) (A) 		1-82239-033-0 02 1 0603-0708 ● ●
4 COVER; RR,RR COMB LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (A) 		1-82239-033-0 02 1 0709- ● ●
4 COVER; RR,RR COMB LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) (B) 		1-82239-034-0 02 1 0603-0708 ● ●
4 COVER; RR,RR COMB LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) 		1-82239-034-0 02 1 0709- ● ●
5 BULB; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) (B) 24V 21/5W 		1-82194-038-0 01 1 0603-0708 ● ●
5 BULB; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) (B) 24V 21/5W 		1-82194-038-0 01 1 0603-0708 ● ●
5 BULB; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) 24V 21/5W 		1-82194-038-0 01 1 0709- ● ●
5 BULB; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) 24V 21/5W 		1-82194-038-0 01 1 0709- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0603-0708 ● ●
5 BULB; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) (A) 24V 21W 		1-82194-036-0 02 1 0603-0708 ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0709- ● ●
5 BULB; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (A) 24V 21W 		1-82194-036-0 02 1 0709- ● ●
5 BULB; RR COMB LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) (B) 24V 21/5W 		1-82194-038-0 02 1 0603-0708 ● ●
5 BULB; RR COMB LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) 24V 21/5W 		1-82194-038-0 02 1 0709- ● ●
8 HARNESS; RR COMB LAMP 1-82677-374-2 01 1 0603- ●
8 HARNESS; RR COMB LAMP 1-82677-375-2 01 1 0603- ●
9 NUT; LAMP,RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M6 		0-91110-506-0 04 1 0603-0708 ● ●
9 NUT; LAMP,RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M6 		0-91110-506-0 04 1 0709- ● ●
9 NUT; LAMP,RR COMB
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ● ●
9 NUT; LAMP,RR COMB
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M8 FLANGE 		0-91180-108-0 02 1 0603-0708 ● ●
9 NUT; LAMP,RR COMB
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M8 FLANGE 		0-91180-108-0 02 1 0709- ● ●
11 WASHER; PL,LAMP,RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) ID=6.4 OD=18 		9-09160-706-0 04 1 0603-0605 ● ●
11 WASHER; PL,LAMP,RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) ID=6.4 OD=18 		0-91610-706-0 04 1 0606-0708 ● ●
11 WASHER; PL,LAMP,RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) ID=6.4 OD=18 		0-91610-706-0 04 1 0709- ● ●
13 LENS; TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-94174-638-0 01 1 0603-0708 ● ●
13 LENS; TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-94174-638-0 01 1 0709- ● ●
13 LENS; TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-94174-639-0 01 1 0603-0708 ● ●
13 LENS; TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-94174-639-0 01 1 0709- ● ●
13 LENS; TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82235-016-0 02 1 0603-0708 ● ●
13 LENS; TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82235-016-0 02 1 0709- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-94178-624-0 01 1 0603-0708 ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-94178-624-0 01 1 0709- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-94178-625-0 01 1 0603-0708 ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-94178-625-0 01 1 0709- ● ●
15 SCREW; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0603-0708 ● ●
15 SCREW; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0603-0708 ● ●
15 SCREW; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0709- ● ●
15 SCREW; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0709- ● ●
15 SCREW; RR COMB LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82239-019-0 16 1 0603-0708 ● ●
15 SCREW; RR COMB LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82239-019-0 16 1 0709- ● ●
17 LENS; STOP,RR COMB LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82235-002-0 02 1 0603-0708 ● ●
17 LENS; STOP,RR COMB LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82235-002-0 02 1 0709- ● ●
22 LENS; BACKUP,RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-94257-512-1 01 1 0603-0708 ● ●
22 LENS; BACKUP,RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-94257-512-1 01 1 0603-0708 ● ●
22 LENS; BACKUP,RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-94257-512-1 01 1 0709- ● ●
22 LENS; BACKUP,RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-94257-512-1 01 1 0709- ● ●
24 GASKET; BACK,LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-94257-506-0 01 1 0603-0708 ● ●
24 GASKET; BACK,LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-94257-506-0 01 1 0603-0708 ● ●
24 GASKET; BACK,LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-94257-506-0 01 1 0709- ● ●
24 GASKET; BACK,LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-94257-506-0 01 1 0709- ● ●
25 HORN ASM; BACK
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 0603-0611 ● ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-94257-518-0 01 1 0612-0708 ● ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-94257-518-0 01 1 0709-0712 ● ●
25 HORN ASM; BACK
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 0801- ● ●
26 SCREW; BACK HORN
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M4X14 TAPPING 		9-07076-414-0 01 1 0603-0708 ● ●
26 SCREW; BACK HORN
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M4X14 TAPPING 		9-07076-414-0 01 1 0709- ● ●
26 SCREW; BACK HORN
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 0603-0611 ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M4X12 TAPPING 		9-07076-412-0 02 1 0612-0708 ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M4X12 TAPPING 		9-07076-412-0 02 1 0709-0712 ● ●
26 SCREW; BACK HORN
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 0801- ● ●
26 SCREW; BACK HORN
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 0603-0708 ● ●
26 SCREW; BACK HORN
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 0709- ● ●
28 GASKET; TURN,LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-94257-507-0 01 1 0603-0708 ● ●
28 GASKET; TURN,LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-94257-507-0 01 1 0603-0708 ● ●
28 GASKET; TURN,LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-94257-507-0 01 1 0709- ● ●
28 GASKET; TURN,LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		8-94257-507-0 01 1 0709- ● ●
29 BRACKET; LAMP,RR COMB 1-53487-021-1 01 1 0603- ● ●
30 NUT; BRKT,RR COMB
M10 FLANGE 		0-91150-210-0 02 1 0603-0603 ● ●
30 NUT; BRKT,RR COMB
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
36 BOLT; BRKT,RR COMB
M10X45 FLANGE 		0-28051-045-0 02 1 0603- ● ●
37 COVER; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82239-007-0 01 1 0603-0708 ● ●
37 COVER; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82239-007-0 01 1 0709- ● ●
37 COVER; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82239-008-0 01 1 0603-0708 ● ●
37 COVER; RR COMB LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82239-008-0 01 1 0709- ● ●
38 BOLT; LAMP,RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0603-0708 ● ●
38 BOLT; LAMP,RR COMB
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0709- ● ●
38 BOLT; LAMP,RR COMB
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M8X40 W/LK&PL WASHER 		0-50640-840-0 02 1 0603-0708 ● ●
38 BOLT; LAMP,RR COMB
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M8X40 W/LK&PL WASHER 		0-50640-840-0 02 1 0709- ● ●
49 LAMP; LICENSE PLATE
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 		8-97105-380-0 02 1 0810-1509 ● ●
49 LAMP; LICENSE PLATE
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 24V 5W 		8-98329-430-0 02 1 1510- ● ●
49 LAMP; LICENSE PLATE
(A) 24V 10W 		1-82120-024-1 01 1 0603-0809 ● ●
49 LAMP; LICENSE PLATE
RUSSIA COUNTRY<CZ3> EXC. KD PREPARATORY PACK<6HF> (A) 24V 10W 		1-82120-024-1 01 1 0810- ● ●
49 LAMP; LICENSE PLATE
EXC. RUSSIA COUNTRY<CZ3> (A) 24V 10W 		1-82120-024-1 01 1 0810- ● ●
50 LENS; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 		8-97108-212-0 02 1 0810- ● ●
50 LENS; LICENSE PLATE LAMP
(A) 		1-82235-006-0 01 1 0603-0809 ● ●
50 LENS; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> EXC. KD PREPARATORY PACK<6HF> (A) 		1-82235-006-0 01 1 0810- ● ●
50 LENS; LICENSE PLATE LAMP
EXC. RUSSIA COUNTRY<CZ3> (A) 		1-82235-006-0 01 1 0810- ● ●
51 BULB; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 24V 5W 		1-82194-039-0 02 1 0810- ● ●
51 BULB; LICENSE PLATE LAMP
(A) 24V 10W 		1-82194-037-0 01 1 0603-0809 ● ●
51 BULB; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> EXC. KD PREPARATORY PACK<6HF> (A) 24V 10W 		1-82194-037-0 01 1 0810- ● ●
51 BULB; LICENSE PLATE LAMP
EXC. RUSSIA COUNTRY<CZ3> (A) 24V 10W 		1-82194-037-0 01 1 0810- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0603-0809 ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> EXC. KD PREPARATORY PACK<6HF> D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0810- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
EXC. RUSSIA COUNTRY<CZ3> D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0810- ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0603-0809 ● ●
53 GASKET; LICENSE LAMP
RUSSIA COUNTRY<CZ3> EXC. KD PREPARATORY PACK<6HF> 		1-82126-005-0 01 1 0810- ● ●
53 GASKET; LICENSE LAMP
EXC. RUSSIA COUNTRY<CZ3> 		1-82126-005-0 01 1 0810- ● ●
54 SCREW; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) M4X8 		8-94419-312-0 02 1 0810- ● ●
54 SCREW; LICENSE PLATE LAMP
(A) M5X20 		1-82129-007-0 02 1 0603-0809 ● ●
54 SCREW; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> EXC. KD PREPARATORY PACK<6HF> (A) M5X20 		1-82129-007-0 02 1 0810- ● ●
54 SCREW; LICENSE PLATE LAMP
EXC. RUSSIA COUNTRY<CZ3> (A) M5X20 		1-82129-007-0 02 1 0810- ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0603-0809 ● ●
57 WASHER; PL,LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> EXC. KD PREPARATORY PACK<6HF> 		1-82129-008-0 02 1 0810- ● ●
57 WASHER; PL,LICENSE PLATE LAMP
EXC. RUSSIA COUNTRY<CZ3> 		1-82129-008-0 02 1 0810- ● ●
58 COVER; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 		8-97076-590-1 02 1 0810- ● ●
58 COVER; LICENSE PLATE LAMP
(A) 		1-82129-005-0 01 1 0603-0809 ● ●
58 COVER; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> EXC. KD PREPARATORY PACK<6HF> (A) 		1-82129-005-0 01 1 0810- ● ●
58 COVER; LICENSE PLATE LAMP
EXC. RUSSIA COUNTRY<CZ3> (A) 		1-82129-005-0 01 1 0810- ● ●
60 LAMP; BACKUP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82130-023-1 01 1 0603-0708 ● ●
60 LAMP; BACKUP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82130-023-1 01 1 0709- ● ●
61 LENS; BACKUP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82135-003-0 01 1 0603-0708 ● ●
61 LENS; BACKUP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82135-003-0 01 1 0709- ● ●
62 BULB; BACKUP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 01 1 0603-0708 ● ●
62 BULB; BACKUP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 01 1 0709- ● ●
63 GASKET; BACKUP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82136-002-0 01 1 0603-0708 ● ●
63 GASKET; BACKUP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82136-002-0 01 1 0709- ● ●
64 SCREW; BACKUP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82139-002-0 03 1 0603-0708 ● ●
64 SCREW; BACKUP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82139-002-0 03 1 0709- ● ●
65 BOLT; LAMP,BACKUP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 0603-0708 ● ●
65 BOLT; LAMP,BACKUP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 0709- ● ●
67 NUT; FLANGE
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M10 FLANGE 		0-91150-210-0 02 1 0603-0603 ● ●
67 NUT; FLANGE
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M10 FLANGE 		0-91180-210-0 02 1 0603-0708 ● ●
67 NUT; FLANGE
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M10 FLANGE 		0-91180-210-0 02 1 0709- ● ●
114 BRACKET; RR FOG LAMP
FOG LAMP REAR<NHD> 		8-97108-583-0 01 1 0603- ● ●
148 LAMP ASM; RR FOG
FOG LAMP REAR<NHD> 		8-97181-002-0 01 1 0603-0612 ● ●
148 LAMP ASM; RR FOG
FOG LAMP REAR<NHD> 		1-82110-477-0 01 1 0701- ● ●
149 SCREW; BRKT TO LAMP BODY
FOG LAMP REAR<NHD> 		8-94336-372-0 02 1 0603- ● ●
195 LAMP UNIT; RR FOG
FOG LAMP REAR<NHD> 		8-94336-322-0 01 1 0603- ● ●
196 LENS; RR FOG LAMP
FOG LAMP REAR<NHD> 		8-94336-325-0 01 1 0603- ● ●
197 GASKET; RR FOG LAMP
FOG LAMP REAR<NHD> 		8-94336-324-0 01 1 0603- ● ●
198 SCREW; LENS TO BODY
FOG LAMP REAR<NHD> 		0-71190-416-0 02 1 0603- ● ●
199 WASHER; LENS,RR FOG LAMP
FOG LAMP REAR<NHD> 		8-94336-326-0 02 1 0603- ● ●
200 PLATE; SET,RR FOG LAMP
FOG LAMP REAR<NHD> 		8-94336-323-0 01 1 0603- ● ●
201 BULB; RR FOG LAMP
FOG LAMP REAR<NHD> 24V 21W 		1-82194-036-0 01 1 0603- ● ●
226 SCREW; PROTECTOR
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82239-032-0 08 1 0603-0708 ● ●
226 SCREW; PROTECTOR
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82239-032-0 08 1 0709- ● ●
çizim 177422
51 49 50 54 49 55 58 273 59
BalonParca AdiParca NoAdetTipApplied Date A B
49 LAMP; LICENSE PLATE
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 		8-97105-380-0 02 1 0810-1509 ● ●
49 LAMP; LICENSE PLATE
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 24V 5W 		8-98329-430-0 02 1 1510- ● ●
49 LAMP; LICENSE PLATE
(A) 24V 10W 		1-82120-024-1 01 1 0603-0809 ● ●
49 LAMP; LICENSE PLATE
RUSSIA COUNTRY<CZ3> EXC. KD PREPARATORY PACK<6HF> (A) 24V 10W 		1-82120-024-1 01 1 0810- ● ●
49 LAMP; LICENSE PLATE
EXC. RUSSIA COUNTRY<CZ3> (A) 24V 10W 		1-82120-024-1 01 1 0810- ● ●
50 LENS; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 		8-97108-212-0 02 1 0810- ● ●
50 LENS; LICENSE PLATE LAMP
(A) 		1-82235-006-0 01 1 0603-0809 ● ●
50 LENS; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> EXC. KD PREPARATORY PACK<6HF> (A) 		1-82235-006-0 01 1 0810- ● ●
50 LENS; LICENSE PLATE LAMP
EXC. RUSSIA COUNTRY<CZ3> (A) 		1-82235-006-0 01 1 0810- ● ●
51 BULB; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 24V 5W 		1-82194-039-0 02 1 0810- ● ●
51 BULB; LICENSE PLATE LAMP
(A) 24V 10W 		1-82194-037-0 01 1 0603-0809 ● ●
51 BULB; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> EXC. KD PREPARATORY PACK<6HF> (A) 24V 10W 		1-82194-037-0 01 1 0810- ● ●
51 BULB; LICENSE PLATE LAMP
EXC. RUSSIA COUNTRY<CZ3> (A) 24V 10W 		1-82194-037-0 01 1 0810- ● ●
54 SCREW; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) M4X8 		8-94419-312-0 02 1 0810- ● ●
54 SCREW; LICENSE PLATE LAMP
(A) M5X20 		1-82129-007-0 02 1 0603-0809 ● ●
54 SCREW; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> EXC. KD PREPARATORY PACK<6HF> (A) M5X20 		1-82129-007-0 02 1 0810- ● ●
54 SCREW; LICENSE PLATE LAMP
EXC. RUSSIA COUNTRY<CZ3> (A) M5X20 		1-82129-007-0 02 1 0810- ● ●
55 NUT; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> M5 FLANGE 		8-94153-039-0 04 1 0810- ● ●
58 COVER; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 		8-97076-590-1 02 1 0810- ● ●
58 COVER; LICENSE PLATE LAMP
(A) 		1-82129-005-0 01 1 0603-0809 ● ●
58 COVER; LICENSE PLATE LAMP
RUSSIA COUNTRY<CZ3> EXC. KD PREPARATORY PACK<6HF> (A) 		1-82129-005-0 01 1 0810- ● ●
58 COVER; LICENSE PLATE LAMP
EXC. RUSSIA COUNTRY<CZ3> (A) 		1-82129-005-0 01 1 0810- ● ●
59 SCREW; TAP,LICENSE LAMP BODY
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> M5X20 		9-93490-520-0 04 1 0810- ● ●
273 BRACKET
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> 		8-98131-847-0 01 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
