◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#35567) — 194 parça

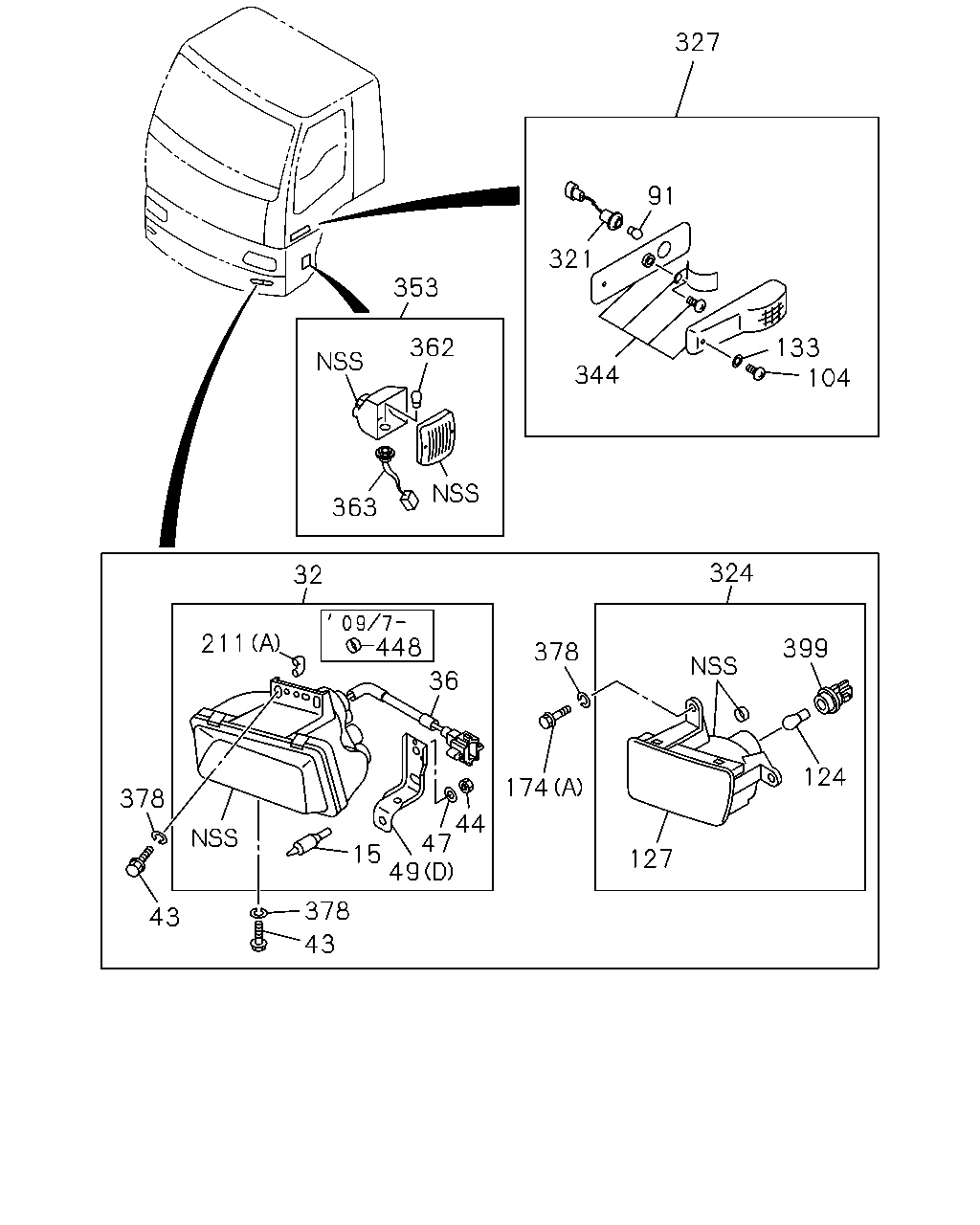

çizim 177265
327 91 133 344 104 321 353 362 363 324 399 124 127 378 174 211 32 378 43 43 36 44 47 49 15 378 448
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> 24V 70W 		1-82194-106-0 02 1 0603- ● ●
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		1-82110-475-0 01 1 0701-0712 ● ●
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-475-0 01 1 0801-0906 ● ●
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> 		8-98149-149-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> 		8-98232-064-1 01 1 1302- ● ●
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		1-82110-476-0 01 1 0701-0712 ● ●
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-476-0 01 1 0801-0906 ● ●
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> 		8-98149-150-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> 		8-98232-065-1 01 1 1302- ● ●
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-453-0 01 1 0603-0612 ● ●
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		1-82110-453-0 01 1 0701-0712 ● ●
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-454-0 01 1 0603-0612 ● ●
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		1-82110-454-0 01 1 0701-0712 ● ●
36 CORD; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-82118-015-0 01 1 0603- ● ●
36 CORD; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-82118-016-0 01 1 0603- ● ●
43 BOLT; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> M6X20 FLANGE 		0-28650-620-0 06 1 0603- ● ●
44 NUT; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> M6 		8-98217-430-0 02 1 1205- ● ●
47 WASHER; PL,FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		8-98217-429-0 02 1 1205- ● ●
49 BRACKET; LAMP
HEADLAMPS VARIANT SQUARE<TEA> (D) 		8-98051-437-0 01 1 0603- ● ●
49 BRACKET; LAMP
HEADLAMPS VARIANT SQUARE<TEA> (D) 		8-98051-438-0 01 1 0603- ● ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0603- ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0603- ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0603- ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0603- ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0603- ● ●
91 BULB; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 02 1 0603-0708 ● ●
91 BULB; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 02 1 0709- ● ●
91 BULB; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 24V 12W 		1-82194-030-0 02 1 0603-0708 ● ●
91 BULB; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 12W 		1-82194-030-0 02 1 0709- ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0603- ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 0603- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 0603- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 0603- ● ●
133 WASHER; PL,SIDE FLASHER LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-150-0 02 1 0603-0708 ● ●
133 WASHER; PL,SIDE FLASHER LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-150-0 02 1 0709- ● ●
174 BOLT
LAMPS TWO ROOF MARKER<TEC> (B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0603-0809 ● ●
174 BOLT
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> (B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0810- ● ●
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0603- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 0603-0711 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-98101-137-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 0603-0711 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-98101-138-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		8-97025-128-0 02 1 0603-0906 ● ●
321 HARNESS; SIDE FLASHER LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82218-002-0 02 1 0603-0708 ● ●
321 HARNESS; SIDE FLASHER LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82218-002-0 02 1 0709- ● ●
321 HARNESS; SIDE FLASHER LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-253-0 02 1 0603-0708 ● ●
321 HARNESS; SIDE FLASHER LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-253-0 02 1 0709- ● ●
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 0603- ● ●
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 0603- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82210-227-2 01 1 0603-0708 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82210-227-2 01 1 0709- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82210-228-2 01 1 0603-0708 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82210-228-2 01 1 0709- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-007-6 01 1 0603-0708 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-007-6 01 1 0709- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-011-6 01 1 0603-0708 ● ●
327 LAMP ASM; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-011-6 01 1 0709- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82213-020-0 01 1 0603-0708 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82213-020-0 01 1 0709- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82213-021-0 01 1 0603-0708 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82213-021-0 01 1 0709- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-240-1 01 1 0603-0708 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-240-1 01 1 0709- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-241-1 01 1 0603-0708 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-241-1 01 1 0709- ● ●
353 LAMP ASM; STEP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 24V 5W 		1-86830-248-2 01 1 0603-0708 ● ●
353 LAMP ASM; STEP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 5W 		1-86830-248-2 01 1 0709- ● ●
362 BULB; STEP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 24V 5W 		1-82194-042-0 01 1 0603-0708 ● ●
362 BULB; STEP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 5W 		1-82194-042-0 01 1 0709- ● ●
363 HARNESS; STEP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-296-0 01 1 0603-0708 ● ●
363 HARNESS; STEP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-296-0 01 1 0709- ● ●
378 WASHER; PL
HEADLAMPS VARIANT SQUARE<TEA> ID=6.4 OD=14 		9-09160-606-0 06 1 0603-0605 ● ●
378 WASHER; PL
HEADLAMPS VARIANT SQUARE<TEA> ID=6.4 		0-91610-606-0 06 1 0606- ● ●
378 WASHER; PL
ID=6.4 OD=14 		9-09160-606-0 04 1 0603-0605 ● ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 04 1 0606- ● ●
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 0603- ● ●
448 CAP ASM; LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		8-97378-874-0 02 1 0907- ● ●

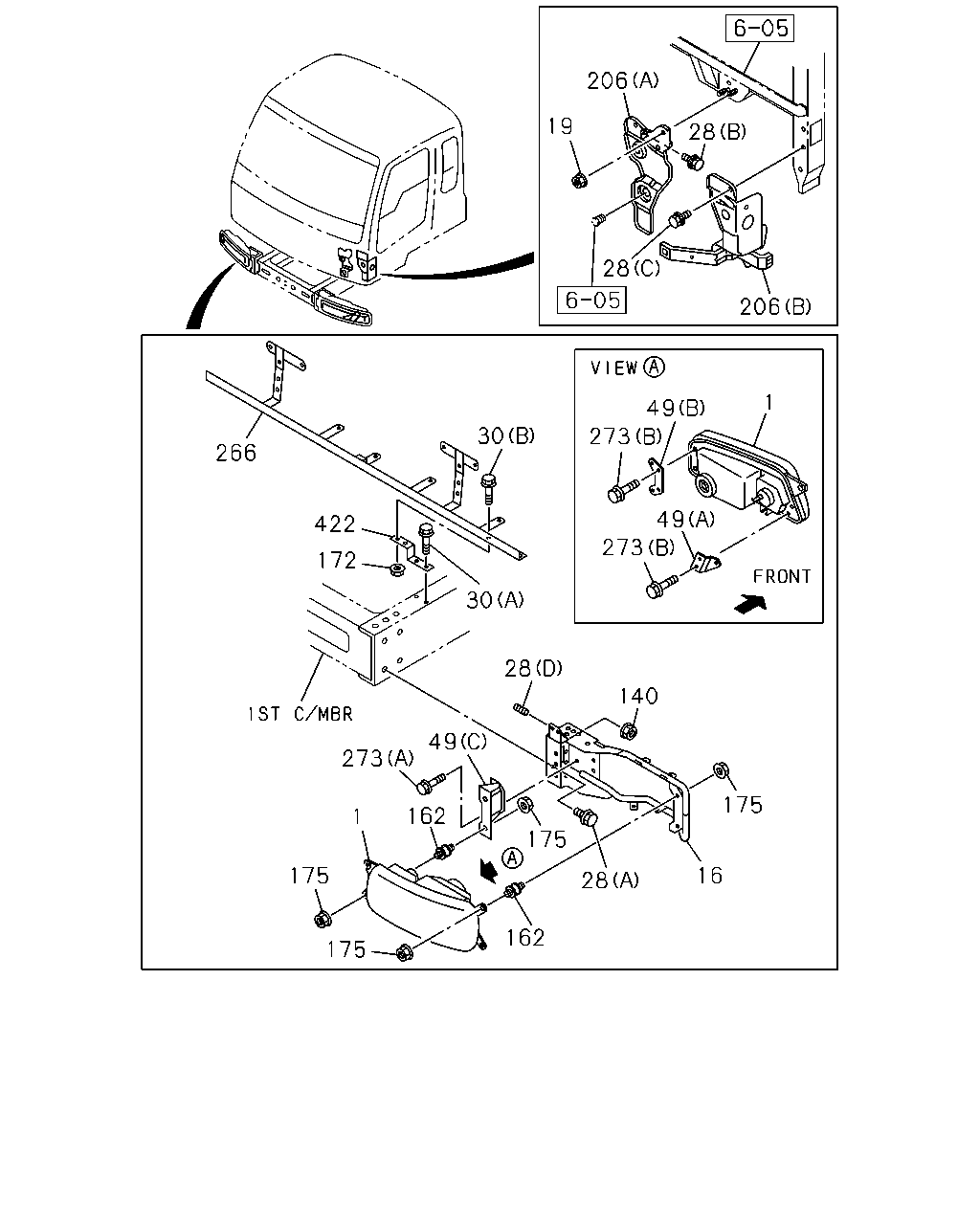

çizim 177320
206 19 28 28 206 1 49 30 266 49 422 172 30 28 140 49 273 175 12 1 175 175 16 28 162 175 273 273
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		1-82110-480-0 01 1 0701-0711 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		8-98097-190-0 01 1 0712-0712 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> 		8-98097-190-1 01 1 0801- ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		1-82110-481-0 01 1 0701-0711 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		8-98097-191-0 01 1 0712-0712 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> 		8-98097-191-1 01 1 0801- ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-455-2 01 1 0603-0612 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		1-82110-455-2 01 1 0701-0711 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		8-98097-192-0 01 1 0712-0712 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-456-2 01 1 0603-0612 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		1-82110-456-2 01 1 0701-0711 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		8-98097-193-0 01 1 0712-0712 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-393-2 01 1 0603-0711 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-196-0 01 1 0712- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-394-2 01 1 0603-0711 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-197-0 01 1 0712- ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-82118-014-0 02 1 0603- ● ●
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 0603- ● ●
16 BRACKET; HEADLAMP 8-97608-506-2 01 1 0603- ● ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0603- ● ●
28 BOLT; HEADLAMP
(A) M10X30 FLANGE 		0-28651-030-0 06 1 0603- ● ●
28 BOLT; HEADLAMP
(D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0603- ● ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0603- ● ●
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0603- ● ●
30 BOLT; STAY
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0603- ● ●
30 BOLT; STAY
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0603- ● ●
49 BRACKET; LAMP
HEADLAMPS VARIANT SQUARE<TEA> (D) 		8-98051-437-0 01 1 0603- ● ●
49 BRACKET; LAMP
HEADLAMPS VARIANT SQUARE<TEA> (D) 		8-98051-438-0 01 1 0603- ● ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0603- ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0603- ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0603- ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0603- ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0603- ● ●
140 NUT
M10 FLANGE 		0-91150-210-0 02 1 0603-0603 ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0603- ● ●
172 NUT; STAY
M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ● ●
172 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 16 1 0603-0603 ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0603- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0603- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0603- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0603- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0603- ● ●
266 STAY; BRKT,HEADLAMP 1-82117-163-2 01 1 0603- ● ●
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 0603- ● ●
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 0603- ● ●
422 BRACKET; HEADLAMP STAY 1-82698-605-0 02 1 0603- ● ●

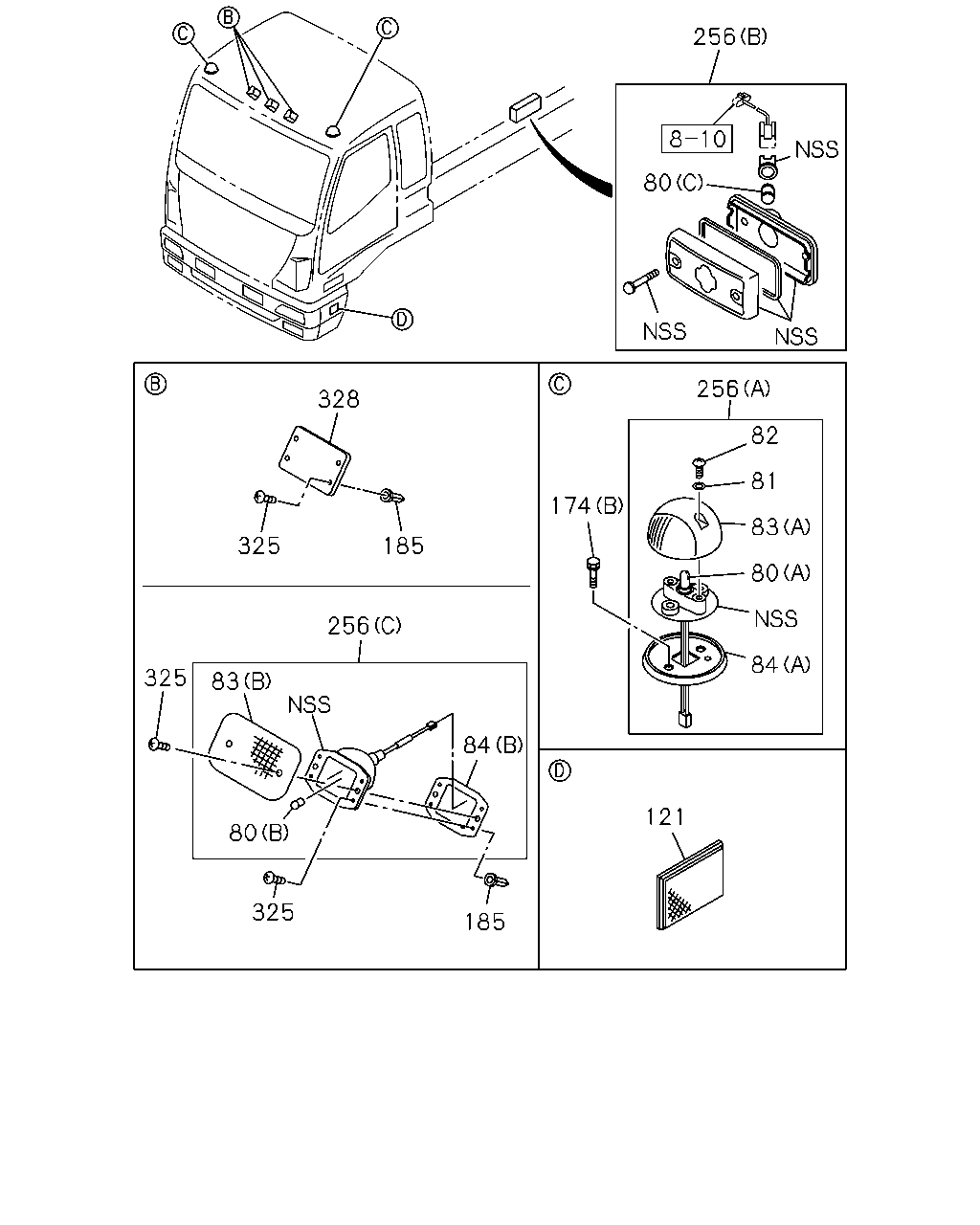

çizim 177328
256 80 256 328 82 81 174 83 325 185 80 256 84 325 83 84 121 80 325 185
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (C) 24V 3W 		1-82219-035-0 06 1 0810- ●
80 BULB; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 24V 12W 		9-82691-302-0 03 1 0810- ● ●
80 BULB; MARKER LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (C) 24V 3W 		1-82219-035-0 08 1 0810- ●
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W 		8-94135-397-0 02 1 0603-0809 ● ●
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> (A) 24V 5W 		8-94135-397-0 02 1 0810- ● ●
81 SEAT; SCREW
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 0603-0809 ● ●
81 SEAT; SCREW
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> 		1-82219-012-0 04 1 0810- ● ●
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-011-0 04 1 0603-0809 ● ●
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> 		1-82219-011-0 04 1 0810- ● ●
83 LENS; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 		1-82215-068-0 03 1 0810- ● ●
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 		1-82215-046-0 02 1 0603-0809 ● ●
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> (A) 		1-82215-046-0 02 1 0810- ● ●
84 GASKET; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 		1-86830-153-0 03 1 0810- ● ●
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 		1-86830-288-0 02 1 0603-0809 ● ●
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> (A) 		1-86830-288-0 02 1 0810- ● ●
121 REFLECTOR; REFLEX
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> 		8-98013-990-1 02 1 0810- ● ●
174 BOLT
LAMPS TWO ROOF MARKER<TEC> (B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0603-0809 ● ●
174 BOLT
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> (B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0810- ● ●
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0603- ● ●
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0603- ● ●
256 LAMP; MARKER
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 		1-82210-244-0 06 1 0810- ●
256 LAMP; MARKER
ROOF MARKER LAMP<U01> (C) 		1-86830-170-0 03 1 0810- ● ●
256 LAMP; MARKER
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 		1-82210-244-0 08 1 0810- ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> (A) 		1-86830-242-3 02 1 0603-0809 ● ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> (A) 		1-86830-242-3 02 1 0810- ● ●
325 SCREW; SPD INDICATOR LAMP
ROOF MARKER LAMP<U01> M5X20 TAPPING 		0-71090-520-0 18 1 0812- ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		9-07066-514-0 12 1 0603-0603 ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 0604-0811 ● ●
325 SCREW; SPD INDICATOR LAMP
EXC. ROOF MARKER LAMP<U01> M5X14 TAPPING 		0-71040-514-0 12 1 0812- ● ●
328 COVER; LAMP 1-76217-122-1 03 1 0603-0809 ● ●
328 COVER; LAMP
EXC. ROOF MARKER LAMP<U01> 		1-76217-122-1 03 1 0810- ● ●
çizim 177335
1 12 340 5 14 23 202 202 18 339 338 13 211 13 13 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		1-82110-480-0 01 1 0701-0711 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		8-98097-190-0 01 1 0712-0712 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> 		8-98097-190-1 01 1 0801- ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		1-82110-481-0 01 1 0701-0711 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) 		8-98097-191-0 01 1 0712-0712 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> 		8-98097-191-1 01 1 0801- ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-455-2 01 1 0603-0612 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		1-82110-455-2 01 1 0701-0711 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		8-98097-192-0 01 1 0712-0712 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> 		1-82110-456-2 01 1 0603-0612 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		1-82110-456-2 01 1 0701-0711 ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2) 		8-98097-193-0 01 1 0712-0712 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-393-2 01 1 0603-0711 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-196-0 01 1 0712- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-394-2 01 1 0603-0711 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-197-0 01 1 0712- ● ●
4 HEADLAMP UNIT
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-212-0 01 1 0603- ● ●
4 HEADLAMP UNIT
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> 		1-82119-213-0 01 1 0603- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-175-0 01 1 0603- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-176-0 01 1 0603- ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W 		8-94405-657-0 02 1 0603- ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-82118-014-0 02 1 0603- ● ●
13 CLIP; HEADLAMP
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82119-084-0 02 1 0603-0711 ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82119-084-0 02 1 0712- ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-94381-588-0 14 1 0603- ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A) 		1-82119-084-0 04 1 0603-0711 ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-148-0 02 1 0603- ● ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE<TEA> M4X16 TAPPING 		1-82119-067-0 08 1 0603- ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-147-0 02 1 0603- ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-139-0 04 1 0603- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 0603-0711 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-98101-137-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 0603-0711 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-98101-138-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (A) 		8-97025-128-0 02 1 0603-0906 ● ●
338 LEVELING; HEADLAMP
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> 		8-98010-256-0 02 1 0603- ● ●
339 GASKET; LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-158-0 02 1 0603- ● ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE<TEA> 24V 5W 		1-82194-042-0 02 1 0603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
