7-50 — FRONT SEAT (#35564) — 319 parça

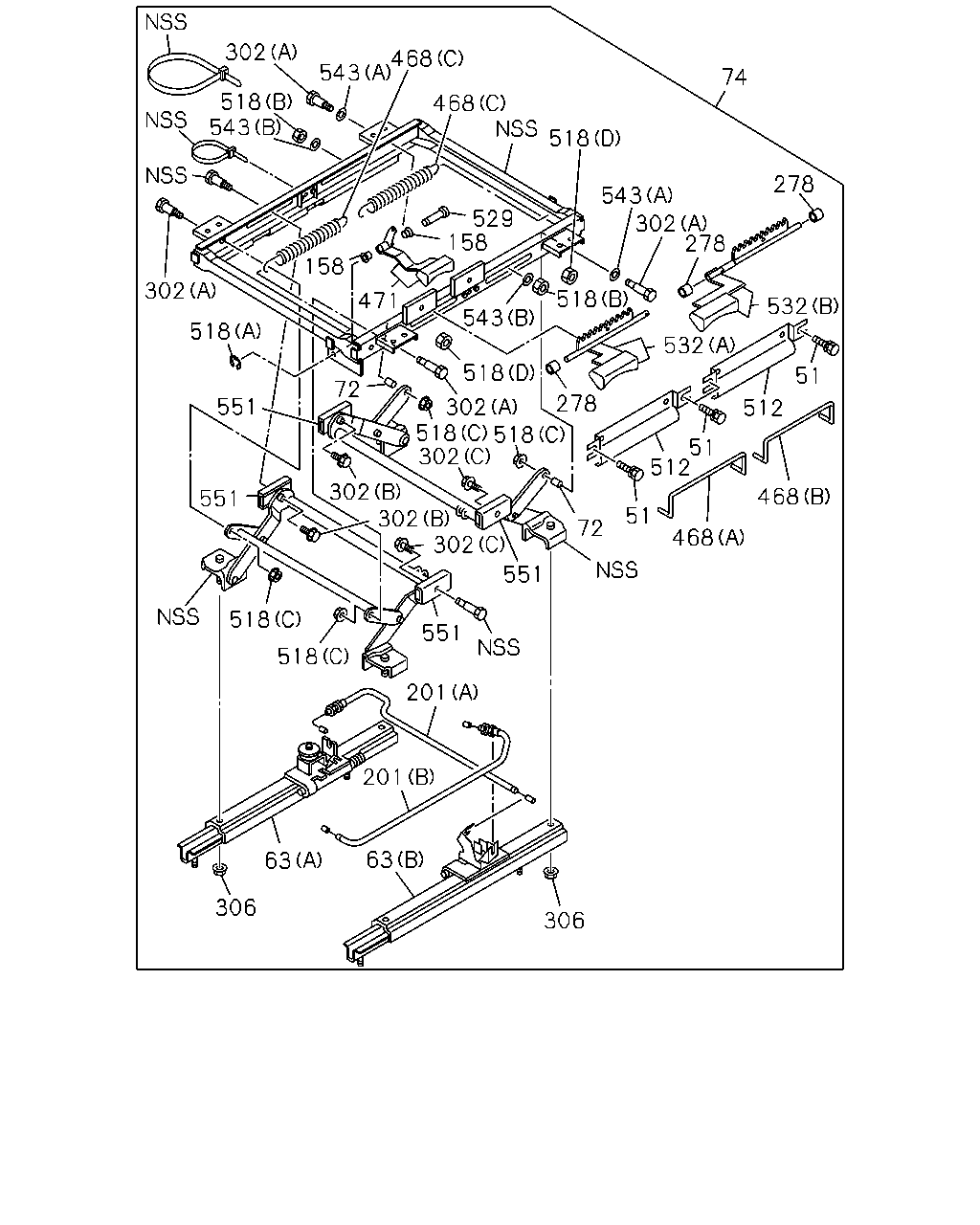

çizim 177271
302 468 543 74 518 543 468 518 278 543 302 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-325-1 04 1 0603- ● ●
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-227-1 01 1 0603- ● ●
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-324-0 01 1 0603- ● ●
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-295-1 01 1 0603- ● ●
72 SPACER; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-334-1 02 1 0603-1502 ● ●
72 SPACER; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) 		8-98291-668-0 02 1 1503- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-331-3 01 1 0603-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		8-98291-646-0 01 1 1503- ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0603- ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0603- ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0603- ● ●
278 COLLAR; FRT SEAT
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-244-0 03 1 0603- ● ●
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-266-2 02 1 0603- ● ●
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-270-1 04 1 0603-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (A) 		8-98291-667-0 04 1 1503- ● ●
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-336-1 02 1 0603- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0603- ● ●
306 NUT; SEAT ADJ
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0603- ● ●
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-206-0 01 1 0603- ● ●
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-207-0 01 1 0603- ● ●
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-208-0 02 1 0603- ● ●
471 LEVER; SEAT ADJ 1-75518-290-0 01 1 0603-0710 ● ●
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 0711- ● ●
512 COVER; LEVER
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-245-1 02 1 0603- ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0603- ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (C) M8 		1-75518-264-0 04 1 0603- ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0603- ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (B) M8 FLANGE 		8-94152-886-0 04 1 0603- ● ●
529 PIN; LINK 1-75518-262-0 01 1 0603- ● ●
532 LEVER ASM; TILT
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-221-0 01 1 0603- ● ●
532 LEVER ASM; TILT
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-222-1 01 1 0603- ● ●
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT WO/ARM REST(TAZ) (B) ID=8.4 		9-09160-508-0 04 1 0603- ● ●
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-335-0 02 1 0603-1502 ● ●
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT WO/ARM REST(TAZ) (A) ID=13 OD=19 		8-98291-669-0 02 1 1503- ● ●
551 SLIDER; HEIGHT ADJ
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-265-0 04 1 0603- ● ●

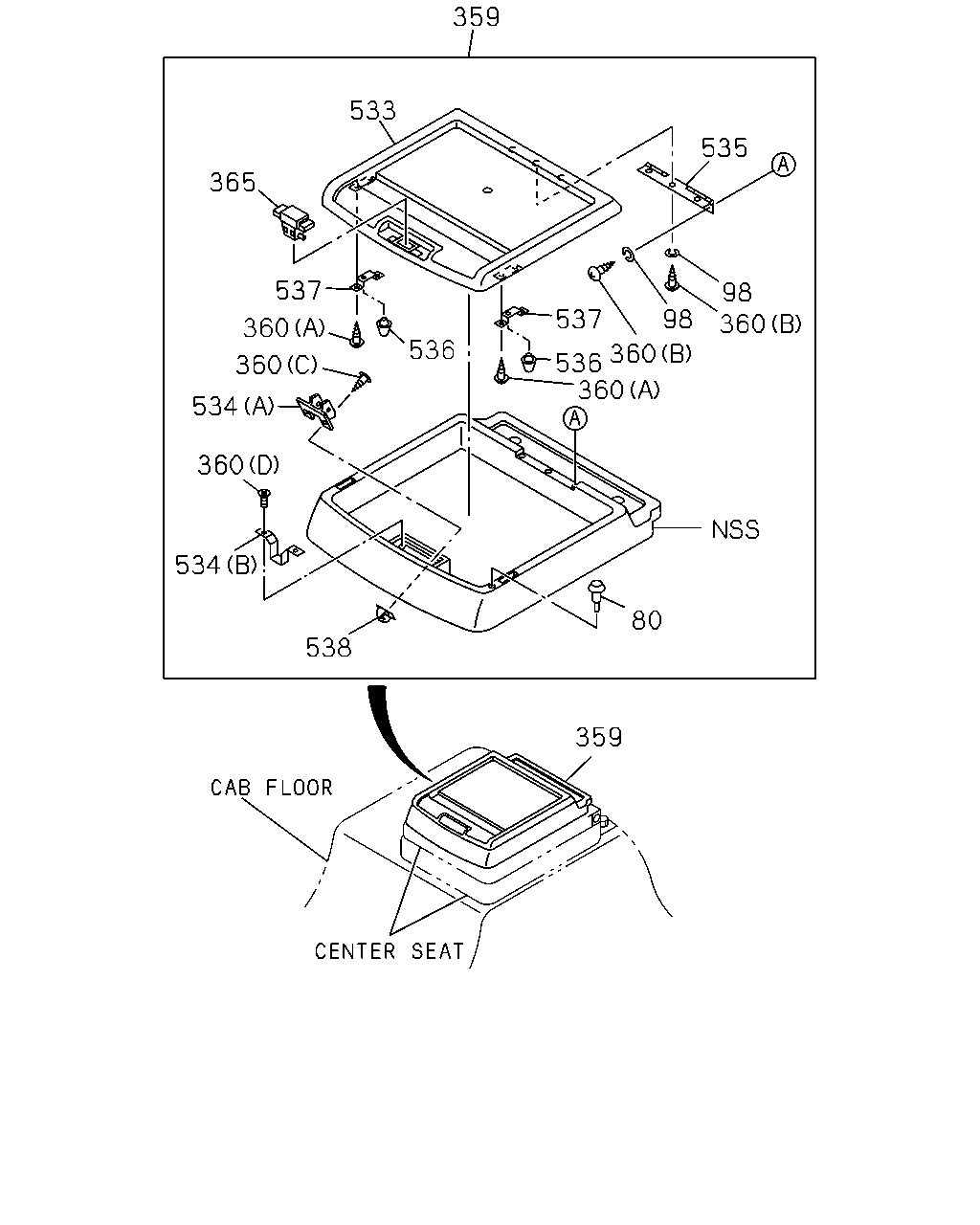

çizim 177277
359 533 535 365 537 98 30 98 537 360 536 360 536 360 360 534 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date A B
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-175-1 01 1 0810-0910 ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75127-175-1 01 1 0911-1306 ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75127-175-1 01 1 1307-1312 ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75127-175-1 01 1 1307-1312 ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75127-175-1 01 1 1401- ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98147-307-0 01 1 0911-1306 ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98147-307-0 01 1 1307-1312 ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98147-307-0 01 1 1307-1312 ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98147-307-0 01 1 1401- ● ●
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1007- ● ●
98 WASHER; HINGE
EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0603- ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0603-1006 ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0603-0612 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0603-0612 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0603-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-72538-180-0 01 1 0603- ● ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-277-1 01 1 0603-1006 ● ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		8-98145-118-0 01 1 1007- ● ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (A) 		1-72538-181-0 01 1 0603-1006 ● ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-190-0 01 1 1007- ● ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 0603- ● ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 0603-1006 ● ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 0603-1006 ● ●
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 0603-1006 ● ●

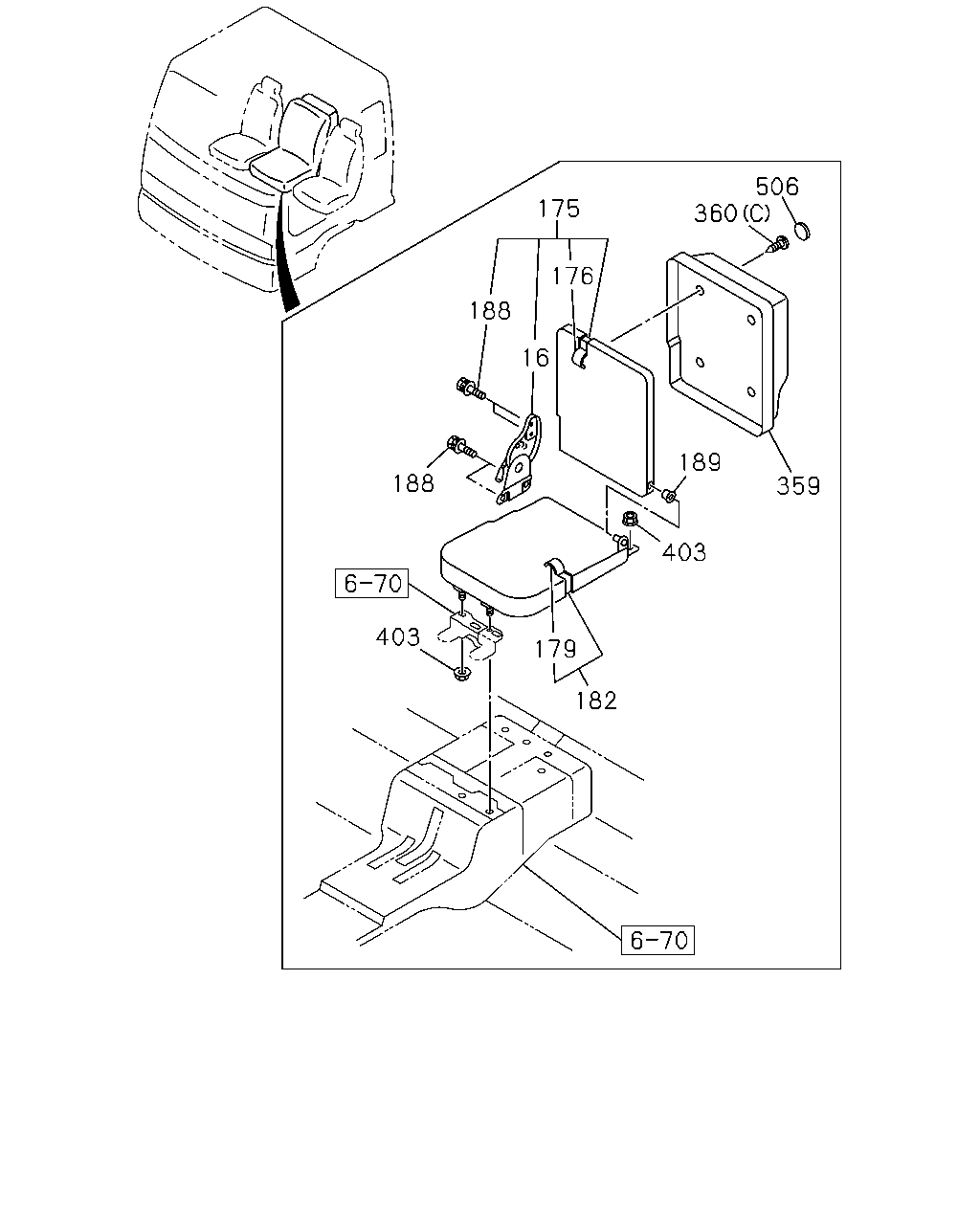

çizim 177278
506 360 175 176 188 16 189 188 359 403 403 179 182
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-1 01 1 0603- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. VINYL SEAT(A83),CENTER SEAT DELETE(SP9) 		1-75207-602-3 01 1 0603-1011 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. VINYL SEAT(A83),CENTER SEAT DELETE(SP9) 		8-98168-328-1 01 1 1012- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-75026-856-3 01 1 0603- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. VINYL SEAT(A83),CENTER SEAT DELETE(SP9) 		1-75127-156-2 01 1 0603-1011 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. VINYL SEAT(A83),CENTER SEAT DELETE(SP9) 		8-98168-331-0 01 1 1012- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-75116-710-1 01 1 0603- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. VINYL SEAT(A83),CENTER SEAT DELETE(SP9) 		1-75127-164-1 01 1 0603-1011 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. VINYL SEAT(A83),CENTER SEAT DELETE(SP9) 		8-98168-325-0 01 1 1012- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-75127-127-1 01 1 0603- ● ●
182 CUSHION ASM; CENTER SEAT
EXC. VINYL SEAT(A83),CENTER SEAT DELETE(SP9) 		1-75207-644-1 01 1 0603-1011 ● ●
182 CUSHION ASM; CENTER SEAT
EXC. VINYL SEAT(A83),CENTER SEAT DELETE(SP9) 		8-98168-317-2 01 1 1012- ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT(A83) EXC. CENTER SEAT DELETE(SP9) 		1-75207-009-4 01 1 0603- ● ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 0603- ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 0603- ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0603-1006 ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0603-0612 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0603-0612 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0603-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		1-75538-207-0 04 1 0603-0703 ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 04 1 0704- ● ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 04 1 0603-1006 ● ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 02 1 1007- ● ●

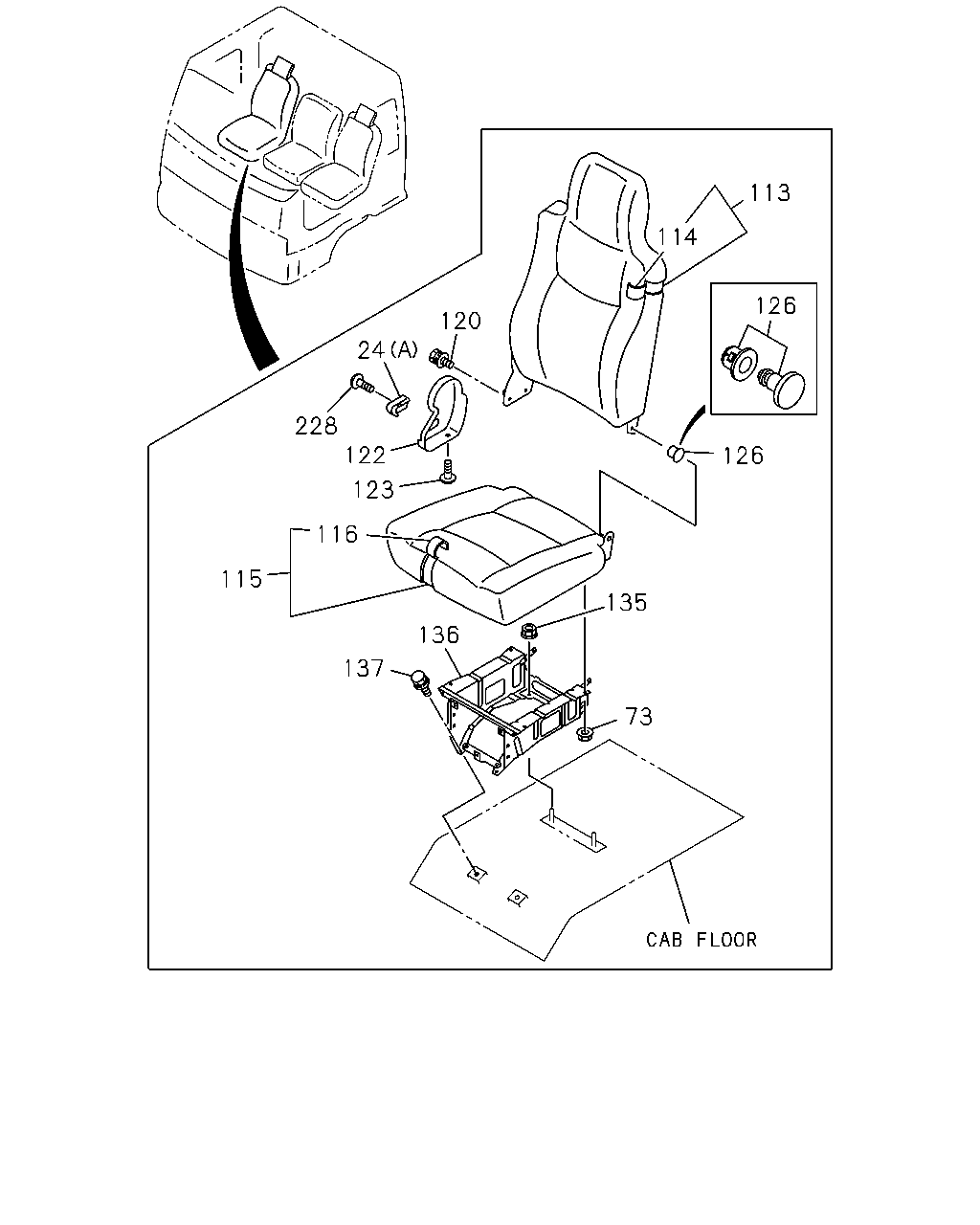

çizim 177291
113 114 126 120 24 228 122 126 123 116 115 135 136 137 73
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT
CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		1-75418-066-0 01 1 0911-1306 ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. VINYL SEAT(A83) (A) 		1-75418-066-0 01 1 1307-1312 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		1-75418-066-0 01 1 1307-1312 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) 		1-75418-066-0 01 1 1307-1312 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) 		1-75418-066-0 01 1 1401- ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. VINYL SEAT(A83) (A) 		1-75418-066-0 01 1 1401- ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0603-0710 ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 0711- ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0603-0910 ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (A) DARK GRAY 		8-97867-021-0 01 1 0911-1011 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (A) DARK GRAY 		8-97867-021-0 01 1 1012-1306 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (A) DARK GRAY 		8-97867-021-0 01 1 1307-1312 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) DARK GRAY 		8-97867-021-0 01 1 1307-1312 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) DARK GRAY 		8-97867-021-0 01 1 1401- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0603- ● ●
113 BACK ASM; SEAT
CCC SPEC. - MODEL YEAR 2010(VZA) EXC. VINYL SEAT(A83) 		8-98124-118-0 01 1 0911-1011 ● ●
113 BACK ASM; SEAT
CCC SPEC. - MODEL YEAR 2010(VZA) EXC. VINYL SEAT(A83) 		8-98168-297-0 01 1 1012-1306 ● ●
113 BACK ASM; SEAT
CCC SPEC. - MODEL YEAR 2010(VZA) EXC. VINYL SEAT(A83) 		8-98168-297-0 01 1 1307-1312 ●
113 BACK ASM; SEAT
CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) EXC. VINYL SEAT(A83) 		8-98168-297-0 01 1 1307-1312 ●
113 BACK ASM; SEAT
CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) EXC. VINYL SEAT(A83) 		8-98168-297-0 01 1 1401- ● ●
113 BACK ASM; SEAT
VINYL SEAT(A83) 		1-75208-241-2 01 1 0603-0910 ● ●
113 BACK ASM; SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75208-241-2 01 1 0911-1306 ● ●
113 BACK ASM; SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75208-241-2 01 1 1307-1312 ●
113 BACK ASM; SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75208-241-2 01 1 1307-1312 ●
113 BACK ASM; SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75208-241-2 01 1 1401- ● ●
113 BACK ASM; SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98124-119-0 01 1 0911-1306 ● ●
113 BACK ASM; SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98124-119-0 01 1 1307-1312 ●
113 BACK ASM; SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98124-119-0 01 1 1307-1312 ●
113 BACK ASM; SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98124-119-0 01 1 1401- ● ●
113 BACK ASM; SEAT
EXC. VINYL SEAT(A83) 		1-75207-654-2 01 1 0603-0910 ● ●
113 BACK ASM; SEAT
EXC. VINYL SEAT(A83),CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75207-654-2 01 1 0911-1011 ● ●
113 BACK ASM; SEAT
EXC. VINYL SEAT(A83),CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-275-0 01 1 1012-1306 ● ●
113 BACK ASM; SEAT
EXC. VINYL SEAT(A83),CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-275-0 01 1 1307-1312 ●
113 BACK ASM; SEAT
EXC. VINYL SEAT(A83),CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-275-0 01 1 1307-1312 ●
113 BACK ASM; SEAT
EXC. VINYL SEAT(A83),CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-275-0 01 1 1401- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
CCC SPEC. - MODEL YEAR 2010(VZA) EXC. VINYL SEAT(A83) 		8-98124-122-0 01 1 0911-1011 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
CCC SPEC. - MODEL YEAR 2010(VZA) EXC. VINYL SEAT(A83) 		8-98168-298-0 01 1 1012-1306 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
CCC SPEC. - MODEL YEAR 2010(VZA) EXC. VINYL SEAT(A83) 		8-98168-298-0 01 1 1307-1312 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) EXC. VINYL SEAT(A83) 		8-98168-298-0 01 1 1307-1312 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) EXC. VINYL SEAT(A83) 		8-98168-298-0 01 1 1401- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) 		1-75116-742-1 01 1 0603-0910 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75116-742-1 01 1 0911-1306 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75116-742-1 01 1 1307-1312 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75116-742-1 01 1 1307-1312 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75116-742-1 01 1 1401- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98124-123-0 01 1 0911-1306 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98124-123-0 01 1 1307-1312 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98124-123-0 01 1 1307-1312 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98124-123-0 01 1 1401- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. VINYL SEAT(A83) 		1-75127-173-1 01 1 0603-0910 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. VINYL SEAT(A83),CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75127-173-1 01 1 0911-1011 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. VINYL SEAT(A83),CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-292-0 01 1 1012-1306 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. VINYL SEAT(A83),CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-292-0 01 1 1307-1312 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. VINYL SEAT(A83),CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-292-0 01 1 1307-1312 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. VINYL SEAT(A83),CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-292-0 01 1 1401- ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) 		1-75207-367-1 01 1 0603- ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. VINYL SEAT(A83) 		1-75207-642-1 01 1 0603-1011 ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. VINYL SEAT(A83) 		8-98168-127-0 01 1 1012- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-133-1 01 1 0603- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. VINYL SEAT(A83) 		1-75127-162-1 01 1 0603-1011 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. VINYL SEAT(A83) 		8-98168-140-0 01 1 1012- ● ●
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0603- ● ●
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97867-020-0 01 1 0603- ● ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0603- ● ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0603- ● ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0603-0703 ● ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ●
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0603-1305 ● ●
136 STAND; PASSENGER SEAT 8-98242-299-0 01 1 1306- ● ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0603-0703 ● ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-0910 ● ●
228 SCREW; KNOB
CCC SPEC. - MODEL YEAR 2010(VZA) DRIVER M4 		8-98062-662-0 01 1 0911-1011 ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1012-1306 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) DRIVER M4 		8-98062-662-0 01 1 1012-1306 ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) DRIVER M4 		8-98062-662-0 01 1 1307-1312 ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1307-1312 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) DRIVER M4 		8-98062-662-0 01 1 1307-1312 ●
228 SCREW; KNOB
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) DRIVER M4 		8-98062-662-0 01 1 1307-1312 ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) DRIVER M4 		8-98062-662-0 01 1 1401- ● ●
228 SCREW; KNOB
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) DRIVER M4 		8-98062-662-0 01 1 1401- ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1401- ● ●
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0603-0710 ● ●
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0603-0710 ● ●
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711-0910 ● ●
228 SCREW; KNOB
EXC. CCC SPEC. - MODEL YEAR 2010(VZA) PASSENGER M4X6 		8-97042-273-0 01 1 0911-1011 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) PASSENGER M4X6 		8-97042-273-0 01 1 1012-1306 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) PASSENGER M4X6 		8-97042-273-0 01 1 1307-1312 ●
228 SCREW; KNOB
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) PASSENGER M4X6 		8-97042-273-0 01 1 1307-1312 ●
228 SCREW; KNOB
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) PASSENGER M4X6 		8-97042-273-0 01 1 1401- ● ●

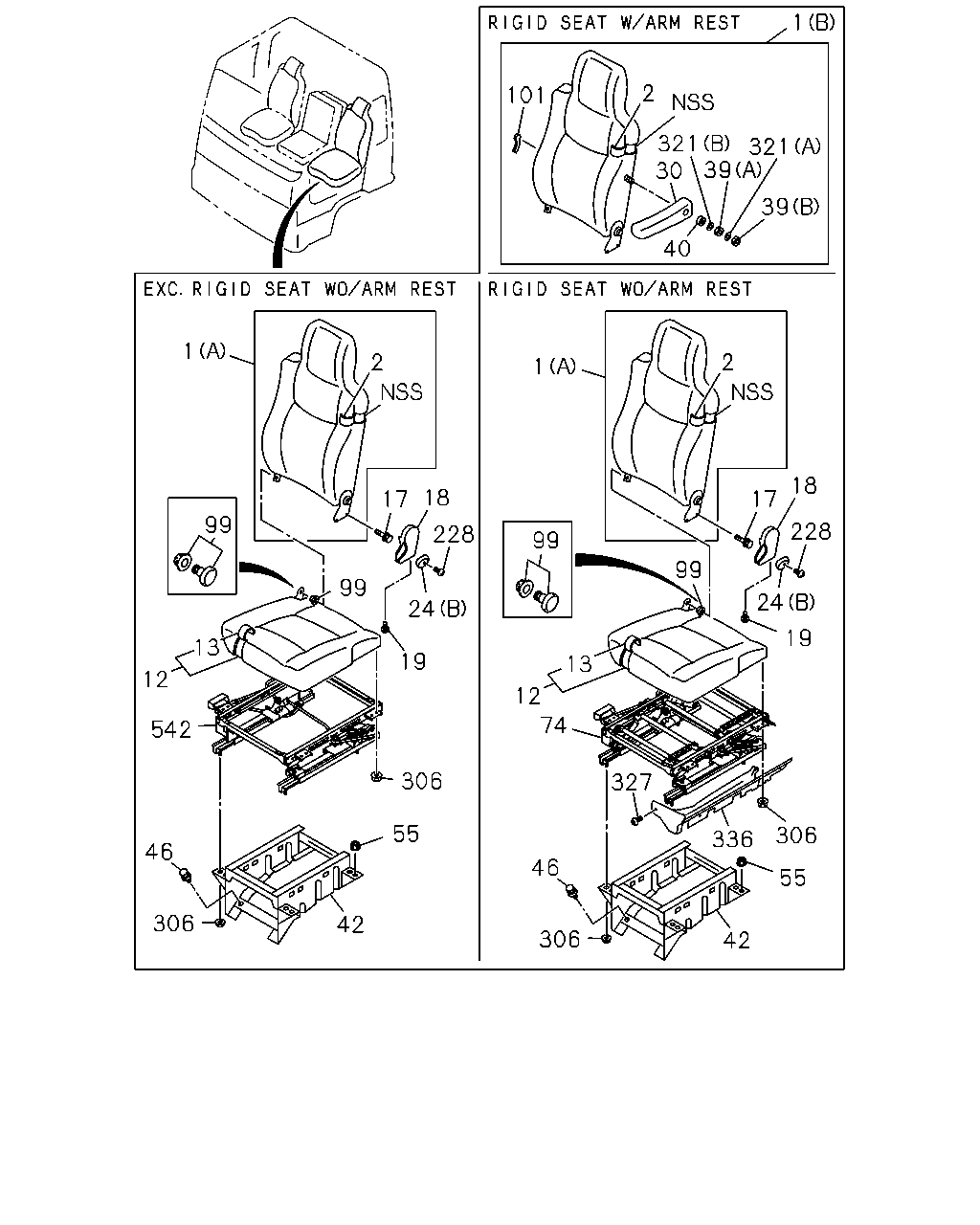

çizim 177344
101 2 321 321 39 39 40 30 1 2 18 17 99 228 24 19 13 99 12 74 327 46 306 42 306 55 336 55 42 306 306 46 542 42 99 13 99 1 2 17 18 24 19 228 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) (B) 		8-98124-116-0 01 1 0911-1011 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) (B) 		8-98168-073-0 01 1 1012-1306 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) (B) 		8-98168-073-0 01 1 1307-1312 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (B) 		8-98168-073-0 01 1 1307-1312 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (B) 		8-98168-073-0 01 1 1401- ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75207-648-2 01 1 0810-0901 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		8-98135-637-0 01 1 0902-0910 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (B) 		8-98135-637-0 01 1 0911-1011 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (B) 		8-98168-065-0 01 1 1012-1306 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (B) 		8-98168-065-0 01 1 1307-1312 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (B) 		8-98168-065-0 01 1 1307-1312 ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (B) 		8-98168-065-0 01 1 1401- ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) (A) 		1-75207-728-2 01 1 0603-0901 ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) (A) 		8-98135-638-0 01 1 0902-0910 ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		8-98135-638-0 01 1 0911-1306 ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		8-98135-638-0 01 1 1307-1312 ●
1 BACK ASM; SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) 		8-98135-638-0 01 1 1307-1312 ●
1 BACK ASM; SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) 		8-98135-638-0 01 1 1401- ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		8-98124-117-0 01 1 0911-1306 ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		8-98124-117-0 01 1 1307-1312 ●
1 BACK ASM; SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) 		8-98124-117-0 01 1 1307-1312 ●
1 BACK ASM; SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) 		8-98124-117-0 01 1 1401- ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98124-120-0 01 1 0911-1011 ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-090-0 01 1 1012-1306 ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-090-0 01 1 1307-1312 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-090-0 01 1 1307-1312 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-090-0 01 1 1401- ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-167-1 01 1 0810-0910 ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75127-167-1 01 1 0911-1011 ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-084-0 01 1 1012-1306 ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98168-084-0 01 1 1307-1312 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-084-0 01 1 1307-1312 ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98168-084-0 01 1 1401- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) 		1-75127-183-1 01 1 0603-0910 ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75127-183-1 01 1 0911-1306 ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75127-183-1 01 1 1307-1312 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75127-183-1 01 1 1307-1312 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75127-183-1 01 1 1401- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98124-121-0 01 1 0911-1306 ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98124-121-0 01 1 1307-1312 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98124-121-0 01 1 1307-1312 ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98124-121-0 01 1 1401- ● ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-640-2 01 1 0810-1011 ● ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-98168-044-0 01 1 1012- ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) 		1-75207-006-3 01 1 0603- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-160-2 01 1 0810-1011 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-98168-075-0 01 1 1012- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-104-1 01 1 0603- ● ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0603- ● ●
18 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 0603- ● ●
19 SCREW; COVER
RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 0603- ● ●
19 SCREW; COVER
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0603- ● ●
24 KNOB; RECLINING,FRT,SEAT
CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		1-75418-066-0 01 1 0911-1306 ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. VINYL SEAT(A83) (A) 		1-75418-066-0 01 1 1307-1312 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) (A) 		1-75418-066-0 01 1 1307-1312 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) 		1-75418-066-0 01 1 1307-1312 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) 		1-75418-066-0 01 1 1401- ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. VINYL SEAT(A83) (A) 		1-75418-066-0 01 1 1401- ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0603-0710 ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 0711- ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0603-0910 ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (A) DARK GRAY 		8-97867-021-0 01 1 0911-1011 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (A) DARK GRAY 		8-97867-021-0 01 1 1012-1306 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) (A) DARK GRAY 		8-97867-021-0 01 1 1307-1312 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) DARK GRAY 		8-97867-021-0 01 1 1307-1312 ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) (A) DARK GRAY 		8-97867-021-0 01 1 1401- ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-175-1 01 1 0810-0910 ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75127-175-1 01 1 0911-1306 ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		1-75127-175-1 01 1 1307-1312 ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75127-175-1 01 1 1307-1312 ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		1-75127-175-1 01 1 1401- ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98147-307-0 01 1 0911-1306 ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA) 		8-98147-307-0 01 1 1307-1312 ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98147-307-0 01 1 1307-1312 ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		8-98147-307-0 01 1 1401- ● ●
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) M8 		1-75147-657-0 01 1 0810- ● ●
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) M10 		9-09110-410-0 01 1 0810- ● ●
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-94285-921-0 02 1 0810- ● ●
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 0603- ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0603-0703 ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0603-0703 ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-331-3 01 1 0603-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		8-98291-646-0 01 1 1503- ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0603- ● ●
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0902-0910 ● ●
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		5-75190-138-0 01 1 0911-1306 ● ●
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) 		5-75190-138-0 01 1 1307-1312 ●
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		5-75190-138-0 01 1 1307-1312 ●
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) 		5-75190-138-0 01 1 1401- ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-0910 ● ●
228 SCREW; KNOB
CCC SPEC. - MODEL YEAR 2010(VZA) DRIVER M4 		8-98062-662-0 01 1 0911-1011 ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1012-1306 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) DRIVER M4 		8-98062-662-0 01 1 1012-1306 ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) DRIVER M4 		8-98062-662-0 01 1 1307-1312 ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1307-1312 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA) DRIVER M4 		8-98062-662-0 01 1 1307-1312 ●
228 SCREW; KNOB
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) DRIVER M4 		8-98062-662-0 01 1 1307-1312 ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) DRIVER M4 		8-98062-662-0 01 1 1401- ● ●
228 SCREW; KNOB
VINYL SEAT(A83) CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) DRIVER M4 		8-98062-662-0 01 1 1401- ● ●
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1401- ● ●
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0603-0710 ● ●
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0603-0710 ● ●
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711-0910 ● ●
228 SCREW; KNOB
EXC. CCC SPEC. - MODEL YEAR 2010(VZA) PASSENGER M4X6 		8-97042-273-0 01 1 0911-1011 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) PASSENGER M4X6 		8-97042-273-0 01 1 1012-1306 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA) PASSENGER M4X6 		8-97042-273-0 01 1 1307-1312 ●
228 SCREW; KNOB
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) PASSENGER M4X6 		8-97042-273-0 01 1 1307-1312 ●
228 SCREW; KNOB
VINYL SEAT(A83) EXC. CCC SPEC. - MODEL YEAR 2010(VZA),VIN MODEL YEAR 2013(VZD) PASSENGER M4X6 		8-97042-273-0 01 1 1401- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0603- ● ●
306 NUT; SEAT ADJ
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0603- ● ●
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) ID=10.5 OD=22 		9-09160-610-0 01 1 0810- ● ●
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) ID=8.4 OD=22 		9-09164-708-0 01 1 0810- ● ●
327 CLIP; COVER
RIGID SEAT WO/ARM REST(TAZ) 		1-09987-273-0 01 1 0603- ● ●
336 COVER; DRIVER SEAT
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-313-0 01 1 0603- ● ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) 		1-75518-283-3 01 1 0603-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) 		8-98291-656-0 01 1 1503- ● ●

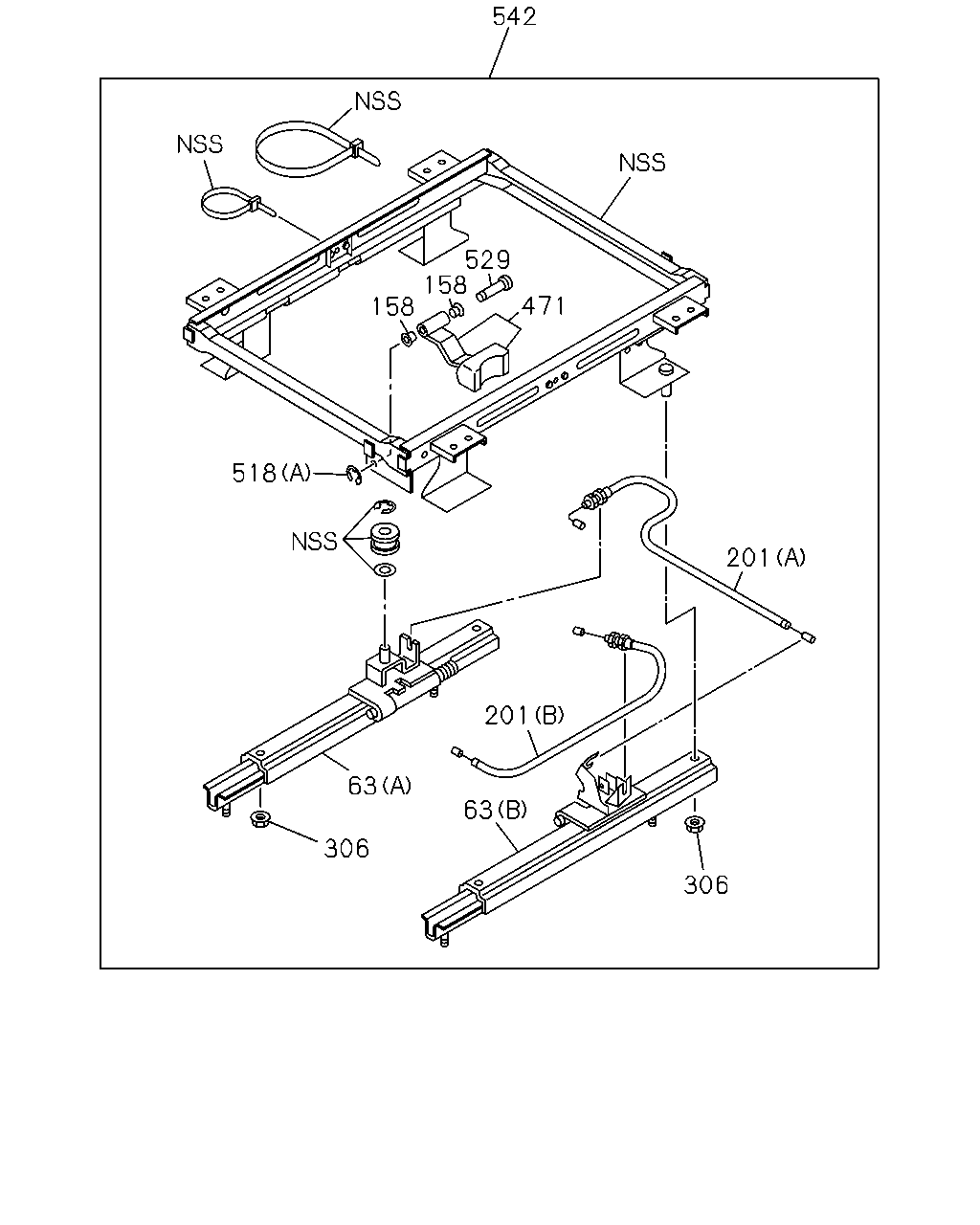

çizim 177393
542 529 158 471 158 518 201 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date A B
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-227-1 01 1 0603- ● ●
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-324-0 01 1 0603- ● ●
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-295-1 01 1 0603- ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0603- ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0603- ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0603- ● ●
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0603- ● ●
306 NUT; SEAT ADJ
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0603- ● ●
471 LEVER; SEAT ADJ 1-75518-290-0 01 1 0603-0710 ● ●
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 0711- ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0603- ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (C) M8 		1-75518-264-0 04 1 0603- ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0603- ● ●
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (B) M8 FLANGE 		8-94152-886-0 04 1 0603- ● ●
529 PIN; LINK 1-75518-262-0 01 1 0603- ● ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) 		1-75518-283-3 01 1 0603-1502 ● ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT(A83) EXC. RIGID SEAT WO/ARM REST(TAZ) 		8-98291-656-0 01 1 1503- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
