Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#35562) — 148 parça

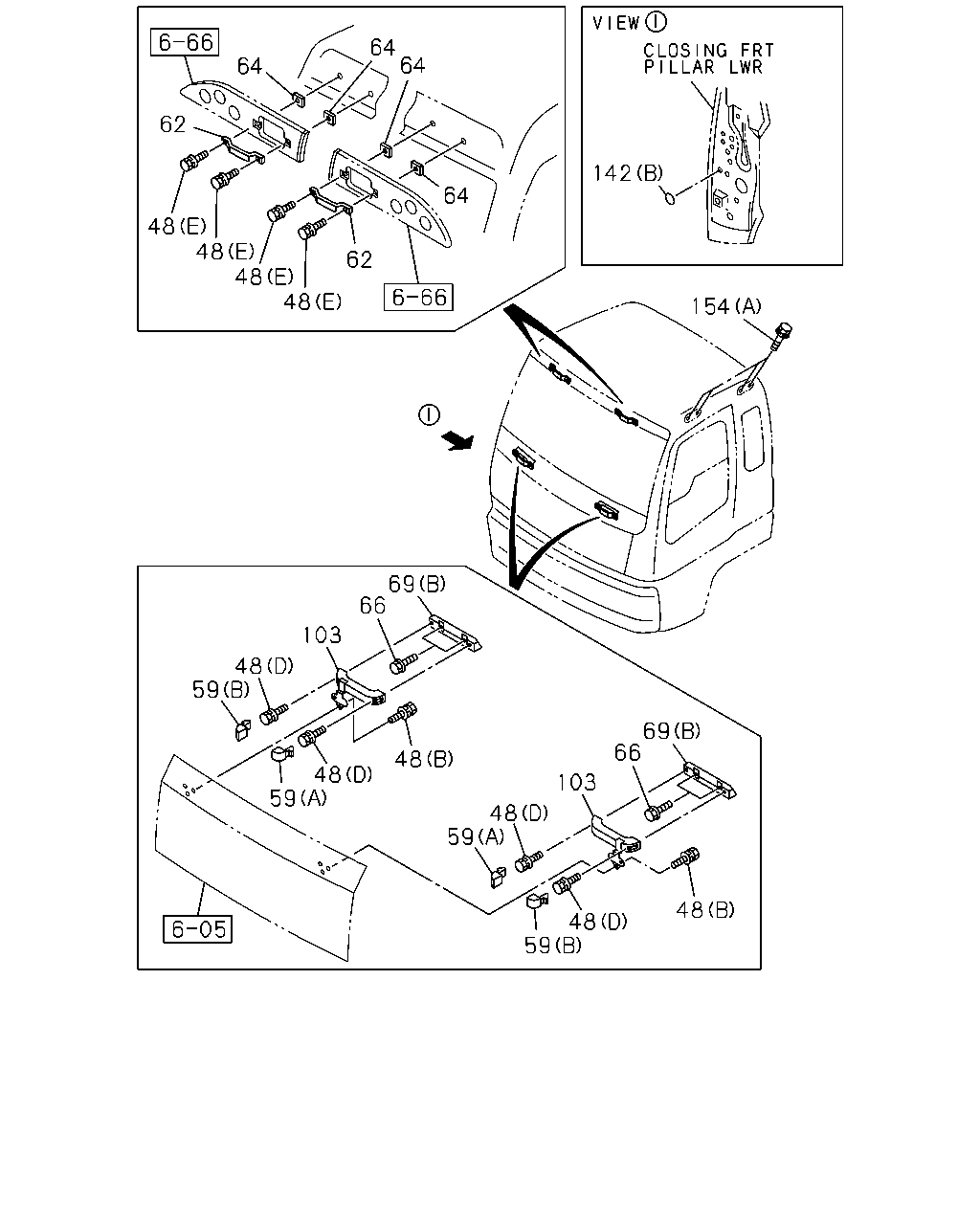

64 64 64 62 142 64 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0709-	●	●
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0603-0708	●	●
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0709-0809	●	●
48	BOLT; ASSIST GRIP EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,SAUDI ARABIA EQUIPMENT(WH1), CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0810-0811	●	●
48	BOLT; ASSIST GRIP EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>,SAUDI ARABIA EQUIPMENT(WH1),CH INA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0812-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0603-	●	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0603-	●	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0603-0708	●	●
48	BOLT; ASSIST GRIP CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0603-0708	●	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0709-0809	●	●
48	BOLT; ASSIST GRIP SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0709-0809	●	●
48	BOLT; ASSIST GRIP RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0810-0811	●	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0810-0811	●	●
48	BOLT; ASSIST GRIP SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0810-0811	●	●
48	BOLT; ASSIST GRIP RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-	●	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-	●	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-	●	●
48	BOLT; ASSIST GRIP SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0603-0904	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0603-	●	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0603-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0603-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0603-	●	●
62	GRIP; ASSIST,ROOF PANEL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA EQUIPMENT(YT2)	1-71907-492-0	01	1	0603-0708	●	●
62	GRIP; ASSIST,ROOF PANEL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-71907-492-0	01	1	0709-0809	●	●
62	GRIP; ASSIST,ROOF PANEL EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,SAUDI ARABIA EQUIPMENT(WH1), CHINA EQUIPMENT(YT2)	1-71907-492-0	01	1	0810-0811	●	●
62	GRIP; ASSIST,ROOF PANEL EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>,SAUDI ARABIA EQUIPMENT(WH1),CH INA EQUIPMENT(YT2)	1-71907-492-0	01	1	0812-0907	●	●
62	GRIP; ASSIST,ROOF PANEL EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>,SAUDI ARABIA EQUIPMENT(WH1),CH INA EQUIPMENT(YT2)	8-97630-819-0	01	1	0908-	●	●
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0603-0708	●	●
62	GRIP; ASSIST,ROOF PANEL CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0603-0708	●	●
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0709-0809	●	●
62	GRIP; ASSIST,ROOF PANEL SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0709-0809	●	●
62	GRIP; ASSIST,ROOF PANEL RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37>	1-71907-492-0	02	1	0810-0811	●	●
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0810-0811	●	●
62	GRIP; ASSIST,ROOF PANEL SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0810-0811	●	●
62	GRIP; ASSIST,ROOF PANEL RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37>	1-71907-492-0	02	1	0812-0907	●	●
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0812-0907	●	●
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>	1-71907-492-0	02	1	0812-0907	●	●
62	GRIP; ASSIST,ROOF PANEL SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0812-0907	●	●
62	GRIP; ASSIST,ROOF PANEL RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37>	8-97630-819-0	02	1	0908-	●	●
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	8-97630-819-0	02	1	0908-	●	●
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>	8-97630-819-0	02	1	0908-	●	●
62	GRIP; ASSIST,ROOF PANEL SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	8-97630-819-0	02	1	0908-	●	●
64	SHEET; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	02	1	0603-0708	●	●
64	SHEET; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	02	1	0709-0809	●	●
64	SHEET; ASSIST GRIP EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,SAUDI ARABIA EQUIPMENT(WH1), CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	02	1	0810-0811	●	●
64	SHEET; ASSIST GRIP EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>,SAUDI ARABIA EQUIPMENT(WH1),CH INA EQUIPMENT(YT2) 25X25	8-94272-533-0	02	1	0812-	●	●
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0603-0708	●	●
64	SHEET; ASSIST GRIP CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0603-0708	●	●
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0709-0809	●	●
64	SHEET; ASSIST GRIP SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0709-0809	●	●
64	SHEET; ASSIST GRIP RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> 25X25	8-94272-533-0	04	1	0810-0811	●	●
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0810-0811	●	●
64	SHEET; ASSIST GRIP SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0810-0811	●	●
64	SHEET; ASSIST GRIP RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> 25X25	8-94272-533-0	04	1	0812-	●	●
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0812-	●	●
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> 25X25	8-94272-533-0	04	1	0812-	●	●
64	SHEET; ASSIST GRIP SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0812-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0603-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0603-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0603-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0603-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0603-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0603-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0603-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71997-691-1	01	1	0709-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	0709-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0603-	●	●
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	0603-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0603-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0603-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0603-	●	●

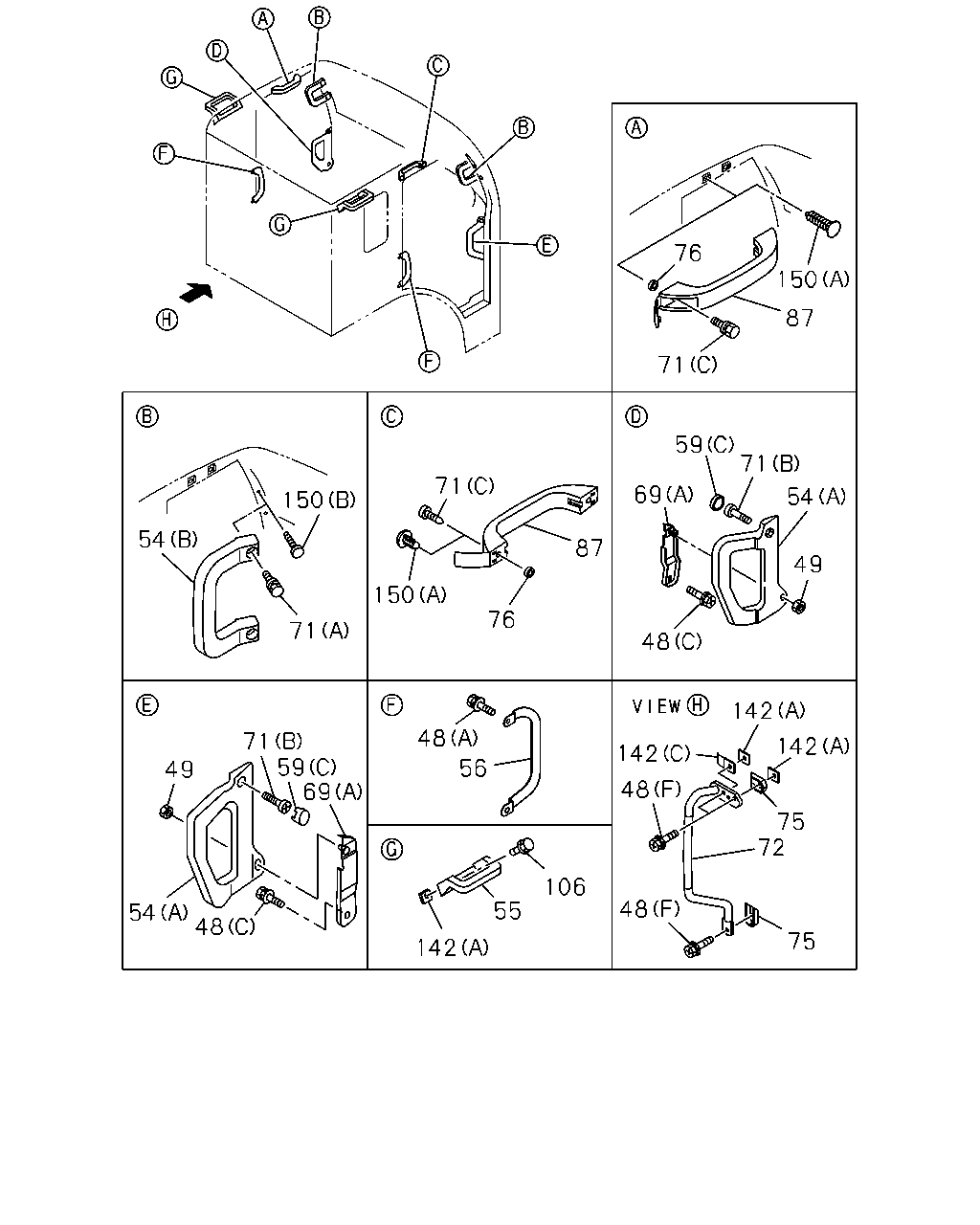

76 150 87 71 59 71 71 69 54 150 54 87 49 150 76 71 48 142 48 71 59 69 142 142 56 49 48 75 72 106 48 55 54 48 75 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0709-	●	●
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0603-0708	●	●
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0709-0809	●	●
48	BOLT; ASSIST GRIP EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,SAUDI ARABIA EQUIPMENT(WH1), CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0810-0811	●	●
48	BOLT; ASSIST GRIP EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>,SAUDI ARABIA EQUIPMENT(WH1),CH INA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0812-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0603-	●	●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0603-	●	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0603-0708	●	●
48	BOLT; ASSIST GRIP CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0603-0708	●	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0709-0809	●	●
48	BOLT; ASSIST GRIP SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0709-0809	●	●
48	BOLT; ASSIST GRIP RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0810-0811	●	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0810-0811	●	●
48	BOLT; ASSIST GRIP SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0810-0811	●	●
48	BOLT; ASSIST GRIP RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-	●	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-	●	●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-	●	●
48	BOLT; ASSIST GRIP SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0603-0904	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0603-	●	●
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	0709-1006	●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0603-	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0603-	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0603-	●	●
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0603-	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0603-	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0603-0804	●	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-	●	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0603-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0603-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0603-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0603-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0603-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0603-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0603-	●	●
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0603-	●	●
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0603-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	0603-	●	●
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0603-	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-545-0	01	1	0709-1006	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-543-0	01	1	1007-	●	●
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	0709-	●	●
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> OD=13 T=4.5	8-94230-464-1	04	1	0603-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0603-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0603-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71997-691-1	01	1	0709-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	0709-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0603-	●	●
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	0603-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0603-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0603-	●	●

18 12 154 158 1 154 19 19 19 154 19 18 154 34 154 26 154 155 33 26 33 34 23 23 34

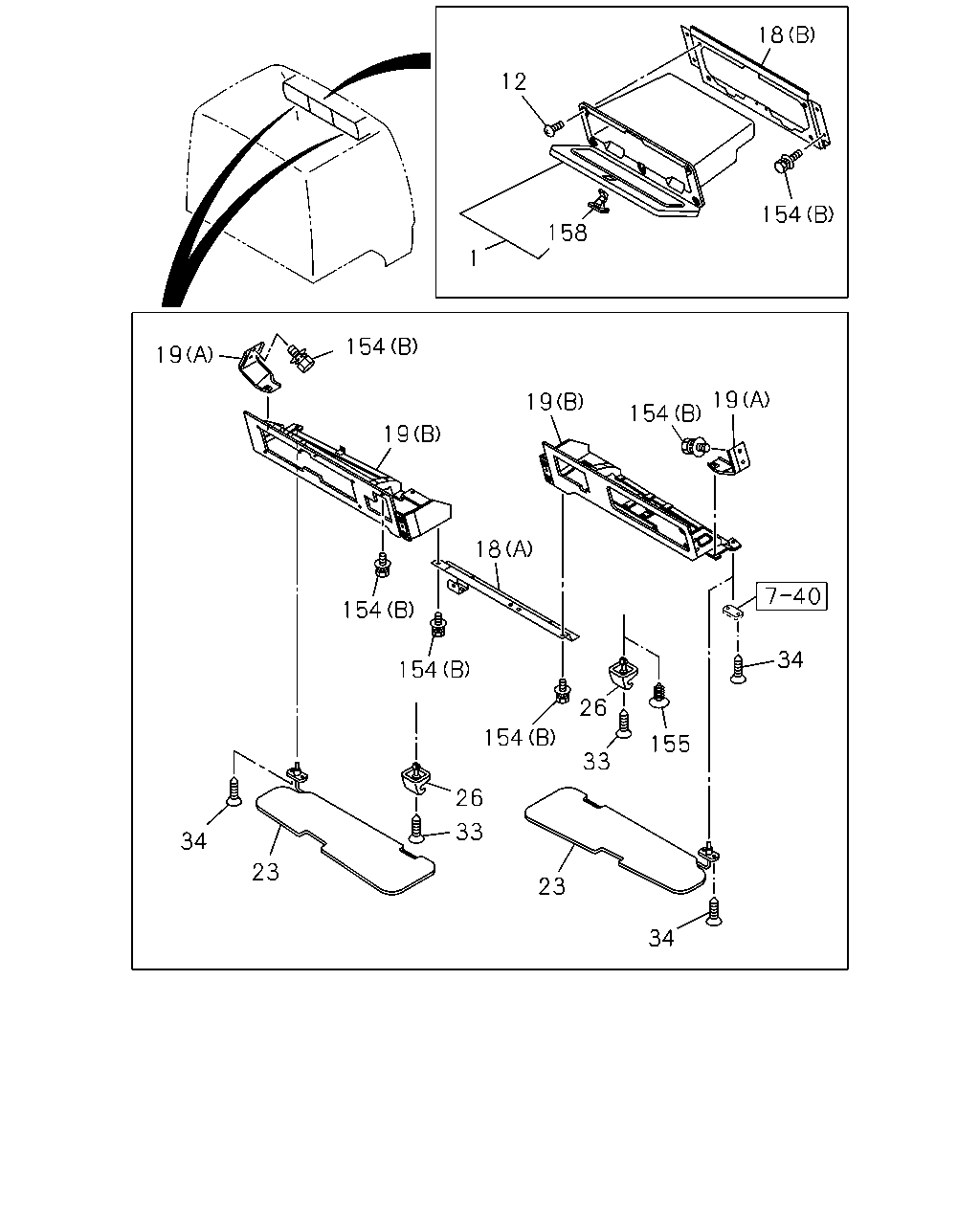

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF	1-72447-968-0	01	1	0603-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0603-	●	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0603-	●	●
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	0603-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0603-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-938-4	01	1	0603-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0603-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0603-	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0603-	●	●
23	SUN VISOR	1-73138-157-1	01	1	0603-	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0603-	●	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0603-	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0603-0603	●	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0603-0603	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-	●	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0603-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0603-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0603-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0603-	●	●
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0603-	●	●
158	LOCK; HEADER SHELF	1-72538-312-0	01	1	0603-	●	●
