7-40 — INSTRUMENT PANEL AND BOX (#35561) — 184 parça

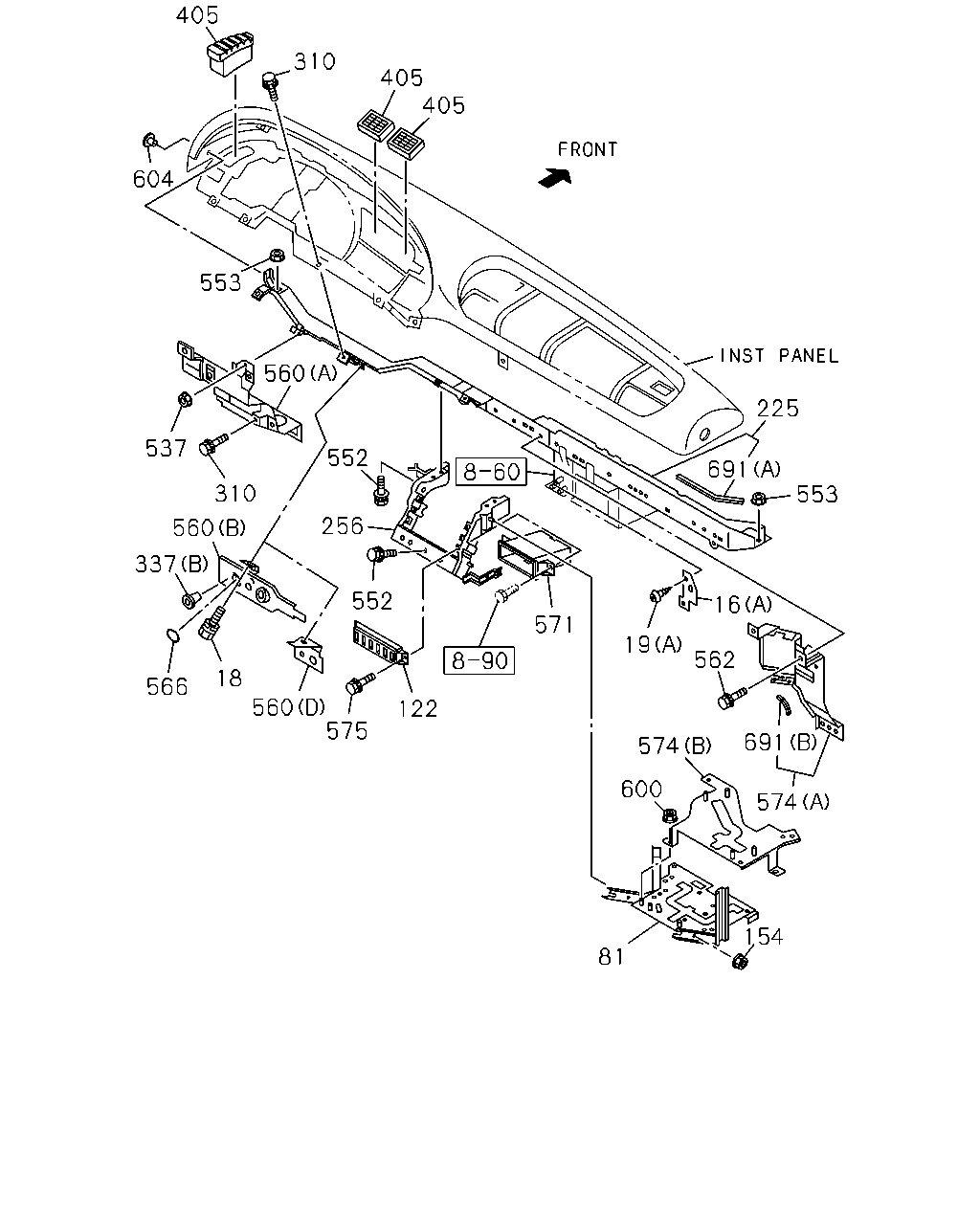

çizim 177290
81 154 574 691 600 574 562 16 19 553 225 691 571 122 575 560 18 566 337 560 310 256 552 552 560 537 553 604 405 310 405 405
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 0603- ● ●
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 0603- ● ●
18 BOLT; BRKT
ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1307-1312 ●
18 BOLT; BRKT
ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1401- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0603-0709 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0603-0709 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1306 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0710-1306 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1307-1312 ●
18 BOLT; BRKT
EXC. ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1307-1312 ●
18 BOLT; BRKT
EXC. ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1401- ● ●
19 SCREW; BRKT
ECE R29<EFE> (C) M6X16 		8-94479-534-0 04 1 1307-1312 ●
19 SCREW; BRKT
ECE R29<EFE> (C) M6X16 		8-94479-534-0 04 1 1401- ● ●
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 0603- ● ●
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 0603- ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-648-4 01 1 0603- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0603- ● ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0603-0603 ● ●
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
225 FRAME; FACIA
ECE R29<EFE> 		8-98228-413-1 01 1 1307-1312 ●
225 FRAME; FACIA
ECE R29<EFE> 		8-98228-413-1 01 1 1401- ● ●
225 FRAME; FACIA 1-65671-727-5 01 1 0603-1306 ● ●
225 FRAME; FACIA 1-65671-727-5 01 1 1307-1312 ●
225 FRAME; FACIA
EXC. ECE R29<EFE> 		1-65671-727-5 01 1 1307-1312 ●
225 FRAME; FACIA
EXC. ECE R29<EFE> 		1-65671-727-5 01 1 1401- ● ●
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 0603- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0603- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 1307-1312 ●
337 FASTENER; COVER
EXC. ECE R29<EFE> (A) 		1-72438-124-2 03 1 1307-1312 ●
337 FASTENER; COVER
EXC. ECE R29<EFE> (A) 		1-72438-124-2 03 1 1401- ● ●
337 FASTENER; COVER
ECE R29<EFE> (A) 		1-72438-124-2 02 1 1307-1312 ●
337 FASTENER; COVER
ECE R29<EFE> (A) 		1-72438-124-2 02 1 1401- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 0603-1306 ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1307- ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0603- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0603- ● ●
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 0603- ● ●
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 0603- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0603-0603 ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0603- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0603-0603 ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
560 BRACKET
ECE R29<EFE> (D) 		8-98222-027-1 01 1 1307-1312 ●
560 BRACKET
ECE R29<EFE> (D) 		8-98222-027-1 01 1 1401- ● ●
560 BRACKET
ECE R29<EFE> (C) 		8-98222-028-1 01 1 1307-1312 ●
560 BRACKET
ECE R29<EFE> (C) 		8-98222-028-1 01 1 1401- ● ●
560 BRACKET
SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-65681-243-0 01 1 0709- ● ●
560 BRACKET
(A) 		1-65681-216-0 01 1 0603-0708 ● ●
560 BRACKET
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-65681-216-0 01 1 0709- ● ●
560 BRACKET
(B) 		1-65681-217-1 01 1 0603-1306 ● ●
560 BRACKET
(B) 		1-65681-217-1 01 1 1307-1312 ●
560 BRACKET
EXC. ECE R29<EFE> (B) 		1-65681-217-1 01 1 1307-1312 ●
560 BRACKET
EXC. ECE R29<EFE> (B) 		1-65681-217-1 01 1 1401- ● ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0603- ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0603- ● ●
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0603- ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0603-0708 ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0709-0805 ● ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0709-0805 ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0806-0806 ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0806-0806 ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0807- ● ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 0807- ● ●
574 PANEL; RELAY BOX
(A) 		1-73907-407-3 01 1 0603-0703 ● ●
574 PANEL; RELAY BOX
(A) 		1-73907-737-2 01 1 0704- ● ●
574 PANEL; RELAY BOX
(B) 		1-73907-647-3 01 1 0603-1108 ● ●
574 PANEL; RELAY BOX
(B) 		8-98183-937-0 01 1 1109- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0603- ● ●
600 NUT; PANEL
M6 FLANGE 		0-91150-106-0 03 1 0603-0603 ● ●
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 0603- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0603- ● ●
691 FINISHER; HARNESS PROTECTOR
(B) L=50 		8-94270-377-1 01 1 1006- ● ●
691 FINISHER; HARNESS PROTECTOR
(A) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0603- ● ●

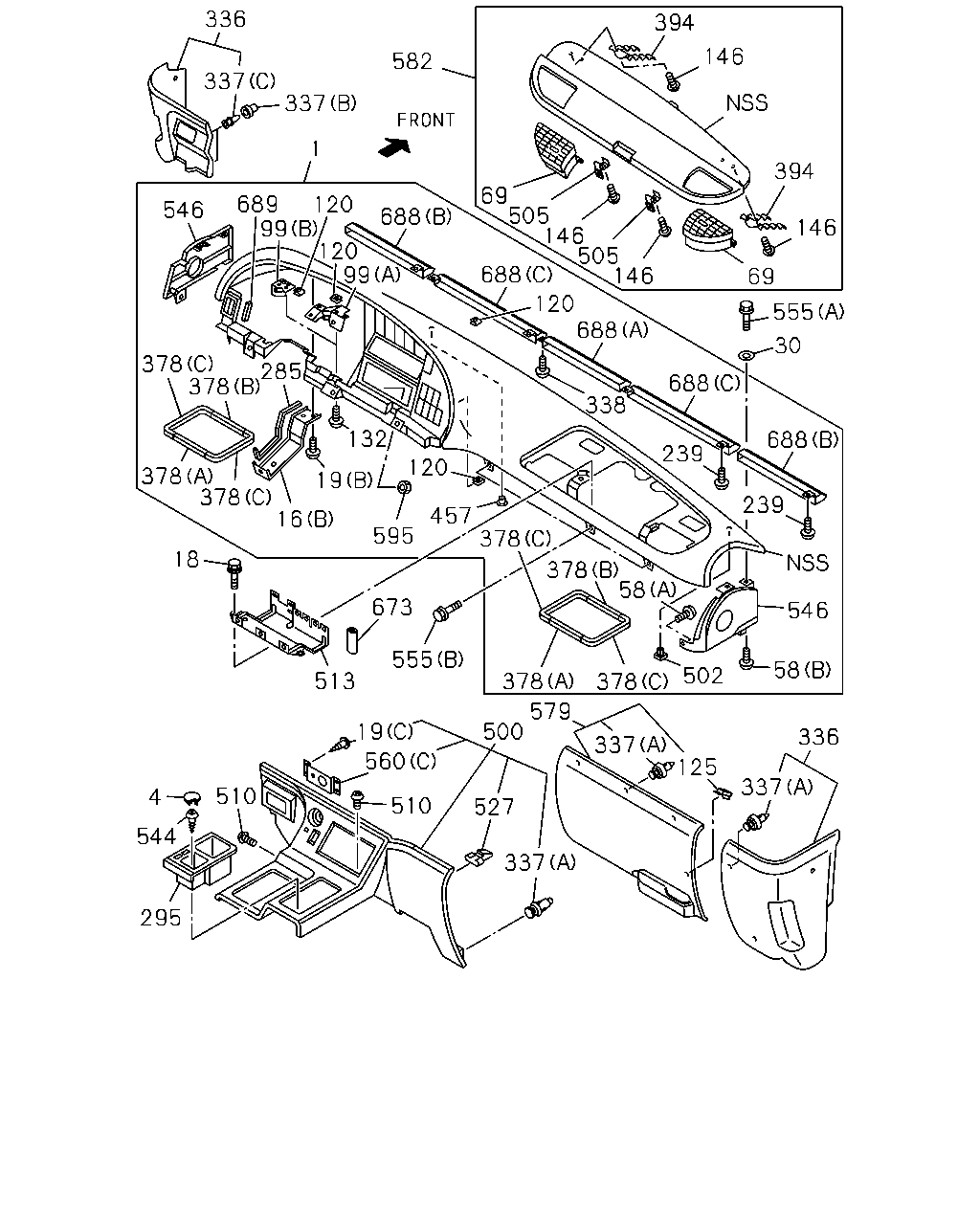

çizim 177299
336 337 582 688 120 1 337 689 546 99 120 99 688 505 69 120 146 688 146 505 555 69 146 394 146 394 688 688 30 239 546 58 336 337 125 337 579 378 378 502 58 378 378 457 595 19 16 132 338 239 510 560 19 527 337 500 555 673 513 18 510 4 544 295 378 378 378 378 285 120
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST 1-72317-352-9 01 1 0603-0603 ● ●
1 PANEL; INST 1-72317-370-2 01 1 0604- ● ●
4 COVER; INST PNL 1-72537-106-0 01 1 0603- ● ●
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 0603- ● ●
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 0603- ● ●
18 BOLT; BRKT
ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1307-1312 ●
18 BOLT; BRKT
ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1401- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0603-0709 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0603-0709 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1306 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0710-1306 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1307-1312 ●
18 BOLT; BRKT
EXC. ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1307-1312 ●
18 BOLT; BRKT
EXC. ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1401- ● ●
19 SCREW; BRKT
ECE R29<EFE> (C) M6X16 		8-94479-534-0 04 1 1307-1312 ●
19 SCREW; BRKT
ECE R29<EFE> (C) M6X16 		8-94479-534-0 04 1 1401- ● ●
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 0603- ● ●
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 0603- ● ●
30 WASHER; PL,INST PAD
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0603-0811 ● ●
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		9-07066-310-0 01 1 0603-0603 ● ●
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		0-71040-310-0 01 1 0604- ● ●
58 SCREW; INST PANEL
(B) M5X12 TAPPING 		9-07076-512-0 06 1 0603- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0603- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0603- ● ●
99 BRACKET; METER MTG,INST PNL
(A) 		1-72317-361-1 01 1 0603- ● ●
99 BRACKET; METER MTG,INST PNL
(B) 		1-72317-362-2 01 1 0603- ● ●
120 NUT; SPIRE,INST PNL
M5 		1-09984-196-0 09 1 0603- ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0603- ● ●
132 SCREW; BRKT,INST PANEL
M5X12 TAPPING 		9-07076-512-0 04 1 0603- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0603- ● ●
239 SCREW; DEFROSTER
M5X12 TAPPING 		9-07076-512-0 10 1 0603- ● ●
285 FINISHER; INST PANEL
L=190 SERVICED BY L=314 		8-94262-845-0 02 1 0603- ● ●
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 0603- ● ●
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0603- ● ●
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0603- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 1307-1312 ●
337 FASTENER; COVER
EXC. ECE R29<EFE> (A) 		1-72438-124-2 03 1 1307-1312 ●
337 FASTENER; COVER
EXC. ECE R29<EFE> (A) 		1-72438-124-2 03 1 1401- ● ●
337 FASTENER; COVER
ECE R29<EFE> (A) 		1-72438-124-2 02 1 1307-1312 ●
337 FASTENER; COVER
ECE R29<EFE> (A) 		1-72438-124-2 02 1 1401- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 0603-1306 ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1307- ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0603- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0603- ● ●
338 SCREW; COVER
M5X12 TAPPING 		9-07076-512-0 02 1 0603- ● ●
378 SEAL; INST PANEL
(A) 		1-72437-672-2 02 1 0603- ● ●
378 SEAL; INST PANEL
(B) 		1-72437-673-0 02 1 0603- ● ●
378 SEAL; INST PANEL
(C) 		1-72437-674-0 04 1 0603- ● ●
394 HOLDER; PANEL 1-72558-048-0 02 1 0603- ● ●
457 PLATE; INST PANEL 1-72317-363-2 08 1 0603- ● ●
500 CLUSTER; INST CENTER
ECE R29<EFE> 		8-98222-024-0 01 1 1307-1312 ●
500 CLUSTER; INST CENTER
ECE R29<EFE> 		8-98222-024-0 01 1 1401- ● ●
500 CLUSTER; INST CENTER 1-72437-642-1 01 1 0603-1306 ● ●
500 CLUSTER; INST CENTER 1-72437-642-1 01 1 1307-1312 ●
500 CLUSTER; INST CENTER
EXC. ECE R29<EFE> 		1-72437-642-1 01 1 1307-1312 ●
500 CLUSTER; INST CENTER
EXC. ECE R29<EFE> 		1-72437-642-1 01 1 1401- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER 8-94430-318-1 04 1 0603- ● ●
505 LOCK; LID 1-72558-024-2 02 1 0603- ● ●
510 SCREW; CENTER CLUSTER
ECE R29<EFE> M6X16 		8-94479-534-0 03 1 1307-1312 ●
510 SCREW; CENTER CLUSTER
ECE R29<EFE> M6X16 		8-94479-534-0 03 1 1401- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0603-1306 ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1307-1312 ●
510 SCREW; CENTER CLUSTER
EXC. ECE R29<EFE> M6X16 		8-94479-534-0 02 1 1307-1312 ●
510 SCREW; CENTER CLUSTER
EXC. ECE R29<EFE> M6X16 		8-94479-534-0 02 1 1401- ● ●
513 BRACKET; RELAY 8-97865-168-3 01 1 0603- ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 0603- ● ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0603- ● ●
546 PANEL; INST,SUB 1-72317-354-4 01 1 0603- ● ●
546 PANEL; INST,SUB 1-72317-355-4 01 1 0603- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0603-0604 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0603- ● ●
560 BRACKET
ECE R29<EFE> (D) 		8-98222-027-1 01 1 1307-1312 ●
560 BRACKET
ECE R29<EFE> (D) 		8-98222-027-1 01 1 1401- ● ●
560 BRACKET
ECE R29<EFE> (C) 		8-98222-028-1 01 1 1307-1312 ●
560 BRACKET
ECE R29<EFE> (C) 		8-98222-028-1 01 1 1401- ● ●
560 BRACKET
SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-65681-243-0 01 1 0709- ● ●
560 BRACKET
(A) 		1-65681-216-0 01 1 0603-0708 ● ●
560 BRACKET
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-65681-216-0 01 1 0709- ● ●
560 BRACKET
(B) 		1-65681-217-1 01 1 0603-1306 ● ●
560 BRACKET
(B) 		1-65681-217-1 01 1 1307-1312 ●
560 BRACKET
EXC. ECE R29<EFE> (B) 		1-65681-217-1 01 1 1307-1312 ●
560 BRACKET
EXC. ECE R29<EFE> (B) 		1-65681-217-1 01 1 1401- ● ●
579 COVER; INST PNL 1-72438-195-1 01 1 0603- ● ●
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0603- ● ●
595 NUT; HOOK 1-72418-013-0 06 1 0603- ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0603- ● ●
688 NOZZLE; DEFROSTER
(A) 		1-76377-184-1 01 1 0603- ● ●
688 NOZZLE; DEFROSTER
(B) 		1-76378-335-2 01 1 0603- ● ●
688 NOZZLE; DEFROSTER
(B) 		1-76378-352-1 01 1 0603- ● ●
688 NOZZLE; DEFROSTER
(C) 		1-76378-378-6 01 1 0603- ● ●
688 NOZZLE; DEFROSTER
(C) 		1-76378-381-3 01 1 0603- ● ●
689 SEAL; INST 1-72317-364-0 01 1 0603- ● ●
çizim 177632
259 18 554
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1307-1312 ●
18 BOLT; BRKT
ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1401- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0603-0709 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0603-0709 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1306 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0710-1306 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1307-1312 ●
18 BOLT; BRKT
EXC. ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1307-1312 ●
18 BOLT; BRKT
EXC. ECE R29<EFE> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1401- ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0603- ● ●
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 0603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
