7-30 — LOCK CYLINDER SET (#35560) — 31 parça

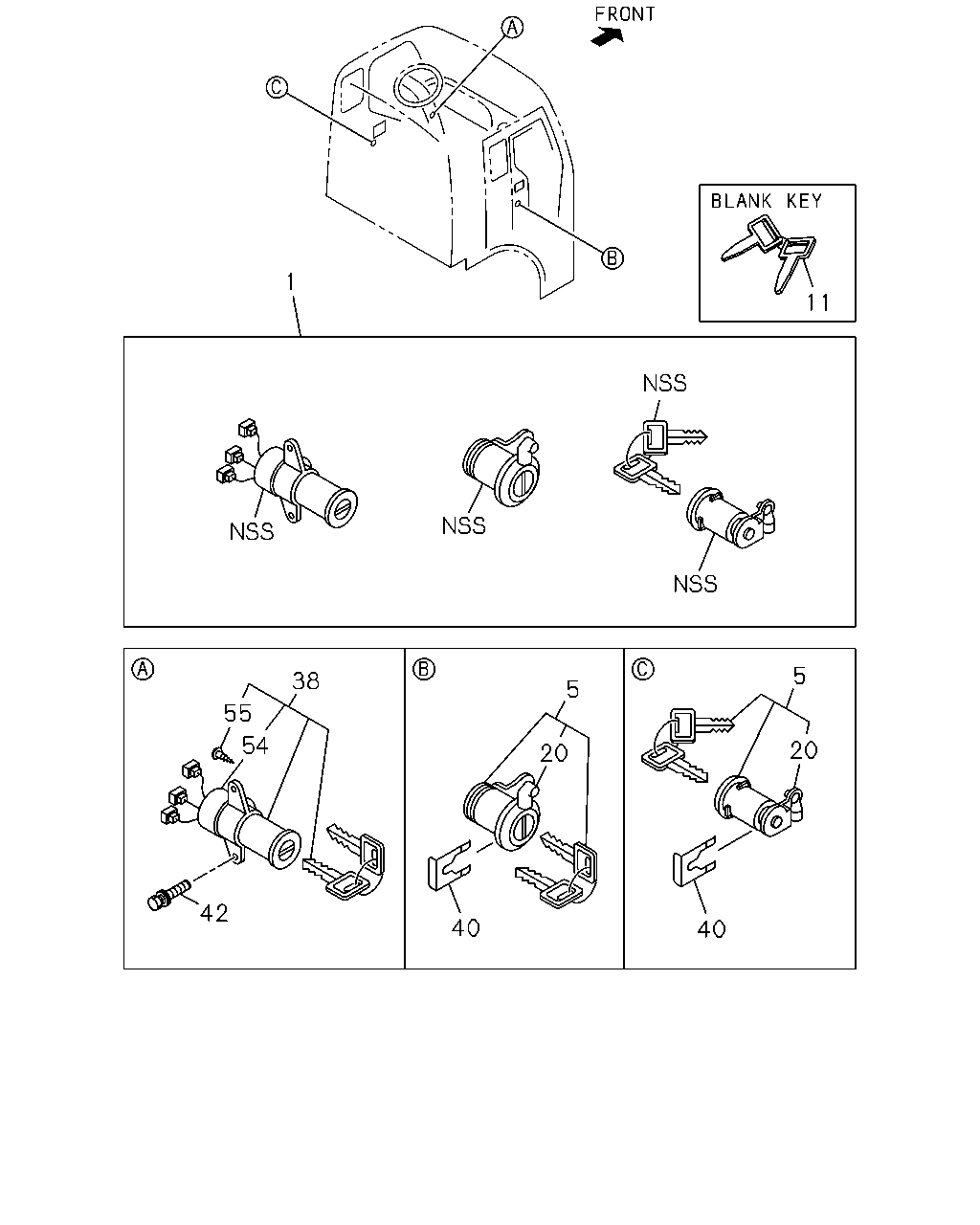

çizim 177282
1 11 5 38 5 55 54 20 20 42 40 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK
CHINA EQUIPMENT(YT2) EXC. CHEV BRAND PACKAGE<PS2> 		8-98116-835-2 01 1 0805- ● ●
1 CYLINDER SET; CAR LOCK
CHEV BRAND PACKAGE<PS2> 		8-98100-923-1 01 1 0711- ● ●
1 CYLINDER SET; CAR LOCK 1-79138-199-4 01 1 0603-0710 ● ●
1 CYLINDER SET; CAR LOCK
EXC. CHEV BRAND PACKAGE<PS2> 		1-79138-199-4 01 1 0711-0804 ● ●
1 CYLINDER SET; CAR LOCK
EXC. CHEV BRAND PACKAGE<PS2>,CHINA EQUIPMENT(YT2) 		1-79138-199-5 01 1 0805- ● ●
5 CYLINDER ASM; DOOR LOCK
CHINA EQUIPMENT(YT2) EXC. CHEV BRAND PACKAGE<PS2> 		8-98116-836-0 01 1 0805- ● ●
5 CYLINDER ASM; DOOR LOCK
CHINA EQUIPMENT(YT2) EXC. CHEV BRAND PACKAGE<PS2> 		8-98116-837-0 01 1 0805- ● ●
5 CYLINDER ASM; DOOR LOCK
CHEV BRAND PACKAGE<PS2> 		8-98113-789-0 01 1 0711- ● ●
5 CYLINDER ASM; DOOR LOCK
CHEV BRAND PACKAGE<PS2> 		8-98113-790-0 01 1 0711- ● ●
5 CYLINDER ASM; DOOR LOCK 1-79138-202-2 01 1 0603-0710 ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. CHEV BRAND PACKAGE<PS2> 		1-79138-202-2 01 1 0711-0804 ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. CHEV BRAND PACKAGE<PS2>,CHINA EQUIPMENT(YT2) 		1-79138-202-2 01 1 0805- ● ●
5 CYLINDER ASM; DOOR LOCK 1-79138-203-2 01 1 0603-0710 ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. CHEV BRAND PACKAGE<PS2> 		1-79138-203-2 01 1 0711-0804 ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. CHEV BRAND PACKAGE<PS2>,CHINA EQUIPMENT(YT2) 		1-79138-203-2 01 1 0805- ● ●
11 KEY; BLANK
CHEV BRAND PACKAGE<PS2> 		8-98113-788-0 AR 1 0711- ● ●
11 KEY; BLANK
WO/RESIN 		1-79137-129-1 AR 1 0603-0710 ● ●
11 KEY; BLANK
EXC. CHEV BRAND PACKAGE<PS2> WO/RESIN 		1-79137-129-1 AR 1 0711- ● ●
11 KEY; BLANK
W/RESIN 		1-79137-130-1 AR 1 0603-0710 ● ●
11 KEY; BLANK
EXC. CHEV BRAND PACKAGE<PS2> W/RESIN 		1-79137-130-1 AR 1 0711- ● ●
20 SNAP; DOOR LOCK CYL
PINK 		1-79138-192-0 01 1 0603- ● ●
20 SNAP; DOOR LOCK CYL
GREEN 		1-79138-193-0 01 1 0603- ● ●
38 LOCK ASM; STRG
CHINA EQUIPMENT(YT2) EXC. CHEV BRAND PACKAGE<PS2> 		8-98116-838-1 01 1 0805- ● ●
38 LOCK ASM; STRG
CHEV BRAND PACKAGE<PS2> 		8-98113-791-1 01 1 0711- ● ●
38 LOCK ASM; STRG 1-79138-201-2 01 1 0603-0710 ● ●
38 LOCK ASM; STRG
EXC. CHEV BRAND PACKAGE<PS2> 		1-79138-201-2 01 1 0711-0804 ● ●
38 LOCK ASM; STRG
EXC. CHEV BRAND PACKAGE<PS2>,CHINA EQUIPMENT(YT2) 		1-79138-201-2 01 1 0805- ● ●
40 CLIP; CYL LK 1-79137-033-1 02 1 0603- ● ●
42 BOLT; STRG LOCK
M8X30 TORQUE SHEAR BOLT 		1-09980-621-1 02 1 0603- ● ●
54 SWITCH ASM; STRG LOCK CYL 1-79137-050-2 01 1 0603- ● ●
55 SCREW; SWITCH
M3X10 W/LK WASHER 		9-03910-310-0 02 1 0603- ● ●
