1-50A — EXHAUST PIPE AND SILENCER (#3556) — 284 parça

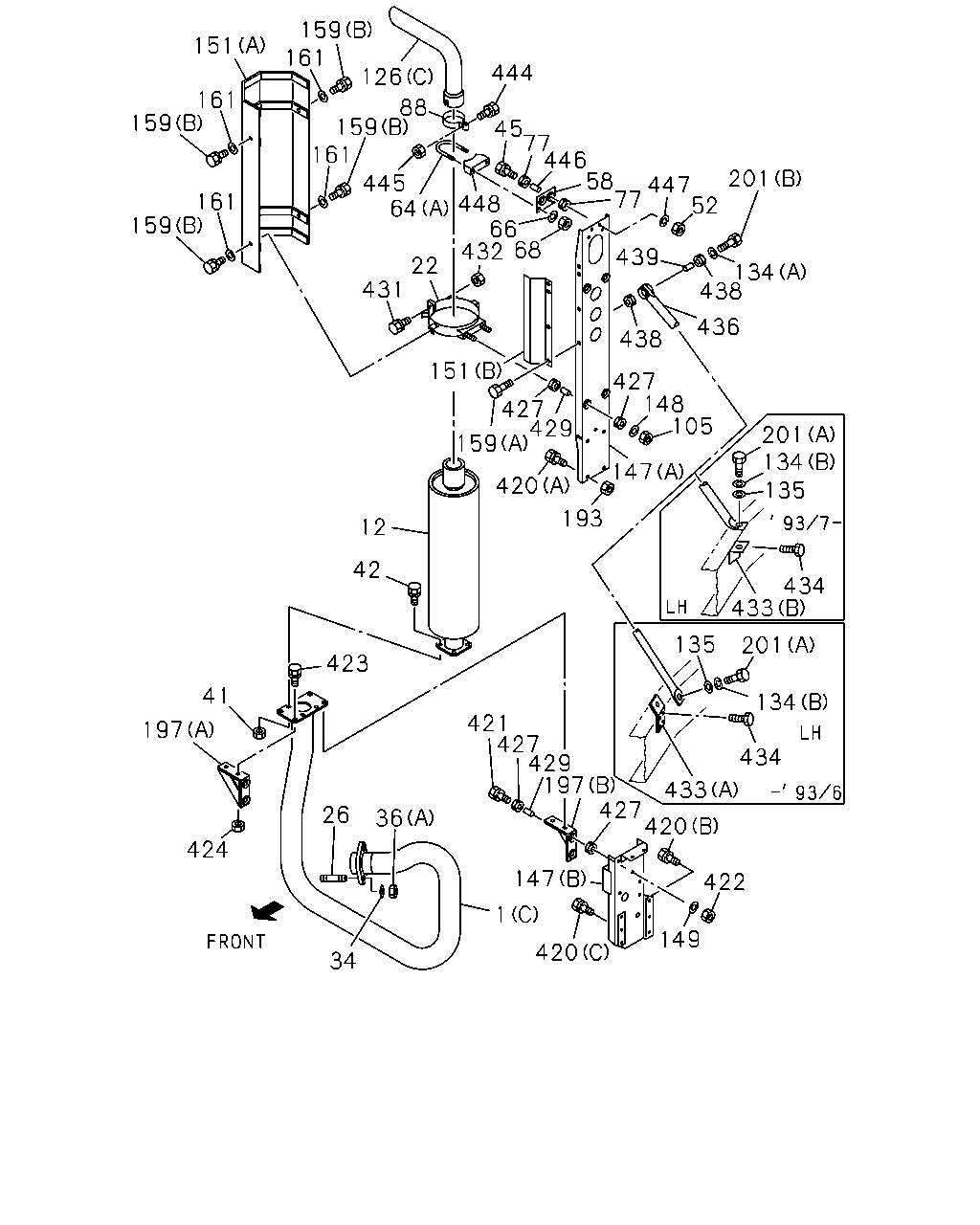

çizim 5049
159 161 151 444 126 161 159 88 159 161 45 77 446 58 447 77 52 201 445 64 448 66 161 159 439 22 134 438 431 436 438 151 427 148 105 427 429 201 134 135 159 147 420 193 12 42 434 433 135 201 423 41 134 421 427 429 197 427 420 197 434 433 26 36 424 147 422 1 149 420 34 432 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		1-22121-930-0 01 1 9002- ●
1 PIPE; EXH
(C) 		1-22122-081-1 01 1 9012-9306 ●
1 PIPE; EXH
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-22122-081-1 01 1 9307- ●
1 PIPE; EXH
TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-22121-553-3 01 1 9307- ●
1 PIPE; EXH
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-22122-417-0 01 1 9307- ●
12 SILENCER ASM; EXH 1-22140-626-2 01 1 9002-9103 ●
12 SILENCER ASM; EXH 1-22140-659-2 01 1 9104-9306 ●
12 SILENCER ASM; EXH 1-22140-754-1 01 1 9307- ●
12 SILENCER ASM; EXH 1-22140-641-2 01 1 9012-9103 ●
12 SILENCER ASM; EXH 1-22140-627-3 01 1 9104-9306 ●
12 SILENCER ASM; EXH
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-22140-763-0 01 1 9307- ●
12 SILENCER ASM; EXH
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-22140-756-1 01 1 9307- ●
22 CLAMP; EXH PIPE 1-22133-163-0 02 1 9002-9306 ● ●
22 CLAMP; EXH PIPE 1-22133-163-0 02 1 9307- ●
22 CLAMP; EXH PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-22133-163-0 02 1 9307- ●
26 STUD; EXH MANIF 1-09302-090-0 03 1 9002- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9002- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 9002- ● ●
36 NUT; EXH PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12 		9-99110-412-0 04 1 9307-9407 ●
36 NUT; EXH PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12 		9-99110-512-0 04 1 9408- ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 		9-99110-512-0 04 1 9002- ● ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X30 W/LK WASHER 		9-01911-230-0 04 1 9002-9005 ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9006-9306 ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9307- ●
42 BOLT; EXH PIPE TO EXH SILENCER
TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER 		0-50041-230-0 04 1 9307- ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X40 W/LK WASHER 		0-50041-240-0 04 1 9012-9306 ●
42 BOLT; EXH PIPE TO EXH SILENCER
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 W/LK WASHER 		0-50041-240-0 04 1 9307- ●
45 BOLT; BRKT
M10X50 		9-01056-050-0 02 1 9002-9004 ●
45 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 9005-9306 ● ●
45 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 9307- ●
45 BOLT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50 		0-10806-050-0 02 1 9307- ●
52 NUT; BRKT
M10 		9-09110-510-0 02 1 9307- ●
52 NUT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 		9-09110-510-0 02 1 9307- ●
52 NUT; BRKT
M10 		9-09110-510-0 02 1 9002-9306 ● ●
58 BRACKET; EXH PIPE,RR 1-22131-169-0 01 1 9002-9306 ● ●
58 BRACKET; EXH PIPE,RR 1-22131-169-0 01 1 9307- ●
58 BRACKET; EXH PIPE,RR
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-22131-169-0 01 1 9307- ●
64 U-BOLT; EXH PIPE,RR
(A) 		1-22113-063-1 01 1 9002-9306 ● ●
64 U-BOLT; EXH PIPE,RR
(A) 		1-22113-063-1 01 1 9307- ●
64 U-BOLT; EXH PIPE,RR
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-22113-063-1 01 1 9307- ●
64 U-BOLT; EXH PIPE,RR
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5 		1-22139-077-1 01 1 9307-9502 ●
64 U-BOLT; EXH PIPE,RR
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150 		1-22113-008-1 01 1 9503- ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 9002-9306 ● ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 9307- ●
66 WASHER; LK,U BOLT
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2 		9-09150-508-0 02 1 9307- ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 9002-9306 ● ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 9307- ●
68 NUT; U BOLT
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8 		9-09110-408-0 02 1 9307- ●
68 NUT; U BOLT
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 9307- ● ●
68 NUT; U BOLT
TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE 		0-91150-108-0 02 1 9307- ●
77 RUBBER; CUSHION,BRKT 1-22159-065-0 04 1 9002-9306 ● ●
77 RUBBER; CUSHION,BRKT
OD=40 		1-22159-094-0 04 1 9307- ●
77 RUBBER; CUSHION,BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40 		1-22159-094-0 04 1 9307- ●
88 CLAMP; EXH PIPE
ID=97 		1-22133-043-1 01 1 9002-9306 ● ●
88 CLAMP; EXH PIPE
ID=97 		1-22133-043-1 01 1 9307- ●
88 CLAMP; EXH PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97 		1-22133-043-1 01 1 9307- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9002-9306 ● ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL<NC2> M8 		9-09110-408-0 02 1 9307- ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL<NC2> M8 		9-09110-408-0 02 1 9307- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9307- ●
105 NUT; CLAMP
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 		9-09110-510-0 04 1 9307- ●
126 PIPE; EXH,RR
(C) 		1-22112-639-1 01 1 9307- ●
126 PIPE; EXH,RR
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-22112-639-1 01 1 9307- ●
126 PIPE; EXH,RR
(C) 		1-22112-639-1 01 1 9002-9306 ● ●
126 PIPE; EXH,RR
TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (D) 		1-22126-096-0 01 1 9307-9503 ●
126 PIPE; EXH,RR
TAIL PIPE SINGLE HORIZONTAL<NC2> (D) 		1-22126-096-0 01 1 9504- ●
134 WASHER; LK,STAY
(A) ID=10.2 		9-09150-510-0 01 1 9307- ●
134 WASHER; LK,STAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=10.2 		9-09150-510-0 01 1 9307- ●
134 WASHER; LK,STAY
(B) ID=14.2 		9-09150-614-0 01 1 9307- ●
134 WASHER; LK,STAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=14.2 		9-09150-614-0 01 1 9307- ●
134 WASHER; LK,STAY
(A) ID=10.2 		9-09150-510-0 01 1 9002-9306 ● ●
134 WASHER; LK,STAY
(B) ID=14.2 		9-09150-614-0 01 1 9002-9306 ● ●
135 WASHER; PL,STAY
ID=15 		9-09160-514-0 01 1 9002-9306 ● ●
135 WASHER; PL,STAY
ID=15 		9-09160-514-0 01 1 9307- ●
135 WASHER; PL,STAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=15 		9-09160-514-0 01 1 9307- ●
147 BRACKET; VERTICAL PIPE
(A) 		1-22151-408-5 01 1 9307- ●
147 BRACKET; VERTICAL PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-22151-408-5 01 1 9307- ●
147 BRACKET; VERTICAL PIPE
(A) 		1-22151-408-4 01 1 9002-9306 ● ●
147 BRACKET; VERTICAL PIPE
AIR DRYER<PS7> (B) 		1-22151-582-2 01 1 9002-9306 ● ●
147 BRACKET; VERTICAL PIPE
AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-22151-582-2 01 1 9307- ● ●
147 BRACKET; VERTICAL PIPE
EXC. AIR DRYER<PS7> (B) 		1-22151-518-4 01 1 9002-9306 ● ●
147 BRACKET; VERTICAL PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> AIR DRYER<PS7> (C) 		1-53497-365-2 01 1 9307-9312 ● ●
147 BRACKET; VERTICAL PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-53497-365-2 01 1 9401- ● ●
147 BRACKET; VERTICAL PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C) 		1-53497-330-2 01 1 9307-9312 ● ●
147 BRACKET; VERTICAL PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (B) 		1-22151-518-4 01 1 9307- ● ●
148 WASHER; LK,CLAMP
ID=10.2 		9-09150-510-0 04 1 9002-9306 ● ●
148 WASHER; LK,CLAMP
ID=10.2 		9-09150-510-0 04 1 9307- ●
148 WASHER; LK,CLAMP
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2 		9-09150-510-0 04 1 9307- ●
149 WASHER; LK,PIPE BRKT
ID=10.2 		9-09150-510-0 04 1 9002-9306 ● ●
149 WASHER; LK,PIPE BRKT
ID=10.2 		9-09150-510-0 04 1 9307- ●
149 WASHER; LK,PIPE BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2 		9-09150-510-0 04 1 9307- ●
151 PROTECTOR; HEAT,EXH PIPE
(A) 		1-22159-099-1 01 1 9307- ●
151 PROTECTOR; HEAT,EXH PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-22159-099-1 01 1 9307- ●
151 PROTECTOR; HEAT,EXH PIPE
(B) 		1-22159-104-2 01 1 9307- ●
151 PROTECTOR; HEAT,EXH PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-22159-104-2 01 1 9307- ●
151 PROTECTOR; HEAT,EXH PIPE
(A) 		1-22159-099-1 01 1 9002-9306 ● ●
151 PROTECTOR; HEAT,EXH PIPE
(B) 		1-22159-104-2 01 1 9002-9306 ● ●
159 BOLT; HEAT PROTECTOR
(B) M8X20 W/LK WASHER 		9-01910-820-0 08 1 9002-9005 ●
159 BOLT; HEAT PROTECTOR
(B) M8X20 W/LK WASHER 		0-50040-820-0 08 1 9006-9302 ● ●
159 BOLT; HEAT PROTECTOR
(B) M8X20 FLANGE 		0-28080-820-0 08 1 9303-9306 ● ●
159 BOLT; HEAT PROTECTOR
(B) M8X20 FLANGE 		0-28080-820-0 08 1 9307- ●
159 BOLT; HEAT PROTECTOR
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 FLANGE 		0-28080-820-0 08 1 9307- ●
159 BOLT; HEAT PROTECTOR
(A) M8X18 W/LK&PL WASHER 		0-50140-818-0 03 1 9307- ●
159 BOLT; HEAT PROTECTOR
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X18 W/LK&PL WASHER 		0-50140-818-0 03 1 9307- ●
159 BOLT; HEAT PROTECTOR
(A) M8X18 W/LK&PL WASHER 		9-01960-818-0 03 1 9002-9204 ● ●
159 BOLT; HEAT PROTECTOR
(A) M8X18 W/LK&PL WASHER 		0-50140-818-0 03 1 9205-9306 ● ●
161 WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=22 		9-09160-708-0 08 1 9002-9306 ● ●
161 WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=22 		9-09160-708-0 08 1 9307- ●
161 WASHER; PL,HEAT PROTECTOR
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22 		9-09160-708-0 08 1 9307- ●
193 NUT; BRKT,VERTICAL PIPE
M12 		9-99110-512-0 04 1 9002-9306 ● ●
193 NUT; BRKT,VERTICAL PIPE
M12 		9-99110-512-0 04 1 9307- ●
193 NUT; BRKT,VERTICAL PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12 		9-99110-512-0 04 1 9307- ●
197 BRACKET; EXH PIPE,VERTICAL
(B) REAR 		1-22151-405-2 01 1 9307- ●
197 BRACKET; EXH PIPE,VERTICAL
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) REAR 		1-22151-405-2 01 1 9307- ●
197 BRACKET; EXH PIPE,VERTICAL
(A) FRONT 		1-22151-409-2 01 1 9307- ●
197 BRACKET; EXH PIPE,VERTICAL
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) FRONT 		1-22151-409-2 01 1 9307- ●
197 BRACKET; EXH PIPE,VERTICAL
(B) REAR 		1-22151-405-2 01 1 9002-9306 ● ●
197 BRACKET; EXH PIPE,VERTICAL
(A) FRONT 		1-22151-409-2 01 1 9002-9306 ● ●
201 BOLT; STAY
(B) M10X50 		9-01056-050-0 01 1 9002-9004 ●
201 BOLT; STAY
(B) M10X50 		0-10806-050-0 01 1 9005-9306 ● ●
201 BOLT; STAY
(B) M10X50 		0-10806-050-0 01 1 9307- ●
201 BOLT; STAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50 		0-10806-050-0 01 1 9307- ●
201 BOLT; STAY
(A) M14X40 		9-92061-440-0 01 1 9307- ●
201 BOLT; STAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M14X40 		9-92061-440-0 01 1 9307- ●
201 BOLT; STAY
(A) M14X40 		9-92061-440-0 01 1 9002-9306 ● ●
420 BOLT; BRKT,VERTICAL PIPE
(A) M12X25 		9-01911-225-0 04 1 9002-9005 ●
420 BOLT; BRKT,VERTICAL PIPE
(A) M12X25 W/LK WASHER 		0-50041-225-0 04 1 9006-9306 ● ●
420 BOLT; BRKT,VERTICAL PIPE
(B) M12X32 W/LK WASHER 		9-01911-232-0 03 1 9002-9005 ●
420 BOLT; BRKT,VERTICAL PIPE
(B) M12X32 W/LK WASHER 		0-50041-232-0 03 1 9006-9306 ● ●
420 BOLT; BRKT,VERTICAL PIPE
(C) M12X45 		9-01911-245-0 03 1 9002-9005 ●
420 BOLT; BRKT,VERTICAL PIPE
(C) M12X45 W/LK WASHER 		0-50041-245-0 03 1 9006-9306 ● ●
420 BOLT; BRKT,VERTICAL PIPE
(A) M12X25 W/LK WASHER 		0-50041-225-0 04 1 9307- ●
420 BOLT; BRKT,VERTICAL PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M12X25 W/LK WASHER 		0-50041-225-0 04 1 9307- ●
420 BOLT; BRKT,VERTICAL PIPE
(B) M12X32 W/LK WASHER 		0-50041-232-0 03 1 9307- ●
420 BOLT; BRKT,VERTICAL PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X32 W/LK WASHER 		0-50041-232-0 03 1 9307- ●
420 BOLT; BRKT,VERTICAL PIPE
(C) M12X45 W/LK WASHER 		0-50041-245-0 03 1 9307- ●
420 BOLT; BRKT,VERTICAL PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M12X45 W/LK WASHER 		0-50041-245-0 03 1 9307- ●
421 BOLT; PIPE BRKT
M10X50 		9-01056-050-0 04 1 9002-9004 ●
421 BOLT; PIPE BRKT
M10X50 		0-10806-050-0 04 1 9005-9306 ● ●
421 BOLT; PIPE BRKT
M10X50 		0-10806-050-0 04 1 9307- ●
421 BOLT; PIPE BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50 		0-10806-050-0 04 1 9307- ●
422 NUT; PIPE
M10 		9-09110-510-0 04 1 9002-9306 ●
422 NUT; PIPE
M10 		9-09110-510-0 04 1 9307- ●
422 NUT; PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 		9-09110-510-0 04 1 9307- ●
423 BOLT; PIPE
M12X30 W/LK WASHER 		9-01911-230-0 04 1 9002-9005 ●
423 BOLT; PIPE
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9006-9306 ● ●
423 BOLT; PIPE
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9307- ●
423 BOLT; PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER 		0-50041-230-0 04 1 9307- ●
424 NUT; BRKT TO PIPE
M12 		9-99110-512-0 04 1 9307- ●
424 NUT; BRKT TO PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12 		9-99110-512-0 04 1 9307- ●
424 NUT; BRKT TO PIPE
M12 		9-99110-412-0 04 1 9002-9304 ● ●
424 NUT; BRKT TO PIPE
M12 		9-99110-512-0 04 1 9305-9306 ● ●
427 SUPPORT; CLAMP 1-22159-065-0 16 1 9002-9306 ● ●
427 SUPPORT; CLAMP
OD=40 		1-22159-094-0 16 1 9307- ●
427 SUPPORT; CLAMP
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40 		1-22159-094-0 16 1 9307- ●
429 COLLAR; DIST,SUPPORT
L=22 		9-22159-024-0 08 1 9002-9306 ● ●
429 COLLAR; DIST,SUPPORT
L=22 		9-22159-024-0 08 1 9307- ●
429 COLLAR; DIST,SUPPORT
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=22 		9-22159-024-0 08 1 9307- ●
431 BOLT; CLAMP
M10X40 		9-01901-040-0 02 1 9002-9204 ● ●
431 BOLT; CLAMP
M10X40 W/LK WASHER 		0-50041-040-0 02 1 9205-9306 ● ●
431 BOLT; CLAMP
M10X40 W/LK WASHER 		0-50041-040-0 02 1 9307- ●
431 BOLT; CLAMP
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 W/LK WASHER 		0-50041-040-0 02 1 9307- ●
432 NUT; CLAMP
M10 		9-09110-510-0 02 1 9307- ●
432 NUT; CLAMP
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 		9-09110-510-0 02 1 9307- ●
432 NUT; CLAMP
M10 		9-09110-510-0 02 1 9002-9306 ● ●
433 BRACKET; STAY,EXH PIPE
(A) 		1-22151-609-0 01 1 9002-9306 ● ●
433 BRACKET; STAY,EXH PIPE
(B) 		1-22151-532-0 01 1 9307- ●
433 BRACKET; STAY,EXH PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-22151-532-0 01 1 9307- ●
434 BOLT; BRKT
M10X35 W/LK WASHER 		9-01911-035-0 04 1 9002-9002 ●
434 BOLT; BRKT
M10X35 W/LK WASHER 		0-50041-035-0 04 1 9003-9306 ● ●
434 BOLT; BRKT
M10X35 W/LK WASHER 		0-50041-035-0 04 1 9307- ●
434 BOLT; BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X35 W/LK WASHER 		0-50041-035-0 04 1 9307- ●
436 STAY; SUPPORT,EXH 1-22151-608-0 01 1 9002-9306 ● ●
436 STAY; SUPPORT,EXH 1-22151-513-0 01 1 9307- ●
436 STAY; SUPPORT,EXH
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-22151-513-0 01 1 9307- ●
438 RUBBER; SUPPORT,STAY 1-22159-065-0 02 1 9002-9306 ● ●
438 RUBBER; SUPPORT,STAY
OD=40 		1-22159-094-0 02 1 9307- ●
438 RUBBER; SUPPORT,STAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40 		1-22159-094-0 02 1 9307- ●
439 TUBE; DIST,SUPPORT RUBBER
L=23.2 		9-22159-009-1 01 1 9002-9109 ● ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 9110-9306 ● ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 9307-9507 ●
439 TUBE; DIST,SUPPORT RUBBER
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=22 		9-22159-024-0 01 1 9307-9507 ●
439 TUBE; DIST,SUPPORT RUBBER
L=25 		1-14234-083-0 01 1 9508- ●
439 TUBE; DIST,SUPPORT RUBBER
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=25 		1-14234-083-0 01 1 9508- ●
444 BOLT; PIPE CLAMP
M10X40 		9-01901-040-0 01 1 9002-9204 ● ●
444 BOLT; PIPE CLAMP
M10X40 W/LK WASHER 		0-50041-040-0 01 1 9205-9306 ● ●
444 BOLT; PIPE CLAMP
M10X40 W/LK WASHER 		0-50041-040-0 01 1 9307- ●
444 BOLT; PIPE CLAMP
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 W/LK WASHER 		0-50041-040-0 01 1 9307- ●
445 NUT; PIPE CLAMP
M10 		9-09110-510-0 01 1 9307- ●
445 NUT; PIPE CLAMP
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 		9-09110-510-0 01 1 9307- ●
445 NUT; PIPE CLAMP
M10 		9-09110-510-0 01 1 9002-9306 ● ●
446 PIECE; DIST,EXH PIPE,RR
L=22 		9-22159-024-0 02 1 9002-9306 ● ●
446 PIECE; DIST,EXH PIPE,RR
L=22 		9-22159-024-0 02 1 9307- ●
446 PIECE; DIST,EXH PIPE,RR
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=22 		9-22159-024-0 02 1 9307- ●
447 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9002-9306 ● ●
447 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9307- ●
447 WASHER; LK,BRKT
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2 		9-09150-510-0 02 1 9307- ●
448 PIECE; DIST,U-BOLT 1-22113-064-0 01 1 9002-9306 ● ●
448 PIECE; DIST,U-BOLT 1-22113-064-0 01 1 9307- ●
448 PIECE; DIST,U-BOLT
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-22113-064-0 01 1 9307- ●

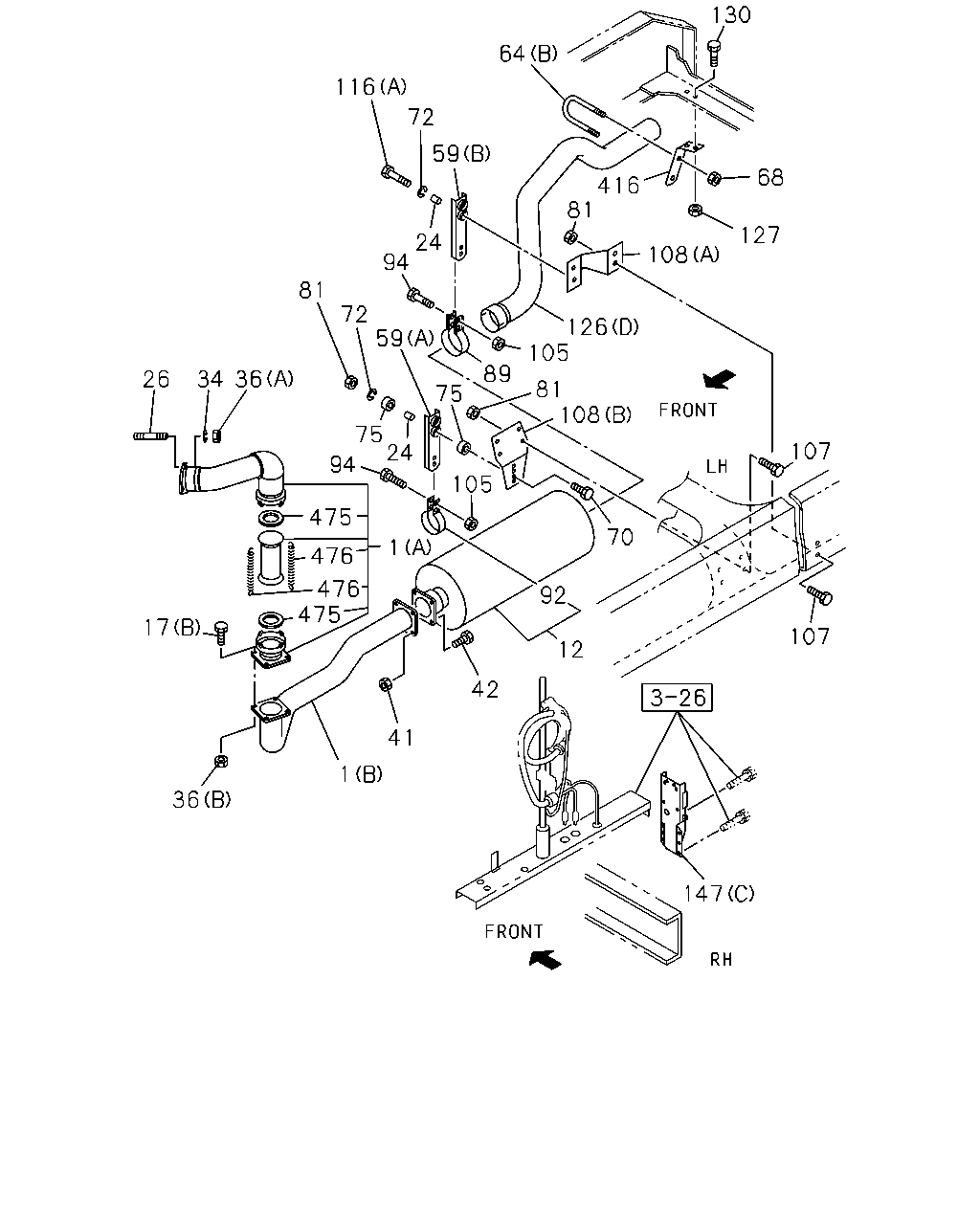

çizim 5272
130 64 116 72 59 68 416 81 127 24 94 108 81 72 59 126 105 89 26 34 36 75 81 108 75 24 105 107 94 475 70 1 476 476 475 92 17 107 12 42 41 1 36 147
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		1-22121-930-0 01 1 9002- ●
1 PIPE; EXH
(C) 		1-22122-081-1 01 1 9012-9306 ●
1 PIPE; EXH
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-22122-081-1 01 1 9307- ●
1 PIPE; EXH
TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-22121-553-3 01 1 9307- ●
1 PIPE; EXH
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-22122-417-0 01 1 9307- ●
12 SILENCER ASM; EXH 1-22140-626-2 01 1 9002-9103 ●
12 SILENCER ASM; EXH 1-22140-659-2 01 1 9104-9306 ●
12 SILENCER ASM; EXH 1-22140-754-1 01 1 9307- ●
12 SILENCER ASM; EXH 1-22140-641-2 01 1 9012-9103 ●
12 SILENCER ASM; EXH 1-22140-627-3 01 1 9104-9306 ●
12 SILENCER ASM; EXH
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-22140-763-0 01 1 9307- ●
12 SILENCER ASM; EXH
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-22140-756-1 01 1 9307- ●
17 BOLT; EXH PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER 		0-50041-230-0 08 1 9307- ●
24 COLLAR; DIST,CLAMP
TAIL PIPE SINGLE HORIZONTAL<NC2> L=22 		9-22159-024-0 04 1 9307- ●
26 STUD; EXH MANIF 1-09302-090-0 03 1 9002- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9002- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 9002- ● ●
36 NUT; EXH PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12 		9-99110-412-0 04 1 9307-9407 ●
36 NUT; EXH PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12 		9-99110-512-0 04 1 9408- ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 		9-99110-512-0 04 1 9002- ● ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X30 W/LK WASHER 		9-01911-230-0 04 1 9002-9005 ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9006-9306 ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9307- ●
42 BOLT; EXH PIPE TO EXH SILENCER
TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER 		0-50041-230-0 04 1 9307- ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X40 W/LK WASHER 		0-50041-240-0 04 1 9012-9306 ●
42 BOLT; EXH PIPE TO EXH SILENCER
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 W/LK WASHER 		0-50041-240-0 04 1 9307- ●
59 BRACKET; EXH SILENCER,FRT
TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-22151-379-0 01 1 9307- ●
59 BRACKET; EXH SILENCER,FRT
TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B) 		1-22151-504-0 01 1 9307-9503 ●
59 BRACKET; EXH SILENCER,FRT
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-22151-504-0 01 1 9504- ●
64 U-BOLT; EXH PIPE,RR
(A) 		1-22113-063-1 01 1 9002-9306 ● ●
64 U-BOLT; EXH PIPE,RR
(A) 		1-22113-063-1 01 1 9307- ●
64 U-BOLT; EXH PIPE,RR
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-22113-063-1 01 1 9307- ●
64 U-BOLT; EXH PIPE,RR
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5 		1-22139-077-1 01 1 9307-9502 ●
64 U-BOLT; EXH PIPE,RR
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150 		1-22113-008-1 01 1 9503- ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 9002-9306 ● ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 9307- ●
68 NUT; U BOLT
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8 		9-09110-408-0 02 1 9307- ●
68 NUT; U BOLT
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 9307- ● ●
68 NUT; U BOLT
TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE 		0-91150-108-0 02 1 9307- ●
70 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50 		0-10806-050-0 02 1 9307- ●
72 WASHER; LK,BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2 		9-09150-510-0 04 1 9307- ●
75 RUBBER; SUPPORT,BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40 		1-22159-094-0 08 1 9307- ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10 		9-09110-510-0 04 1 9307-9503 ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> M10 		9-09110-510-0 04 1 9504- ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10 		9-09110-510-0 06 1 9307-9503 ●
81 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> M10 		9-09110-510-0 06 1 9504- ●
89 CLAMP; EXH SILENCER,RR
TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> 		1-22133-172-2 01 1 9307- ●
92 CLAMP
TAIL PIPE SINGLE HORIZONTAL<NC2> D=101.4 		1-22133-170-1 01 1 9307- ●
94 BOLT; CLAMP
TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE 		0-28080-835-0 02 1 9307- ●
94 BOLT; CLAMP
TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE 		0-28080-835-0 02 1 9307- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9002-9306 ● ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL<NC2> M8 		9-09110-408-0 02 1 9307- ●
105 NUT; CLAMP
TAIL PIPE SINGLE HORIZONTAL<NC2> M8 		9-09110-408-0 02 1 9307- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9307- ●
105 NUT; CLAMP
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10 		9-09110-510-0 04 1 9307- ●
107 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> M10X30 W/LK WASHER 		0-50041-030-0 04 1 9307- ●
107 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9307-9503 ●
107 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9504- ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (A) 		1-22131-593-0 01 1 9307-9503 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-22131-593-0 01 1 9504- ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B) 		1-22151-660-0 01 1 9307-9503 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-22151-660-0 01 1 9504- ●
116 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50 		0-10806-050-0 02 1 9307- ●
126 PIPE; EXH,RR
(C) 		1-22112-639-1 01 1 9307- ●
126 PIPE; EXH,RR
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-22112-639-1 01 1 9307- ●
126 PIPE; EXH,RR
(C) 		1-22112-639-1 01 1 9002-9306 ● ●
126 PIPE; EXH,RR
TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (D) 		1-22126-096-0 01 1 9307-9503 ●
126 PIPE; EXH,RR
TAIL PIPE SINGLE HORIZONTAL<NC2> (D) 		1-22126-096-0 01 1 9504- ●
127 NUT; BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> M8 		9-09110-408-0 02 1 9307- ●
130 BOLT; BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE 		0-28080-830-0 02 1 9307- ●
147 BRACKET; VERTICAL PIPE
(A) 		1-22151-408-5 01 1 9307- ●
147 BRACKET; VERTICAL PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-22151-408-5 01 1 9307- ●
147 BRACKET; VERTICAL PIPE
(A) 		1-22151-408-4 01 1 9002-9306 ● ●
147 BRACKET; VERTICAL PIPE
AIR DRYER<PS7> (B) 		1-22151-582-2 01 1 9002-9306 ● ●
147 BRACKET; VERTICAL PIPE
AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-22151-582-2 01 1 9307- ● ●
147 BRACKET; VERTICAL PIPE
EXC. AIR DRYER<PS7> (B) 		1-22151-518-4 01 1 9002-9306 ● ●
147 BRACKET; VERTICAL PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> AIR DRYER<PS7> (C) 		1-53497-365-2 01 1 9307-9312 ● ●
147 BRACKET; VERTICAL PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-53497-365-2 01 1 9401- ● ●
147 BRACKET; VERTICAL PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. AIR DRYER<PS7> (C) 		1-53497-330-2 01 1 9307-9312 ● ●
147 BRACKET; VERTICAL PIPE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (B) 		1-22151-518-4 01 1 9307- ● ●
416 BRACKET; RR EXH PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> 		1-22131-592-0 01 1 9307-9503 ●
416 BRACKET; RR EXH PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-22131-592-0 01 1 9504- ●
475 BEARING; SEAL,VIBNON,EXH PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-22119-224-0 02 1 9307- ●
476 SPRING; VIBNON,EXH PIPE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-09583-248-0 04 1 9307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
