◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#35558) — 96 parça

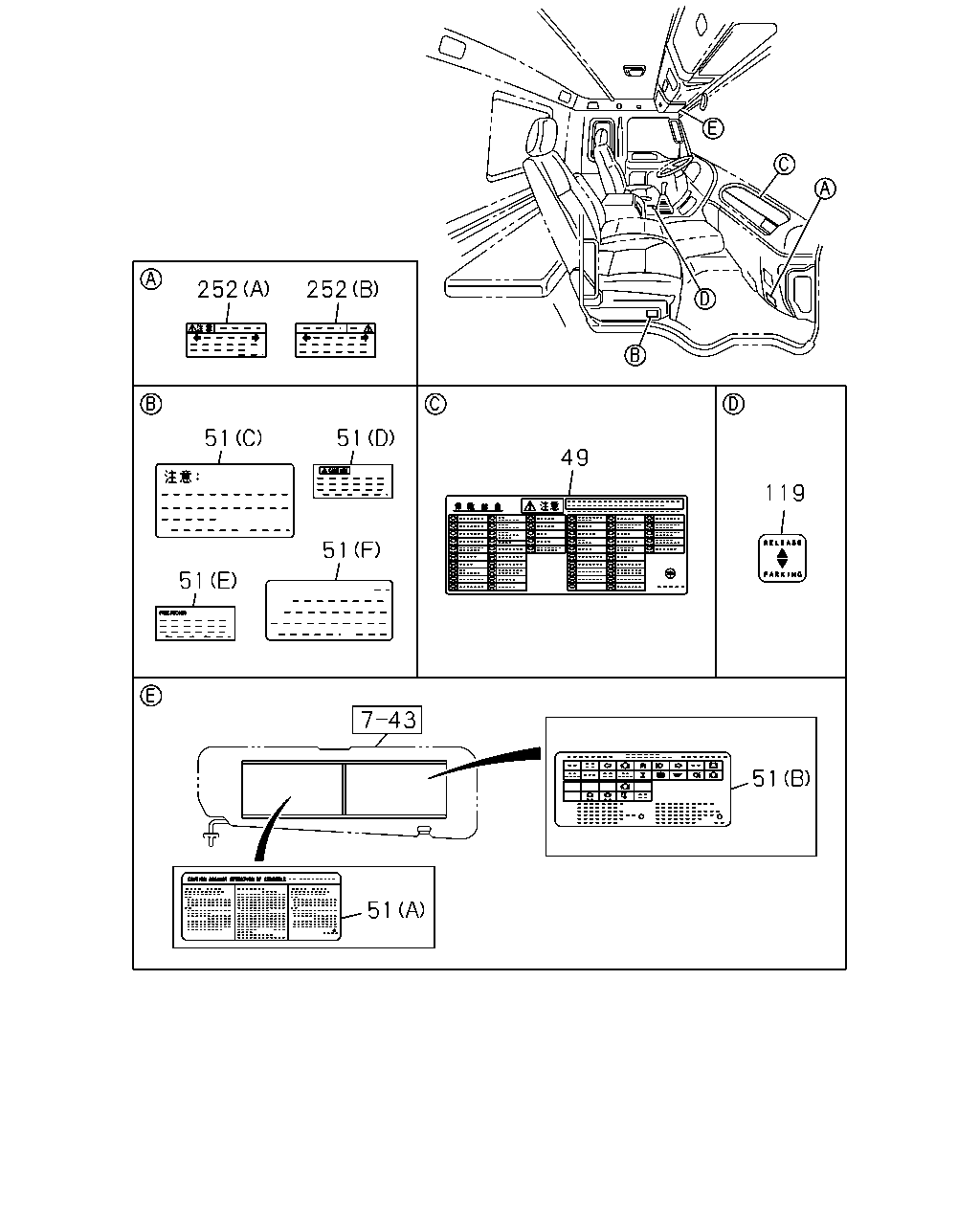

çizim 177273
252 252 51 51 49 119 51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> FUEL SEDIMENTER WITH HEATER<6HU> 		8-98124-638-0 01 1 0807- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		8-97624-086-0 01 1 0709- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		1-85878-393-0 01 1 0603-0806 ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		1-85878-393-0 01 1 0807- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-431-0 01 1 0603- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85878-556-0 01 1 0603- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85878-555-0 01 1 0603- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (F) 		8-97633-742-0 01 1 0905- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-787-0 01 1 0709- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (F) 		8-97624-052-0 01 1 0709- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8> (D) 		1-85878-544-0 01 1 0603- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS SPANISH<YN1> (E) 		8-97613-336-0 01 1 0603- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-786-0 01 1 0603- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS SPANISH<YN1> (A) 		1-85880-785-0 01 1 0603- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8>,CAUTIONS SPANISH<YN1> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) (B) 		1-85878-433-0 01 1 0603- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) (B) 		1-85878-432-0 01 1 0603-0708 ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) 		1-85878-432-0 01 1 0709- ● ●
51 PLATE; CAUTION,WARNING
CHINA EQUIPMENT(YT2) (C) 		8-97606-278-0 01 1 0603-0605 ● ●
51 PLATE; CAUTION,WARNING
CHINA EQUIPMENT(YT2) (C) 		8-97616-500-0 01 1 0606- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> EXC. CHINA EQUIPMENT(YT2) (A) 		1-85880-777-0 01 1 0603- ● ●
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS ARABIAN<WJ7> 		1-85881-979-0 01 1 0709- ● ●
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS FRENCH<WJ8> 		1-85881-945-0 01 1 0603- ● ●
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS SPANISH<YN1> 		1-85881-944-0 01 1 0603- ● ●
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS CHINESE<SL7> 		1-85881-874-0 01 1 0603- ● ●
119 PLATE; CAUTION,HAND BRK LEVER
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85881-759-0 01 1 0603-0708 ● ●
119 PLATE; CAUTION,HAND BRK LEVER
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		1-85881-759-0 01 1 0709- ● ●
252 PLATE; CAUTION,HARNESS
CAUTIONS ARABIAN<WJ7> (B) 		8-97623-996-0 01 1 0709- ● ●
252 PLATE; CAUTION,HARNESS
CAUTIONS ENGLISH<RR8> (A) 		1-85878-488-1 01 1 0603- ● ●
252 PLATE; CAUTION,HARNESS
CAUTIONS FRENCH<WJ8> (A) 		1-85878-560-0 01 1 0603- ● ●
252 PLATE; CAUTION,HARNESS
CAUTIONS SPANISH<YN1> (A) 		1-85878-559-0 01 1 0603- ● ●
252 PLATE; CAUTION,HARNESS
CAUTIONS CHINESE<SL7> (A) 		1-85878-515-0 01 1 0603- ● ●

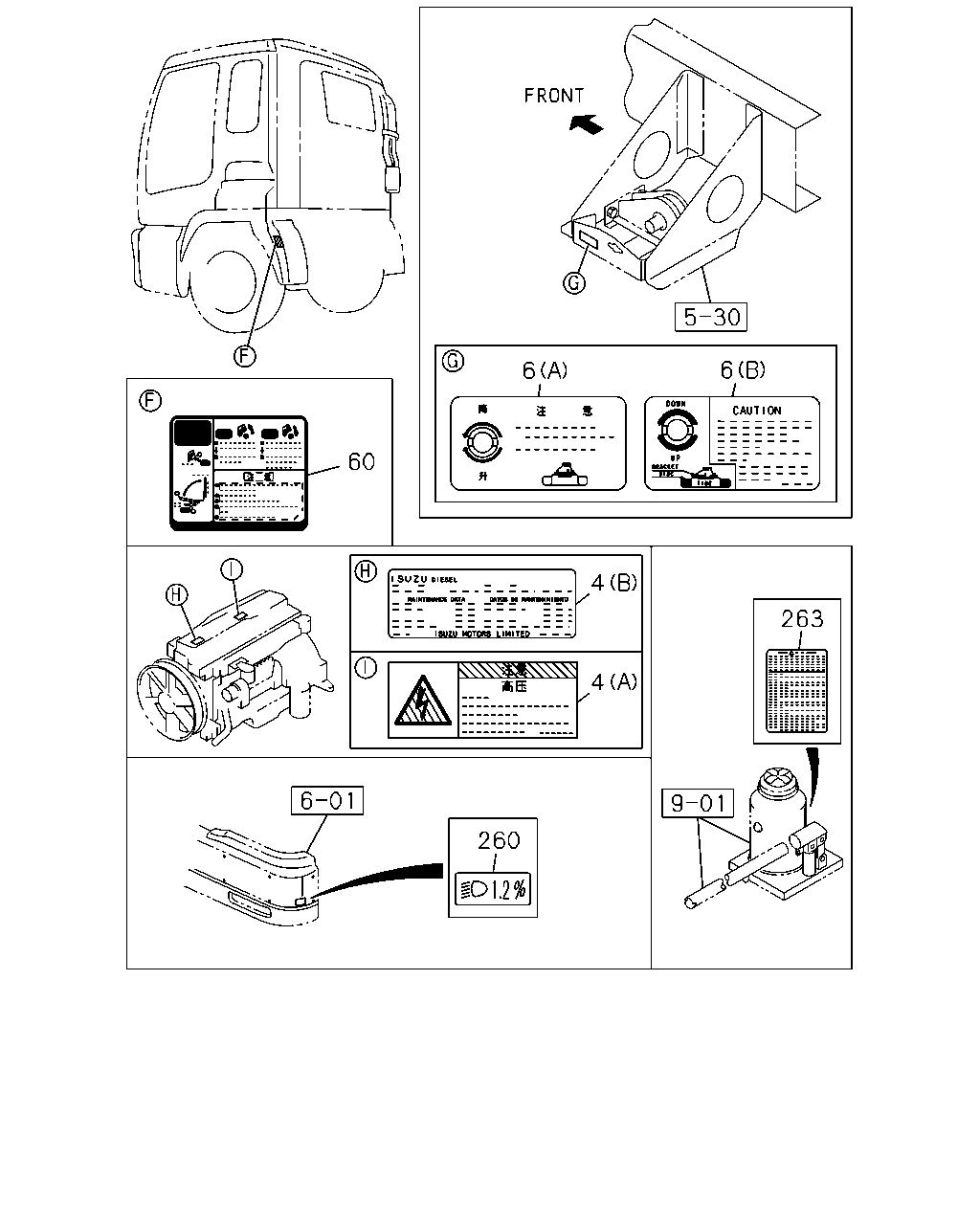

çizim 177283
6 6 60 4 263 4 260
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) GENERAL EXPORT EQUIPMENT(TAA) (B) 		1-85875-462-0 01 1 0812-0904 ● ●
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-85875-462-1 01 1 0905- ●
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98088-630-0 01 1 0902- ●
4 LABEL; ENG MAINTENANCE
SAUDI ARABIA EQUIPMENT(WH1) (A) 		8-98088-627-0 01 1 0707-0811 ● ●
4 LABEL; ENG MAINTENANCE
6WF1 TC(84L) SAUDI ARABIA EQUIPMENT(WH1) (A) 		8-98088-627-0 01 1 0812- ● ●
4 LABEL; ENG MAINTENANCE
SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98090-923-0 01 1 0707-0811 ● ●
4 LABEL; ENG MAINTENANCE
6WF1 TC(84L) SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98090-923-0 01 1 0812- ● ●
4 LABEL; ENG MAINTENANCE
EXC. PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) (B) 		1-85875-463-1 01 1 0603- ● ●
4 LABEL; ENG MAINTENANCE
EXC. CHINA EQUIPMENT(YT2) (A) 		8-94391-524-0 01 1 0603- ● ●
4 LABEL; ENG MAINTENANCE
CHINA EQUIPMENT(YT2) (A) 		1-85875-456-0 01 1 0603-0811 ● ●
4 LABEL; ENG MAINTENANCE
6WF1 TC(84L) CHINA EQUIPMENT(YT2) (A) 		1-85875-456-0 01 1 0812- ● ●
4 LABEL; ENG MAINTENANCE
CHINA EQUIPMENT(YT2) (B) 		8-97612-152-0 01 1 0603-0811 ● ●
4 LABEL; ENG MAINTENANCE
6WF1 TC(84L) CHINA EQUIPMENT(YT2) (B) 		8-97612-152-1 01 1 0812- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> (B) 		8-98082-441-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS ARABIAN<WJ7> (B) 		8-98082-441-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (A) 		1-85883-113-0 01 1 0603-0603 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (A) 		1-85883-113-0 01 1 0603-0603 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (A) 		1-85883-113-0 01 1 0604-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS CHINESE<SL7> (A) 		1-85883-113-0 01 1 0604-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (B) 		8-98082-438-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS CHINESE<SL7> (B) 		8-98082-438-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> (A) 		1-85883-108-0 01 1 0603-0603 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> (A) 		1-85883-108-0 01 1 0603-0603 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> (A) 		1-85883-108-0 01 1 0604-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS FRENCH<WJ8> (A) 		1-85883-108-0 01 1 0604-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> (B) 		8-98082-440-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS FRENCH<WJ8> (B) 		8-98082-440-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> (A) 		1-53639-005-0 01 1 0603-0603 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> (A) 		1-53639-005-0 01 1 0603-0603 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> (A) 		1-53639-005-0 01 1 0604-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS SPANISH<YN1> (A) 		1-53639-005-0 01 1 0604-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> (B) 		8-98082-439-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS SPANISH<YN1> (B) 		8-98082-439-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A) 		1-53639-004-0 01 1 0603-0603 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A) 		1-53639-004-0 01 1 0603-0603 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A) 		1-53639-004-0 01 1 0604-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A) 		1-53639-004-0 01 1 0604-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A) 		1-53639-004-0 01 1 0709-0709 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A) 		1-53639-004-0 01 1 0709-0709 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B) 		8-98082-437-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B) 		8-98082-437-0 01 1 0709- ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-181-0 01 1 0709- ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> 		1-85883-175-0 01 1 0603- ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-176-0 01 1 0603- ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> 		1-85883-177-0 01 1 0603- ● ●
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 0603-0708 ● ●
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 0709- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-85878-416-1 01 1 0603- ● ●
263 PLATE; CAUTION,JACK
TOOL B KIT<SL1> CAUTIONS ARABIAN<WJ7> 		8-98094-561-0 01 1 0709- ● ●
263 PLATE; CAUTION,JACK
TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 		1-85881-878-0 01 1 0603- ● ●
çizim 177450
181 181 162
BalonParca AdiParca NoAdetTipApplied Date A B
162 PLATE; CAUTION,FUEL
CAUTIONS FRENCH<WJ8> 		8-97621-140-0 01 1 0704- ● ●
162 PLATE; CAUTION,FUEL
CAUTIONS PORTUGUESE<NAT> 		8-98083-160-0 01 1 0706-0706 ● ●
162 PLATE; CAUTION,FUEL
CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> 		8-98083-160-0 01 1 0707- ● ●
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-85886-813-1 01 1 0603- ● ●
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0603- ● ●
çizim 177626
156 290 5 5 287 289 289 304
BalonParca AdiParca NoAdetTipApplied Date A B
5 LABEL; TIRE AIR PRESSURE
CHINA EQUIPMENT(YT2) (B) 		1-85881-887-0 01 1 0603-0901 ● ●
5 LABEL; TIRE AIR PRESSURE
CHINA EQUIPMENT(YT2) (B) 		1-85881-985-0 01 1 0902-1109 ● ●
5 LABEL; TIRE AIR PRESSURE
CHINA EQUIPMENT(YT2) (B) 		8-98201-252-0 01 1 1110- ● ●
5 LABEL; TIRE AIR PRESSURE
EXC. CHINA EQUIPMENT(YT2) (A) 		1-85880-778-0 01 1 0603- ● ●
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) CHINA EQUIPMENT(YT2) 		1-85878-528-0 01 1 0603- ● ●
287 PLATE; CAUTION,SPRING CHAMBER
CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		1-85883-238-0 04 1 0603-0709 ● ●
289 PLATE; CAUTION,DRIVING
CAUTIONS ARABIAN<WJ7> (B) 		8-98093-472-0 01 1 0709- ● ●
289 PLATE; CAUTION,DRIVING
CAUTIONS CHINESE<SL7> (A) 		1-85883-223-1 01 1 0603- ● ●
290 PLATE; CAUTION,OIL TANK
CHINA EQUIPMENT(YT2) 		1-85881-876-0 01 1 0603- ● ●
304 PLATE; CAUTION,LOW TEMP
CAUTIONS ENGLISH<RR8> 		8-98048-989-0 01 1 0611- ● ●
