6-76 — FLOOR EQUIPMENT AND SEALING (#35550) — 26 parça

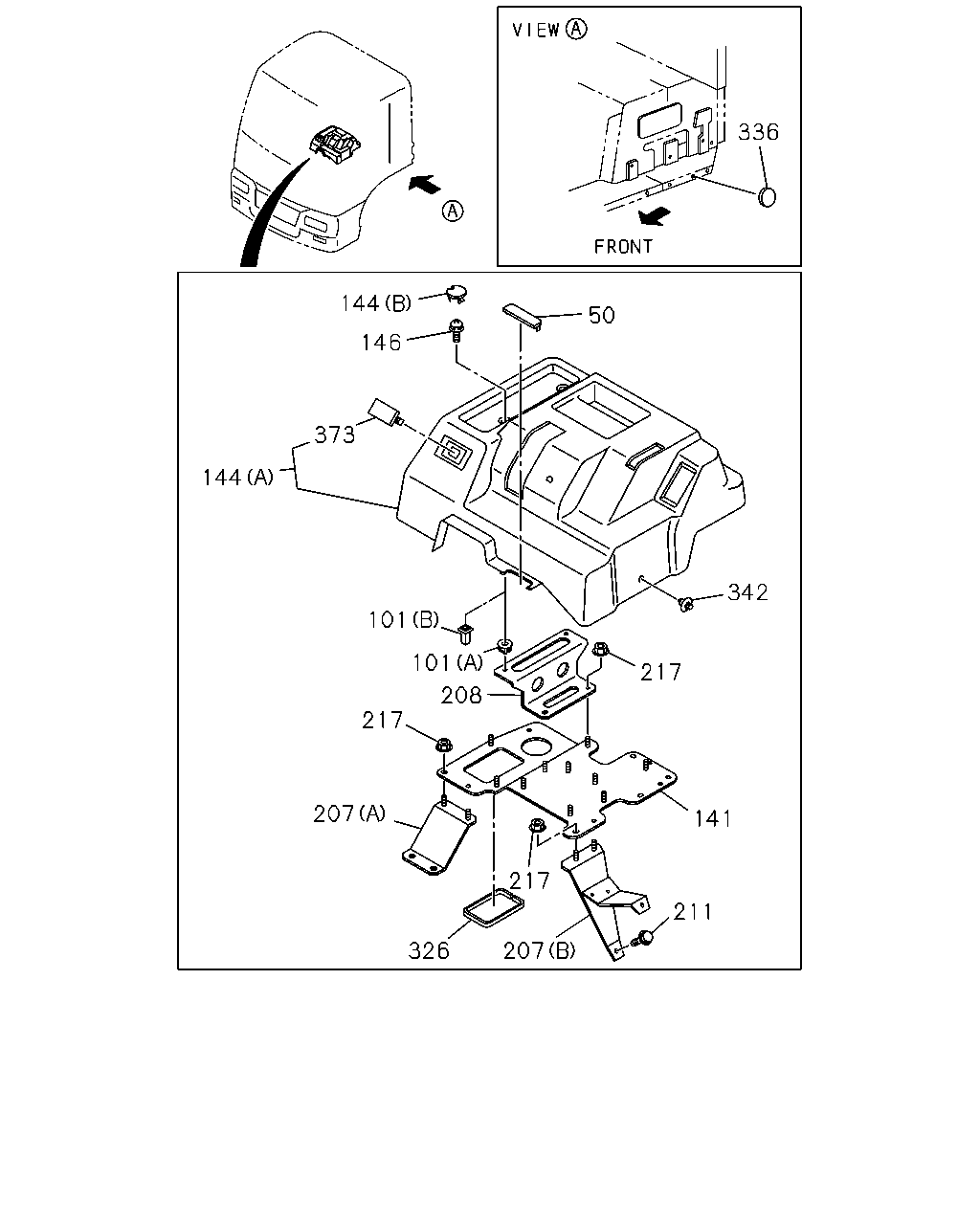

çizim 177621
336 144 50 146 373 144 342 101 101 217 208 217 207 141 217 211 326 207
BalonParca AdiParca NoAdetTipApplied Date A B
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 0603- ● ●
101 GROMMET; SCREW,FLOOR BOARD
(A) D=7X7 L=7.5 		5-09983-007-0 02 1 0603- ● ●
101 GROMMET; SCREW,FLOOR BOARD
(B) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 01 1 0603- ● ●
141 HOLDER 1-79996-438-1 01 1 0603- ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-407-1 01 1 0603- ● ●
144 COVER; HAND BRK VLV
(B) 		1-76337-461-0 02 1 0603- ● ●
146 BOLT; COVER BRKT
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 03 1 0603- ● ●
207 BRACKET ASM; HAND BRAKE VALVE
(A) 		1-79996-129-1 01 1 0603- ● ●
207 BRACKET ASM; HAND BRAKE VALVE
(B) 		1-79996-130-1 01 1 0603- ● ●
208 BRACKET ASM; COVER & BRK VLV 1-79996-347-1 01 1 0603- ● ●
211 BOLT; COVER
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0603- ● ●
211 BOLT; COVER
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0603-0904 ● ●
211 BOLT; COVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
211 BOLT; COVER
M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0603- ● ●
217 NUT
M8 FLANGE 		0-91150-108-0 06 1 0603-0603 ● ●
217 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
326 SEAL; COVER 1-79996-132-0 01 1 0603- ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 01 1 0603- ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 0603- ● ●
342 FASTENER
D8X13.5 		1-09987-270-0 01 1 0603- ● ●
373 COVER; HOLE
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-72417-409-0 01 1 0603- ● ●

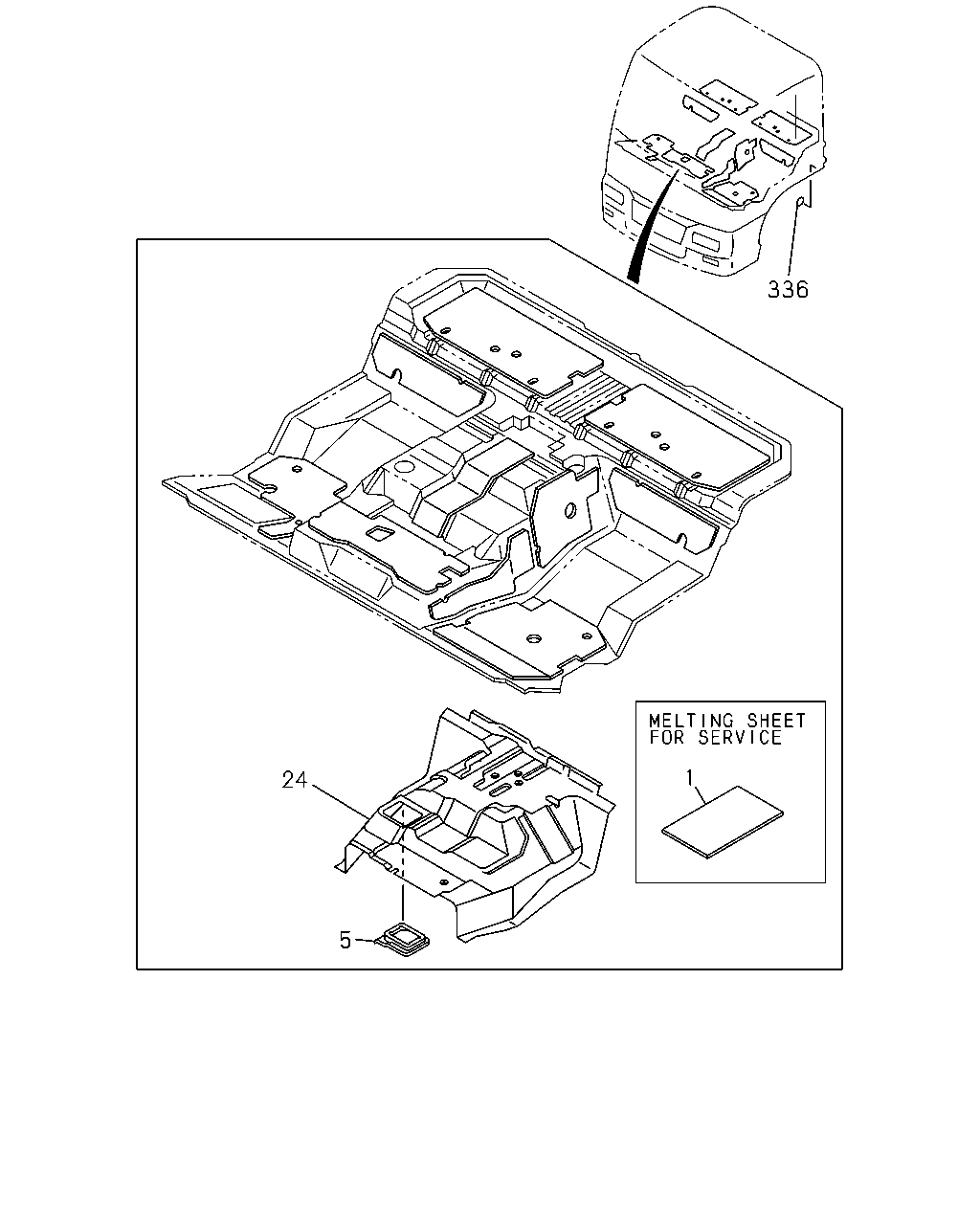

çizim 177625
336 1 24 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0603- ● ●
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 0603- ● ●
24 INSULATOR; HEAT,FRT 1-71907-373-8 01 1 0603- ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 01 1 0603- ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 0603- ● ●
