◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#35548) — 26 parça

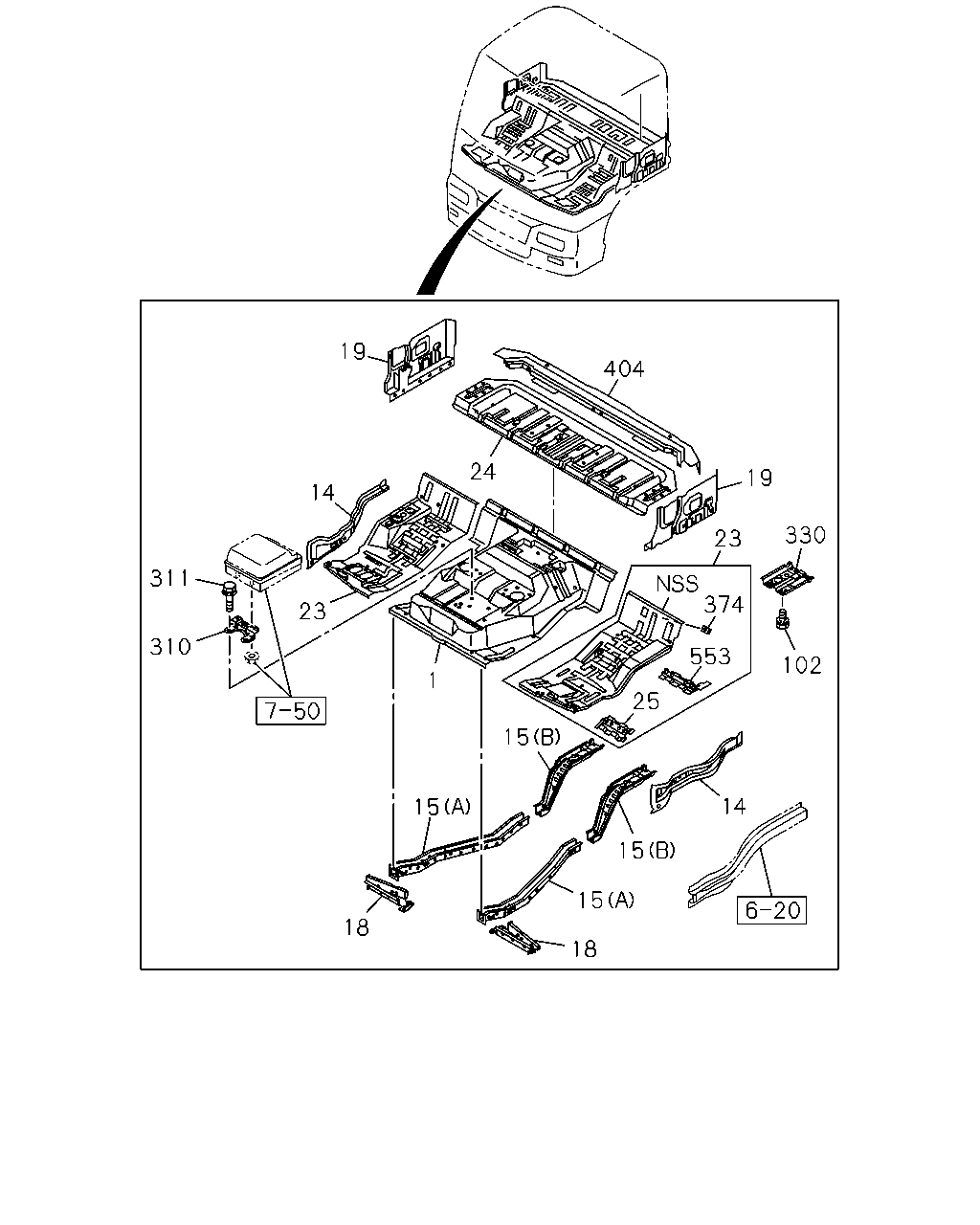

çizim 177305
19 404 24 19 14 330 23 311 374 23 310 553 102 1 25 15 14 15 15 15 18 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 1-62172-614-5 01 1 0603- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0603- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0603- ● ●
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0603- ● ●
15 FRAME; UNDER
(A) 		1-62472-669-3 01 1 0603- ● ●
15 FRAME; UNDER
(A) 		1-62472-670-3 01 1 0603- ● ●
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0603- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-3 01 1 0603- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-5 01 1 0603- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0603- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 0603- ● ●
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 0603- ● ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 0603- ● ●
23 PANEL; FLOOR,SIDE
PTO CONTROL(SV6) 		1-62172-803-0 01 1 0603- ● ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-805-0 01 1 0603- ● ●
24 PANEL; BED PAN 1-62172-540-9 01 1 0603- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62172-780-2 01 1 0603- ● ●
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0603-0904 ● ●
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
310 BRACKET; SEAT STAND
EXC. CENTER SEAT DELETE(SP9) 		1-76397-015-0 01 1 0603- ● ●
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0603-0904 ● ●
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0603- ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 05 1 0603- ● ●
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0603- ● ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-797-0 01 1 0603- ● ●
