6-01 — FRONT BUMPER (#35534) — 117 parça

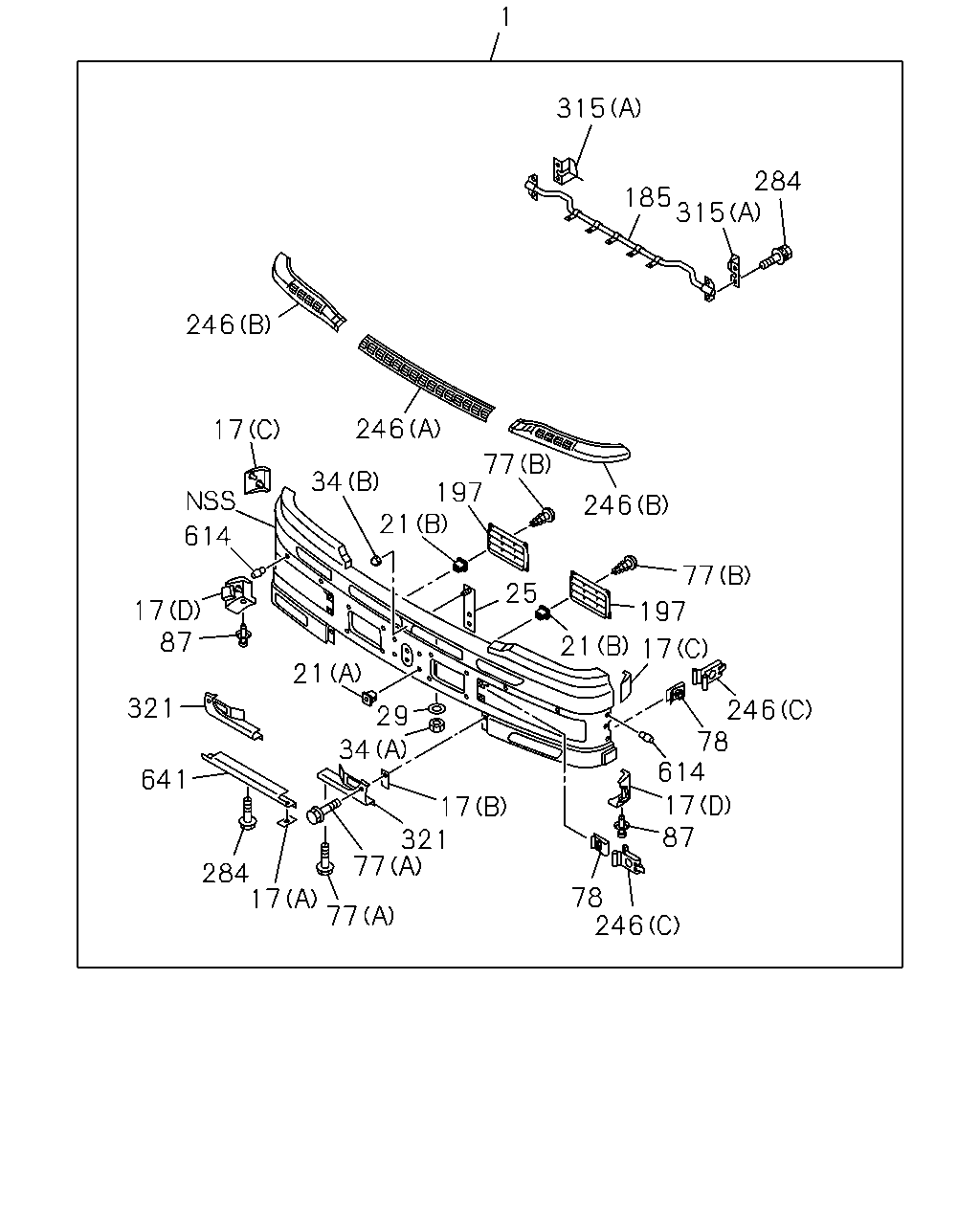

çizim 177582
1 315 284 185 315 246 246 17 77 197 21 34 246 614 77 25 17 87 197 21 17 21 29 321 246 78 614 34 641 17 87 17 321 77 284 17 78 246 77
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
CHINA EQUIPMENT(YT2) WHITE 		1-71211-385-1 01 1 0603-0901 ● ●
1 BUMPER ASM; FRT
EXC. CHINA EQUIPMENT(YT2) WHITE 		1-71211-427-1 01 1 0603- ● ●
1 BUMPER ASM; FRT
CHINA EQUIPMENT(YT2) WHITE 		8-98139-028-0 01 1 0902- ● ●
17 PROTECTOR; FRT BUMPER
CHINA EQUIPMENT(YT2) (C) 		8-98139-102-1 01 1 0902- ● ●
17 PROTECTOR; FRT BUMPER
CHINA EQUIPMENT(YT2) (C) 		8-98139-103-1 01 1 0902- ● ●
17 PROTECTOR; FRT BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-106-2 01 1 0902- ● ●
17 PROTECTOR; FRT BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-107-2 01 1 0902- ● ●
17 PROTECTOR; FRT BUMPER
(A) 		1-71260-185-0 02 1 0603- ● ●
17 PROTECTOR; FRT BUMPER
(B) 		1-71260-277-0 02 1 0603- ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 0603- ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0603- ● ●
25 SPACER; PLATFORM 1-71230-640-0 01 1 0603- ● ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 13 1 0603-0605 ● ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 13 1 0606- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 13 1 0603-0603 ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0603- ● ●
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0603- ● ●
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91150-108-0 04 1 0603-0603 ● ●
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 0603- ● ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		9-07076-516-0 08 1 0603-0603 ● ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 08 1 0604- ● ●
78 NUT; SPIRE 1-71260-174-0 06 1 0603- ● ●
87 RIVET; POP,FRT BUMPER
CHINA EQUIPMENT(YT2) D8X13.5 		1-09987-248-1 02 1 0902- ● ●
185 BRACKET; BUMPER,INNER 1-71230-610-0 01 1 0603- ● ●
197 GRILLE; BUMPER 1-71260-115-1 01 1 0603- ● ●
197 GRILLE; BUMPER 1-71260-116-1 01 1 0603- ● ●
246 PROTECTOR; BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-104-1 01 1 0902- ● ●
246 PROTECTOR; BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-105-1 01 1 0902- ● ●
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 0603- ● ●
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 0603- ● ●
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 0603- ● ●
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0603- ● ●
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 0603- ● ●
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0603- ● ●
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0603- ● ●
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0603- ● ●
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0603- ● ●
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0603- ● ●
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0603- ● ●
321 COVER; BUMPER FRT SIDE 1-71260-263-0 01 1 0603- ● ●
321 COVER; BUMPER FRT SIDE 1-71260-264-0 01 1 0603- ● ●
614 STOPPER; LID 1-71260-163-0 12 1 0603- ● ●
641 BUMPER; FRT,LWR 1-71211-304-1 01 1 0603- ● ●

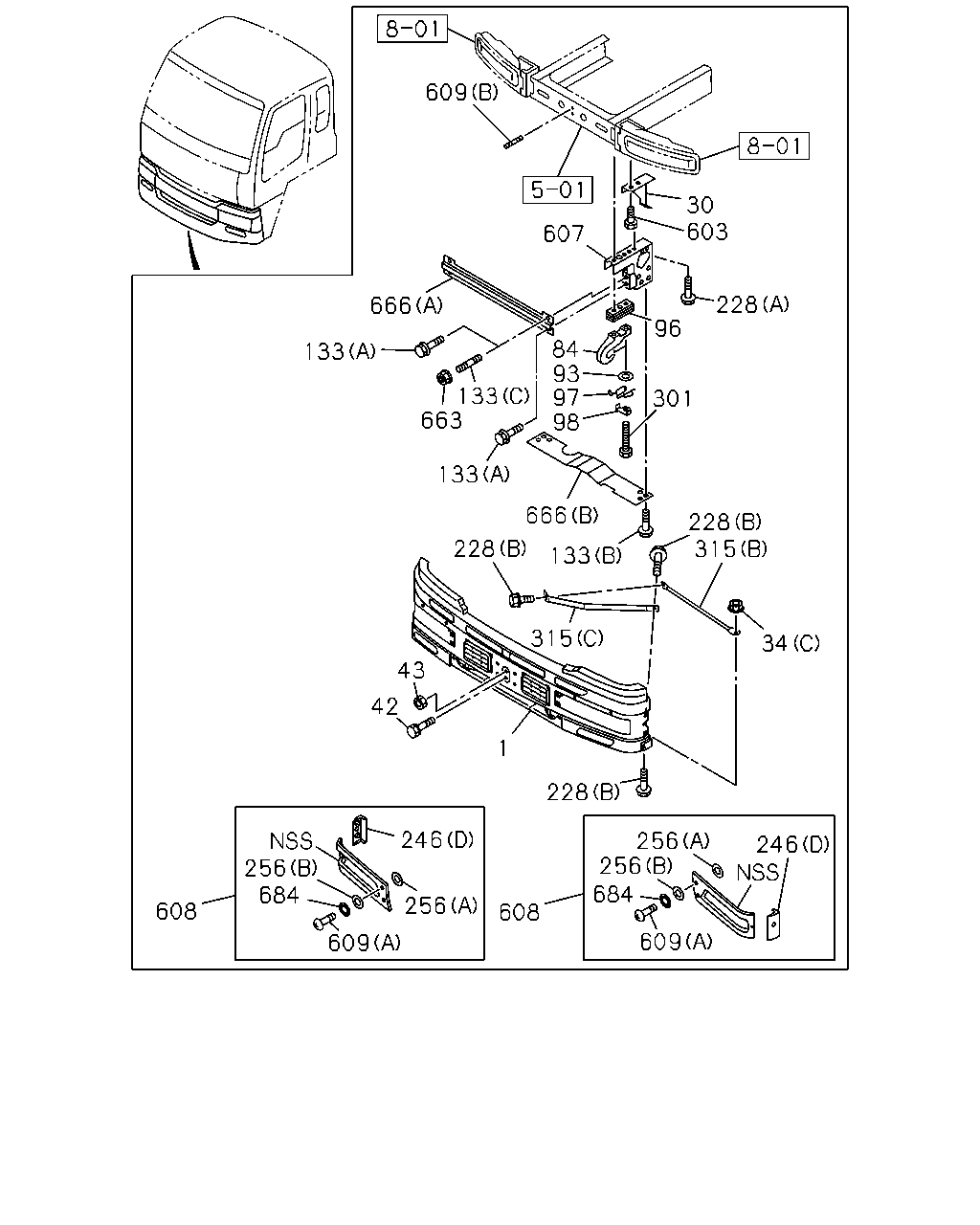

çizim 177587
609 30 603 607 228 666 96 84 93 97 98 133 133 663 301 133 666 228 315 228 133 315 34 43 42 1 228 246 256 256 684 256 684 246 256 608 608 609 609
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
CHINA EQUIPMENT(YT2) WHITE 		1-71211-385-1 01 1 0603-0901 ● ●
1 BUMPER ASM; FRT
EXC. CHINA EQUIPMENT(YT2) WHITE 		1-71211-427-1 01 1 0603- ● ●
1 BUMPER ASM; FRT
CHINA EQUIPMENT(YT2) WHITE 		8-98139-028-0 01 1 0902- ● ●
30 BRACKET; FRT BUMPER 1-71230-638-0 01 1 0603- ● ●
30 BRACKET; FRT BUMPER 1-71230-639-0 01 1 0603- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 13 1 0603-0603 ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0603- ● ●
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0603- ● ●
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91150-108-0 04 1 0603-0603 ● ●
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0603- ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 03 1 0603-0603 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 03 1 0603- ● ●
84 HOOK 1-57181-027-1 01 1 0603- ● ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0603-0603 ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604- ● ●
96 PLATE; DIST,HOOK 1-53497-595-0 01 1 0603- ● ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0603- ● ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0603- ● ●
133 BOLT; PROTECTOR FIX
(A) M12X40 FLANGE 		0-28651-240-0 02 1 0603-0808 ● ●
133 BOLT; PROTECTOR FIX
(A) M12X40 FLANGE 		0-28651-240-0 04 1 0809- ● ●
133 BOLT; PROTECTOR FIX
(B) M12X25 FLANGE 		0-28661-225-0 06 1 0603-1207 ● ●
133 BOLT; PROTECTOR FIX
(B) M12X30 FLANGE 		0-28661-230-0 06 1 1208- ● ●
133 BOLT; PROTECTOR FIX
(C) M12X40 L=56 		1-09300-123-0 02 1 0603-0808 ● ●
228 BOLT; BRKT
(A) M16X40 		0-20951-640-0 06 1 0603- ● ●
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 06 1 0603- ● ●
246 PROTECTOR; BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-104-1 01 1 0902- ● ●
246 PROTECTOR; BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-105-1 01 1 0902- ● ●
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 0603- ● ●
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 0603- ● ●
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 0603- ● ●
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0603- ● ●
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0603- ● ●
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0603- ● ●
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0603- ● ●
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0603- ● ●
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0603- ● ●
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0603- ● ●
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0603- ● ●
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0603- ● ●
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0603- ● ●
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0603- ● ●
607 BRACKET 8-97608-469-3 01 1 0603- ● ●
607 BRACKET 8-97608-470-3 01 1 0603- ● ●
608 LID; BUMPER
BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) 		8-98138-788-3 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) 		8-98138-789-3 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) CHINA EQUIPMENT(YT2) 		8-98139-039-3 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) CHINA EQUIPMENT(YT2) 		8-98139-040-3 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) CHINA EQUIPMENT(YT2) 		8-98139-037-3 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) CHINA EQUIPMENT(YT2) 		8-98139-038-3 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR ARC WHITE(729) 		1-71211-284-1 01 1 0603-0901 ● ●
608 LID; BUMPER
BODY COLOR ARC WHITE(729) EXC. CHINA EQUIPMENT(YT2) 		1-71211-284-2 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR ARC WHITE(729) 		1-71211-285-1 01 1 0603-0901 ● ●
608 LID; BUMPER
BODY COLOR ARC WHITE(729) EXC. CHINA EQUIPMENT(YT2) 		1-71211-285-2 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) 		1-71211-317-1 01 1 0603-0901 ● ●
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. CHINA EQUIPMENT(YT2) 		1-71211-317-2 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) 		1-71211-318-1 01 1 0603-0901 ● ●
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. CHINA EQUIPMENT(YT2) 		1-71211-318-2 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) 		1-71211-284-1 01 1 0603-0901 ● ●
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) EXC. CHINA EQUIPMENT(YT2) 		1-71211-284-2 01 1 0902- ● ●
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) 		1-71211-285-1 01 1 0603-0901 ● ●
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) EXC. CHINA EQUIPMENT(YT2) 		1-71211-285-2 01 1 0902- ● ●
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0603- ● ●
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0603- ● ●
663 NUT
M12 FLANGE 		0-91150-212-0 02 1 0603-0603 ● ●
663 NUT
M12 FLANGE 		0-91180-212-0 02 1 0603-0808 ● ●
666 PROTECTOR; UNDER
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) (B) 		8-98210-493-0 01 1 1208- ●
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 0603-1107 ● ●
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 1108- ●
666 PROTECTOR; UNDER
CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B) 		8-97608-467-1 01 1 1108- ●
666 PROTECTOR; UNDER
EXC. CHINA EQUIPMENT(YT2) (B) 		8-97608-467-1 01 1 1108- ●
666 PROTECTOR; UNDER
(A) 		8-97608-471-0 01 1 0603- ● ●
684 WASHER
CHINA EQUIPMENT(YT2) 		8-98148-221-0 06 1 0906- ● ●
