Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11023 - CYZ LHD WITH 2STEPS
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

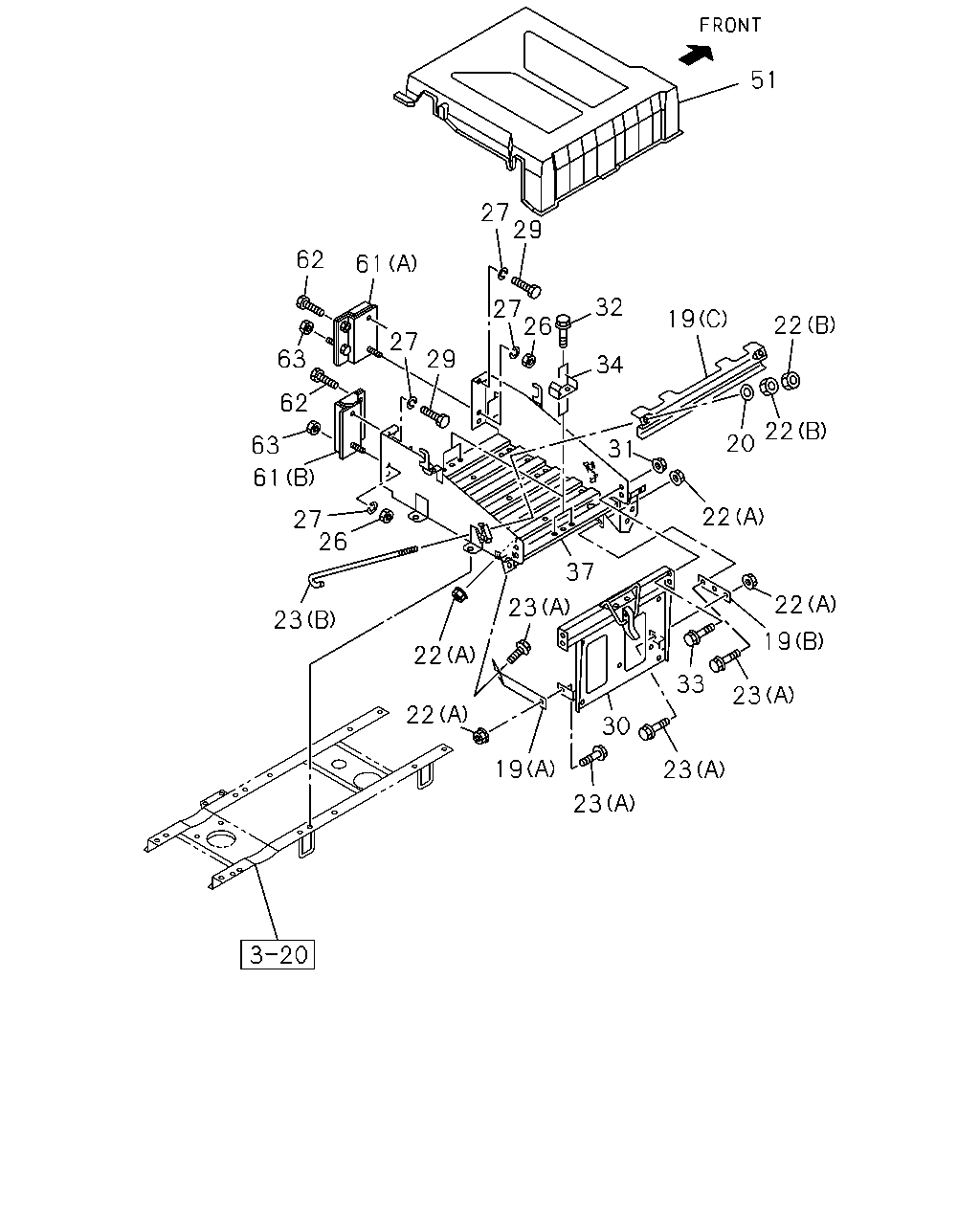

5-20 — BATTERY CARRIER
(#35532) — 36 parça
Tümü
A - CYZ6MC
B - CYZ6MF
51
27
29
62
61
32
27
26
19
63
22
27
29
34
62
22
20
31
63
61
22
27
26
37
22
23
23
19
22
33
23
22
30
19
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
STAY; BATTERY
(B)
1-47479-118-0
01
1
0603-
●
●
19
STAY; BATTERY
(A)
1-47479-874-0
01
1
0603-
●
●
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0603-
●
●
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
0603-0605
●
●
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0606-
●
●
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
0603-
●
●
22
NUT; STAY
(A) M8 FLANGE
0-91150-108-0
04
1
0603-0603
●
●
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
04
1
0603-0702
●
●
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
0703-
●
●
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
0603-
●
●
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0603-
●
●
26
NUT; BRKT
M14
0-91110-514-0
02
1
0603-
●
26
NUT; BRKT
M14
1-09440-072-0
02
1
0603-
●
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
08
1
0603-0603
●
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
08
1
0604-
●
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
0603-0603
●
●
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0604-
●
●
29
BOLT; BRKT TO FRAME
M14X30
0-20851-430-0
02
1
0603-
●
29
BOLT; BRKT TO FRAME
M14X45
1-09000-764-0
02
1
0603-
●
30
PLATE; BATTERY
1-53619-148-1
01
1
0603-
●
●
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
04
1
0603-0603
●
●
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
32
BOLT; PLATE TO SPACER
BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28050-816-0
04
1
0603-
●
●
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0603-1007
●
●
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
●
●
34
SPACER; BATTERY BRKT
BATTERY 115F51 N120<SJ3>
1-53619-084-0
02
1
0603-
●
●
37
BRACKET; BATTERY
1-53610-159-2
01
1
0603-
●
37
BRACKET; BATTERY
1-53610-161-3
01
1
0603-
●
51
COVER; BATTERY
1-53612-068-0
01
1
0603-
●
●
61
DISTANCE; BRKT,BATTERY
DUMP TRUCK<RA1> (A)
1-53613-504-0
01
1
0603-
●
61
DISTANCE; BRKT,BATTERY
MIXER TRUCK<RA2> (A)
1-53613-489-0
01
1
0603-
●
61
DISTANCE; BRKT,BATTERY
(B)
1-53613-505-0
01
1
0603-
●
62
BOLT; DIST TO FRAME,BATTERY
M14X45
1-09000-764-0
02
1
0603-
●
62
BOLT; DIST TO FRAME,BATTERY
M14X60
1-09000-778-0
02
1
0603-
●
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
0603-0603
●
●
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
0603-
●
