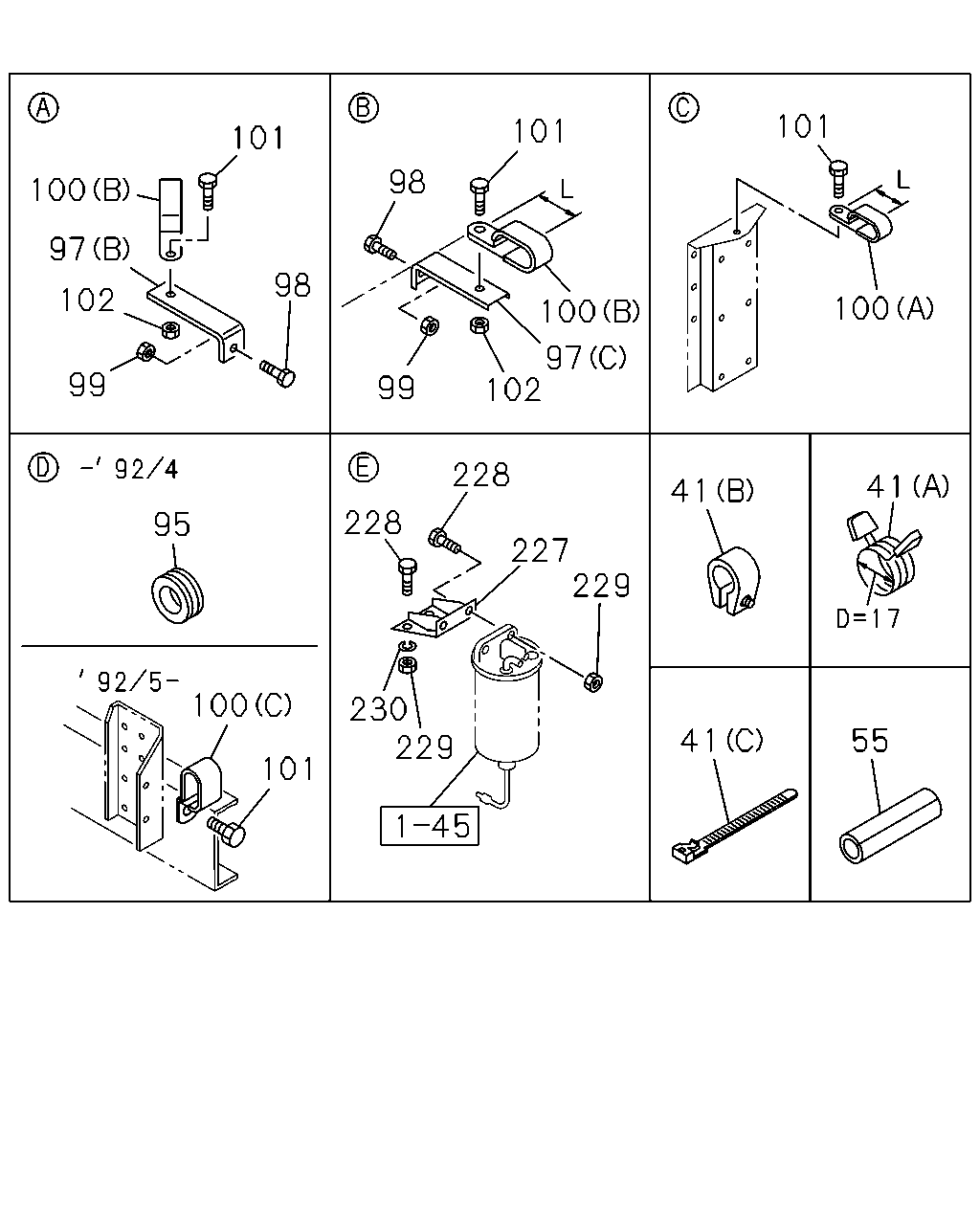

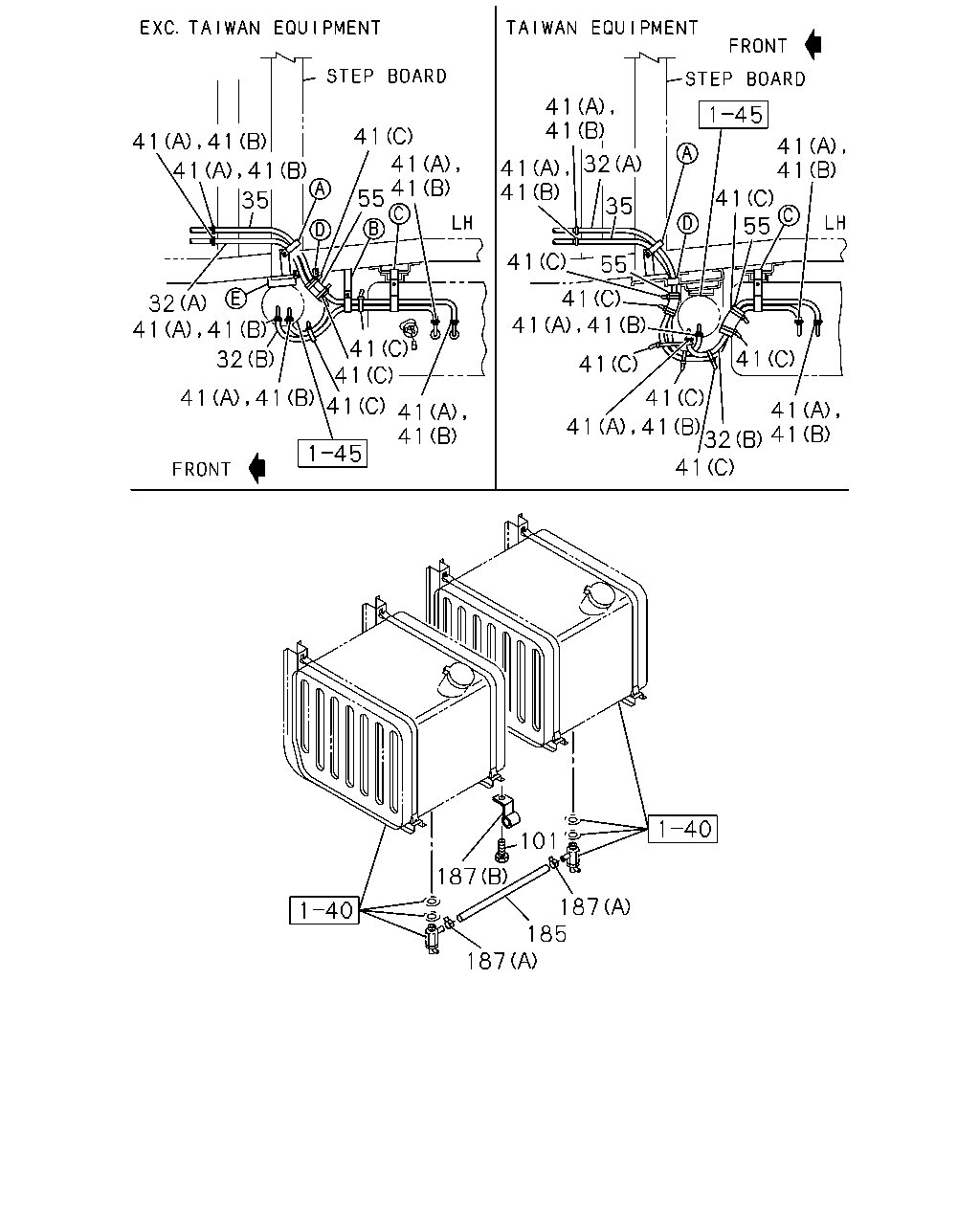

1-41B — FUEL PIPING; CHASSIS (#3553) — 102 parça

41 41 41 41 41 55 41 41 41 41 41 55 32 41 41 41 41 35 35 41 55 41 41 32 41 41 41 41 32 41 41 41 41 41 41 41 41 32 41 41 41 41 101 187 187 185 187 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK TROPICAL ZONE KIT(WB6) FUEL TANK 200L+300L<W64> (B) L=3150	0-01160-315-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK TROPICAL ZONE KIT(WB6) FUEL TANK 200L+300L<W64> (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	9307-9307	●	●
32	PIPE; DELIVERY,FUEL TANK TAIWAN EQUIPMENT(WW5) (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	9307-9307		●
32	PIPE; DELIVERY,FUEL TANK TROPICAL ZONE KIT(WB6) (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	9308-	●	●
32	PIPE; DELIVERY,FUEL TANK TAIWAN EQUIPMENT(WW5) (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	9308-		●
32	PIPE; DELIVERY,FUEL TANK TROPICAL ZONE KIT(WB6) EXC. FUEL TANK 200L+300L<W64> (B) L=1100 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+300L<W64> EXC. TROPICAL ZONE KIT(WB6) (B) L=1100 SERVICED BY L=10000	9-09914-701-0	01	1	9307-9307	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 200L+300L<W64> (B) L=1100 SERVICED BY L=10000	9-09914-701-0	01	1	9307-9307	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=3150	0-01160-315-0	01	1	9004-9306	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=3150	0-01160-315-0	01	1	9307-9307	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9308-	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. TROPICAL ZONE KIT(WB6) (B) L=1100 SERVICED BY L=10000	9-09914-701-0	01	1	9308-	●	●
35	PIPE; FUEL TANK,RETURN TAIWAN EQUIPMENT(WW5) L=3150	0-01160-315-0	01	1	9205-9306	●
35	PIPE; FUEL TANK,RETURN TAIWAN EQUIPMENT(WW5) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9307-9307	●
35	PIPE; FUEL TANK,RETURN TAIWAN EQUIPMENT(WW5) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9308-	●
35	PIPE; FUEL TANK,RETURN BRAKE REGULATION HONG KONG<TCZ> L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9308-	●
35	PIPE; FUEL TANK,RETURN EXC. TAIWAN EQUIPMENT(WW5) L=3150	0-01160-315-0	01	1	9002-9307	●
35	PIPE; FUEL TANK,RETURN L=3150	0-01160-315-0	01	1	9002-9307		●
35	PIPE; FUEL TANK,RETURN EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	9308-	●
35	PIPE; FUEL TANK,RETURN L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	9308-		●
35	PIPE; FUEL TANK,RETURN TAIWAN EQUIPMENT(WW5) L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	9307-9307		●
35	PIPE; FUEL TANK,RETURN TAIWAN EQUIPMENT(WW5) L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	9308-		●
41	CLIP; FUEL PIPE,FUEL TANK TROPICAL ZONE KIT(WB6) (A) ID=14	1-09704-102-0	06	1	9307-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=250	5-09707-030-1	04	1	9002-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. TROPICAL ZONE KIT(WB6) (A) ID=14	1-09704-102-0	04	1	9307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. TROPICAL ZONE KIT(WB6) (B) ID=15	9-09715-098-0	02	1	9307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK TAIWAN EQUIPMENT(WW5) (C) L=250	5-09707-030-0	03	1	9207-9306	●
41	CLIP; FUEL PIPE,FUEL TANK TAIWAN EQUIPMENT(WW5) (C) L=250	5-09707-030-1	02	1	9307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK BRAKE REGULATION HONG KONG<TCZ> (C) L=250	5-09707-030-1	02	1	9307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. TROPICAL ZONE KIT(WB6) (A) ID=14	1-09704-102-0	04	1	9002-9306	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. TROPICAL ZONE KIT(WB6) (B) ID=15	9-09715-098-0	02	1	9002-9306	●
55	COVER; PIPE,FUEL TANK L=150	1-09369-006-1	01	1	9002-9204	●
55	COVER; PIPE,FUEL TANK EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5) L=150	1-09369-006-1	01	1	9205-9306	●	●
55	COVER; PIPE,FUEL TANK EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5) L=1300	1-09360-677-1	01	1	9307-	●	●
55	COVER; PIPE,FUEL TANK TAIWAN EQUIPMENT(WW5) L=150	1-09369-006-1	02	1	9205-9306	●	●
55	COVER; PIPE,FUEL TANK BRAKE REGULATION HONG KONG<TCZ> L=150	1-09369-006-1	02	1	9205-9306	●	●
55	COVER; PIPE,FUEL TANK TAIWAN EQUIPMENT(WW5) L=1300	1-09360-677-1	02	1	9307-	●	●
55	COVER; PIPE,FUEL TANK BRAKE REGULATION HONG KONG<TCZ> L=1300	1-09360-677-1	02	1	9307-	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9303-	●	●
101	BOLT; CLIP,FUEL PIPE EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5),FUEL TANK 200L+300L<W64> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●
101	BOLT; CLIP,FUEL PIPE EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5),FUEL TANK 200L+300L<W64> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●
101	BOLT; CLIP,FUEL PIPE EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5),FUEL TANK 200L+300L<W64> M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●
185	PIPE; FUEL TANK TO TANK TROPICAL ZONE KIT(WB6) FUEL TANK 200L+300L<W64> L=900	0-01112-900-0	01	1	9002-9307	●
185	PIPE; FUEL TANK TO TANK TROPICAL ZONE KIT(WB6) FUEL TANK 200L+300L<W64> L=900 SERVICED BY L=3000	0-01262-300-0	01	1	9308-	●
185	PIPE; FUEL TANK TO TANK TROPICAL ZONE KIT(WB6) EXC. FUEL TANK 200L+300L<W64> L=700	0-01112-700-0	01	1	9002-9307	●
185	PIPE; FUEL TANK TO TANK TROPICAL ZONE KIT(WB6) EXC. FUEL TANK 200L+300L<W64> L=700 SERVICED BY L=3000	0-01262-300-0	01	1	9308-	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+300L<W64> EXC. TROPICAL ZONE KIT(WB6) L=900 ID=12	1-09366-106-0	01	1	9002-9306	●	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+300L<W64> EXC. TROPICAL ZONE KIT(WB6) L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	01	1	9307-	●	●
185	PIPE; FUEL TANK TO TANK EXC. TROPICAL ZONE KIT(WB6),FUEL TANK 200L+300L<W64> L=650	1-09366-122-0	01	1	9002-9306	●	●
185	PIPE; FUEL TANK TO TANK EXC. TROPICAL ZONE KIT(WB6),FUEL TANK 200L+300L<W64> L=650 SERVICED BY L=10000	9-09914-914-0	01	1	9307-	●	●
187	CLIP; FUEL PIPE TANK TO TANK TROPICAL ZONE KIT(WB6) (A)	8-94122-679-0	02	1	9002-	●
187	CLIP; FUEL PIPE TANK TO TANK TROPICAL ZONE KIT(WB6) (B)	9-09917-035-0	02	1	9002-	●
187	CLIP; FUEL PIPE TANK TO TANK EXC. TROPICAL ZONE KIT(WB6) (B)	1-09700-840-0	02	1	9002-	●	●
187	CLIP; FUEL PIPE TANK TO TANK EXC. TROPICAL ZONE KIT(WB6) (A)	1-09707-011-1	02	1	9002-	●	●

101 101 101 98 100 97 98 102 100 100 97 102 99 99 228 41 41 228 95 227 229 100 230 229 55 41 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK TROPICAL ZONE KIT(WB6) (A) ID=14	1-09704-102-0	06	1	9307-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=250	5-09707-030-1	04	1	9002-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. TROPICAL ZONE KIT(WB6) (A) ID=14	1-09704-102-0	04	1	9307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. TROPICAL ZONE KIT(WB6) (B) ID=15	9-09715-098-0	02	1	9307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK TAIWAN EQUIPMENT(WW5) (C) L=250	5-09707-030-0	03	1	9207-9306	●
41	CLIP; FUEL PIPE,FUEL TANK TAIWAN EQUIPMENT(WW5) (C) L=250	5-09707-030-1	02	1	9307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK BRAKE REGULATION HONG KONG<TCZ> (C) L=250	5-09707-030-1	02	1	9307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. TROPICAL ZONE KIT(WB6) (A) ID=14	1-09704-102-0	04	1	9002-9306	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. TROPICAL ZONE KIT(WB6) (B) ID=15	9-09715-098-0	02	1	9002-9306	●
55	COVER; PIPE,FUEL TANK L=150	1-09369-006-1	01	1	9002-9204	●
55	COVER; PIPE,FUEL TANK EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5) L=150	1-09369-006-1	01	1	9205-9306	●	●
55	COVER; PIPE,FUEL TANK EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5) L=1300	1-09360-677-1	01	1	9307-	●	●
55	COVER; PIPE,FUEL TANK TAIWAN EQUIPMENT(WW5) L=150	1-09369-006-1	02	1	9205-9306	●	●
55	COVER; PIPE,FUEL TANK BRAKE REGULATION HONG KONG<TCZ> L=150	1-09369-006-1	02	1	9205-9306	●	●
55	COVER; PIPE,FUEL TANK TAIWAN EQUIPMENT(WW5) L=1300	1-09360-677-1	02	1	9307-	●	●
55	COVER; PIPE,FUEL TANK BRAKE REGULATION HONG KONG<TCZ> L=1300	1-09360-677-1	02	1	9307-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-1	01	1	9002-9204	●	●
97	BRACKET; CLIP (B) L=135	1-22518-099-0	01	1	9002-	●	●
97	BRACKET; CLIP EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> (C) L=55	1-47475-304-0	01	1	9002-9404	●	●
97	BRACKET; CLIP EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> (C) L=95	1-82699-085-0	01	1	9405-	●	●
98	BOLT; BRKT,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
98	BOLT; BRKT,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●
98	BOLT; BRKT,FUEL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●
98	BOLT; BRKT,FUEL PIPE EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
98	BOLT; BRKT,FUEL PIPE EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●
98	BOLT; BRKT,FUEL PIPE EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●
99	NUT; BRKT,CLIP,FUEL TANK EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> M8	9-09110-408-0	01	1	9002-	●	●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	01	1	9002-	●	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	01	1	9002-	●	●
100	CLIP; FUEL PIPE EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5),FUEL TANK 200L+300L<W64> (B) ID=16X2 L=20	9-09535-536-0	01	1	9002-	●	●
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	01	1	9002-	●	●
100	CLIP; FUEL PIPE (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9205-	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9303-	●	●
101	BOLT; CLIP,FUEL PIPE EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5),FUEL TANK 200L+300L<W64> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●
101	BOLT; CLIP,FUEL PIPE EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5),FUEL TANK 200L+300L<W64> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●
101	BOLT; CLIP,FUEL PIPE EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5),FUEL TANK 200L+300L<W64> M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●
102	NUT; CLIP,FUEL PIPE EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	01	1	9002-	●	●
227	BRACKET; FUEL SEDIMENTER EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5)	1-22518-081-1	01	1	9002-	●	●
228	BOLT; BRKT,SEDIMENTER M14X45	9-92051-445-0	02	1	9002-9005	●
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	9006-	●	●
228	BOLT; BRKT,SEDIMENTER EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5) M12X35	9-92061-235-0	02	1	9002-	●	●
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	9002-	●	●
229	NUT; BRKT,FUEL FILTER EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5) M12	9-99110-512-0	02	1	9002-	●	●
230	WASHER; LK,BRKT,FUEL TANK EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5) ID=12.2	9-09150-812-0	02	1	9002-	●	●
