5-15 — CAB MOUNTING; CAB SIDE (#35529) — 115 parça

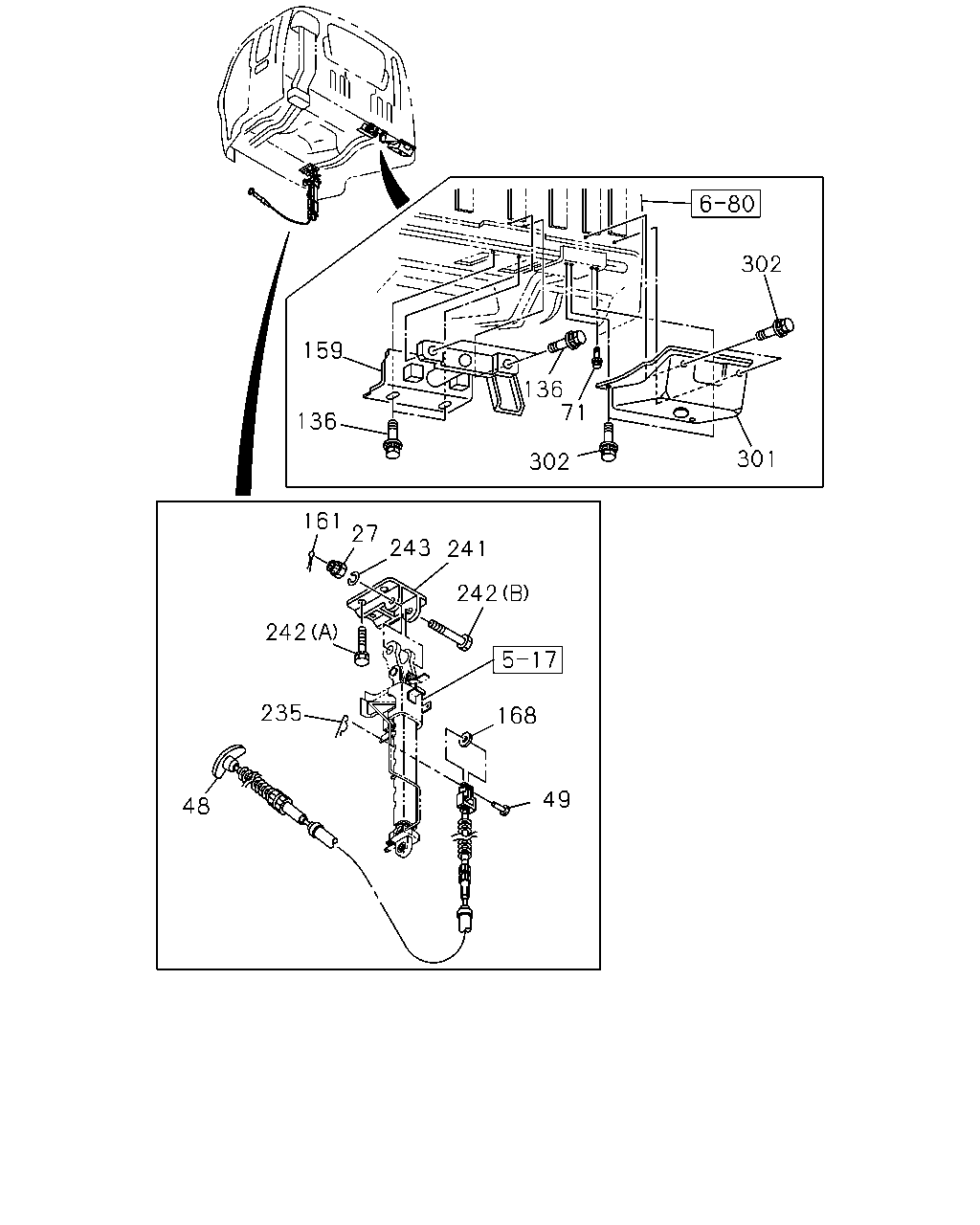

302 159 136 71 136 301 302 161 27 243 241 242 242 235 168 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	NUT; OIL CYL M14	9-99116-414-0	01	1	0603-0604	●	●
27	NUT; OIL CYL M14 SLOTTED	0-91116-514-0	01	1	0605-	●	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0603-	●	●
49	PIN; JAW FIX OD=6 L=17	9-08223-617-0	01	1	0603-0606	●	●
49	PIN; JAW FIX OD=6 L=17	0-82253-617-0	01	1	0607-	●	●
71	BOLT M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	0603-	●	●
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0603-	●	●
159	PIN	1-79717-627-1	01	1	0603-	●	●
161	PIN; SPLIT OD=2.8 L=25	9-08113-025-0	01	1	0603-0606	●	●
161	PIN; SPLIT OD=2.8 L=25	0-81123-025-0	01	1	0607-	●	●
168	WASHER; PL ID=6.4	9-09160-506-0	01	1	0603-	●	●
235	PIN; SNAP L=21.2	8-94157-840-0	01	1	0603-	●	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-660-1	01	1	0603-	●	●
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30 W/SP WASHER	1-09980-546-0	05	1	0603-	●	●
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	0603-	●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	9-09150-514-0	01	1	0603-0603	●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	0-91510-514-0	01	1	0604-0805	●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	0-91510-814-0	01	1	0806-	●	●
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	0603-	●	●
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	1-09980-488-0	08	1	0603-	●	●

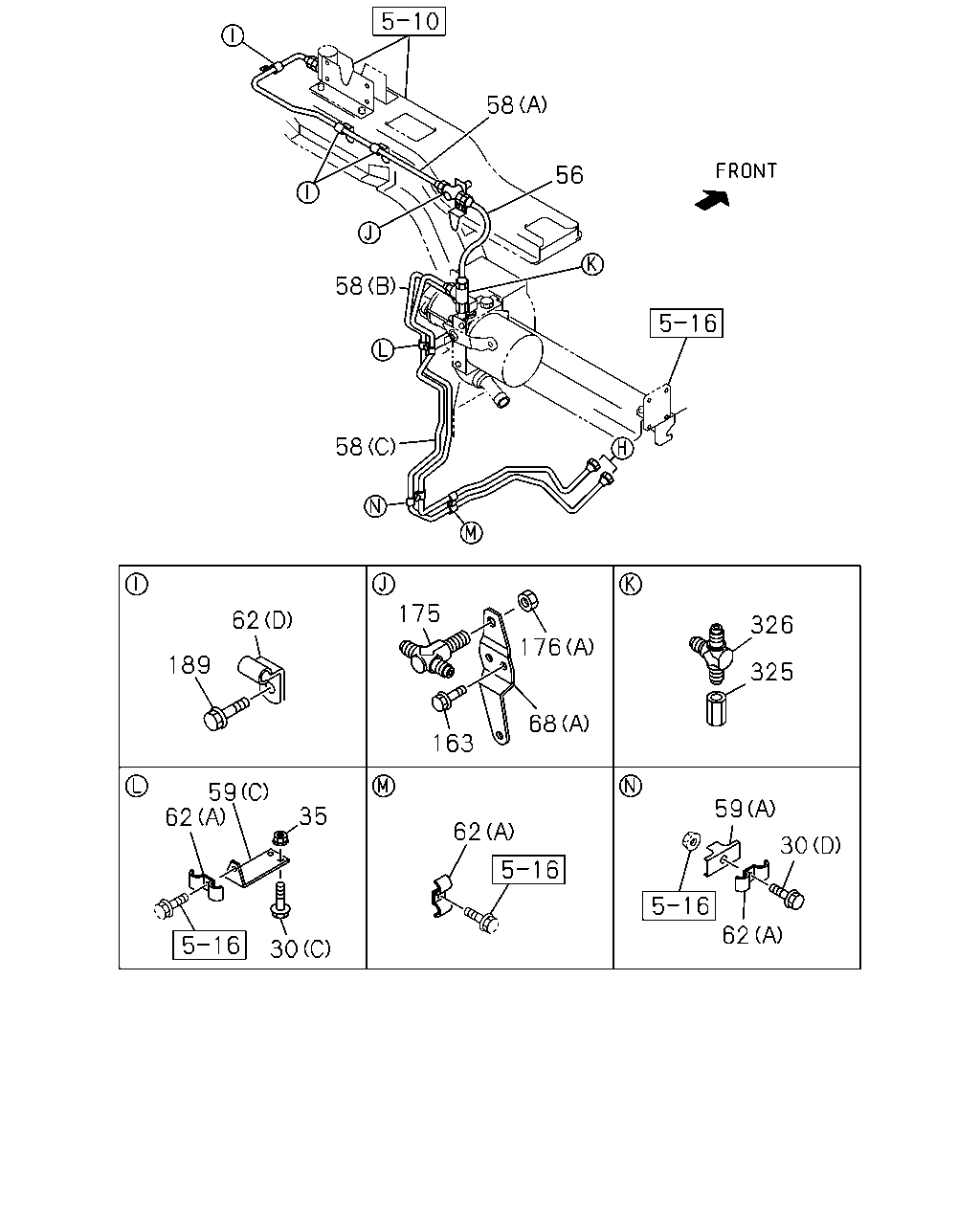

58 56 58 58 175 62 326 176 189 325 68 163 59 62 59 35 30 62 30 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B) M8X30 FLANGE	0-28650-830-0	01	1	0904-		●
30	BOLT; BRKT FIX (D) M8X45 FLANGE	0-28050-845-0	01	1	0603-	●	●
30	BOLT; BRKT FIX (C) M8X20 FLANGE	0-28650-820-0	02	1	0603-	●	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	02	1	0603-0903	●	●
30	BOLT; BRKT FIX POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (B) M8X30 FLANGE	0-28650-830-0	02	1	0904-	●	●
30	BOLT; BRKT FIX (A) M12X25 FLANGE	0-28651-225-0	01	1	0603-	●	●
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0603-0603	●	●
35	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
56	HOSE; FLEX,OIL PIPE L=400	1-09365-060-0	01	1	0603-	●	●
58	PIPE; OIL,POWER UNIT (A) L=1401 SERVICED BY L=1500	1-47428-735-0	01	1	0603-	●	●
58	PIPE; OIL,POWER UNIT (C) L=1191 SERVICED BY L=1200	1-47428-732-0	01	1	0603-	●	●
58	PIPE; OIL,POWER UNIT (B) L=1154 SERVICED BY L=1200	1-47428-732-0	01	1	0603-1009	●	●
58	PIPE; OIL,POWER UNIT (B) L=1268 SERVICED BY L=1370	1-47428-734-0	01	1	1010-	●	●
59	BRACKET; CLIP POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (E)	1-47479-248-0	01	1	0904-		●
59	BRACKET; CLIP (A)	1-47475-427-1	01	1	0603-	●	●
59	BRACKET; CLIP (B) L=115 B=25	1-47476-758-0	02	1	0603-0903	●	●
59	BRACKET; CLIP POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (B) L=115 B=25	1-47476-758-0	02	1	0904-	●	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	0603-	●	●
59	BRACKET; CLIP (D)	1-47477-631-1	01	1	0603-	●	●
62	CLIP; OIL PIPE POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0904-		●
62	CLIP; OIL PIPE (D) ID=6 H=20 L=20	1-09700-603-0	03	1	0603-	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0603-	●	●
62	CLIP; OIL PIPE (E) ID=24 L=27	1-09700-809-0	01	1	0603-0903	●	●
62	CLIP; OIL PIPE (E) ID=24 L=27	1-09700-809-0	01	1	0904-	●	●
62	CLIP; OIL PIPE POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (E) ID=24 L=27	1-09700-809-0	01	1	0904-		●
62	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	03	1	0603-0903	●	●
62	CLIP; OIL PIPE POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (B) ID=21 L=30 H=40	1-09700-991-1	03	1	0904-	●	●
62	CLIP; OIL PIPE (F) L=140	5-09707-031-1	02	1	0603-	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	01	1	0603-0606	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	01	1	0607-	●	●
68	BRACKET; UNION (B)	1-47471-040-0	01	1	0603-	●	●
68	BRACKET; UNION (A)	1-53458-374-1	01	1	0603-	●	●
163	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	02	1	0603-	●	●
175	UNION; FLEX HOSE M12 2WAY	1-09654-234-2	01	1	0603-	●	●
176	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	0603-0603	●	●
176	NUT; UNION (A) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	0603-	●	●
189	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0603-	●	●
325	ADAPTER; PUMP M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0603-	●	●
326	UNION; PUMP M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0603-	●	●

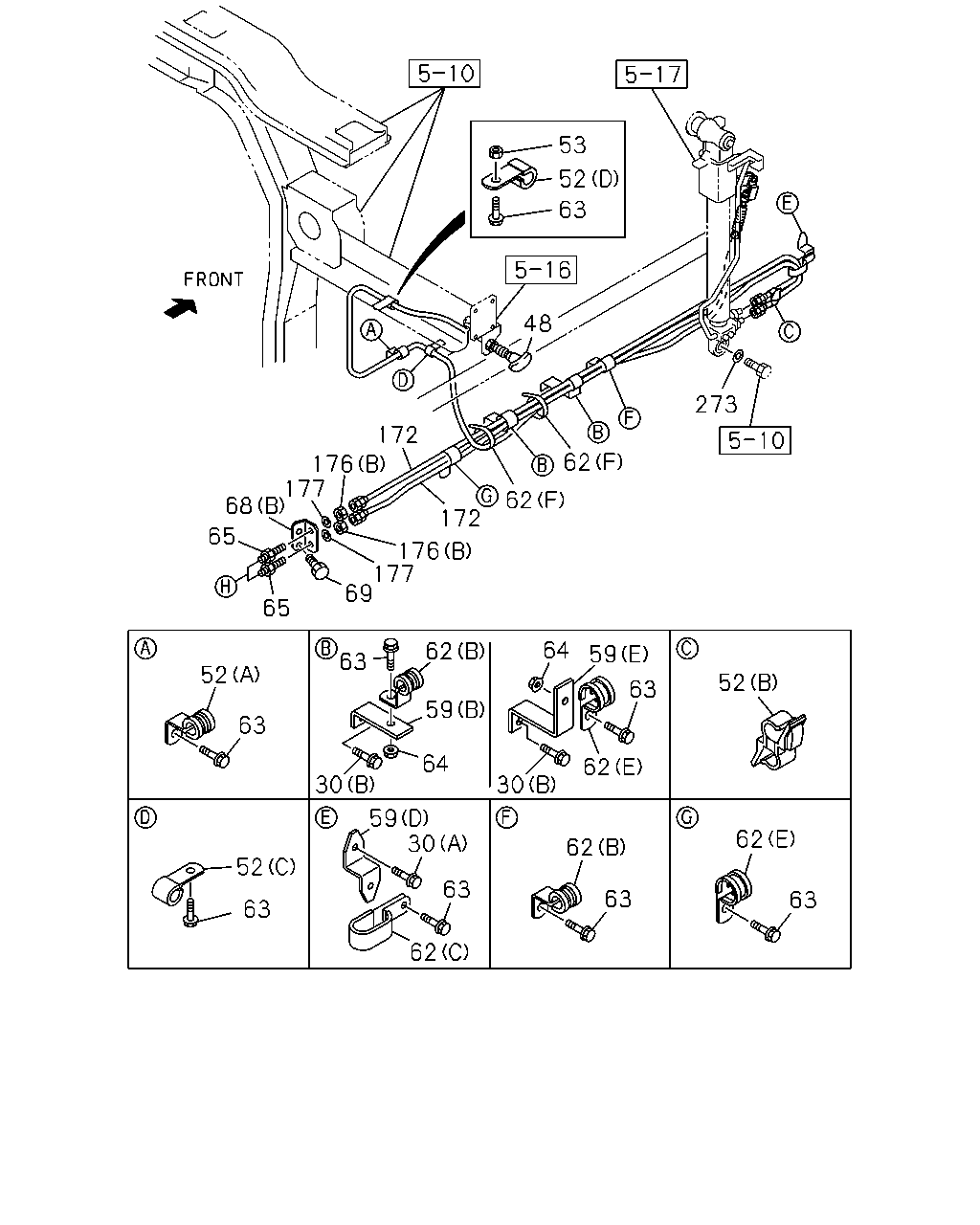

53 52 63 48 273 172 62 176 177 68 172 62 65 176 177 69 65 63 64 62 59 52 52 63 59 63 64 62 30 30 59 30 62 62 52 63 63 63 63 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B) M8X30 FLANGE	0-28650-830-0	01	1	0904-		●
30	BOLT; BRKT FIX (D) M8X45 FLANGE	0-28050-845-0	01	1	0603-	●	●
30	BOLT; BRKT FIX (C) M8X20 FLANGE	0-28650-820-0	02	1	0603-	●	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	02	1	0603-0903	●	●
30	BOLT; BRKT FIX POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (B) M8X30 FLANGE	0-28650-830-0	02	1	0904-	●	●
30	BOLT; BRKT FIX (A) M12X25 FLANGE	0-28651-225-0	01	1	0603-	●	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0603-	●	●
52	CLIP; CONT CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0603-	●	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	0603-	●	●
52	CLIP; CONT CABLE (C) ID=7 L=20	9-09524-635-0	01	1	0603-0606	●	●
52	CLIP; CONT CABLE (C) ID=7 L=20	0-95234-635-0	01	1	0607-	●	●
52	CLIP; CONT CABLE (D) ID=7 L=50	9-09524-685-0	01	1	0603-0606	●	●
52	CLIP; CONT CABLE (D) ID=7 L=50	0-95234-685-0	01	1	0607-	●	●
53	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0603-0603	●	●
53	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
59	BRACKET; CLIP POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (E)	1-47479-248-0	01	1	0904-		●
59	BRACKET; CLIP (A)	1-47475-427-1	01	1	0603-	●	●
59	BRACKET; CLIP (B) L=115 B=25	1-47476-758-0	02	1	0603-0903	●	●
59	BRACKET; CLIP POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (B) L=115 B=25	1-47476-758-0	02	1	0904-	●	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	0603-	●	●
59	BRACKET; CLIP (D)	1-47477-631-1	01	1	0603-	●	●
62	CLIP; OIL PIPE POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0904-		●
62	CLIP; OIL PIPE (D) ID=6 H=20 L=20	1-09700-603-0	03	1	0603-	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0603-	●	●
62	CLIP; OIL PIPE (E) ID=24 L=27	1-09700-809-0	01	1	0603-0903	●	●
62	CLIP; OIL PIPE (E) ID=24 L=27	1-09700-809-0	01	1	0904-	●	●
62	CLIP; OIL PIPE POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (E) ID=24 L=27	1-09700-809-0	01	1	0904-		●
62	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	03	1	0603-0903	●	●
62	CLIP; OIL PIPE POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (B) ID=21 L=30 H=40	1-09700-991-1	03	1	0904-	●	●
62	CLIP; OIL PIPE (F) L=140	5-09707-031-1	02	1	0603-	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	01	1	0603-0606	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	01	1	0607-	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	07	1	0603-	●	●
63	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0603-	●	●
64	NUT; CLIP POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> M8 FLANGE	0-91180-108-0	01	1	0904-		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0603-0603	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-0903	●	●
64	NUT; CLIP POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> M8 FLANGE	0-91180-108-0	02	1	0904-	●	●
65	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	02	1	0603-0607	●	●
65	UNION; OIL PIPE M12 L=66.5	0-92113-306-0	02	1	0608-	●	●
68	BRACKET; UNION (B)	1-47471-040-0	01	1	0603-	●	●
68	BRACKET; UNION (A)	1-53458-374-1	01	1	0603-	●	●
69	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0603-	●	●
172	HOSE; FLEX,OIL TILT POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> L=1600	8-98147-296-0	02	1	0904-1208		●
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	0603-0903	●	●
172	HOSE; FLEX,OIL TILT POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> L=1600	1-09365-052-1	02	1	0904-0909	●	●
172	HOSE; FLEX,OIL TILT POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> L=1600	8-97634-002-0	02	1	0910-1208	●	●
172	HOSE; FLEX,OIL TILT L=1600	8-97634-002-0	02	1	1209-	●	●
176	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	0603-0603	●	●
176	NUT; UNION (A) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	0603-	●	●
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	0603-0603	●	●
177	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	0604-	●	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	0603-0605	●	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●	●
