5-01 — FRAME AND OTHER PARTS (#35527) — 155 parça

13 13 12 11 12 11 23 23 23 25 25 26 23 25 26 24 39 46 25 25 46 26 35 24 25 23 36 23 37 44 25 25 25 23 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

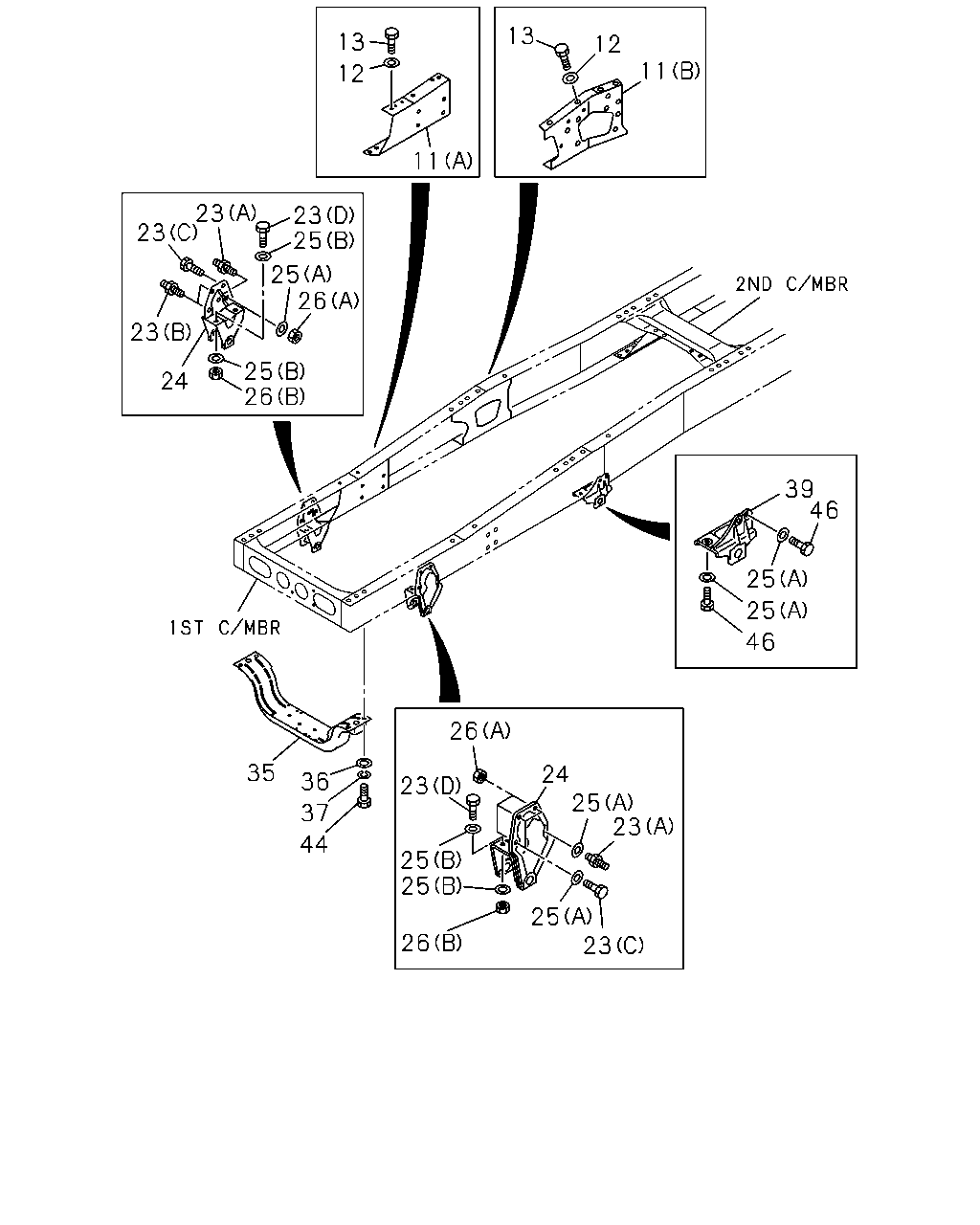

11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-141-1	01	1	0603-	●
11	BRACKET; ENG MTG (B)	1-53239-141-1	01	1	0603-		●	●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53239-142-1	01	1	0603-	●
11	BRACKET; ENG MTG (B)	1-53239-142-1	01	1	0603-		●	●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	0603-0703	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	0704-	●	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	0603-0703	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	0704-	●	●	●	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-139-0	01	1	0603-0703	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-139-1	01	1	0704-	●
11	BRACKET; ENG MTG (B)	1-53239-139-1	01	1	0704-				●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-140-0	01	1	0603-0703	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53239-140-1	01	1	0704-	●
11	BRACKET; ENG MTG (B)	1-53239-140-1	01	1	0704-				●
12	WASHER; PL,BRKT,ENG MTG HEAVY DUTY PACKAGE TRUCK<RD2> EXC. RUSSIA COUNTRY<CZ3> ID=15	8-98010-627-0	06	1	0904-0905		●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	06	1	0603-0703	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	06	1	0704-0903	●	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	06	1	0904-0905	●		●	●
12	WASHER; PL,BRKT,ENG MTG RUSSIA COUNTRY<CZ3> ID=15	9-09651-069-0	06	1	0904-0905		●
12	WASHER; PL,BRKT,ENG MTG EXC. RUSSIA COUNTRY<CZ3>,HEAVY DUTY PACKAGE TRUCK<RD2> ID=15	9-09651-069-0	06	1	0904-0905		●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	06	1	0906-1201	●	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	06	1	1202-	●	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	0603-0703	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	0704-	●	●	●	●
23	BOLT; BRKT,SPR (C) M14X40	0-20951-440-0	04	1	0704-				●
23	BOLT; BRKT,SPR (C) M14X50	0-20951-450-0	04	1	0603-	●	●	●
23	BOLT; BRKT,SPR (D) M16X50	0-20951-650-0	04	1	0603-0703	●	●	●
23	BOLT; BRKT,SPR (D) M16X50	0-20951-650-0	04	1	0704-	●	●	●	●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	02	1	0603-0703	●	●	●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	02	1	0704-	●	●	●	●
23	BOLT; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	0603-0703	●	●	●
23	BOLT; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	0704-	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0603-0703	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0704-	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0603-0703	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0704-	●	●	●	●
25	WASHER; PL,BRKT GENERAL EXPORT EQUIPMENT(TAA) EXC. RUSSIA COUNTRY<CZ3> (B) ID=16.2	1-09503-316-0	08	1	1210-1210		●
25	WASHER; PL,BRKT GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1) EXC. RUSSIA COUNTRY<CZ3> (B) ID=16.2	1-09503-316-0	08	1	1211-		●
25	WASHER; PL,BRKT HEAVY DUTY PACKAGE TRUCK<RD2> EXC. RUSSIA COUNTRY<CZ3> (B) ID=16.2	1-09503-316-0	08	1	0904-0905		●
25	WASHER; PL,BRKT HEAVY DUTY PACKAGE TRUCK<RD2> EXC. RUSSIA COUNTRY<CZ3> (A) ID=15	8-98010-627-0	16	1	0904-0905		●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0603-0703	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0704-0903	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0904-0905	●		●	●
25	WASHER; PL,BRKT RUSSIA COUNTRY<CZ3> (B) ID=16.2	1-09503-223-0	08	1	0904-0905		●
25	WASHER; PL,BRKT EXC. RUSSIA COUNTRY<CZ3>,HEAVY DUTY PACKAGE TRUCK<RD2> (B) ID=16.2	1-09503-223-0	08	1	0904-0905		●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0906-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0603-0703	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0704-0903	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0904-0905	●		●	●
25	WASHER; PL,BRKT RUSSIA COUNTRY<CZ3> (A) ID=15	9-09651-069-0	16	1	0904-0905		●
25	WASHER; PL,BRKT EXC. RUSSIA COUNTRY<CZ3>,HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=15	9-09651-069-0	16	1	0904-0905		●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0906-1201	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1202-	●	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	12	1	0704-				●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	08	1	0603-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0603-0703	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0704-	●	●	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	0603-	●	●	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0603-	●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	0603-0603	●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0604-	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	0603-0703	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	0704-	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	0603-0703	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	0704-	●	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0603-	●	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0603-0703	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0704-	●	●	●	●

130 86 148 148 57 21 21 34 41 19 79 21 41 16 21 130 86 191 21 21 148 2 148 57 344 41 34 79 19 21 41 16 21 191 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

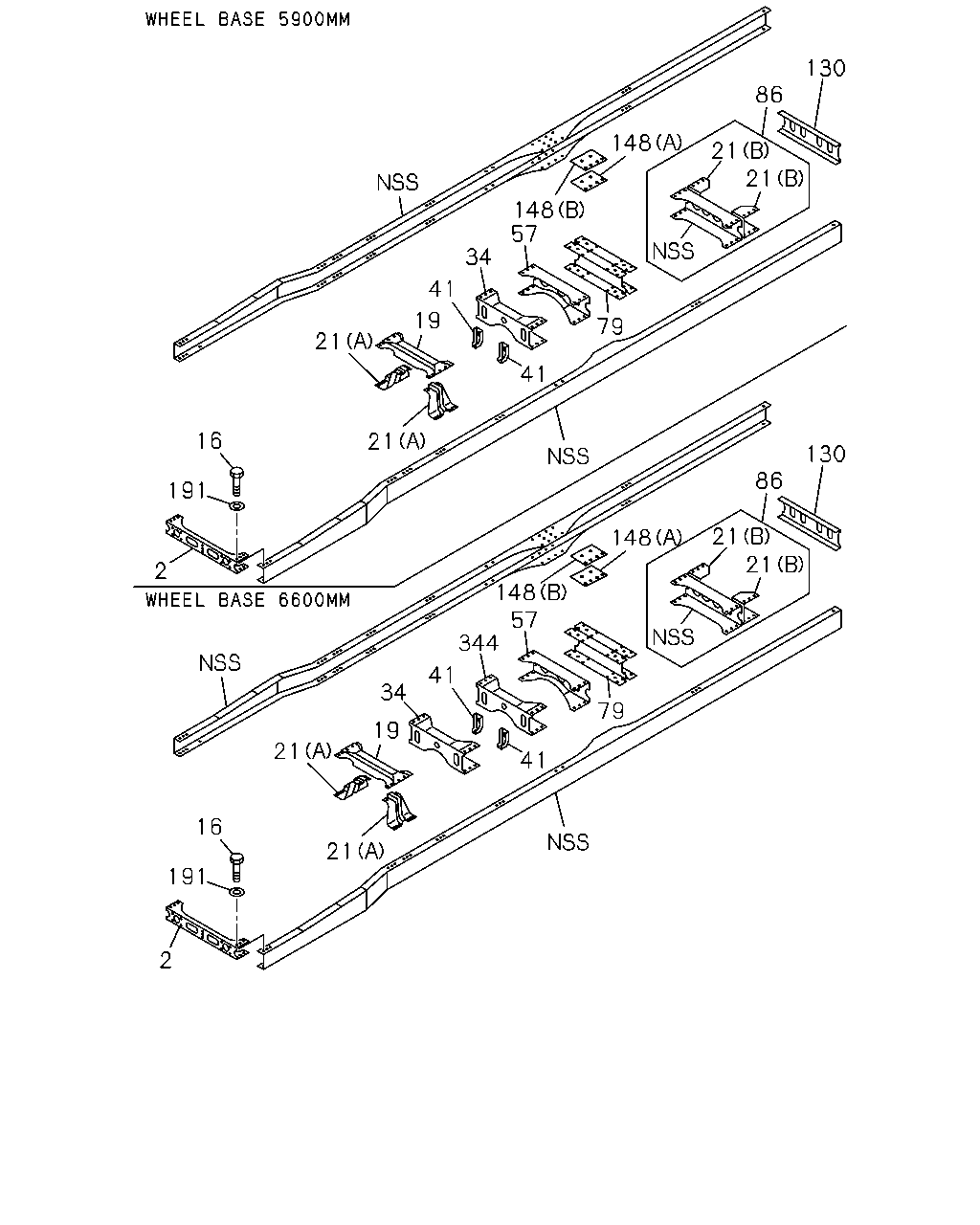

2	MEMBER; CROSS,1ST	1-53181-975-4	01	1	0603-0703	●	●	●
2	MEMBER; CROSS,1ST	1-53181-975-7	01	1	0704-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	0603-0703	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	0704-	●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0603-0703	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0704-	●	●	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0603-0703	●	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0704-	●	●	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0603-0703	●	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0704-	●	●	●	●
34	MEMBER; CROSS,3RD	1-53182-072-1	01	1	0603-		●	●
41	BRACKET; CENTER BRG,FRAME SIDE L=320	1-53271-385-0	02	1	0603-		●
41	BRACKET; CENTER BRG,FRAME SIDE L=340	1-53271-307-1	02	1	0603-			●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0603-0703	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0603-0703		●	●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0704-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0704-		●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	0704-				●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	0603-	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-1	01	1	0603-0703	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	0704-	●	●	●	●
130	MEMBER; CROSS,END	1-53171-876-4	01	1	0603-		●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0603-0706	●	●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0707-	●	●	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0603-0706	●	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0707-	●	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR HEAVY DUTY PACKAGE TRUCK<RD2> EXC. RUSSIA COUNTRY<CZ3> ID=15	8-98010-627-0	02	1	0904-0905		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0603-0703	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0704-0903	●	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0904-0905	●		●	●
191	WASHER; PL,1ST C/MBR TO S/MBR RUSSIA COUNTRY<CZ3> ID=15	9-09651-069-0	02	1	0904-0905		●
191	WASHER; PL,1ST C/MBR TO S/MBR EXC. RUSSIA COUNTRY<CZ3>,HEAVY DUTY PACKAGE TRUCK<RD2> ID=15	9-09651-069-0	02	1	0904-0905		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0906-1201	●	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1202-	●	●	●	●
344	MEMBER; CROSS,4TH	1-53182-072-1	01	1	0603-			●

84 84 83 82 80 84 83 82 82 83 81 81 81 80 82 255 80 82 255 255 81 80 79 255 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

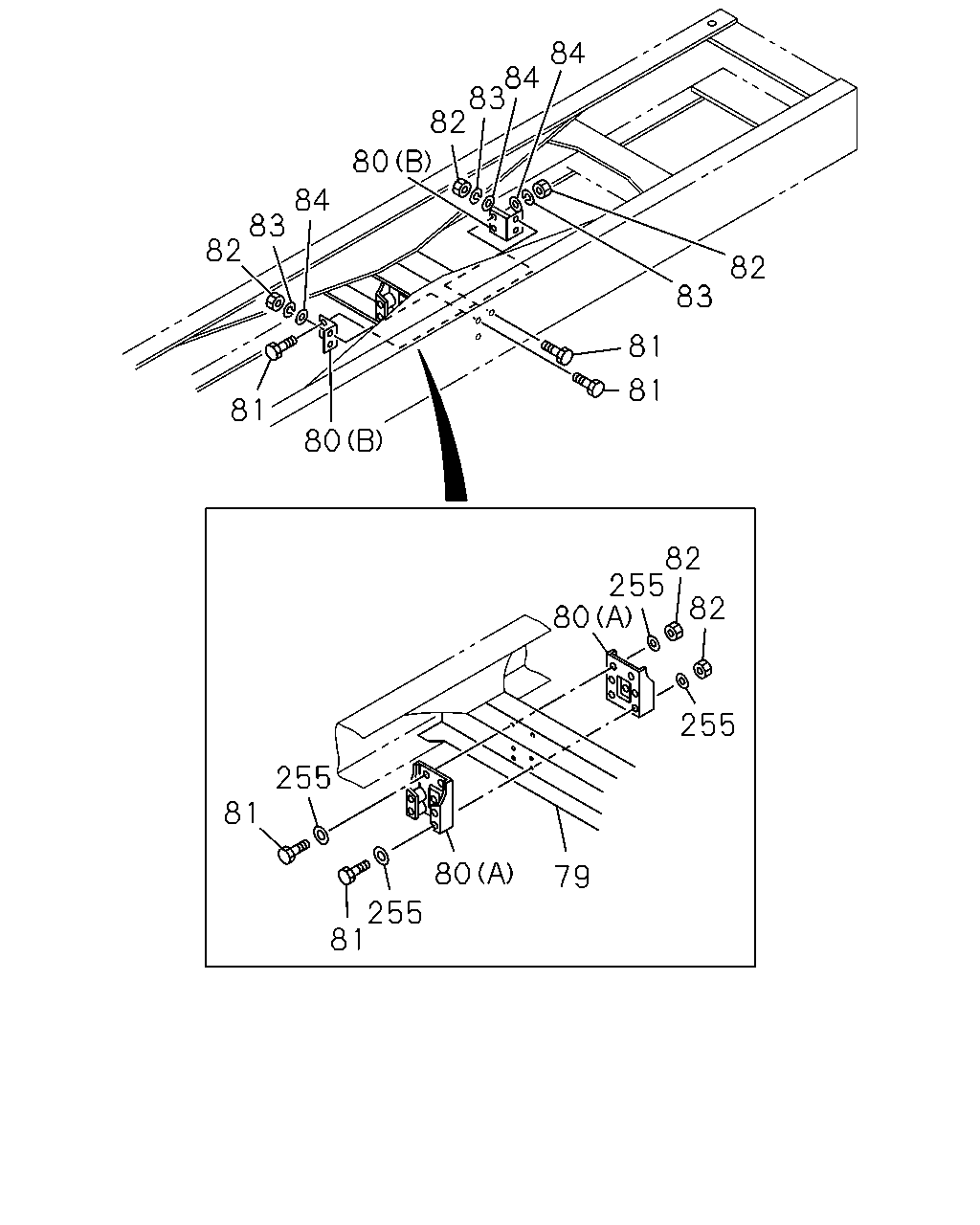

79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	0704-				●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	0603-	●	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	0603-0703	●	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	0704-	●	●	●	●
80	BRACKET; C/MBR (B)	1-53167-288-1	04	1	0603-	●	●	●	●
81	BOLT; BRKT M14X55	9-91066-455-0	04	1	0603-	●	●	●	●
81	BOLT; BRKT M14X45	9-92061-445-0	08	1	0603-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	0603-0703	●	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	0704-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	0603-	●	●	●	●
83	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	0603-0603	●	●	●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	0604-	●	●	●	●
84	WASHER; PL,BRKT ID=15 OD=26	9-09164-514-0	16	1	0603-1104	●	●	●	●
84	WASHER; PL,BRKT ID=15 OD=26	0-91614-514-0	16	1	1105-	●	●	●	●
255	WASHER; PL,BRKT HEAVY DUTY PACKAGE TRUCK<RD2> EXC. RUSSIA COUNTRY<CZ3> ID=15	8-98010-627-0	08	1	0904-0905		●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0603-0703	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0704-0903	●	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0904-0905	●		●	●
255	WASHER; PL,BRKT RUSSIA COUNTRY<CZ3> ID=15	9-09651-069-0	08	1	0904-0905		●
255	WASHER; PL,BRKT EXC. RUSSIA COUNTRY<CZ3>,HEAVY DUTY PACKAGE TRUCK<RD2> ID=15	9-09651-069-0	08	1	0904-0905		●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0906-1201	●	●	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1202-	●	●	●	●

86 21 21 148 148 79 19 21 16 21 191 2 86 148 148 21 21 79 57 19 21 16 21 191 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

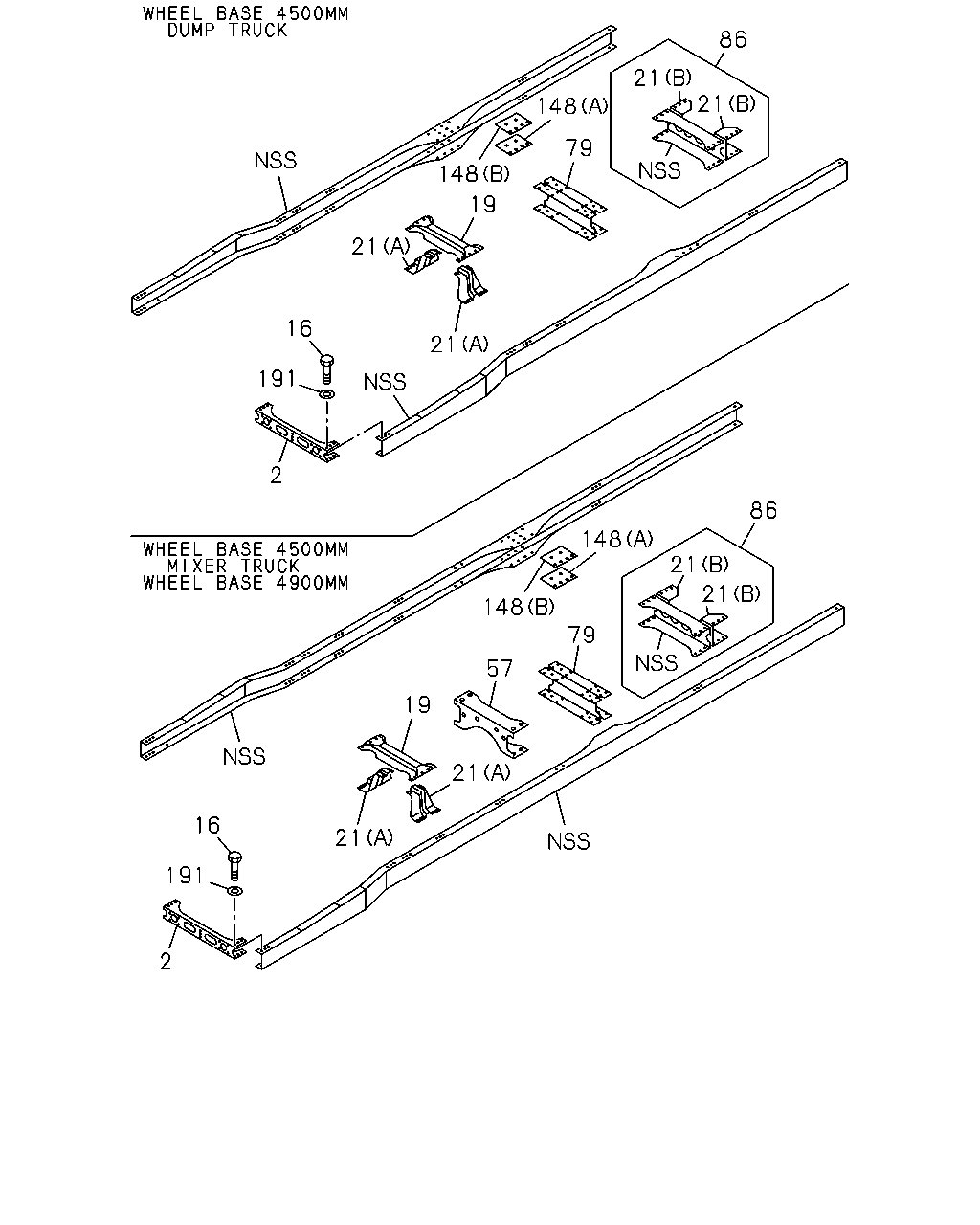

2	MEMBER; CROSS,1ST	1-53181-975-4	01	1	0603-0703	●	●	●
2	MEMBER; CROSS,1ST	1-53181-975-7	01	1	0704-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	0603-0703	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	0704-	●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0603-0703	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0704-	●	●	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0603-0703	●	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0704-	●	●	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0603-0703	●	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0704-	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0603-0703	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0603-0703		●	●
57	MEMBER; CROSS,RR SUSP FRT MIXER TRUCK<RA2>	1-53171-685-3	01	1	0704-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0704-		●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	0704-				●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	0603-	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-1	01	1	0603-0703	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	0704-	●	●	●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0603-0706	●	●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0707-	●	●	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0603-0706	●	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0707-	●	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR HEAVY DUTY PACKAGE TRUCK<RD2> EXC. RUSSIA COUNTRY<CZ3> ID=15	8-98010-627-0	02	1	0904-0905		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0603-0703	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0704-0903	●	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0904-0905	●		●	●
191	WASHER; PL,1ST C/MBR TO S/MBR RUSSIA COUNTRY<CZ3> ID=15	9-09651-069-0	02	1	0904-0905		●
191	WASHER; PL,1ST C/MBR TO S/MBR EXC. RUSSIA COUNTRY<CZ3>,HEAVY DUTY PACKAGE TRUCK<RD2> ID=15	9-09651-069-0	02	1	0904-0905		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0906-1201	●	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1202-	●	●	●	●
