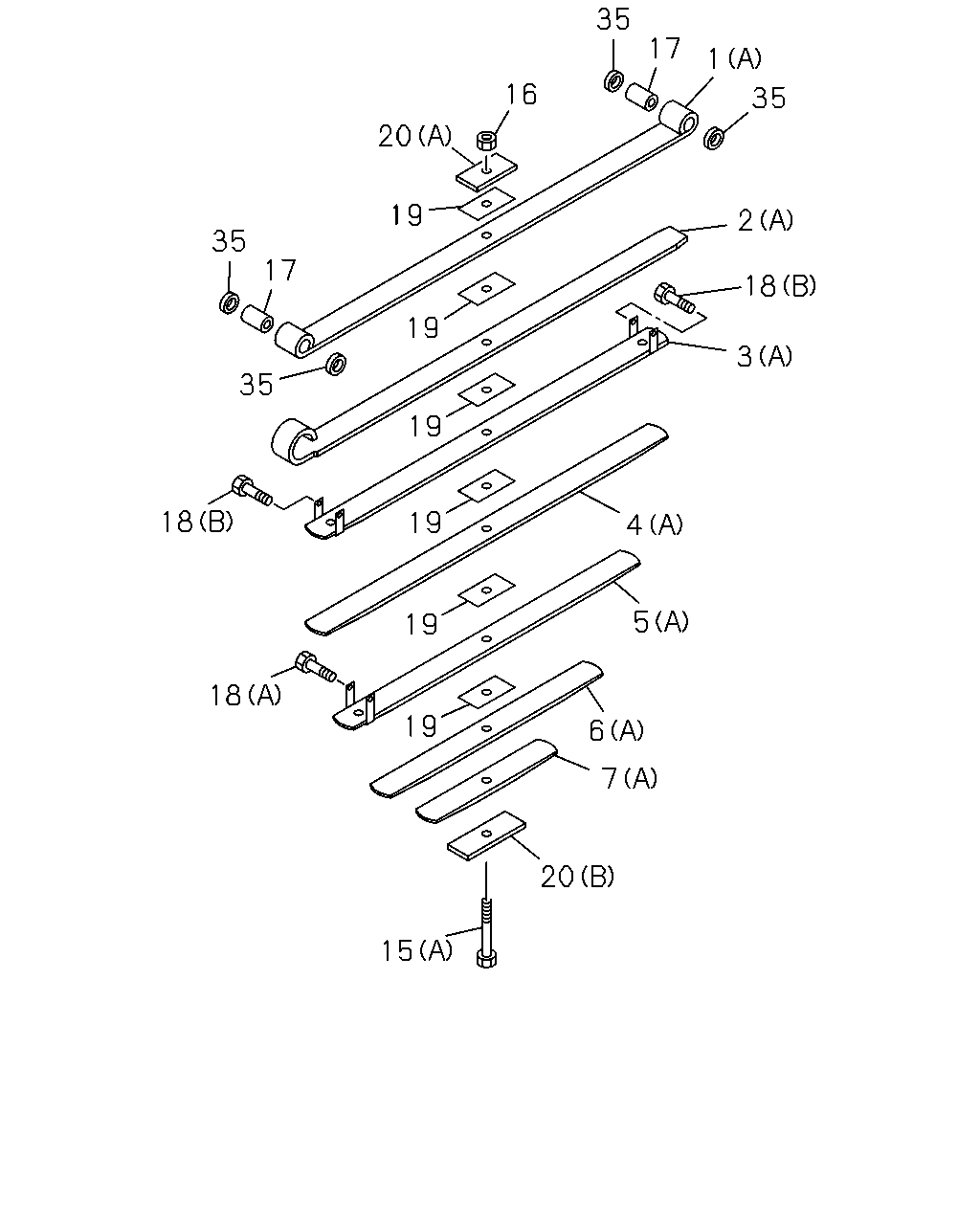

4-55 — FRONT LEAF SPRING (#35523) — 104 parça

35 17 1 16 35 20 19 2 35 17 18 19 3 35 19 18 19 4 5 19 18 19 6 7 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 1-51130-961-0	1-51131-961-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 1-51130-962-0	1-51131-962-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: C = 8-97614-070-0	8-97615-353-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0	8-97615-368-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: F = 8-98159-633-0	8-98165-010-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: G = 8-98159-648-0	8-98165-016-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: H = 8-98159-659-0	8-98165-031-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 1-51130-961-0	1-51132-961-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 1-51130-962-0	1-51132-962-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: C = 8-97614-070-0	8-97615-354-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0	8-97615-369-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: F = 8-98159-633-0	8-98165-011-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: G = 8-98159-648-0	8-98165-017-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: H = 8-98159-659-0	8-98165-032-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 1-51130-961-0	1-51133-961-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 1-51130-962-0	1-51133-962-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: C = 8-97614-070-0, G = 8-98159-648-0	8-97615-355-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, H = 8-98159-659-0	8-97615-370-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 1-51130-961-0	1-51134-961-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 1-51130-962-0	1-51134-962-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: C = 8-97614-070-0, G = 8-98159-648-0	8-97615-356-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, H = 8-98159-659-0	8-97615-371-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: A = 1-51130-961-0	1-51135-961-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: B = 1-51130-962-0	1-51135-962-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: C = 8-97614-070-0, G = 8-98159-648-0	8-97615-357-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, H = 8-98159-659-0	8-97615-372-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: A = 1-51130-961-0	1-51136-961-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: B = 1-51130-962-0	1-51136-962-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: C = 8-97614-070-0, G = 8-98159-648-0	8-97615-358-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, H = 8-98159-659-0	8-97615-373-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: A = 1-51130-961-0	1-51137-961-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: B = 1-51130-962-0	1-51137-962-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: C = 8-97614-070-0, G = 8-98159-648-0	8-97615-359-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, H = 8-98159-659-0	8-97615-374-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=175 ASM PART: B = 1-51130-962-0, D = 8-97614-072-0, H = 8-98159-659-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: A = 1-51130-961-0, C = 8-97614-070-0, G = 8-98159-648-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=185 ASM PART: E = 8-98146-355-0, F = 8-98159-633-0	1-51156-420-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-961-0, B = 1-51130-962-0, C = 8-97614-070-0, D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, G = 8-98159-648-0, H = 8-98159-659-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: F = 8-98159-633-0, G = 8-98159-648-0, H = 8-98159-659-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-961-0, B = 1-51130-962-0, C = 8-97614-070-0, D = 8-97614-072-0, E = 8-98146-355-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: A = 1-51130-961-0, B = 1-51130-962-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: A = 1-51130-961-0, B = 1-51130-962-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: C = 8-97614-070-0, D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, G = 8-98159-648-0, H = 8-98159-659-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: C = 8-97614-070-0, D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, G = 8-98159-648-0, H = 8-98159-659-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-961-0, C = 8-97614-070-0, G = 8-98159-648-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 1-51130-962-0, D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, H = 8-98159-659-0	1-51177-071-0	07	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: E = 8-98146-355-0, F = 8-98159-633-0	1-51177-078-0	02	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: B = 1-51130-962-0, D = 8-97614-072-0, H = 8-98159-659-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-961-0, B = 1-51130-962-0, C = 8-97614-070-0, D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, G = 8-98159-648-0, H = 8-98159-659-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: A = 1-51130-961-0, C = 8-97614-070-0, G = 8-98159-648-0	1-51177-352-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-961-0, B = 1-51130-962-0, C = 8-97614-070-0, D = 8-97614-072-0, E = 8-98146-355-0	1-51177-321-0	04	1	-

35 17 1 35 16 20 19 2 35 17 3 19 18 35 19 19 4 19 5 18 19 6 18 19 7 8 20 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 1-51130-961-0	1-51131-961-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 1-51130-962-0	1-51131-962-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: C = 8-97614-070-0	8-97615-353-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0	8-97615-368-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: F = 8-98159-633-0	8-98165-010-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: G = 8-98159-648-0	8-98165-016-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: H = 8-98159-659-0	8-98165-031-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 1-51130-961-0	1-51132-961-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 1-51130-962-0	1-51132-962-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: C = 8-97614-070-0	8-97615-354-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0	8-97615-369-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: F = 8-98159-633-0	8-98165-011-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: G = 8-98159-648-0	8-98165-017-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: H = 8-98159-659-0	8-98165-032-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 1-51130-961-0	1-51133-961-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 1-51130-962-0	1-51133-962-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: C = 8-97614-070-0, G = 8-98159-648-0	8-97615-355-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, H = 8-98159-659-0	8-97615-370-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 1-51130-961-0	1-51134-961-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 1-51130-962-0	1-51134-962-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: C = 8-97614-070-0, G = 8-98159-648-0	8-97615-356-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, H = 8-98159-659-0	8-97615-371-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: A = 1-51130-961-0	1-51135-961-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: B = 1-51130-962-0	1-51135-962-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: C = 8-97614-070-0, G = 8-98159-648-0	8-97615-357-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, H = 8-98159-659-0	8-97615-372-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: A = 1-51130-961-0	1-51136-961-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: B = 1-51130-962-0	1-51136-962-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: C = 8-97614-070-0, G = 8-98159-648-0	8-97615-358-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, H = 8-98159-659-0	8-97615-373-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: A = 1-51130-961-0	1-51137-961-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: B = 1-51130-962-0	1-51137-962-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A) ASM PART: C = 8-97614-070-0, G = 8-98159-648-0	8-97615-359-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, H = 8-98159-659-0	8-97615-374-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 1-51130-962-0	1-51138-962-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, H = 8-98159-659-0	8-97615-375-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=175 ASM PART: B = 1-51130-962-0, D = 8-97614-072-0, H = 8-98159-659-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: A = 1-51130-961-0, C = 8-97614-070-0, G = 8-98159-648-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=185 ASM PART: E = 8-98146-355-0, F = 8-98159-633-0	1-51156-420-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-961-0, B = 1-51130-962-0, C = 8-97614-070-0, D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, G = 8-98159-648-0, H = 8-98159-659-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: F = 8-98159-633-0, G = 8-98159-648-0, H = 8-98159-659-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-961-0, B = 1-51130-962-0, C = 8-97614-070-0, D = 8-97614-072-0, E = 8-98146-355-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: A = 1-51130-961-0, B = 1-51130-962-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: A = 1-51130-961-0, B = 1-51130-962-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: C = 8-97614-070-0, D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, G = 8-98159-648-0, H = 8-98159-659-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: C = 8-97614-070-0, D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, G = 8-98159-648-0, H = 8-98159-659-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-961-0, C = 8-97614-070-0, G = 8-98159-648-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 1-51130-962-0, D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, H = 8-98159-659-0	1-51177-071-0	07	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: E = 8-98146-355-0, F = 8-98159-633-0	1-51177-078-0	02	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: B = 1-51130-962-0, D = 8-97614-072-0, H = 8-98159-659-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-961-0, B = 1-51130-962-0, C = 8-97614-070-0, D = 8-97614-072-0, E = 8-98146-355-0, F = 8-98159-633-0, G = 8-98159-648-0, H = 8-98159-659-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: A = 1-51130-961-0, C = 8-97614-070-0, G = 8-98159-648-0	1-51177-352-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-961-0, B = 1-51130-962-0, C = 8-97614-070-0, D = 8-97614-072-0, E = 8-98146-355-0	1-51177-321-0	04	1	-
