◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#35514) — 1106 parça

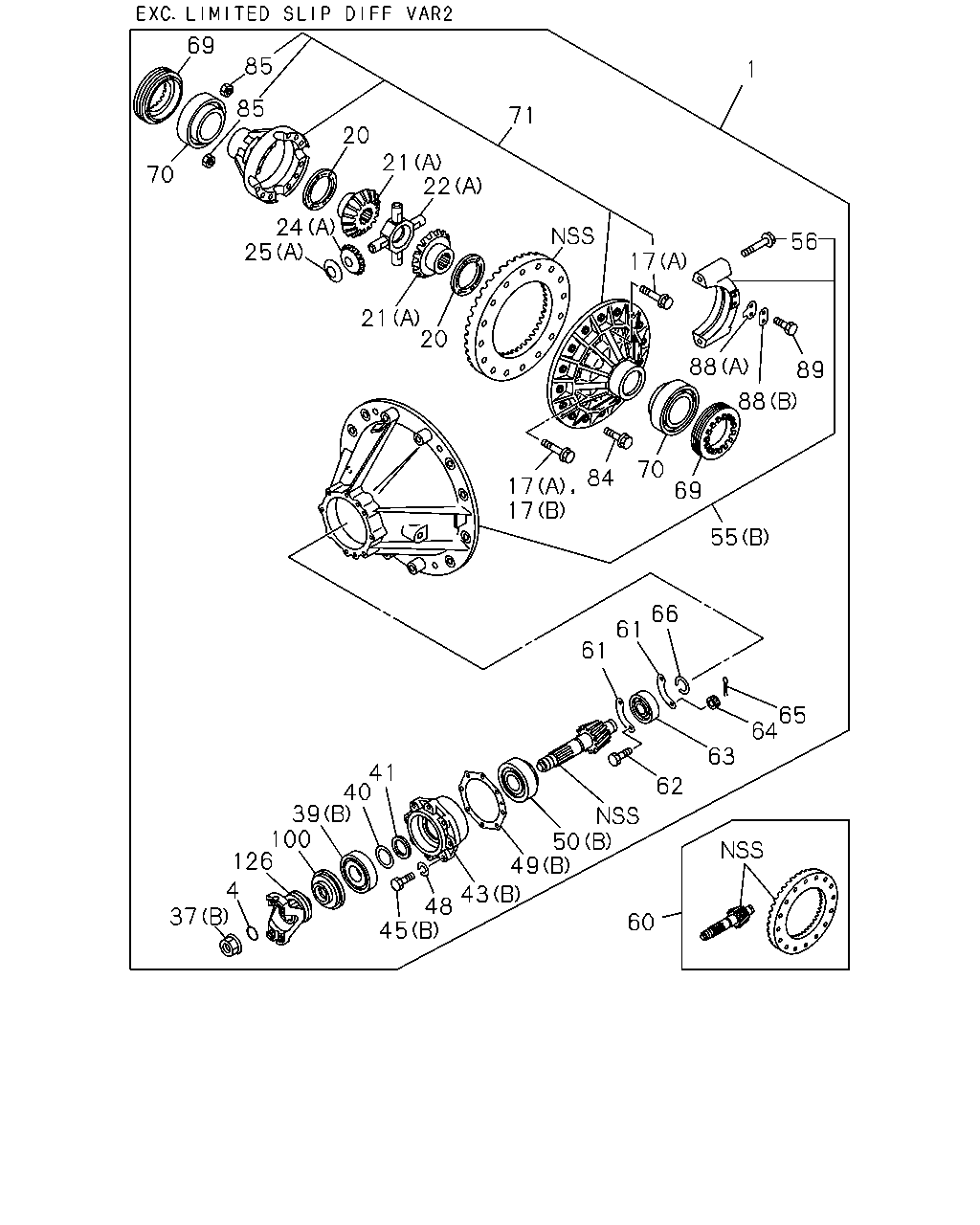

çizim 177444
69 85 1 85 71 20 21 22 70 24 25 56 17 21 20 88 89 88 70 84 17 17 69 55 66 61 61 65 64 63 41 40 39 100 126 62 50 49 43 48 45 4 37 60
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 43/7 		1-41003-521-0 01 1 0912- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 43/7 		1-41003-522-0 01 1 0912- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/7 		1-41002-443-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-761-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 0603-0910 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 43/7 		1-41001-392-0 01 1 0911- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-441-0 01 1 0603-0910 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 43/7 		1-41002-441-0 01 1 0911- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 0603-0811 ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 0812- ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 08 1 0603-0811 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 08 1 0812- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 16 1 0603-0811 ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 16 1 0812- ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M10X55 		1-09070-108-0 08 1 0603-0811 ●
17 BOLT; DIFF CAGE SETTING
(C) M10X55 		1-09070-108-0 08 1 0812- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8 		1-41562-112-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0911- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9 		1-41562-113-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0911- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0 		1-41562-114-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0911- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1 		1-41562-115-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0911- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2 		1-41562-116-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0911- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3 		1-41562-117-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0911- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4 		1-41562-118-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0911- ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0603-0811 ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0812-0911 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-169-0 01 1 0912- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0603-0811 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0812-0905 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 04 1 0906-0910 ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16 		1-41561-151-0 04 1 0911- ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 04 1 0911- ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0603-0811 ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0812-0910 ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=35 		1-41521-037-2 02 1 0911- ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0911- ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0603-0811 ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0812- ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0603-0811 ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0812-0911 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-055-0 04 1 0912- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0603-0811 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0812-0905 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 08 1 0906-0910 ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10 		1-41551-053-0 08 1 0911- ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 08 1 0911- ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0603-0811 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0812-0910 ● ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6 		1-41552-017-0 08 1 0911- ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0911- ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0603-0811 ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0812- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0603-0811 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0812- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0603-0811 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-1 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 0812- ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0603-0811 ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0812- ● ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 0603-0811 ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 0812- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0603-0811 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0812- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0603-0811 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0812- ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 0603-0603 ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 0604-0811 ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0812- ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0812- ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 0812- ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 0812- ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 0812- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0603-0811 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0812- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0603-0811 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0812- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0603-0811 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0812- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 0603- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 0603-0811 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 0812- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 0603-0811 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 0812- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0603-0811 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0812- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0603-0811 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0812- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 04 1 0603-0811 ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 04 1 0812- ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 04 1 0603-0805 ●
65 PIN; SPLIT,RET 0-81122-012-0 04 1 0806-0811 ●
65 PIN; SPLIT,RET 0-81122-012-0 04 1 0812- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 0603-0811 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 02 1 0812- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0603-0811 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0812- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0603-0811 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0812- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 0603-0811 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 0812- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0603-0811 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0812- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0603-0811 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0812- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0603-0811 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0812- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0603-0811 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0812- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0603-0811 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0812- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 08 1 0603-0811 ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 08 1 0812- ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0603-0811 ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0812- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 0603-0811 ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 0812- ● ● ●

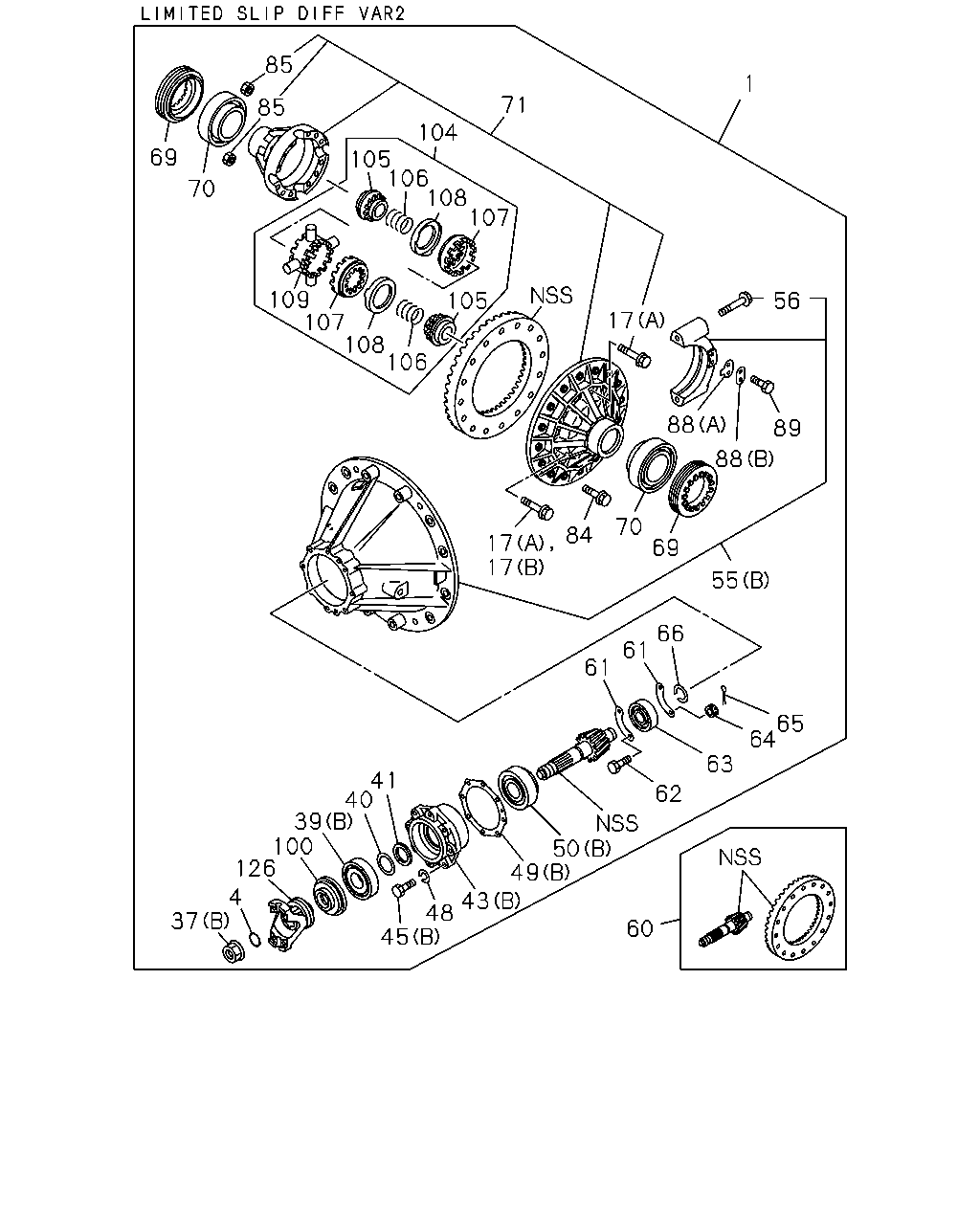

çizim 177446
85 1 85 71 104 69 105 106 108 107 70 109 107 108 106 56 105 17 88 89 88 70 84 17 17 69 55 66 61 61 65 64 63 41 40 39 100 126 62 50 49 43 48 45 4 37 60
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 43/7 		1-41003-521-0 01 1 0912- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 43/7 		1-41003-522-0 01 1 0912- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/7 		1-41002-443-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-761-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 0603-0910 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 43/7 		1-41001-392-0 01 1 0911- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-441-0 01 1 0603-0910 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 43/7 		1-41002-441-0 01 1 0911- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 0603-0811 ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 0812- ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 08 1 0603-0811 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 08 1 0812- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 16 1 0603-0811 ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 16 1 0812- ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M10X55 		1-09070-108-0 08 1 0603-0811 ●
17 BOLT; DIFF CAGE SETTING
(C) M10X55 		1-09070-108-0 08 1 0812- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0603-0811 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0812- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0603-0811 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-1 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 0812- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 0603-0811 ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 0812- ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0603-0811 ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0812- ● ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 0603-0811 ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 0812- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0603-0811 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0812- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0603-0811 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0812- ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 0603-0603 ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 0604-0811 ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0812- ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0812- ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 0812- ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 0812- ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 0812- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0603-0811 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0812- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0603-0811 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0812- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0603-0811 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0812- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 0603- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 0603-0811 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 0812- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 0603-0811 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 0812- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0603-0811 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0812- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0603-0811 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0812- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 04 1 0603-0811 ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 04 1 0812- ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 04 1 0603-0805 ●
65 PIN; SPLIT,RET 0-81122-012-0 04 1 0806-0811 ●
65 PIN; SPLIT,RET 0-81122-012-0 04 1 0812- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 0603-0811 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 02 1 0812- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0603-0811 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0812- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0603-0811 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0812- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 0603-0811 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 0812- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0603-0811 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0812- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0603-0811 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0812- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0603-0811 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0812- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0603-0811 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0812- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0603-0811 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0812- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 08 1 0603-0811 ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 08 1 0812- ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0603-0811 ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0812- ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF VAR2<G86> 		1-41530-023-0 02 1 0912- ●
105 GEAR; SIDE
LIMITED SLIP DIFF VAR2<G86> Z=24 		1-41539-028-0 04 1 0912- ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41535-004-0 04 1 0912- ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF VAR2<G86> 		1-41532-006-0 04 1 0912- ●
108 RING; HOLD OUT
LIMITED SLIP DIFF VAR2<G86> 		1-41539-024-0 04 1 0912- ●
109 SPIDER; DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41539-027-0 02 1 0912- ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 0603-0811 ●
126 COUPLING; DRIVING PINION 1-37245-336-0 01 1 0812- ● ● ●

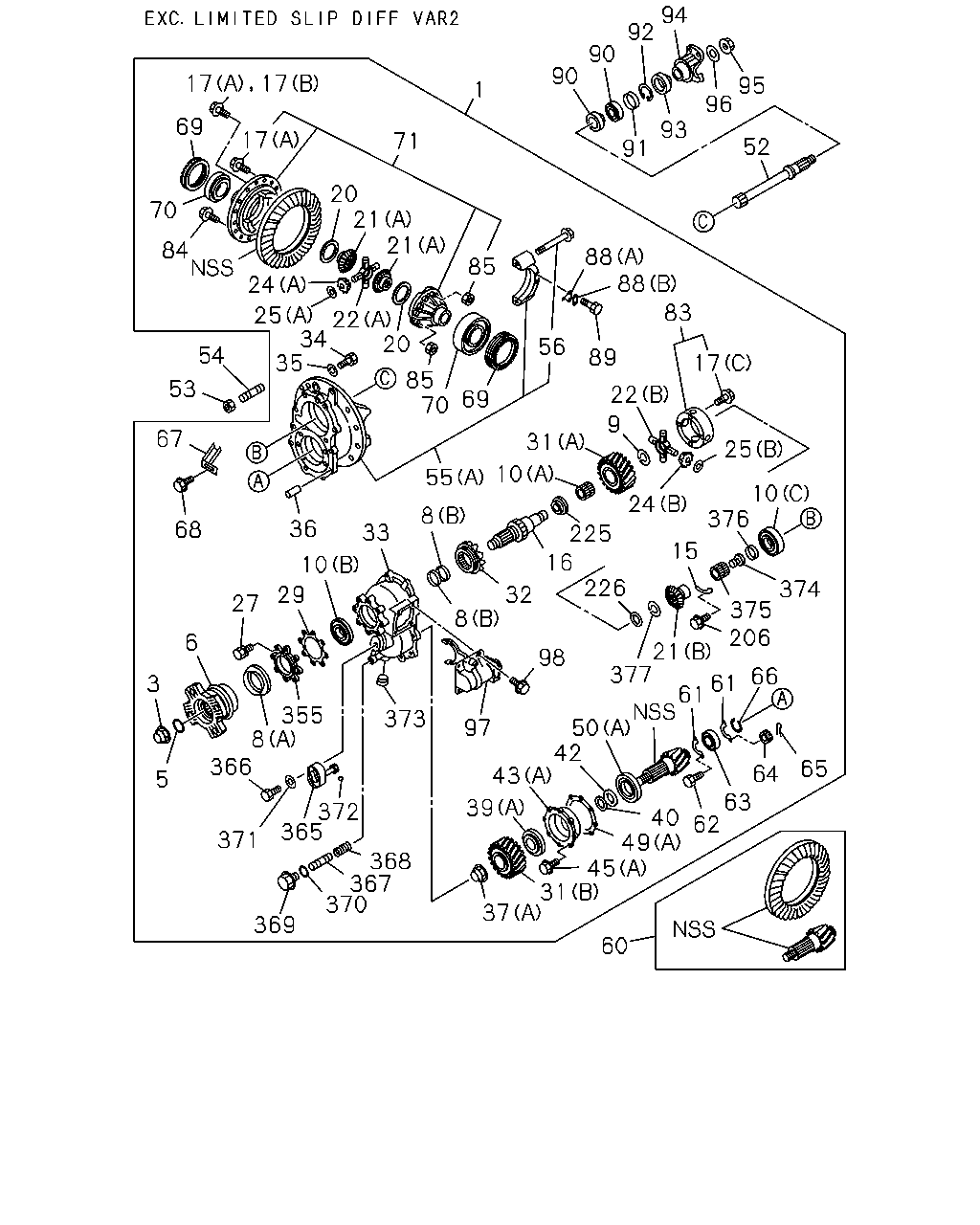

çizim 177593
94 92 90 90 17 17 95 96 1 69 93 17 71 52 91 20 21 21 70 84 88 88 85 24 83 25 22 34 35 20 56 54 89 17 85 70 53 22 69 9 67 31 25 10 55 10 376 24 8 36 68 33 225 15 16 10 226 374 375 206 29 32 8 27 6 21 377 98 66 61 3 61 355 8 366 373 97 50 42 65 64 63 62 43 5 39 372 365 40 49 45 31 371 368 367 370 37 369 60
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 43/7 		1-41003-521-0 01 1 0912- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 43/7 		1-41003-522-0 01 1 0912- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/7 		1-41002-443-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-761-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 0603-0910 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 43/7 		1-41001-392-0 01 1 0911- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-441-0 01 1 0603-0910 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 43/7 		1-41002-441-0 01 1 0911- ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 0603-0811 ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 0812- ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 0603-0811 ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 0812- ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 0603-0811 ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 0812- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 0603-0811 ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 0812- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 0603-0811 ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 0812- ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 0603-0811 ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 0812- ● ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 0603-0811 ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 0812- ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 0603-0811 ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 0812- ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 0603-0811 ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 0812- ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 0603-0811 ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 0812- ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 0603-0811 ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 0812- ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 0603-0811 ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 0812- ● ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 0603-0811 ●
15 CATCHER; OIL 1-41129-007-0 01 1 0812- ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 0603-0811 ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 0812- ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 08 1 0603-0811 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 08 1 0812- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 16 1 0603-0811 ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 16 1 0812- ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M10X55 		1-09070-108-0 08 1 0603-0811 ●
17 BOLT; DIFF CAGE SETTING
(C) M10X55 		1-09070-108-0 08 1 0812- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8 		1-41562-112-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 0911- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9 		1-41562-113-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 0911- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0 		1-41562-114-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 0911- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1 		1-41562-115-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 0911- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2 		1-41562-116-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 0911- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3 		1-41562-117-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 0911- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0603-0811 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0812-0910 ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4 		1-41562-118-0 AR 1 0911- ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 0911- ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0603-0811 ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0812-0911 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-169-0 01 1 0912- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0603-0811 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0812-0905 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 04 1 0906-0910 ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16 		1-41561-151-0 04 1 0911- ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 04 1 0911- ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0603-0811 ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0812-0910 ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=35 		1-41521-037-2 02 1 0911- ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0911- ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0603-0811 ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0812- ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0603-0811 ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0812-0911 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-055-0 04 1 0912- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0603-0811 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0812-0905 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 08 1 0906-0910 ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10 		1-41551-053-0 08 1 0911- ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 08 1 0911- ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0603-0811 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0812-0910 ● ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6 		1-41552-017-0 08 1 0911- ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0911- ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0603-0811 ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0812- ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50051-235-0 08 1 0603-0811 ●
27 BOLT; BRG RET

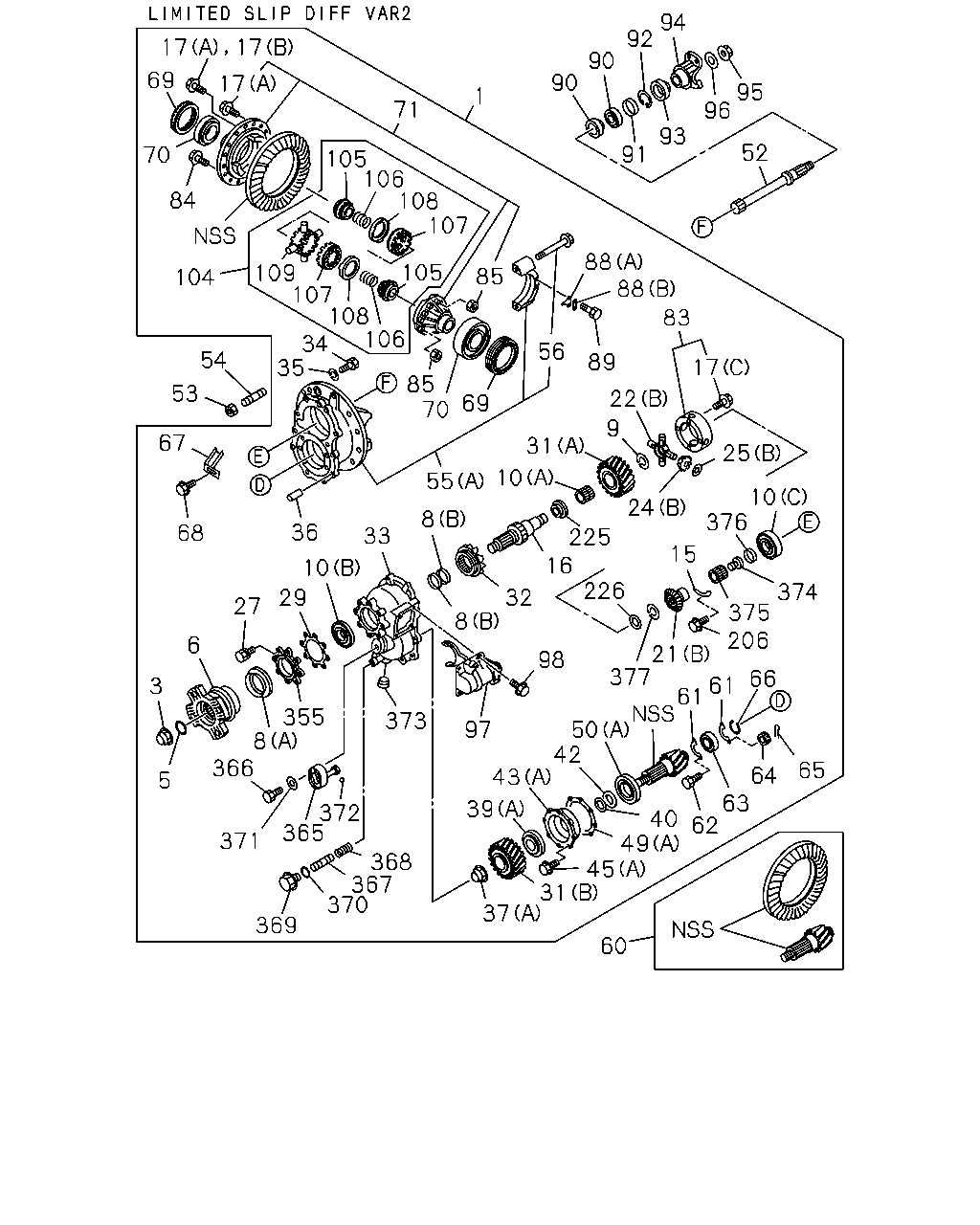

M12X35 W/LK WASHER 		0-50051-235-0 08 1 0812-0906 ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 0907- ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 0603-0811 ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 0812- ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 0603-0811 ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 0812- ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 0603-0811 ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 0812- ● ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 0603-0811 ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 0812- ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-042-0 01 1 0603-0811 ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-042-0 01 1 0812-0911 ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-044-0 01 1 0912- ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 0603-0811 ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 0812- ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 0603-0811 ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 0812- ● ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 0603-0811 ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 0812- ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 0603-0811 ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 0812- ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		9-09150-814-0 10 1 0603-0603 ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 0604-0811 ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 0812- ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 0603-0811 ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 0812- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0603-0811 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0812- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0603-0811 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-1 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 0812- ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0603-0811 ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0812- ● ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 0603-0811 ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 0812- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0603-0811 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0812- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0603-0811 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0812- ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0812- ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 0812- ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 0812- ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 0812- ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 0603-0811 ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 0812- ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 0603-0811 ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 0812- ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 0603-0811 ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 0812- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0603-0811 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0812- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0603-0811 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0812- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0603-0811 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0812- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 0603- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 0603-0811 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 0812- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 0603-0811 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 0812- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0603-0811 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0812- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0603-0811 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0812- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 04 1 0603-0811 ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 04 1 0812- ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 04 1 0603-0805 ●
65 PIN; SPLIT,RET 0-81122-012-0 04 1 0806-0811 ●
65 PIN; SPLIT,RET 0-81122-012-0 04 1 0812- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 0603-0811 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 02 1 0812- ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 0603-0811 ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 0812- ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 0603-0811 ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 0812- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0603-0811 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0812- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0603-0811 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0812- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 0603-0811 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 0812- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0603-0811 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0812- ● ● ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 0603-0811 ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 0812- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0603-0811 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0812- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0603-0811 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0812- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0603-0811 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0812- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0603-0811 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0812- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 08 1 0603-0811 ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 08 1 0812- ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 0603-0811 ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 0812- ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 0603-0811 ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 0812- ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 0603-0811 ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 0812- ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 0603-0811 ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 0812- ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 0603-0811 ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 0812- ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 0603-0811 ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 0812- ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 0603-0811 ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 0812- ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0603-0811 ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0812- ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 0603-0811 ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 0812- ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 0603-0811 ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 0812- ● ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 0603-0811 ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 0812- ● ● ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 0812- ● ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 0603-0811 ●
226 WASHER; THRUST 1-41562-267-0 01 1 0812- ● ● ●
355 RETAINER; BRG 1-41227-016-0 01 1 0603-0811 ●
355 RETAINER; BRG 1-41227-016-0 01 1 0812- ● ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 0603-0811 ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 0812- ● ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 0603-0811 ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 0812- ● ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 0603-0811 ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 0812- ● ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 0603-0811 ●
368 SPRING; STRAINER 1-09580-504-0 01 1 0812- ● ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 0603-0811 ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 0812- ● ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 0603-0811 ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 0812- ● ● ●
371 WASHER; LK,PUMP
ID=8.2 		9-09150-808-0 04 1 0603-0603 ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 0604-0811 ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 0812- ● ● ●
372 BALL; CASE 9-00097-517-0 01 1 0603-0811 ●
372 BALL; CASE 9-00097-517-0 01 1 0812- ● ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 0603-0811 ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 0812- ● ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 0603-0811 ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 0812- ● ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 0603-0811 ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 0812- ● ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 0603-0811 ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 0812- ● ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 0603-0811 ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 0812- ● ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 0603-0811 ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 0812- ● ● ●
çizim 177607
94 92 17 17 90 69 90 17 95 96 1 71 93 52 91 70 105 106 108 107 84 88 88 105 109 107 108 106 34 35 85 104 83 56 54 89 17 85 70 53 22 69 9 67 31 25 10 55 10 376 24 8 36 68 33 225 15 16 10 226 374 375 206 32 8 29 27 6 21 377 98 66 61 3 61 355 8 366 373 97 50 42 65 64 63 62 43 5 39 372 365 40 49 45 31 371 368 367 370 37 369 60
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> FORWARD 43/7 		1-41003-521-0 01 1 0912- ●
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF VAR2<G86> REARWARD 43/7 		1-41003-522-0 01 1 0912- ●
1 DRIVE ASM; FINAL,RR
REARWARD 39/7 		1-41001-393-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
FORWARD 39/7 		1-41002-443-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
REARWARD 41/8 		1-41001-394-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
FORWARD 41/8 		1-41002-761-0 01 1 0812- ●
1 DRIVE ASM; FINAL,RR
REARWARD 43/7 		1-41001-392-0 01 1 0603-0910 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> REARWARD 43/7 		1-41001-392-0 01 1 0911- ●
1 DRIVE ASM; FINAL,RR
FORWARD 43/7 		1-41002-441-0 01 1 0603-0910 ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 43/7 		1-41002-441-0 01 1 0911- ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 0603-0811 ●
3 NUT; INPUT SHAFT
M46 FLANGE 		1-09449-071-0 01 1 0812- ● ● ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 0603-0811 ●
5 GASKET; INPUT SHAFT
ID=57 		1-09623-386-0 01 1 0812- ● ● ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 0603-0811 ●
6 FLANGE ASM; INPUT SHAFT 1-37245-343-0 01 1 0812- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 0603-0811 ●
8 SEAL; OIL,INPUT SHAFT
(A) 		1-09625-323-0 01 1 0812- ● ● ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 0603-0811 ●
8 SEAL; OIL,INPUT SHAFT
(B) 		1-41349-145-0 02 1 0812- ● ● ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 0603-0811 ●
9 RING; SNAP,BRG,INPUT 1-09588-192-0 01 1 0812- ● ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 0603-0811 ●
10 BEARING; INPUT SHAFT
(A) JTEKT 		1-09811-346-0 01 1 0812- ● ● ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 0603-0811 ●
10 BEARING; INPUT SHAFT
(A) NSK 		1-09811-347-0 01 1 0812- ● ● ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 0603-0811 ●
10 BEARING; INPUT SHAFT
(B) NSK 		1-09812-094-0 01 1 0812- ● ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 0603-0811 ●
10 BEARING; INPUT SHAFT
(C) JTEKT 		1-09812-182-0 01 1 0812- ● ● ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 0603-0811 ●
10 BEARING; INPUT SHAFT
(C) NSK 		1-09812-183-0 01 1 0812- ● ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 0603-0811 ●
10 BEARING; INPUT SHAFT
(B) JTEKT 		1-09812-198-0 01 1 0812- ● ● ●
15 CATCHER; OIL 1-41129-007-0 01 1 0603-0811 ●
15 CATCHER; OIL 1-41129-007-0 01 1 0812- ● ● ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 0603-0811 ●
16 SHAFT ASM; INPUT 1-41341-025-0 01 1 0812- ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 08 1 0603-0811 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X125 		1-09070-007-0 08 1 0812- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 16 1 0603-0811 ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 		1-09070-018-0 16 1 0812- ● ● ●
17 BOLT; DIFF CAGE SETTING
(C) M10X55 		1-09070-108-0 08 1 0603-0811 ●
17 BOLT; DIFF CAGE SETTING
(C) M10X55 		1-09070-108-0 08 1 0812- ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0603-0811 ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-138-0 01 1 0812-0911 ● ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 		1-41561-169-0 01 1 0912- ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0603-0811 ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-139-0 04 1 0812-0905 ● ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 04 1 0906-0910 ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16 		1-41561-151-0 04 1 0911- ●
21 GEAR; SIDE,DIFF
(A) Z=16 		1-41561-151-0 04 1 0911- ● ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0603-0811 ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0812-0910 ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (A) OD=35 		1-41521-037-2 02 1 0911- ●
22 SPIDER; DIFF PINION
(A) OD=35 		1-41521-037-2 02 1 0911- ● ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0603-0811 ●
22 SPIDER; DIFF PINION
(B) 		1-41521-049-2 01 1 0812- ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0603-0811 ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-043-0 04 1 0812-0911 ● ● ●
24 GEAR; PINION,DIFF
(B) Z=10 		1-41551-055-0 04 1 0912- ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0603-0811 ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-044-0 08 1 0812-0905 ● ● ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 08 1 0906-0910 ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10 		1-41551-053-0 08 1 0911- ●
24 GEAR; PINION,DIFF
(A) Z=10 		1-41551-053-0 08 1 0911- ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0603-0811 ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0812-0910 ● ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.6 		1-41552-017-0 08 1 0911- ●
25 WASHER; THRUST,PINION
(A) T=1.6 		1-41552-017-0 08 1 0911- ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0603-0811 ●
25 WASHER; THRUST,PINION
(B) T=1.6 		1-41552-023-0 04 1 0812- ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50051-235-0 08 1 0603-0811 ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50051-235-0 08 1 0812-0906 ● ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER 		0-50551-235-0 08 1 0907- ● ● ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 0603-0811 ●
29 SHIM; BRG RET
T=0.30 		1-41349-146-0 AR 1 0812- ● ● ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 0603-0811 ●
29 SHIM; BRG RET
T=0.40 		1-41349-147-0 AR 1 0812- ● ● ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 0603-0811 ●
29 SHIM; BRG RET
T=0.50 		1-41349-148-0 AR 1 0812- ● ● ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 0603-0811 ●
29 SHIM; BRG RET
T=1.000 		1-41349-149-0 AR 1 0812- ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-042-0 01 1 0603-0811 ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-042-0 01 1 0812-0911 ● ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 		1-41351-044-0 01 1 0912- ● ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 0603-0811 ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 		1-41352-029-0 01 1 0812- ● ● ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 0603-0811 ●
32 SLEEVE; CLU,DIFF LK 1-41355-038-0 01 1 0812- ● ● ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 0603-0811 ●
33 CASE; POWER DIVIDER 1-41321-024-1 01 1 0812- ● ● ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 0603-0811 ●
34 BOLT; CASE TO CARRIER
M14X40 		0-23851-440-0 10 1 0812- ● ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 		9-09150-814-0 10 1 0603-0603 ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 0604-0811 ●
35 WASHER; CASE TO CARRIER
ID=14.2 		0-91510-814-0 10 1 0812- ● ● ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 0603-0811 ●
36 PIN; STRAIGHT
OD=14 L=28 		9-08161-428-0 02 1 0812- ● ● ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0603-0811 ●
37 NUT; DRIVING PINION
(A) M42 		1-09449-061-0 01 1 0812- ● ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0603-0811 ●
37 NUT; DRIVING PINION
(B) M46 FLANGE 		1-09449-071-0 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(A) NSK 		1-09812-073-1 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-1 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(A) JTEKT 		1-09812-074-3 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(B) NSK 		1-09812-075-0 01 1 0812- ● ● ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0603-0811 ●
39 BEARING; FINAL PINION
(B) JTEKT 		1-09812-076-1 01 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0812- ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0603-0811 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-237-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-238-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-239-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-240-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 		1-41229-241-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 		1-41229-242-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 		1-41229-243-0 AR 1 0812- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 0603-0811 ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 		1-41229-244-0 AR 1 0812- ● ● ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0603-0811 ●
43 CAGE; FINAL PINION
(B) T=81 		1-41151-030-0 01 1 0812- ● ● ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 0603-0811 ●
43 CAGE; FINAL PINION
(A) T=53 		1-41151-053-0 01 1 0812- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0603-0811 ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 		0-16806-655-0 08 1 0812- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0603-0811 ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 		1-09070-107-0 08 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 		1-41154-024-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 		1-41154-025-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 		1-41154-057-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 		1-41154-058-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 		1-41154-071-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 		1-41154-072-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 		1-41154-073-0 AR 1 0812- ● ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0603-0811 ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 		1-41154-074-0 AR 1 0812- ● ● ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(B) NSK 		1-09812-073-1 01 1 0812- ● ● ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-1 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(B) JTEKT 		1-09812-074-3 01 1 0812- ● ● ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(A) NSK 		1-09812-075-0 01 1 0812- ● ● ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 0603-0811 ●
50 BEARING; FINAL PINION
(A) JTEKT 		1-09812-076-1 01 1 0812- ● ● ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 0603-0811 ●
52 SHAFT; OUTPUT 1-41343-020-0 01 1 0812- ● ● ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 0603-0811 ●
53 NUT; FINAL DRIVE SET
M16 		0-91110-516-0 01 1 0812- ● ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 0603-0811 ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 		9-09830-243-0 01 1 0812- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0603-0811 ●
55 CARRIER; DIFF
(B) 		1-41110-109-0 01 1 0812- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0603-0811 ●
55 CARRIER; DIFF
(A) 		1-41310-050-0 01 1 0812- ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0603-0811 ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 08 1 0812- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 39/7 		1-41210-476-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 39/7 		1-41210-604-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 41/8 		1-41210-477-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 41/8 		1-41210-605-0 01 1 0812- ●
60 GEAR SET; FINAL DRIVE,RR
FORWARD 43/7 		1-41210-475-0 01 1 0603- ●
60 GEAR SET; FINAL DRIVE,RR
REARWARD 43/7 		1-41210-603-0 01 1 0603- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 0603-0811 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 04 1 0812- ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 0603-0811 ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 04 1 0812- ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0603-0811 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 02 1 0812- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0603-0811 ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 02 1 0812- ● ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 04 1 0603-0811 ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 04 1 0812- ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 04 1 0603-0805 ●
65 PIN; SPLIT,RET 0-81122-012-0 04 1 0806-0811 ●
65 PIN; SPLIT,RET 0-81122-012-0 04 1 0812- ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 02 1 0603-0811 ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-2 02 1 0812- ● ● ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 0603-0811 ●
67 PICKUP; OIL,CARRIER 1-41129-008-0 01 1 0812- ● ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 0603-0811 ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE 		8-94479-696-1 02 1 0812- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0603-0811 ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 02 1 0812- ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0603-0811 ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 02 1 0812- ● ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 0603-0811 ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 04 1 0812- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0603-0811 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 02 1 0812- ● ● ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 0603-0811 ●
83 CAGE ASM; DIFF 1-41510-224-0 01 1 0812- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0603-0811 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 32 1 0812- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0603-0811 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 24 1 0812- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0603-0811 ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 04 1 0812- ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0603-0811 ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 04 1 0812- ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 08 1 0603-0811 ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 08 1 0812- ● ● ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 0603-0811 ●
90 BEARING; OUTPUT SHAFT
NSK 		1-09812-068-0 02 1 0812- ● ● ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 0603-0811 ●
90 BEARING; OUTPUT SHAFT
JTEKT 		1-09812-069-0 02 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 		1-41349-020-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 		1-41349-021-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 		1-41349-022-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 		1-41349-023-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 		1-41349-024-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 		1-41349-025-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 		1-41349-026-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 		1-41349-027-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 		1-41349-091-0 AR 1 0812- ● ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 0603-0811 ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 		1-41349-092-0 AR 1 0812- ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 0603-0811 ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 		9-09180-185-0 01 1 0812- ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 0603-0811 ●
93 SEAL; OIL,OUTPUT SHAFT 1-09625-217-0 01 1 0812- ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 0603-0811 ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-130-1 01 1 0812- ● ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 0603-0811 ●
95 NUT; OUTPUT SHAFT
M36 FLANGE 		1-09449-067-0 01 1 0812- ● ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 0603-0811 ●
96 GASKET; SHAFT,OUTPUT
ID=42 		1-09623-387-0 01 1 0812- ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0603-0811 ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0812- ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 0603-0811 ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE 		0-28151-050-0 01 1 0812- ● ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 0603-0811 ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE 		0-28751-025-0 03 1 0812- ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF VAR2<G86> 		1-41530-023-0 02 1 0912- ●
105 GEAR; SIDE
LIMITED SLIP DIFF VAR2<G86> Z=24 		1-41539-028-0 04 1 0912- ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41535-004-0 04 1 0912- ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF VAR2<G86> 		1-41532-006-0 04 1 0912- ●
108 RING; HOLD OUT
LIMITED SLIP DIFF VAR2<G86> 		1-41539-024-0 04 1 0912- ●
109 SPIDER; DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41539-027-0 02 1 0912- ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 0603-0811 ●
206 BOLT; OIL CATCHER
M8X12 FLANGE 		8-94479-696-1 02 1 0812- ● ● ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=5.9 		1-41552-024-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.0 		1-41552-025-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.1 		1-41552-026-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.2 		1-41552-027-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.3 		1-41552-028-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.4 		1-41552-029-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.5 		1-41552-030-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.6 		1-41552-031-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.7 		1-41552-032-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.8 		1-41552-033-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=6.9 		1-41552-034-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=7.0 		1-41552-035-2 AR 1 0812- ● ● ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 0603-0811 ●
225 WASHER; THRUST
T=7.1 		1-41552-036-2 AR 1 0812- ● ● ●
226 WASHER; THRUST 1-41562-267-0 01 1 0603-0811 ●
226 WASHER; THRUST 1-41562-267-0 01 1 0812- ● ● ●
355 RETAINER; BRG 1-41227-016-0 01 1 0603-0811 ●
355 RETAINER; BRG 1-41227-016-0 01 1 0812- ● ● ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 0603-0811 ●
365 PUMP ASM; OIL 1-41381-008-1 01 1 0812- ● ● ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 0603-0811 ●
366 BOLT; PUMP
M8X40 		0-10805-840-0 04 1 0812- ● ● ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 0603-0811 ●
367 STRAINER; OIL PUMP 1-41383-003-0 01 1 0812- ● ● ●
368 SPRING; STRAINER 1-09580-504-0 01 1 0603-0811 ●
368 SPRING; STRAINER 1-09580-504-0 01 1 0812- ● ● ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 0603-0811 ●
369 PLUG; STRAINER
M24X17 FLANGE 		1-09604-023-0 01 1 0812- ● ● ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 0603-0811 ●
370 GASKET; STRAINER
ID=26.8 		1-09623-058-0 01 1 0812- ● ● ●
371 WASHER; LK,PUMP
ID=8.2 		9-09150-808-0 04 1 0603-0603 ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 0604-0811 ●
371 WASHER; LK,PUMP
ID=8.2 		0-91510-808-0 04 1 0812- ● ● ●
372 BALL; CASE 9-00097-517-0 01 1 0603-0811 ●
372 BALL; CASE 9-00097-517-0 01 1 0812- ● ● ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 0603-0811 ●
373 PLUG; CASE
PT1/4 		1-09605-019-0 01 1 0812- ● ● ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 0603-0811 ●
374 PLUG; INPUT SHAFT 1-09609-020-1 01 1 0812- ● ● ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 0603-0811 ●
375 BEARING; SIDE GEAR
JTEKT 		1-09811-348-0 01 1 0812- ● ● ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 0603-0811 ●
375 BEARING; SIDE GEAR
NSK 		1-09811-362-0 01 1 0812- ● ● ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 0603-0811 ●
376 SPACER; BRG,SIDE GEAR 1-41349-150-0 01 1 0812- ● ● ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 0603-0811 ●
377 RING; SNAP,BRG,SIDE GEAR 1-09587-091-0 01 1 0812- ● ● ●
çizim 177618
97 380 287 360 381 292 471 356 244 241 242 205 384 383
BalonParca AdiParca NoAdetTipApplied Date A B C
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0603-0811 ●
97 SHIFT UNIT; DIFF LOCK 1-48260-060-1 01 1 0812- ● ● ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 0603-0811 ●
205 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 01 1 0812- ● ● ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 0603-0811 ●
241 COVER; SHIFT HSG 1-48266-012-1 01 1 0812- ● ● ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 0603-0811 ●
242 BOLT; COVER
M8X20 		0-20800-820-0 04 1 0812- ● ● ●
244 GASKET; COVER 1-48269-062-0 01 1 0603-0811 ●
244 GASKET; COVER 1-48269-062-0 01 1 0812- ● ● ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 0603-0811 ●
287 PISTON; SHIFT UNIT 1-48262-012-0 01 1 0812- ● ● ●
292 SPRING; PISTON 1-48265-007-0 01 1 0603-0811 ●
292 SPRING; PISTON 1-48265-007-0 01 1 0812- ● ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0603-0811 ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0812- ● ● ●
360 FORK; SHIFT 1-48269-066-0 01 1 0603-0811 ●
360 FORK; SHIFT 1-48269-066-0 01 1 0812- ● ● ●
380 GASKET; PISTON 1-48269-064-0 01 1 0603-0811 ●
380 GASKET; PISTON 1-48269-064-0 01 1 0812- ● ● ●
381 ROD; SHIFT 1-48263-005-0 01 1 0603-0811 ●
381 ROD; SHIFT 1-48263-005-0 01 1 0812- ● ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 0603-0811 ●
383 BOLT; SET,SHIFT UNIT
M10X45 		0-20801-045-0 01 1 0812- ● ● ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 0603-0811 ●
384 NUT; LK,SHIFT UNIT
M10 		9-09111-410-0 01 1 0812- ● ● ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 0603-0811 ●
471 CYLINDER ASM; SHIFT UNIT 1-48269-261-0 01 1 0812- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
