3-78 — FIXING PARTS; AIR PIPING (#35508) — 404 parça

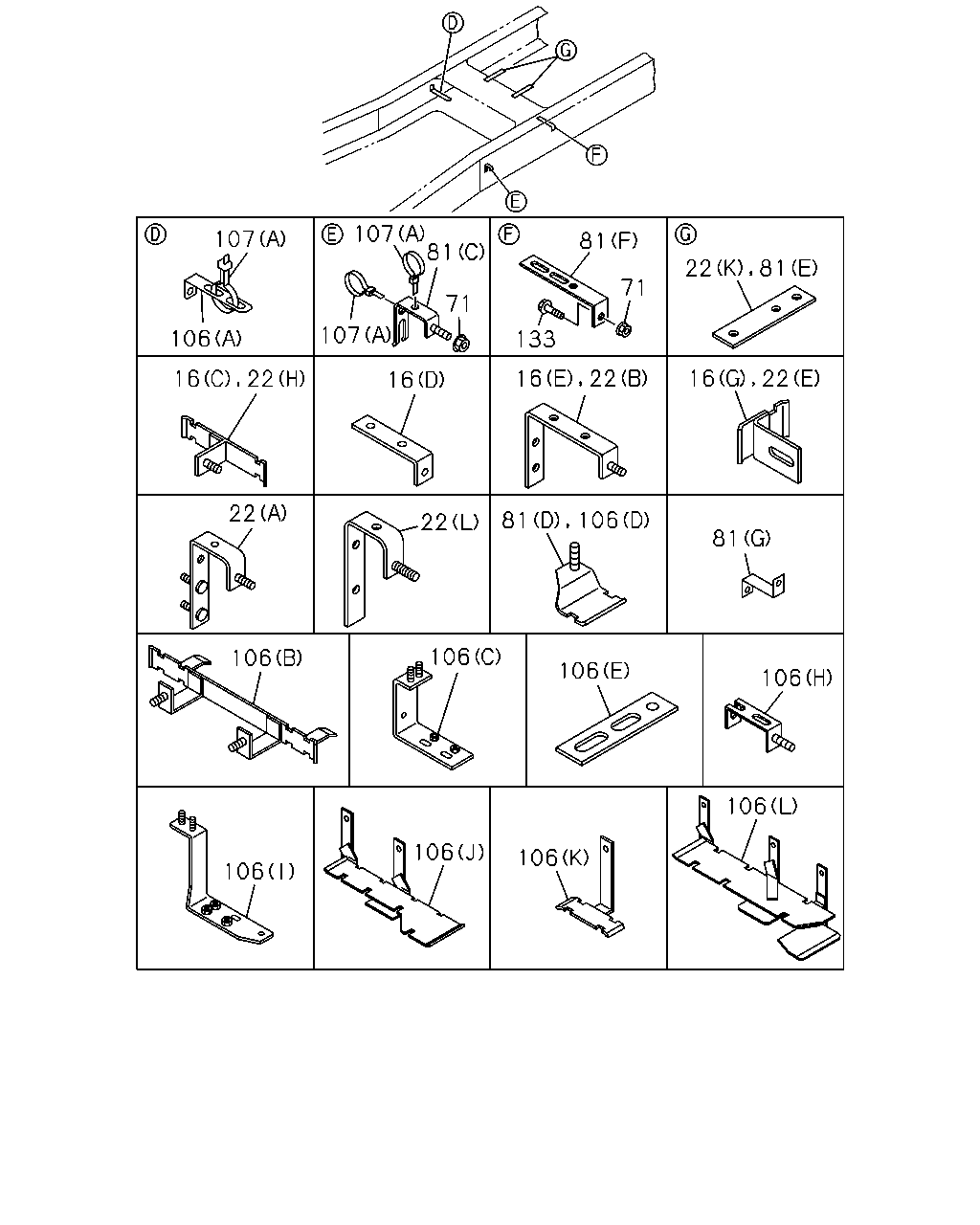

çizim 177592
107 81 107 81 71 71 107 106 133 16 22 16 22 81 106 22 81 106 106 106 106 106 106 106 106 22 81 22 16 22 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
WHEEL BASE 4900MM(49W) (I) 		1-47479-381-2 05 1 0704- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (I) 		1-47479-381-2 03 1 0603- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (I) 		1-47479-381-2 09 1 0603- ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 04 1 0603- ●
16 BRACKET; PIPE CLIP
MIXER TRUCK<RA2> (G) 		1-47479-693-0 01 1 0603- ●
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 01 1 0603- ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0603- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0603- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0603- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-721-0 02 1 0603- ● ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-722-1 01 1 0603- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0603- ● ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (G) 		1-47479-693-0 02 1 0603- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (G) 		1-47479-693-0 03 1 0603- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W) (L) 		1-47479-333-0 01 1 0704- ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W) (F) 		1-47479-381-2 05 1 0704- ●
22 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (J) L=100 H=30 		1-47477-645-2 01 1 0603-0808 ●
22 BRACKET; CLIP
(J) L=100 H=30 		1-47477-645-2 01 1 0603-0808 ●
22 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (J) L=100 H=30 		1-47477-645-2 01 1 0809- ●
22 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) (J) L=100 H=30 		1-47477-645-2 01 1 0809- ●
22 BRACKET; CLIP
(J) L=100 H=30 		1-47477-645-2 01 1 0809- ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 04 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 04 1 0603- ●
22 BRACKET; CLIP
(A) 		1-47479-329-0 01 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) 		1-47479-329-0 01 1 0603- ●
22 BRACKET; CLIP
MIXER TRUCK<RA2> (E) 		1-47479-693-0 01 1 0603- ●
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 0603- ● ●
22 BRACKET; CLIP
(H) 		1-47479-554-0 01 1 0603- ● ●
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 0603- ● ●
22 BRACKET; CLIP
(I) 		1-47479-722-1 01 1 0603- ● ●
22 BRACKET; CLIP
(B) 		1-47479-800-0 01 1 0603- ● ●
22 BRACKET; CLIP
(G) 		1-47479-898-0 01 1 0603- ● ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (A) 		1-47471-188-0 01 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (E) 		1-47479-693-0 02 1 0603- ●
22 BRACKET; CLIP
(K) L=130 		1-47478-959-0 02 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (F) 		1-47479-381-2 09 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (E) 		1-47479-693-0 03 1 0603- ●
71 NUT; BRKT
M8 FLANGE 		0-91150-108-0 13 1 0603-0603 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0603- ● ●
81 BRACKET; CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0603- ● ●
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0603- ● ●
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 04 1 0603- ● ●
81 BRACKET; CLIP
(G) 		1-47478-113-0 02 1 0603- ● ●
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0603- ● ●
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 0603- ● ●
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 0603- ● ●
106 BRACKET; TUBE CLIP
(H) 		1-47471-450-0 01 1 0603- ● ●
106 BRACKET; TUBE CLIP
(I) 		1-47471-108-0 01 1 0603- ●
106 BRACKET; TUBE CLIP
(J) 		1-47471-144-0 01 1 0603-0812 ●
106 BRACKET; TUBE CLIP
(L) 		8-98122-297-0 01 1 0901- ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 01 1 0603- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 0603- ● ●
106 BRACKET; TUBE CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0603- ● ●
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0603- ● ●
106 BRACKET; TUBE CLIP
(G) 		1-47477-746-0 01 1 0603- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 03 1 0603- ● ●
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 0603- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 0603- ●
107 CLIP; NYLON TUBE
(A) L=600 		1-09707-107-1 02 1 1203- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 16 1 0603-1202 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1203- ● ●
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 0603- ● ●
107 CLIP; NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 01 1 0603- ● ●
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0603- ● ●
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		9-09525-896-0 01 1 0603-0606 ● ●
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 0607- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0901- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 0901- ●
133 BOLT; BRKT
DUMP TRUCK<RA1> M8X30 FLANGE 		0-28650-830-0 01 1 0603- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 0603-0812 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 0901- ●
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 01 1 0603- ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0603- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0603- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0603- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0603-0808 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0809- ● ●
133 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 0603- ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0603- ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 0603- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 0603- ●

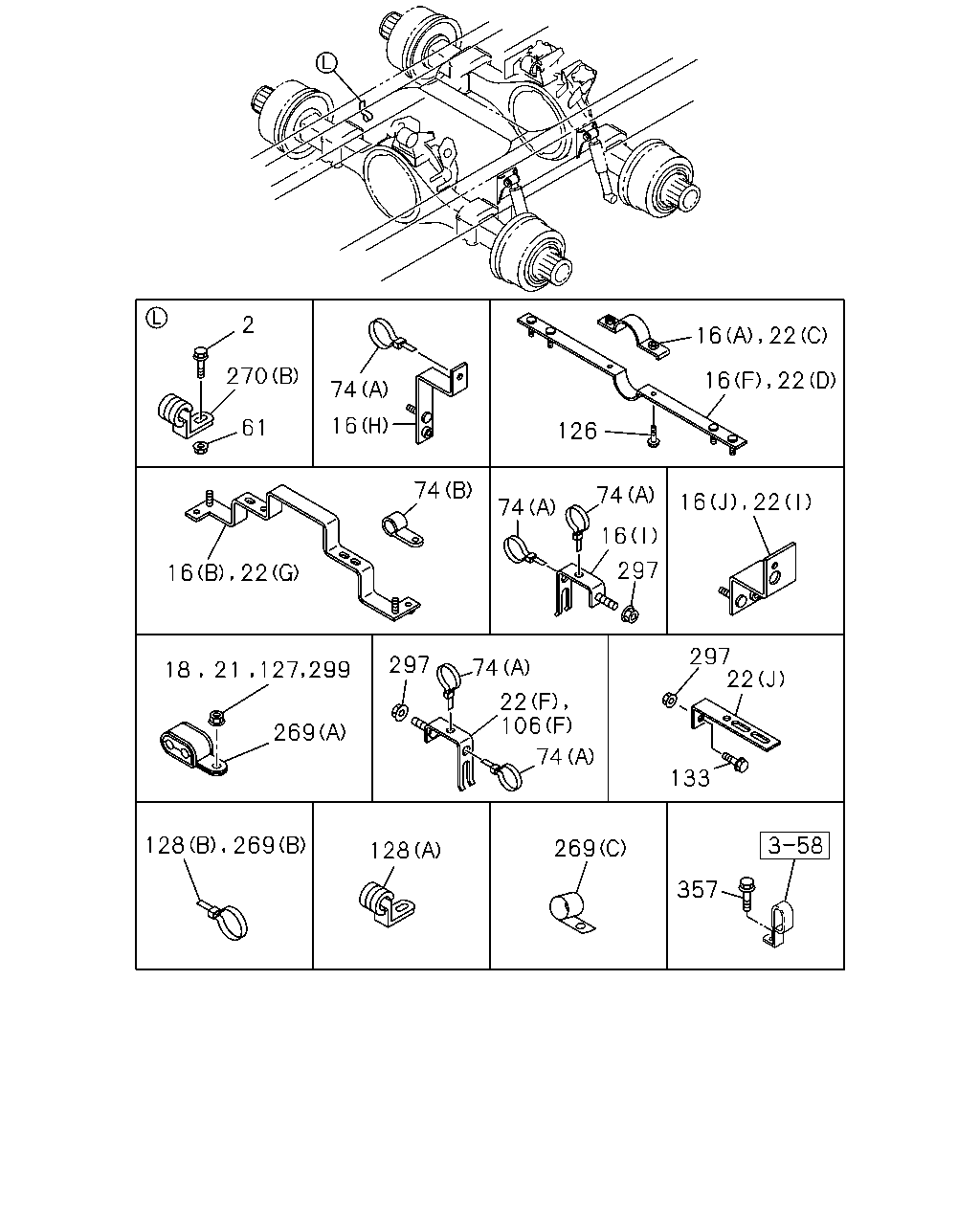

çizim 177599
2 16 22 270 74 16 61 126 74 74 74 16 297 297 22 297 74 18 21 22 106 269 74 133 269 128 357 16 22 22 16 22 16 127 299 128 269
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0603- ● ●
16 BRACKET; PIPE CLIP
WHEEL BASE 4900MM(49W) (I) 		1-47479-381-2 05 1 0704- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (I) 		1-47479-381-2 03 1 0603- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (I) 		1-47479-381-2 09 1 0603- ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 04 1 0603- ●
16 BRACKET; PIPE CLIP
MIXER TRUCK<RA2> (G) 		1-47479-693-0 01 1 0603- ●
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 01 1 0603- ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0603- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0603- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0603- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-721-0 02 1 0603- ● ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-722-1 01 1 0603- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0603- ● ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (G) 		1-47479-693-0 02 1 0603- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W) (G) 		1-47479-693-0 03 1 0603- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0603- ●
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0603-0603 ● ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 06 1 0603-0603 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W) (L) 		1-47479-333-0 01 1 0704- ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W) (F) 		1-47479-381-2 05 1 0704- ●
22 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (J) L=100 H=30 		1-47477-645-2 01 1 0603-0808 ●
22 BRACKET; CLIP
(J) L=100 H=30 		1-47477-645-2 01 1 0603-0808 ●
22 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (J) L=100 H=30 		1-47477-645-2 01 1 0809- ●
22 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) (J) L=100 H=30 		1-47477-645-2 01 1 0809- ●
22 BRACKET; CLIP
(J) L=100 H=30 		1-47477-645-2 01 1 0809- ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 04 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 04 1 0603- ●
22 BRACKET; CLIP
(A) 		1-47479-329-0 01 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) 		1-47479-329-0 01 1 0603- ●
22 BRACKET; CLIP
MIXER TRUCK<RA2> (E) 		1-47479-693-0 01 1 0603- ●
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 0603- ● ●
22 BRACKET; CLIP
(H) 		1-47479-554-0 01 1 0603- ● ●
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 0603- ● ●
22 BRACKET; CLIP
(I) 		1-47479-722-1 01 1 0603- ● ●
22 BRACKET; CLIP
(B) 		1-47479-800-0 01 1 0603- ● ●
22 BRACKET; CLIP
(G) 		1-47479-898-0 01 1 0603- ● ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (A) 		1-47471-188-0 01 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (E) 		1-47479-693-0 02 1 0603- ●
22 BRACKET; CLIP
(K) L=130 		1-47478-959-0 02 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (F) 		1-47479-381-2 09 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (E) 		1-47479-693-0 03 1 0603- ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 04 1 0603-0603 ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
74 CLIP; NYLON TUBE
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (A) L=350 		1-09707-183-0 01 1 0904- ●
74 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 02 1 0809- ●
74 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 12 1 0704- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 0603- ●
74 CLIP; NYLON TUBE
(B) ID=13 		1-09701-030-1 03 1 0603- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 17 1 0603- ●
74 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 18 1 0603- ●
106 BRACKET; TUBE CLIP
(H) 		1-47471-450-0 01 1 0603- ● ●
106 BRACKET; TUBE CLIP
(I) 		1-47471-108-0 01 1 0603- ●
106 BRACKET; TUBE CLIP
(J) 		1-47471-144-0 01 1 0603-0812 ●
106 BRACKET; TUBE CLIP
(L) 		8-98122-297-0 01 1 0901- ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 01 1 0603- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 0603- ● ●
106 BRACKET; TUBE CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0603- ● ●
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0603- ● ●
106 BRACKET; TUBE CLIP
(G) 		1-47477-746-0 01 1 0603- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 03 1 0603- ● ●
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 0603- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 0603- ●
126 BOLT; CLIP BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 01 1 0603- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0603- ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 0603- ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0603- ● ●
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0603- ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 0603- ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 0603- ●
127 NUT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 04 1 0704- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ● ●
127 NUT; CLIP BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
127 NUT; CLIP BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
127 NUT; CLIP BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 03 1 0603-0603 ●
127 NUT; CLIP BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 03 1 0603- ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 05 1 0603-0603 ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 08 1 0603- ●
127 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 06 1 0603-0603 ●
127 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 06 1 0603-0603 ●
127 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 15 1 0603- ●
128 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) (B) L=350 		1-09707-183-0 10 1 0704- ●
128 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (B) L=350 		1-09707-183-0 14 1 0603- ●
128 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 17 1 0603- ●
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 09 1 0603- ●
128 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 02 1 0603- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0901- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 0901- ●
133 BOLT; BRKT
DUMP TRUCK<RA1> M8X30 FLANGE 		0-28650-830-0 01 1 0603- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 0603-0812 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 0901- ●
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 01 1 0603- ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0603- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0603- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0603- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0603-0808 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0809- ● ●
133 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 0603- ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0603- ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 0603- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 0603- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=13 		1-09701-030-1 03 1 0603- ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 0603- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 0603- ● ●
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0603- ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 02 1 0603-0706 ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 03 1 0707- ● ●
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0603- ● ●
270 CLIP; NYLON TUBE
(A) ID=26 L=26 		1-09701-236-0 01 1 0603-0706 ● ●
297 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 01 1 0809- ●
297 NUT; BRKT
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 09 1 0704- ●
297 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91150-108-0 15 1 0603-0603 ●
297 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91180-108-0 15 1 0603- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 12 1 0603-0603 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 12 1 0603-0811 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 11 1 0812- ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 35 1 0603-0603 ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 35 1 0603- ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 0603-0603 ● ●
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 08 1 0603-0603 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0603- ● ●
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 08 1 0603- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 11 1 0603-0603 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 11 1 0603-0811 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 12 1 0812- ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 0603-0907 ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 03 1 0908- ●
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 0603- ● ●

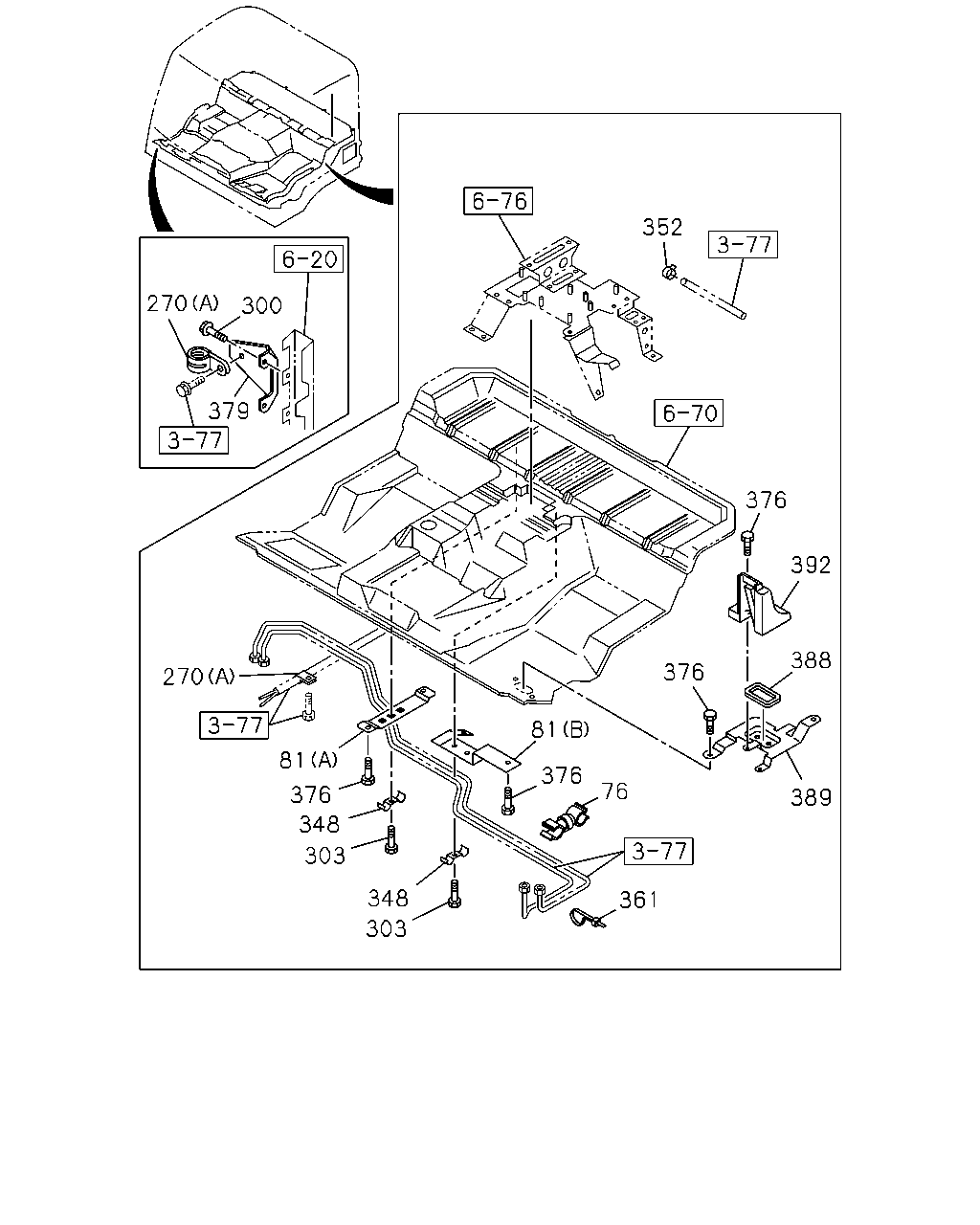

çizim 177601
352 270 300 379 376 392 388 376 270 81 81 376 76 376 389 348 303 348 361 303
BalonParca AdiParca NoAdetTipApplied Date A B
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 01 1 0603- ● ●
81 BRACKET; CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0603- ● ●
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0603- ● ●
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 04 1 0603- ● ●
81 BRACKET; CLIP
(G) 		1-47478-113-0 02 1 0603- ● ●
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0603- ● ●
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 0603- ● ●
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 0603- ● ●
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0603- ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 02 1 0603-0706 ● ●
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 03 1 0707- ● ●
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0603- ● ●
270 CLIP; NYLON TUBE
(A) ID=26 L=26 		1-09701-236-0 01 1 0603-0706 ● ●
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0603- ● ●
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0603- ● ●
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 01 1 0603- ● ●
348 CLIP; AIR PIPE
ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 0603- ● ●
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0603- ● ●
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=250 		5-09707-030-1 01 1 0603- ● ●
376 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0603- ● ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0603- ● ●
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0603-0904 ● ●
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 0603- ● ●
388 SEAL
L=215 		1-79738-794-1 01 1 0603- ● ●
389 BRACKET; UNION 1-79738-790-1 01 1 0603- ● ●
392 COVER; BRKT 1-73996-264-1 01 1 0603- ● ●

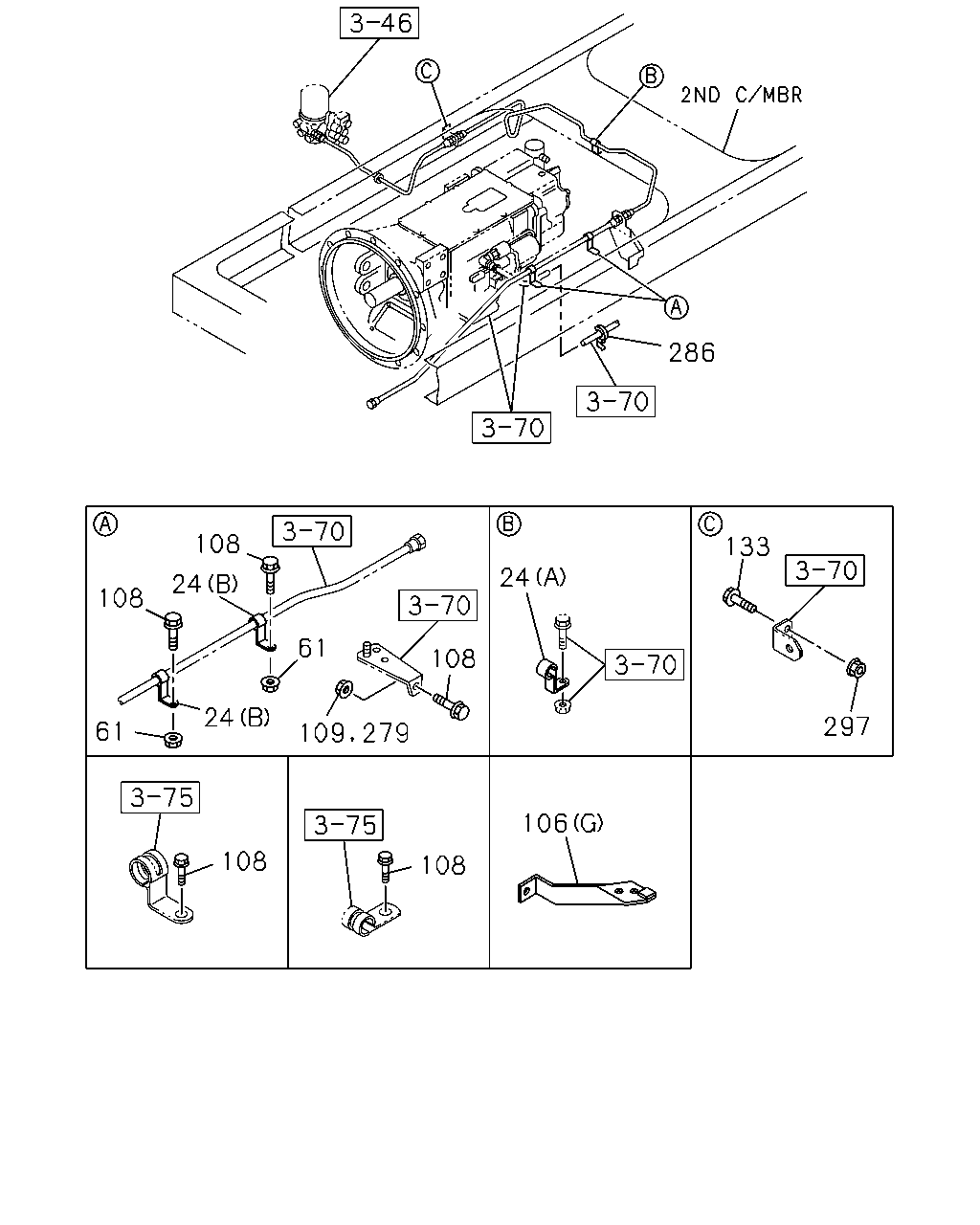

çizim 177617
286 133 108 24 24 108 61 108 24 297 61 106 108 108 109 279
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0603- ● ●
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0603- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 04 1 0603-0603 ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
106 BRACKET; TUBE CLIP
(H) 		1-47471-450-0 01 1 0603- ● ●
106 BRACKET; TUBE CLIP
(I) 		1-47471-108-0 01 1 0603- ●
106 BRACKET; TUBE CLIP
(J) 		1-47471-144-0 01 1 0603-0812 ●
106 BRACKET; TUBE CLIP
(L) 		8-98122-297-0 01 1 0901- ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 01 1 0603- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 0603- ● ●
106 BRACKET; TUBE CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0603- ● ●
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0603- ● ●
106 BRACKET; TUBE CLIP
(G) 		1-47477-746-0 01 1 0603- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 03 1 0603- ● ●
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 0603- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 0603- ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0603- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 08 1 0603- ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0603- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 06 1 0603-0603 ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0901- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 0901- ●
133 BOLT; BRKT
DUMP TRUCK<RA1> M8X30 FLANGE 		0-28650-830-0 01 1 0603- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 0603-0812 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 0901- ●
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 01 1 0603- ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0603- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0603- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0603- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0603-0808 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0809- ● ●
133 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 0603- ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0603- ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 0603- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 0603- ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 17 1 0603-0603 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 17 1 0603- ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 14 1 0603-0603 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 14 1 0603- ●
279 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91150-108-0 20 1 0603-0603 ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 20 1 0603-0603 ●
279 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91180-108-0 20 1 0603- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 20 1 0603- ●
279 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 19 1 0603-0603 ●
279 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 19 1 0603- ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0603-0603 ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
286 CLIP; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> ID=15 & 7 		1-09709-311-0 01 1 0603- ● ●
297 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 01 1 0809- ●
297 NUT; BRKT
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 09 1 0704- ●
297 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91150-108-0 15 1 0603-0603 ●
297 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91180-108-0 15 1 0603- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 12 1 0603-0603 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 12 1 0603-0811 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 11 1 0812- ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 35 1 0603-0603 ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 35 1 0603- ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 0603-0603 ● ●
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 08 1 0603-0603 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0603- ● ●
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 08 1 0603- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 11 1 0603-0603 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 11 1 0603-0811 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 12 1 0812- ●

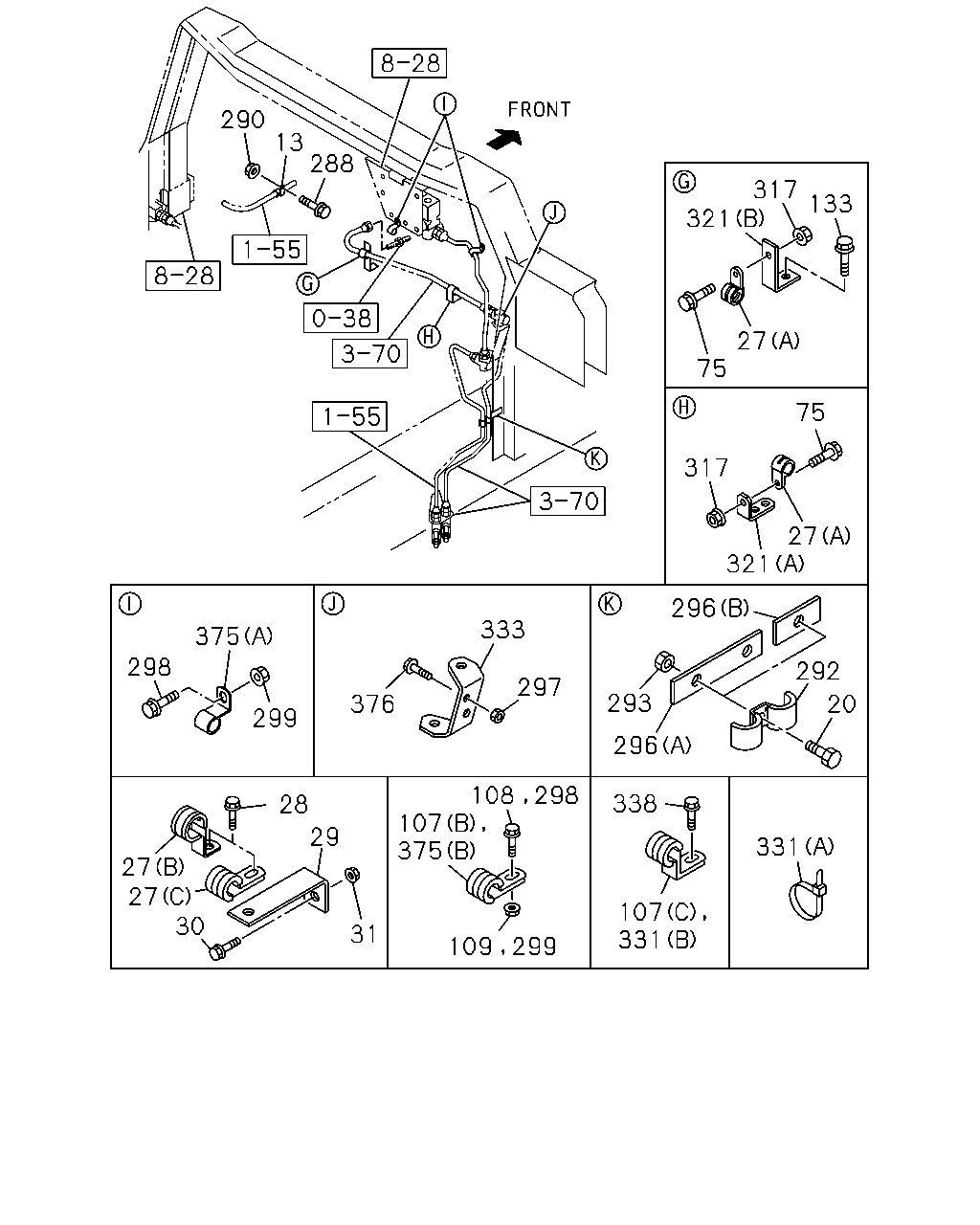

çizim 177628
290 13 288 317 321 133 27 75 75 317 27 321 296 333 375 298 292 297 293 376 20 299 296 107 375 338 28 29 331 27 27 30 107 331 31 108 298 109 299
BalonParca AdiParca NoAdetTipApplied Date A B
13 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0603- ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0603- ● ●
27 CLIP; FLEX HOSE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0603- ●
27 CLIP; FLEX HOSE
EXC. MIXER TRUCK<RA2> (A) ID=15 L=28 		1-09701-216-0 02 1 0603- ●
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 0603- ●
27 CLIP; FLEX HOSE
(C) ID=26 L=27 		1-09701-006-0 01 1 0603- ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 0603- ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 0603- ●
29 BRACKET; CLIP,AIR PIPE
L=60 		1-47476-217-0 01 1 0603- ●
29 BRACKET; CLIP,AIR PIPE
L=95 		1-82699-085-0 01 1 0603- ●
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0603- ● ●
31 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ●
31 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
75 BOLT; CLIP
EXC. MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 02 1 0603- ●
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0603- ●
107 CLIP; NYLON TUBE
(A) L=600 		1-09707-107-1 02 1 1203- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 16 1 0603-1202 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1203- ● ●
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 0603- ● ●
107 CLIP; NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 01 1 0603- ● ●
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0603- ● ●
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		9-09525-896-0 01 1 0603-0606 ● ●
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 0607- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0603- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 08 1 0603- ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0603- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 06 1 0603-0603 ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0901- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 0901- ●
133 BOLT; BRKT
DUMP TRUCK<RA1> M8X30 FLANGE 		0-28650-830-0 01 1 0603- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 0603-0812 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 0901- ●
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 01 1 0603- ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0603- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0603- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0603- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0603-0808 ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0809- ● ●
133 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ●
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 0603- ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0603- ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 0603- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 0603- ●
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0603- ● ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-208-0 01 1 0603-0603 ● ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-208-0 01 1 0603- ● ●
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0603- ● ●
293 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ● ●
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
296 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0603- ● ●
296 BRACKET; CLIP
(B) 		1-47475-648-0 01 1 0603- ● ●
297 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 01 1 0809- ●
297 NUT; BRKT
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 09 1 0704- ●
297 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91150-108-0 15 1 0603-0603 ●
297 NUT; BRKT
DUMP TRUCK<RA1> M8 FLANGE 		0-91180-108-0 15 1 0603- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 12 1 0603-0603 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 12 1 0603-0811 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 11 1 0812- ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 35 1 0603-0603 ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 35 1 0603- ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 0603-0603 ● ●
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 08 1 0603-0603 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0603- ● ●
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 08 1 0603- ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 11 1 0603-0603 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 11 1 0603-0811 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 12 1 0812- ●
298 BOLT; CLIP
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 01 1 0603-0907 ●
298 BOLT; CLIP
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 03 1 0908- ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 0603-0907 ●
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 03 1 0908- ●
317 NUT; CLIP
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ●
317 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ●
317 NUT; CLIP
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (A) 		1-47477-337-1 01 1 0603- ●
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0603- ●
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (B) L=75 		1-47478-328-0 01 1 0603- ●
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0603- ●
331 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0603- ● ●
331 CLIP; NYLON TUBE
(B) ID=13 H=75 L=25 		1-09700-601-0 02 1 0603- ●
333 BRACKET; BRK AIR PIPE 1-47477-045-0 01 1 0603- ● ●
338 BOLT; PIPE CLIP
M8X35 FLANGE 		0-28650-835-0 02 1 0603- ●
375 CLIP; AIR PIPE
MIXER TRUCK<RA2> ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (B) ID=7 L=20 		0-95234-635-0 02 1 0908- ●
375 CLIP; AIR PIPE
MIXER TRUCK<RA2> (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0603- ●
376 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0603- ● ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0603- ● ●
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0603-0904 ● ●
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
