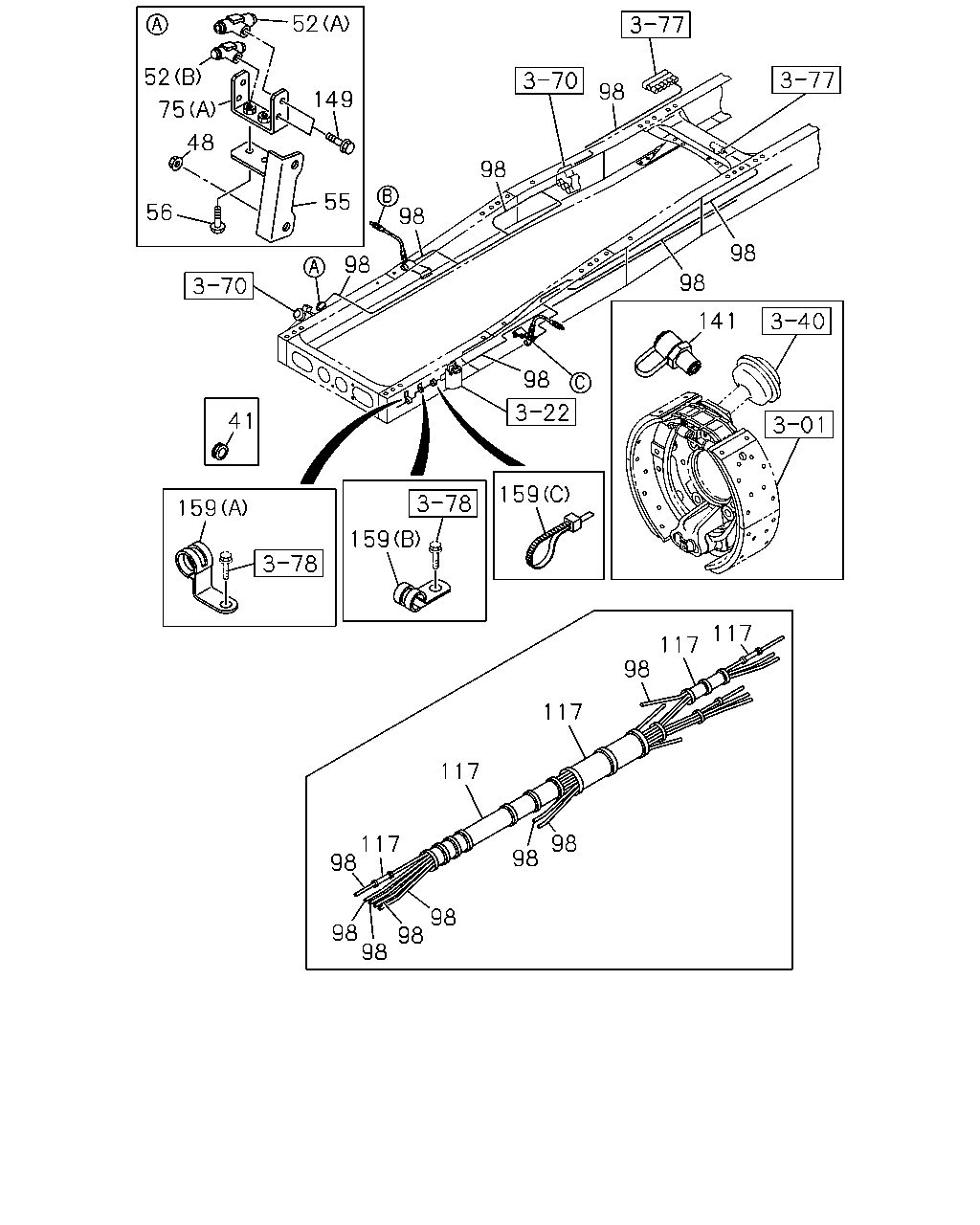

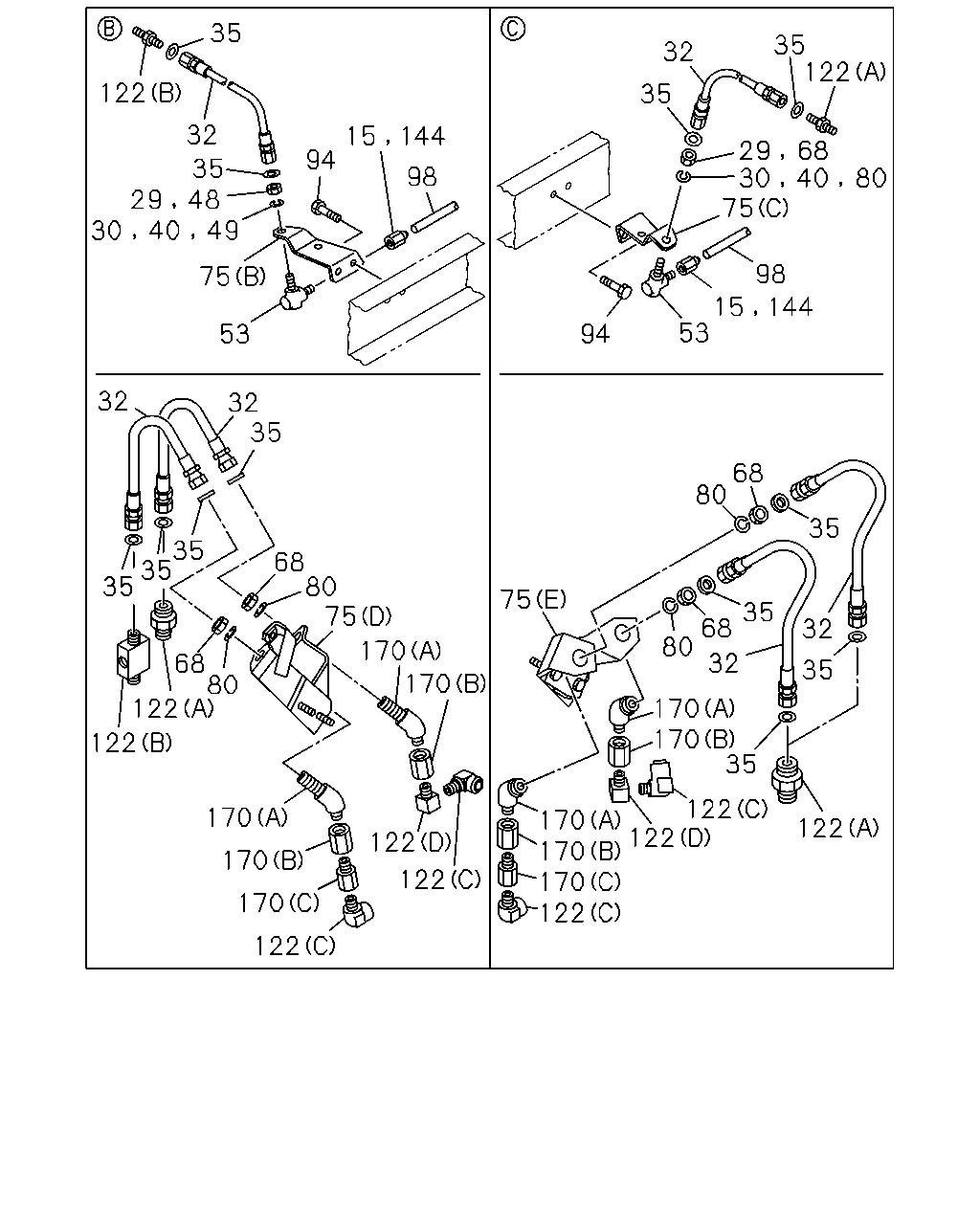

3-75 — BRAKE PIPING; AIR,FRONT (#35506) — 119 parça

52 52 98 149 75 48 98 98 55 56 98 98 98 141 98 41 159 159 159 117 117 98 117 117 98 117 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	GROMMET; AIR PIPE POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> ID=24 OD=30 T=22	1-09332-104-0	01	1	0904-	●
48	NUT; UNION BRKT M20	0-91111-520-0	01	1	0603-0901	●	●
48	NUT; UNION BRKT POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> M20	0-91111-520-0	01	1	0902-	●	●
48	NUT; UNION BRKT M12 FLANGE	0-91150-212-0	02	1	0603-0603	●	●
48	NUT; UNION BRKT M12 FLANGE	0-91180-212-0	02	1	0603-	●	●
52	CONNECTOR; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	0603-	●	●
52	CONNECTOR; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0603-	●	●
55	BRACKET; TUBE UNION	1-47479-993-1	01	1	0603-	●	●
56	BOLT; UNION BRKT M8X16 FLANGE	0-28050-816-0	02	1	0603-	●	●
75	BRACKET; UNION POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (D)	8-98142-444-1	01	1	0902-	●
75	BRACKET; UNION POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (E)	8-98142-445-0	01	1	0902-	●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	0603-	●	●
75	BRACKET; UNION (C)	1-47479-765-1	01	1	0603-0901	●	●
75	BRACKET; UNION POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (C)	1-47479-765-1	01	1	0902-	●	●
75	BRACKET; UNION (B)	1-47479-766-1	01	1	0603-0901	●	●
75	BRACKET; UNION POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (B)	1-47479-766-1	01	1	0902-	●	●
98	TUBE; NYLON POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> L=180 OD=12	8-98142-435-0	02	1	0902-	●
98	TUBE; NYLON L=170 OD=12	1-49222-063-0	02	1	0603-0901	●	●
98	TUBE; NYLON POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> L=170 OD=12	1-49222-063-0	02	1	0902-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	0603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0603-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0603-	●	●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0603-	●	●
149	BOLT; UNION POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> M8X30 FLANGE	0-28650-830-0	04	1	0902-0903	●
149	BOLT; UNION M8X16 FLANGE	0-28050-816-0	02	1	0603-	●	●
159	CLIP; NYLON TUBE POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (C) L=350	1-09707-183-0	01	1	0904-	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	18	1	0901-1103	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	19	1	1104-	●
159	CLIP; NYLON TUBE (A) ID=45 H=31 L=35	1-09701-308-0	01	1	0701-	●	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	18	1	0603-0812	●	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	17	1	0901-1103		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	18	1	1104-		●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	0603-	●	●
159	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	0603-0609	●	●
159	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	02	1	0610-0612	●	●
159	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	0701-	●	●
159	CLIP; NYLON TUBE (A) ID=19 L=39 H=21	1-09700-972-1	02	1	0603-	●	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0603-	●	●
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	03	1	0603-	●	●
159	CLIP; NYLON TUBE (A) ID=45 H=31 L=35	1-09701-308-0	01	1	0603-0609	●	●
159	CLIP; NYLON TUBE (B) ID=19 L=28	9-09525-856-0	02	1	0603-0606	●	●
159	CLIP; NYLON TUBE (B) ID=19 L=28	0-95235-856-0	02	1	0607-	●	●

35 35 122 32 122 35 32 15 144 75 94 35 40 98 80 98 75 15 53 144 94 53 32 32 35 68 80 35 35 35 35 68 80 75 75 35 68 80 32 170 32 68 80 35 170 122 170 170 35 122 122 170 122 170 170 122 170 122 122 170 122 170 122 49 48 29 30 29 68 40 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0603-0901	●	●
15	CONNECTOR; AIR PIPE POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0902-	●	●
29	NUT; NIPPLE M20	0-91111-520-0	02	1	0603-0901	●	●
29	NUT; NIPPLE POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> M20	0-91111-520-0	02	1	0902-	●	●
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	02	1	0603-0603	●	●
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	02	1	0604-0901	●	●
30	WASHER; LK,NIPPLE POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> ID=20.2	0-91510-520-0	02	1	0902-	●	●
32	HOSE; FLEX,FRT POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> L=500	0-57847-500-1	03	1	0902-0903	●
32	HOSE; FLEX,FRT POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> L=500	0-57847-500-1	04	1	0904-	●
32	HOSE; FLEX,FRT L=430	0-07847-430-1	02	1	0603-0605	●	●
32	HOSE; FLEX,FRT L=430	0-57847-430-1	02	1	0606-0901	●	●
32	HOSE; FLEX,FRT POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> L=430	0-57847-430-1	02	1	0902-	●	●
35	GASKET; FLEX HOSE POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> ID=11 OD=18	9-09572-510-0	08	1	0902-	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0603-0901	●	●
35	GASKET; FLEX HOSE POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> ID=11 OD=18	9-09572-510-0	04	1	0902-	●	●
40	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	02	1	0603-0603	●	●
40	WASHER; LK,PIPE UNION ID=20.2	0-91510-520-0	02	1	0604-0901	●	●
40	WASHER; LK,PIPE UNION POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> ID=20.2	0-91510-520-0	02	1	0902-	●	●
48	NUT; UNION BRKT M20	0-91111-520-0	01	1	0603-0901	●	●
48	NUT; UNION BRKT POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> M20	0-91111-520-0	01	1	0902-	●	●
48	NUT; UNION BRKT M12 FLANGE	0-91150-212-0	02	1	0603-0603	●	●
48	NUT; UNION BRKT M12 FLANGE	0-91180-212-0	02	1	0603-	●	●
49	WASHER; LK,UNION BRKT ID=20.2	9-09150-520-0	01	1	0603-0603	●	●
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	0604-0901	●	●
49	WASHER; LK,UNION BRKT POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> ID=20.2	0-91510-520-0	01	1	0902-	●	●
53	UNION; ELBOW M20 & M20 ELBOW	1-09654-128-1	02	1	0603-0901	●	●
53	UNION; ELBOW POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> M20 & M20 ELBOW	1-09654-128-1	02	1	0902-	●	●
68	NUT; UNION POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> M8 FLANGE	0-91180-108-0	04	1	0904-	●
68	NUT; UNION POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> M20	0-91111-520-0	04	1	0902-	●
68	NUT; UNION M20	0-91111-520-0	01	1	0603-0901	●	●
68	NUT; UNION POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> M20	0-91111-520-0	01	1	0902-	●	●
75	BRACKET; UNION POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (D)	8-98142-444-1	01	1	0902-	●
75	BRACKET; UNION POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (E)	8-98142-445-0	01	1	0902-	●
75	BRACKET; UNION (A)	1-47471-023-0	01	1	0603-	●	●
75	BRACKET; UNION (C)	1-47479-765-1	01	1	0603-0901	●	●
75	BRACKET; UNION POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (C)	1-47479-765-1	01	1	0902-	●	●
75	BRACKET; UNION (B)	1-47479-766-1	01	1	0603-0901	●	●
75	BRACKET; UNION POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (B)	1-47479-766-1	01	1	0902-	●	●
80	WASHER; LK,UNION POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> ID=20.2	0-91510-520-0	04	1	0902-	●
80	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	0603-0603	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0604-0901	●	●
80	WASHER; LK,UNION POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> ID=20.2	0-91510-520-0	01	1	0902-	●	●
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	0603-0901	●	●
94	BOLT; BRKT POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> M8X30 FLANGE	0-28650-830-0	04	1	0902-	●	●
98	TUBE; NYLON POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> L=180 OD=12	8-98142-435-0	02	1	0902-	●
98	TUBE; NYLON L=170 OD=12	1-49222-063-0	02	1	0603-0901	●	●
98	TUBE; NYLON POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> L=170 OD=12	1-49222-063-0	02	1	0902-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0603-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0603-	●	●
122	CONNECTOR; FLEX HOSE POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (D) PT3/8 ELBOW	1-09660-696-0	02	1	0904-	●
122	CONNECTOR; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24/24<B7R> (A) M20 & PT3/8	1-09660-731-1	03	1	0902-	●
122	CONNECTOR; FLEX HOSE POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0902-	●
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	01	1	0603-0811	●	●
122	CONNECTOR; FLEX HOSE FRT BRK AIR D410 WEDGE-160-24<B7Q> (A) M20 & PT3/8	1-09660-731-1	01	1	0812-	●	●
122	CONNECTOR; FLEX HOSE (B) R3/8 & RC1/4 & M20 3WAY	1-09661-607-0	01	1	0603-	●	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0603-0901	●	●
144	ADAPTER POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0902-	●	●
170	UNION; FLARE POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (C) PT3/8	1-48319-058-0	02	1	0904-	●
170	UNION; FLARE POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (A) M20	1-09654-199-2	04	1	0902-	●
170	UNION; FLARE POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	04	1	0902-	●
