3-34 — BRAKE VALVE; AIR (#35499) — 29 parça

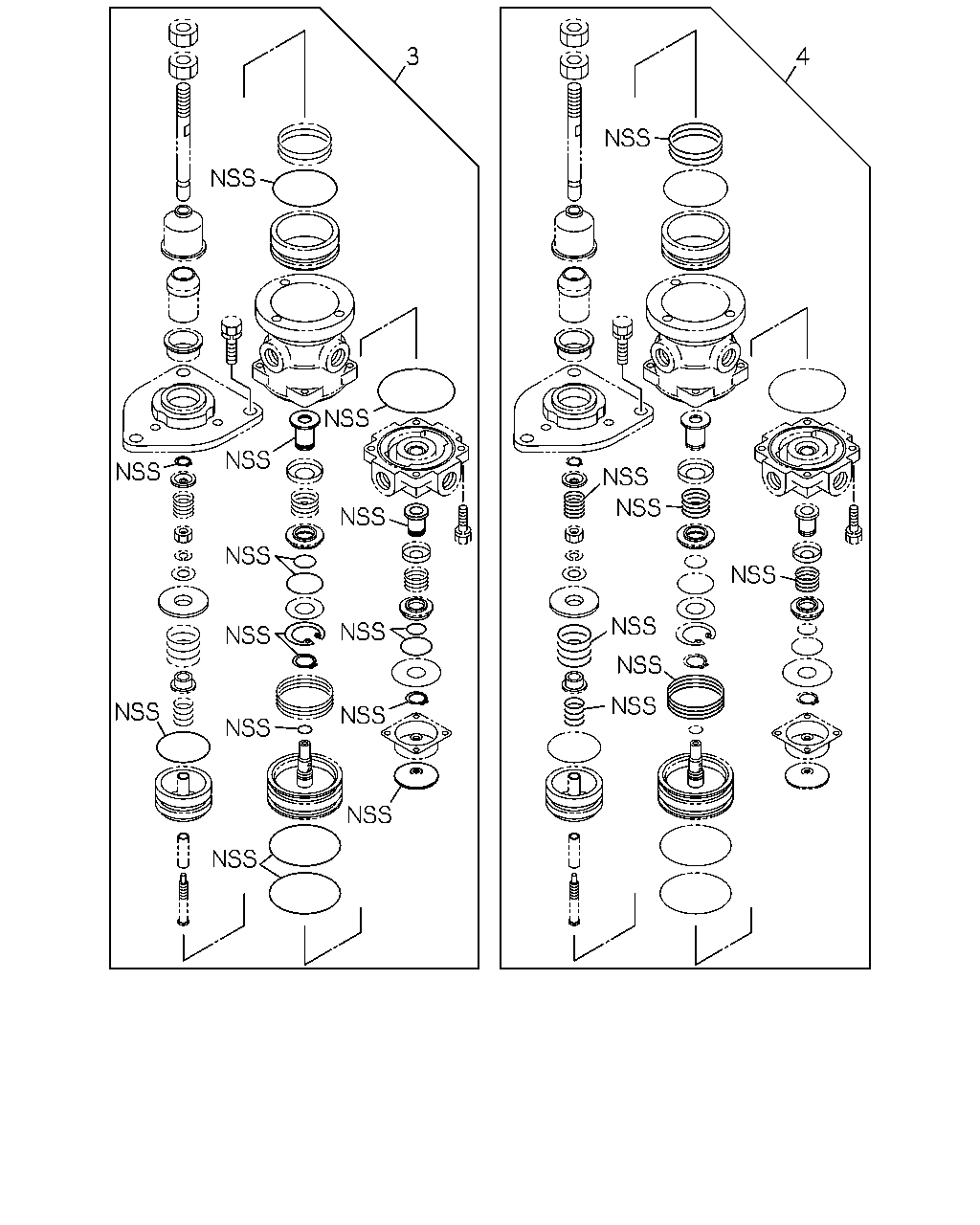

çizim 177426
3 4
BalonParca AdiParca NoAdetTipApplied Date A B
3 REPAIR KIT; RUBBER,BRK VLV 1-85576-391-0 01 1 0603- ● ●
4 REPAIR KIT; SPRING,BRK VLV 1-85576-179-0 01 1 0603- ● ●

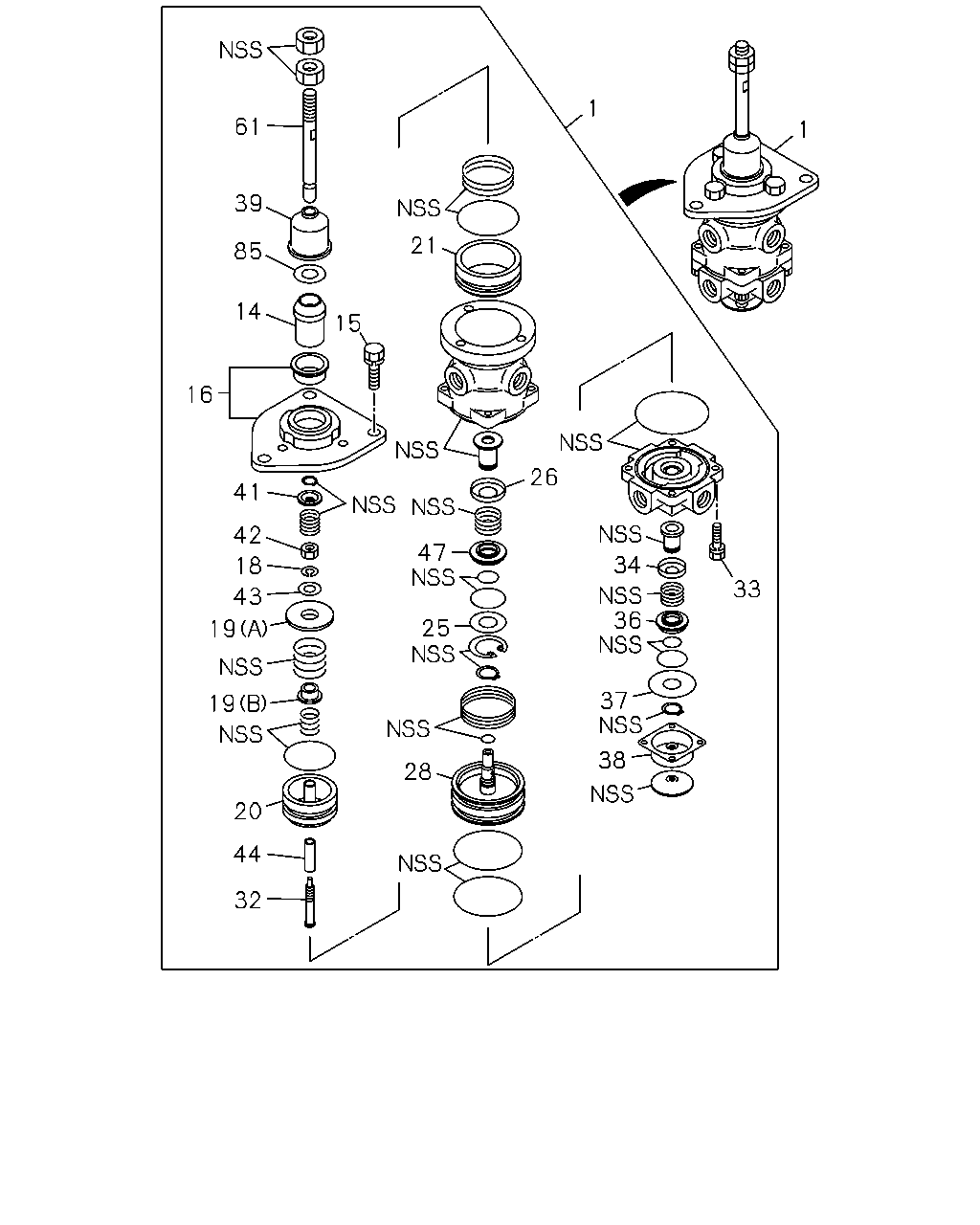

çizim 177536
1 61 1 39 21 85 14 15 16 26 41 42 47 34 18 33 36 43 25 19 37 19 38 28 20 44 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; BRK 1-48100-872-0 01 1 0603-1004 ● ●
1 VALVE; BRK 8-98166-520-0 01 1 1005- ● ●
14 PLUNGER; BRK VLV 1-48119-365-0 01 1 0603- ● ●
15 BOLT; PLATE,BRK VLV 1-48119-232-1 03 1 0603- ● ●
16 PLATE; MTG,BRKT VLV 1-48119-364-3 01 1 0603- ● ●
18 WASHER; LK,SEAT,BRK VLV 1-48199-024-0 01 1 0603- ● ●
19 SEAT; SPRING,BRK VLV
(B) 		1-48119-370-1 01 1 0603- ● ●
19 SEAT; SPRING,BRK VLV
(A) 		1-48119-371-0 01 1 0603- ● ●
20 PISTON; UPR,BRK VLV 1-48119-318-0 01 1 0603- ● ●
21 BUSHING; UPR BODY 1-48119-317-0 01 1 0603- ● ●
25 WASHER; PISTON,BRK VLV 1-48129-149-0 01 1 0603- ● ●
26 RETAINER; VLV,BRK VLV 1-48122-003-0 01 1 0603- ● ●
28 PISTON; LWR,BRK VLV 1-48119-337-0 01 1 0603- ● ●
32 SCREW; BRK VLV 1-48119-323-0 01 1 0603- ● ●
33 BOLT; BODY,BRK VLV 1-48129-068-0 04 1 0603- ● ●
34 RETAINER; VLV,BRK VLV 1-48122-010-0 01 1 0603- ● ●
36 RETAINER; GASKET,BRK VLV 1-48129-298-0 01 1 0603- ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-321-0 01 1 0603- ● ●
38 COVER; EXH,BRK VLV 1-48119-597-0 01 1 0603- ● ●
39 BOOT; PLUNGER,BRK VLV 1-48119-438-0 01 1 0603- ● ●
41 PLATE; STEM,BRK VLV 1-48129-167-0 01 1 0603- ● ●
42 NUT; SPR SEAT,BRK VLV 1-48199-025-0 01 1 0603- ● ●
43 WASHER; SPR SEAT,BRK VLV 1-48129-170-0 01 1 0603- ● ●
44 SLEEVE; PISTON,BRK VLV 1-48119-322-0 01 1 0603- ● ●
47 RETAINER; GASKET,BRK VLV 1-48129-297-0 01 1 0603- ● ●
61 ROD; PUSH,BRK VLV 1-48119-363-0 01 1 0603- ● ●
85 WASHER; PUSH ROD 1-48119-366-0 01 1 0603- ● ●
