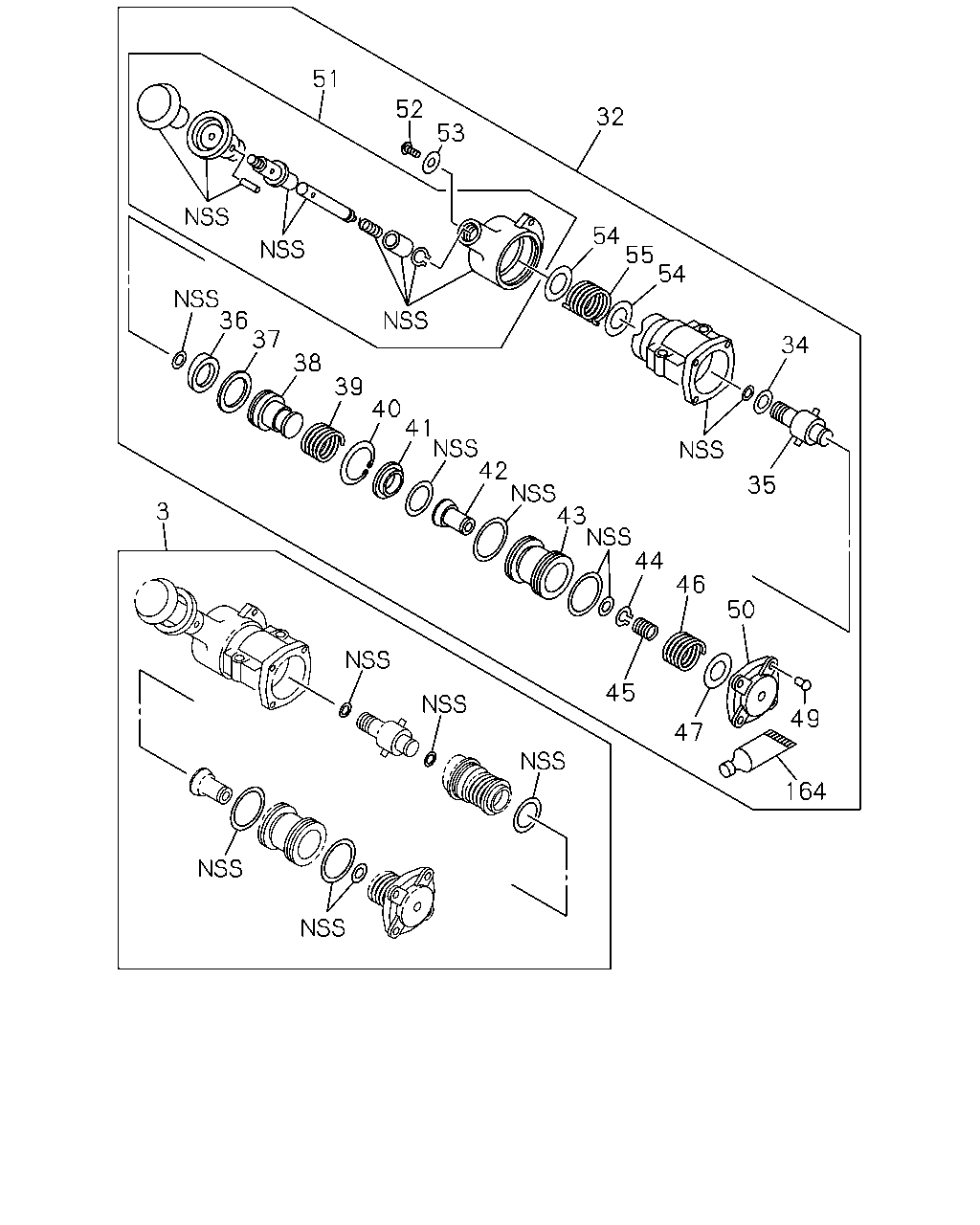

3-26 — TRAILER CONTROL (#35498) — 39 parça

51 52 32 53 54 55 54 36 37 34 38 39 40 41 42 43 44 35 3 46 50 45 49 47 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV	1-48469-096-0	01	1	0603-	●	●
32	VALVE; BRK,HAND CONT	1-48460-356-0	01	1	0603-	●	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0603-	●	●
35	HOLDER; CAM	1-48469-054-0	01	1	0603-	●	●
36	RING; CAM	1-48469-056-0	01	1	0603-	●	●
37	GUIDE; CAM RING	1-48469-058-0	01	1	0603-	●	●
38	SEAT; EXH VLV	1-48469-057-0	01	1	0603-	●	●
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	0603-	●	●
40	RING; SNAP	1-48469-067-0	01	1	0603-	●	●
41	SEAT; FEED VLV	1-48469-066-0	01	1	0603-	●	●
42	VALVE; FEED	1-48469-065-0	01	1	0603-	●	●
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0603-	●	●
44	RING; SNAP,FEED VLV	1-48469-068-0	01	1	0603-	●	●
45	SPRING; FEED VLV	1-48469-070-0	01	1	0603-	●	●
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	0603-	●	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0603-	●	●
49	SCREW; COVER	1-48469-118-0	04	1	0603-	●	●
50	COVER; HAND BRK VLV	1-48469-222-0	01	1	0603-	●	●
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	0603-	●	●
52	SCREW; HANDLE	1-48469-062-0	01	1	0603-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	0603-	●	●
54	SEAT; SPRING	1-48469-082-0	02	1	0603-	●	●
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	0603-	●	●
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	0603-	●	●

162 32 138 105 112 137 105 112 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT	1-48460-356-0	01	1	0603-	●	●
105	NUT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	03	1	0603-0603	●	●
105	NUT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0603-0603	●	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0603-0603	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0610	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0610	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0611-	●	●
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-79996-378-1	01	1	0603-	●	●
112	BRACKET; CONT VLV (A)	1-79996-113-2	01	1	0603-	●	●
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0603-0607	●	●
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0608-	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48>	1-09650-240-1	01	1	0603-	●	●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0603-	●	●
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	0603-	●	●
