3-22 — AIR CONTROL PARTS (#35497) — 150 parça

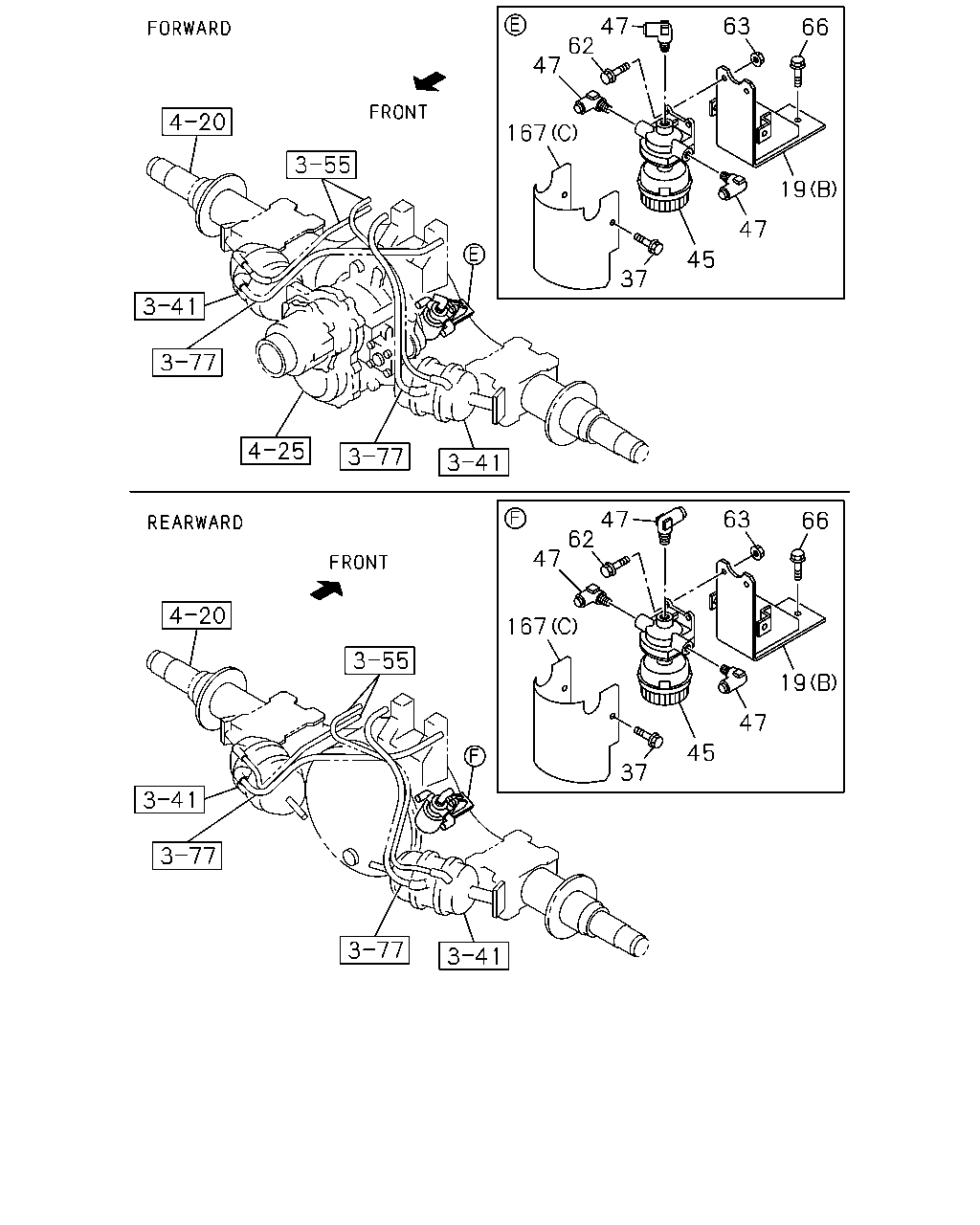

çizim 177404
63 47 62 47 66 167 19 47 45 37 63 47 62 47 66 167 19 47 45 37
BalonParca AdiParca NoAdetTipApplied Date A B
19 BRACKET; QUICK RELEASE VLV
(A) 		1-47471-014-0 01 1 0603- ● ●
19 BRACKET; QUICK RELEASE VLV
(B) 		1-47471-390-0 02 1 0603- ● ●
37 BOLT; COVER
M8X10 FLANGE 		0-28050-810-0 04 1 0603- ● ●
45 VALVE; QUICK RELEASE 1-48410-733-0 02 1 0603-1008 ● ●
45 VALVE; QUICK RELEASE 8-98170-207-0 02 1 1009- ● ●
47 CONNECTOR; RELAY VLV,CONT
DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 0603- ● ●
62 BOLT; BRKT FIX
POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> M10X35 FLANGE 		0-28651-035-0 02 1 1112- ● ●
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 04 1 0603- ● ●
62 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0603-1111 ● ●
62 BOLT; BRKT FIX
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> M10X30 FLANGE 		0-28651-030-0 02 1 1112- ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 04 1 0603-0603 ● ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 02 1 0603-0603 ● ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
66 BOLT; BRKT,RELAY VLV RR
M8X16 FLANGE 		0-28050-816-0 04 1 0603- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0603- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0603- ● ●
167 COVER; VALVE
(C) 		1-47471-259-0 02 1 0603-0706 ● ●
167 COVER; VALVE
(C) 		8-98043-421-0 02 1 0707- ● ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 0603- ● ●

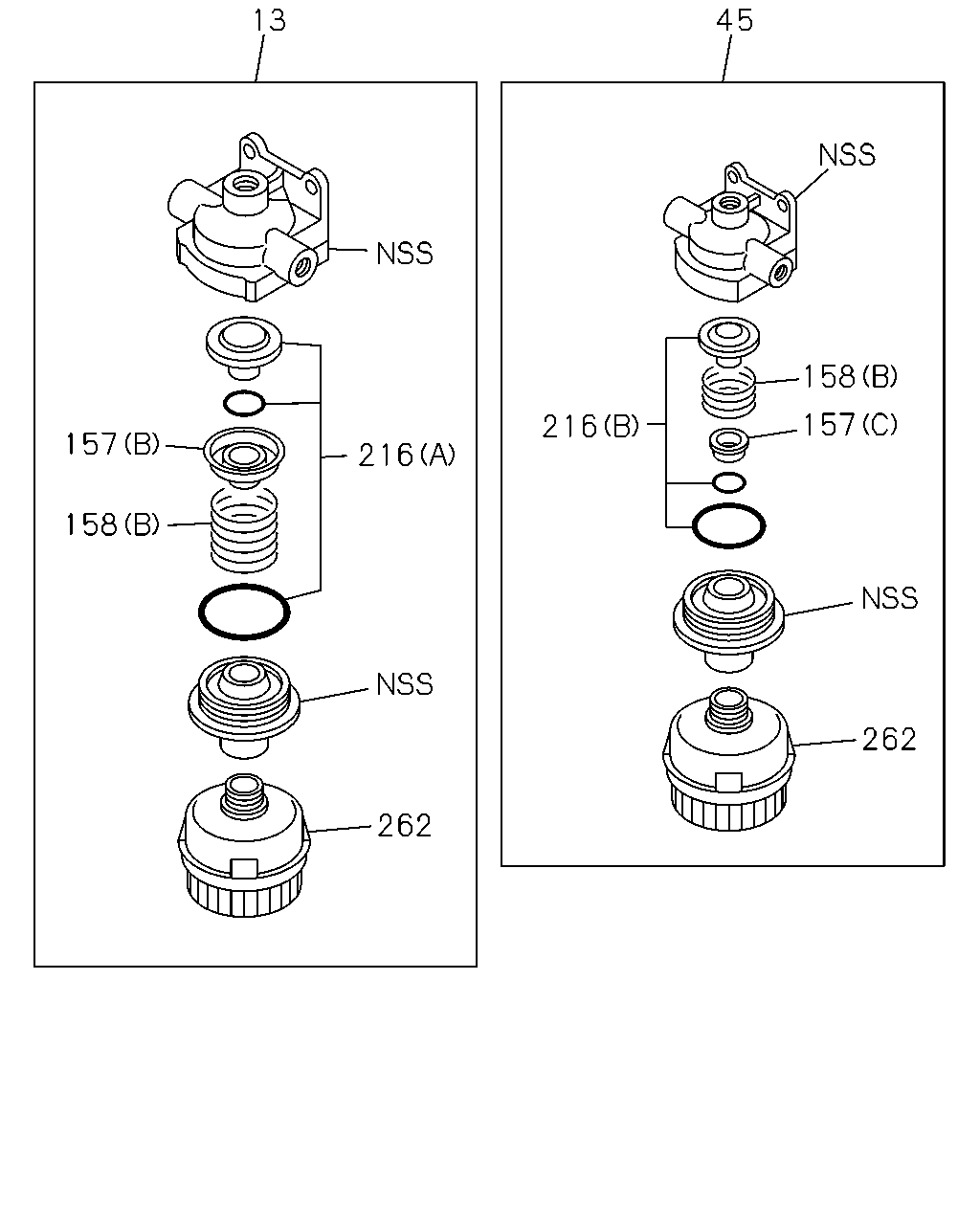

çizim 177405
13 45 158 157 216 157 216 158 262 262
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE 1-48410-726-1 01 1 0603- ● ●
45 VALVE; QUICK RELEASE 1-48410-733-0 02 1 0603-1008 ● ●
45 VALVE; QUICK RELEASE 8-98170-207-0 02 1 1009- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0603- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0603-1008 ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0603-0901 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0902- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0902- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0902- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0603-0901 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0603- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0603- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0603-0901 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0902- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0902- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0902- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0603-0901 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		1-85576-235-0 01 1 0603-1109 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		1-85576-484-0 01 1 1110- ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85579-062-0 02 1 0603-1008 ● ●
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		8-98171-596-0 02 1 1009- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0603- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0603- ● ●

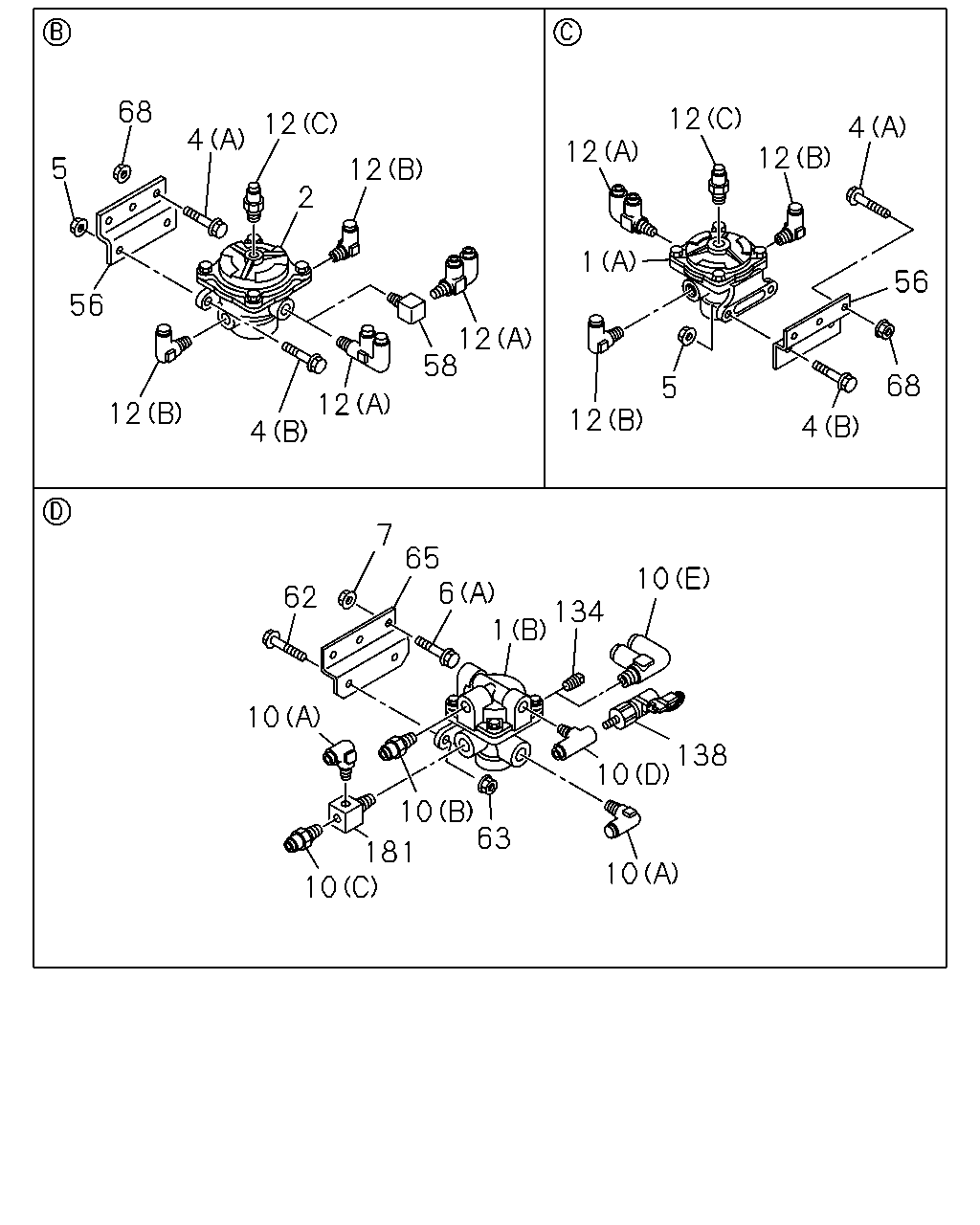

çizim 177410
68 12 12 4 4 12 12 5 12 2 1 56 56 12 58 68 5 12 4 12 12 4 7 65 6 10 62 134 1 10 138 10 10 63 181 10 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
(A) 		1-48210-875-0 01 1 0603- ● ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-041-1 01 1 0603- ● ●
2 VALVE; RELAY 1-48210-875-0 01 1 0603- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0603- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0603- ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 0603- ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 0603-0603 ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 0603-0603 ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0603- ● ●
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0603- ● ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ● ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
10 CONNECTOR
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0902- ●
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0603- ● ●
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0603- ● ●
10 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0603- ● ●
10 CONNECTOR
(D) 		1-09661-537-0 01 1 0603-0704 ● ●
10 CONNECTOR
(D) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0705- ● ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0603- ● ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0603- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0603- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0603- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0603- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0603- ● ●
56 BRACKET; RELAY VLV 1-47479-328-0 01 1 0603- ● ●
56 BRACKET; RELAY VLV 1-47479-328-0 01 1 0603- ● ●
58 ADAPTER
PT3/8 ELBOW 		1-09660-696-0 01 1 0603- ●
62 BOLT; BRKT FIX
POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> M10X35 FLANGE 		0-28651-035-0 02 1 1112- ● ●
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 04 1 0603- ● ●
62 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0603-1111 ● ●
62 BOLT; BRKT FIX
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> M10X30 FLANGE 		0-28651-030-0 02 1 1112- ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 04 1 0603-0603 ● ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 02 1 0603-0603 ● ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 0603- ● ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 0603-0603 ● ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
134 PLUG; RELAY VALVE
PT3/8 		9-09204-517-0 01 1 0603-0901 ● ●
134 PLUG; RELAY VALVE
POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> PT3/8 		9-09204-517-0 01 1 0902-1111 ● ●
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0603- ● ●
181 ADAPTER; PRESSURE SW
PT3/8 3WAY 		1-09661-300-0 01 1 0603-1111 ● ●
181 ADAPTER; PRESSURE SW
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> PT3/8 3WAY 		1-09661-300-0 01 1 1112- ●

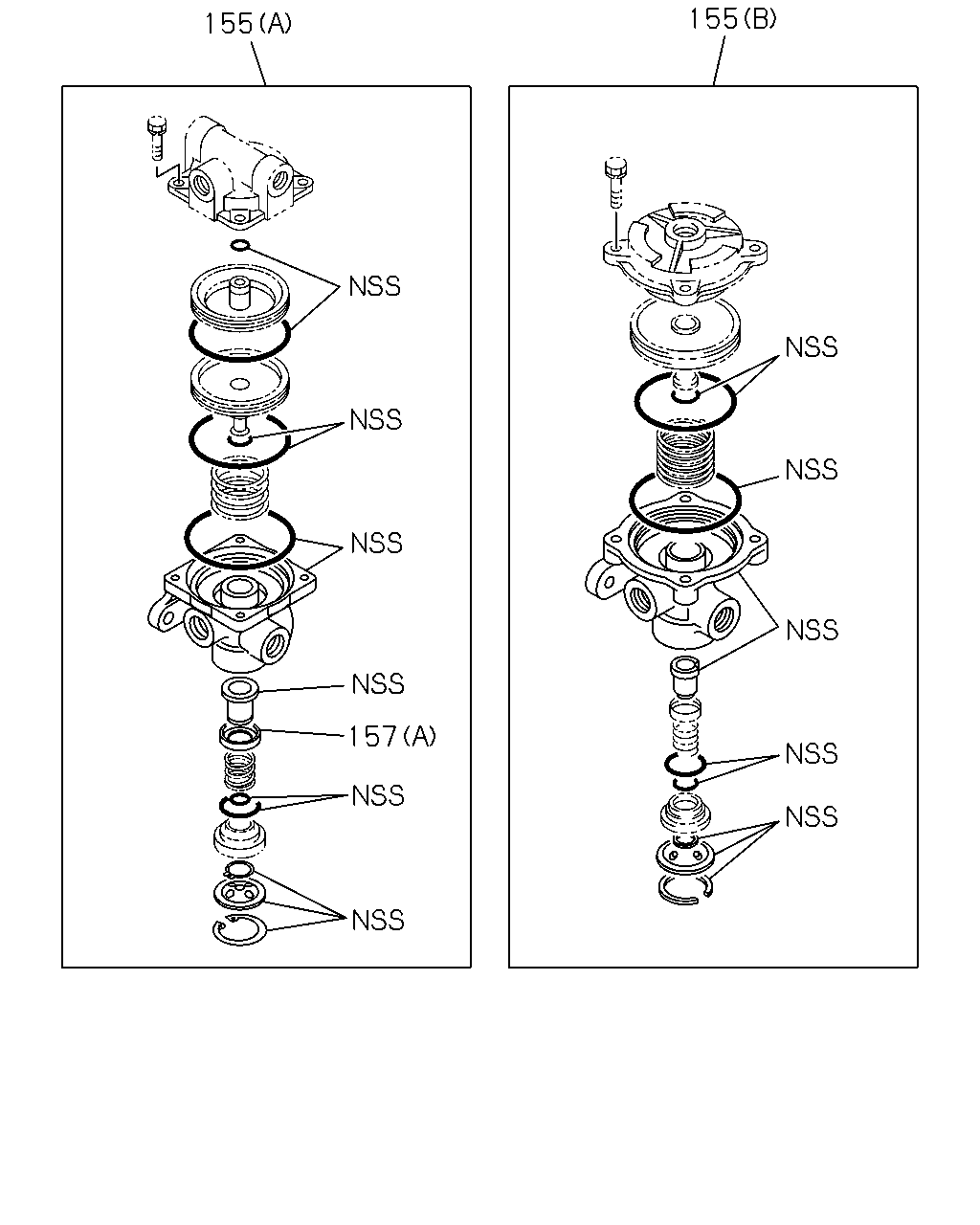

çizim 177443
155 155 157
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 0603- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 0603- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-035-0 01 1 0603- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0603- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0603-1008 ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0603-0901 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0902- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0902- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0902- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0603-0901 ● ●

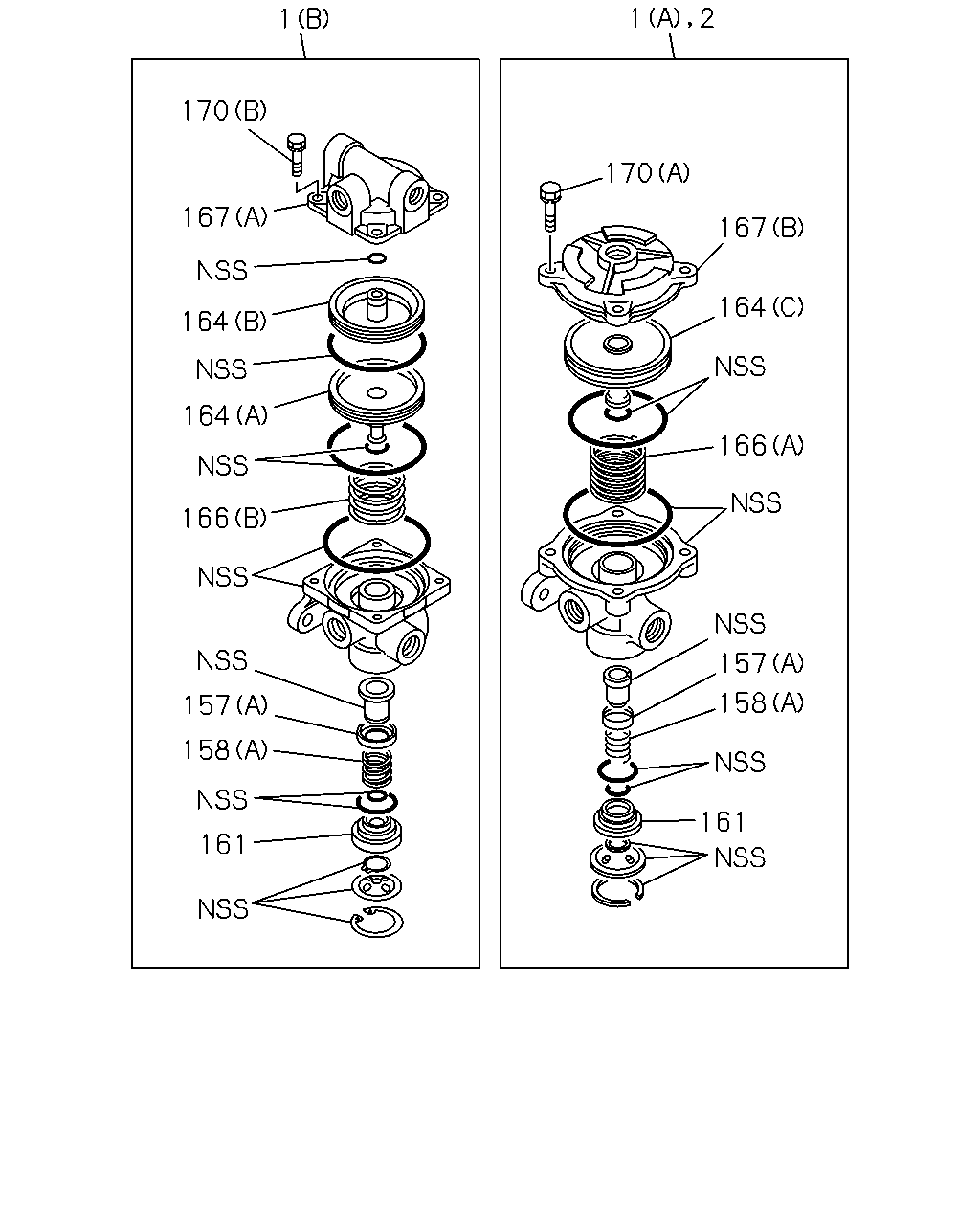

çizim 177458
2 1 1 170 170 167 167 164 164 164 166 166 157 158 157 158 161 161
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
(A) 		1-48210-875-0 01 1 0603- ● ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-041-1 01 1 0603- ● ●
2 VALVE; RELAY 1-48210-875-0 01 1 0603- ● ●
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0603- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0603-1008 ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0603-0901 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0902- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0902- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0902- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0603-0901 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0603- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0603- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0603-0901 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0902- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0902- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0902- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0603-0901 ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0603-0901 ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0902- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0902- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0902- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 0603-0901 ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0603- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0603- ● ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0603- ● ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0603- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0603- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0603- ● ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 0603- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0603- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0603- ● ●
167 COVER; VALVE
(C) 		1-47471-259-0 02 1 0603-0706 ● ●
167 COVER; VALVE
(C) 		8-98043-421-0 02 1 0707- ● ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 0603- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0603- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0603- ● ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 0603- ● ●

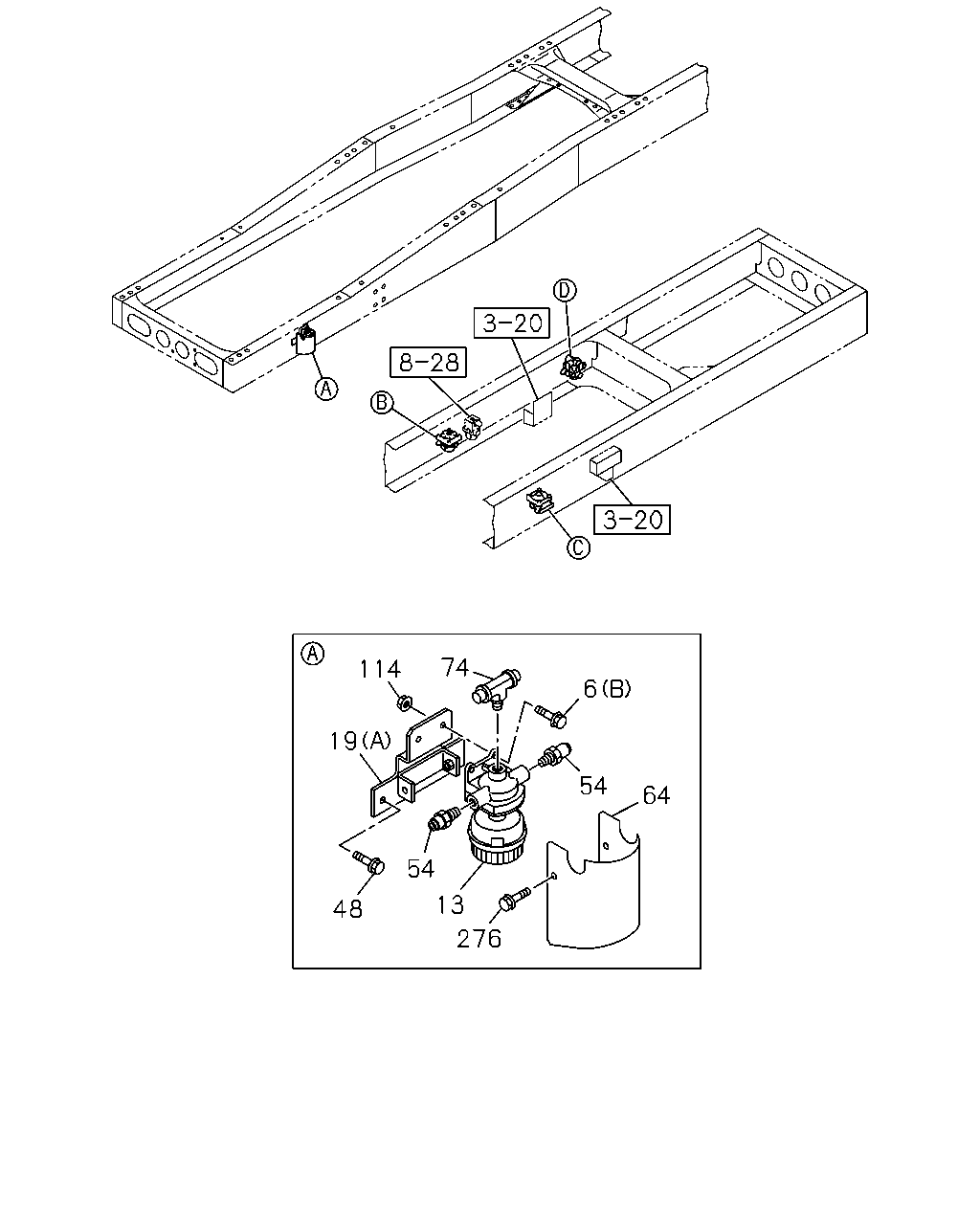

çizim 177517
74 114 6 19 54 64 54 13 48 276
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0603- ● ●
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0603- ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-726-1 01 1 0603- ● ●
19 BRACKET; QUICK RELEASE VLV
(A) 		1-47471-014-0 01 1 0603- ● ●
19 BRACKET; QUICK RELEASE VLV
(B) 		1-47471-390-0 02 1 0603- ● ●
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0603- ● ●
54 CONNECTOR; QUICK RELEASE VLV
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0603- ● ●
64 PROTECTOR; QUICK RELEASE VALVE 1-47471-259-0 01 1 0603-0706 ● ●
64 PROTECTOR; QUICK RELEASE VALVE 8-98043-421-0 01 1 0707- ● ●
74 CONNECTOR; 3WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 0603- ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 0603- ● ●
