Sayfa 3-20 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶

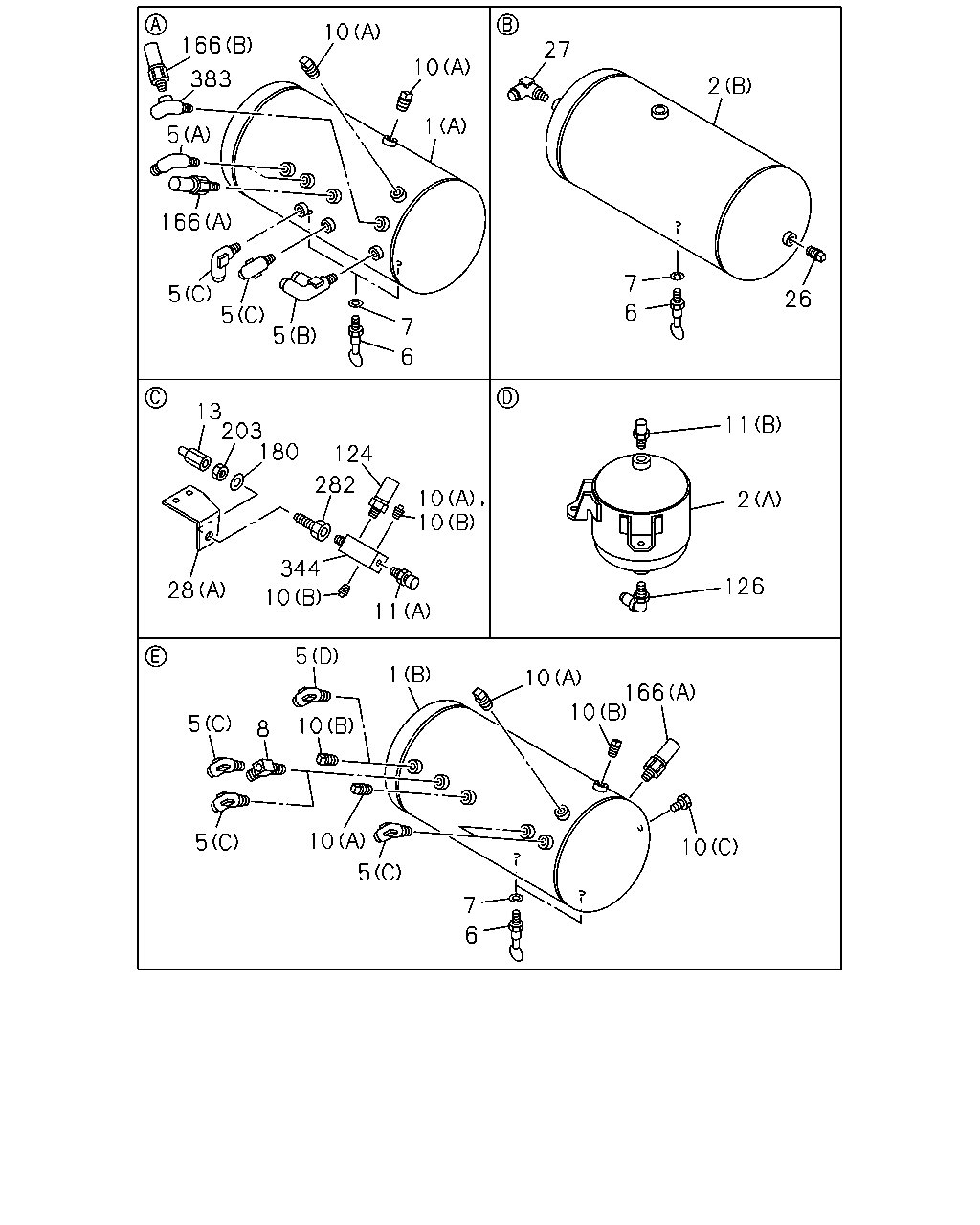

3-20 — AIR TANK (#35496) — 140 parça

10 166 27 10 383 2 1 5 166 7 5 5 5 26 6 7 6 13 203 180 11 124 282 10 10 2 344 126 28 10 11 5 1 10 166 10 5 10 8 10 5 10 5 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	1-48371-387-1	01	1	0603-	●	●
1	TANK ASM; AIR (B)	1-48371-434-1	01	1	0603-	●	●
2	TANK; AIR (A)	1-48371-166-3	01	1	0603-	●	●
2	TANK; AIR (B)	1-48371-389-1	02	1	0603-	●	●
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1202-	●	●
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0603-	●	●
5	UNION; AIR TANK (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0603-	●	●
5	UNION; AIR TANK (A)	1-09661-550-0	02	1	0603-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-017-0	06	1	0603-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	06	1	0603-	●	●
8	CONNECTOR; AIR TANK DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	0603-1201	●	●
10	PLUG; AIR TANK (C) M22	1-09661-502-0	01	1	0603-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	04	1	0603-0608	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	0609-1201	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1202-	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	04	1	0603-0608	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	05	1	0609-	●	●
11	VALVE; SAFETY,AIR TANK (A)	1-48320-012-2	01	1	0603-	●	●
11	VALVE; SAFETY,AIR TANK (B)	1-48320-047-2	01	1	0603-	●	●
13	ADAPTER; NYLON TUBE DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0603-	●	●
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	0603-	●	●
27	UNION; ELBOW,AIR TANK DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0603-	●	●
28	BRACKET; AIR TANK (A)	1-47471-153-0	01	1	0603-	●	●
28	BRACKET; AIR TANK (B)	1-48316-026-0	01	1	0603-	●	●
28	BRACKET; AIR TANK (C)	1-48316-077-0	01	1	0603-	●	●
124	SWITCH; AIR PRESSURE	1-48340-065-0	01	1	0603-	●	●
126	CONNECTOR; ELBOW DIN8 & M22 ELBOW	1-09661-495-0	01	1	0603-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A)	1-48340-058-2	02	1	0603-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (B)	1-48340-065-0	01	1	0603-	●	●
180	WASHER; LK ID=16.2	9-09150-516-0	01	1	0603-0603	●	●
180	WASHER; LK ID=16.2	0-91510-516-0	01	1	0604-	●	●
203	NUT M16	0-91110-516-0	01	1	0603-	●	●
282	UNION; 2 WAY	1-09650-222-1	01	1	0603-	●	●
344	CONNECTOR; 4WAY	1-09660-521-2	01	1	0603-	●	●
383	UNION; 3 WAY DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	0603-	●	●

39 39 87 117 214 32 28 31 80 191 28 31 30 46 46 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BRACKET; AIR TANK (A)	1-47471-153-0	01	1	0603-	●	●
28	BRACKET; AIR TANK (B)	1-48316-026-0	01	1	0603-	●	●
28	BRACKET; AIR TANK (C)	1-48316-077-0	01	1	0603-	●	●
30	BRACKET; AIR TANK,SUB	1-48316-024-3	01	1	0603-	●	●
31	BOLT; BRKT TO FRAME M14X50	0-20851-450-0	08	1	0603-	●	●
32	NUT; BRKT TO FRAME M14	0-91110-514-0	08	1	0603-	●	●
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	0603-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	0603-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	0603-	●	●
80	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0603-	●	●
80	BOLT; BRKT M12X25 FLANGE	0-28651-225-0	04	1	0603-	●	●
87	BRACKET; AIR PIPE JOINT (D)	1-33659-243-0	01	1	0603-	●	●
87	BRACKET; AIR PIPE JOINT (B)	1-47471-189-0	02	1	0603-	●	●
87	BRACKET; AIR PIPE JOINT (A)	1-47471-241-0	01	1	0603-	●	●
87	BRACKET; AIR PIPE JOINT (F)	1-47471-242-0	01	1	0603-0809	●	●
87	BRACKET; AIR PIPE JOINT (F)	8-98054-525-0	01	1	0810-	●	●
87	BRACKET; AIR PIPE JOINT (E)	1-47479-537-0	01	1	0603-0809	●	●
87	BRACKET; AIR PIPE JOINT (E)	8-98060-053-0	01	1	0810-	●	●
87	BRACKET; AIR PIPE JOINT (C)	1-47479-566-0	01	1	0603-		●
117	WASHER; LK,BRKT ID=14.2	9-09150-514-0	04	1	0603-0603	●	●
117	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	0604-	●	●
184	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0603-0603	●	●
184	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
184	NUT; BRKT M12 FLANGE	0-91150-212-0	01	1	0603-0603	●	●
184	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-015-1	01	1	0603-	●
191	BRACKET; STOPPER,AIR TANK (B)	1-48316-014-1	01	1	0603-	●	●
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-023-1	01	1	0603-		●
214	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-514-0	04	1	0603-0603	●	●
214	WASHER; LK,BRKT TO FRAME ID=14.2	0-91510-514-0	04	1	0604-	●	●

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8X70 FLANGE	0-28050-870-0	02	1	0603-	●	●

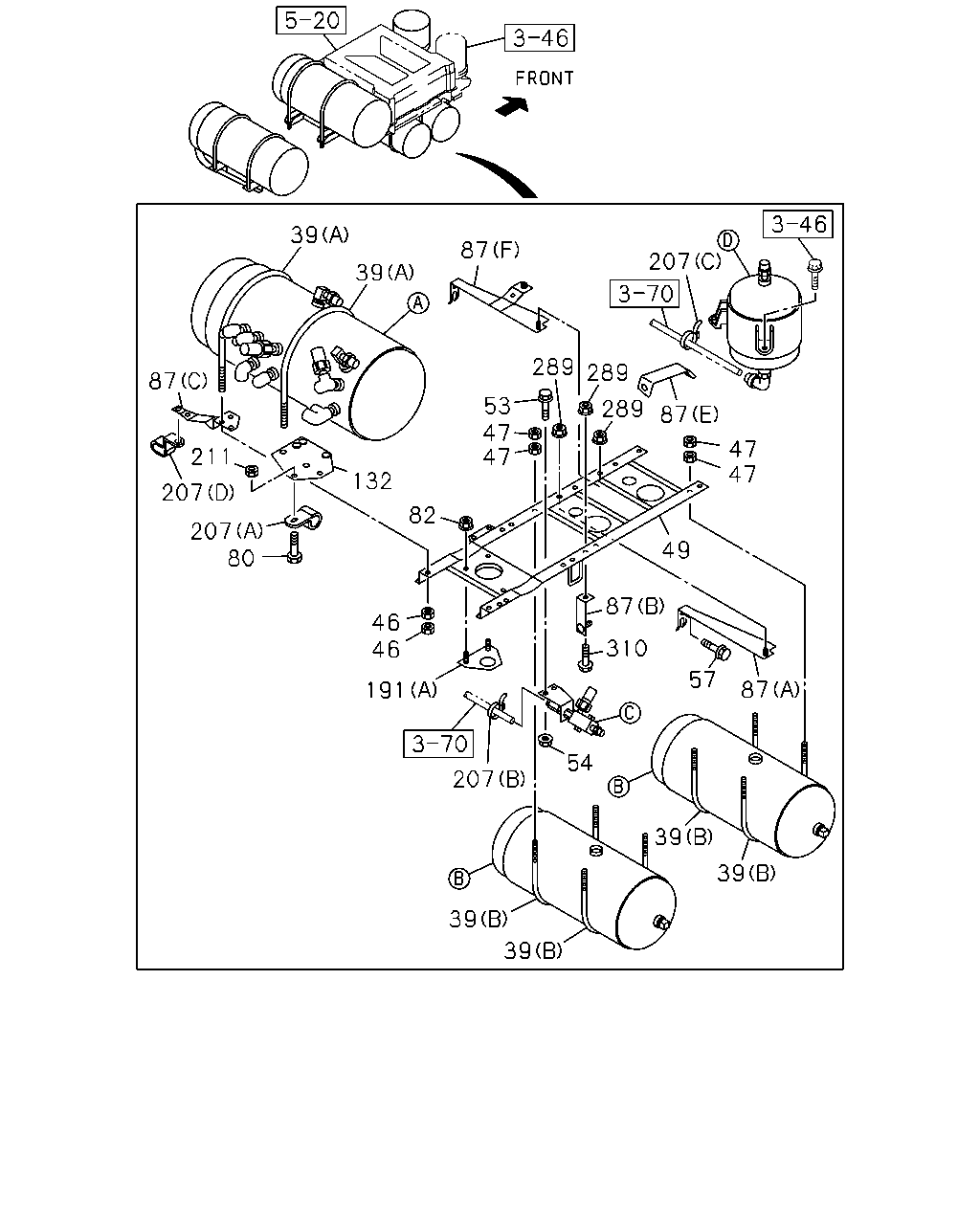

39 207 87 39 289 289 87 289 53 47 47 87 211 47 47 132 207 82 207 80 49 87 46 46 310 57 87 191 54 207 39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	0603-	●	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	0603-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	0603-	●	●
47	NUT; LK,U BOLT,AIR TANK M8	0-91110-508-0	16	1	0603-	●	●
49	BRACKET; AIR TANK	1-48316-065-1	01	1	0603-	●	●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28650-820-0	02	1	0603-	●	●
54	NUT; STAY M8 FLANGE	0-91150-108-0	02	1	0603-0603	●	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M10X25 FLANGE	0-28651-025-0	04	1	0603-	●	●
80	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0603-	●	●
80	BOLT; BRKT M12X25 FLANGE	0-28651-225-0	04	1	0603-	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91150-108-0	02	1	0603-0603	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
87	BRACKET; AIR PIPE JOINT (D)	1-33659-243-0	01	1	0603-	●	●
87	BRACKET; AIR PIPE JOINT (B)	1-47471-189-0	02	1	0603-	●	●
87	BRACKET; AIR PIPE JOINT (A)	1-47471-241-0	01	1	0603-	●	●
87	BRACKET; AIR PIPE JOINT (F)	1-47471-242-0	01	1	0603-0809	●	●
87	BRACKET; AIR PIPE JOINT (F)	8-98054-525-0	01	1	0810-	●	●
87	BRACKET; AIR PIPE JOINT (E)	1-47479-537-0	01	1	0603-0809	●	●
87	BRACKET; AIR PIPE JOINT (E)	8-98060-053-0	01	1	0810-	●	●
87	BRACKET; AIR PIPE JOINT (C)	1-47479-566-0	01	1	0603-		●
132	BRACKET; STRING GUIDE	1-47471-204-0	01	1	0603-	●	●
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-015-1	01	1	0603-	●
191	BRACKET; STOPPER,AIR TANK (B)	1-48316-014-1	01	1	0603-	●	●
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-023-1	01	1	0603-		●
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	12	1	0603-	●
207	CLIP; AIR PIPE (C) L=256	1-09707-189-0	02	1	0603-	●
207	CLIP; AIR PIPE (A) ID=35 L=33	1-09700-945-0	02	1	0603-	●	●
207	CLIP; AIR PIPE (D) ID=31 H=30 L=35	1-09700-994-0	01	1	0603-	●	●
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	17	1	0603-		●
211	NUT; STRING GUIDE M8 FLANGE	0-91150-108-0	03	1	0603-0603	●	●
211	NUT; STRING GUIDE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	08	1	0603-0603	●	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	08	1	0603-0809	●	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	09	1	0810-	●	●
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28050-816-0	05	1	0603-	●	●
310	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	05	1	0603-0809	●	●
310	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	04	1	0810-	●	●
310	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	01	1	0603-	●	●

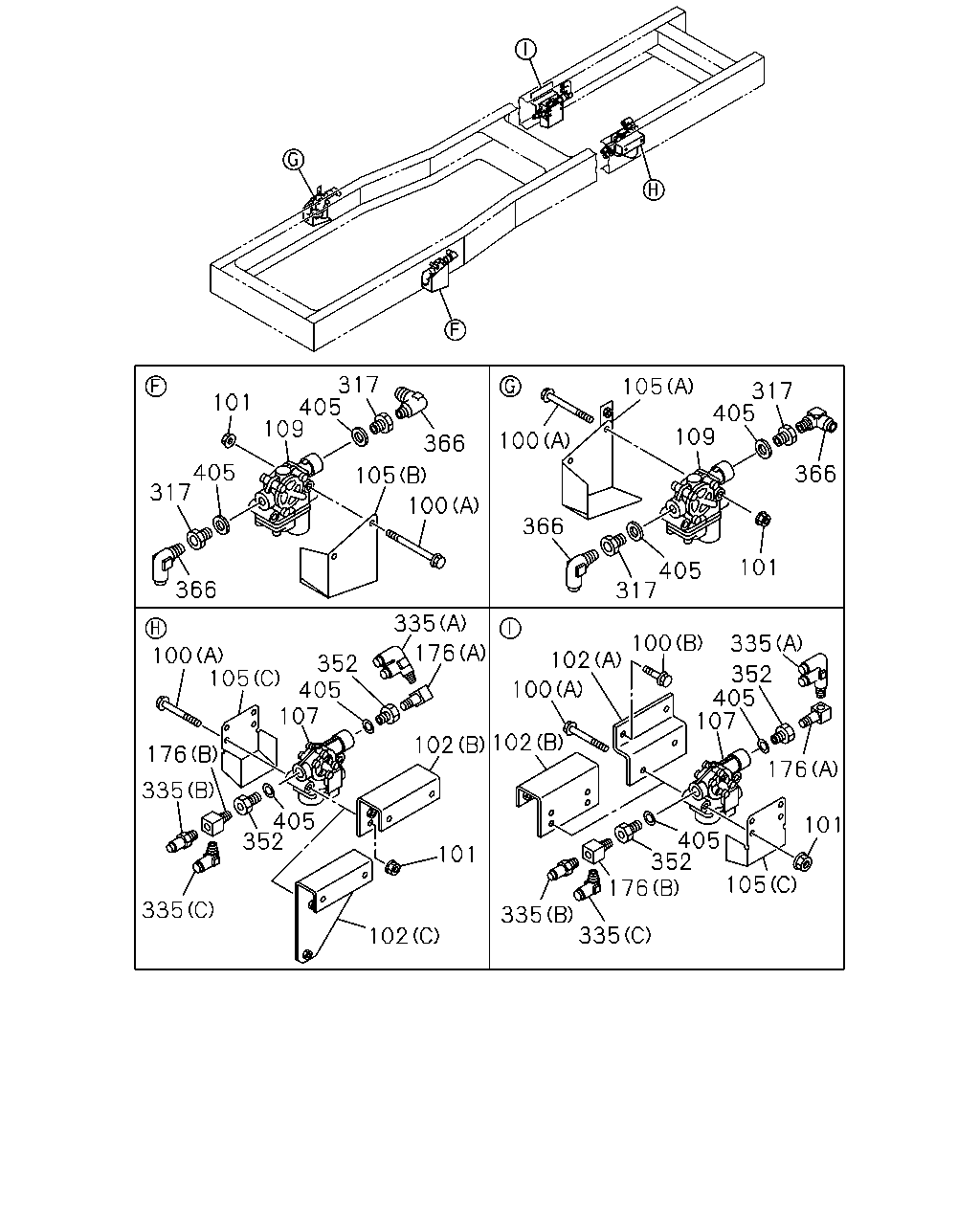

317 405 109 105 317 405 109 101 100 366 405 317 366 105 100 366 101 405 317 366 335 100 335 176 100 105 102 352 405 107 352 405 107 100 176 102 102 176 335 405 352 101 405 352 176 101 105 335 335 335 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	04	1	0603-	●	●
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	04	1	0603-	●	●
100	BOLT; MODULATOR (B) M8X35 FLANGE	0-28650-835-0	04	1	0603-	●
100	BOLT; MODULATOR WHEEL BASE 6600MM(66W) (B) M8X35 FLANGE	0-28650-835-0	04	1	0603-		●
100	BOLT; MODULATOR WHEEL BASE 5900MM(59W) (B) M8X40 FLANGE	0-28650-840-0	04	1	0603-		●
101	NUT; MODULATOR M8 FLANGE	0-91150-108-0	04	1	0603-0603	●	●
101	NUT; MODULATOR M8 FLANGE	0-91150-108-0	04	1	0603-0603	●
101	NUT; MODULATOR WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	04	1	0603-0603		●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	04	1	0603-0810	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	04	1	0603-0810	●
101	NUT; MODULATOR WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	04	1	0603-0810		●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	04	1	0811-	●
101	NUT; MODULATOR WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	04	1	0811-		●
102	BRACKET; MODULATOR (A)	1-47471-180-0	01	1	0603-	●
102	BRACKET; MODULATOR WHEEL BASE 6600MM(66W) (A)	1-47471-180-0	01	1	0603-		●
102	BRACKET; MODULATOR (C)	1-47471-373-0	01	1	0603-	●
102	BRACKET; MODULATOR WHEEL BASE 6600MM(66W) (C)	1-47471-373-0	01	1	0603-		●
102	BRACKET; MODULATOR WHEEL BASE 5900MM(59W) (B)	1-47471-372-0	02	1	0603-		●
105	COVER; MODULATOR (C)	1-47471-354-0	02	1	0603-	●	●
105	COVER; MODULATOR (A)	1-47471-306-0	01	1	0603-0604	●	●
105	COVER; MODULATOR (A)	8-98049-454-0	01	1	0605-	●	●
105	COVER; MODULATOR (B)	1-47471-307-0	01	1	0603-0810	●	●
105	COVER; MODULATOR (B)	8-98061-814-0	01	1	0811-	●	●
107	MODULATOR; RR	1-48240-115-0	02	1	0603-	●	●
109	MODULATOR; FRT	1-48240-115-0	02	1	0603-	●	●
176	ADAPTER (A) PT3/8 ELBOW	1-09660-696-0	02	1	0603-	●	●
176	ADAPTER (B) PT3/8 3WAY	1-09661-300-0	02	1	0603-	●	●
317	CONNECTOR; MODULATOR INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0603-	●	●
335	CONNECTOR; MODULATOR (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0603-	●	●
335	CONNECTOR; MODULATOR (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0603-	●	●
335	CONNECTOR; MODULATOR (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0603-	●	●
352	CONNECTOR; STRAIGHT INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0603-	●	●
366	CONNECTOR; NYLON TUBE DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0603-	●	●
405	GASKET ID=22.5	9-09571-422-0	04	1	0603-	●	●
405	GASKET ID=22.5	9-09571-422-0	04	1	0603-	●	●
