2-85 — POWER TAKE OFF CONTROL (#35491) — 41 parça

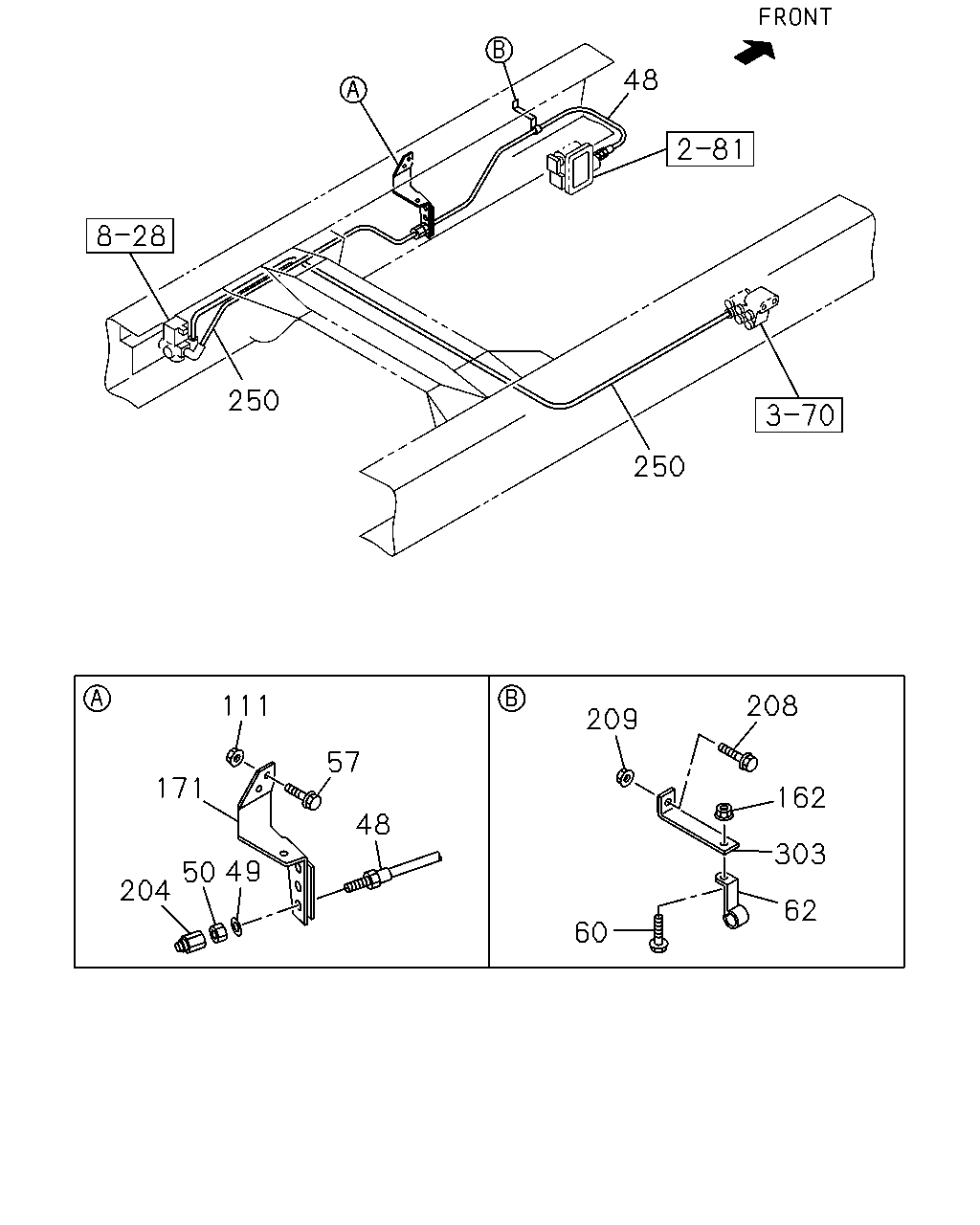

çizim 177401
48 250 250 111 208 209 57 171 162 48 303 204 62 60 50 49
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
MIXER TRUCK<RA2> MJT7 M/T<Y9E> FUEL TANK 300L AL<EBF> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=600 		1-09363-665-0 01 1 0812- ●
48 HOSE; FLEX,PTO
MJT7 M/T<Y9E> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FUEL TANK 300L AL<EBF>,MIXER TRUCK<RA2> L=760 		1-09363-715-0 01 1 0812- ●
48 HOSE; FLEX,PTO
FUEL TANK 300L AL<EBF> TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) L=500 		1-09363-693-0 01 1 0809-0811 ●
48 HOSE; FLEX,PTO
MAL6 M/T<X9G> FUEL TANK 300L AL<EBF> TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) L=500 		1-09363-693-0 01 1 0812- ●
48 HOSE; FLEX,PTO
FUEL TANK 300L AL<EBF> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=560 		1-09363-654-0 01 1 0702-0808 ●
48 HOSE; FLEX,PTO
WHEEL BASE 4500MM(45W) FUEL TANK 300L AL<EBF> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=560 		1-09363-654-0 01 1 0809-0811 ●
48 HOSE; FLEX,PTO
WHEEL BASE 4500MM(45W) MAL6 M/T<X9G> FUEL TANK 300L AL<EBF> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=560 		1-09363-654-0 01 1 0812- ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=660 		1-09363-719-0 01 1 0603-0606 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=660 		1-09363-719-0 01 1 0607-0701 ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FUEL TANK 300L AL<EBF> L=660 		1-09363-719-0 01 1 0702-0811 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=660 		1-09363-719-0 01 1 0702-0811 ●
48 HOSE; FLEX,PTO
MAL6 M/T<X9G> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FUEL TANK 300L AL<EBF> L=660 		1-09363-719-0 01 1 0812- ●
48 HOSE; FLEX,PTO
MJT7 M/T<Y9E> FUEL TANK 300L AL<EBF> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. MIXER TRUCK<RA2> L=660 		1-09363-719-0 01 1 0812- ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=660 		1-09363-719-0 01 1 0812- ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		9-09150-512-0 01 1 0603-0603 ● ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 0604- ● ●
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 0603- ● ●
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 02 1 0603- ● ●
60 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 0603- ● ●
62 CLIP; PIPE,AIR
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 0603- ● ●
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ● ●
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
162 NUT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ● ●
162 NUT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47479-634-1 01 1 0603- ● ●
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0603- ● ●
208 BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 01 1 0603- ● ●
209 NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91150-108-0 01 1 0603-0603 ● ●
209 NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0603- ● ●
303 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 0603- ● ●

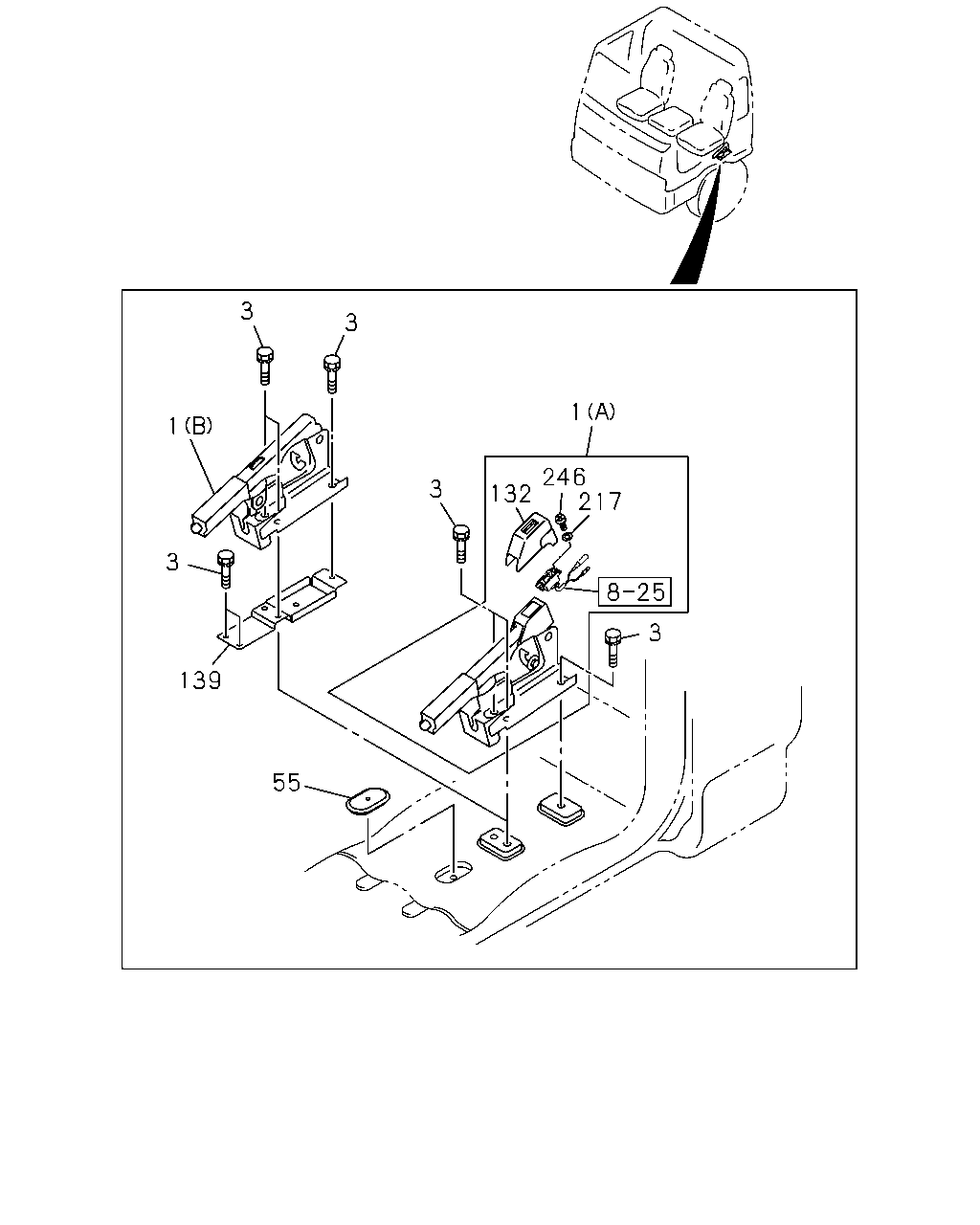

çizim 177552
3 3 1 1 246 217 3 132 3 3 139 55
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (A) 		1-79996-244-0 01 1 0603- ● ●
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) (B) 		1-79907-045-1 01 1 0603- ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0603- ● ●
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0603- ● ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 0603- ● ●
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 0603- ● ●
139 BRACKET; CONT BOX
PTO CONTROL(SV6) 		1-79907-044-0 01 1 0603- ● ●
217 WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3 		9-09160-504-0 02 1 0603- ● ●
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71180-408-0 02 1 0603-0603 ● ●
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71240-408-0 02 1 0604- ● ●
