Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#35490) — 159 parça

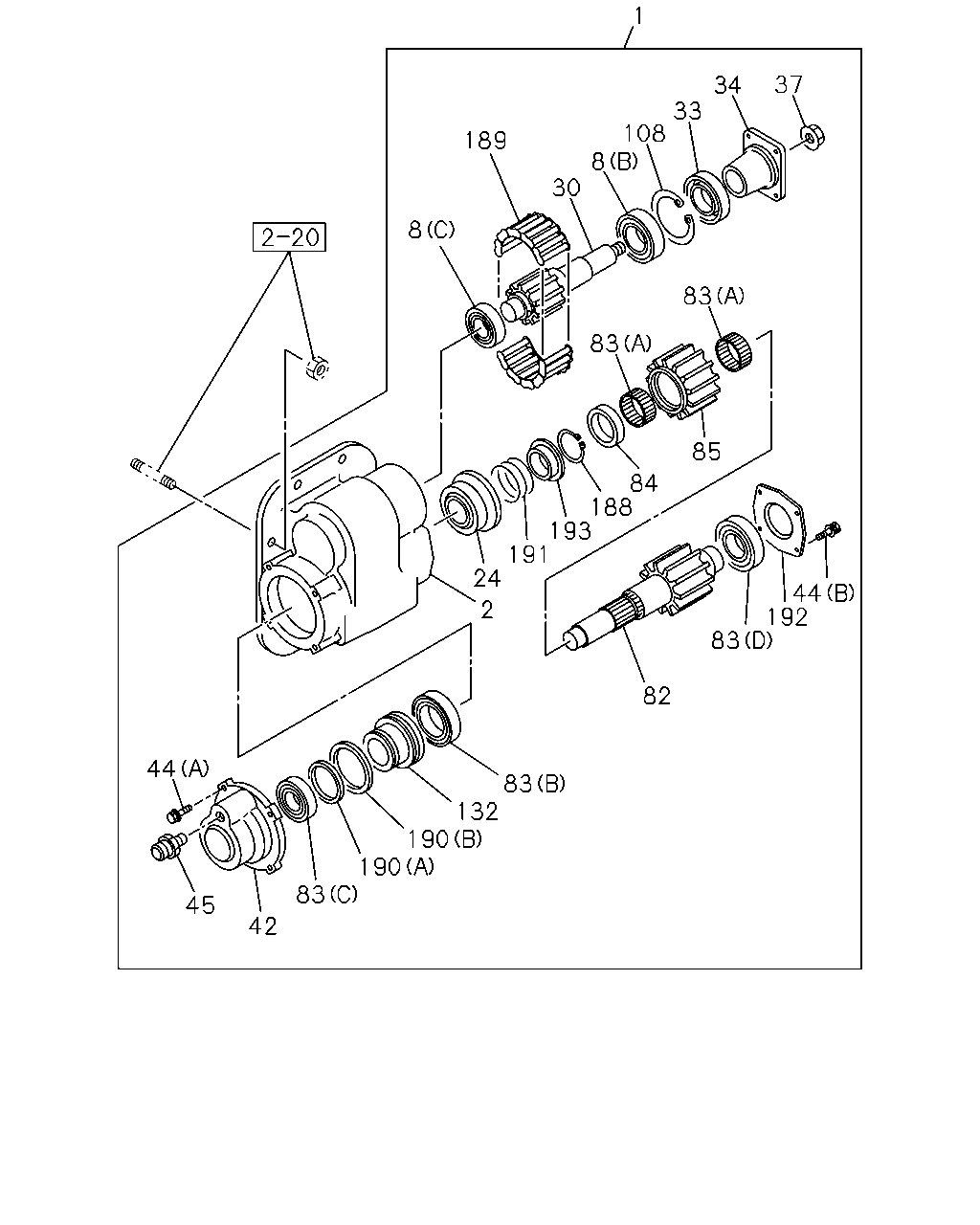

1 37 34 33 108 8 189 30 8 83 83 85 84 188 193 191 24 44 192 83 2 82 44 83 132 190 190 83 45 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-315-2	01	1	0812-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-317-2	01	1	0603-1112		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98185-658-0	01	1	1201-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	0812-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-093-0	01	1	0603-1112		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98186-096-0	01	1	1201-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) JTEKT	1-09810-231-0	01	1	0812-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) NSK	1-09810-232-0	01	1	0812-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-233-0	01	1	0812-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-234-0	01	1	0812-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09800-208-0	02	1	0603-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38225-009-0	01	1	0812-1509	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98240-289-0	01	1	1510-	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38225-002-0	01	1	0603-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	0812-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-012-0	01	1	0603-		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	0812-1509	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98240-288-0	01	1	1510-	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98028-792-0	01	1	0603-		●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	0812-1509	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-771-0	01	1	1510-	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-013-1	01	1	0603-		●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	0812-1509	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	8-98037-772-0	01	1	1510-	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09111-508-0	01	1	0603-1112		●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	0-91111-508-0	01	1	1201-		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	0812-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-007-0	01	1	0603-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	0812-1509	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28050-816-0	04	1	1510-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	0812-1509	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28050-825-0	04	1	1510-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	0812-1509	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M10X25 FLANGE	0-28781-025-0	02	1	0603-1112		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M10X20 FLANGE	0-28151-020-0	02	1	1201-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-0811		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO SHORT CHASSIS & LHD(CYZ6MC) TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO LONG CHASSIS & LHD(CYZ6MF) POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-	●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-027-0	01	1	0812-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09800-259-0	01	1	0812-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09800-260-0	01	1	0812-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) JTEKT	1-09810-233-0	01	1	0812-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) NSK	1-09810-234-0	01	1	0812-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09811-397-0	02	1	0812-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-97012-835-0	01	1	0812-	●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-057-0	01	1	0812-	●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38241-104-0	01	1	0812-	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=57.9	9-09180-562-0	01	1	0812-1509	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	0-91800-762-0	01	1	1510-	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09588-168-0	01	1	0603-		●
132	PISTON; CYL,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-010-0	01	1	0812-	●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09588-199-0	01	1	0812-	●
189	CHAIN; DRIVE,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-082-1	01	1	0812-	●
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38152-020-0	01	1	0812-	●
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38152-021-0	01	1	0812-	●
191	SPRING; SLEEVE,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-005-0	01	1	0812-	●
192	COVER; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	0812-1509	●
192	COVER; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	1510-	●
193	RETAINER; SPRING TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-056-0	01	1	0812-	●

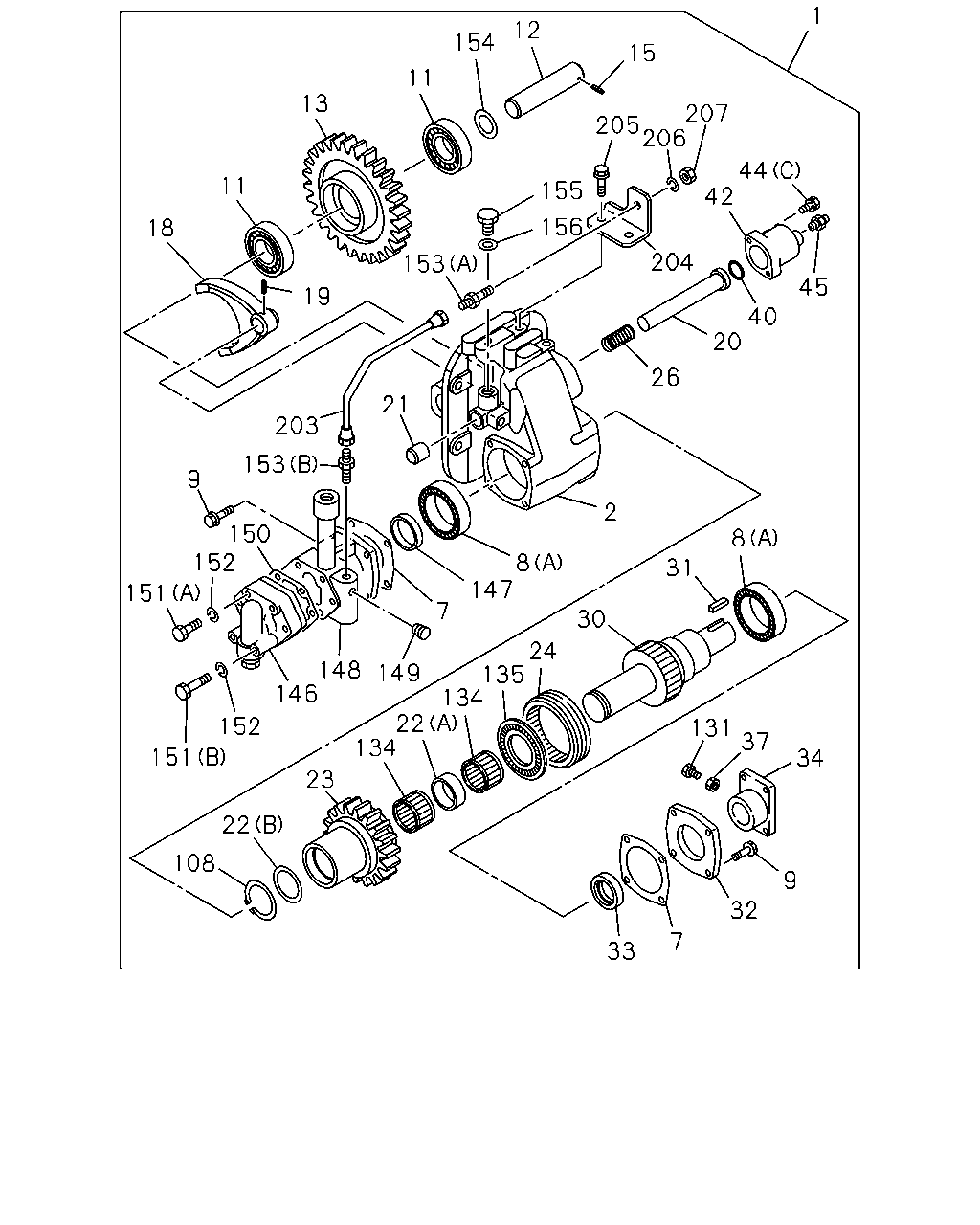

1 12 154 15 11 13 207 205 206 44 42 11 155 156 18 204 153 45 19 40 20 26 21 203 153 9 2 150 152 8 8 147 31 151 7 30 24 135 134 22 134 148 146 149 152 131 37 151 34 23 22 108 9 32 7 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-315-2	01	1	0812-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-317-2	01	1	0603-1112		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98185-658-0	01	1	1201-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	0812-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-093-0	01	1	0603-1112		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98186-096-0	01	1	1201-		●
7	GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-002-0	02	1	0603-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) JTEKT	1-09810-231-0	01	1	0812-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) NSK	1-09810-232-0	01	1	0812-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-233-0	01	1	0812-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-234-0	01	1	0812-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09800-208-0	02	1	0603-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE	0-28781-025-0	08	1	0603-1112		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	0-28151-020-0	08	1	1201-		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK	9-00093-173-0	02	1	0603-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-026-0	01	1	0603-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36	1-38241-004-0	01	1	0603-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	0603-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-034-0	01	1	0603-1112		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-026-0	01	1	1201-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09878-614-0	01	1	0603-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-056-1	01	1	0603-1112		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98186-097-0	01	1	1201-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-33545-001-0	01	1	0603-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38226-050-0	01	1	0603-		●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38226-051-0	01	1	0603-		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=24	1-38241-071-0	01	1	0603-		●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38225-009-0	01	1	0812-1509	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98240-289-0	01	1	1510-	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38225-002-0	01	1	0603-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	0603-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	0812-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-012-0	01	1	0603-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-08050-732-0	01	1	0603-		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38161-001-0	01	1	0603-		●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	0812-1509	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98240-288-0	01	1	1510-	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98028-792-0	01	1	0603-		●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	0812-1509	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-771-0	01	1	1510-	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-013-1	01	1	0603-		●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	0812-1509	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	8-98037-772-0	01	1	1510-	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09111-508-0	01	1	0603-1112		●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	0-91111-508-0	01	1	1201-		●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	0603-		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	0812-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-007-0	01	1	0603-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	0812-1509	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28050-816-0	04	1	1510-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	0812-1509	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28050-825-0	04	1	1510-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	0812-1509	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M10X25 FLANGE	0-28781-025-0	02	1	0603-1112		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M10X20 FLANGE	0-28151-020-0	02	1	1201-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-0811		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO SHORT CHASSIS & LHD(CYZ6MC) TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO LONG CHASSIS & LHD(CYZ6MF) POWER DRIVE(E5Q),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=57.9	9-09180-562-0	01	1	0812-1509	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	0-91800-762-0	01	1	1510-	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09588-168-0	01	1	0603-		●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20	0-20800-820-0	01	1	0603-1112		●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20	0-20850-820-0	01	1	1201-		●
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09811-322-0	02	1	0603-		●
135	BEARING; THRUST,OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09810-165-0	01	1	0603-		●
146	PUMP ASM; OIL,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34150-038-1	01	1	0603-1112		●
146	PUMP ASM; OIL,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98186-098-0	01	1	1201-		●
147	PLUG; OIL PUMP,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09600-066-0	01	1	0603-		●
148	ADAPTER; OIL PUMP,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38523-007-0	01	1	0603-		●
149	PLUG; ADAPTER,OIL PUMP TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09205-513-0	01	1	0603-1112		●
149	PLUG; ADAPTER,OIL PUMP TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	1-09605-019-0	01	1	1201-		●
150	GASKET; OIL PUMP TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-014-0	01	1	0603-		●
151	BOLT; OIL PUMP TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X55	0-10805-855-0	02	1	0603-1112		●
151	BOLT; OIL PUMP TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X50 FLANGE	0-28050-850-0	02	1	1201-		●
151	BOLT; OIL PUMP TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X70	0-10805-870-0	02	1	0603-1112		●
151	BOLT; OIL PUMP TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X60 FLANGE	0-28050-860-0	02	1	1201-		●
152	WASHER; LK,OIL PUMP TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.2	9-09150-508-0	04	1	0603-1112		●
153	CONNECTOR; OIL PUMP TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09654-382-0	01	1	0603-1112		●
153	CONNECTOR; OIL PUMP TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98047-565-0	01	1	1201-		●
153	CONNECTOR; OIL PUMP TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0603-1112		●
153	CONNECTOR; OIL PUMP TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1201-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.00	1-38216-011-0	02	1	0603-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.10	1-38216-012-0	02	1	0603-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.15	1-38216-013-0	02	1	0603-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.25	1-38216-014-0	02	1	0603-		●
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.35	1-38216-015-0	02	1	0603-		●
155	PLUG; SHIFTER ROD TRANSMISSION SIDE PTO WO/LEVER(SH5) M14X9	9-99202-314-0	01	1	0603-1112		●
156	GASKET; PLUG,SHIFTER ROD TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2 OD=20.0	9-09571-414-0	01	1	0603-1112		●
203	PIPE ASM; PTO,TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-32571-142-0	01	1	0603-1112		●
203	PIPE ASM; PTO,TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98047-564-0	01	1	1201-		●
204	BRACKET; PIPE,PTO,TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-32579-012-0	01	1	0603-1112		●
204	BRACKET; PIPE,PTO,TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98047-563-0	01	1	1201-		●
205	BOLT; BRKT,PTO,TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE	0-28781-025-0	02	1	0603-1112		●
205	BOLT; BRKT,PTO,TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	0-28151-020-0	02	1	1201-		●
206	WASHER; BRKT,PTO,TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.2	9-09150-516-0	01	1	0603-1112		●
206	WASHER; BRKT,PTO,TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.2	0-91510-816-0	01	1	1201-		●
207	NUT; BRKT,PTO,TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	9-99111-416-0	01	1	0603-1112		●
207	NUT; BRKT,PTO,TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	0-91111-516-0	01	1	1201-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
